> Going to the Runoffs, Upgrading my engine (pictures)
ChrisFoley
post Sep 7 2003, 11:23 AM
Post #41


I am Tangerine Racing
*****

Group: Members
Posts: 7,937
Joined: 29-January 03
From: Bolton, CT
Member No.: 209
Region Association: None

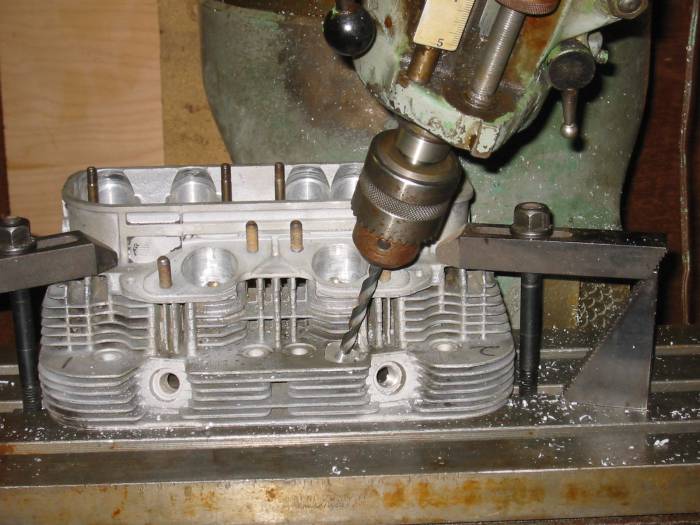

Here's the head being drilled.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ChrisFoley
post Sep 7 2003, 11:25 AM
Post #42


I am Tangerine Racing
*****

Group: Members
Posts: 7,937
Joined: 29-January 03
From: Bolton, CT
Member No.: 209
Region Association: None

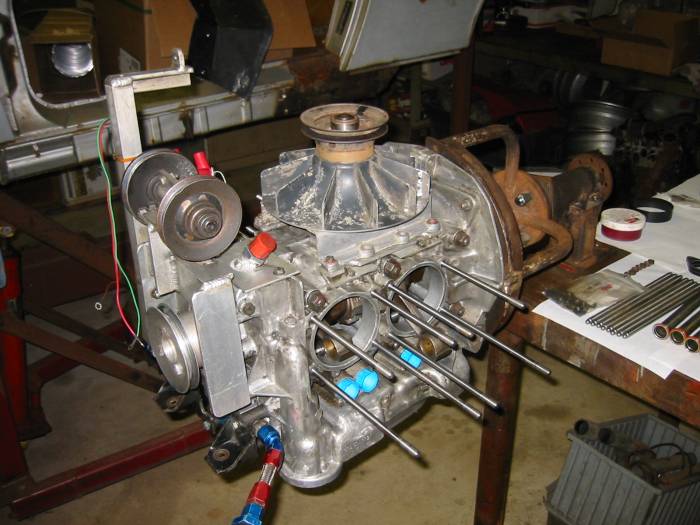

The block is ready for the top end assembly.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ChrisFoley
post Sep 7 2003, 11:26 AM
Post #43


I am Tangerine Racing
*****

Group: Members
Posts: 7,937
Joined: 29-January 03
From: Bolton, CT
Member No.: 209
Region Association: None

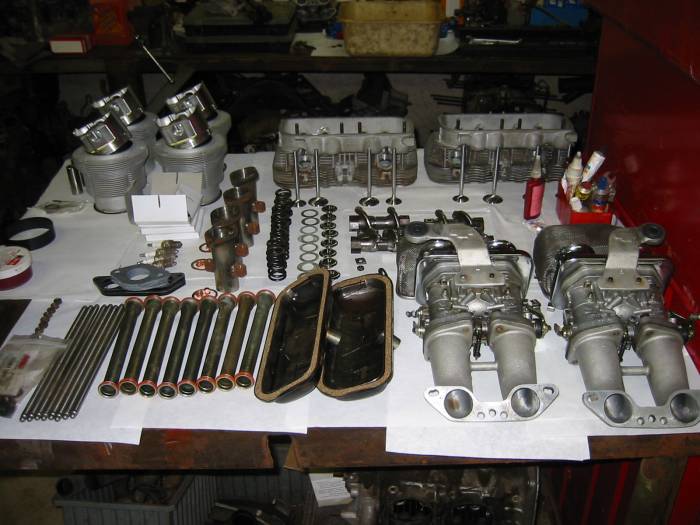

I think I have everything clean and ready, so here goes!


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
seanery
post Sep 7 2003, 11:30 AM
Post #44


waiting to rebuild whitey!
***************

Group: Retired Admin
Posts: 15,854
Joined: 7-January 03
From: Indy
Member No.: 100
Region Association: None
Are all those pully's and angles for the belt inefficient?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rhodyguy
post Sep 7 2003, 12:00 PM
Post #45


Chimp Sanctuary NW. Check it out.
***************

Group: Members
Posts: 22,126
Joined: 2-March 03
From: Orion's Bell. The BELL!
Member No.: 378
Region Association: Galt's Gulch
chris, got a picture of your carb linkage installed? what's the brand? looks pretty stout.

kevin
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ChrisFoley
post Sep 7 2003, 09:10 PM
Post #46


I am Tangerine Racing
*****

Group: Members
Posts: 7,937
Joined: 29-January 03
From: Bolton, CT
Member No.: 209
Region Association: None
QUOTE(seanery @ Sep 7 2003, 01:30 PM)
Are all those pully's and angles for the belt inefficient?

nope.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ChrisFoley
post Sep 7 2003, 09:13 PM
Post #47


I am Tangerine Racing
*****

Group: Members
Posts: 7,937
Joined: 29-January 03
From: Bolton, CT
Member No.: 209
Region Association: None

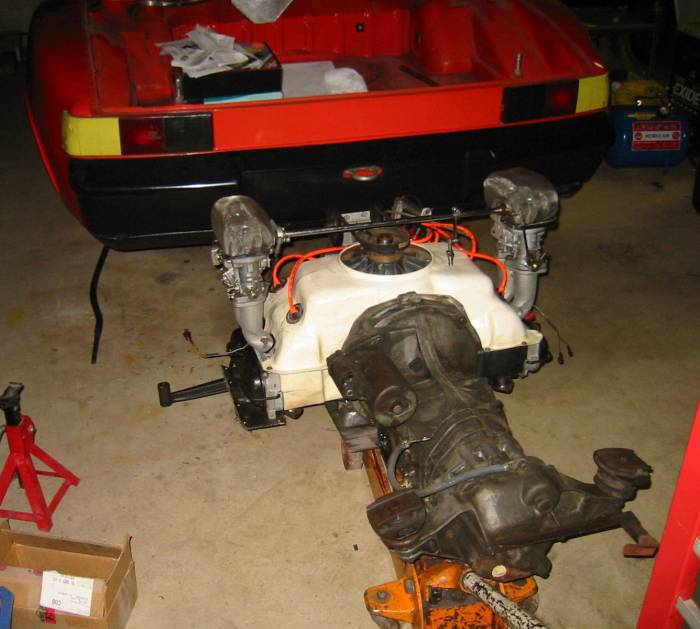

Assembly complete. Installation tomorrow. Dyno Tuesday.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ChrisFoley
post Sep 7 2003, 09:15 PM
Post #48


I am Tangerine Racing
*****

Group: Members
Posts: 7,937
Joined: 29-January 03
From: Bolton, CT
Member No.: 209
Region Association: None
QUOTE(rhodyguy @ Sep 7 2003, 02:00 PM)
chris, got a picture of your carb linkage installed? what's the brand? looks pretty stout.

kevin

The linkage was purchased with a set of 40IDFs back in the '80s by my brother Charley. It came from Red Lion in CA. (don't think they are around anymore)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Aaron Cox
post Sep 7 2003, 09:52 PM
Post #49


Professional Lawn Dart
***************

Group: Retired Admin
Posts: 24,541
Joined: 1-February 03
From: OC
Member No.: 219
Region Association: Southern California
(IMG:style_emoticons/default/confused24.gif) red lion? could it have been red-line? red line is like the west coast weber distributor
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Brad Roberts
post Sep 8 2003, 12:17 AM
Post #50


914 Freak!
***************

Group: Members
Posts: 19,148
Joined: 23-December 02
Member No.: 8
Region Association: None
Chris.. dont mean to be a nit pick.. but you dont *really* run rubber tranny mounts do you ??



B
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
redshift
post Sep 8 2003, 12:40 AM
Post #51


Bless the Hell out of you!
**********

Group: Members
Posts: 10,926
Joined: 29-June 03
Member No.: 869
Man! It's cool! That looks cool!



M
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ChrisFoley
post Sep 8 2003, 05:31 AM
Post #52


I am Tangerine Racing
*****

Group: Members
Posts: 7,937
Joined: 29-January 03
From: Bolton, CT
Member No.: 209
Region Association: None
QUOTE(Brad Roberts @ Sep 8 2003, 02:17 AM)
Chris.. dont mean to be a nit pick.. but you dont *really* run rubber tranny mounts do you ??



B

I switched back to them after getting pissed for the last time at the POS Weltmeister solid mounts.
The front motor mounts are aluminum blocks.
I might have a pair of 911 (914 sport) mounts somewhere.
I'm not comfortable with the thought of solid mounts at both ends. (Maybe I should just get over it.)

Aaron, yes it was red Lion. I think they advertised in VW and Porsche magazine back in those days.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ChrisFoley
post Sep 8 2003, 05:36 AM
Post #53


I am Tangerine Racing
*****

Group: Members
Posts: 7,937
Joined: 29-January 03
From: Bolton, CT
Member No.: 209
Region Association: None
QUOTE(redshift @ Sep 8 2003, 02:40 AM)
Man! It's cool! That looks cool!



M

Thanks! It had better go like stink too, or I'm gonna be very depressed.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Brad Roberts
post Sep 8 2003, 09:37 AM
Post #54


914 Freak!
***************

Group: Members
Posts: 19,148
Joined: 23-December 02
Member No.: 8
Region Association: None
I gotcha. The Weltmeister plastic crap does suck (they compress too esily). We run aluminum blocks.

Man.. that fan shroud looks COOL.

I'm a little concerned that you dont have enough crank case ventilation. Every EP/FP car I have seen has a huge radiator style hose going into the top of the block and into a breather box mounted in the trunk.

B
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ChrisFoley
post Sep 8 2003, 12:55 PM
Post #55


I am Tangerine Racing
*****

Group: Members
Posts: 7,937
Joined: 29-January 03
From: Bolton, CT
Member No.: 209
Region Association: None
QUOTE(Brad Roberts @ Sep 8 2003, 11:37 AM)
I'm a little concerned that you dont have enough crank case ventilation.

There's a 3/4"id hose from both valve covers and a -10an line from the top of the case. They all go into a custom aluminum box filled with fuel cell foam in the trunk that has a breather element on top. There's never any oil residue in the trunk. Also the dry sump pump helps pull pressure out of the case. The an line from the top of the case is also an automatic drain back feature.
My plan is to run a 3 stage external pump to pull on the valve covers and scavenge the case, and switch back to a single stage pump in the stock location.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ChrisFoley
post Sep 8 2003, 01:11 PM
Post #56


I am Tangerine Racing
*****

Group: Members
Posts: 7,937
Joined: 29-January 03
From: Bolton, CT
Member No.: 209
Region Association: None

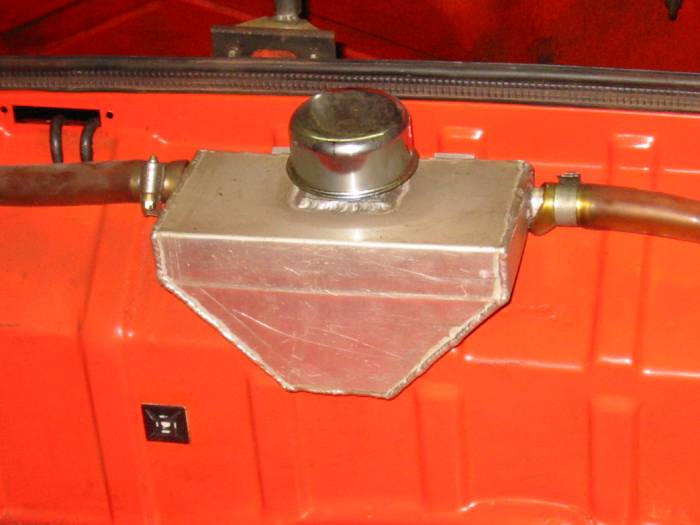

Here's a pic of the breather tank


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ChrisFoley
post Sep 8 2003, 01:12 PM
Post #57


I am Tangerine Racing
*****

Group: Members
Posts: 7,937
Joined: 29-January 03
From: Bolton, CT
Member No.: 209
Region Association: None

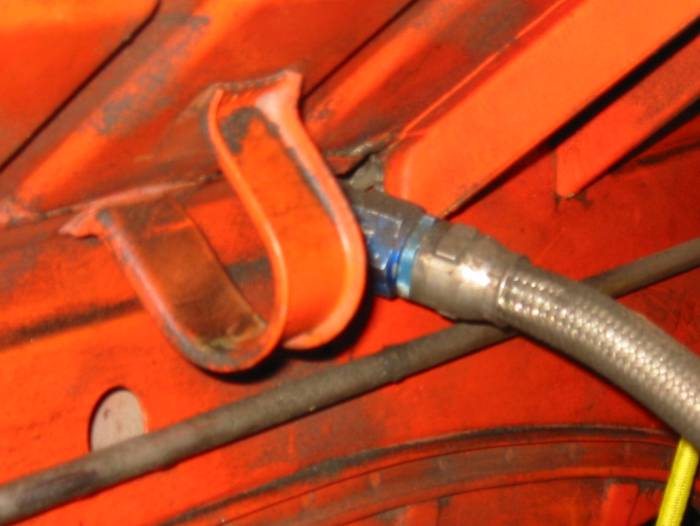

and the return line.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ChrisFoley
post Sep 8 2003, 08:01 PM
Post #58


I am Tangerine Racing
*****

Group: Members
Posts: 7,937
Joined: 29-January 03
From: Bolton, CT
Member No.: 209
Region Association: None
IT RUNS!
I timed it to 33 deg total advance. I don't know much about the Mallory distributor yet so I'll probably have to fiddle with it a bit more.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Brad Roberts
post Sep 8 2003, 10:38 PM
Post #59


914 Freak!
***************

Group: Members
Posts: 19,148
Joined: 23-December 02
Member No.: 8
Region Association: None
Great NEWS Chris (IMG:style_emoticons/default/clap56.gif) I only noticed one -10 line at the oil filler area...thanks for clearing that up for me. You nailed the hot ticket.. use the scavenge from the dry sump setup to pull a vacuum on the engine.



B
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
campbellcj
post Sep 8 2003, 11:00 PM
Post #60


I can't Re Member
****

Group: Members
Posts: 4,557
Joined: 26-December 02
From: Agoura, CA
Member No.: 21
Region Association: Southern California
Looks sweet Chris! Almost makes me miss the Type4 (almost...nah) (IMG:style_emoticons/default/wink.gif)


So where does one get truly solid trans mounts i.e. the alloy blocks? I was appalled when I ordered "solid" mounts and received these Welt things which are chunks of urethane or something.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
