> Another 911 E-Brake Conversion
thesey914
post Oct 26 2003, 11:07 AM
Post #61


Senior Member
***

Group: Benefactors
Posts: 1,155
Joined: 1-January 03
From: Staffordshire -England
Member No.: 66
QUOTE(Eric_Shea @ Oct 26 2003, 07:14 AM)
This will probably be the last post on this subject (I can hear the collective sigh of relief).

(IMG:style_emoticons/default/laugh.gif) This is the best thread I have followed in ages....The greater technical content the better.

I reckon this qualifies as classic thread status
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Oct 26 2003, 11:27 AM
Post #62


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
Very well done and quite inspiring. Yes, a classic thread.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jim_hoyland
post Aug 5 2022, 01:01 PM
Post #63


Get that VIN ?
*****

Group: Members
Posts: 9,512
Joined: 1-May 03
From: Sunset Beach, CA
Member No.: 643
Region Association: Southern California
Curious: anybody else do the eBrake conversion and whether there’s an alternative
User is online!Profile CardPM
Go to the top of the page
+Quote Post
waltonsm
post Aug 5 2022, 01:14 PM
Post #64


Member
**

Group: Members
Posts: 92
Joined: 27-June 14
From: United States
Member No.: 17,561
Region Association: Pacific Northwest
QUOTE(jim_hoyland @ Aug 5 2022, 12:01 PM) *

Curious: anybody else do the eBrake conversion and whether there’s an alternative


On my build I used boxster hubs, brakes and e brake hardware. Pics of the trailing arm fab are here in post 50:

http://www.914world.com/bbs2/index.php?sho...6435&st=40#
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
porschetub
post Aug 5 2022, 03:57 PM
Post #65


Advanced Member
****

Group: Members
Posts: 4,729
Joined: 25-July 15
From: New Zealand
Member No.: 18,995
Region Association: None
QUOTE(jim_hoyland @ Aug 6 2022, 07:01 AM) *

Curious: anybody else do the eBrake conversion and whether there’s an alternative

Jim I seem to remember a member on here welded on brackets and ran Wilwood handbrake calipers,these are fairly small units and it looked like a tidy solution.
I liked this as another option and possibly easier than the 911 setup which I have.
I found out to my displeasure and expense the PO had fitted this system without the weld on shoe retainers ,went for a drive to test h/brake and demolished the backplate and both shoe retainers and springs on one side (IMG:style_emoticons/default/chair.gif) (IMG:style_emoticons/default/chair.gif) ,used parts for these are hardly cheap but atleast I was able to repair the backing plate but was still fairly pissed off.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Retroracer
post Aug 5 2022, 04:43 PM
Post #66


Senior Member
***

Group: Members
Posts: 621
Joined: 7-July 13
From: Bend OR
Member No.: 16,100
Region Association: Pacific Northwest
QUOTE(jim_hoyland @ Aug 5 2022, 12:01 PM) *

Curious: anybody else do the eBrake conversion and whether there’s an alternative


Jim - yes, FWIW. Done with a Carrera vented rear set up. I used the Tangerine Racing kit for modifying the arms + handbrake cable routing - worked out nicely and retains the stock cables.

- Tony
User is online!Profile CardPM
Go to the top of the page
+Quote Post
mepstein
post Aug 5 2022, 05:27 PM
Post #67


914-6 GT in waiting
***************

Group: Members
Posts: 19,592
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region
QUOTE(Retroracer @ Aug 5 2022, 06:43 PM) *

QUOTE(jim_hoyland @ Aug 5 2022, 12:01 PM) *

Curious: anybody else do the eBrake conversion and whether there’s an alternative


Jim - yes, FWIW. Done with a Carrera vented rear set up. I used the Tangerine Racing kit for modifying the arms + handbrake cable routing - worked out nicely and retains the stock cables.

- Tony

The tangerine kit is the way to go. Weld on a couple little bits and use your stock cables. It’s already developed so you don’t have to experiment.
That being said, if you have a narrow body four, I would stick with stock rears.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914GTSTI
post Aug 5 2022, 06:07 PM
Post #68


Member
**

Group: Members
Posts: 270
Joined: 16-September 07
From: Glendale AZ
Member No.: 8,123
Region Association: None
Is their a list of parts when going with the Tangerine Racing system ? Rotors, calipers ?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post Aug 5 2022, 06:27 PM
Post #69


914-6 GT in waiting
***************

Group: Members
Posts: 19,592
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region
QUOTE(914GTSTI @ Aug 5 2022, 08:07 PM) *

Is their a list of parts when going with the Tangerine Racing system ? Rotors, calipers ?

You need 911 e-brake parts and whatever rotors fit your calipers of choice.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Aug 5 2022, 09:27 PM
Post #70


Resident German
*************************

Group: Admin
Posts: 41,889
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
Holy mother of thread necromancy!
(IMG:style_emoticons/default/blink.gif)

Almost 20 years ...
(IMG:style_emoticons/default/unsure.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
The Double S
post Aug 6 2022, 10:44 AM
Post #71


Member
**

Group: Members
Posts: 93
Joined: 8-October 19
From: Upland, CA
Member No.: 23,545
Region Association: Southern California
Is the square bolt pattern on the backing plates the same for all pre-1989 non-turbo 911s?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post Aug 6 2022, 03:33 PM
Post #72


914-6 GT in waiting
***************

Group: Members
Posts: 19,592
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region
I believe so.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
73-914
post Aug 6 2022, 03:43 PM
Post #73


Senior Member
***

Group: Members
Posts: 597
Joined: 24-April 10
From: Albany UpstateNY
Member No.: 11,651
Region Association: None
QUOTE(SirAndy @ Aug 5 2022, 11:27 PM) *

Holy mother of thread necromancy!
(IMG:style_emoticons/default/blink.gif)

Almost 20 years ...
(IMG:style_emoticons/default/unsure.gif)

Glad you said it, I was thinking the same thing (IMG:style_emoticons/default/agree.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ClayPerrine
post Aug 7 2022, 07:06 AM
Post #74


Life's been good to me so far.....
***************

Group: Admin
Posts: 15,901
Joined: 11-September 03
From: Hurst, TX.
Member No.: 1,143
Region Association: NineFourteenerVille
QUOTE(porschetub @ Aug 5 2022, 04:57 PM) *

QUOTE(jim_hoyland @ Aug 6 2022, 07:01 AM) *

Curious: anybody else do the eBrake conversion and whether there’s an alternative

Jim I seem to remember a member on here welded on brackets and ran Wilwood handbrake calipers,these are fairly small units and it looked like a tidy solution.
I liked this as another option and possibly easier than the 911 setup which I have.
I found out to my displeasure and expense the PO had fitted this system without the weld on shoe retainers ,went for a drive to test h/brake and demolished the backplate and both shoe retainers and springs on one side (IMG:style_emoticons/default/chair.gif) (IMG:style_emoticons/default/chair.gif) ,used parts for these are hardly cheap but atleast I was able to repair the backing plate but was still fairly pissed off.



The late Wes Hildreth did this for a 914 owner named Mike Floyd ( @old914dog ). It did not work out well. Setting the park brake with the rotors hot resulted in the pads sticking to the rotors, and it took a hammer and some pounding to get the park brake to release.

The 911 style park brake is the way to go.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jim_hoyland
post Aug 7 2022, 10:47 AM
Post #75


Get that VIN ?
*****

Group: Members
Posts: 9,512
Joined: 1-May 03
From: Sunset Beach, CA
Member No.: 643
Region Association: Southern California

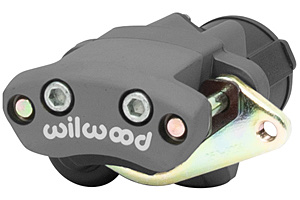

Any info on the Wilwood electric parking brake kit ?
https://www.wilwood.com/Calipers/CaliperLis...Parking%20Brake


Attached image(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
