 installing new wiring harness thru firewall, where to drill holes for passthru? |
|
|
|
Porsche, and the Porsche crest are registered trademarks of Dr. Ing. h.c. F. Porsche AG.
This site is not affiliated with Porsche in any way. Its only purpose is to provide an online forum for car enthusiasts. All other trademarks are property of their respective owners. |
|
|
  |
| mightyohm |
 Apr 2 2006, 04:28 PM
Post
#1
|
|
Advanced Member  Group: Benefactors Posts: 2,277 Joined: 16-January 03 From: Seattle, WA Member No.: 162 Region Association: Pacific Northwest   |
I am working on a Megasquirt conversion and I need to pass a 1" diameter harness and a smaller vacuum line into the passenger compartment to my ECU box which will sit in between the seats.

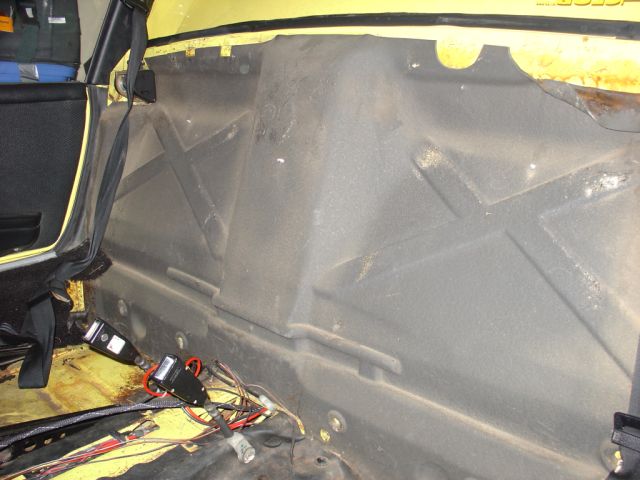

I am looking for advice on where to punch thru the firewall. I am hoping to keep the stock backpad in place with as little modification as possible. One question I have, is where is the firewall a sandwich of 2 layers of metal, and where is it single layer? Does it roughly correspond with the crease just over 3/4 of the way down? I would like to avoid this area if possible. My current plan is to drill a hole in the center between the seats, a few inches above the sharp ridge shown in the picture, and then run the cable down under the backpad to my ECU box. That should allow the harness to come in from the engine compartment without having to go down through the engine tin. Comments or suggestions? Can anyone draw a line where the sheet metal goes from 1 layer to 2 on the photo? Attached image(s)
|
   |

|
| mightyohm |
Apr 2 2006, 04:30 PM
Post
#2
|
|
Advanced Member Group: Benefactors Posts: 2,277 Joined: 16-January 03 From: Seattle, WA Member No.: 162 Region Association: Pacific Northwest |

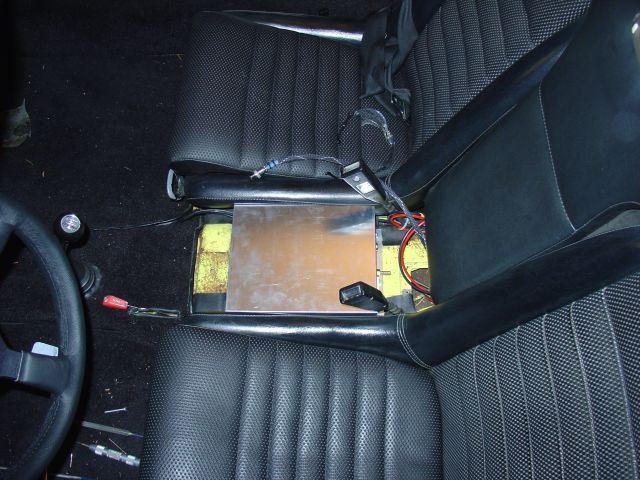

Here is the ECU box.
Attached image(s)
|
|
|
|
| mightyohm |
Apr 2 2006, 04:31 PM
Post
#3
|
|
Advanced Member Group: Benefactors Posts: 2,277 Joined: 16-January 03 From: Seattle, WA Member No.: 162 Region Association: Pacific Northwest |

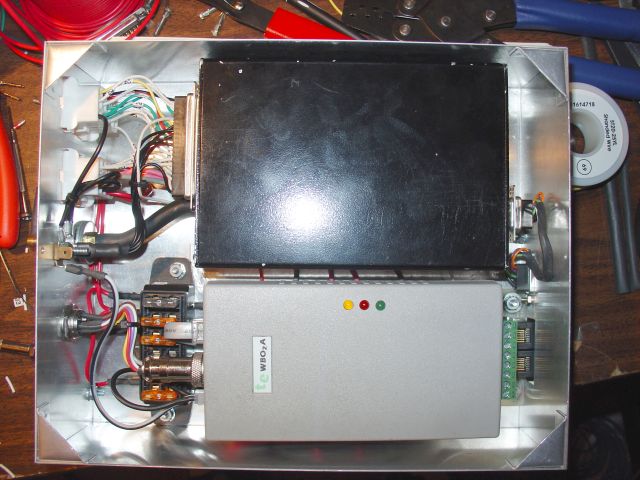

contents of the box...
Megasquirt V2.2 board and a Tech Edge WBO2 controller. Attached image(s)
|
|
|
|
| mightyohm |
Apr 2 2006, 04:33 PM
Post
#4
|
|
Advanced Member Group: Benefactors Posts: 2,277 Joined: 16-January 03 From: Seattle, WA Member No.: 162 Region Association: Pacific Northwest |

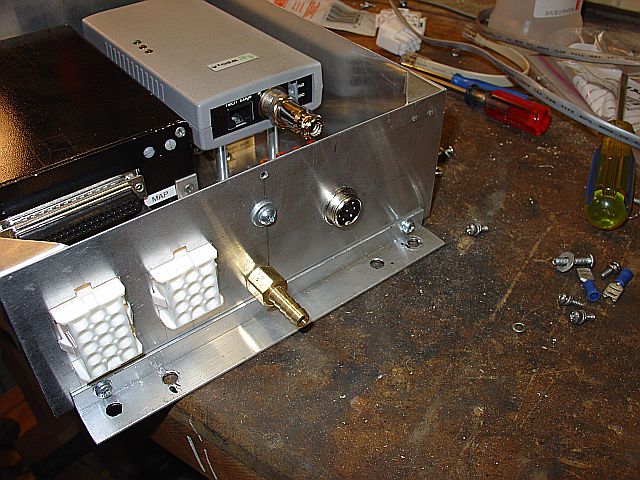

AMP Mate-n-lock connectors used for the harness.
Attached image(s)
|
|
|
|
| mightyohm |
Apr 3 2006, 01:36 AM
Post
#5
|
|
Advanced Member Group: Benefactors Posts: 2,277 Joined: 16-January 03 From: Seattle, WA Member No.: 162 Region Association: Pacific Northwest |
bump
|
|
|
|
| jonwatts |
Apr 3 2006, 01:49 AM
Post
#6
|
|
no rules, just wrong Group: Benefactors Posts: 2,321 Joined: 13-January 03 From: San Jose, CA Member No.: 141 |
Jeff, I have a center tunnel with some of the firewall still attached. I'll take a look at it tomorrow and see if I can give you a definite answer.
|
|
|
|
| yarin |
Apr 3 2006, 05:18 AM
Post
#7
|
|
'14-X'in FOOL Group: Members Posts: 988 Joined: 13-May 03 From: Guttenberg, NJ Member No.: 693 Region Association: North East States |
Wow... excellent work! I Really like how clean and thought out your install is. Great choice of connectors too, your connections should be 100% reliable!
The factory hole is about 1.5", but its 1/2 occupied. I managed to route my MS bundle through there, unterminated though. |
|
|
|
| crash914 |
Apr 3 2006, 05:51 AM
Post
#8
|
|
its a mystery to me Group: Members Posts: 1,828 Joined: 17-March 03 From: Marriottsville, MD Member No.: 434 Region Association: MidAtlantic Region |
I drilled my hole in the dented circle shown in the lower left of your picture...Yes it is two thicknesses of metal, but it works.
I also mounted the ms box to the fire wall behind the passenger seat and put the tech edge box under the passenger seat...works ok... |
|
|
|
| tdsmoonchild |
Apr 3 2006, 07:01 AM
Post
#9
|
||
|
Terry Group: Members Posts: 197 Joined: 18-January 06 From: Duncanville,TX Member No.: 5,431 |
Looks real nice! |
||
|
|
|
||
| McMark |
Apr 3 2006, 11:34 AM
Post
#10
|
|
914 Freak! Group: Retired Admin Posts: 20,179 Joined: 13-March 03 From: Grand Rapids, MI Member No.: 419 Region Association: None |

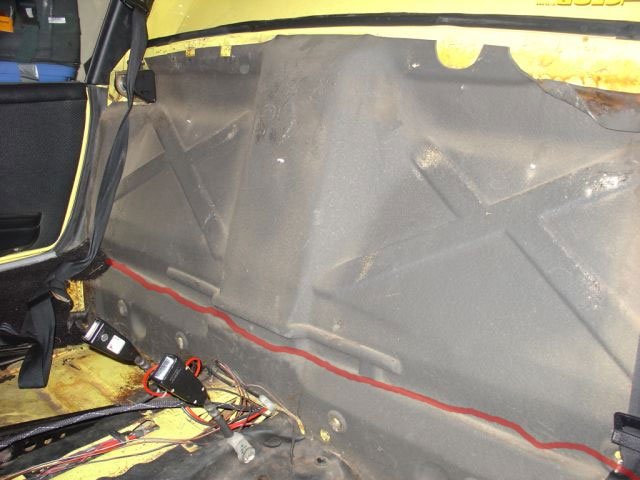

Double walled below the line. Single wall above. I would try to pop the lines through in the center, just above the center tunnel.
Attached image(s)
|
|
|
|
| mightyohm |
Apr 3 2006, 12:56 PM
Post
#11
|
|
Advanced Member Group: Benefactors Posts: 2,277 Joined: 16-January 03 From: Seattle, WA Member No.: 162 Region Association: Pacific Northwest |
Thanks for the illustration, Mark. Looks like in order to avoid having to deal with the 2 layer section I will have to run the cables down the firewall a few inches on the inside of the cabin. Should be no problem if I modify the backpad a little bit.
|
|
|
|
|
