> Sway Bars, do I have everything?
seanery
post Sep 24 2003, 09:17 PM
Post #1


waiting to rebuild whitey!
***************

Group: Retired Admin
Posts: 15,854
Joined: 7-January 03
From: Indy
Member No.: 100
Region Association: None

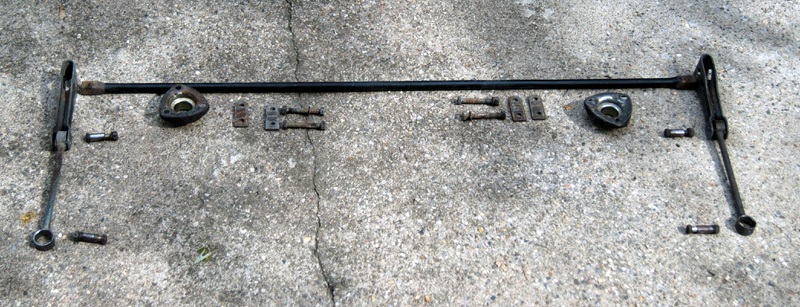

This is what I have for the front. My car did not have bars installed before. I have a UTab kit as well as what you see here.
What do the 4 small tabs do?


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
seanery
post Sep 24 2003, 09:21 PM
Post #2


waiting to rebuild whitey!
***************

Group: Retired Admin
Posts: 15,854
Joined: 7-January 03
From: Indy
Member No.: 100
Region Association: None
Rear. I have the mounting brackets coming.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
-P-
post Sep 24 2003, 09:30 PM
Post #3


P-Factor
**

Group: Members
Posts: 207
Joined: 1-July 03
From: Dallas, TX
Member No.: 873
I only count 2 bolts for the triangle mounts per side and wouldnt the drop links need bushings?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
seanery
post Sep 24 2003, 09:47 PM
Post #4


waiting to rebuild whitey!
***************

Group: Retired Admin
Posts: 15,854
Joined: 7-January 03
From: Indy
Member No.: 100
Region Association: None
complete bushing set is coming. New hardware replaces all old hardware except on bottom shock mount.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeffs9146
post Sep 24 2003, 10:27 PM
Post #5


Ski Bum
****

Group: Members
Posts: 4,062
Joined: 10-January 03
From: Discovery Bay, Ca
Member No.: 128
Are you going to use an inside bracket?

Jeff


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
seanery
post Sep 24 2003, 11:18 PM
Post #6


waiting to rebuild whitey!
***************

Group: Retired Admin
Posts: 15,854
Joined: 7-January 03
From: Indy
Member No.: 100
Region Association: None
You're thread got me asking this question. I think that may be the only thing I'm missing.
I'll need to get some of those.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Bruce Allert
post Sep 24 2003, 11:44 PM
Post #7


Hellions asleep
****

Group: Members
Posts: 3,289
Joined: 19-March 03
From: Eagle Creek, Orygun
Member No.: 441
Region Association: Pacific Northwest
I made mine. Just found some steel the same thickness as the outside mounts & cut them with a jig saw then drilled the holes. The lower hole was the tricky one tho. Had to use AB epoxy to hold the nut to the plate while I screwed the bolt in from the fender well... and it worked (IMG:style_emoticons/default/beer.gif)
bruce
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JWest
post Sep 25 2003, 06:53 AM
Post #8


Senior Member
***

Group: Members
Posts: 1,662
Joined: 6-January 03
From: Fort Worth, TX
Member No.: 97
Region Association: None
The four small tabs go in the arm at the end of the bar to clamp it to the square end. This is a lousy drawing but they are #30:


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
seanery
post Sep 25 2003, 07:29 AM
Post #9


waiting to rebuild whitey!
***************

Group: Retired Admin
Posts: 15,854
Joined: 7-January 03
From: Indy
Member No.: 100
Region Association: None
Does it go inboard, outboard or in the middle of part #28?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JWest
post Sep 25 2003, 07:52 AM
Post #10


Senior Member
***

Group: Members
Posts: 1,662
Joined: 6-January 03
From: Fort Worth, TX
Member No.: 97
Region Association: None
Here is a better pic:


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
seanery
post Sep 25 2003, 07:54 AM
Post #11


waiting to rebuild whitey!
***************

Group: Retired Admin
Posts: 15,854
Joined: 7-January 03
From: Indy
Member No.: 100
Region Association: None
so inside the #28 part. That makes sense. I was trying to figure out how that part didn't come off!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Van914
post Sep 25 2003, 02:30 PM
Post #12


Van914
***

Group: Members
Posts: 702
Joined: 5-January 03
From: Cincinnati, Ohio
Member No.: 90
Region Association: Upper MidWest
Sean, (IMG:style_emoticons/default/smash.gif)
Get busy its been 4 days since you picked up the sway bar. Get it in the car.
Also there is a guy in New Albany, In. who is making the reinforcement plates. I will find his email for you.
Van
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeff Bonanno
post Sep 25 2003, 04:53 PM
Post #13


il dottore
**

Group: Members
Posts: 421
Joined: 30-April 03
From: San Diego, CA
Member No.: 636
the guy in new albany has them listed in the resources page:

engman's plates
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
seanery
post Sep 25 2003, 06:12 PM
Post #14


waiting to rebuild whitey!
***************

Group: Retired Admin
Posts: 15,854
Joined: 7-January 03
From: Indy
Member No.: 100
Region Association: None
I ordered his plates as soon as James posted his.
I'll pick them up at Doc & Cy's on Saturday.


Van,
I picked up all the sway bar stuff (F & R) from the blaster today and dropped them off at the powder coater.
I'm getting the brand & part # for the engine tin brad did for me and this stuff will match.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Bruce Allert
post Sep 25 2003, 06:38 PM
Post #15


Hellions asleep
****

Group: Members
Posts: 3,289
Joined: 19-March 03
From: Eagle Creek, Orygun
Member No.: 441
Region Association: Pacific Northwest
shor'du wish'd I'd've known 'bout dem plates fore I made mine. Geeze! dem's nice (IMG:style_emoticons/default/clap56.gif)
bruce
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
seanery
post Sep 14 2004, 02:29 PM
Post #16


waiting to rebuild whitey!
***************

Group: Retired Admin
Posts: 15,854
Joined: 7-January 03
From: Indy
Member No.: 100
Region Association: None
How long should the bolts be between the two "body mounts" ?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
seanery
post Sep 14 2004, 03:47 PM
Post #17


waiting to rebuild whitey!
***************

Group: Retired Admin
Posts: 15,854
Joined: 7-January 03
From: Indy
Member No.: 100
Region Association: None
I just got back from my local CAT dealer. Man, what an awesome vendor! (IMG:style_emoticons/default/smilie_pokal.gif) $3.81 worth of parts and they treat me like a million bucks. I got a couple pages from their parts catalog with part #'s and sizes I'll post later.

I went with 50mm for the above asked question. I hope that's big enough.
