The issue in the back was solved with the creative use of a BFH. (on a part that does'nt show, of course)

Back to the front, I did the final installation of the front cooler, this evening (August 8, 2006)

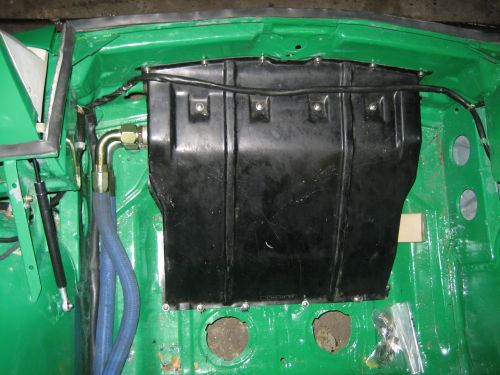

Here's a shot from above. A number of the fittings were custom made by a local hydraulics shop. Nice silver soldering of certain parts. Expensive, but appears to be worth it.




Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
michel richard
post Aug 8 2006, 06:37 PM
Post #102


Senior Member
***

Group: Members
Posts: 1,291
Joined: 22-July 03
From: Longueuil, Québec
Member No.: 936
And from the front:



Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
nomore9one4
post Aug 9 2006, 03:55 PM
Post #103


Member of the Eastcoast Thread Killers Club
****

Group: Members
Posts: 2,666
Joined: 26-December 02
From: Pittsburgh,Pa.15237
Member No.: 14
Region Association: None
What is this? Some sorta radical air intake? (IMG:style_emoticons/default/w00t.gif)


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
swl
post Aug 9 2006, 06:03 PM
Post #104


Senior Member
***

Group: Members
Posts: 1,409
Joined: 7-August 05
From: Kingston,On,Canada
Member No.: 4,550
Region Association: Canada
QUOTE(boboli914@att.net @ Aug 9 2006, 01:55 PM) *

What is this? Some sorta radical air intake? (IMG:style_emoticons/default/w00t.gif)


looks more like air exhaust to me
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
michel richard
post Aug 9 2006, 07:35 PM
Post #105


Senior Member
***

Group: Members
Posts: 1,291
Joined: 22-July 03
From: Longueuil, Québec
Member No.: 936
(IMG:style_emoticons/default/drunk.gif) (IMG:style_emoticons/default/av-943.gif)

I did have it coming.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Sparky
post Aug 9 2006, 10:44 PM
Post #106


Mahna Mahna!
***

Group: Members
Posts: 1,134
Joined: 21-June 03
From: Spencer, MA
Member No.: 847
(IMG:style_emoticons/default/drunk.gif) Offer to let them feel your nuts (IMG:style_emoticons/default/drunk.gif)

The car looks great, I hope to see it (and you) soon!

My best,
Mike D.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
michel richard
post Aug 10 2006, 07:55 AM
Post #107


Senior Member
***

Group: Members
Posts: 1,291
Joined: 22-July 03
From: Longueuil, Québec
Member No.: 936
Trying to make it to the ECR. A lot of things would need to be lined up, but I might be able to start the engine this weekend.

Michel
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
michel richard
post Aug 12 2006, 04:21 PM
Post #108


Senior Member
***

Group: Members
Posts: 1,291
Joined: 22-July 03
From: Longueuil, Québec
Member No.: 936
Finally finished all the oil plumbing.

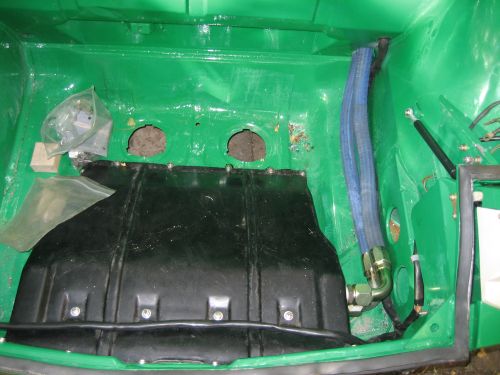

Here is the front trunk:


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
michel richard
post Aug 12 2006, 04:21 PM
Post #109


Senior Member
***

Group: Members
Posts: 1,291
Joined: 22-July 03
From: Longueuil, Québec
Member No.: 936

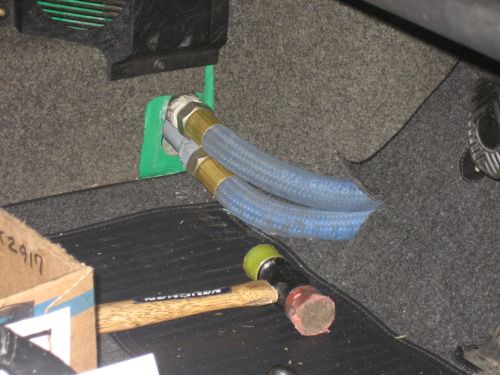

The oil lines come out in the driver footwell:


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
michel richard
post Aug 12 2006, 04:23 PM
Post #110


Senior Member
***

Group: Members
Posts: 1,291
Joined: 22-July 03
From: Longueuil, Québec
Member No.: 936

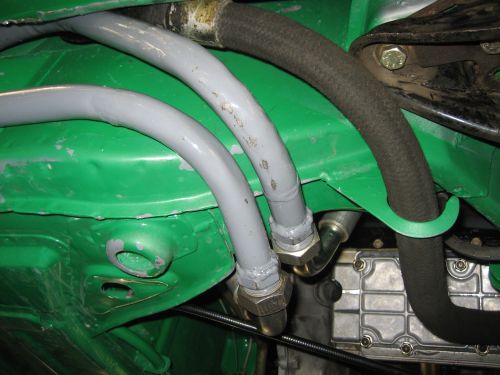

Across the left side longitudinal, and down the side of the car. I'll have to make a block-off plate to minimize water ingress where the hard lines go through the long.:
:



Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
michel richard
post Aug 12 2006, 04:24 PM
Post #111


Senior Member
***

Group: Members
Posts: 1,291
Joined: 22-July 03
From: Longueuil, Québec
Member No.: 936

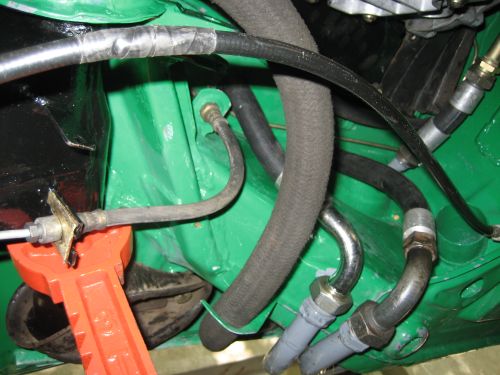

The hard lines tuck under the longitudinal, at the back, and connect to hoses. The hose with the cloth covering is the feed from the oil tank to the engine mounted oil cooler.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
michel richard
post Aug 12 2006, 04:26 PM
Post #112


Senior Member
***

Group: Members
Posts: 1,291
Joined: 22-July 03
From: Longueuil, Québec
Member No.: 936
Once inboard of the longitudinal, the hoses go up throught the engine shelf.



Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
michel richard
post Aug 12 2006, 04:27 PM
Post #113


Senior Member
***

Group: Members
Posts: 1,291
Joined: 22-July 03
From: Longueuil, Québec
Member No.: 936

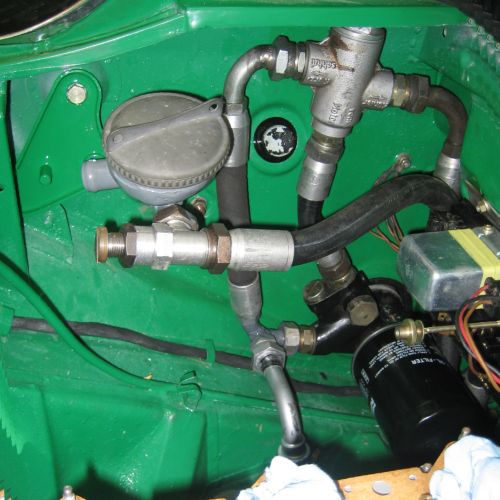

And reach the thermostat and oil console.



Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
michel richard
post Aug 12 2006, 04:30 PM
Post #114


Senior Member
***

Group: Members
Posts: 1,291
Joined: 22-July 03
From: Longueuil, Québec
Member No.: 936
There's a lot of details that needed attention, and the whole thing turned out to be more involved and more complicated to execute than I had anticipated. Luckily there's a good hydraulics supply shop not too far from my house, and they were willing to work with me. They ended machining several custom fittings (ouch). I just hope nothing leaks !
I'll work on the ignition tomorrow, and on the oil system for the tranny.
Right now, it's beer time.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
michel richard
post Aug 13 2006, 04:29 PM
Post #115


Senior Member
***

Group: Members
Posts: 1,291
Joined: 22-July 03
From: Longueuil, Québec
Member No.: 936

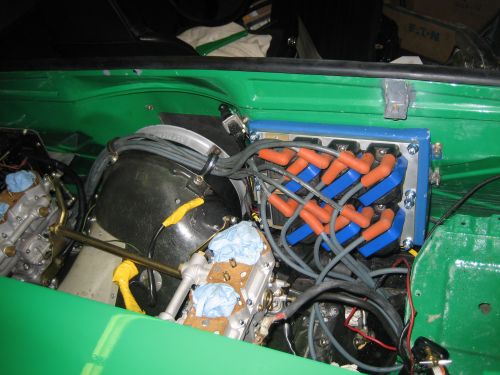

Got a lot of work done on the Electromotive HPV ignition system, today.

Did most of the wiring upstream of the coils. The manual says to use a high quality relay to switch the power to the ignition. I hacked a spare 914 wiring harness and used a base for the ubiquitous (nice word, eh?) round relays that we have, plus one of those relays, of course. I assumed the current rating was high enough.

It's pretty tight, but it looks like it all fits.

I have not finished the high voltage portion of the system: I have yet to connect the spark plug connectors to the high voltage wires. In any event, I think I'll eventually get pre-made MSD wires.

So, here is what it looks like:


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
So.Cal.914
post Aug 13 2006, 05:48 PM
Post #116


"...And it has a front trunk too."
*****

Group: Members
Posts: 6,588
Joined: 15-February 04
From: Low Desert, CA./ Hills of N.J.
Member No.: 1,658
Region Association: None
QUOTE(boboli914@att.net @ Aug 9 2006, 02:55 PM) *

What is this? Some sorta radical air intake? (IMG:style_emoticons/default/w00t.gif)


Cup holder.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
michel richard
post Aug 13 2006, 06:41 PM
Post #117


Senior Member
***

Group: Members
Posts: 1,291
Joined: 22-July 03
From: Longueuil, Québec
Member No.: 936

Went back out after dinner. Got the rear brakes finalized and adjusted the clearance. I now have a parking brake !
All that's left to do on the brakes is to fill and bleed the system. I feel like I'm getting close to a first ride.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
michel richard
post Aug 17 2006, 06:27 PM
Post #118


Senior Member
***

Group: Members
Posts: 1,291
Joined: 22-July 03
From: Longueuil, Québec
Member No.: 936
Got a couple of hours of work in, this evening.

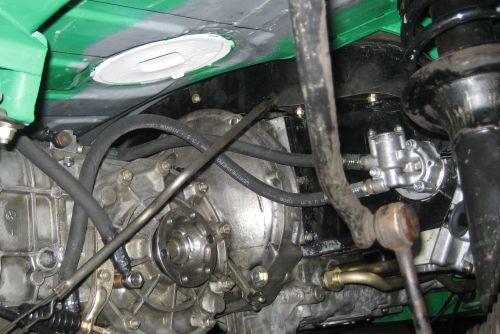

I almost finished plumbing the tranny oil circulation stuff. This is how it looks like now. I decided I would forego the tranny oil cooler at this stage, because I want to "get her done".



Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
michel richard
post Aug 17 2006, 06:28 PM
Post #119


Senior Member
***

Group: Members
Posts: 1,291
Joined: 22-July 03
From: Longueuil, Québec
Member No.: 936

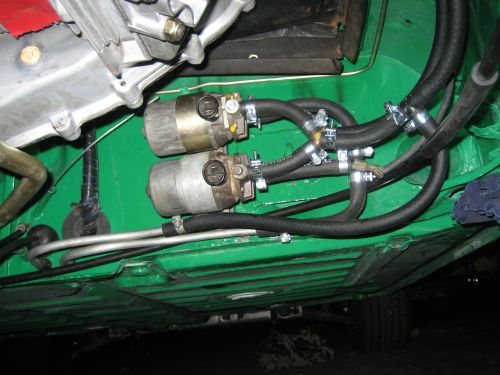

I also did more work on plumbing the twin fuel pumps, but I ran out of hose clamps so I had to stop.



Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
michel richard
post Aug 26 2006, 05:30 PM
Post #120


Senior Member
***

Group: Members
Posts: 1,291
Joined: 22-July 03
From: Longueuil, Québec
Member No.: 936
I spent the day doing a lot of little things in preparation for engine start-up. I still don't have functional ignition wires.
1) I wired the twin fuel pumps.
2) I finished the fuel system, installing the fuel pressure regulator and gauge that PMO sells. It's not GT looking, but it's pretty effective. Longer term, I would like to go back to MFI (I still have my full system, from the 2.2 E).
3) I bolted the exhaust system on. I did weld a 18 x 1.5 mm nut to each heat exchanger, so that I will be able to use the Innovate O2 sensing system to help in tuning. I believe that the stock system will be plenty big for the 2.5 engine, espelcially since this is primarily a street car.
4) I installed the shift linkage.

The heat exchangers take up a lot more room than headers do, and things are now pretty tight under the engine.

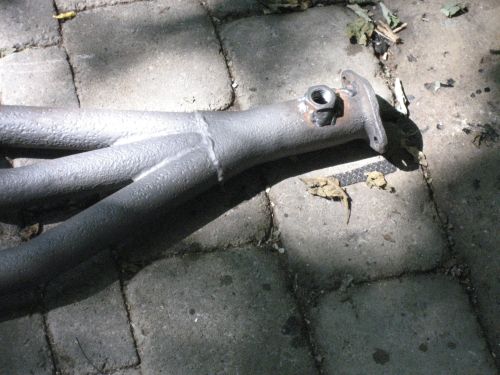

Here's the modification to the heat-exchangers (ok, the welding is a little chunky):


Attached image(s)
Attached Image
User is offlineProfile CardPM
