> Rear Trunk/Boot, All years
BS Chairman
post Jun 25 2006, 08:07 PM
Post #21


Member
**

Group: Members
Posts: 98
Joined: 27-December 02
From: Southeast Michigan
Member No.: 28
QUOTE(Pat Garvey @ Jun 25 2006, 04:57 PM) *

QUOTE(BS Chairman @ Jun 25 2006, 07:52 PM) *

QUOTE(Thomas J Bliznik @ Jun 25 2006, 03:33 PM) *

Question:

What's that square (yellow) hole cut out on the driver side padding showing the yellow trunk metal in the trunk padding?? What's the purpose & why??? Just curious??

Tom
Nice looking trunk!!!!


So the pad sets fulsh with floor and the carpet will lay flat.
Gary

Y'know, I've never tried to figure out why that "square" is there, & I'm not crawling under the car to figure it out - I'm old y'know. So, what's underneath?

Damn, If I know! I'm old too. (IMG:style_emoticons/default/welcome.png)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
TJB/914
post Jun 25 2006, 08:42 PM
Post #22


Mid-Engn.
****

Group: Members
Posts: 4,380
Joined: 24-February 03
From: Plymouth & Petoskey, MI
Member No.: 346
Region Association: Upper MidWest
Let me put this in better words.

An old dude (IMG:style_emoticons/default/beer.gif) asks two old farts (IMG:style_emoticons/default/drunk.gif) to get off their rocking chair to look under the 914.
We now need help from one of you younger guys. Help (IMG:style_emoticons/default/popcorn[1].gif)

Tom
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Jun 26 2006, 01:36 AM
Post #23


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
I have this thing in my head saying that the bump is provisions for the SportO tranny. But I can't remember for sure.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Jun 26 2006, 01:38 AM
Post #24


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
One additional bit of info that I would think is pertinent is the application of the seam sealer. Most cars have it sprayed in, some have it brushed in. I don't know if it's an early/late thing or a 4/6 thing. Detail shots?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
1970 Neun vierzehn
post Jun 26 2006, 09:46 AM
Post #25


Advanced Member
****

Group: Members
Posts: 3,199
Joined: 16-March 06
From: cincinnati, ohio
Member No.: 5,727
Since I'm acutely aware of rear trunk finishes, I've noticed that the "finish" on some of the seams in the trunk of Gary's /6 is very different from those on my /4. Look especially around the areas for the shock mounting points. Attributable to /6 vs /4 construction techniques? Difference in build dates? Change in specification? Difference in the individual who actually "finished" off the trunk seams? We need more original pics of these early cars.

BTW, Gary, what's the build date on your /6? My /4 was built 01/70.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Bleyseng
post Jun 26 2006, 09:56 AM
Post #26


Aircooled Baby!
**********

Group: Members
Posts: 13,036
Joined: 27-December 02
From: Seattle, Washington (for now)
Member No.: 24
Region Association: Pacific Northwest
The 4's had the seam sealer sprayed on but the sixes have it gooped on. I guess Porsche didn't have a seamsealer spray rig....so on a handmade car slop it on with your hands. (IMG:style_emoticons/default/dry.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
BS Chairman
post Jun 26 2006, 09:58 AM
Post #27


Member
**

Group: Members
Posts: 98
Joined: 27-December 02
From: Southeast Michigan
Member No.: 28
QUOTE(1970 Neun vierzehn @ Jun 26 2006, 07:46 AM) *

Since I'm acutely aware of rear trunk finishes, I've noticed that the "finish" on some of the seams in the trunk of Gary's /6 is very different from those on my /4. Look especially around the areas for the shock mounting points. Attributable to /6 vs /4 construction techniques? Difference in build dates? Change in specification? Difference in the individual who actually "finished" off the trunk seams? We need more original pics of these early cars.

BTW, Gary, what's the build date on your /6? My /4 was built 01/70.


'1970 Neun vierzehn', I have a build date of 4/70. I think because of my years in Fisher Body that it could be all the above, but thats just my thoughts.
Gary
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Pat Garvey
post Jun 26 2006, 05:23 PM
Post #28


Do I or don't I...........?
*****

Group: Members
Posts: 5,899
Joined: 24-March 06
From: SE PA, near Philly
Member No.: 5,765
Region Association: North East States
QUOTE(McMark @ Jun 26 2006, 03:38 AM) *

One additional bit of info that I would think is pertinent is the application of the seam sealer. Most cars have it sprayed in, some have it brushed in. I don't know if it's an early/late thing or a 4/6 thing. Detail shots?


I don't know about sprayed or brushed. Mine looks like it was applied like household caulking - "gooshed" from a tube & lathered.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Jun 27 2006, 09:46 AM
Post #29


914 Wiring Harnesses
*****

Group: Members
Posts: 8,740
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None

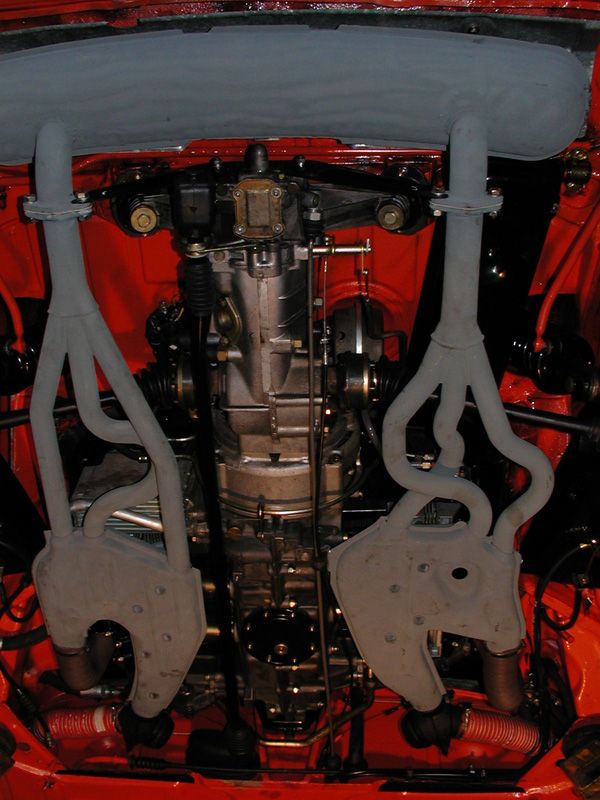

The round bump for the sporto is towards the front of the trunk. You can see it in this photo.

The small square bump is over the muffler...what could it be?


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Jun 27 2006, 11:02 AM
Post #30


Resident German
*************************

Group: Admin
Posts: 41,891
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
QUOTE(Bleyseng @ Jun 26 2006, 08:56 AM) *

The 4's had the seam sealer sprayed on but the sixes have it gooped on. I guess Porsche didn't have a seamsealer spray rig....so on a handmade car slop it on with your hands. (IMG:style_emoticons/default/dry.gif)

(IMG:style_emoticons/default/agree.gif) i have a '70 /4 and a '70 /6 and the /4 has the seam sealer sprayed on, the /6 had it brushed on.

also, the /6 generally has *much* less seam sealer than the /4.
(IMG:style_emoticons/default/bye1.gif) Andy
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
1970 Neun vierzehn
post Jun 27 2006, 11:25 AM
Post #31


Advanced Member
****

Group: Members
Posts: 3,199
Joined: 16-March 06
From: cincinnati, ohio
Member No.: 5,727
Well then, maybe my car got the "wrong" engine! (IMG:style_emoticons/default/biggrin.gif) From the minimalist application of "seam sealer", to its obvious hand application, I must have a /6 chassis. Now, where's my 2 liter "6" engine? (IMG:style_emoticons/default/laugh.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tod914
post Jun 27 2006, 04:48 PM
Post #32


Advanced Member
****

Group: Members
Posts: 3,755
Joined: 19-January 03
From: Lincoln Park, NJ
Member No.: 170

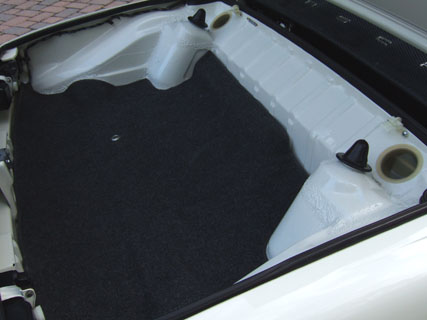

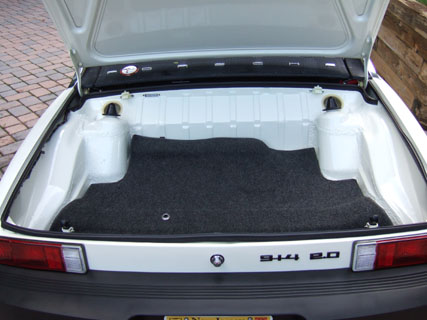

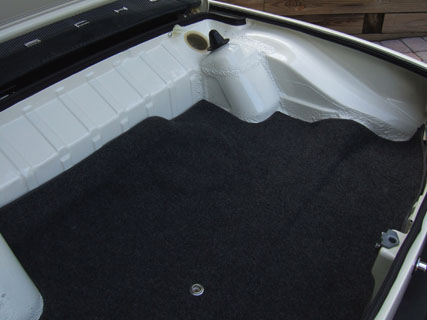

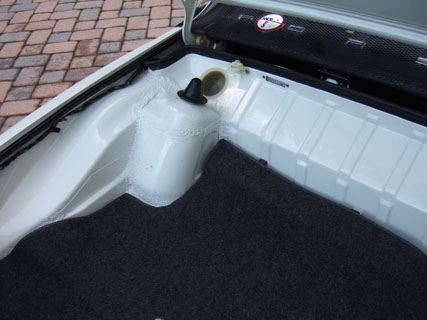

12/74 build year light ivory 2.0 carpet

Attached ImageAttached Image
Attached ImageAttached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tod914
post Jun 27 2006, 04:50 PM
Post #33


Advanced Member
****

Group: Members
Posts: 3,755
Joined: 19-January 03
From: Lincoln Park, NJ
Member No.: 170

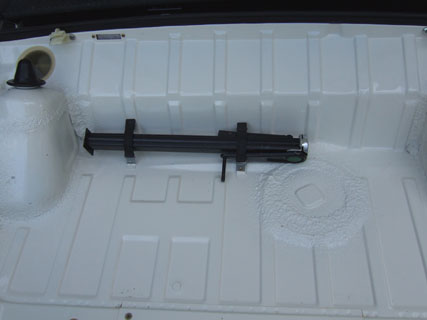

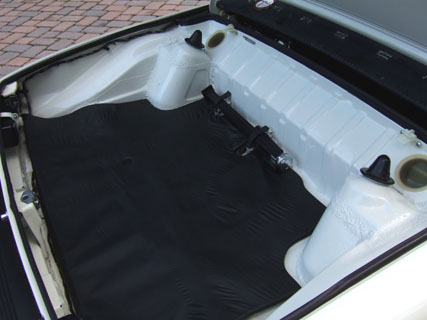

foam pad and jack
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tod914
post Jun 27 2006, 04:55 PM
Post #34


Advanced Member
****

Group: Members
Posts: 3,755
Joined: 19-January 03
From: Lincoln Park, NJ
Member No.: 170

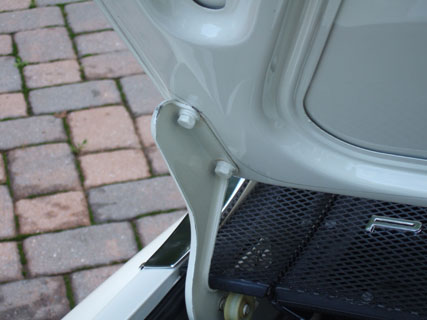

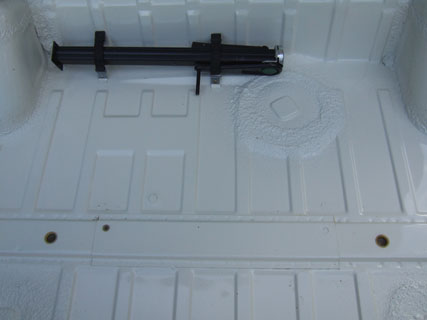

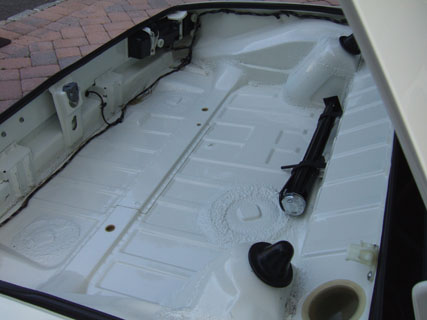

various shots bare trunk

Attached ImageAttached Image
Attached ImageAttached Image
Attached ImageAttached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tod914
post Jun 27 2006, 04:57 PM
Post #35


Advanced Member
****

Group: Members
Posts: 3,755
Joined: 19-January 03
From: Lincoln Park, NJ
Member No.: 170

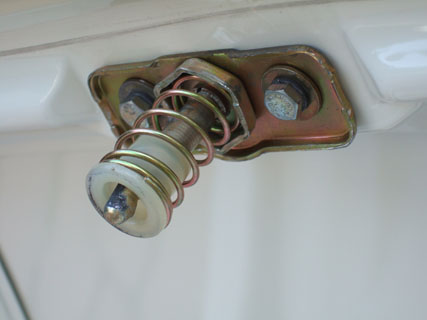

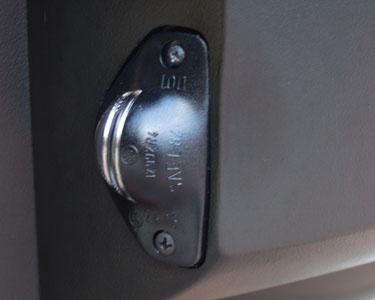

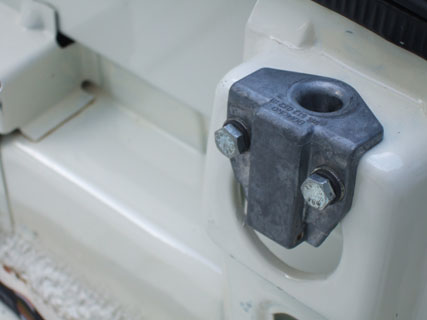

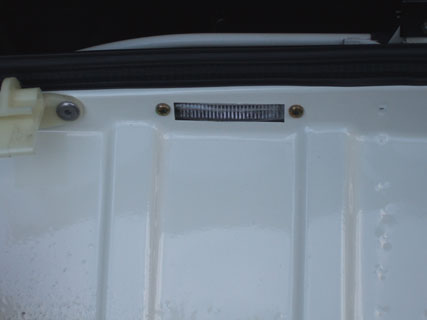

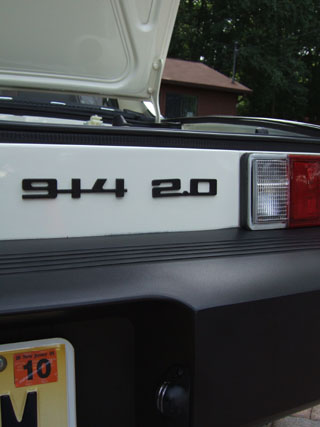

other and exterior

Attached ImageAttached Image
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tod914
post Jun 27 2006, 05:01 PM
Post #36


Advanced Member
****

Group: Members
Posts: 3,755
Joined: 19-January 03
From: Lincoln Park, NJ
Member No.: 170
Pat feel free to delete what you want, figured more is better than less.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Pat Garvey
post Jun 27 2006, 05:24 PM
Post #37


Do I or don't I...........?
*****

Group: Members
Posts: 5,899
Joined: 24-March 06
From: SE PA, near Philly
Member No.: 5,765
Region Association: North East States
QUOTE(tod914 @ Jun 27 2006, 07:01 PM) *

Pat feel free to delete what you want, figured more is better than less.

(IMG:style_emoticons/default/boldblue.gif)
Thank you, thank you! Now we're rolling.

Check 'em out folks - look at the differences. Look & learn - these are great!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
73Phoenix20
post Jun 27 2006, 06:24 PM
Post #38


Member
**

Group: Members
Posts: 334
Joined: 15-June 05
From: Michiana
Member No.: 4,283

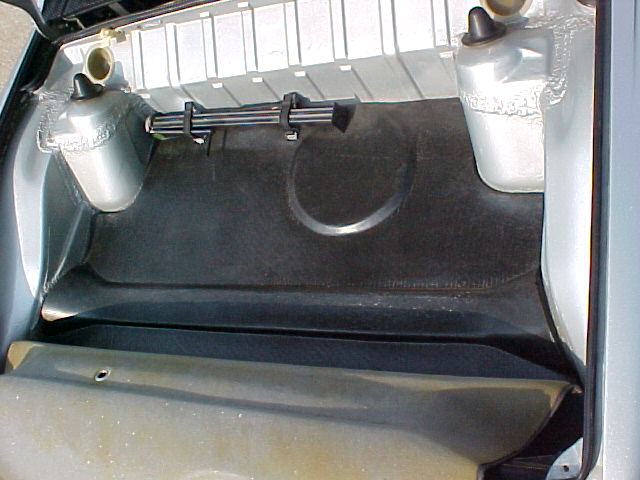

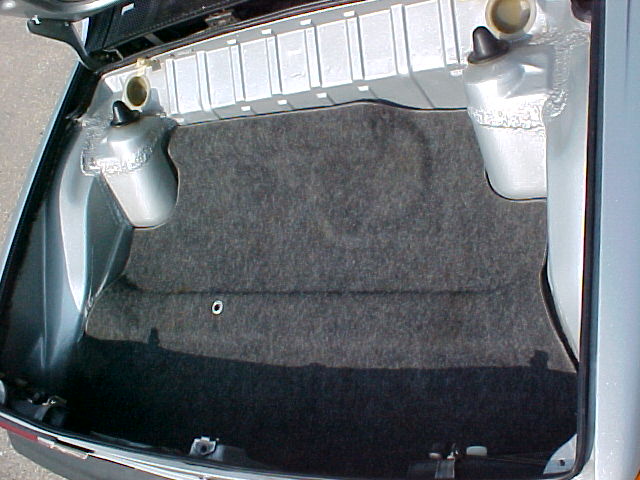

Attached ImageAttached ImageThese are old photos...I will try to shoot some better ones soon. 03/1973 production. Full foam trunck pad...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
RustyWa
post Jun 27 2006, 07:47 PM
Post #39


Working Member
***

Group: Members
Posts: 610
Joined: 2-January 03
From: Kent, WA
Member No.: 72

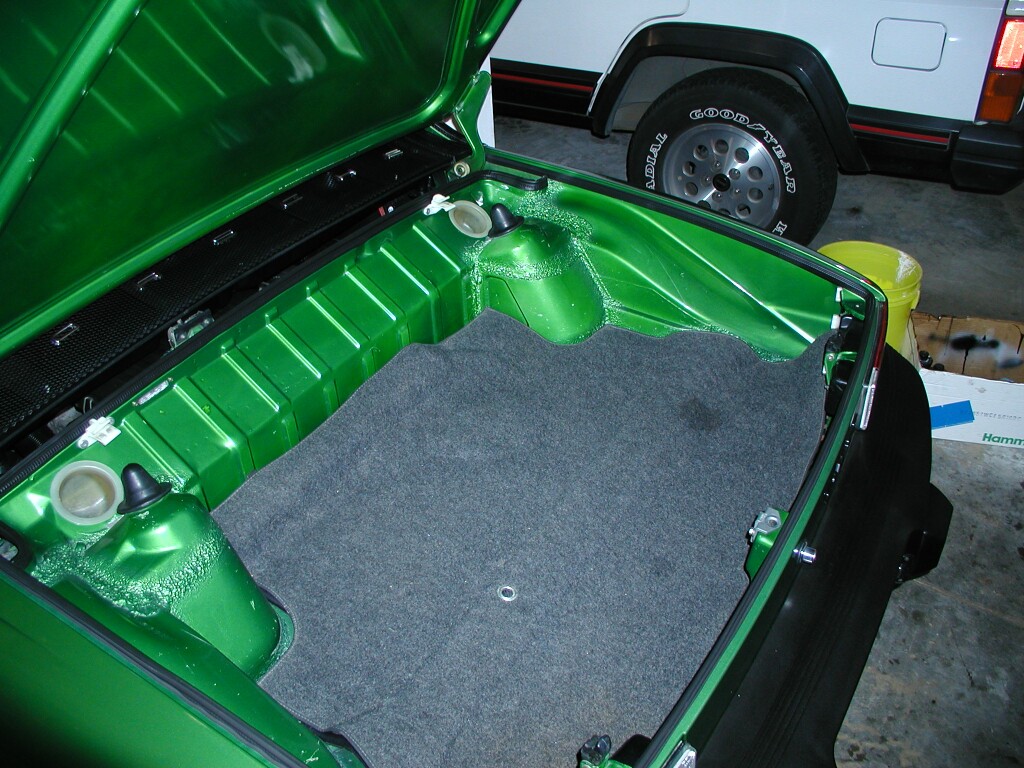

My old '75 2.0L... Build date 01/75

With carpet..


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
RustyWa
post Jun 27 2006, 07:48 PM
Post #40


Working Member
***

Group: Members
Posts: 610
Joined: 2-January 03
From: Kent, WA
Member No.: 72

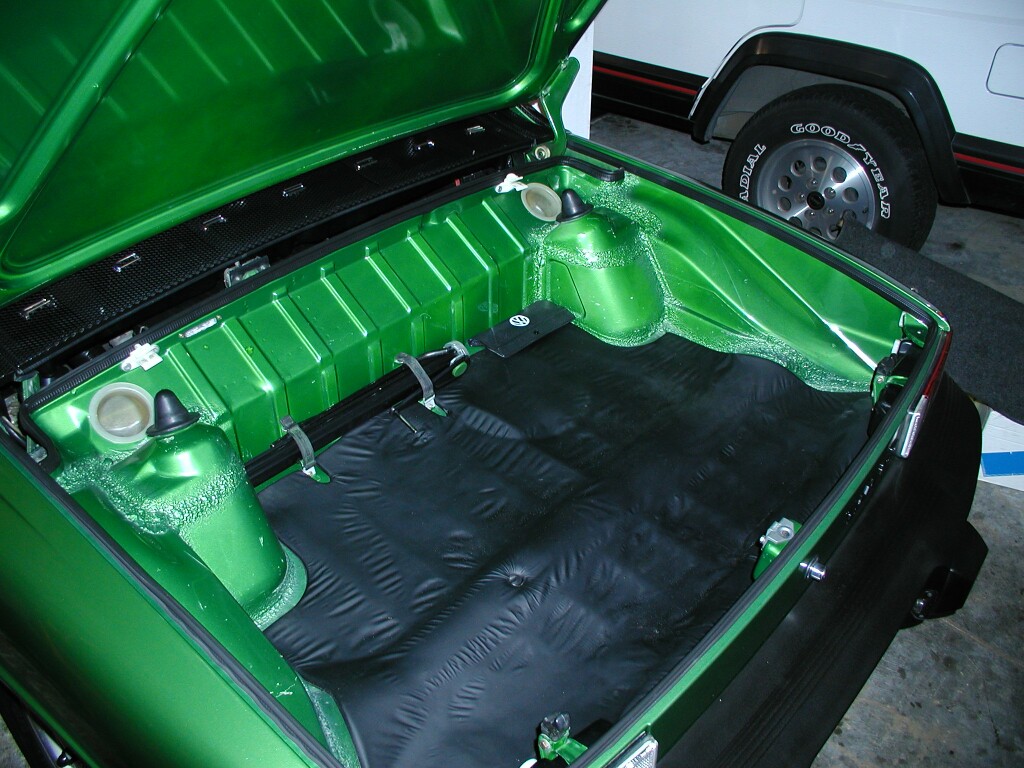

Of pad...



Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
