> 0.280.100.043 / 039.906.051 E, Manifold Pressure Sensor 74-76 2.0
type47
post Jul 1 2006, 06:57 AM
Post #1


Viermeister
****

Group: Members
Posts: 4,254
Joined: 7-August 03
From: Vienna, VA
Member No.: 994
Region Association: MidAtlantic Region

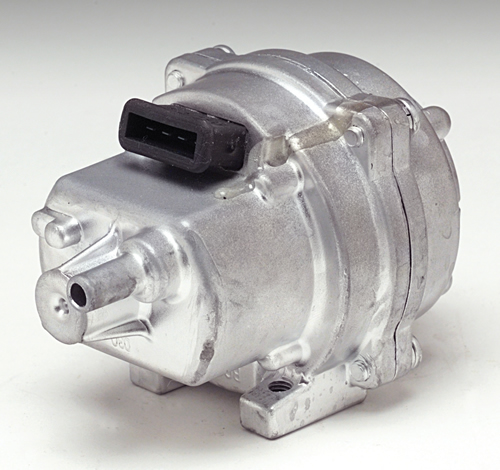

PET figure 901-05 #10 pressure sensor
039.906.051 application: 74-76 2.0L
reference: http://members.rennlist.com/pbanders/DJetParts.htm

022.906.051 E 914-1.7
D-jet manifold pressure sensor
should hold a vacuum for at least 15 minutes
resistance between terminals (to be added later)
0.280.100.037
Attached Image


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Bleyseng
post Jul 1 2006, 11:41 AM
Post #2


Aircooled Baby!
**********

Group: Members
Posts: 13,036
Joined: 27-December 02
From: Seattle, Washington (for now)
Member No.: 24
Region Association: Pacific Northwest



That's great pic but............the 73 2.0L MPS is a 037 and the 74-76 MPS is a 043 part number.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Jul 1 2006, 05:51 PM
Post #3


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None



Fixed, title. Thanks Geoff.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Bleyseng
post Jul 13 2006, 04:48 PM
Post #4


Aircooled Baby!
**********

Group: Members
Posts: 13,036
Joined: 27-December 02
From: Seattle, Washington (for now)
Member No.: 24
Region Association: Pacific Northwest

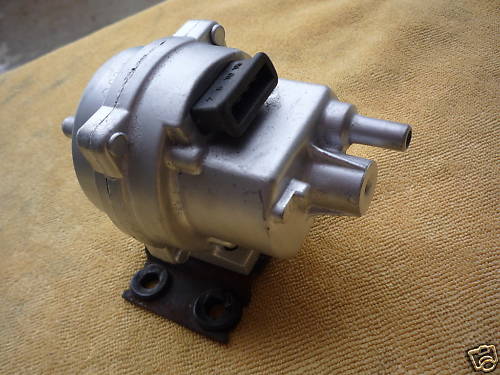

Where did you get the pic from as that is a rebuilt unit from the 4 screws instead of rivets holding the 2 halves together.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
TJB/914
post Apr 23 2008, 07:52 PM
Post #5


Mid-Engn.
****

Group: Members
Posts: 4,372
Joined: 24-February 03
From: Plymouth & Petoskey, MI
Member No.: 346
Region Association: Upper MidWest

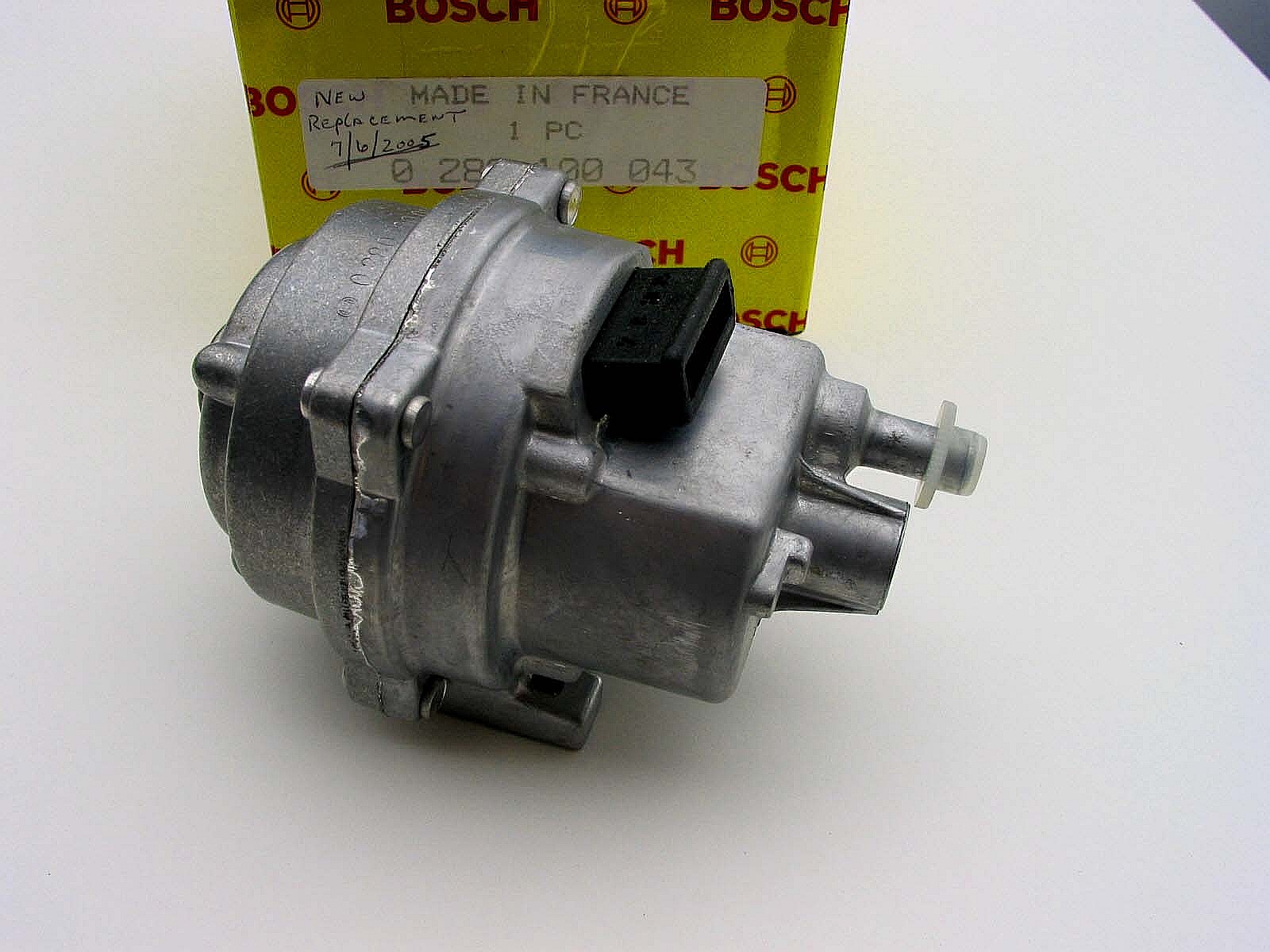

Here's a photo of a NOS #43 MPS

T


Attached thumbnail(s)
Attached Image
