> Front trunks, Front trunks/boots - all years
smg914
post Jan 25 2013, 09:43 AM
Post #101


Sahara Beige Steve
***

Group: Members
Posts: 1,976
Joined: 22-February 04
From: Tampa, FL
Member No.: 1,695
Region Association: None
QUOTE(ThePaintedMan @ Jan 25 2013, 07:04 AM) *

Hi guys,
I rarely stray into the originality section, given all the stupid things the PO did to my car - it'll never be original. However, I do appreciate all the information you have post and this section is very entertaining to read!

Question - my car never had the board over the spare tire recess in the front trunk. In fact, I don't even have a spare. I think I can probably cut some plywood to approximate the original piece, but I have no idea how it attaches or stays in position. It appears from the pictures that it rides on top of the curved support pieces at the front of the trunk, but what about at the back, at the trunk firewall? There are no obvious screws or mounts in my car to support the back of that board. Thanks for your help!

-George

Hey George,

That board just sits in there. Doesn't attach to anything. I will probably drive a 914 to the Daytona on TV get together on Saturday so you can look at yourself.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ThePaintedMan
post Jan 25 2013, 10:32 AM
Post #102


Advanced Member
****

Group: Members
Posts: 3,887
Joined: 6-September 11
From: St. Petersburg, FL
Member No.: 13,527
Region Association: South East States
Sweet! (IMG:style_emoticons/default/cheer.gif) Looking forward to seeing you again Steve!

QUOTE(smg914 @ Jan 25 2013, 10:43 AM) *

QUOTE(ThePaintedMan @ Jan 25 2013, 07:04 AM) *

Hi guys,
I rarely stray into the originality section, given all the stupid things the PO did to my car - it'll never be original. However, I do appreciate all the information you have post and this section is very entertaining to read!

Question - my car never had the board over the spare tire recess in the front trunk. In fact, I don't even have a spare. I think I can probably cut some plywood to approximate the original piece, but I have no idea how it attaches or stays in position. It appears from the pictures that it rides on top of the curved support pieces at the front of the trunk, but what about at the back, at the trunk firewall? There are no obvious screws or mounts in my car to support the back of that board. Thanks for your help!

-George

Hey George,

That board just sits in there. Doesn't attach to anything. I will probably drive a 914 to the Daytona on TV get together on Saturday so you can look at yourself.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Peashooter
post Jan 25 2013, 12:47 PM
Post #103


Member
**

Group: Members
Posts: 165
Joined: 17-December 11
From: SW Ohio
Member No.: 13,903
Region Association: None

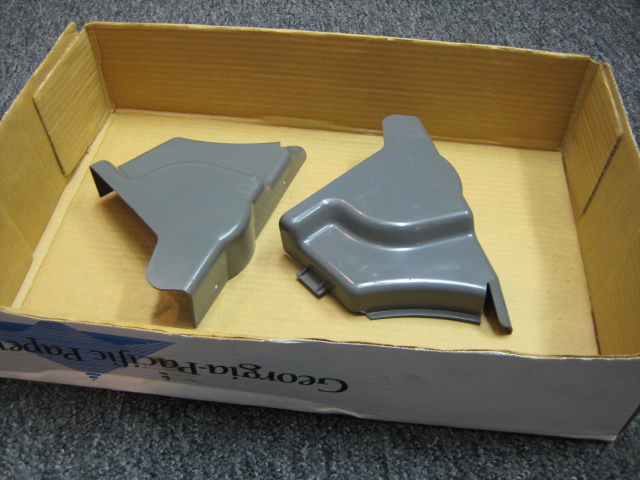

Here are the gray ones. Thanks for the info, I'll use the black pair.
Bill

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mhead
post Jan 9 2014, 12:18 PM
Post #104


Newbie
*

Group: Members
Posts: 42
Joined: 3-December 06
From: Ma
Member No.: 7,302

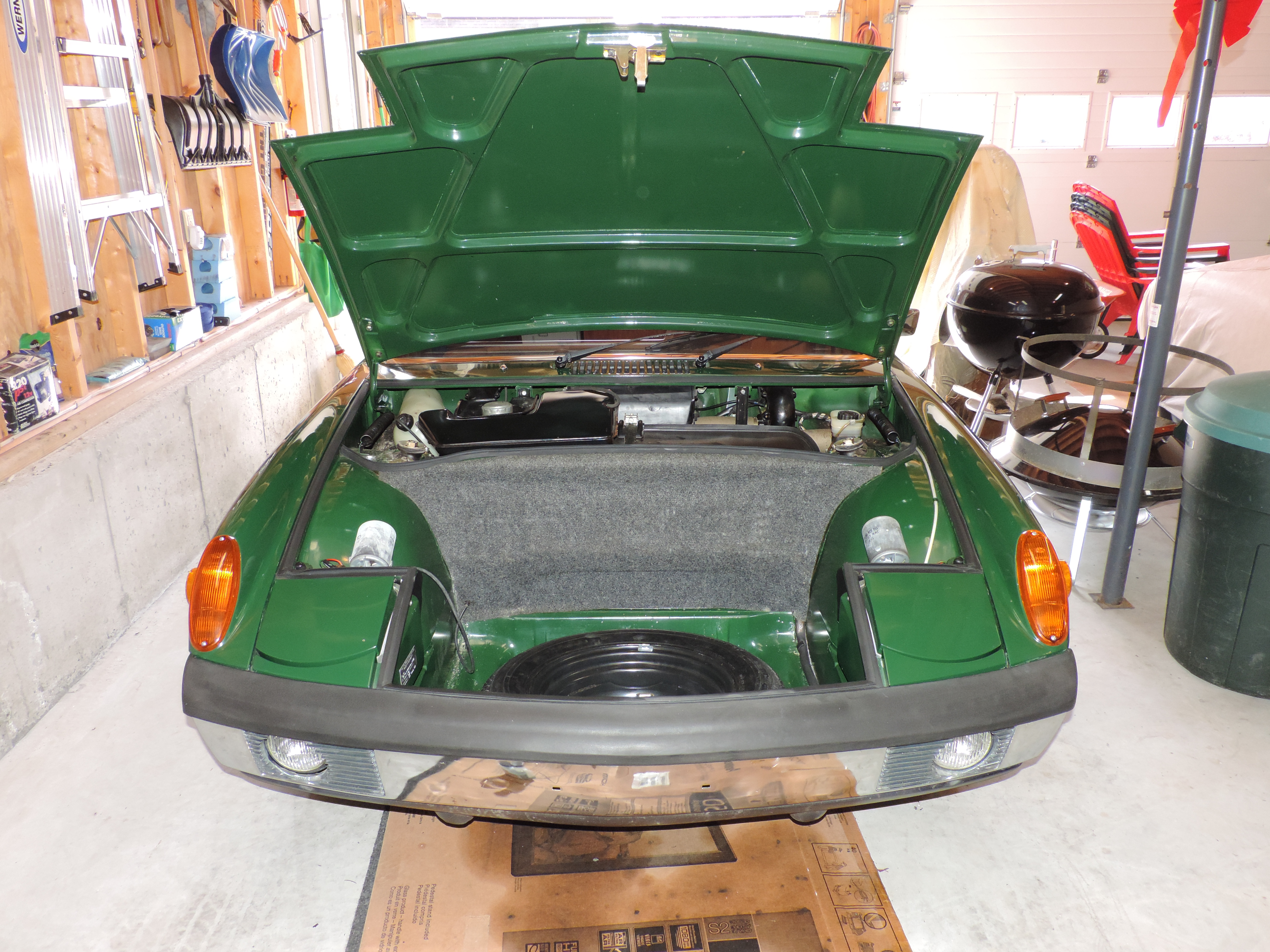

Very early front trunk, notice no charcoal canister...Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
vanlynch
post Feb 22 2017, 01:47 AM
Post #105


Newbie
*

Group: Members
Posts: 4
Joined: 20-February 17
From: sherman oaks
Member No.: 20,856
Region Association: Southern California
QUOTE(Johny Blackstain @ Mar 30 2007, 08:10 PM) *

(IMG:style_emoticons/default/cool_shades.gif)



what is that hose/line for & what does it connect to?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
1970 Neun vierzehn
post Feb 22 2017, 06:05 PM
Post #106


Advanced Member
****

Group: Members
Posts: 3,199
Joined: 16-March 06
From: cincinnati, ohio
Member No.: 5,727
vanlynch,

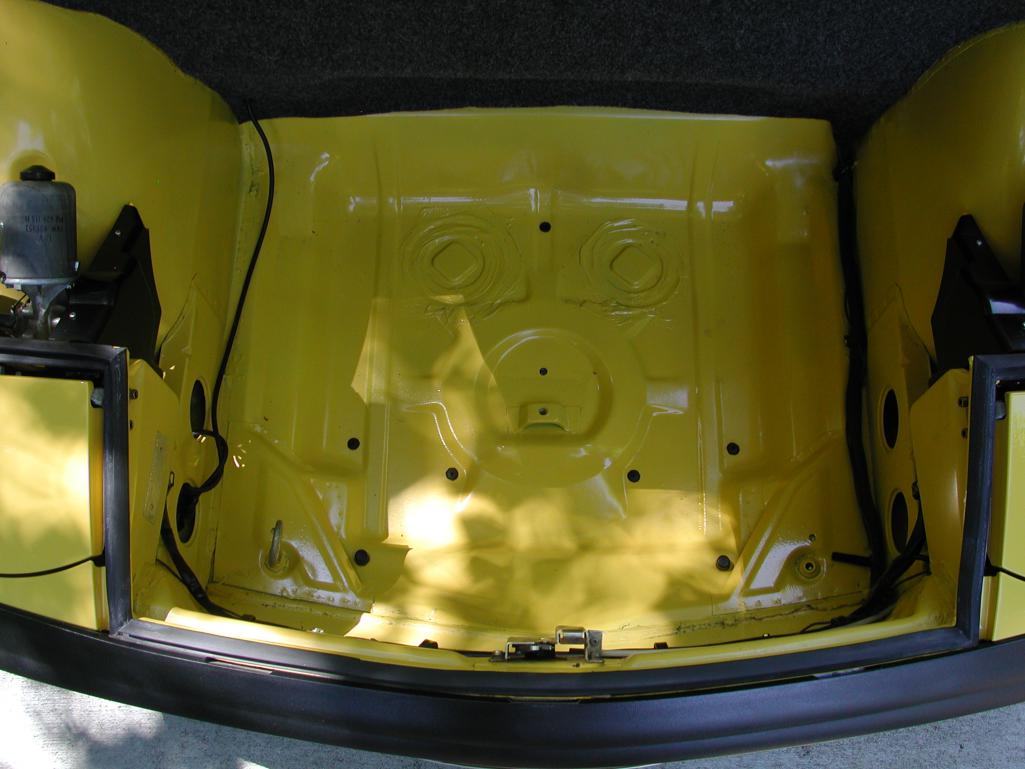

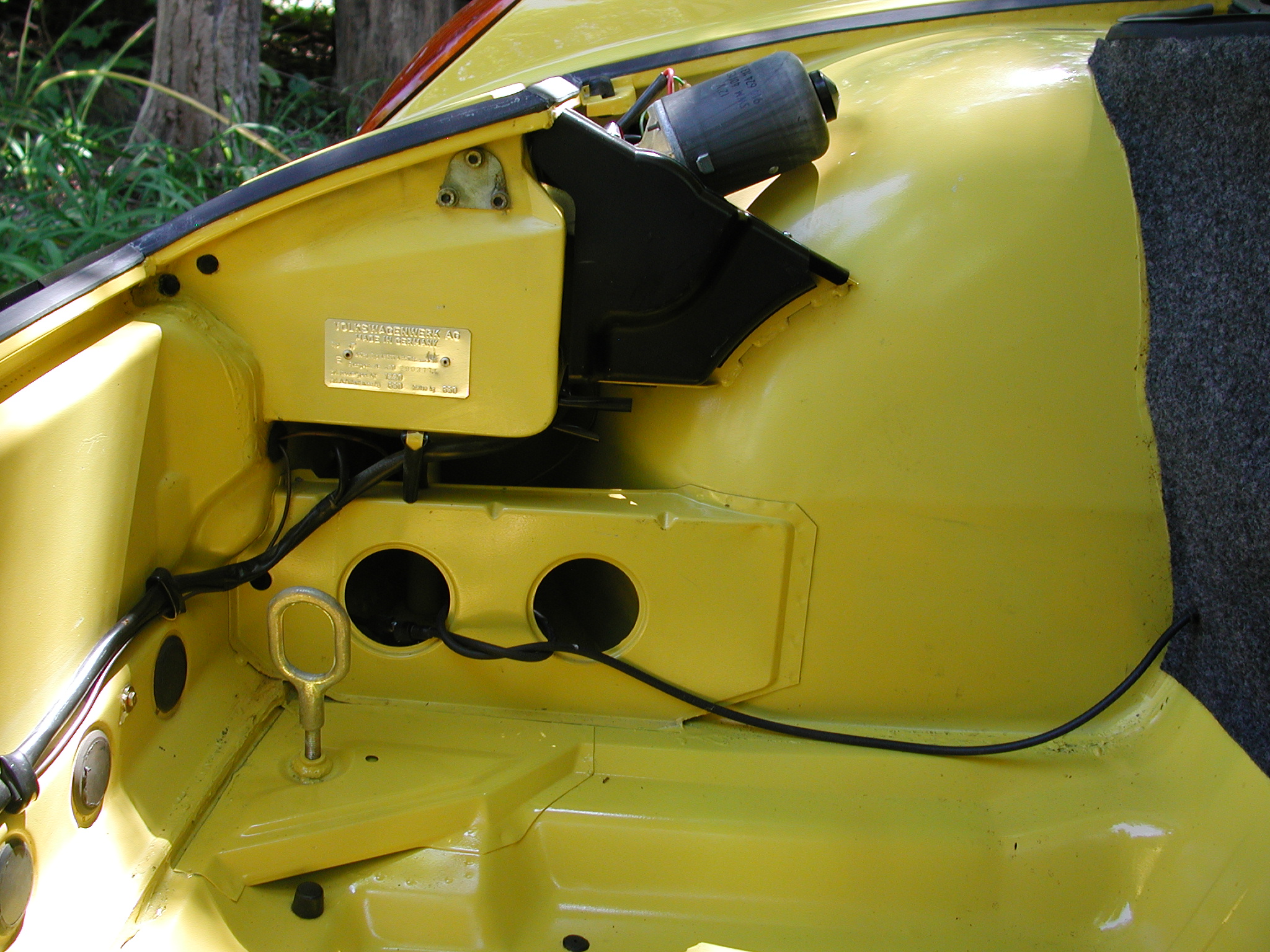

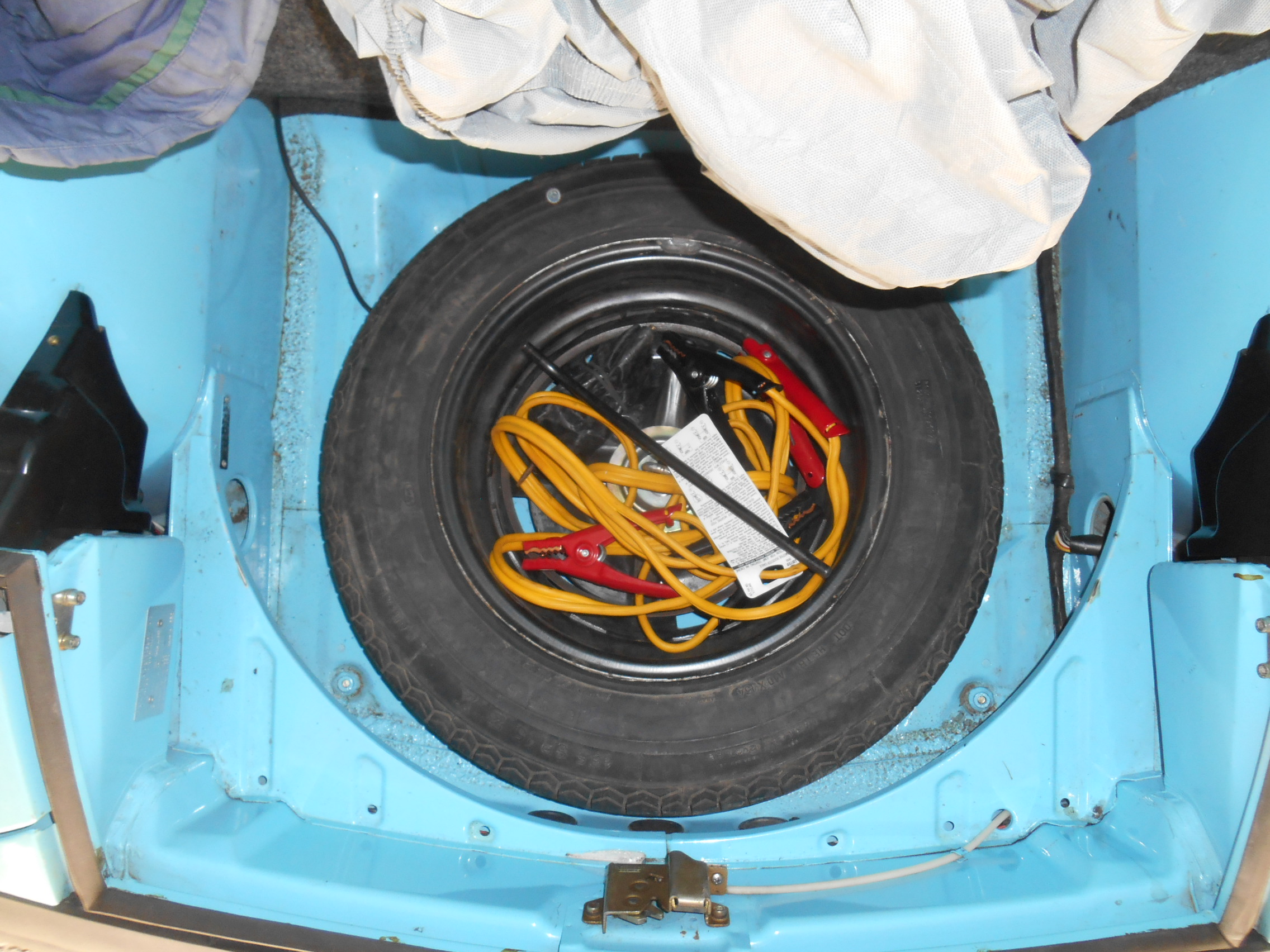

That hose appears to be line that connects the windshield washer bottle with the (unconnected) spare tire valve. The tire pressure (theoretically) pressurizes the windshield washer bottle to (theoretically) spray the windshield with washer fluid. The attached photos show that hose in the front trunk of my 1970/4.

Paul


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
TM_Corey
post Sep 8 2017, 06:23 PM
Post #107


Member
**

Group: Members
Posts: 231
Joined: 28-March 16
From: Indianapolis
Member No.: 19,809
Region Association: Upper MidWest
Does the vertical carpet tuck under the rubber that runs the width of the top of the wall that separates the gas tank area and the spare tire area?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914Next
post Sep 10 2017, 10:33 AM
Post #108


Senior Member
***

Group: Members
Posts: 707
Joined: 28-July 14
From: Ephraim Wisconsin
Member No.: 17,695
Region Association: Upper MidWest
QUOTE(TM_Corey @ Sep 8 2017, 08:23 PM) *

Does the vertical carpet tuck under the rubber that runs the width of the top of the wall that separates the gas tank area and the spare tire area?

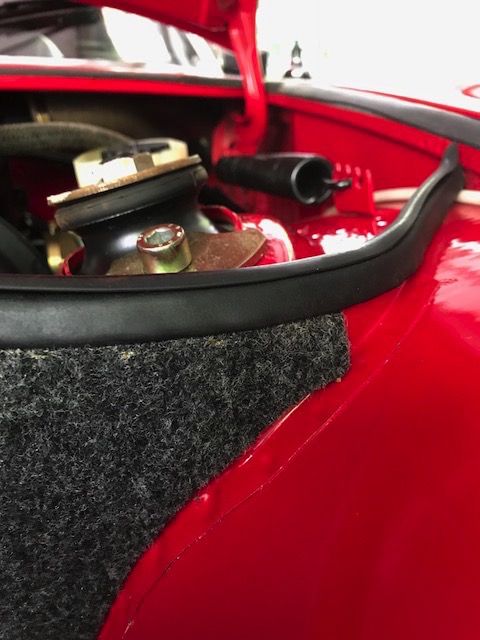

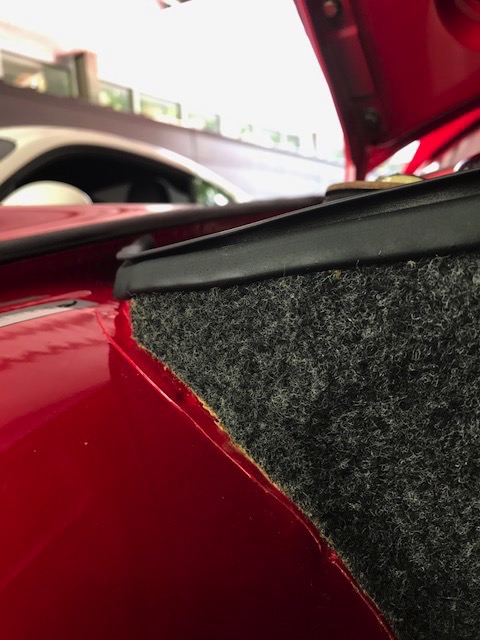

Yes. Here are a couple pics. This is original installation in my car.


Attached Image


Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
brcacti
post Oct 16 2020, 08:01 PM
Post #109


1974 914 1.8
***

Group: Members
Posts: 674
Joined: 17-July 19
From: PHX AZ 60 miles south
Member No.: 23,302
Region Association: Southwest Region

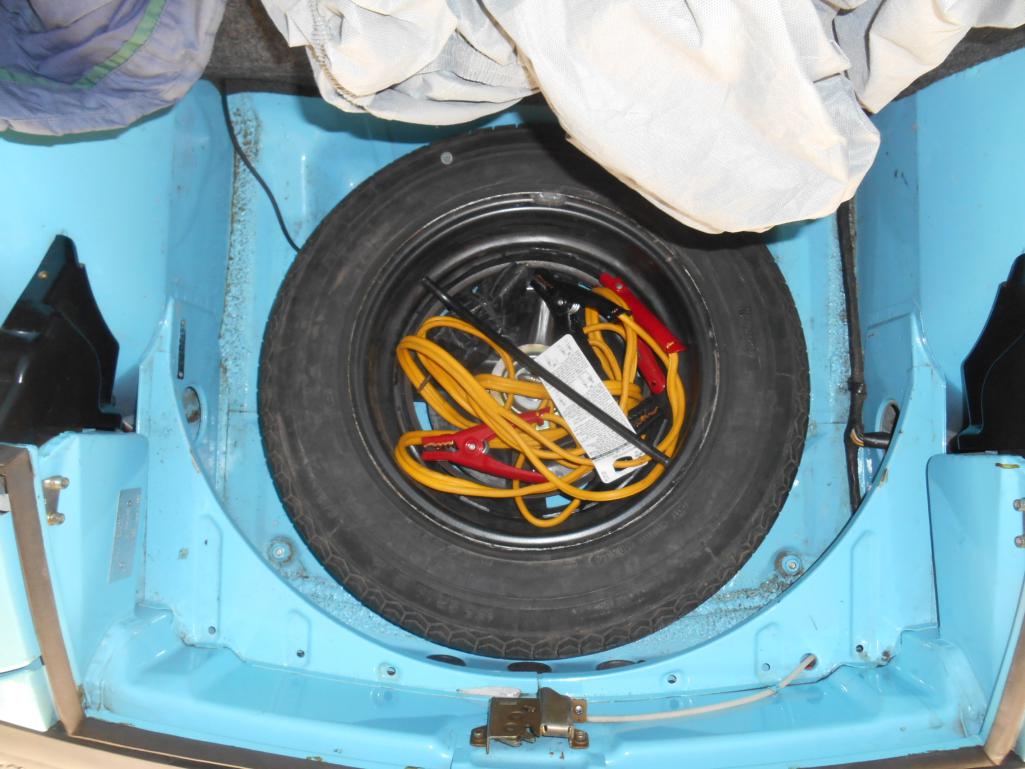

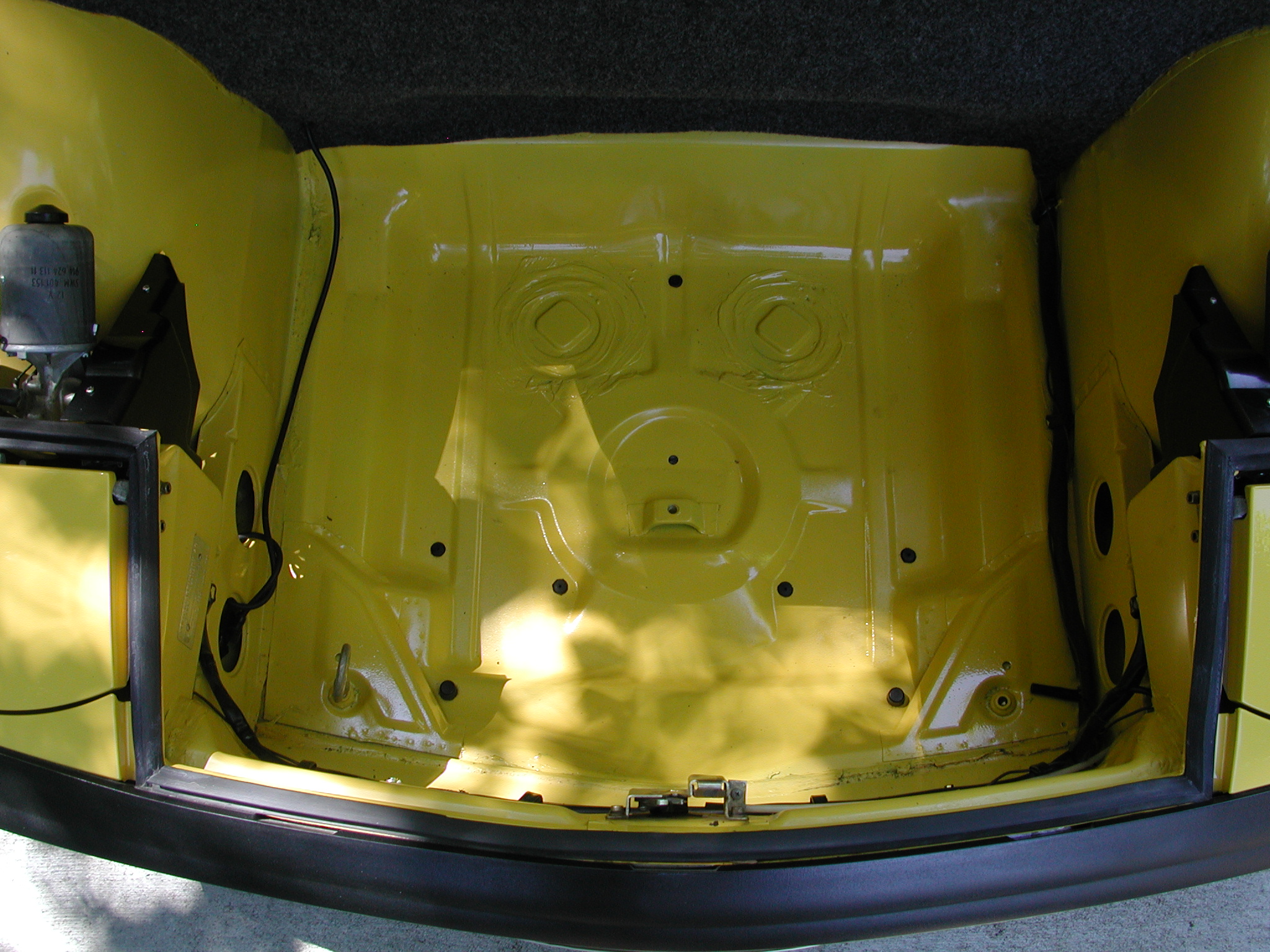

front trunk with carpet board taken out, windshield water system not hooked up to spare tire.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
AndrewBlyholder
post Apr 18 2021, 10:55 AM
Post #110


Member
**

Group: Members
Posts: 112
Joined: 20-September 04
From: Richmond, CA
Member No.: 2,791
QUOTE


When I have a chance, I"ll go digging...
I'm not sure if melamine is the correct term to be used...I borrowed it from this thread. But the stuff is that crappy pressboard cardboard stuff that breaks off in flakes.
I have the leftover parts from a 74..and from what was titled a 73 but may have been very early (since it had the doors without the sidebars)...I'm pretty sure that both of them had the non plywood crap.


A response from your local retired architect:

Melamine is not the right term. That refers to a version of particle board with a Melamine plastic coating used a lot in cabinets and signage where a good smooth finish is necessary.

What's in our cars is a type of particle board made from pressed sawdust/wood chips. It comes in may variations, depending on the exact texture of the wood particles and the amount of heat and pressure used to form it. Masonite is a common name brand for a version that used a lot of heat and pressure and was very hard and dense. A more generic term for that type is hardboard. The particle board used for cheap shelving is at the low end of that scale. The stuff Porsche used for the pedal boards is somewhere in the middle.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Stev914
post Dec 4 2024, 11:15 PM
Post #111


Newbie
*

Group: Members
Posts: 27
Joined: 22-July 24
From: Lansing, MI
Member No.: 28,254
Region Association: Upper MidWest
Hello all:

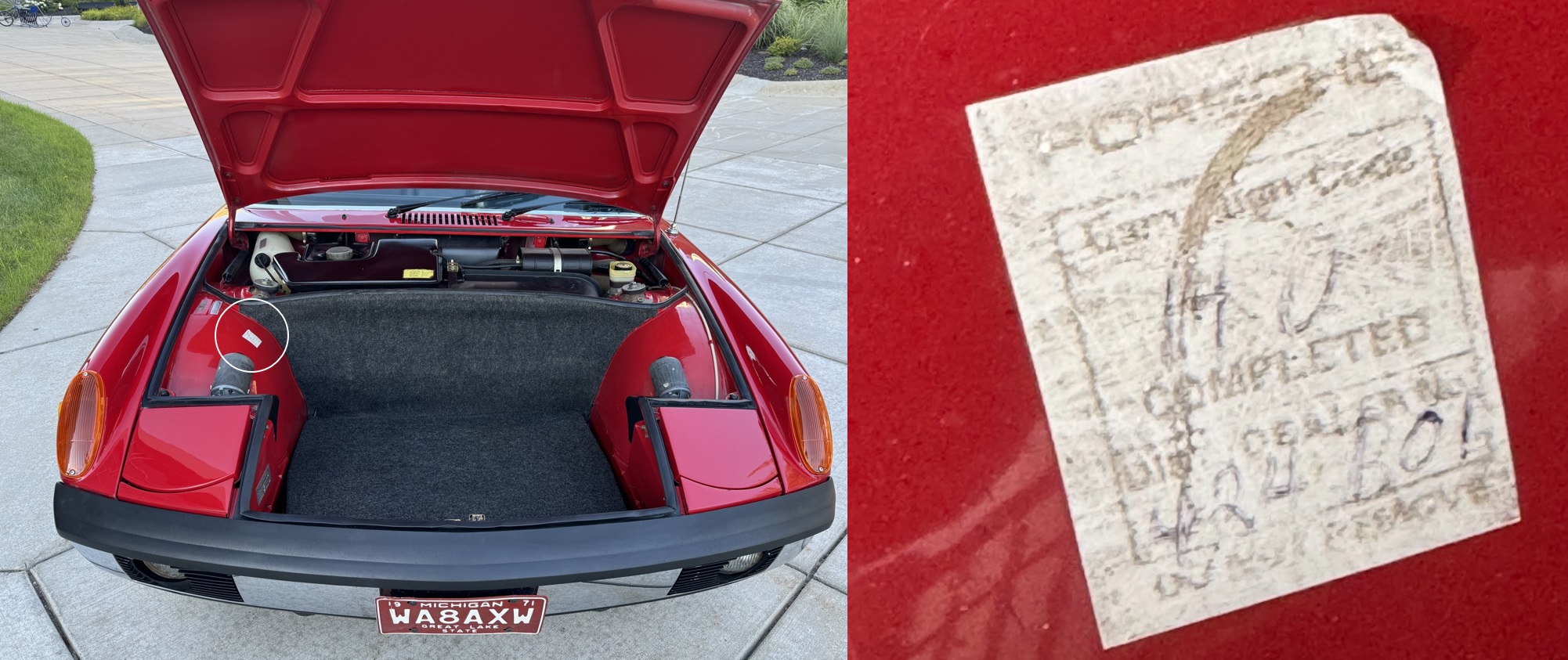

Searching this thread, I saw a dealer sticker like this one from my '72. What do the codes mean, and what does the printed text say (I can read most of it, but want to be sure).

Is this where these stickers were usually put?

Thanks!

Steve
1972 Porsche 914-4

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914Next
post Dec 6 2024, 07:44 AM
Post #112


Senior Member
***

Group: Members
Posts: 707
Joined: 28-July 14
From: Ephraim Wisconsin
Member No.: 17,695
Region Association: Upper MidWest
QUOTE(Stev914 @ Dec 5 2024, 01:15 AM) *

Hello all:

Searching this thread, I saw a dealer sticker like this one from my '72. What do the codes mean, and what does the printed text say (I can read most of it, but want to be sure).

Is this where these stickers were usually put?

Thanks!

Steve
1972 Porsche 914-4

Attached Image



Can't say definitively but I think that is a sticker verifying the "HO" recall?

https://bowlsby.net/914/Classic/Recalls.htm





User is offlineProfile CardPM
Go to the top of the page
+Quote Post
FlacaProductions
post Dec 6 2024, 09:19 AM
Post #113


Senior Member
***

Group: Members
Posts: 1,893
Joined: 24-November 17
From: LA
Member No.: 21,628
Region Association: Southern California
That's correct - the HO campaign.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Stev914
post Dec 6 2024, 01:25 PM
Post #114


Newbie
*

Group: Members
Posts: 27
Joined: 22-July 24
From: Lansing, MI
Member No.: 28,254
Region Association: Upper MidWest
This forum is the coolest! So that HO sticker is from a 1977 recall. Great to know.

Thanks!!!

SR
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
