Hi Pat & Concours people.

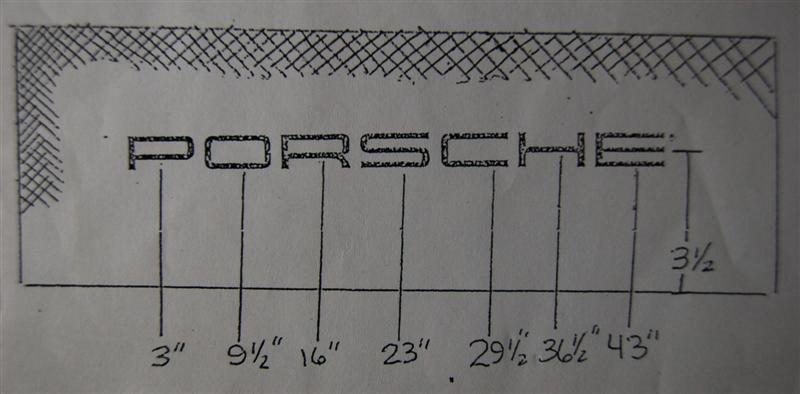

Here's something I think everyone will need sooner or later in the life of your 914. I got these dimensions from George Hussey @ AA. I believe they are correct. Tom BTW Pat: You may want to post (above) in the nailed file. Attached thumbnail(s)   Attached image(s)
|
   |

|
| TJB/914 |
Jul 23 2006, 01:26 PM
Post
#2
|
|
Mid-Engn. Group: Members Posts: 4,400 Joined: 24-February 03 From: Plymouth & Petoskey, MI Member No.: 346 Region Association: Upper MidWest
|

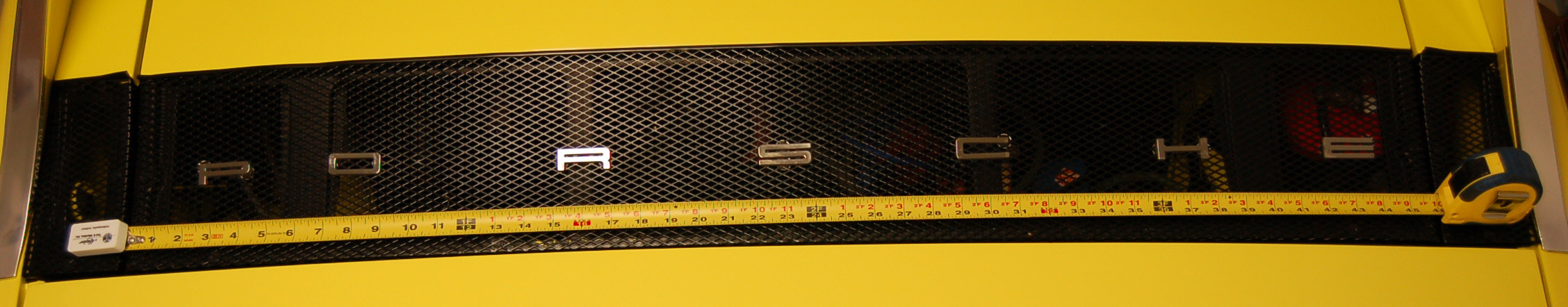

Let me try this for a little more clarity.
Tom Attached thumbnail(s)
|
|
|
|
| Pat Garvey |
Jul 23 2006, 06:55 PM
Post
#3
|
|
Do I or don't I...........? Group: Members Posts: 5,900 Joined: 24-March 06 From: SE PA, near Philly Member No.: 5,765 Region Association: North East States |
Tom,
Great post! You wouldn't believe (yeah, I guess you would) how many times I've seen the script scattered! Lot's of folks will do whatever it takes ti get the letters spaced to what they think is "clean", but they never are! Pat |
|
|
|
| JeffBowlsby |
Jul 25 2006, 10:22 AM
Post
#4
|
|
914 Wiring Harnesses & Beekeeper Group: Members Posts: 8,895 Joined: 7-January 03 From: San Ramon CA Member No.: 104 Region Association: None
|
er um..."O"...Tom...what happened to the "O" in that photo...?
|
|
|
|
| tod914 |
Jul 25 2006, 04:38 PM
Post
#5
|
|
Advanced Member Group: Members Posts: 3,755 Joined: 19-January 03 From: Lincoln Park, NJ Member No.: 170 |
Meanwhile back at Tom's garage.....
 |
|
|
|
| TJB/914 |
Jul 26 2006, 09:20 AM
Post
#6
|
|
Mid-Engn. Group: Members Posts: 4,400 Joined: 24-February 03 From: Plymouth & Petoskey, MI Member No.: 346 Region Association: Upper MidWest
|
O-My, this is a tough crowd. Been caught by the CW Police!!! Another thing to put on my "do" list. Tod914 sent me a personal note & we were waiting for Pat to notice & jeff beat him to it.
Thanks Tod914 for moving the "O" over. Tom |
|
|
|
| TJB/914 |
Mar 13 2007, 09:26 PM
Post
#7
|
|
Mid-Engn. Group: Members Posts: 4,400 Joined: 24-February 03 From: Plymouth & Petoskey, MI Member No.: 346 Region Association: Upper MidWest
|
bump
|
|
|
|
| Pat Garvey |
Mar 19 2007, 07:32 PM
Post
#8
|
|
Do I or don't I...........? Group: Members Posts: 5,900 Joined: 24-March 06 From: SE PA, near Philly Member No.: 5,765 Region Association: North East States |
QUOTE(Thomas J Bliznik @ Mar 13 2007, 10:26 PM)  bump Tom, I liked the original pic. Left room for a second "O", as in "POORSCHE". KnowwhutImean? "Now that there's funny" Pat |
|
|
|
| GaroldShaffer |
Jul 27 2007, 02:48 PM
Post
#9
|
|
You bought another 914? Group: Benefactors Posts: 7,628 Joined: 27-June 03 From: Portage, IN Member No.: 865 Region Association: None
|
Are those numbers to the center of the letters or the leading edge of them?
|
|
|
|
| Brian Mifsud |
Jul 27 2007, 02:54 PM
Post
#10
|
|
Mechanical Engineer Group: Members Posts: 981 Joined: 3-March 03 From: Penngrove, CA Member No.: 384 Region Association: None |
Spacing looks great.. but the spelling leaves so much on the "resale table"... look how many hits you get in Ebay and Craigslist when you enter "P-O-R-C-H-E"
|
|
|
|
| Lavanaut |
Sep 10 2008, 12:48 PM
Post
#11
|
|
Hungry Mind : Thirsty Gullet Group: Members Posts: 916 Joined: 20-June 06 From: Bend, OR Member No.: 6,265 Region Association: Pacific Northwest |

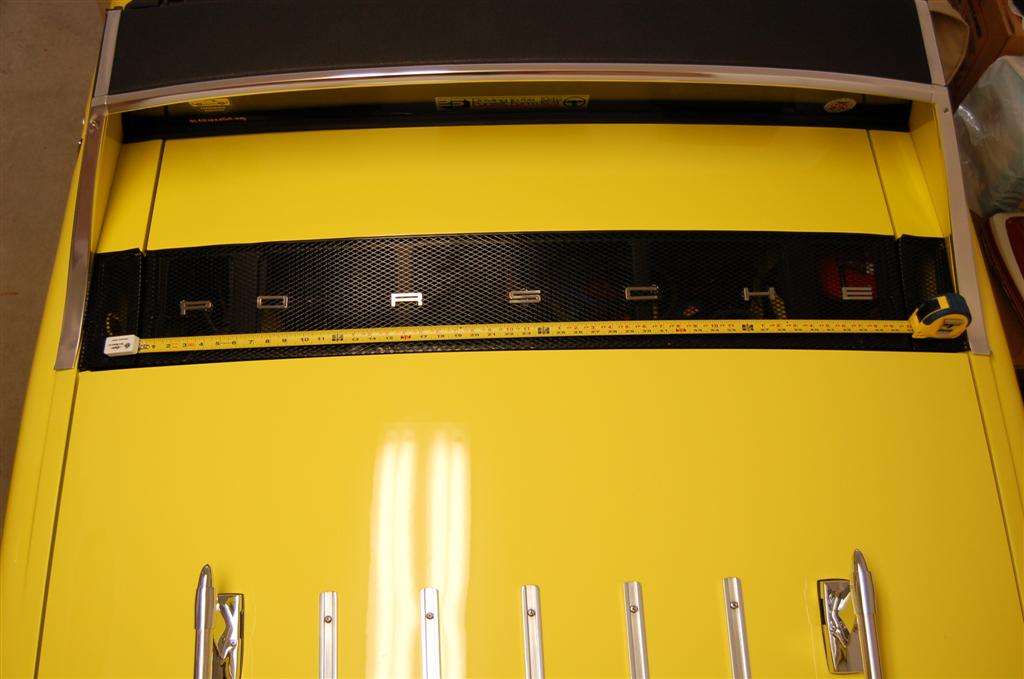

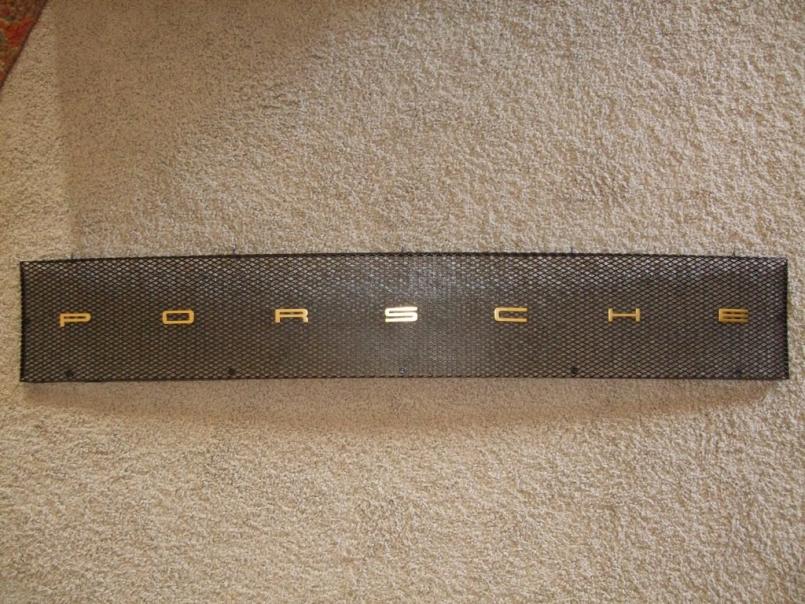

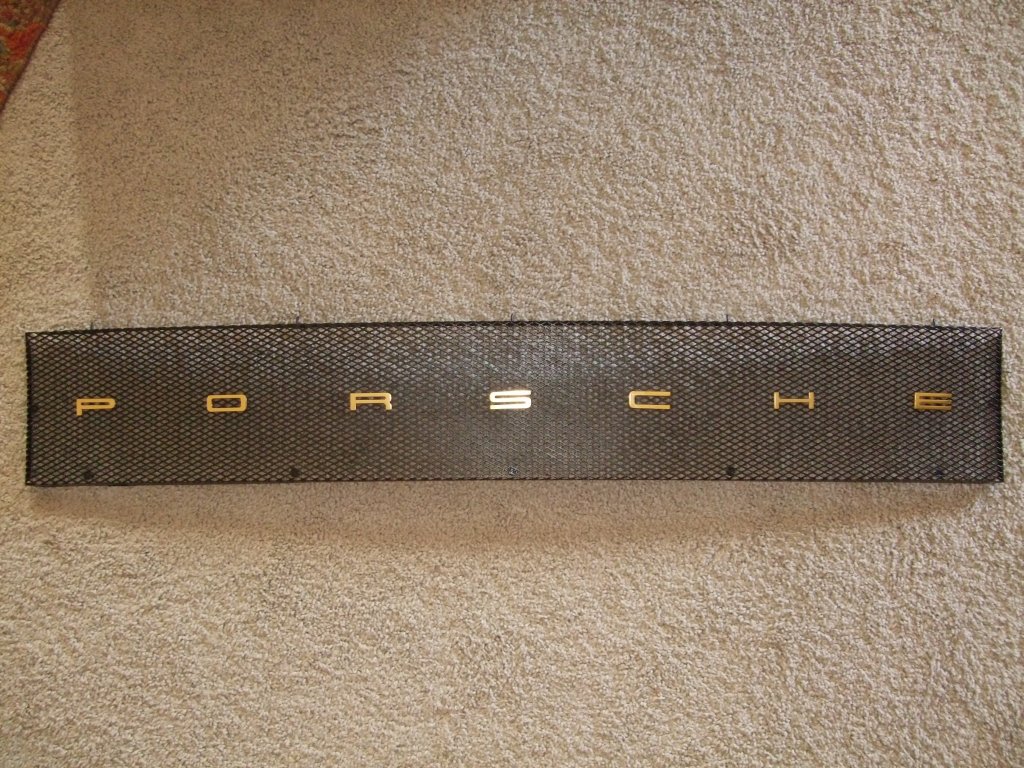

I'm getting ready to do mine again and went back and dug up a picture I put together last time I did this. Seems a bit archaic, sure, but the spacing ends up "perfect", and meets the dimensions specified in the above diagram. It's just a lot easier to do this way in my opinion, since you don't have to deal with keeping a tape measurer in place, etc. YMMV. (IMG:style_emoticons/default/smile.gif)

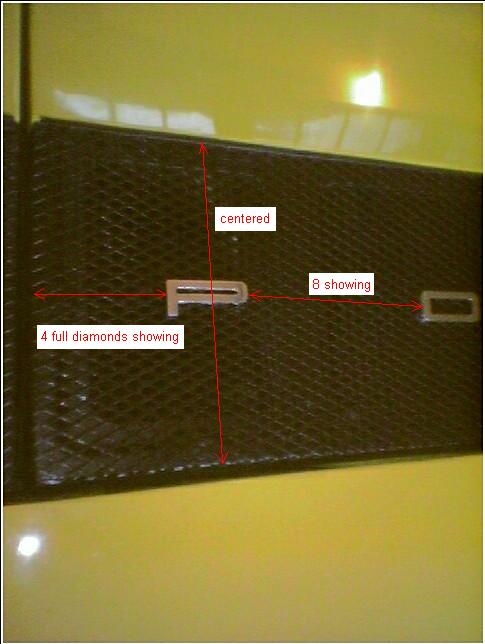

Where stated, "n full diamonds showing" means at least n full diamonds, but not n + 1. For example, "4 full diamonds showing" might mean that you actually see 4 full ones and part of a 5th one, but not 5 full ones.  This post has been edited by Lavanaut: Sep 10 2008, 04:07 PM |
|
|
|
| Lavanaut |
Sep 16 2008, 05:46 PM
Post
#12
|
|
Hungry Mind : Thirsty Gullet Group: Members Posts: 916 Joined: 20-June 06 From: Bend, OR Member No.: 6,265 Region Association: Pacific Northwest |
QUOTE(Lavanaut @ Sep 10 2008, 11:48 AM) I'm getting ready to do mine again and went back and dug up a picture I put together last time I did this. I just replaced the letters on my /6 this past week and used this approach again. It worked great, the spacing ended up perfect. I won't grow hair on my palms for quoting myself will I?  |
|
|
|
| ellisor3 |
Nov 29 2009, 12:23 PM
Post
#13
|
|
HPWhore Group: Members Posts: 811 Joined: 23-October 08 From: Fleming Island, Florida Member No.: 9,683 Region Association: South East States  |

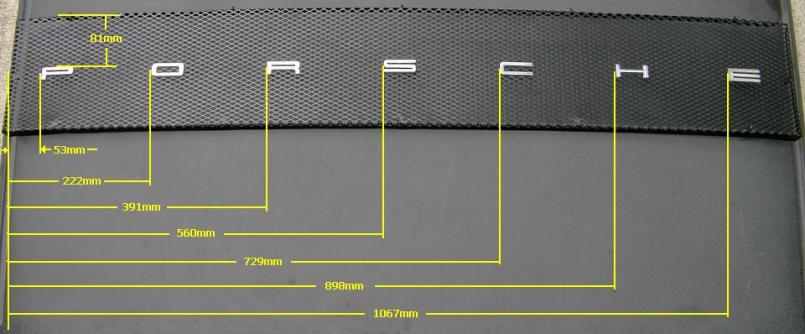

I realize I am following up on an old topic, but I have found the correct spacing for the lettering and thought I would post them for future questions.
Attached thumbnail(s)
|
|
|
|
|
