Sorry to bother about something so simple...
But can anyone help me with the vacuum lines in my car... I kind of lost my haynes manual and the stupid diagram for 1.7 engine doesn;t help me for crap.... So.. can someone send a picture of their engine or atleast their own diagram Sorry and Thanks (IMG:http://i79.photobucket.com/albums/j147/Blargh1/PICT0042.jpg) (IMG:http://i79.photobucket.com/albums/j147/Blargh1/PICT0043.jpg) Just a couple of pictures of my engine... |
   |

|
| type4org |
Jul 30 2006, 04:12 PM
Post
#2
|
|
You need PLAID! Group: Members Posts: 231 Joined: 13-June 06 From: Oldenburg (Oldb), Germany Member No.: 6,212 |
This link to a 1970 1.7 diagram on Pelican Parts' site might help:
http://www.pelicanparts.com/914/technical_...4_17FI_diag.htm Consider yourself lucky. Try a model with all the emissions doodads fitted (IMG:style_emoticons/default/wink.gif) |
|
|
|
| Bleyseng |
Jul 30 2006, 05:07 PM
Post
#3
|
|
Aircooled Baby! Group: Members Posts: 13,036 Joined: 27-December 02 From: Seattle, Washington (for now) Member No.: 24 Region Association: Pacific Northwest |

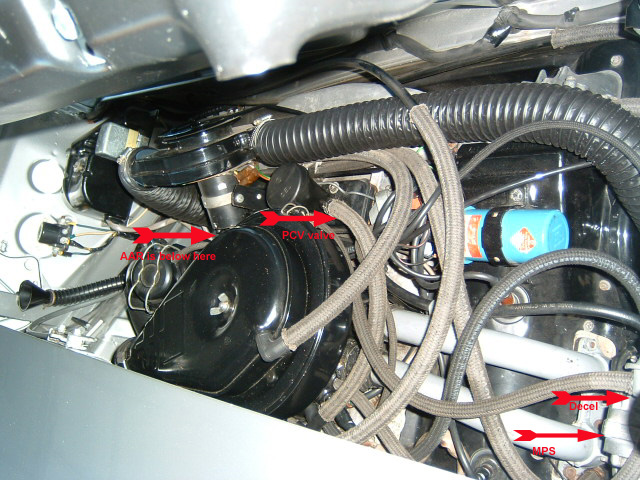

Here is one from the battery side to show the hoses at the plenum.
Attached image(s)
|
|
|
|
| Blargh |
Jul 30 2006, 05:35 PM
Post
#4
|
|
Newbie Group: Members Posts: 16 Joined: 30-May 06 From: Prunedale, USA! Member No.: 6,101 |
QUOTE(Bleyseng @ Jul 30 2006, 04:07 PM)  Here is one from the battery side to show the hoses at the plenum. Thanks! That engine looks friggin' awsome by the way! |
|
|
|
|
