Had a few buddies over to help yesterday and we made some really good progress. (IMG:style_emoticons/default/beer3.gif)...ok, and had a few beers also.

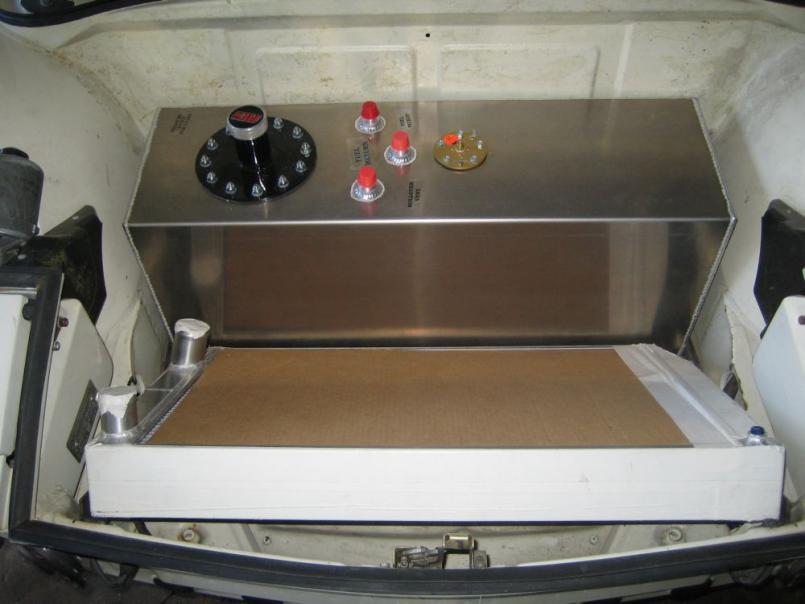

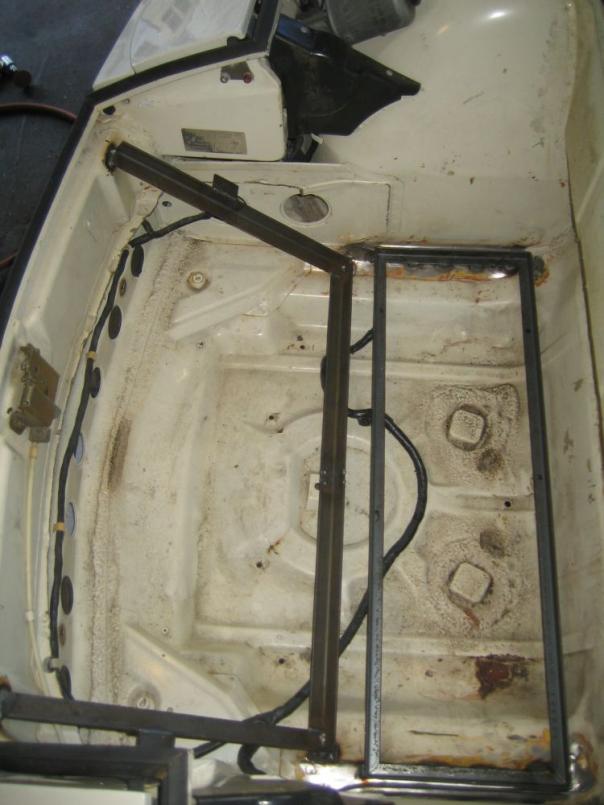

Made the Radiator support and welded in the fuel cell frame:



Installed:

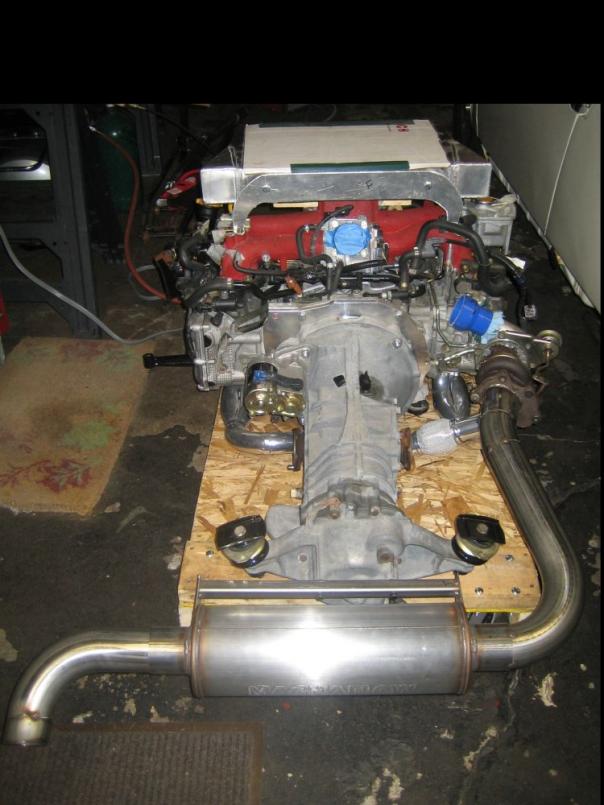

Made the outlet of the exhaust and the rear intercooler support:



Going to try to get the fuel lines run and the rear brakes/prop valve plumbed today.

One month until Woodward Dream cruise...need to get this thing running so I can go up to Pontiac and show the hot rod guys how to make some smoke!

Scott

[Amenson]

Progress from Sunday:

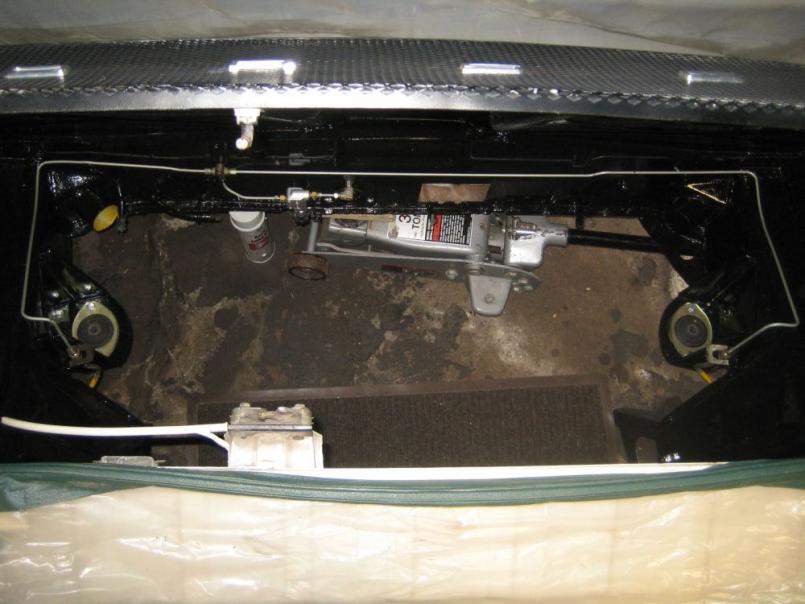

Installed new brake lines in the rear:

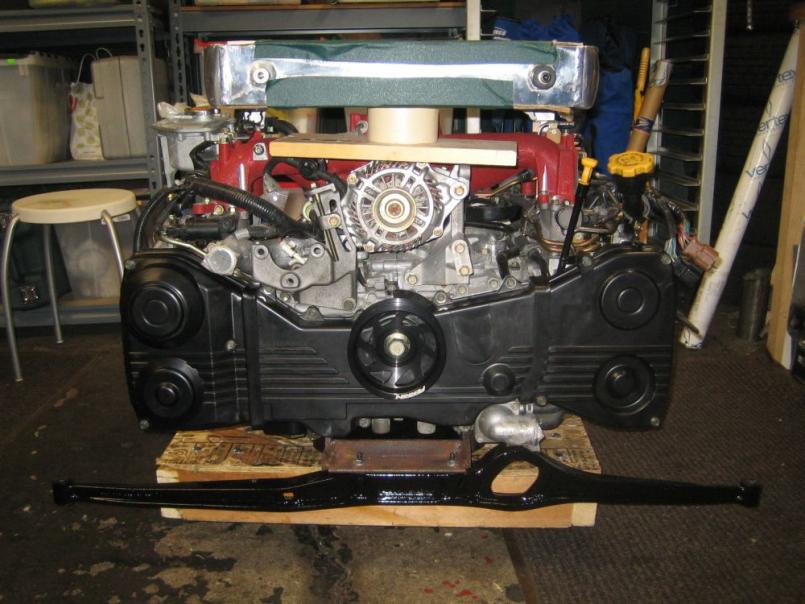

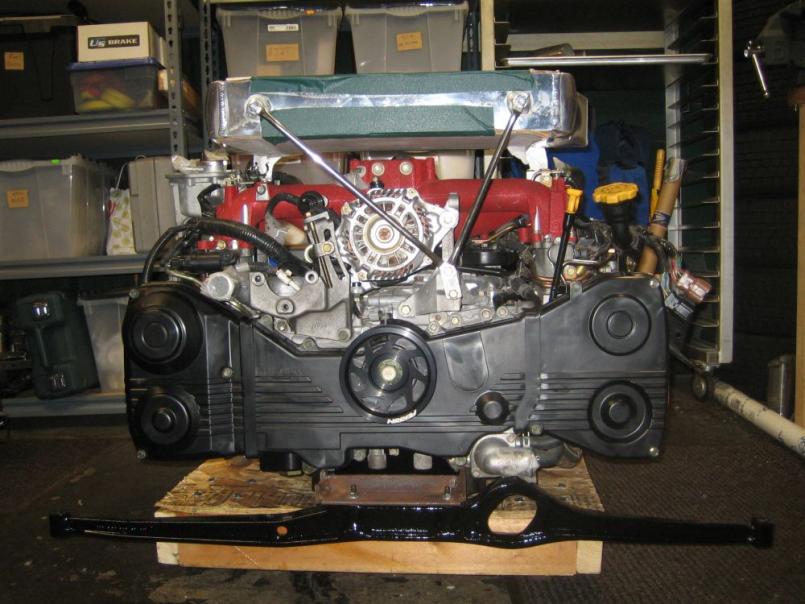

Finally buttoned up the timing belt:



I think that the single most difficult part of the entire project was dealing with the damn cam pullies. Getting them off in the first place, especially the broken ones, and getting them torqued back down w/o the Subaru special tools has been a real pain in the butt. I ended up pushing the engine 2 blocks down to the Subaru dealership to use their tools. I can probably install the timing belt while sleeping now.

While checking the cam timing I rotated the engine and found that the starter is partially engagued. I have one of the recommended eBay high torque gear reduction starters. I am going to install my old starter to see if I have partial engagement with that one also.

Is a shim required to use this starter normally. Could my flywheel be the problem? I have a Renegade flywheel/adapter plate made for the engine/trans combination.

Scott

[Chris Pincetich]

Nice progress! (IMG:style_emoticons/default/beerchug.gif)
My mini-starter fit fine, but others have the same problem. One actually thrashed the flywheel due to the limited engagement. Use the *search* on the upper right link and try searching for "starter" in titles...there was a good discussion recently where mcMark talked about shimming the mount to match the starter gear on the flywheel teeth better - again, in some cases this problem exists but not all. Good luck (IMG:style_emoticons/default/beerchug.gif)

[RS22b]

i must say, this has got to be one of the most complete STi conversions i have seen. Would love to do the same kinda thing someday. Not sure if it will come sooner than later, but would love for it to come sooner than later (IMG:style_emoticons/default/laugh.gif)

Are you on nasioc as well?

As you can see by my sig im a subaru junkie as well, but the 914 was first.

cant wait to see the final product!
g/l

_billy

PS: dont throw any of that subaru stuff away! before you do, let me know (IMG:style_emoticons/default/wink.gif)

[Amenson]

...there was a good discussion recently where mcMark talked about shimming the mount to match the starter gear on the flywheel teeth better - again, in some cases this problem exists but not all. Good luck (IMG:style_emoticons/default/beerchug.gif)

Thanks for the tip. I am a little less irritated by the situation now. Guess that I have to add one more thing to the "to make" list.

RS22b, I am on nasioc but I rarely read it and pretty much never post. I have sold almost all of the STi stuff already. All that is left are the struts, rocker covers, front subframe and a few other small odds and ends. Oh, center console and carpet also...but only because I had a non-paying idiot win those items on eBay. (IMG:style_emoticons/default/ar15.gif)

Scott

[Amenson]

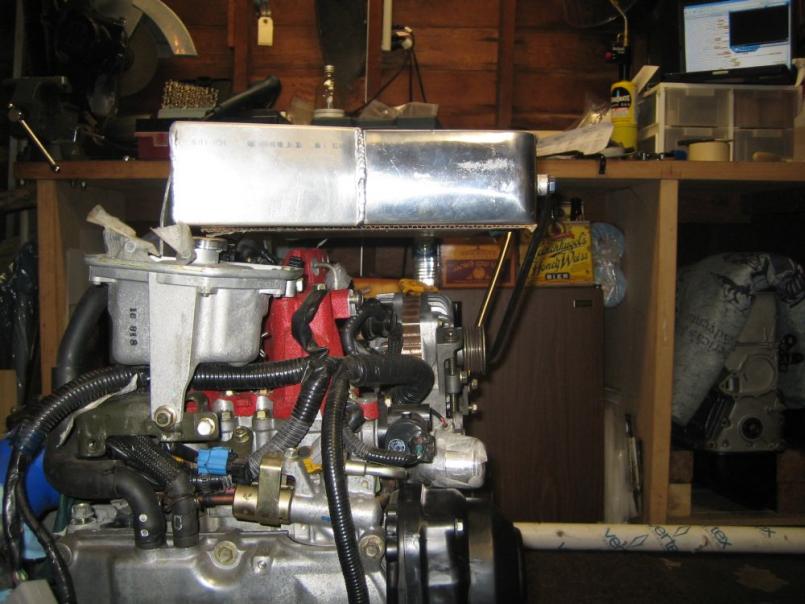

Made a little more progress today. The intercooler no longer needs a board and roll of tape to hold it up. I flattened the ends and bent up some 3/8" SS fuel line. I think that it worked out well although do need to adjust the back of the intercooler up a bit as I can no longer remove the coolant cap.





The fuel lines are next on the list.

Scott

[Amenson]

Got a bit more work done the last couple of days.

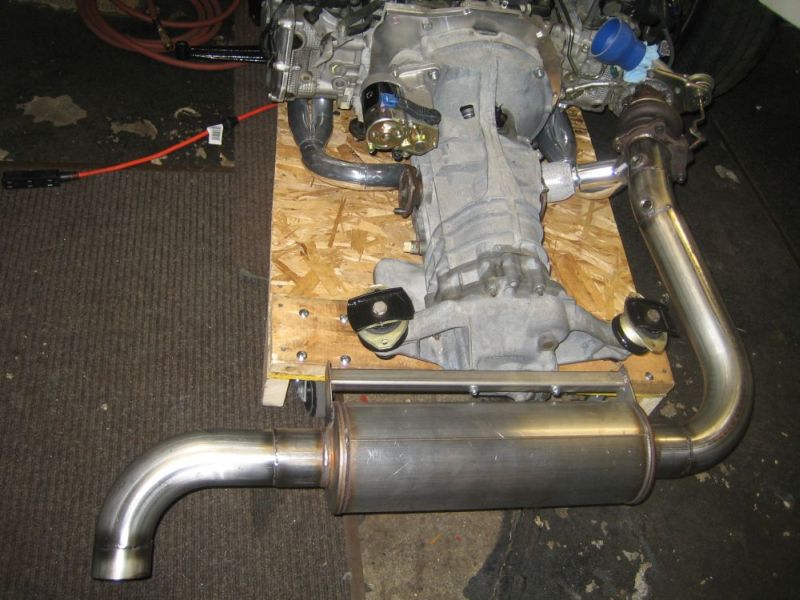

Made the through tunnel fuel lines. Also had the exhaust welded and installed the O2 bungs, as always it turned out great...this project would not be going so well without the help of my buddies:

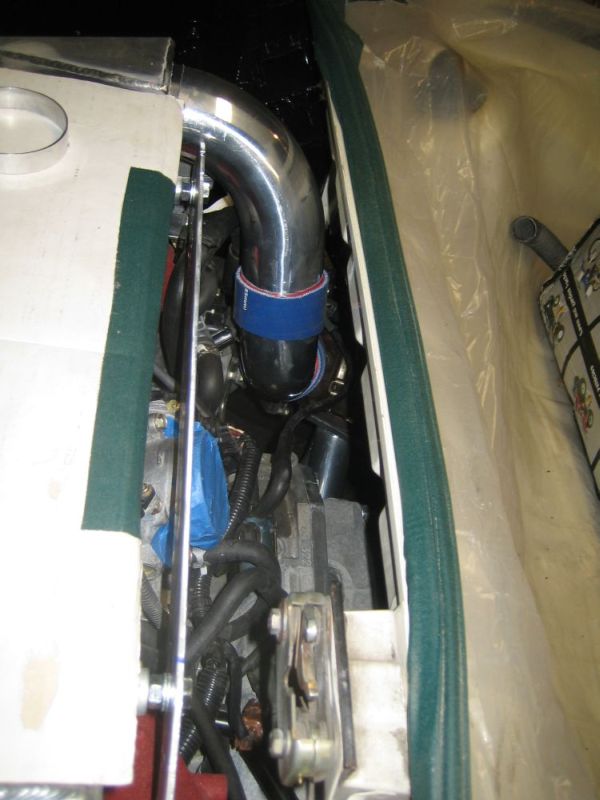

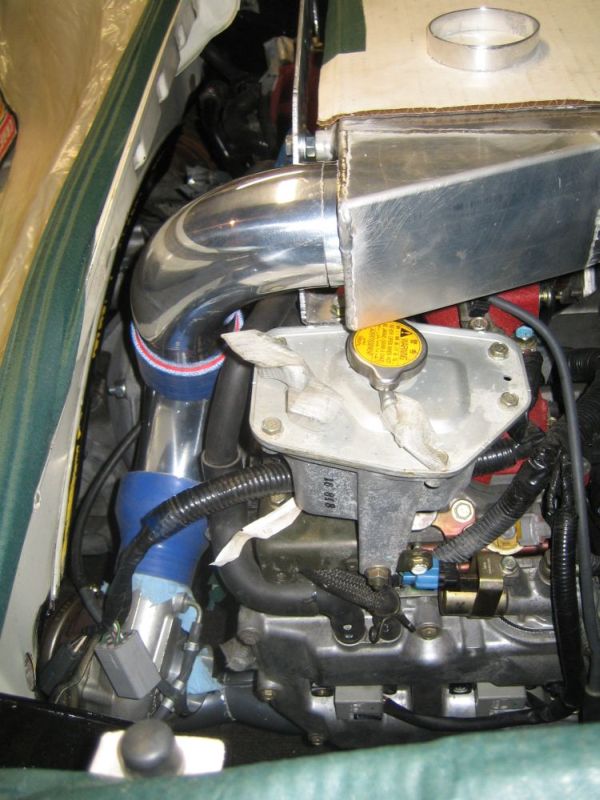

Mocked up the turbo to intercooler piping...need to tack it into place and have it welded:





It looks like I am going to need to remove the engine lid latch to clear the IC tubing on the other side. I was really hoping to avoid doing this.

Somebody buy my 2.0L...(IMG:style_emoticons/default/051103-stupid4.gif)I mean 1.7/1.8L SSI's, the project fund is running low!

Scott

[charliew]

Hi Scott, I'm pretty new to this forum but I'm lovin it. It's like a gold mine to me. Is the turbo going to drain oil back ok? I'm trying to use a twin turbo and am interested in the positioning of yours. Also are you aware that a light crank pulley creates harmonics that disturb the oil pump? I'm not positive on this but it's something I read on nasioc. You can take this with a grain of salt. I put my original pulley back on though. I will have plenty of power without the risk. Also we have found a better oil pump lately thats discussed on nasioc. Don't worry if your not going to be bouncing of the rev. limiter. Hope the tranny holds up. I really enjoy your thread.
Charlie

[Amenson]

Hi Scott, I'm pretty new to this forum but I'm lovin it. It's like a gold mine to me. Is the turbo going to drain oil back ok? I'm trying to use a twin turbo and am interested in the positioning of yours. Also are you aware that a light crank pulley creates harmonics that disturb the oil pump? I'm not positive on this but it's something I read on nasioc. You can take this with a grain of salt. I put my original pulley back on though. I will have plenty of power without the risk. Also we have found a better oil pump lately thats discussed on nasioc. Don't worry if your not going to be bouncing of the rev. limiter. Hope the tranny holds up. I really enjoy your thread.
Charlie

Charlie,
Thank you for the tip on the pulley, I will look into it. I still have my original but it was scuffed in the accident so I replace it. I don't think that I will get to use the full rev's all that much anyways. (IMG:style_emoticons/default/happy11.gif)

As for the turbo oil drain, I am going to try to use the stock block return modified a bit to point in the correct direction. I also have a fitting for the oil pan if that does not look like it will work.

I hope the tranny hold up also!

Scott

[Amenson]

Have not posted in a while because I have not made any interesting progress. I have been plugging way on a load of small projects:

Made the spacer for the starter
Made the flange for the blow off valve
Started removing the engine lit latch
Test fit the clutch cable
Modified the clutch pulley housing to lower the clutch cable under the exhaust
Started running the cooling lines. This was a bit of a set back. I purchased gates 75w marine type colling line. The specified bend radius was 12 inches. I figure that I could cheat it a little...I was wrong. It creases quite easily. Now I am going to have to put a few stainless steel bends where I need to make a tight direction change. I know, more places to leak but I do not have much of an option right now.

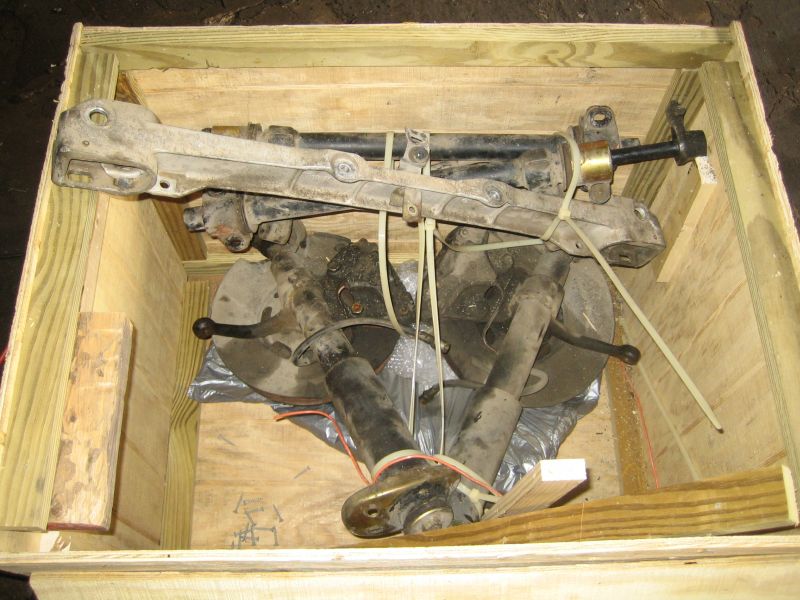

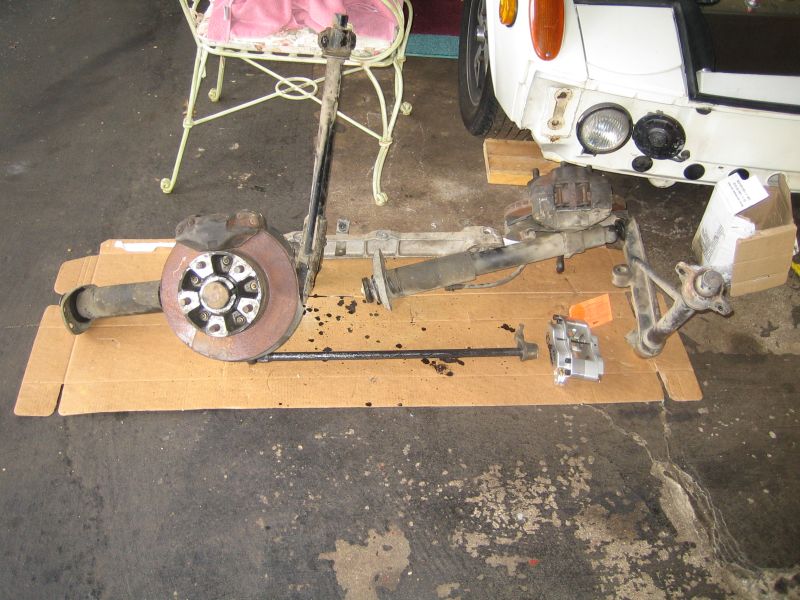

On the brighter side, I proved once again that good things do come from eBay!!! I got an '83 CS front suspension for $285 + shipping which was only $55 because the seller let me arrange shipping through my BAX account.





You can see one of the 4-pot billet calipers that I plan to use both front and rear in the above picture. As this is not a critical part of the project at this point I promptly disassembled the parts so that they would fit into bins and stored them away until winter. (IMG:style_emoticons/default/sad.gif)

So needless to say, with Woodward Dream Cruise coming up this weekend I will not be participating with the PorSTi. I will be having a party for it Saturday night. If anybody is planning to be in the area and wants to stop by for a beer and check out the project I am a block east of Woodward in Ferndale...just send me a PM and I will give you the details.
