> Carbon Fiber Front Clip, For sale
groot
post Sep 20 2006, 10:52 AM
Post #1


Dis member
***

Group: Members
Posts: 896
Joined: 17-December 03
From: Michigan
Member No.: 1,444
Okay, several people have asked about getting these front clips... here's the breakdown:

Front Clip Option 1
-Opaque gelcoat finish (ready to paint) made mostly of fiberglass, with some carbon for strength
-Please select grey, white or black
-Cost $490 plus $50 for tooling recovery*

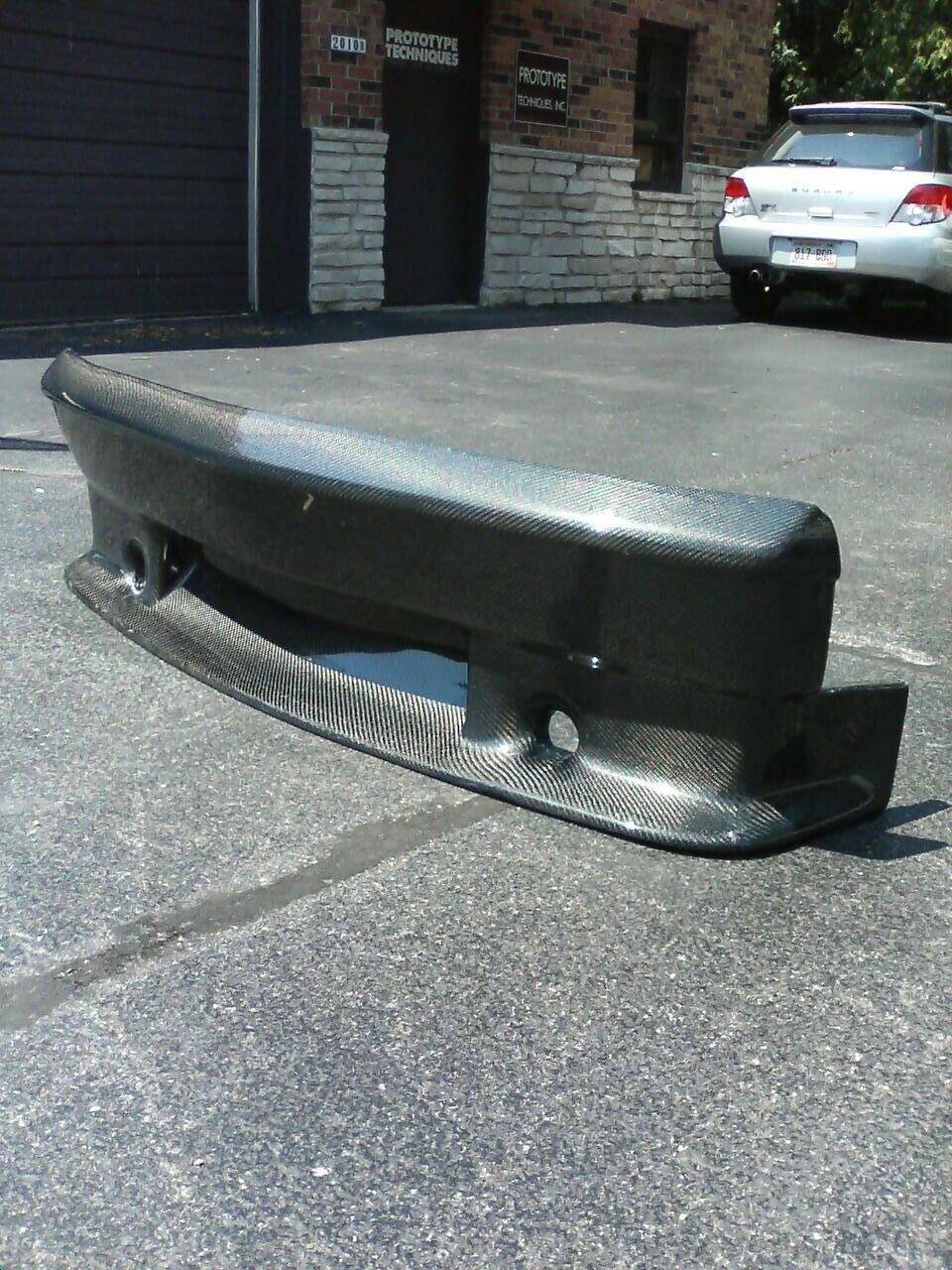

Front Clip Option 2
-Vacuum infused, clear finish made of 3 layers (6K, 11.4oz twill weave carbon, 1/8" core material for infustion, and carbon/kevlar hybrid twill
-Cost $785 plus $50 for tooling recovery*
Attached Image

Splitter Option (not required and can be mounted to other front clips, provided they have a level mounting surface)
-Carbon fiber, leading edge is reinforced with extra layers of carbon fiber
-Reduces ride height clearance, splitter's overall thickness is slightly over 3/8", (.390") (on my car this splitter sits 2" from the ground, while the front donuts are 3.5" from the ground)
-Care should be taken to mount this as level as possible for maximum benefit
-Cost $280

Shipping-required for all options (IMG:style_emoticons/default/wink.gif)
-Figure between $80 and $180 for shipping using FEDEX Freight, must be shipped to a loading dock or can be picked up at a FEDEX Freight facility

Timing
-Please allow 2 weeks for construction
-Orders can start IMMEDIATELY

* Tooling recovery-This cost is meant to recover part of the money that I used to initiate this project including: purchasing the original air dam, shipping, constructing the tool and constructing the mold

Place the orders through me and I'll work with Mike Cudahy of Prototype Composites to get you the parts.

Here's a pic of the clip and splitter installed on my car:
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Trekkor
post Sep 20 2006, 12:00 PM
Post #2


I do things...
*****

Group: Members
Posts: 7,809
Joined: 2-December 03
From: Napa, Ca
Member No.: 1,413
Region Association: Northern California
That looks fantastic!! (IMG:style_emoticons/default/clap56.gif)


KT
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
brant
post Sep 20 2006, 02:00 PM
Post #3


914 Wizard
**********

Group: Members
Posts: 11,793
Joined: 30-December 02
From: Colorado
Member No.: 47
Region Association: Rocky Mountains
I like the new paint Kevin.
the car looks amazing!

whats the new weight this year?

brant
User is online!Profile CardPM
Go to the top of the page
+Quote Post
groot
post Sep 20 2006, 04:13 PM
Post #4


Dis member
***

Group: Members
Posts: 896
Joined: 17-December 03
From: Michigan
Member No.: 1,444
Thanks, Brant... it's come a long way....

I'm at 1850 with driver... so I have to run ballast.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
brant
post Sep 20 2006, 10:48 PM
Post #5


914 Wizard
**********

Group: Members
Posts: 11,793
Joined: 30-December 02
From: Colorado
Member No.: 47
Region Association: Rocky Mountains
Thats awesome Kevin!
good job!

brant
User is online!Profile CardPM
Go to the top of the page
+Quote Post
nebreitling
post Sep 20 2006, 11:05 PM
Post #6


Member Emeritus
****

Group: Members
Posts: 3,314
Joined: 26-March 03
From: San Francisco
Member No.: 478
that car is exceptionally hot.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
hars914
post Sep 21 2006, 05:21 AM
Post #7


Member
**

Group: Members
Posts: 114
Joined: 6-January 03
Member No.: 94
How is it mounted?? Does it have brackets molded in or is it dzus fastened
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
groot
post Sep 21 2006, 05:48 AM
Post #8


Dis member
***

Group: Members
Posts: 896
Joined: 17-December 03
From: Michigan
Member No.: 1,444
The clip is only the shell, so one must devise their own mounting scheme.

I bolted mine throught the 916 Oil cooler opening on the front and then some brackets hold the back end of the splitter... allowing me to adjust the angle of the splitter as required.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
groot
post Sep 21 2006, 06:11 AM
Post #9


Dis member
***

Group: Members
Posts: 896
Joined: 17-December 03
From: Michigan
Member No.: 1,444
Contact information....

e-mail or PM is the best way for the initial contact... so I keep track of all of this. My schedule can get hectic, so bare with me please.

Ask any questions you want here so everyone can see what's discussed.

I apologize for charging the "tooling recovery fee" but I did shell out over $2000 to be able to make this happen.... and I'm not that charitable (or rich). (IMG:style_emoticons/default/ohmy.gif)

If this turns out okay and I don't lose my shirt, there may be other things we could develop in this fashion.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Brad Roberts
post Sep 21 2006, 05:17 PM
Post #10


914 Freak!
***************

Group: Members
Posts: 19,148
Joined: 23-December 02
Member No.: 8
Region Association: None
Thanks Kevin (IMG:style_emoticons/default/clap56.gif)

You have done a top notch job on producing this piece for the 914 market.

Your car looks GREAT!!

Keep up the good work. Maybe one day we can throw some sponsorship your way.


B
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mbdoc
post Dec 3 2006, 12:33 PM
Post #11


Newbie
*

Group: Members
Posts: 24
Joined: 2-December 06
From: Lake Arrowhead CA
Member No.: 7,298
Kevin,
Are you still offering the front clip in carbon fibre. What is delivery time and shipping costs to CA
Thanks in advance.
Adrian
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
groot
post Dec 3 2006, 02:09 PM
Post #12


Dis member
***

Group: Members
Posts: 896
Joined: 17-December 03
From: Michigan
Member No.: 1,444
Yes, they are....

The part should take only a few weeks to make and ship, depending on Mike's workload.... shipping and handling to So Cal could run $150-200.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mbdoc
post Dec 3 2006, 03:35 PM
Post #13


Newbie
*

Group: Members
Posts: 24
Joined: 2-December 06
From: Lake Arrowhead CA
Member No.: 7,298
QUOTE(groot @ Dec 3 2006, 12:09 PM) *

Yes, they are....

The part should take only a few weeks to make and ship, depending on Mike's workload.... shipping and handling to So Cal could run $150-200.


Thanks
I will place an order after the new year. Also if I may, I'm new to the 914's and am installing the bilstein coil overs in front. It seems as the top shock towers look weak as though it may rip out under extended hard loads. Do you know of any mods to strenghten this area.
Adrian
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
groot
post Dec 3 2006, 05:43 PM
Post #14


Dis member
***

Group: Members
Posts: 896
Joined: 17-December 03
From: Michigan
Member No.: 1,444
QUOTE(mbdoc @ Dec 3 2006, 01:35 PM) *

It seems as the top shock towers look weak as though it may rip out under extended hard loads. Do you know of any mods to strenghten this area.
Adrian


The stock upper bearing does a good job of distributing the load. I have never seen this as a failure... but having said that, many people add camber plates.... might be a good idea to ask this in the "Paddock" forum to see what others are up to.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Eric_Shea
post Dec 3 2006, 08:09 PM
Post #15


PMB Performance
***************

Group: Admin
Posts: 19,289
Joined: 3-September 03
From: Salt Lake City, UT
Member No.: 1,110
Region Association: Rocky Mountains
OMG... Thing of beauty! (IMG:style_emoticons/default/smilie_pokal.gif)

(the car and the CF bumper!)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mbdoc
post Dec 4 2006, 11:23 AM
Post #16


Newbie
*

Group: Members
Posts: 24
Joined: 2-December 06
From: Lake Arrowhead CA
Member No.: 7,298
QUOTE(groot @ Dec 3 2006, 03:43 PM) *

QUOTE(mbdoc @ Dec 3 2006, 01:35 PM) *

It seems as the top shock towers look weak as though it may rip out under extended hard loads. Do you know of any mods to strenghten this area.
Adrian


The stock upper bearing does a good job of distributing the load. I have never seen this as a failure... but having said that, many people add camber plates.... might be a good idea to ask this in the "Paddock" forum to see what others are up to.


Kevin,
I don't mean to be stupid but you say front clip and splitter. Please define. I was taught front clip meaing from windshield forward. Not sure of your term splitter. I'm interested in only the front bumper assembly complete as shown in your pic with the Sube in the background.
Thanks
Adrian
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
michaelt55
post Dec 6 2006, 05:54 PM
Post #17


Graduate of Life's experiences
**

Group: Members
Posts: 438
Joined: 2-September 06
From: Richmond, Texas
Member No.: 6,753
Region Association: None
thats one gorgeous piece of carbon fiber....
any chance of getting some sort of stock mounting for it bonded into it?


Michael
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
groot
post Dec 7 2006, 10:02 AM
Post #18


Dis member
***

Group: Members
Posts: 896
Joined: 17-December 03
From: Michigan
Member No.: 1,444
Good questions....

Really the part is a combination of a bumper and an air dam.... really a fascia in my world, but that may not be the term most people are familiar with. I'm only referring to it as a clip to make sure people understand it's not just a bumper shell.

The splitter is a flat plate-like part that attaches to the bottom of the fascia to clean up the airflow underneath the car. You see them on a lot of newer race cars. This part is really a "race only" addition to the basic fascia due to the lack of ground clearance. It would be very difficult to live with this on the street.

As far as stock mounting points..... I'm leaving that up to the buyer to figure out. Most of these cars are different and the uses of these parts will be different. For example... I made my mounts strong and adjustable for rake angle but easily removable because I take it off to get the car on the trailer.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Tobra
post Jan 10 2007, 10:55 PM
Post #19


Senior Member
***

Group: Members
Posts: 1,453
Joined: 22-August 05
From: Sacramento, CA
Member No.: 4,634
A thing of beauty.

how about front and rear decklids? or a top out of carbon fiber, that would also be pretty cool
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
michaelt55
post Jan 11 2007, 12:54 PM
Post #20


Graduate of Life's experiences
**

Group: Members
Posts: 438
Joined: 2-September 06
From: Richmond, Texas
Member No.: 6,753
Region Association: None
QUOTE(Tobra @ Jan 10 2007, 10:55 PM) *

A thing of beauty.

how about front and rear decklids? or a top out of carbon fiber, that would also be pretty cool



oh man..... I would be all over a CF top..... or spoiler...


Michael
User is offlineProfile CardPM
