> Center Console: Measurements?, for the DIY builder
Brian Mifsud
post Sep 24 2006, 08:09 PM
Post #1


Mechanical Engineer
***

Group: Members
Posts: 981
Joined: 3-March 03
From: Penngrove, CA
Member No.: 384
Region Association: None
(IMG:style_emoticons/default/sawzall-smiley.gif) Has anyone measured and made up a drawing of the center console? I'm a pretty decent woodworker and one for my '76 which was never equipped. I'd like also to toss that crappy plastic chunk of foam.. the quasi-armrest, so thought I'd integrate it with the OEM style center console.

Thanks
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
eg914
post Sep 24 2006, 11:09 PM
Post #2


Member
**

Group: Members
Posts: 319
Joined: 17-June 04
From: Elk Grove, CA
Member No.: 2,223
Region Association: None
I have a link to a french 914 site, but it no longer works. The main site seems to be fine.

http://914france.ifrance.com/914france/console.htm

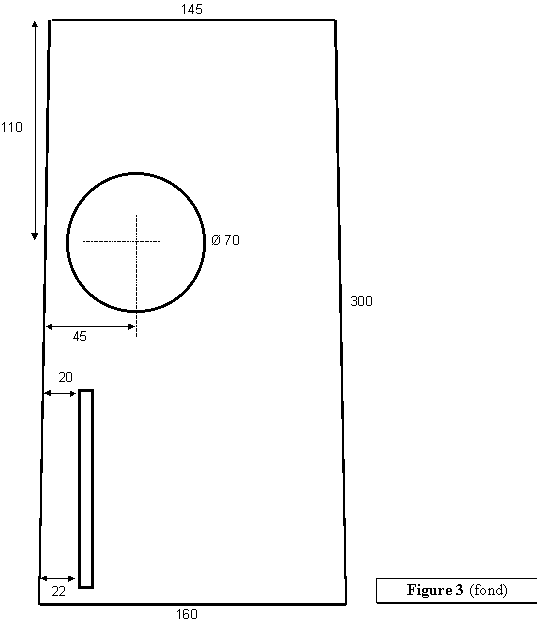

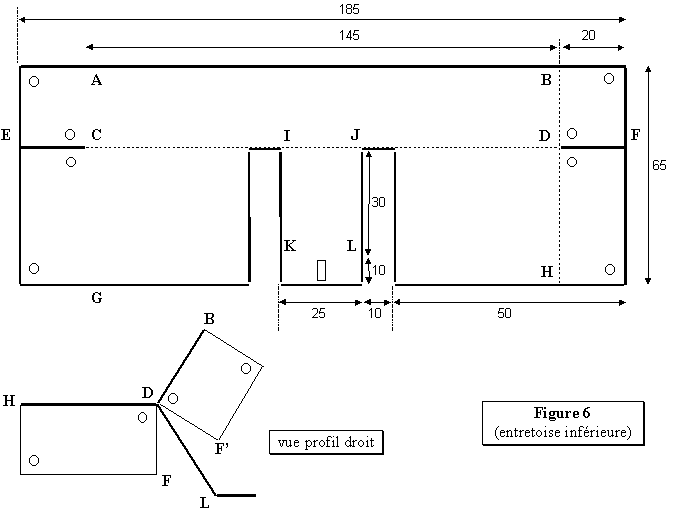

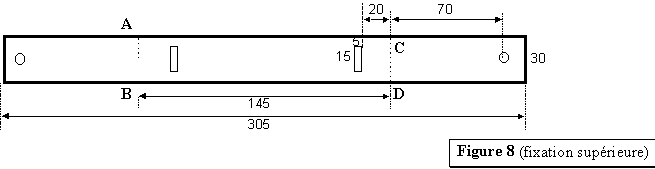

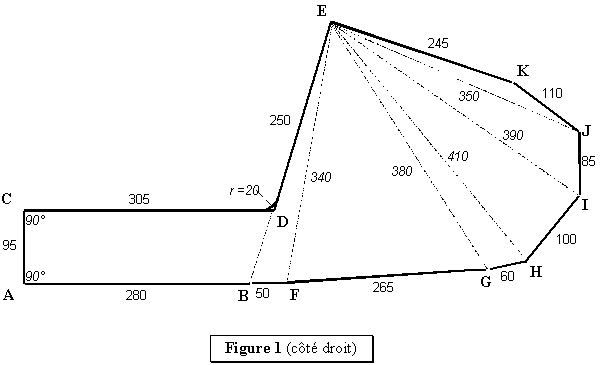

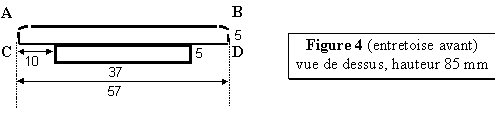

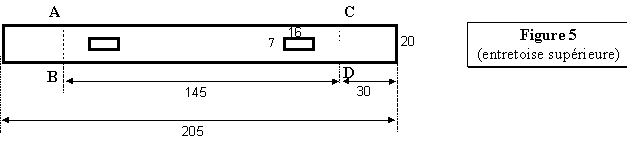

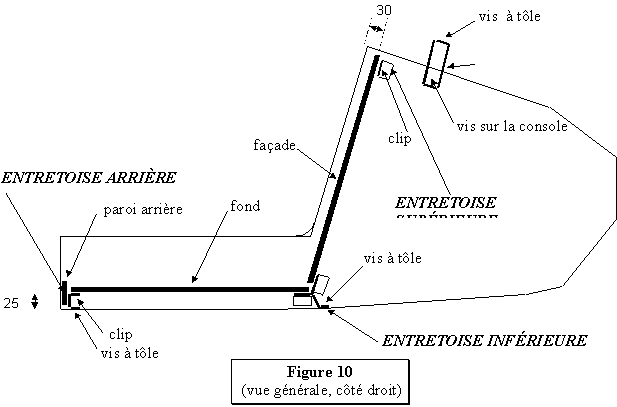

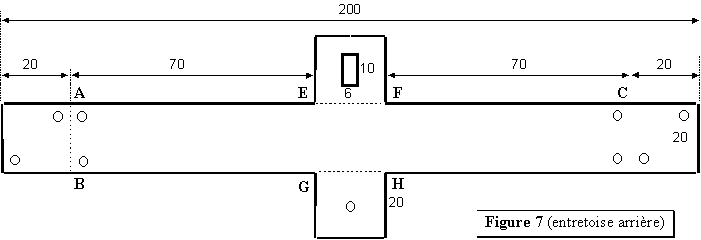

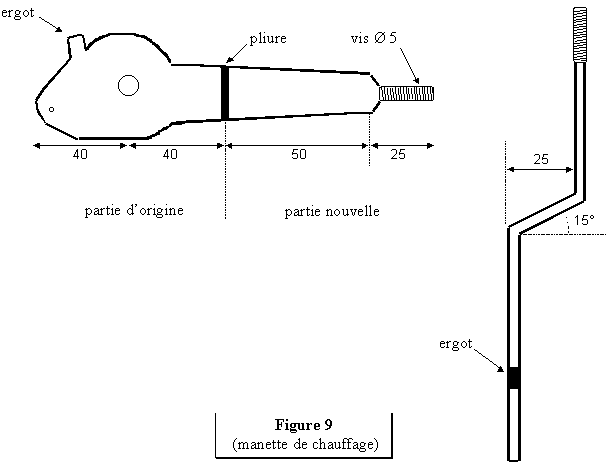

There were 10 gif files with dimensions in mm. I hope I have attached them.

Attached ImageAttached ImageAttached Image
Attached ImageAttached ImageAttached Image
Attached ImageAttached ImageAttached Image
Attached Image

I wish that I had the authors name, to give credit where due. It may be that the link above is only temporarily out of order. Good luck
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dave_Darling
post Sep 25 2006, 08:10 AM
Post #3


914 Idiot
***************

Group: Members
Posts: 15,066
Joined: 9-January 03
From: Silicon Valley / Kailua-Kona
Member No.: 121
Region Association: Northern California
Bill, thanks for saving those measurements!!

--DD
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Brian Mifsud
post Sep 25 2006, 08:10 AM
Post #4


Mechanical Engineer
***

Group: Members
Posts: 981
Joined: 3-March 03
From: Penngrove, CA
Member No.: 384
Region Association: None
(IMG:style_emoticons/default/clap56.gif) (IMG:style_emoticons/default/clap56.gif) Tremendous!!! (IMG:style_emoticons/default/clap56.gif)

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Brian Mifsud
post Sep 25 2006, 08:41 AM
Post #5


Mechanical Engineer
***

Group: Members
Posts: 981
Joined: 3-March 03
From: Penngrove, CA
Member No.: 384
Region Association: None
Does anyone know what the angle is for the side panels, as described by lines ED to DC? (on drawings "Figure #1 and Figure #2) I can figure out the rest by measuring the actual space inside the car, but with now real console to use as a pattern, I'd just be guessing otherwise.

Thanks
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Matt Meyer
post Sep 25 2006, 09:10 AM
Post #6


Überlurker
**

Group: Members
Posts: 216
Joined: 2-December 03
From: Eastern Washington
Member No.: 1,411
Region Association: Pacific Northwest
It is about 105 degrees.

I have a cad drawing made from the website if you want it and can open AutoCAD .dwg files.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Brian Mifsud
post Sep 25 2006, 10:30 AM
Post #7


Mechanical Engineer
***

Group: Members
Posts: 981
Joined: 3-March 03
From: Penngrove, CA
Member No.: 384
Region Association: None
QUOTE(Matt Meyer @ Sep 25 2006, 08:10 AM) *

It is about 105 degrees.

I have a cad drawing made from the website if you want it and can open AutoCAD .dwg files.



That would be a great time saver. thanks Matt
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Always Looking
post Sep 25 2006, 10:52 AM
Post #8


Member
**

Group: Members
Posts: 194
Joined: 9-December 04
From: Orange, CA
Member No.: 3,246
Great info. What wood are you, Brian, going to use. I was thinking of mocking one up in cardboard today.

Dan
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
BarberDave
post Sep 25 2006, 11:39 AM
Post #9


Barberdave
***

Group: Members
Posts: 1,605
Joined: 12-January 03
From: Wauseon Ohio
Member No.: 135
Region Association: Upper MidWest
(IMG:style_emoticons/default/smilie_pokal.gif)
Brian: I have some old console sides ,that arn't any good to me. laying around
pay just shipping and you can have the orginials to work from. The place ment of the kick back on the drivers side is important ,or your foot gets in the way of everthing. Let me know. Dave (IMG:style_emoticons/default/slap.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
t collins
post Sep 16 2007, 09:25 AM
Post #10


Advanced Member
****

Group: Members
Posts: 3,270
Joined: 21-March 06
From: Virginia
Member No.: 5,754
Region Association: None
QUOTE(Matt Meyer @ Sep 25 2006, 07:10 AM) *

It is about 105 degrees.

I have a cad drawing made from the website if you want it and can open AutoCAD .dwg files.


PM sent
Thanks,
Tom
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Plaindaner
post Sep 16 2007, 09:43 AM
Post #11


Plaindaner
*

Group: Members
Posts: 30
Joined: 7-April 07
From: Green Forest, AR
Member No.: 7,650
QUOTE(BarberDave @ Sep 25 2006, 12:39 PM) *

(IMG:style_emoticons/default/smilie_pokal.gif)
Brian: I have some old console sides ,that arn't any good to me. laying around
pay just shipping and you can have the orginials to work from. The place ment of the kick back on the drivers side is important ,or your foot gets in the way of everthing. Let me know. Dave (IMG:style_emoticons/default/slap.gif)


(IMG:style_emoticons/default/agree.gif) I just had my console out last week to install a pair of 5-1/4" mid-bass woofers. I was concerned about foot room as well. Ends up that the console cluster is shallow enough that I placed the woofers right up front, far away from my foot access. Oh, and they are soooo sweet!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Sep 17 2007, 02:54 AM
Post #12


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
One of the measurements on the French drawing is WRONG... (IMG:style_emoticons/default/sad.gif)

but I don't remember which one. (IMG:style_emoticons/default/pinch.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Brian Mifsud
post Sep 17 2007, 10:51 AM
Post #13


Mechanical Engineer
***

Group: Members
Posts: 981
Joined: 3-March 03
From: Penngrove, CA
Member No.: 384
Region Association: None
QUOTE(McMark @ Sep 17 2007, 01:54 AM) *

One of the measurements on the French drawing is WRONG... (IMG:style_emoticons/default/sad.gif)

but I don't remember which one. (IMG:style_emoticons/default/pinch.gif)


One thing I CAN contribute to this forum is a good set of drawings. I have a good original console now. I'll measure it and then compare it to the French drawing.

Between the two, I will make up a new set that are accurate and post them here for all to use.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Brian Mifsud
post Sep 17 2007, 11:03 AM
Post #14


Mechanical Engineer
***

Group: Members
Posts: 981
Joined: 3-March 03
From: Penngrove, CA
Member No.: 384
Region Association: None
QUOTE(Always Looking @ Sep 25 2006, 09:52 AM) *

Great info. What wood are you, Brian, going to use. I was thinking of mocking one up in cardboard today.

Dan


Hi Dan,

The "5mm Exterior Hardwood" ply found at Home Depot is tempting, but I wouldn't recommend it. I did the "boil test" on it to see if it was worthwhile for marine applications (good marine or exterior grade ply will withstand being boiled indefinitely). The sample fell apart in one hour.

No the 914 isn't a marine application... BUT, the temperature swings inside a car a very brutal. Add a little humidity swing, and your console will probably start warping after the first summer.

"First Class" is some marine ply made from "Okuome" or "Meranti". You can find it in 3mm, 4mm, 5mm, 6mm, etc thicknesses. Pricey starting at $30/40 sheet for thin stuff.. but it is very stable and won't move on you. Perhaps, while you are in there, you can build some really nice new door panels too?

"Second Best" is MDO (Medium Density OVERLAY) plywood. Used for signmaking (NOT MDF Medium Density Fiberboard). I belive 1/4" is a thin as you can buy it, but it is also dimensionally stable, water and weather proof, and more readily available all over the country.

If you "must" go "cheap" using the Home Depot stuff.. make sure you seal it really well with some polyurethane after you've completed the last cut. Don't let the moisture migrate in or out (epoxy is best.. but the cost of using that negates the "savings" of using cheap plywood).
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dr914@autoatlanta.com
post Sep 17 2007, 11:46 AM
Post #15


914 Guru
*****

Group: Members
Posts: 8,111
Joined: 3-January 07
From: atlanta georgia
Member No.: 7,418
Region Association: None
We had made some big slabs of metal years ago that we use to precisely cut the consoles to the original dimensions. They work great! We also make the metals to bolt it all together.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
roadster fan
post Nov 27 2007, 01:11 AM
Post #16


Project Frankenstein !!!!!!!!
***

Group: Members
Posts: 1,009
Joined: 24-November 05
From: Aptos, CA
Member No.: 5,184
Region Association: Northern California

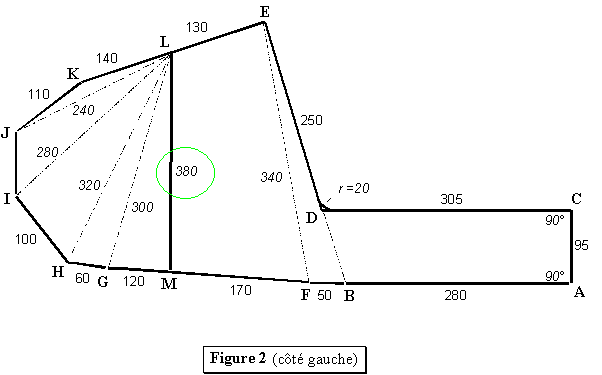

I was reading thru this thread after seeing Beamer13's console he built. I noticed that McMark said one of the measurements is incorrect on the french drawing. I believe it is the one circled in the pic below. I think it is 280mm not 380 mm as listed but I will have to duplicate the drawing in CAD to verify or do a little math i guess.

Hope this helps, if I find out for sure what that measurement is, I will let everyone know.

Jim

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
johannes
post Nov 27 2007, 02:31 AM
Post #17


Club Porsche 914 France President
****

Group: Members
Posts: 3,084
Joined: 13-January 06
From: France
Member No.: 5,409
Region Association: France
Theese drawings came from the old french club' website.

I am in charge of the new site and have saved and moved the drawings on our new forum.

you can find them here

http://porsche914.fr-bb.com/articles-techn...entrale-t15.htm

(IMG:style_emoticons/default/welder.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Beamer13
post Nov 27 2007, 02:40 AM
Post #18


Member
**

Group: Members
Posts: 303
Joined: 8-November 07
From: Midwest
Member No.: 8,308
Region Association: Upper MidWest
I don't suppose by some chance, you might have a copy of this translated into English?? I know, I know... I'm bein lazy :-) What do I need to read it for anyway? Right??? :-)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Rick_Eberle
post Nov 27 2007, 05:23 PM
Post #19


Member
**

Group: Members
Posts: 390
Joined: 14-January 04
From: Geelong, Australia
Member No.: 1,558
QUOTE(Beamer13 @ Nov 27 2007, 07:40 PM) *

I don't suppose by some chance, you might have a copy of this translated into English?? I know, I know... I'm bein lazy :-) What do I need to read it for anyway? Right??? :-)



Try this thread...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
zymurgist
post Nov 27 2007, 05:36 PM
Post #20


"Ace" Mechanic
*****

Group: Members
Posts: 7,411
Joined: 9-June 05
From: Hagerstown, MD
Member No.: 4,238
Region Association: None
Dr Evil has a cool (non-OEM) console.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
