> Center Console: Measurements?, for the DIY builder
beech4rd
post Nov 27 2007, 06:10 PM
Post #21


Member
**

Group: Members
Posts: 345
Joined: 10-January 07
From: Highwoods, Saugerties, NY
Member No.: 7,445
Region Association: North East States
QUOTE
QUOTE(Always Looking @ Sep 25 2006, 09:52 AM)

Great info. What wood are you, Brian, going to use. I was thinking of mocking one up in cardboard today.

Dan



The plywood used in a factory console is a 5 ply 10 mm (3/8") material with a 5 mm (+- 3/16") layer of foam bonded to it. The plywood looks like Baltic Birch, which is a very stable and somewhat expensive plywood we use in our shop when we need a plywood that can really be relied upon. It's usually available in good lumber yards- the ones that have survived the Home Depot onslaught. I believe it's imported from Europe.

Chris
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
roadster fan
post Nov 27 2007, 11:22 PM
Post #22


Project Frankenstein !!!!!!!!
***

Group: Members
Posts: 1,009
Joined: 24-November 05
From: Aptos, CA
Member No.: 5,184
Region Association: Northern California

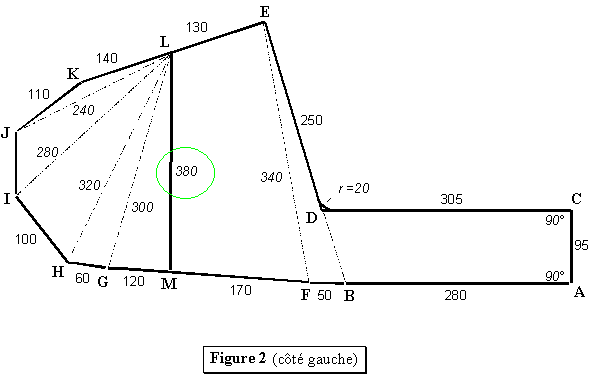

Well, I took some time tonite and looked over the drawing and accompanying chart and noticed the chart has the correct measurement for LM. It should be 290 mm not 380 mm.

I just needed to look at all the info supplied. Glad I noticed that before wasting time in CAD duplicating the drawing.

Jim

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
johannes
post Nov 28 2007, 12:09 PM
Post #23


Club Porsche 914 France President
****

Group: Members
Posts: 3,084
Joined: 13-January 06
From: France
Member No.: 5,409
Region Association: France
Thank you for checking. I updated the drawing on the french website.
http://porsche914.fr-bb.com/articles-techn...entrale-t15.htm
For those who asked ... I don't have any translation for instance

The french guy ...

(IMG:http://club914.fr/console/2.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Matt Meyer
post Nov 28 2007, 01:40 PM
Post #24


Überlurker
**

Group: Members
Posts: 216
Joined: 2-December 03
From: Eastern Washington
Member No.: 1,411
Region Association: Pacific Northwest
I have CAD drawings for this console.

On my drawing the "wrong" dimension came out to 286.15mm.

Anyway, you can't post DWG files so PM me if you want my CAD files.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Matt Meyer
post Nov 28 2007, 04:02 PM
Post #25


Überlurker
**

Group: Members
Posts: 216
Joined: 2-December 03
From: Eastern Washington
Member No.: 1,411
Region Association: Pacific Northwest
So is K-L-E a straight line?

If not how do you know the position of L and M?

Trying to correct my drawing.

I can't remember what I did the first time I drew it.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Nov 28 2007, 08:59 PM
Post #26


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
Matt, I take KLE and GMF to be straight lines.

I've also added DWG files to the list of acceptable attachments. So you can post your CAD files here.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
roadster fan
post Nov 29 2007, 02:22 AM
Post #27


Project Frankenstein !!!!!!!!
***

Group: Members
Posts: 1,009
Joined: 24-November 05
From: Aptos, CA
Member No.: 5,184
Region Association: Northern California
Matt,

I agree with McMark. I believe KLM and GMF to be straight lines. The passenger side of the console does not have the kickback and the drawing indicates a straight line. LM is designated to show where the kickback begins for the driver's side.

Oh, and McMark thanks for adding another acceptable file type for attachments. Let the CAD files fly!

Jim
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Matt Meyer
post Nov 29 2007, 07:25 PM
Post #28


Überlurker
**

Group: Members
Posts: 216
Joined: 2-December 03
From: Eastern Washington
Member No.: 1,411
Region Association: Pacific Northwest
QUOTE(roadster fan @ Nov 29 2007, 12:22 AM) *

Matt,

I agree with McMark. I believe KLM and GMF to be straight lines. The passenger side of the console does not have the kickback and the drawing indicates a straight line. LM is designated to show where the kickback begins for the driver's side.

Oh, and McMark thanks for adding another acceptable file type for attachments. Let the CAD files fly!

Jim



That is what I thought, but in my original I had a slight dip on top. In theory it should be OK but I'll probablly redraw everything to the left of the kickback just to be sure. I'll fix my drawing tomorrow and post it.

Thanks guys. I'll try to post a full size pdf also.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Beamer13
post Nov 29 2007, 07:27 PM
Post #29


Member
**

Group: Members
Posts: 303
Joined: 8-November 07
From: Midwest
Member No.: 8,308
Region Association: Upper MidWest
QUOTE(Matt Meyer @ Nov 29 2007, 07:25 PM) *

QUOTE(roadster fan @ Nov 29 2007, 12:22 AM) *

Matt,

I agree with McMark. I believe KLM and GMF to be straight lines. The passenger side of the console does not have the kickback and the drawing indicates a straight line. LM is designated to show where the kickback begins for the driver's side.

Oh, and McMark thanks for adding another acceptable file type for attachments. Let the CAD files fly!

Jim



That is what I thought, but in my original I had a slight dip on top. In theory it should be OK but I'll probablly redraw everything to the left of the kickback just to be sure. I'll fix my drawing tomorrow and post it.

Thanks guys. I'll try to post a full size pdf also.


That'd be awesome!!! Thanks!!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
CptTripps
post Jan 19 2014, 05:35 AM
Post #30


:: Punch and Pie ::
****

Group: Members
Posts: 3,584
Joined: 26-December 04
From: Mentor, OH
Member No.: 3,342
Region Association: Upper MidWest
I seem to be good at digging up old threads...

Did anyone end up posting the CAD files anywhere? I'm mocking up my new console in Sketchup, and this would be a way easier starting point.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
RJMII
post Jul 5 2014, 10:29 PM
Post #31


Jim McIntosh
****

Group: Members
Posts: 3,125
Joined: 11-September 07
From: Sandy, Utah
Member No.: 8,112
Region Association: None

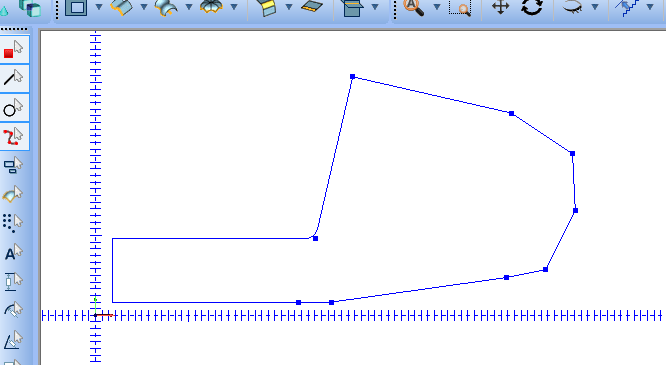

Is this looking correct?


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Harpo
post Jul 6 2014, 05:29 AM
Post #32


Senior Member
***

Group: Members
Posts: 1,304
Joined: 21-August 11
From: Motor City aka Detroit
Member No.: 13,469
Region Association: None
Those CAD files would be nice. I would like to make this out of aluminum and just weld it all together. With the cad files I would have it water jet cut for me.

Matt was active a few days ago. Has anyone sent him a PM about these cad files?

Edit: I sent him a PM

David
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
RJMII
post Jul 6 2014, 09:17 AM
Post #33


Jim McIntosh
****

Group: Members
Posts: 3,125
Joined: 11-September 07
From: Sandy, Utah
Member No.: 8,112
Region Association: None
I've about got my CNC router table set back up to where I can cut mine out of wood. :-)

Should I keep plugging away at new CAD drawings, or should I wait for Matt?
