> My floorpans are DONE!, Just welded in the last patch...
Rick_Eberle
post Oct 23 2006, 01:23 AM
Post #1


Member
**

Group: Members
Posts: 390
Joined: 14-January 04
From: Geelong, Australia
Member No.: 1,558



As of today, I am putting parts BACK ON the car!

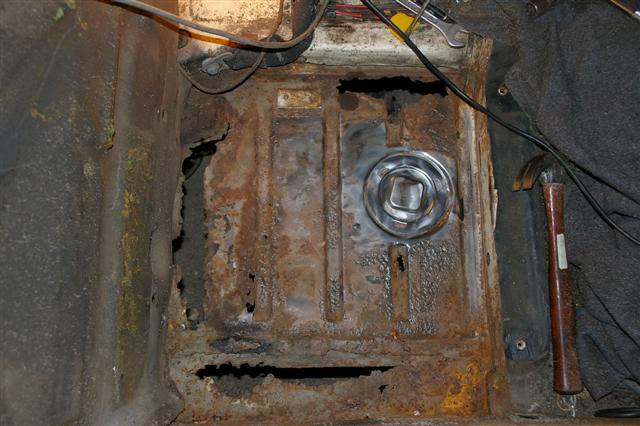

The beginning... with apologies to anyone who ever rode in my passenger seat!
Attached Image
Attached Image

The backyard press-shop...
Attached Image
Attached Image

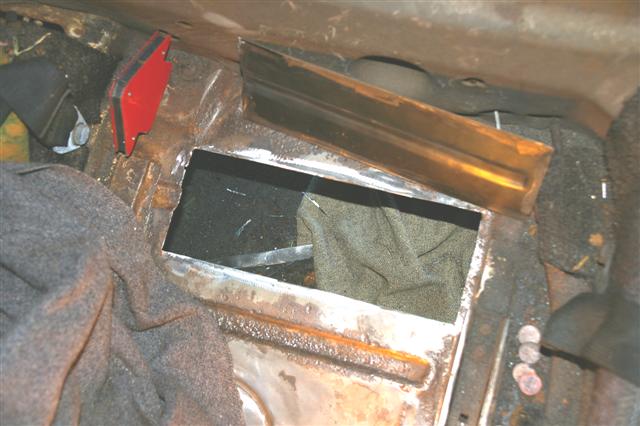

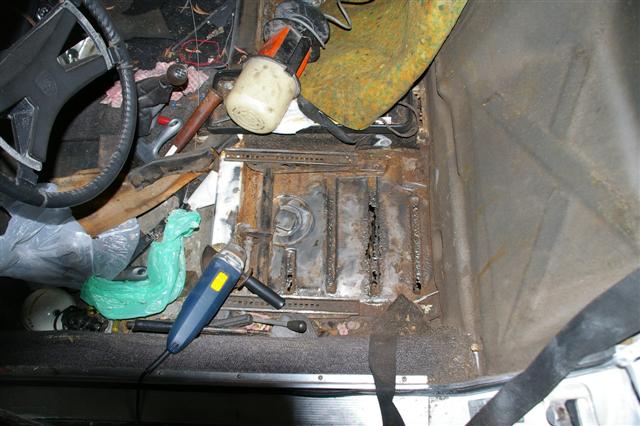

Cutting & Welding - my first ever welding job!
Attached Image
Attached Image
Attached Image

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Rick_Eberle
post Oct 23 2006, 01:25 AM
Post #2


Member
**

Group: Members
Posts: 390
Joined: 14-January 04
From: Geelong, Australia
Member No.: 1,558

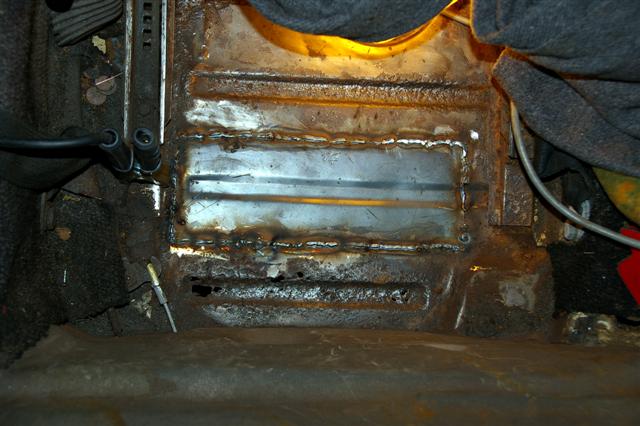

And today...
Attached Image
Attached Image

Time for a cold beer!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
So.Cal.914
post Oct 23 2006, 01:32 AM
Post #3


"...And it has a front trunk too."
*****

Group: Members
Posts: 6,588
Joined: 15-February 04
From: Low Desert, CA./ Hills of N.J.
Member No.: 1,658
Region Association: None



Nice Job.. (IMG:style_emoticons/default/clap56.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bd1308
post Oct 23 2006, 01:34 AM
Post #4


Sir Post-a-lot
*****

Group: Members
Posts: 8,020
Joined: 24-January 05
From: Louisville,KY
Member No.: 3,501



i didnt get all fancy with the pleats and such.

:/

yours looks awesome.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Oct 23 2006, 02:33 AM
Post #5


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None



Really nice job! (IMG:style_emoticons/default/clap.gif)
Way to make your own patch panels. (IMG:style_emoticons/default/thumb3d.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
GaroldShaffer
post Oct 23 2006, 06:27 AM
Post #6


You bought another 914?
*****

Group: Benefactors
Posts: 7,628
Joined: 27-June 03
From: Portage, IN
Member No.: 865
Region Association: None



(IMG:style_emoticons/default/welder.gif) (IMG:style_emoticons/default/clap56.gif) (IMG:style_emoticons/default/thumb3d.gif) (IMG:style_emoticons/default/beer3.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
maf914
post Oct 23 2006, 06:52 AM
Post #7


Not a Guru!
****

Group: Members
Posts: 3,049
Joined: 30-April 03
From: Central Florida
Member No.: 632
Region Association: None



Nice job! That may be your first welding job, but you did well. Plus it looks like you know something about metal work as well, with your press formed metal patches. Good detail work. (IMG:style_emoticons/default/thumb3d.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Spoke
post Oct 23 2006, 08:33 AM
Post #8


Jerry
*****

Group: Members
Posts: 7,104
Joined: 29-October 04
From: Allentown, PA
Member No.: 3,031
Region Association: None



Great work. I like the press you made. Would you please show more pics of the forms and how you made the impressions?

Spoke
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tdgray
post Oct 23 2006, 08:40 AM
Post #9


Thank God Nemo is not here to see this
*****

Group: Members
Posts: 9,705
Joined: 5-August 03
From: Akron, OH
Member No.: 984
Region Association: None



Well Done (IMG:style_emoticons/default/thumb3d.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
brant
post Oct 23 2006, 08:53 AM
Post #10


914 Wizard
**********

Group: Members
Posts: 11,823
Joined: 30-December 02
From: Colorado
Member No.: 47
Region Association: Rocky Mountains



very nice work!
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Aaron Cox
post Oct 23 2006, 08:55 AM
Post #11


Professional Lawn Dart
***************

Group: Retired Admin
Posts: 24,541
Joined: 1-February 03
From: OC
Member No.: 219
Region Association: Southern California



i really like the ridges on the patch work! gives it strength like stock! way to make you own panels!!!!!

nice job rick.. nice job!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Rick_Eberle
post Oct 23 2006, 06:08 PM
Post #12


Member
**

Group: Members
Posts: 390
Joined: 14-January 04
From: Geelong, Australia
Member No.: 1,558



Thanks, guys! My car needs to get an Engineer's Certificate to get registered, so I figured that once the sound deadening is brushed on from underneath, the repairs will be less obvious. I can't get a straight answer on how strict these guys are, so better to do it right the first time.

The form was made from 40x3mm steel bar, with backing ribs of 13x3mm. The 13x3mm is also used to press the rib in, backed by another piece of 40x3mm. The slot in the form is about 24mm wide.

My house came with a huge old Blacksmith's vice, but any big vice, or shop press should do the job.

The steel for the patches is 1.6mm, all offcuts from a local metal supplier, for a grand total of about $8.00. (The form itself cost about $20)

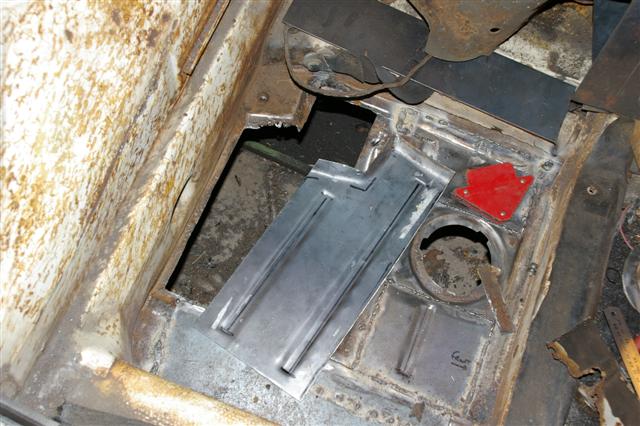

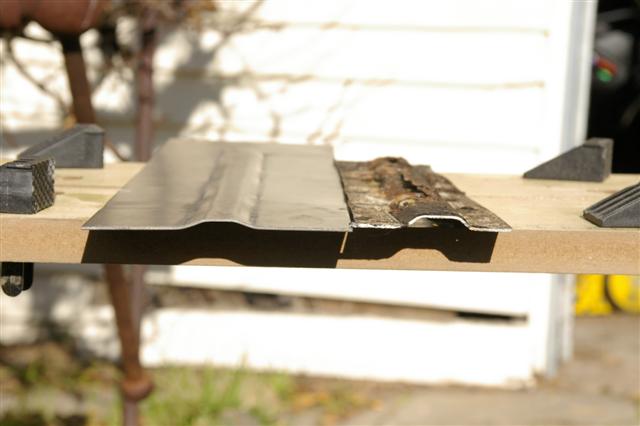

Attached Image
Attached Image
Attached Image
Attached Image

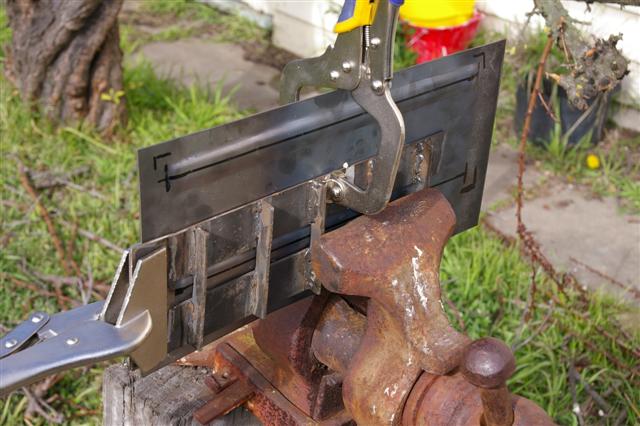

And then it's all held together with masking tape, vice grips, whatever you have.
Attached Image
Any final tweaking is by BFH.
