> The REALLY OFFICIAL Degreeoff resto/convert/racer thread, NEW PARTS!!
degreeoff
post Jun 15 2007, 04:44 PM
Post #1


I like big butts and I can not lie!
***

Group: Members
Posts: 1,622
Joined: 9-February 03
From: Booowieeee MD (near DC)
Member No.: 275
Region Association: MidAtlantic Region
IT all really started when I bought her in 98...here she was

Attached Image

It all started when.....after many (5 or so) years of using and trying to improve my 4 cylinder performance I blew a heli coiled plug at an autoX....well that was the end I had already sunk a shit load of $$$$ into my ride and another shit load of time and I was DONE!! time for a sixer!! see the below web site for things I did previously to my lil friend by the time I blew the plug it was a 2056 with a KH header and MSD ign.



http://www.daybydayco.com/car4web/914.html




OK the scoop (AKA what I have bought so far)

-Engines [u](3)

A 2.4 ltr 2.4 with a 7r case and CIS.

A basket case 2.4 with rebuilt and ported heads, 2.2S P&C's and S+ cams +all new "stuff" to assemble it.

Lastly a rebuil 2.7 with all the good machine work done newly rebuilt heads, Ross 9.8 P&C's and GE 40 cams.

For induction I have weber 40IDS carbs

For exhaust I have European racing headers and muffler

For Ignition I have a HPV Crank fire setup

For Fuel I have a Carter rotory pump and a 15 gallon cell all lines will be AN/SS braided.

Suspension is out of a SC with Bilstein shocks, 22mm front sway stock rear sway, mono balls up front. 21mm TBars and 180lb springs

The body panels are ALL FG hood, trunk,skirts,valances,bumpers and flares.

The oil system is stock 914-6 tank and Earls front mount cooler with GT shroud

MISC stuff in no particular order.....solid mounts, Momo wheel, quick release hub, WM short shifter, Momo seats, GT door pulls, Pilot fogs, NEW Porsche exterior mirrors and a shit load I am forgetting.

Here is what she started as.......

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
9 Pages V < 1 2 3 4 > »
 Reply to this topicStart new topic
Replies(20 - 39)
jonferns
post Jun 15 2007, 06:12 PM
Post #21


Advanced Member
****

Group: Members
Posts: 2,081
Joined: 29-March 07
From: New Jersey
Member No.: 7,631
Region Association: North East States
wow....insane
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
watsonrx13
post Jun 15 2007, 06:15 PM
Post #22


Advanced Member
****

Group: Members
Posts: 2,735
Joined: 18-February 03
From: Plant City, FL
Member No.: 312
Region Association: South East States
Most excellent.... (IMG:style_emoticons/default/smilie_pokal.gif)

-- Rob
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
crash914
post Jun 15 2007, 06:58 PM
Post #23


its a mystery to me
***

Group: Members
Posts: 1,828
Joined: 17-March 03
From: Marriottsville, MD
Member No.: 434
Region Association: MidAtlantic Region
Josh, looks great and lots of progress from the last time I saw it.

Want to help paint mine?

I got to check out the progress soon. When is the fire up party?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
degreeoff
post Jun 18 2007, 09:39 PM
Post #24


I like big butts and I can not lie!
***

Group: Members
Posts: 1,622
Joined: 9-February 03
From: Booowieeee MD (near DC)
Member No.: 275
Region Association: MidAtlantic Region

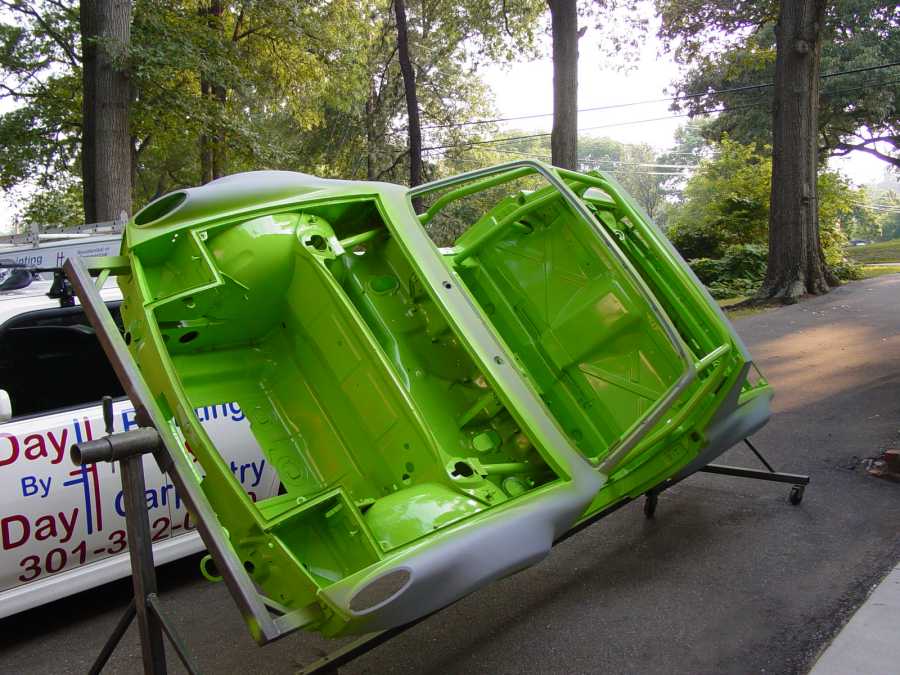

Well SHIT! I am now going to need more paint for sure.... (after mixing) 4 gallons total applied (self etch/primer/color/clear) and I have not touched the bolt on bits!!

Attached Image
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
degreeoff
post Jul 19 2007, 06:49 AM
Post #25


I like big butts and I can not lie!
***

Group: Members
Posts: 1,622
Joined: 9-February 03
From: Booowieeee MD (near DC)
Member No.: 275
Region Association: MidAtlantic Region
DAMN Sept. 15th coming quick!!

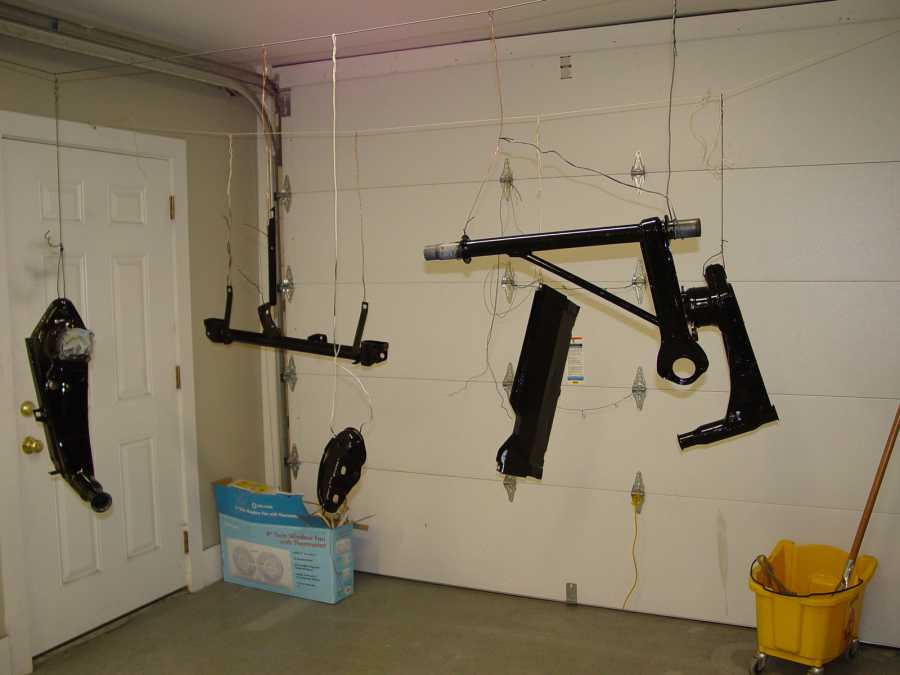

New stuff done (BTW IMHO get this shit powder coated...its worth it!!) (IMG:style_emoticons/default/agree.gif) (IMG:style_emoticons/default/headbang.gif)

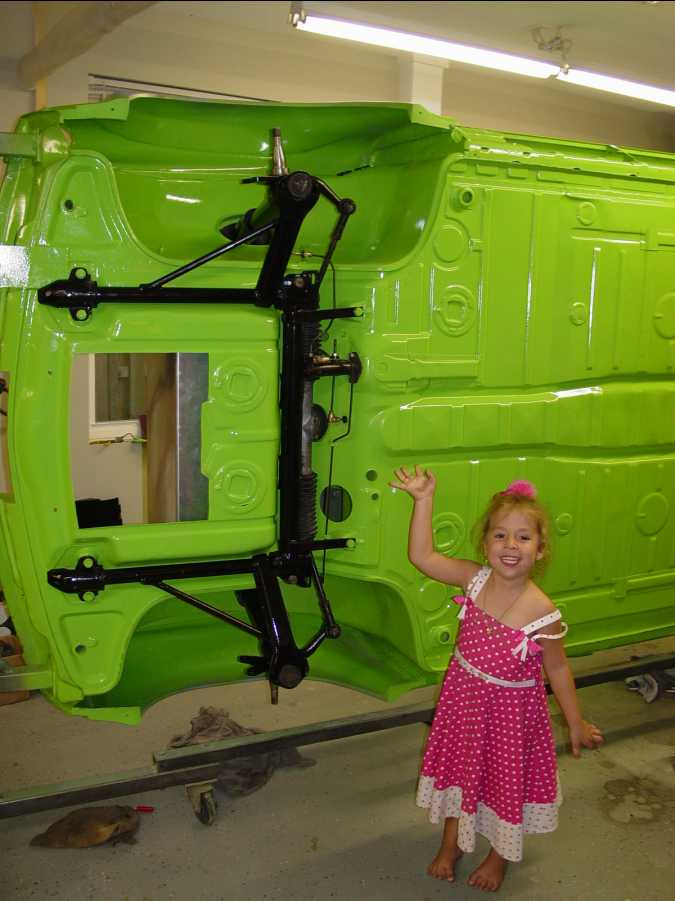

-Painted misc underside parts

Attached Image
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
degreeoff
post Jul 19 2007, 06:55 AM
Post #26


I like big butts and I can not lie!
***

Group: Members
Posts: 1,622
Joined: 9-February 03
From: Booowieeee MD (near DC)
Member No.: 275
Region Association: MidAtlantic Region

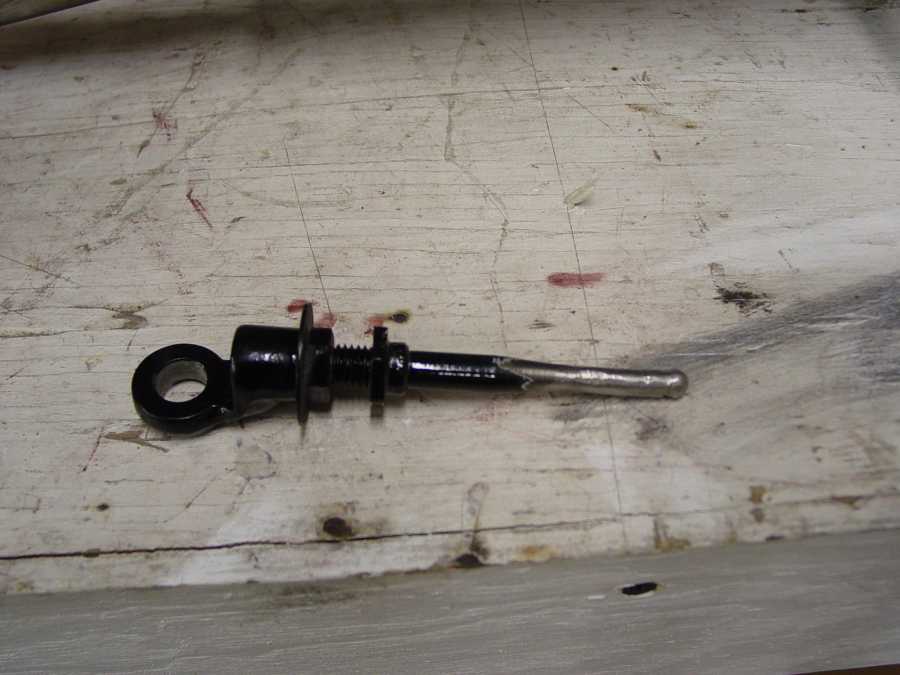

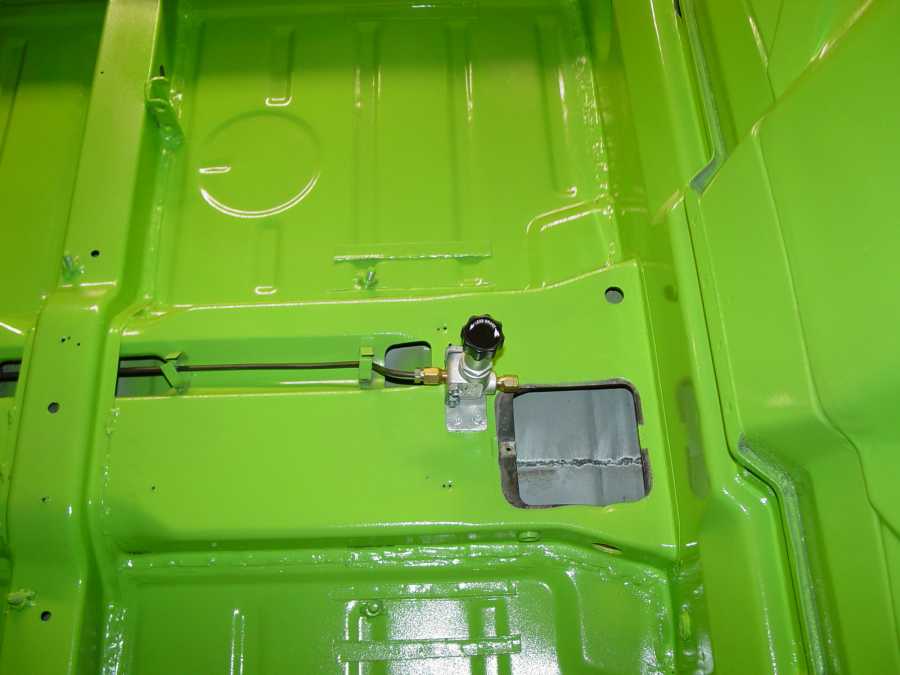

ALSO word of wisdom...the rod for braking HAS to be lengthened by about 3/4" to work with a 23mm MC and the pipes that lead in from the reseviour(SP?) bent and the DAMN thing BARLEY FITS!!! but it will fit. Brake line bending is not as easy as it looks (yes I fronted for the $40 brake line kit on Ebay....)... (IMG:style_emoticons/default/smilie_pokal.gif) I missed my pedal cluster pic but they are PURDY! having a cabinet sand blaster is DA BOMB!

Attached Image
Attached Image
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
thesey914
post Jul 19 2007, 07:24 AM
Post #27


Senior Member
***

Group: Benefactors
Posts: 1,155
Joined: 1-January 03
From: Staffordshire -England
Member No.: 66
Gosh this is going to be a very nice car -great details. Lookd forward to following the progress.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
MJHanna
post Jul 19 2007, 07:25 AM
Post #28


Does this 911 make my butt look big?
***

Group: Members
Posts: 806
Joined: 23-January 03
From: Lowry Crossing, Texas
Member No.: 185
Nice Job!!!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
woobn8r
post Jul 19 2007, 08:51 AM
Post #29


Senior Member
***

Group: Members
Posts: 607
Joined: 7-January 07
From: Newmarket, Ontario, Canada
Member No.: 7,435
Region Association: None
Beautiful Job!!!

Is that fuel tank a custom jobbie...
Where'dya get it?....very nice...

S.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Lou W
post Jul 19 2007, 09:06 AM
Post #30


"Here Kitty Kitty" my ass......
****

Group: Members
Posts: 4,109
Joined: 9-May 04
From: Roseburg, OR.
Member No.: 2,039
Region Association: Spain
Awesome job. (IMG:style_emoticons/default/drooley.gif) (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
degreeoff
post Jul 19 2007, 10:49 AM
Post #31


I like big butts and I can not lie!
***

Group: Members
Posts: 1,622
Joined: 9-February 03
From: Booowieeee MD (near DC)
Member No.: 275
Region Association: MidAtlantic Region

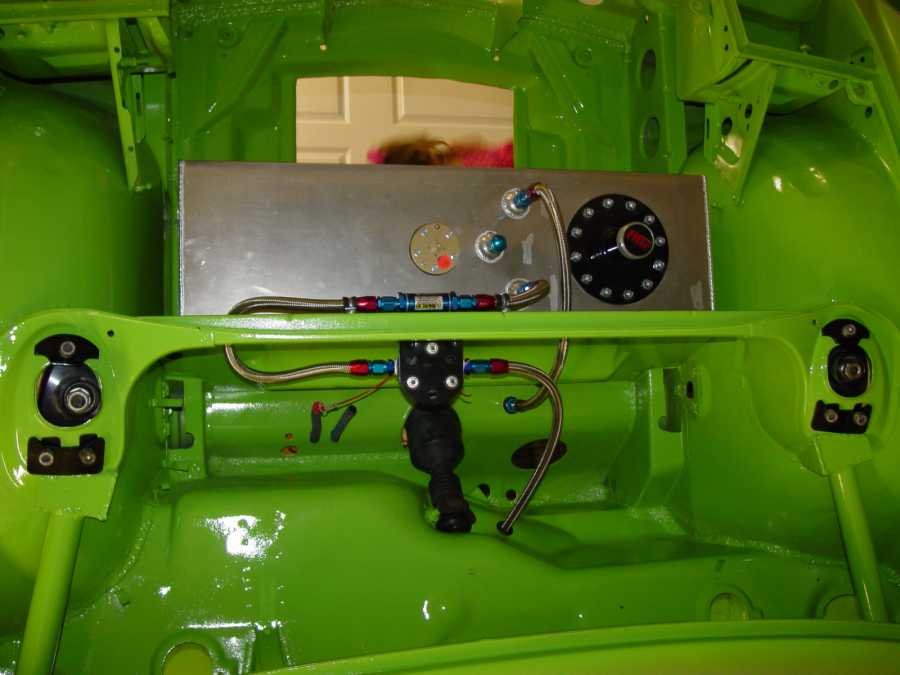

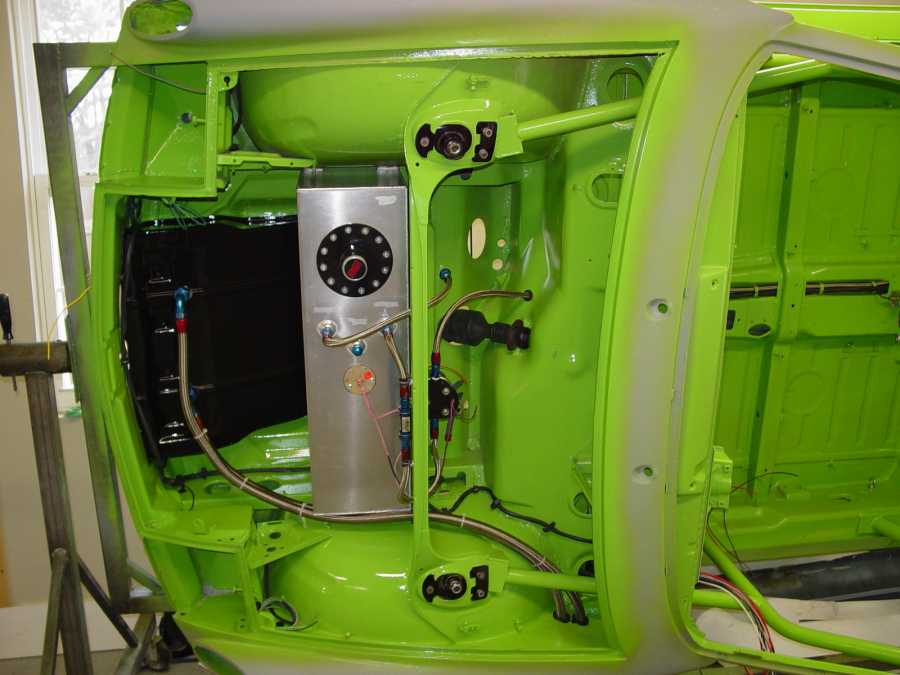

fuel tank is a RCI located here http://store.summitracing.com/partdetail.a...mp;autoview=sku and it was inexpensive too
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
degreeoff
post Jul 19 2007, 07:25 PM
Post #32


I like big butts and I can not lie!
***

Group: Members
Posts: 1,622
Joined: 9-February 03
From: Booowieeee MD (near DC)
Member No.: 275
Region Association: MidAtlantic Region

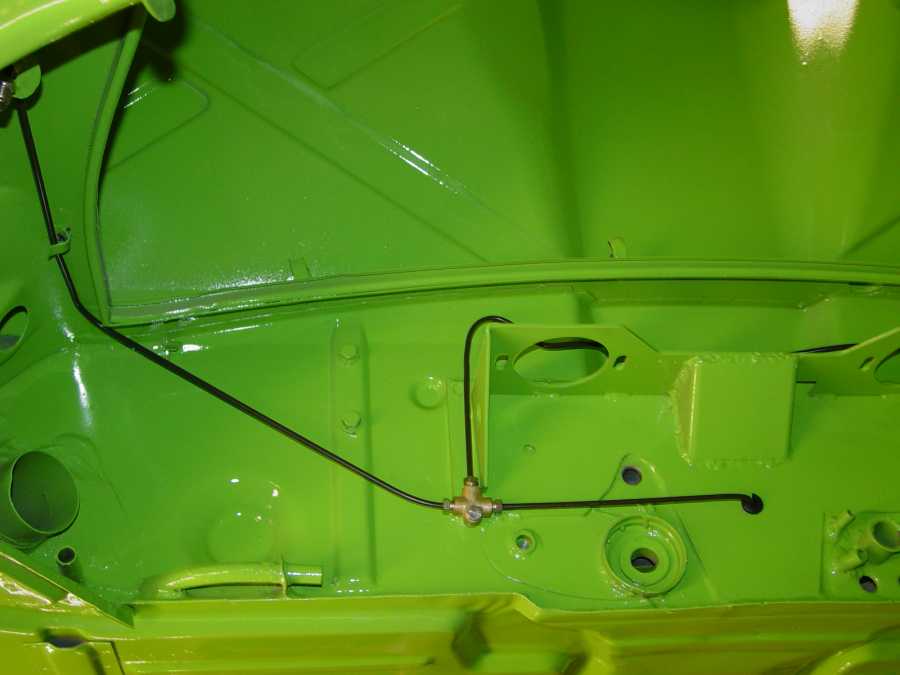

This evenings work......Sept 15th!!! good GOD MAN!! includes fitting the bushings...PIA! front suspension assembly left hand brake line, finish install of all Fuel lines to the engine bay, finish rear brake lines and of course my little 3 year old to showcase it for us! (IMG:style_emoticons/default/yellowsleep[1].gif)

Attached Image
Attached Image
Attached Image
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
crash914
post Jul 19 2007, 07:33 PM
Post #33


its a mystery to me
***

Group: Members
Posts: 1,828
Joined: 17-March 03
From: Marriottsville, MD
Member No.: 434
Region Association: MidAtlantic Region
WOW! Looking better and better! I smell a (IMG:style_emoticons/default/smilie_pokal.gif) on the 15th.

Mine won't be near ready.. Transmission all apart and I am waiting on heads. Of course, I still need to finish the paint and body...

Looks great Josh!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
degreeoff
post Jul 22 2007, 02:19 PM
Post #34


I like big butts and I can not lie!
***

Group: Members
Posts: 1,622
Joined: 9-February 03
From: Booowieeee MD (near DC)
Member No.: 275
Region Association: MidAtlantic Region
OK so the project goes on and on and on and on and did I mention on?

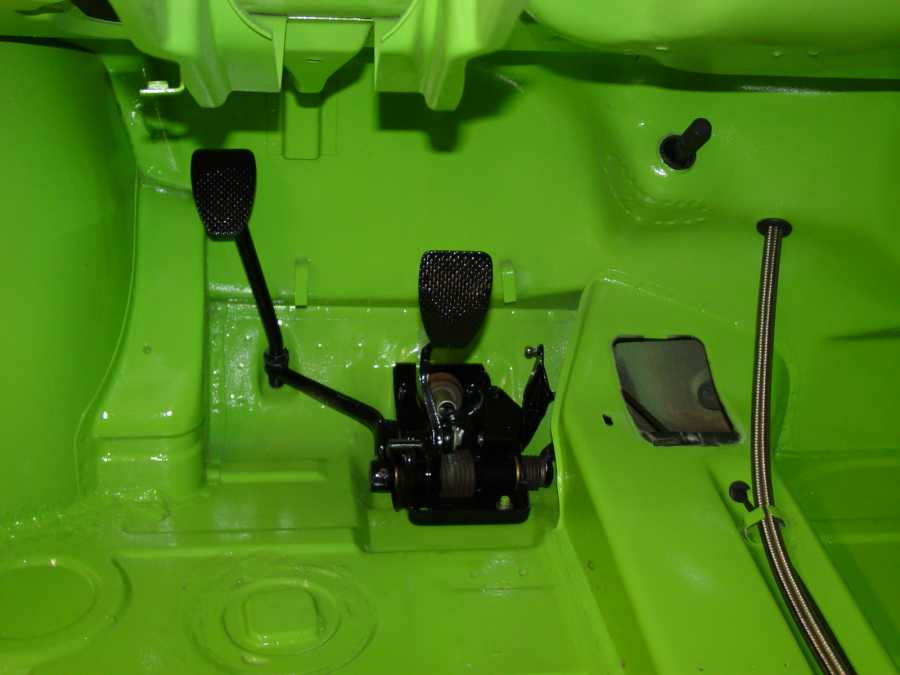

#1- pic of my pretty rebuilt pedal cluster (I know you all couldn't wait!)

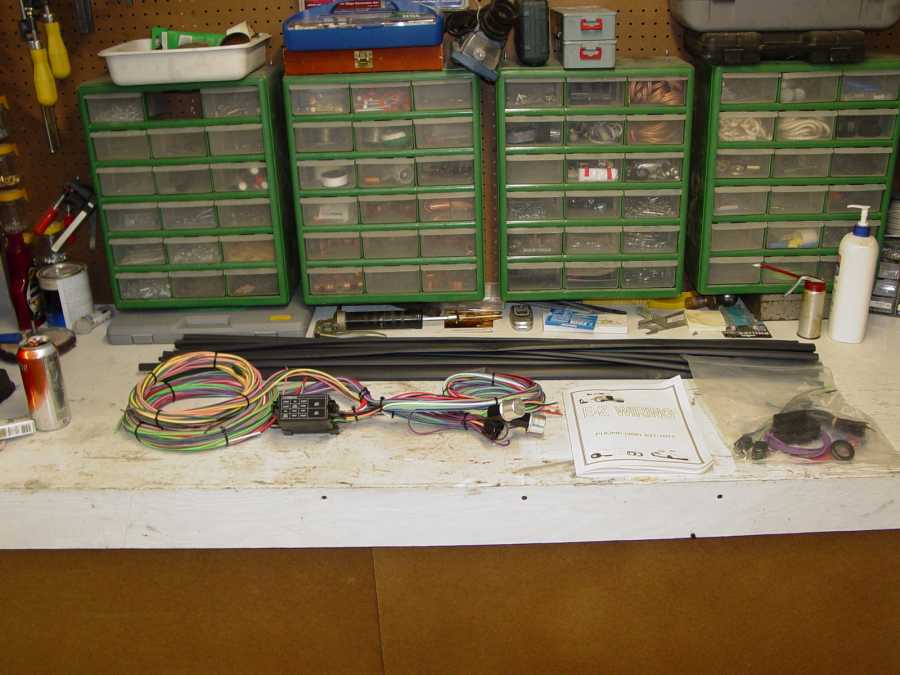

#2- pic of my "EZ wiring harness" (129 bucks? 12 circuit)

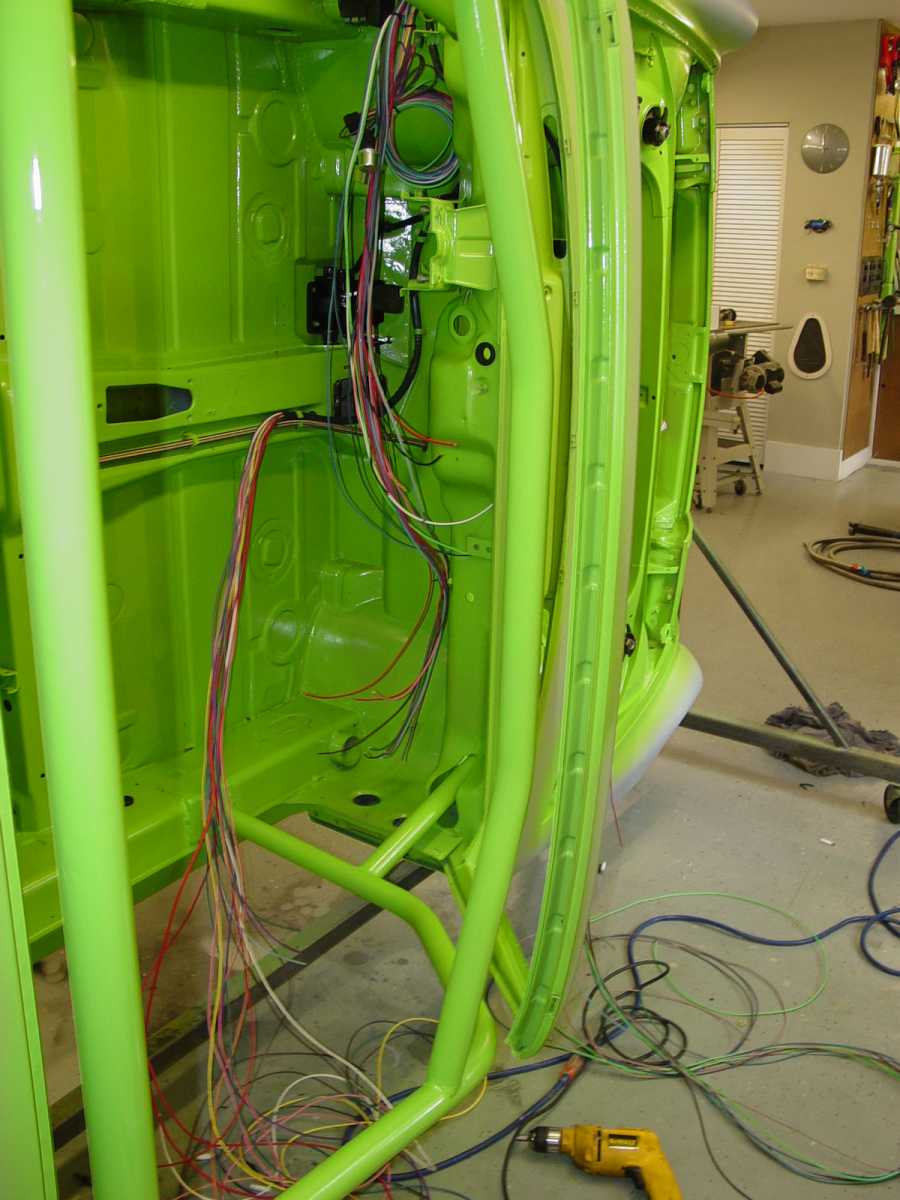

#3- Starting to install it and sort it and make a hot rod harness with an engine in the front fit a mid engined car! Harder than it looks!! As I go I slip 4' lengths of heat shrink over it and seal it up...hope I didnt make a mistake!!

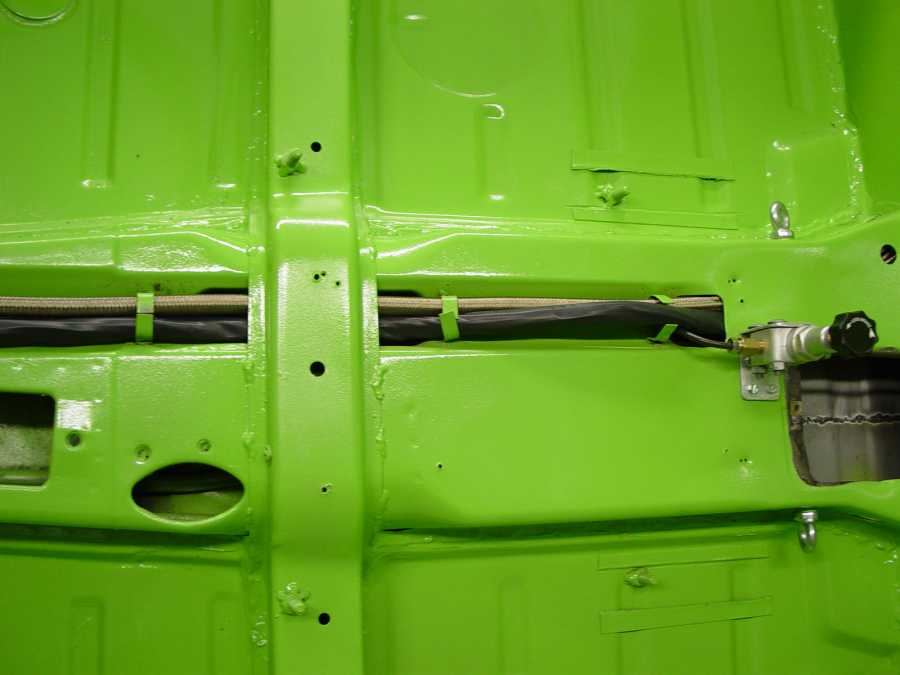

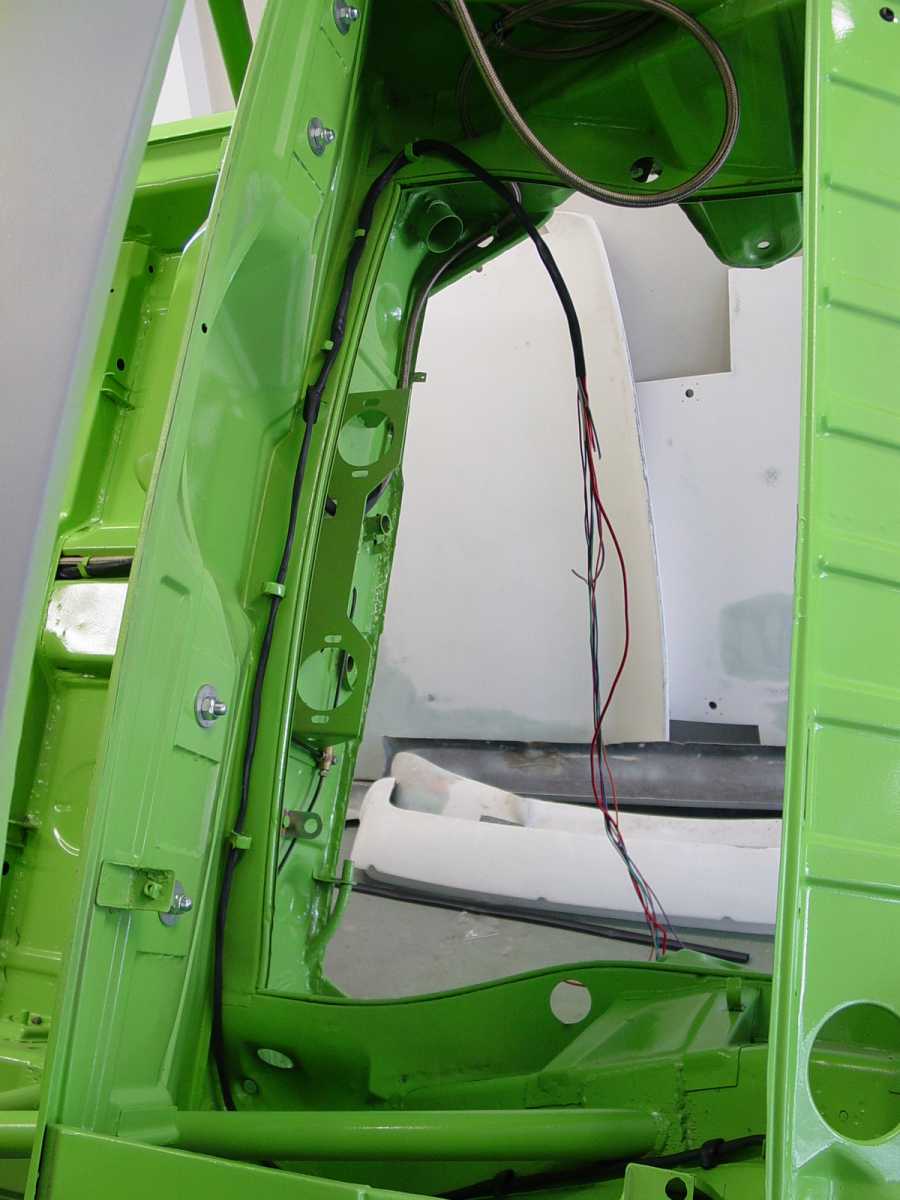

#4-nice and NEAT down the tunnel....
#5-nice and neat in the engine bay.....
#6-nice and neat in the trunk....

Attached Image
Attached Image
Attached Image
Attached Image
Attached Image
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
degreeoff
post Jul 22 2007, 02:22 PM
Post #35


I like big butts and I can not lie!
***

Group: Members
Posts: 1,622
Joined: 9-February 03
From: Booowieeee MD (near DC)
Member No.: 275
Region Association: MidAtlantic Region
Ok last shot....I installed the oil cooler and NICE AND NEAT wiring harness, the tank, pump lines etc etc etc mounted the oil cooler shroud and damn near broke my arm patting myself on the back! (IMG:style_emoticons/default/mueba.gif)

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JPB
post Jul 22 2007, 02:34 PM
Post #36


The Crimson Rocket smiles in your general direction.
****

Group: Members
Posts: 2,927
Joined: 12-November 05
From: Tapmahamock, Va.
Member No.: 5,107
"Sometimes sickness transforms itself into greatness."

Words to live by, by:JPB



That is a sick assed ride bro! Nice job! (IMG:style_emoticons/default/beer.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
degreeoff
post Jul 28 2007, 04:41 PM
Post #37


I like big butts and I can not lie!
***

Group: Members
Posts: 1,622
Joined: 9-February 03
From: Booowieeee MD (near DC)
Member No.: 275
Region Association: MidAtlantic Region
Ok so I HAVE been working the last few days @ a JOB and a wee bit on the car...OMG! Sept 15th!!

So let me tell you the devil is in the details...SHEEZ! I thought it would be quick and simple BUT as I have once again learned the "custom" sheet takes time!

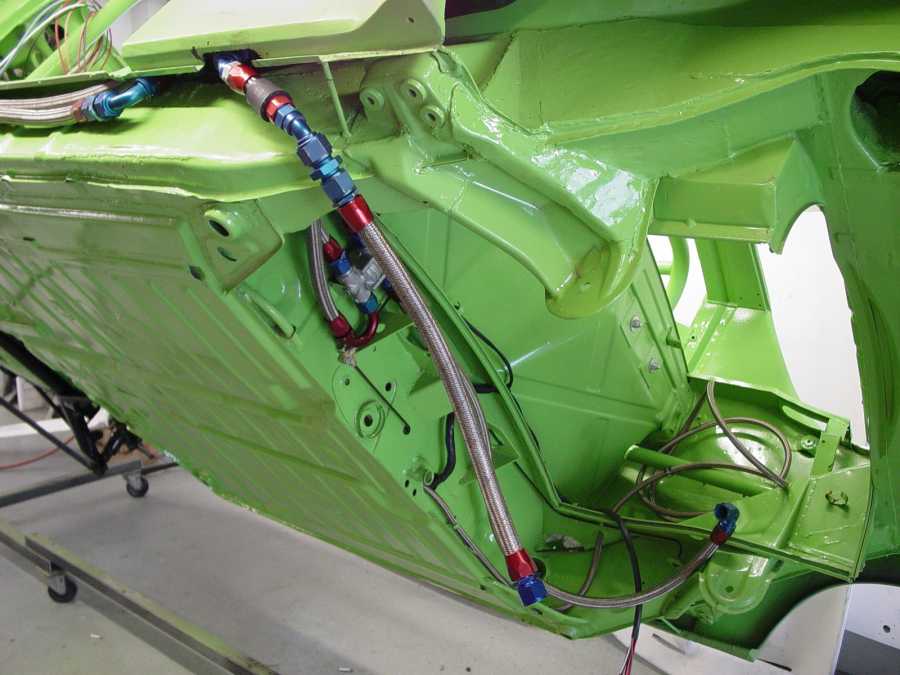

OK so I finished the oil cooler plumbing, as luck would have it the two bolts that held the old rear brake balancer were in just the right spot to put the bracket with the Mocal oil thermostat (I had to offset the bolt holes about 1/4") and the plumbing all fits in there even the adapters for AN fittings...just a little manicure of the rear quarter panel that will not be seen.

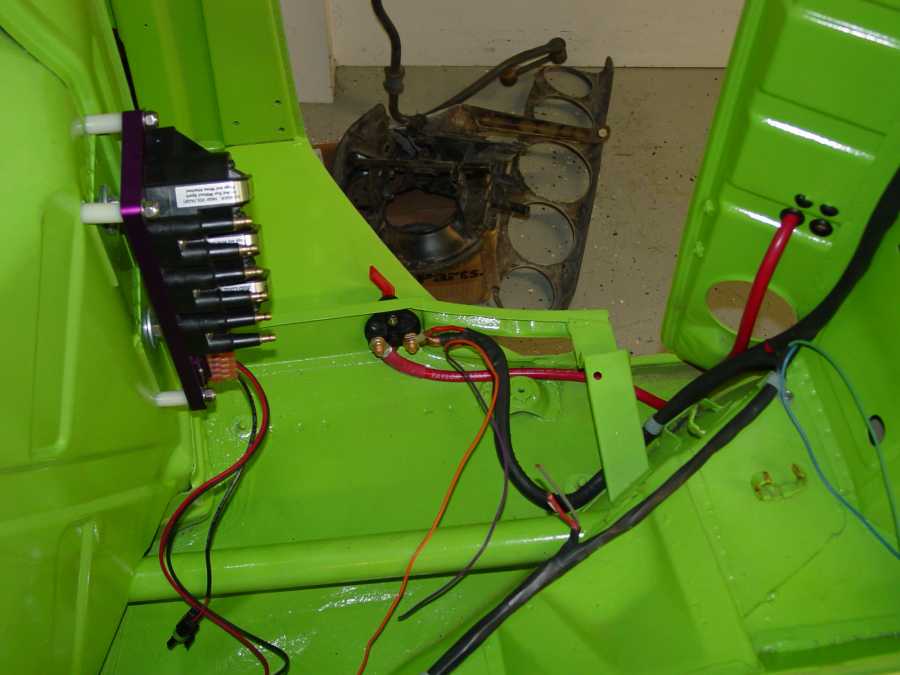

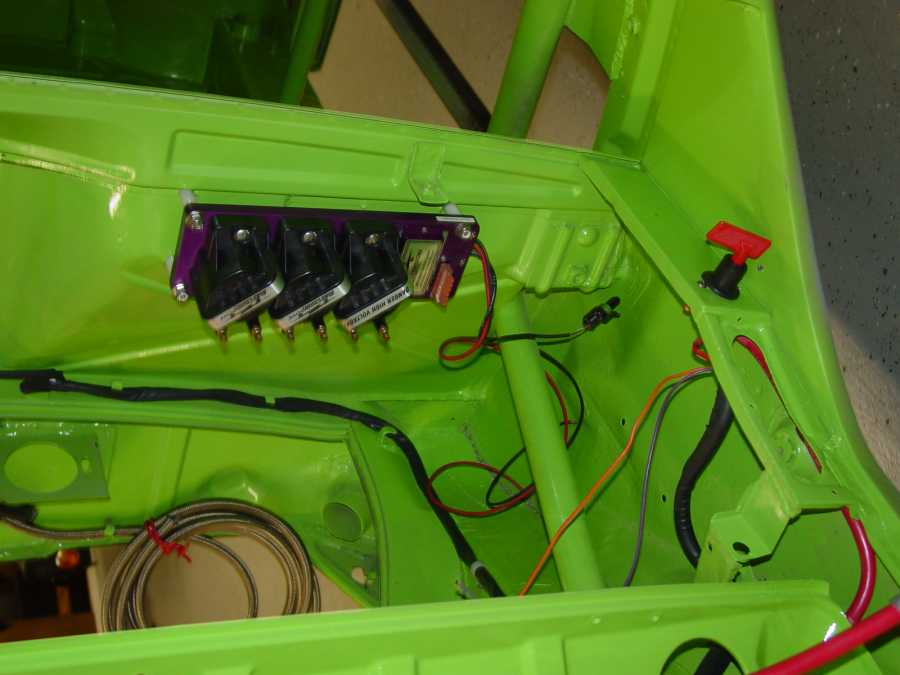

I also ran the HUGE battery cable and mounted the cutoff switch and lastly figured out a B E A utiful spot for the Crankfire setup. A few nylon spacers and it went right over the top of my harness mounting bolts/eyes....

Attached Image
Attached Image
Attached Image
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
degreeoff
post Jul 28 2007, 04:44 PM
Post #38


I like big butts and I can not lie!
***

Group: Members
Posts: 1,622
Joined: 9-February 03
From: Booowieeee MD (near DC)
Member No.: 275
Region Association: MidAtlantic Region
BTW I was thinking of a piece of lexan for the hole I am about to cut in the firewall for timing the car...be pretty cool to see the engine working....... any thoughts on that?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DrifterJay
post Jul 28 2007, 04:48 PM
Post #39


I break stuff...
***

Group: Members
Posts: 1,034
Joined: 25-May 03
From: Oceanside, California
Member No.: 737
Region Association: None
Do it!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
degreeoff
post Jul 28 2007, 04:53 PM
Post #40


I like big butts and I can not lie!
***

Group: Members
Posts: 1,622
Joined: 9-February 03
From: Booowieeee MD (near DC)
Member No.: 275
Region Association: MidAtlantic Region
Woops CANCEL that thought.......I dont even NEED a hole cut its an HPX dial in your timing.....right??
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
