> Bringing out the dead
Jeff Hail
post Feb 17 2008, 06:44 PM
Post #181


Senior Member
***

Group: Members
Posts: 1,141
Joined: 3-May 07
From: LA/ CA
Member No.: 7,712



Lets make some Sill Triangles

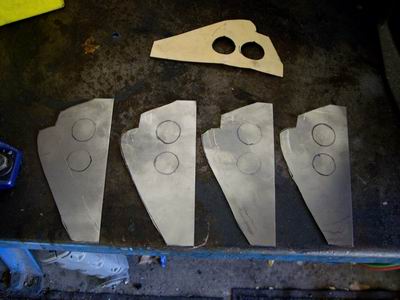

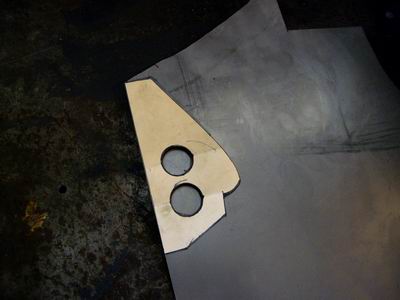

Made 2 templates. The first one is actual size after the bends (silhouette) of the mounted original. The second is 3/8 larger all the way around.

Cut out the sheetmetal using the larger template and then trace the smaller (silhouette) template onto the cutouts. Then drill the holes. I am making right and left sides.

Make some relief cuts so the bends don't buckle the flat area's. I tacked some really small welds where the sill plate doglegs over the bracket for strength.

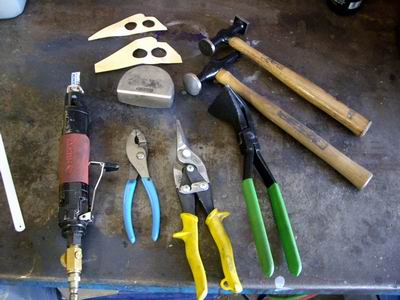

These were the tools used in the process and a metal scroll saw to make the cutouts .

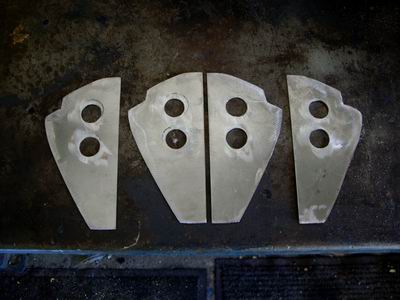

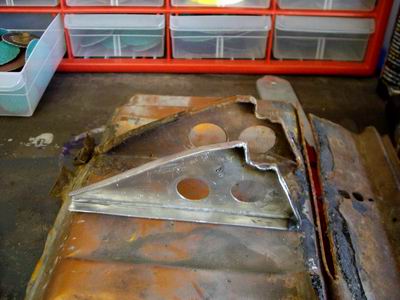

Finished triangle next to the original.


Attached image(s)
Attached Image Attached Image Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeff Hail
post Feb 17 2008, 06:46 PM
Post #182


Senior Member
***

Group: Members
Posts: 1,141
Joined: 3-May 07
From: LA/ CA
Member No.: 7,712

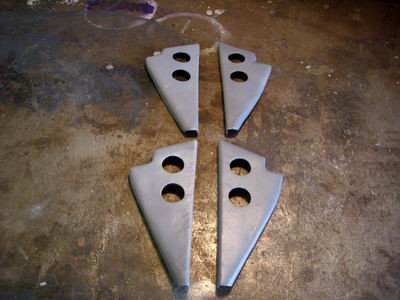

Primed set of 4 right and left side triangles.......


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
watsonrx13
post Feb 18 2008, 05:58 AM
Post #183


Advanced Member
****

Group: Members
Posts: 2,735
Joined: 18-February 03
From: Plant City, FL
Member No.: 312
Region Association: South East States



Jeff, very nice job on the triangles. BTW, what gauge metal did you use?

-- Rob
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeff Hail
post Feb 18 2008, 09:55 AM
Post #184


Senior Member
***

Group: Members
Posts: 1,141
Joined: 3-May 07
From: LA/ CA
Member No.: 7,712



QUOTE(watsonrx13 @ Feb 18 2008, 03:58 AM) *

Jeff, very nice job on the triangles. BTW, what gauge metal did you use?

-- Rob


18 gauge - Factory used a metric equivalent of 17.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Wes V
post Feb 18 2008, 07:35 PM
Post #185


Member
**

Group: Members
Posts: 482
Joined: 11-October 07
From: Los angeles
Member No.: 8,211



Jeff;

I just wanted to say thanks again for the sketch of your working platform.

I just had 60 feet of steel delivered so I can build my own.

Wes
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeff Hail
post Feb 18 2008, 11:13 PM
Post #186


Senior Member
***

Group: Members
Posts: 1,141
Joined: 3-May 07
From: LA/ CA
Member No.: 7,712



QUOTE(Wes V @ Feb 18 2008, 05:35 PM) *

Jeff;

I just wanted to say thanks again for the sketch of your working platform.

I just had 60 feet of steel delivered so I can build my own.

Wes


Even know its thick metal weld slow. Start square -end square. Tack the four sides of the frame together first then weld the seams and corners. This way if it goes sideways you can break one of the tacks to adjust. If you have a couple of buddys doing nothing have them stand on the frame with backs to you while you are welding to keep if from distorting. If not sandbags work. If the main frame starts lifting a corner stop welding, flip the frame over and let it cool. Then weld the legs and crossbars. The diagonal leg supports will need to welded very slow in one or two inch bursts. If you weld too fast it will draw the crossbars up under heat and the rack will rock on 3 legs.

You will have enough left over to use as crossbeams between the rack and car body. The three fixtures I made are secured at the front suspension crossmember mounting, rear just in front of the rear bumper and under the rear suspension ears. The ones under the passenger compartment are loose and can be removed for access as needed or slid forward/ backward as the floor for the most part is flat.

Good luck

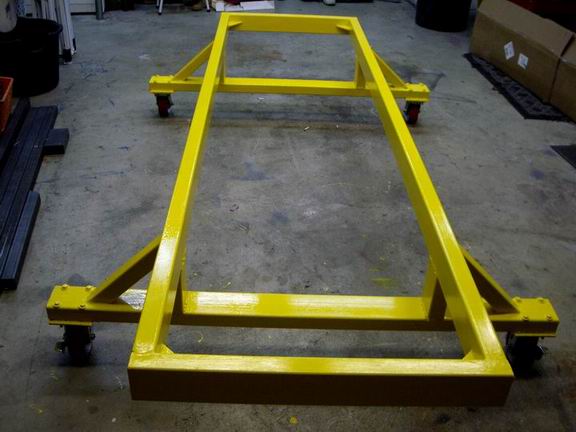

Here is a better pictured unloaded


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Wes V
post Feb 19 2008, 09:30 AM
Post #187


Member
**

Group: Members
Posts: 482
Joined: 11-October 07
From: Los angeles
Member No.: 8,211



What you may find interesting is that I plan on using a contractors lazer level that throws a 360 degree line to ensure the main frame is true. (they cost something like 5 grand, but can be rented) I can set it in the middle of the main frame during set-up and welding to ensure it's in a true flat plane.

Once that's done, I'll weld on the legs and lower out-rigger (with wheels).

When all is done and sitting on the garage floor, it will not be level (due to the slope of the garage floor, but will be a true flat plane to work off of.

(hopefully I can do the main frame this week-end and will post up photos)

Wes
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Wes V
post Feb 22 2008, 07:52 PM
Post #188


Member
**

Group: Members
Posts: 482
Joined: 11-October 07
From: Los angeles
Member No.: 8,211

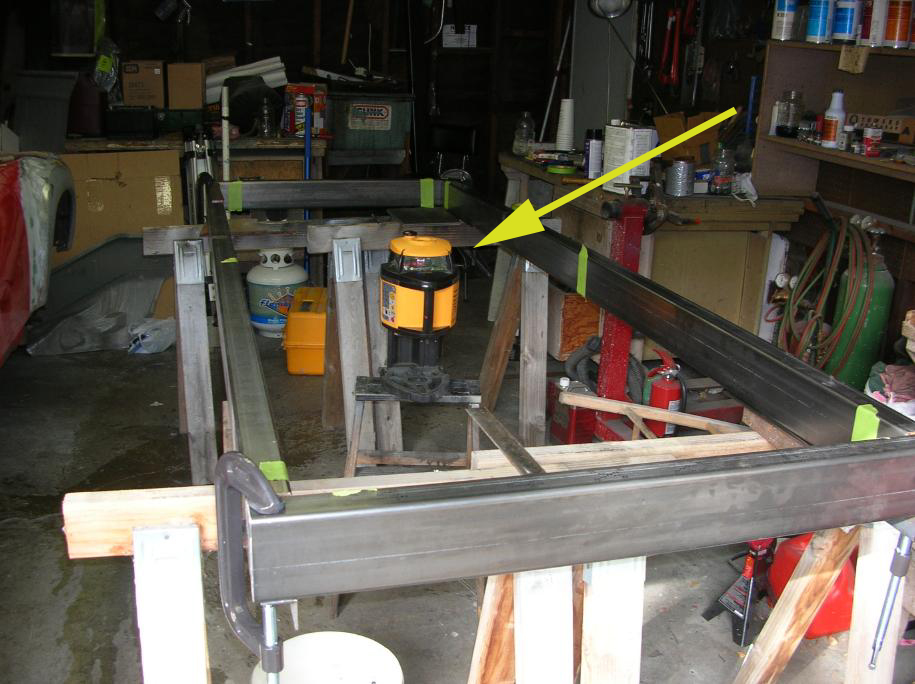

Here is a photo that shows how I ensured that the main platform frame is "true".

(IMG:http://www.performanceforum.com/wesvann/914a/plt.jpg)

The item that is pointed at is a laser level that I borrowed from a contractor friend. When first turned on, it levels it's self and then throws out a level laser light (red) a full 360 degrees.

The read line doesn't show in the photos, but having it hit the inside edge of the 2X4 tube, you can shim it up as required to make it level. I used a small framing square and put a piece of tape on it. You go to the "high" corner and place a mark on the tape where the laser light hits it. Then go to each other corner and shim it up to match.

Once the frame is moved, it will not be level, but it will be "true".

Wes
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeff Hail
post Feb 22 2008, 08:03 PM
Post #189


Senior Member
***

Group: Members
Posts: 1,141
Joined: 3-May 07
From: LA/ CA
Member No.: 7,712



Good start Wes.

Lets see a new thread on the car to the left. I spy a AA outer wheelhouse in the background..You do know you are going to need a bigger garage?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Wes V
post Feb 22 2008, 08:19 PM
Post #190


Member
**

Group: Members
Posts: 482
Joined: 11-October 07
From: Los angeles
Member No.: 8,211



QUOTE(Jeff Hail @ Feb 22 2008, 06:03 PM) *

Good start Wes.

Lets see a new thread on the car to the left. I spy a AA outer wheelhouse in the background..You do know you are going to need a bigger garage?


The "clutter" shown in the photo is proof that a bigger garage would be nice.

I've resisted doing a thread due to jumping around a lot on the project. I do have my own site where I'm documenting stuff. There isn't a lot there yet, but here is a link to the "flare-diary" that covers the front flares (I can't do the rears until rust repair is addressed.

My flare-diary

Wes
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeff Hail
post Feb 23 2008, 08:10 PM
Post #191


Senior Member
***

Group: Members
Posts: 1,141
Joined: 3-May 07
From: LA/ CA
Member No.: 7,712



Another day with rain.

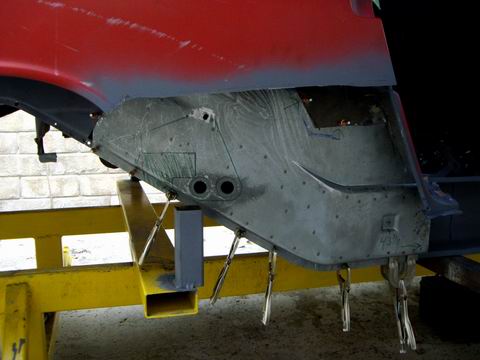

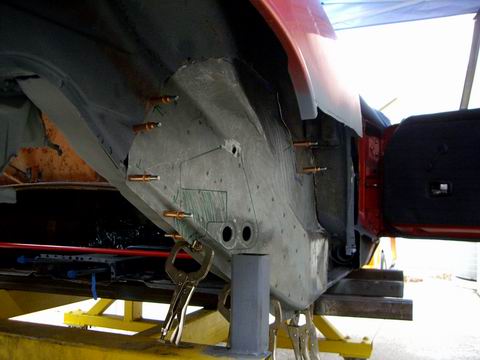

Cut and fitted the outer wheel house. Still need to do some cleanup grinding on the rear inner long (rail) before I can weld up the wheelhouse.

In the last photo you will notice a hole on the wheelhouse (right center) above the two larger holes. This is the location of the factory pilot hole for placement of the outer suspension console. The AA part does not come with the hole and it needed to be transfered from the old part. If you are using stock consoles that hole is critical.


Attached image(s)
Attached Image Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeff Hail
post Feb 23 2008, 08:15 PM
Post #192


Senior Member
***

Group: Members
Posts: 1,141
Joined: 3-May 07
From: LA/ CA
Member No.: 7,712

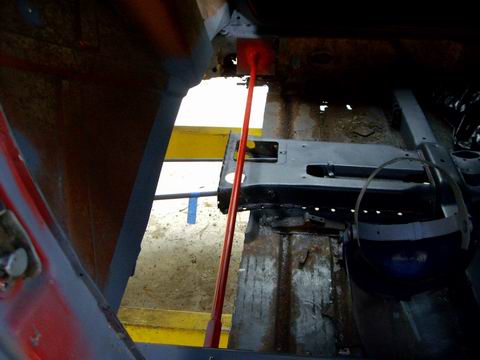

Interior brace to keep the longs in check. It is adjustable and held with a few tacks on each inner long. Most projects would not require this.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeff Hail
post Feb 23 2008, 08:19 PM
Post #193


Senior Member
***

Group: Members
Posts: 1,141
Joined: 3-May 07
From: LA/ CA
Member No.: 7,712

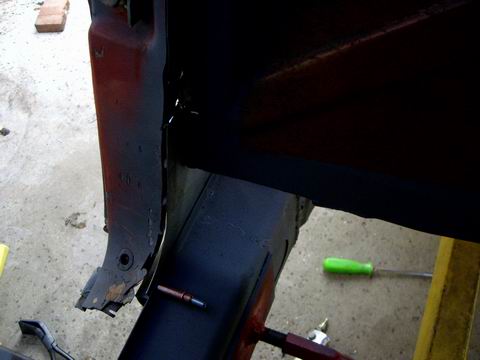

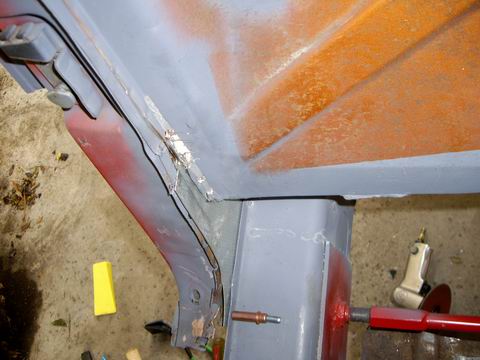

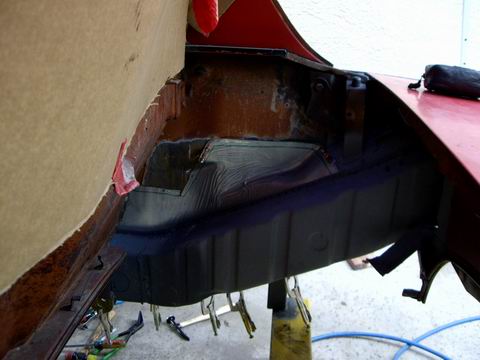

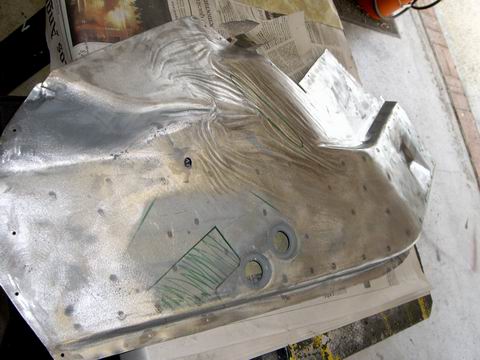

Inner wheelhouse all the way to the door opening. Replacing it all the way forward is actually easier and reduces the chance of leaks in the future.

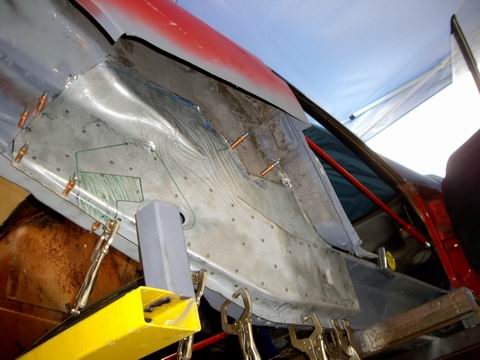

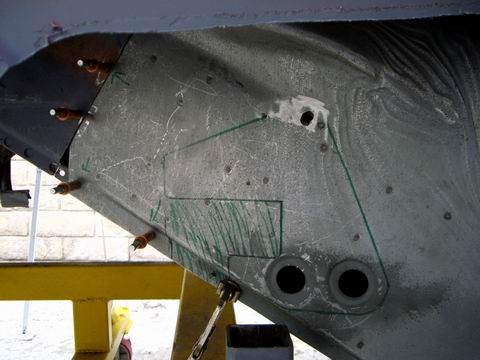

Last photo from below. The contour of the new part fits the original area pretty good.

You might notice the new panel is fitted behind the original sheetmetal? The reason for this any water spray from spinning tires will of course find its way down via gravity. With no outside seam there will be no place for water to enter. Make sense? This will require more work inside the engine compartment but I am not building a show car.


Attached image(s)
Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeff Hail
post Feb 23 2008, 08:32 PM
Post #194


Senior Member
***

Group: Members
Posts: 1,141
Joined: 3-May 07
From: LA/ CA
Member No.: 7,712

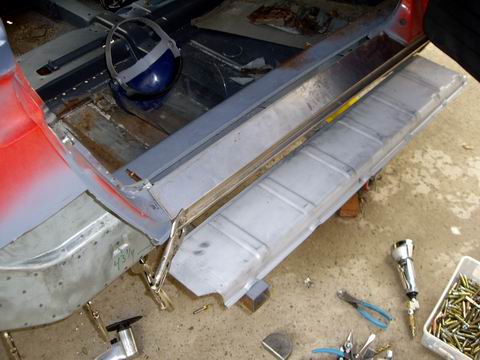

Checked the fitment of the outer rocker and sill plate. It was nice to see these parts get some daylight.

Before I weld the wheelhouse up I need to install the J-Tube for the air delivery system and also the C-clamp for the silencer.

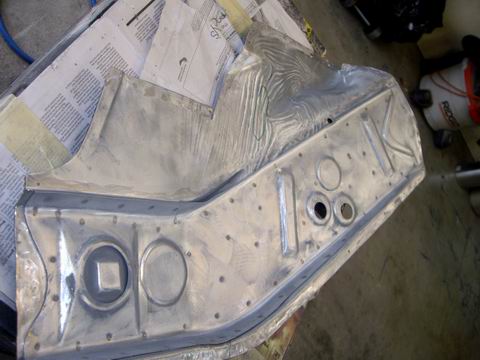

Then I pulled it all apart again and sanded the wheelhouse for a coat of epoxy primer. Much easier to put some primer on the area's now that will be soon be a closed box.


Attached image(s)
Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Allan
post Feb 23 2008, 08:45 PM
Post #195


Teenerless Weenie
*****

Group: Members
Posts: 8,373
Joined: 5-July 04
From: Western Mesopotamia
Member No.: 2,304
Region Association: Southern California



I've been hanging out here for quite a while but for some reason never saw this thread.

I (IMG:style_emoticons/default/pray.gif) bow to you for the work and effort you have put into the car...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeff Hail
post Feb 28 2008, 07:04 PM
Post #196


Senior Member
***

Group: Members
Posts: 1,141
Joined: 3-May 07
From: LA/ CA
Member No.: 7,712

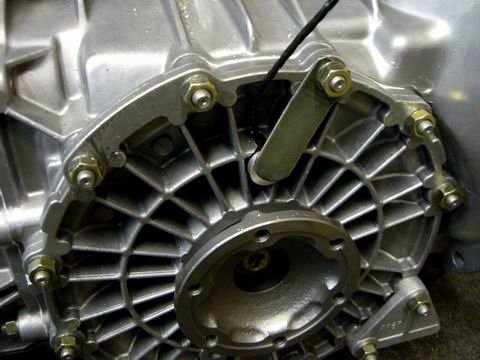

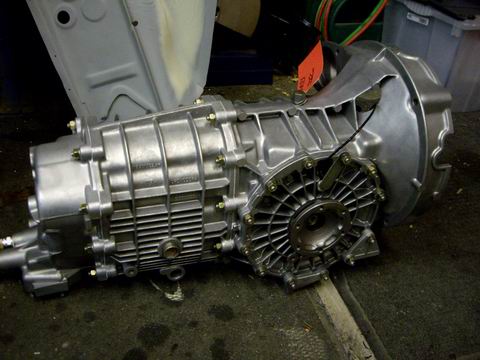

Trans is done

915, flipped ring gear for mid engine use. Aftermarket steel bearing retainer installed. G50 speedometer pickup (Hall sensor) installed on the right side plate.

Gears:
1st AZ (11:35)
2nd HW (18:32)
3rd NT (23:29)
4th QQ (26:26)
5th ZD (38:30)
Ring and pinion (8:31)




Attached image(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeff Hail
post Mar 1 2008, 05:22 PM
Post #197


Senior Member
***

Group: Members
Posts: 1,141
Joined: 3-May 07
From: LA/ CA
Member No.: 7,712

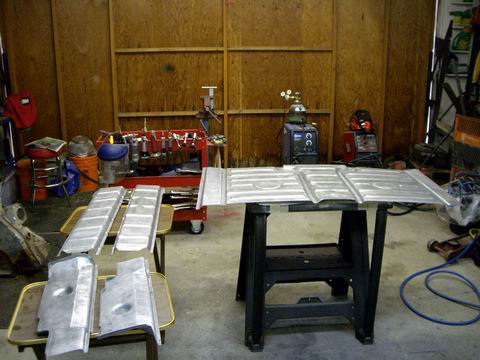

Completed the metal prep on the outer rocker panels, inner firewall halves and floor.

Nice when everything is within arms reach.

Have a thing for body hammers. Can you tell which one's get used the most?
(50 year old Proto, all the rest are Martins)

Time to prime. 2K epoxy primer, gotta have fresh air!

Some of the primer will get ground off and/ or burned away on installation of these panels. It's a lot easier to have corrosion protection on before than trying to get it into little crevices and closed areas. Spray guns do not like curves and corners. Work smart not hard!


Attached image(s)
Attached Image Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeff Hail
post Mar 8 2008, 07:30 PM
Post #198


Senior Member
***

Group: Members
Posts: 1,141
Joined: 3-May 07
From: LA/ CA
Member No.: 7,712



Good day to burn some metal

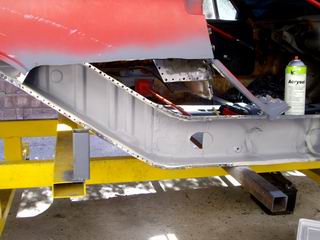

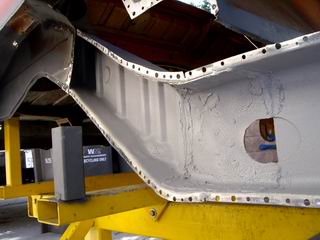

Finished the metal work on the right rear rail/ long......Rt inner long prepped and epoxy primered last week.

Sprayed some Wurth sprayable sealer inside before I close it all up. Put some extra sealer around the sleeves inside the long. Water creeps!




Attached image(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeff Hail
post Mar 8 2008, 07:34 PM
Post #199


Senior Member
***

Group: Members
Posts: 1,141
Joined: 3-May 07
From: LA/ CA
Member No.: 7,712

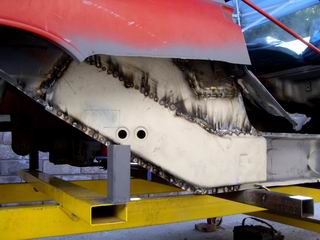

Rt rear wheelhouse installed and welded!

The area at the inner rail joint is all plug welded. Various plug welds around the perimeter where the original wheelhouse meets the new then seam welded where the panels overlap.

I discourage butt welding the inner wheelhouse for safety, structural and strength issues.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeff Hail
post Mar 8 2008, 07:37 PM
Post #200


Senior Member
***

Group: Members
Posts: 1,141
Joined: 3-May 07
From: LA/ CA
Member No.: 7,712

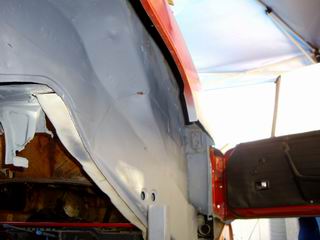

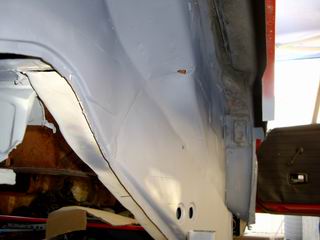

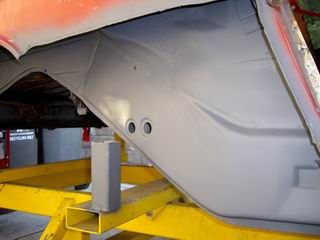

All exterior welds ground down and finished.........
A coat of etching primer until tomorrow when I can grind/ finish the inside
of the wheelhouse in the engine compartment.





Attached image(s)
Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
