> Bringing out the dead
Jeff Hail
post Apr 11 2008, 09:18 PM
Post #241


Senior Member
***

Group: Members
Posts: 1,141
Joined: 3-May 07
From: LA/ CA
Member No.: 7,712

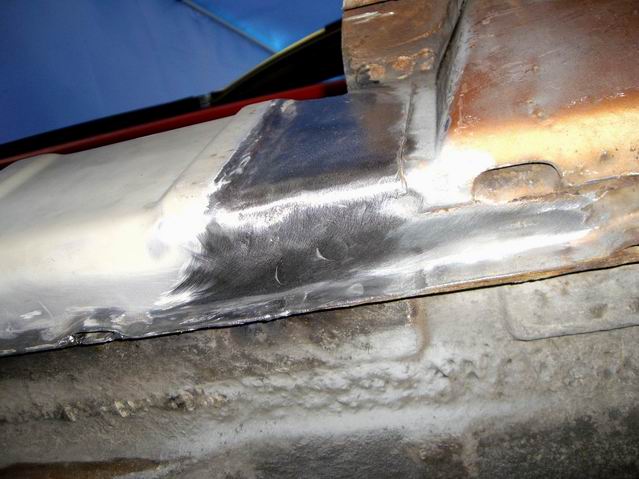

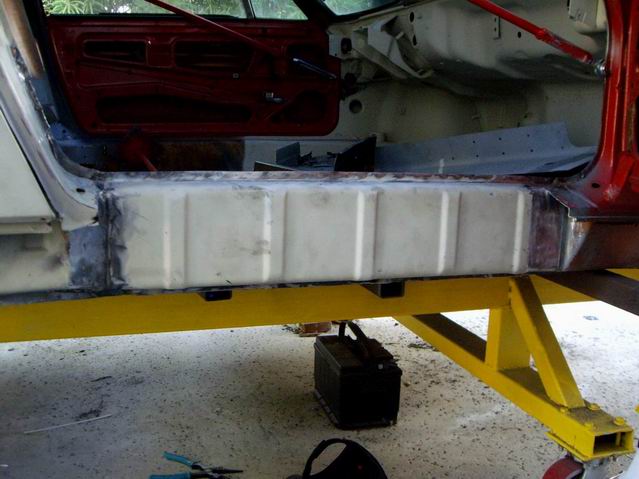

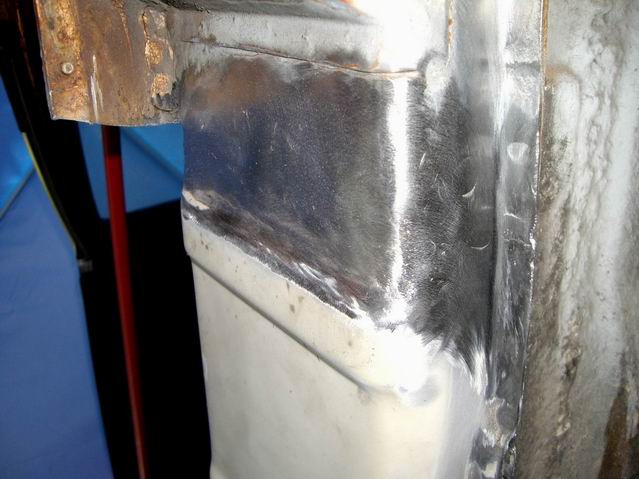

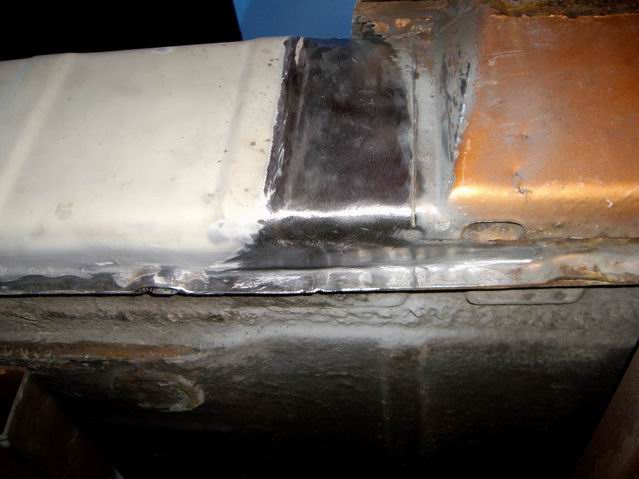

Welded up the right rocker. I plug welded the top from inside the car. No holes were punched on the new outer panel....the lower was done from underneath the car.

First -it's easier welding thru old steel into new metal
Second- no grinding a gazillion plugs on the exterior. No pin holes on the outside to leak.

Butt weld with a backer at the front and seam welded the rear outer wheelhouse (another area that is prone to water because the outer panel faces towards the front of the car)


Attached image(s)
Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeff Hail
post Apr 11 2008, 09:40 PM
Post #242


Senior Member
***

Group: Members
Posts: 1,141
Joined: 3-May 07
From: LA/ CA
Member No.: 7,712

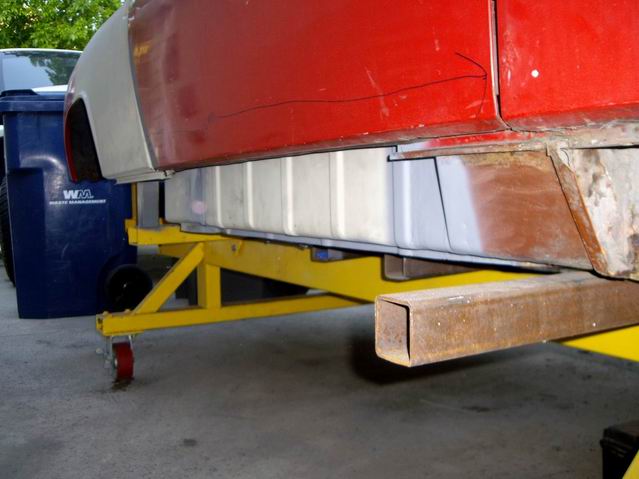

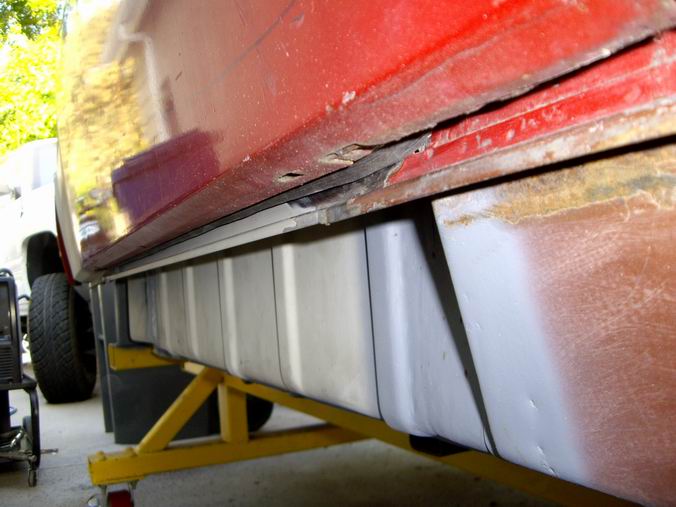

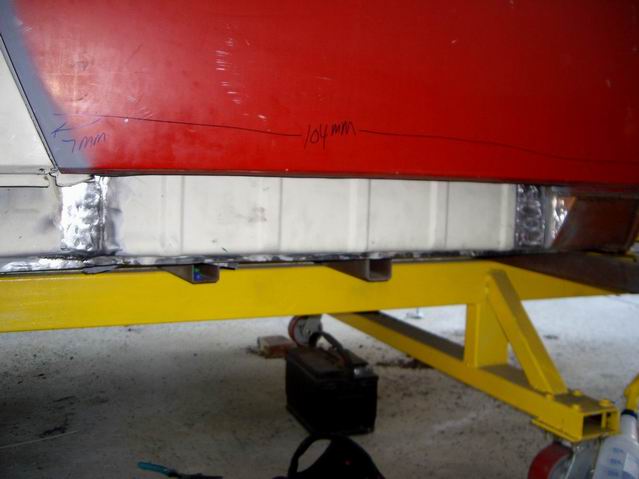

Can someone clarify if this is what a 914 rocker is supposed to look like?
I am kind of new at this and mine originally came with the translucent iron oxide version! (sick 914 humor) (IMG:style_emoticons/default/av-943.gif)

I also misplaced some measurements I noted somewhere. Now where the hell did I put them? Body panels make great sticky notes! (IMG:style_emoticons/default/dry.gif)

Day is done for now. A quick squirt of primer and its time for a (IMG:style_emoticons/default/beer.gif)


Attached image(s)
Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeff Hail
post Apr 20 2008, 10:38 PM
Post #243


Senior Member
***

Group: Members
Posts: 1,141
Joined: 3-May 07
From: LA/ CA
Member No.: 7,712

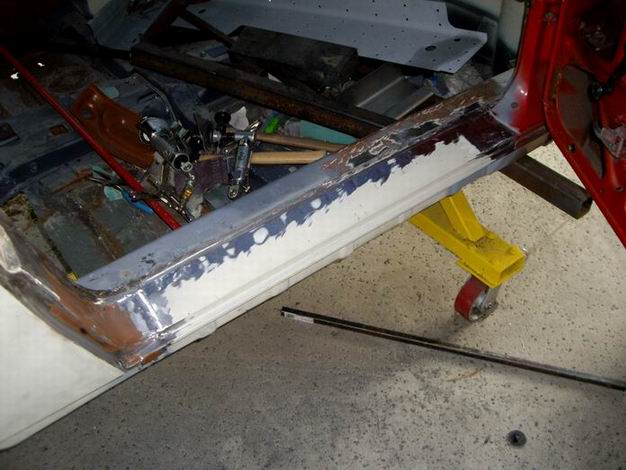

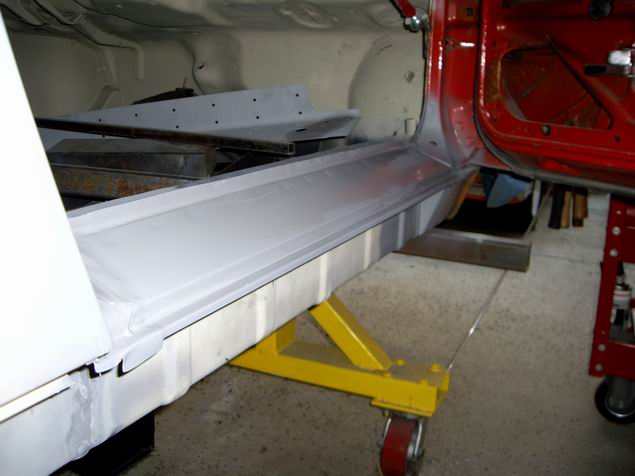

Passenger side sill plate is in.

Ran out of C02/Argon so I couldn't weld the sill triangles in.

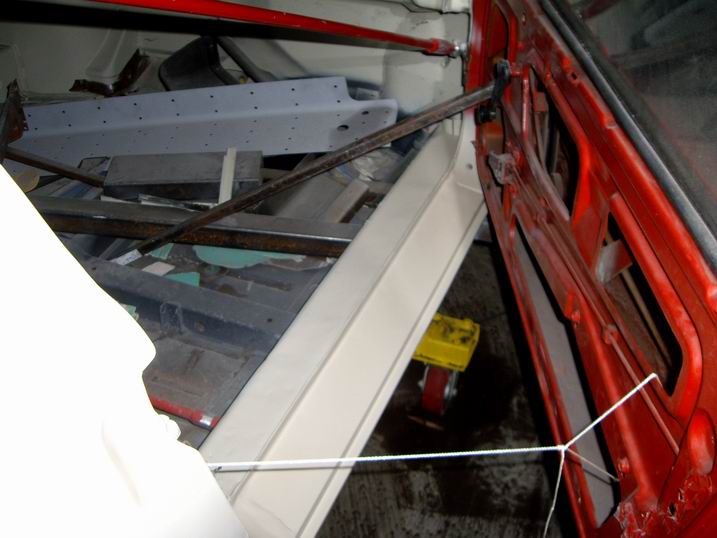

Good tip....do not throw out those old weatherstrips. They are still important
when fitting parts such as the sill to make sure you get a proper seal on the door shell.


Attached image(s)
Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeff Hail
post May 3 2008, 10:21 PM
Post #244


Senior Member
***

Group: Members
Posts: 1,141
Joined: 3-May 07
From: LA/ CA
Member No.: 7,712
Lite duty this week. Carpal Tunnel sucks.

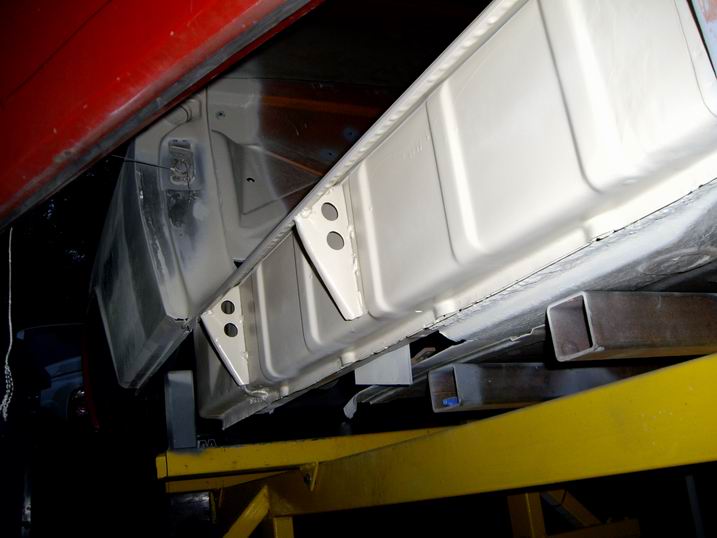

Welded in the sill triangles I fabricated and prepped the threshold area.



Attached image(s)
Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeff Hail
post May 3 2008, 10:26 PM
Post #245


Senior Member
***

Group: Members
Posts: 1,141
Joined: 3-May 07
From: LA/ CA
Member No.: 7,712

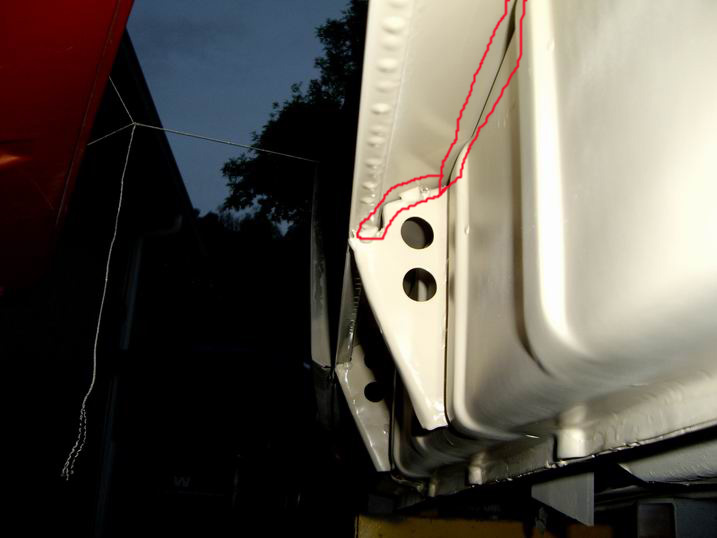

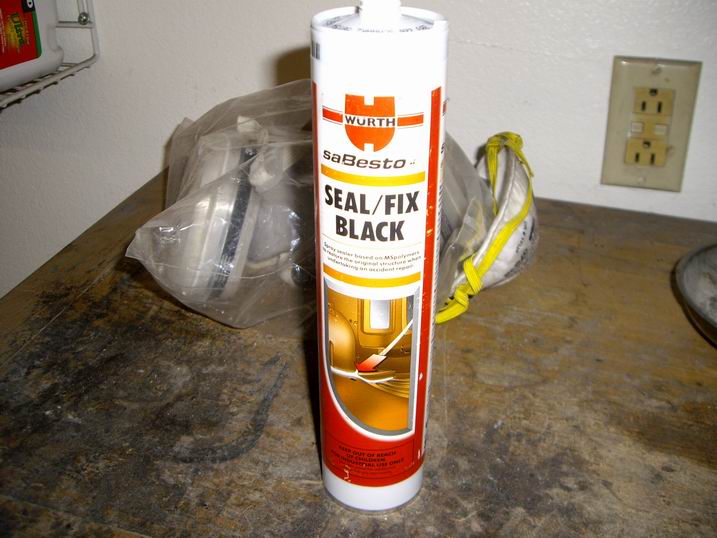

Tomorrow I will coat the gap where the rocker and sill plate meet with Wurth Seal Fix. WSF is closed cell sealer and semi rigid. Water and moisture will not get past it like the factory sealer.

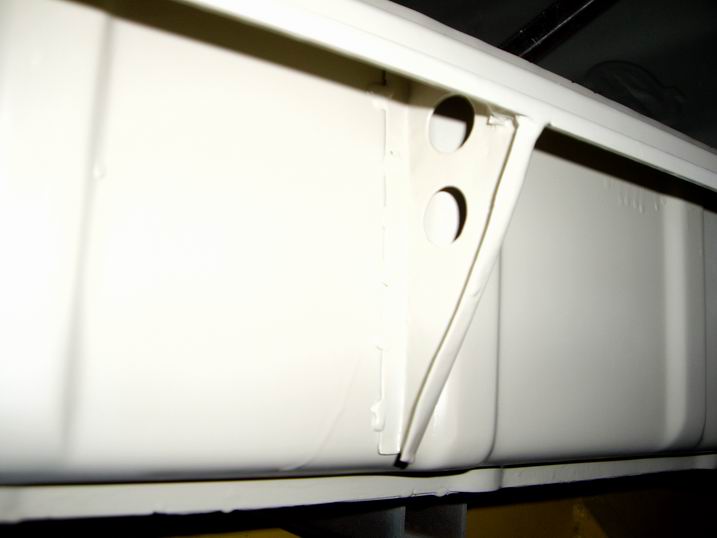

Notice I installed the triangles flat side forward. The factory should have done this so as not to be a catchers mitt for road debris.


Attached image(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeff Hail
post May 3 2008, 10:31 PM
Post #246


Senior Member
***

Group: Members
Posts: 1,141
Joined: 3-May 07
From: LA/ CA
Member No.: 7,712

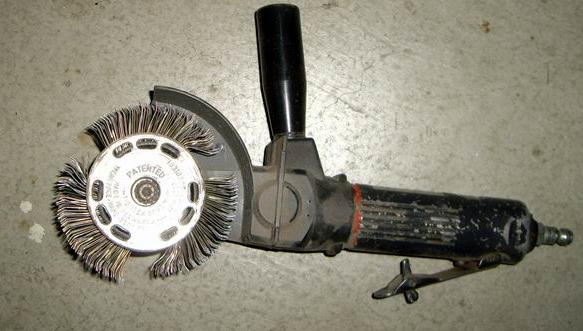

The right tool for the job.

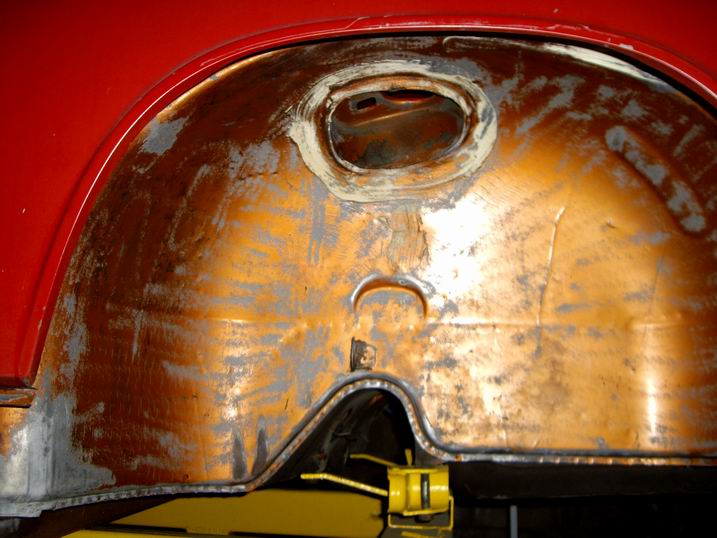

Stripped the right front wheelhouse of its undercoating in about 3 minutes.
Elbow grease....Not!

(Brake Cleaner also works like a charm and strips about everything else in the process if you don't want to invest in one of these.)


Attached image(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Zimms
post May 4 2008, 06:45 AM
Post #247


Senior Member
***

Group: Members
Posts: 1,414
Joined: 11-February 06
From: Michigan
Member No.: 5,565
Region Association: Upper MidWest
NICE WORK! Keep it coming!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Eric_Shea
post May 4 2008, 08:55 AM
Post #248


PMB Performance
***************

Group: Admin
Posts: 19,289
Joined: 3-September 03
From: Salt Lake City, UT
Member No.: 1,110
Region Association: Rocky Mountains
QUOTE
if you don't want to invest in one of these


What's that called again?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeff Hail
post May 4 2008, 02:08 PM
Post #249


Senior Member
***

Group: Members
Posts: 1,141
Joined: 3-May 07
From: LA/ CA
Member No.: 7,712
QUOTE(Eric_Shea @ May 4 2008, 07:55 AM) *

QUOTE
if you don't want to invest in one of these


What's that called again?


Wurth DBS 3500 (aka "the flail")
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Eric_Shea
post May 4 2008, 02:25 PM
Post #250


PMB Performance
***************

Group: Admin
Posts: 19,289
Joined: 3-September 03
From: Salt Lake City, UT
Member No.: 1,110
Region Association: Rocky Mountains
@ $479.00 that may be worth it for even one car... kinda pricey though when considering a soda blast for $600.

Cool tool. (IMG:style_emoticons/default/wink.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeff Hail
post May 4 2008, 02:31 PM
Post #251


Senior Member
***

Group: Members
Posts: 1,141
Joined: 3-May 07
From: LA/ CA
Member No.: 7,712
QUOTE(Eric_Shea @ May 4 2008, 01:25 PM) *

@ $479.00 that may be worth it for even one car... kinda pricey though when considering a soda blast for $600.

Cool tool. (IMG:style_emoticons/default/wink.gif)


They can be found for much less used. DynaBrade also makes a similar one for less. BTW,What did you find out on the brake parts cost?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Eric_Shea
post May 4 2008, 02:50 PM
Post #252


PMB Performance
***************

Group: Admin
Posts: 19,289
Joined: 3-September 03
From: Salt Lake City, UT
Member No.: 1,110
Region Association: Rocky Mountains
I found that the pound is $1.95 now! (IMG:style_emoticons/default/ohmy.gif)

They should be here at the end of the week.

http://www.pmbperformance.com/catalog/item...563/5825883.htm
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sixnotfour
post May 4 2008, 05:39 PM
Post #253


914 Wizard
**********

Group: Members
Posts: 10,636
Joined: 12-September 04
From: Life Elevated..planet UT.
Member No.: 2,744
Region Association: Rocky Mountains
Soda Blast wont remove the nasty seam sealer.
I just did mine and thought the blasting would remove the little I left , Nope had the body shop kid wire wheel the rest, as I was Done.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Eric_Shea
post May 4 2008, 06:37 PM
Post #254


PMB Performance
***************

Group: Admin
Posts: 19,289
Joined: 3-September 03
From: Salt Lake City, UT
Member No.: 1,110
Region Association: Rocky Mountains
QUOTE
Soda Blast wont remove the nasty seam sealer.
I just did mine and thought the blasting would remove the little I left , Nope had the body shop kid wire wheel the rest, as I was Done.


Yeah I know... (IMG:style_emoticons/default/sad.gif) Send him my way when you're done! (IMG:style_emoticons/default/wink.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeff Hail
post May 11 2008, 12:16 AM
Post #255


Senior Member
***

Group: Members
Posts: 1,141
Joined: 3-May 07
From: LA/ CA
Member No.: 7,712

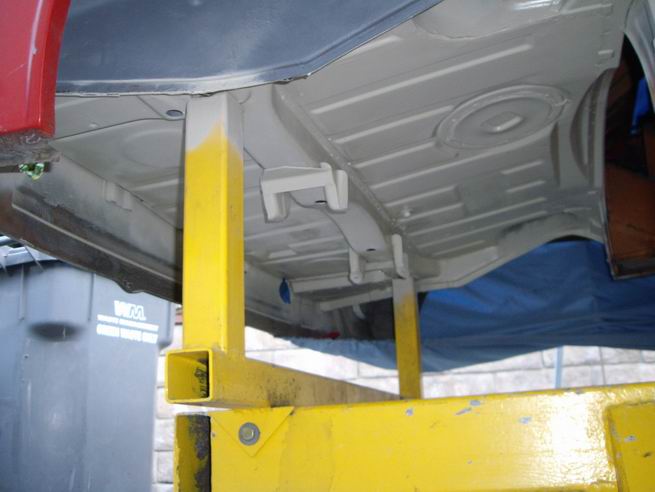

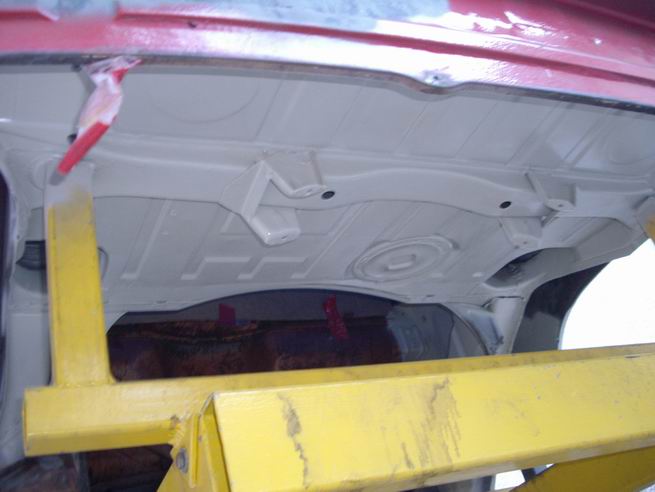

Stripped the underside rear of the tub to metal and epoxy primed.

First I used the Wurth "flail" to remove the old undercoating. This also removed the majority of original paint. The rest I machine sanded with a Mini DA and a few spots I used Starblast media (transmount bracktets and crossmember). Then some good old fashion elbow grease hand sanding and some solvent.

I removed all of the seam sealer where the inner wheelhouse/ quarter panels meet the floor at the rear. Needed to see if any issues were under there. None found. (IMG:style_emoticons/default/aktion035.gif)

I did leave intact the sealer where the shock tower pockets are. Just took it down a little to have something to bite into and tidy it up.

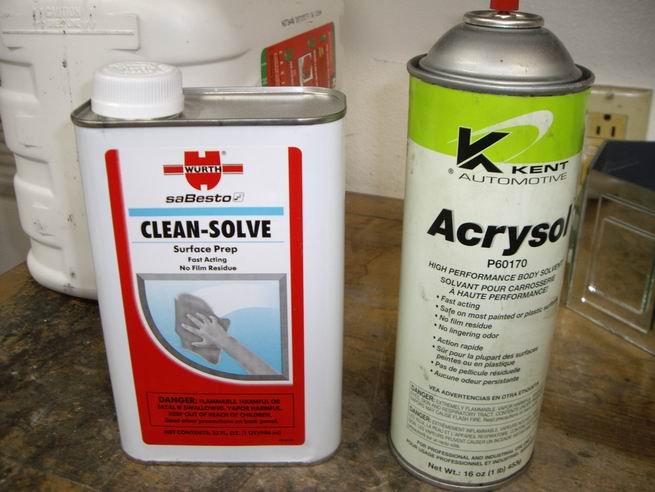

The Kent solvent kicks ass.


Attached image(s)
Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeff Hail
post May 11 2008, 02:38 AM
Post #256


Senior Member
***

Group: Members
Posts: 1,141
Joined: 3-May 07
From: LA/ CA
Member No.: 7,712
It's midnight and a knock at the door!

Who the hell is at my door at this hour?

Hey dude.... Whoa those came out bitch'n..........

What do I owe you?......A couple cold beer's!

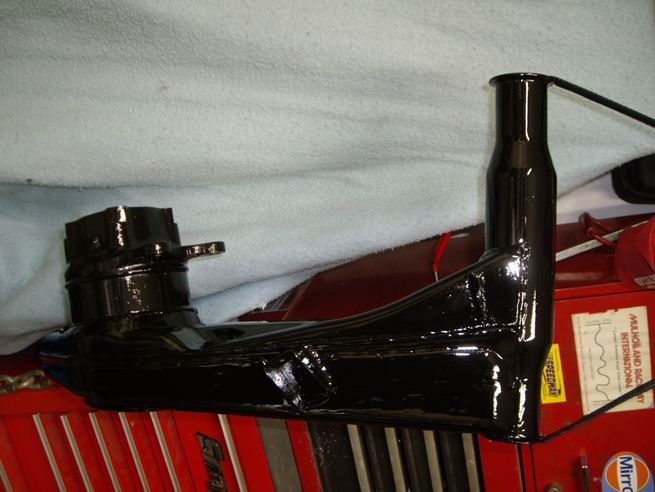

It's nice when the Powder Coater is your bud! Price was right. 2 Stage Powder Coating rocks!


Attached image(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeff Hail
post May 12 2008, 10:30 PM
Post #257


Senior Member
***

Group: Members
Posts: 1,141
Joined: 3-May 07
From: LA/ CA
Member No.: 7,712
Awesome....printed on the side of a box of Porsche Exhaust Headers. Even the UPS guy had to take time out to read it. Way cool.

AUTHOR: Walter D. Wintle
QUOTATION: If you think you are beaten, you are;
If you think you dare not, you don’t.
If you’d like to win, but think you can’t,
It’s almost a cinch you won’t.
If you think you’ll lose, you’re lost,
For out in the world we find
Success begins with a fellow’s will;
It’s all in the state of mind.

If you think you’re outclassed, you are;
You’ve got to think high to rise.
You’ve got to be sure of yourself before
You can ever win a prize.
Life’s battles don’t always go
To the stronger or faster man;
But soon or late the man who wins
Is the one who thinks he can.


Now who can guess what brand they are?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
porsche914gt
post May 13 2008, 12:27 AM
Post #258


Member
**

Group: Members
Posts: 86
Joined: 20-January 04
From: Los Angeles, CA
Member No.: 1,581
Region Association: None
Stahl
New York
Right?
I remember mine had that.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeff Hail
post May 13 2008, 06:57 PM
Post #259


Senior Member
***

Group: Members
Posts: 1,141
Joined: 3-May 07
From: LA/ CA
Member No.: 7,712
QUOTE(porsche914gt @ May 12 2008, 11:27 PM) *

Stahl
New York
Right?
I remember mine had that.


I recall that Stahl stopped making 914/6 headers although you are correct on the box. I got a kick out of the verbiage on the box.

The headers are George Narbel's (ERH) . I had them thermal coated and they shipped em in a Stahl box.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Katmanken
post May 13 2008, 07:42 PM
Post #260


You haven't seen me if anybody asks...
****

Group: Members
Posts: 4,738
Joined: 14-June 03
From: USA
Member No.: 819
Region Association: Upper MidWest
Jeff,

Something I've been meanign to ask...

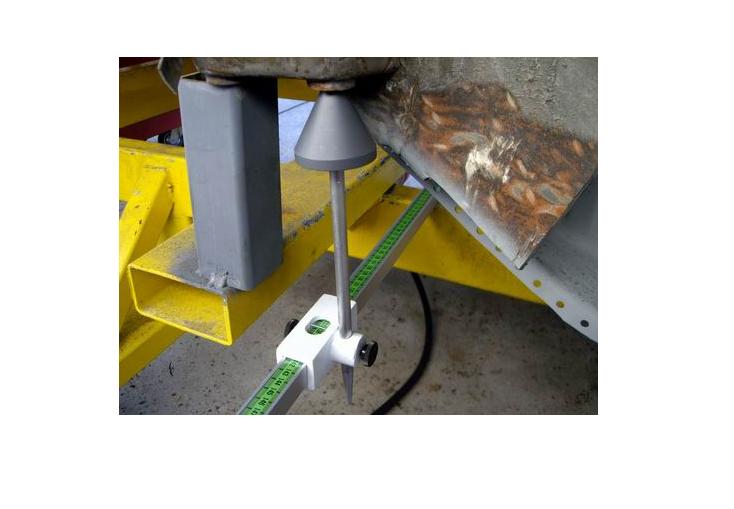

Who makes this tram gauge?

It looks like something I could use.



Ken


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
