> Bringing out the dead
Jeff Hail
post Jan 30 2010, 12:55 AM
Post #441


Senior Member
***

Group: Members
Posts: 1,141
Joined: 3-May 07
From: LA/ CA
Member No.: 7,712
I forgot to post these before I went out of town. Boredom today and itching to burn some metal when I get back. I hate leaving in the middle.

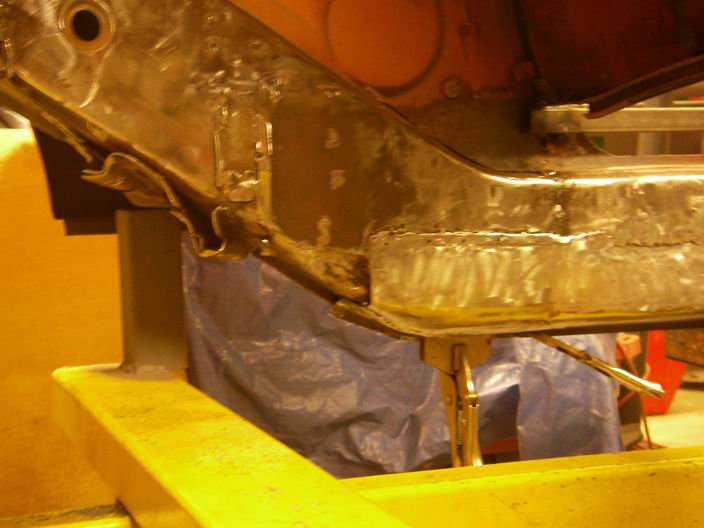

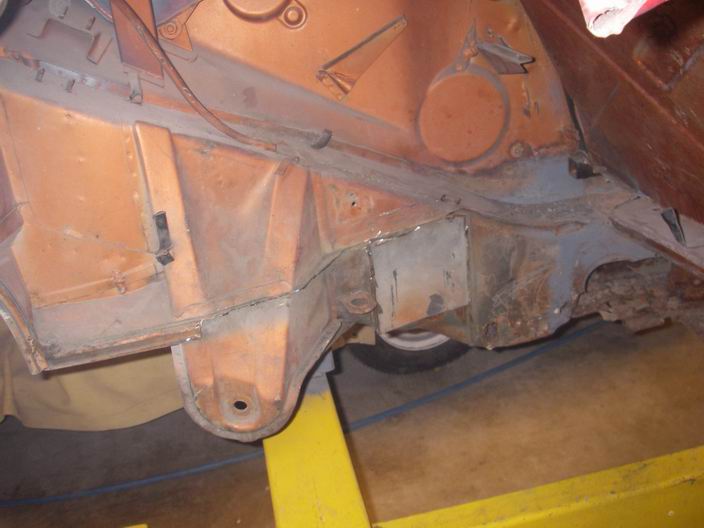

Left inner long: Typical rust at the bottom of the rail from the motor mount forward.

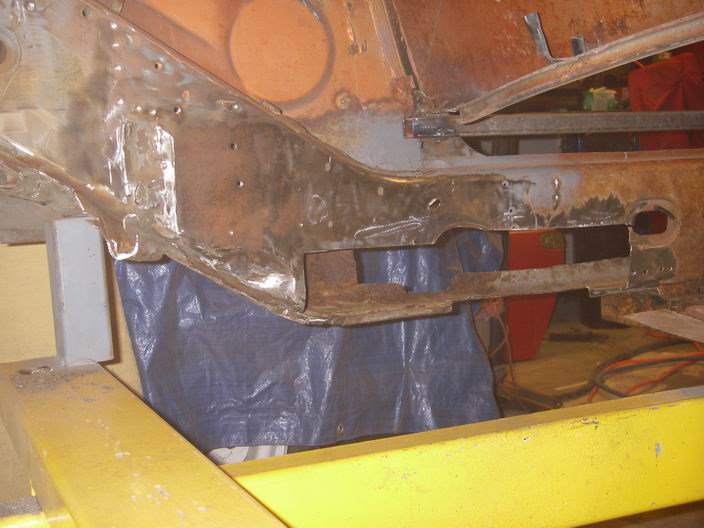

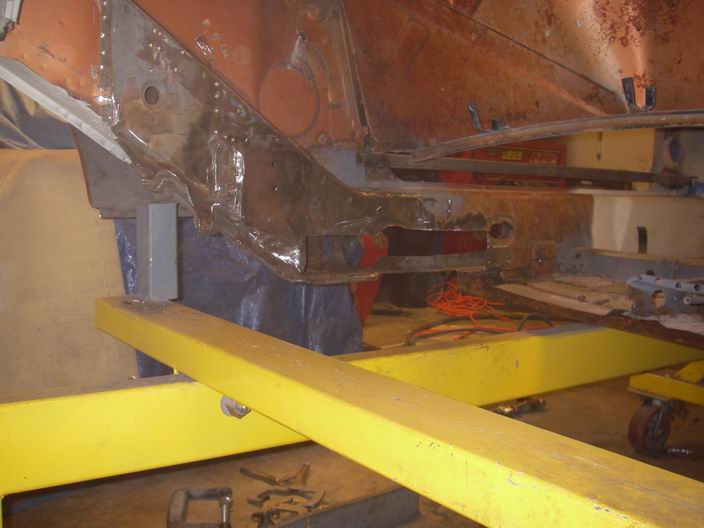

Exploratory cutting until I hit good steel. Fabricate the lower portion of the long, flange it and burn it in. It was easier to shape the rear upward angle after the front lower portion was tacked in. 16 guage tends to want to hold its memory.

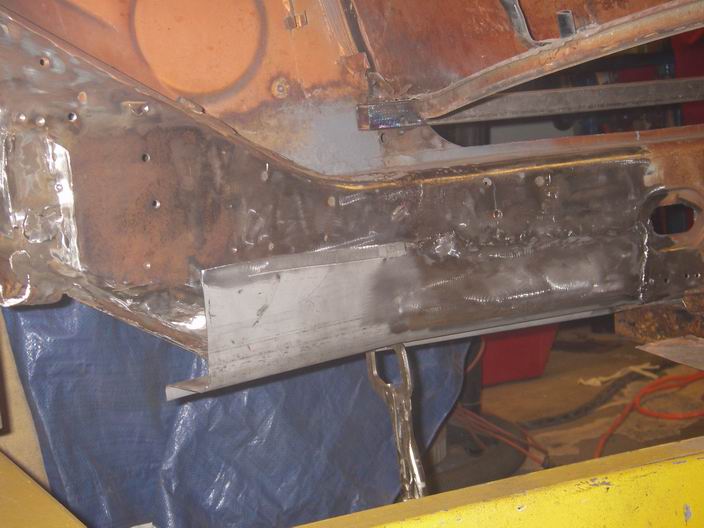

Still not done here but had to leave in the middle. Lots of finish work and weld grinding to do. Need to add a piece at the rear of the motor mount recess area but will hold off until I see what Foleys raised pickup kit extends to.

As a side note: The motor mounts, heater tube and silencer, ebrake handle mount will not be reused.



Attached image(s)
Attached Image Attached Image Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeff Hail
post Feb 3 2010, 12:26 AM
Post #442


Senior Member
***

Group: Members
Posts: 1,141
Joined: 3-May 07
From: LA/ CA
Member No.: 7,712
mis·cel·la·neous rambings

I'm back. Interesting leave of absence. Women can be strange at times. Never can understand them can we?

Back to work. Anyone ever notice my photos are semi myopic? Cant ever show too much can you?

Here is where I am at:

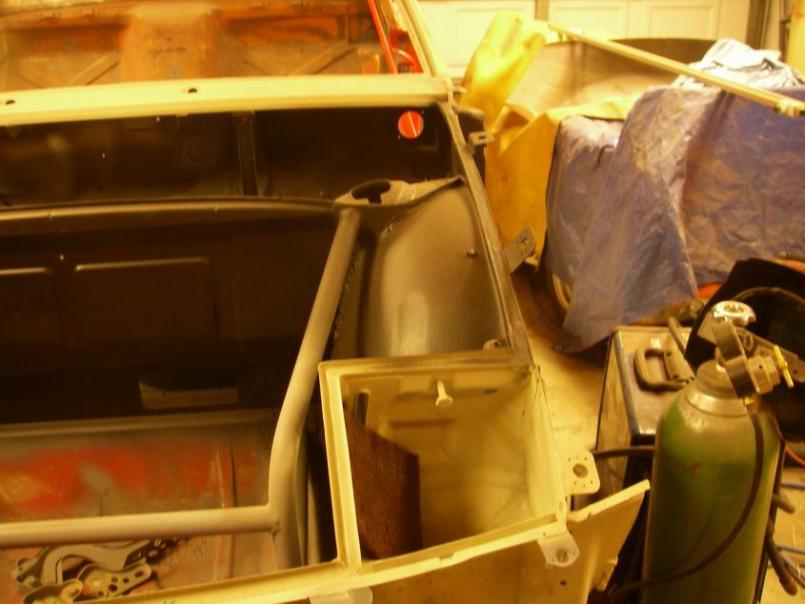

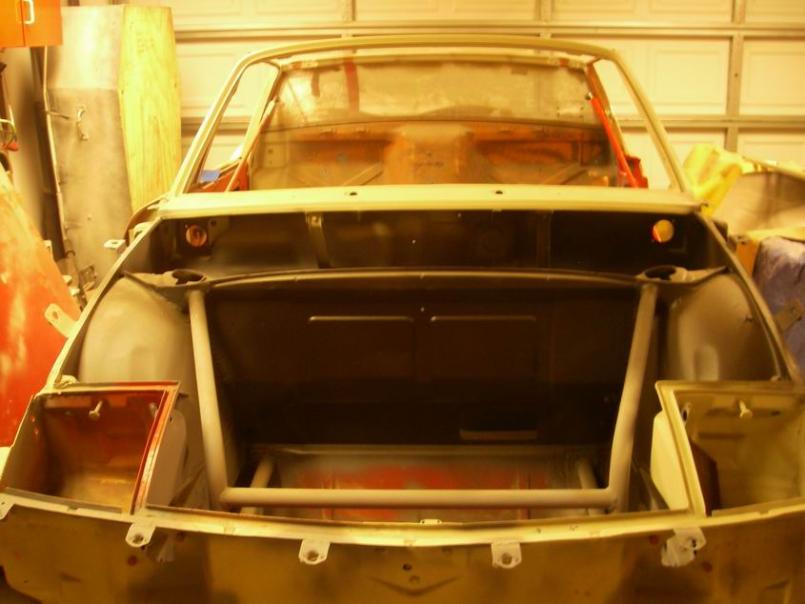

Front body is 98% done. Front bumper and fenders just need to be hung. Dzus fastener mounts are all located. Just need to complete the finish work on the left fender and basicly done.

I havent come to a conclusion on headlamps yet but I hate the pop up lids - so they must go. Considering the CA laws on lamps some ideas have come to mind. Just like a formula in racing its all really open to interpretation and the risk.



Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeff Hail
post Feb 3 2010, 12:30 AM
Post #443


Senior Member
***

Group: Members
Posts: 1,141
Joined: 3-May 07
From: LA/ CA
Member No.: 7,712

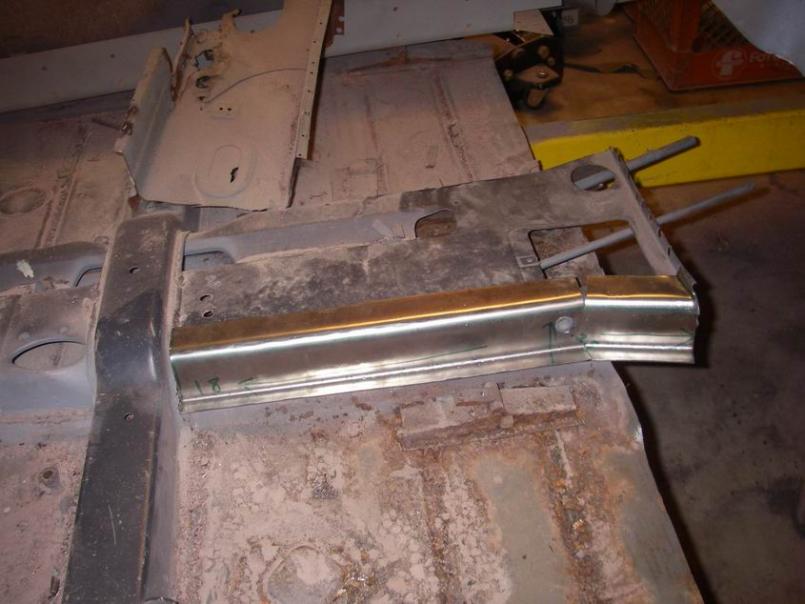

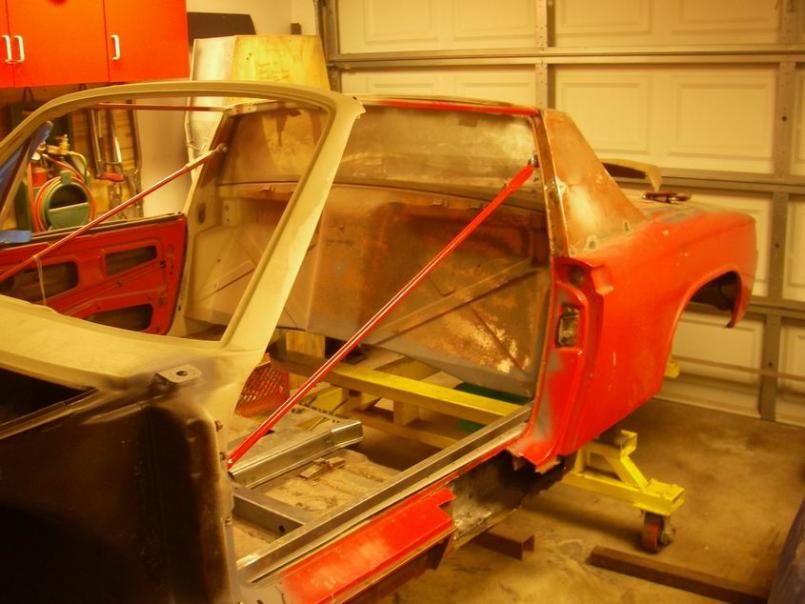

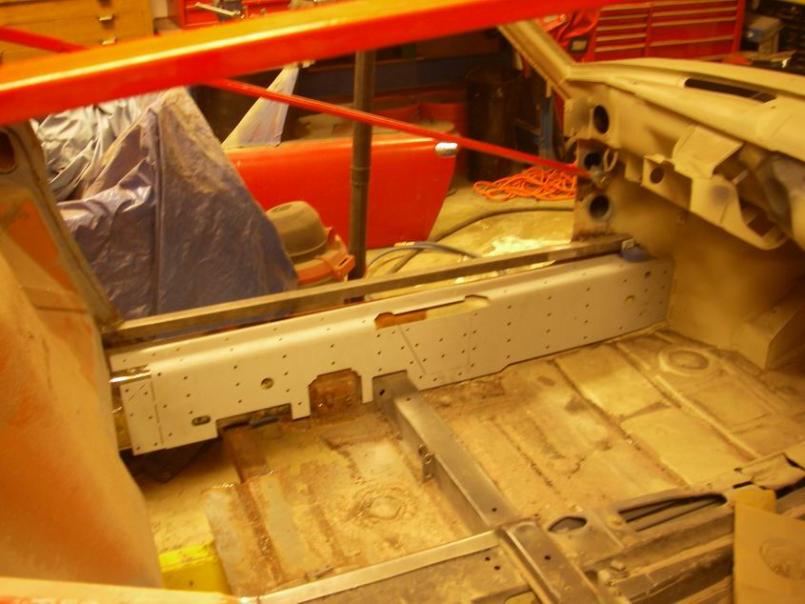

Working on the left inner long. Its done. Just need to replace the outer long and good to go. Threw the Engman stiffener on there for looks.

I am getting ready for the rear floor section and lower firewall installation. I'm excited.


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeff Hail
post Feb 3 2010, 12:34 AM
Post #444


Senior Member
***

Group: Members
Posts: 1,141
Joined: 3-May 07
From: LA/ CA
Member No.: 7,712
Completed the tunnel repair patch for both sides. This will be plug welded once I install the floor. Fitment prior to floor cut and trim.

An afterthought! Porsche/VW should have made the tunnel the same height as the longs. Would have made a much stiffer platform. Shorten the shifter a bit and well.. it didnt happen.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
strawman
post Feb 3 2010, 01:29 PM
Post #445


Senior Member
***

Group: Members
Posts: 885
Joined: 25-January 08
From: Los Osos, CA
Member No.: 8,624
Region Association: Central California
Hi Jeff,

Lookin' great!

I can't wait to see what you come up with for the headlights. I have mocked up my radiator mounting for my Suby swap, and the upper mount bar and airflow would be much better IMHO without the headlight boxes to deal with.

I've got a front fender cut that I hope to use to mock up HID bulbs inside the factory turn signal pods... much easier on the workbench than on the car.

Geoff
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bcaschera
post Feb 3 2010, 05:38 PM
Post #446


Member
**

Group: Members
Posts: 73
Joined: 1-October 09
From: san jose
Member No.: 10,873
Region Association: None
(IMG:style_emoticons/default/agree.gif)
The turn signal pods are just begging to be stuffed with some nice HID lamps. I found some high/low HID's from PIAA and i believe they would fit nicely. The only problem being the cover and the price (IMG:style_emoticons/default/icon8.gif) . This project looks great by the way... I wish i had half the tools and 1/8 the skills you have. Keep it up (IMG:style_emoticons/default/chowtime.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeff Hail
post Feb 3 2010, 06:24 PM
Post #447


Senior Member
***

Group: Members
Posts: 1,141
Joined: 3-May 07
From: LA/ CA
Member No.: 7,712
The recent copy of Exellence provided a few extreme ideas.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeff Hail
post Feb 15 2010, 10:46 PM
Post #448


Senior Member
***

Group: Members
Posts: 1,141
Joined: 3-May 07
From: LA/ CA
Member No.: 7,712
The Redhead has me stirred up!!!


Need to take it out on some 16 gauge steel.

Ok,

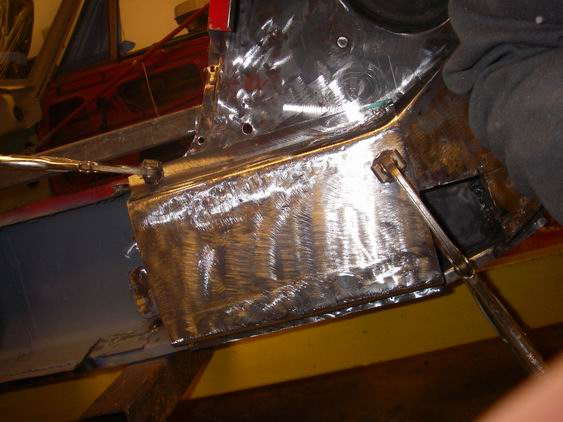

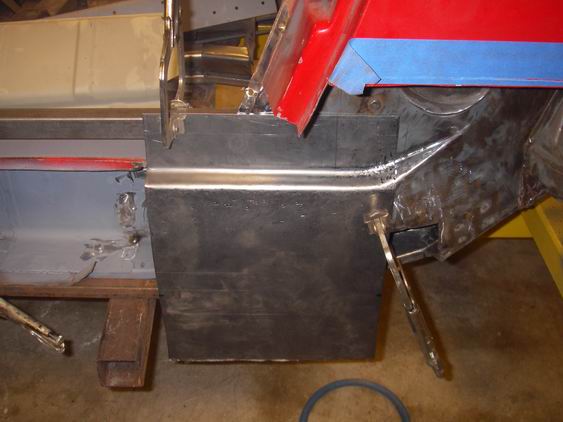

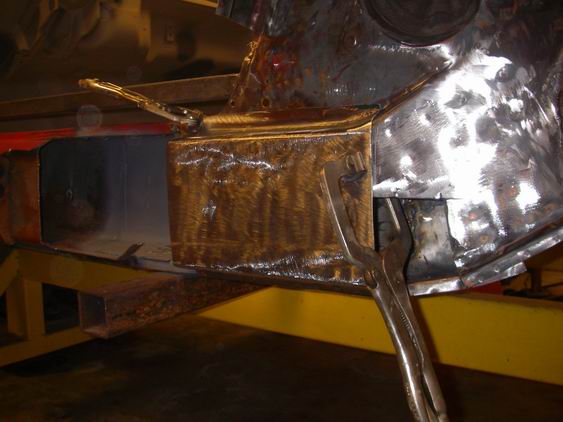

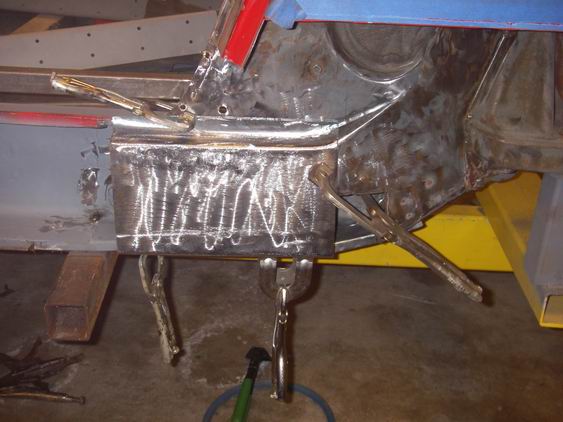

Fabricate the closing plate at the rear of the left outer long (rocker to us body guys)

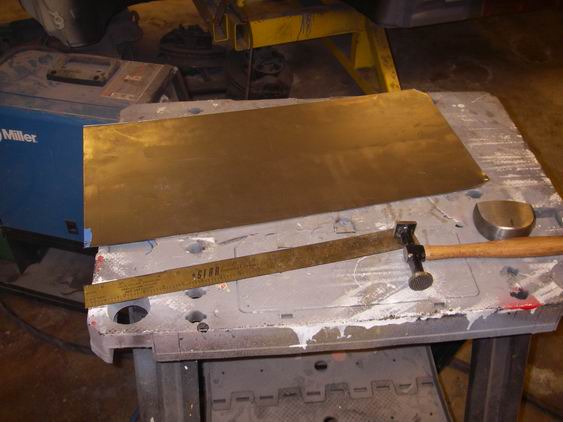

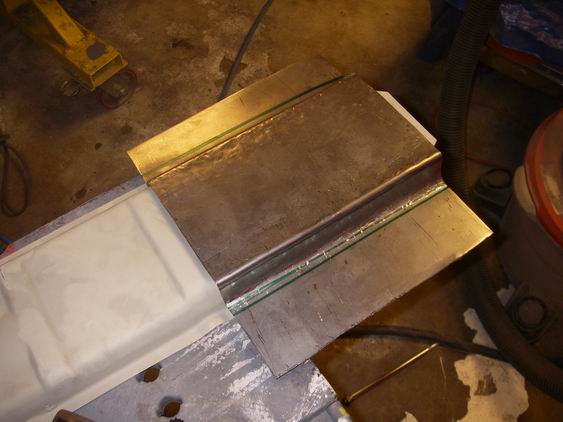

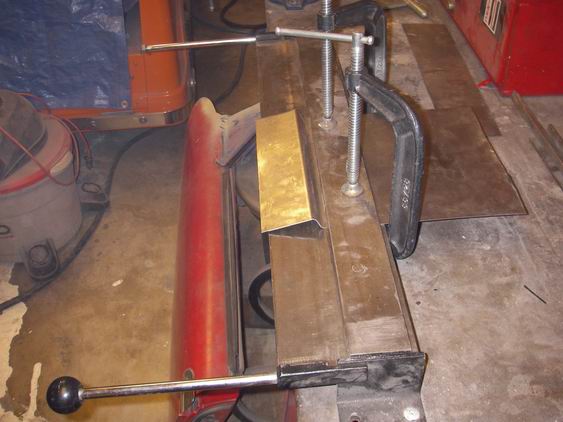

Start with a big flat piece of 16 gauge steel. A little bending in the brake. Some trimming and there you go.


Attached image(s)
Attached Image Attached Image Attached Image Attached Image Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeff Hail
post Feb 21 2010, 10:45 PM
Post #449


Senior Member
***

Group: Members
Posts: 1,141
Joined: 3-May 07
From: LA/ CA
Member No.: 7,712
The Red Head has me really stirred up! And she probably still has the link I sent her 8 months ago. I do care about her.

Left inner long has been repaired. Last will see of it. Should have signed my initials on the inside before I closed it up.

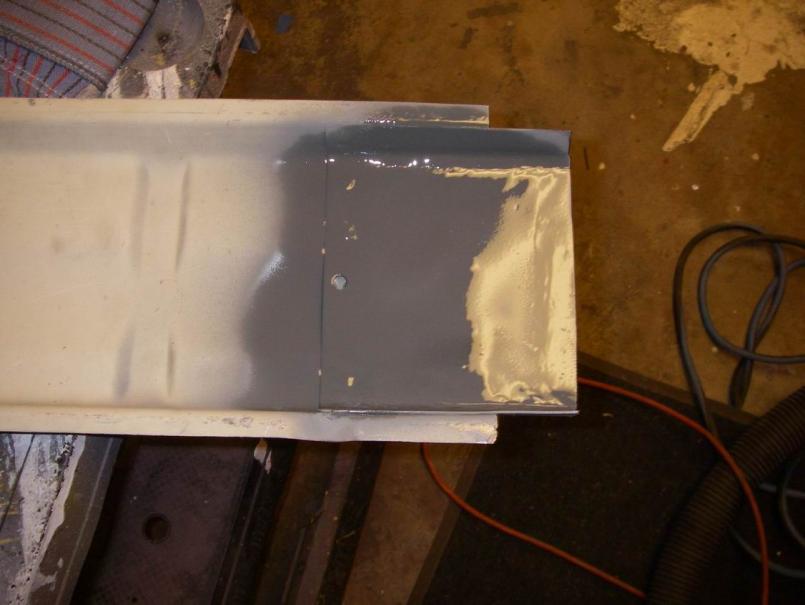

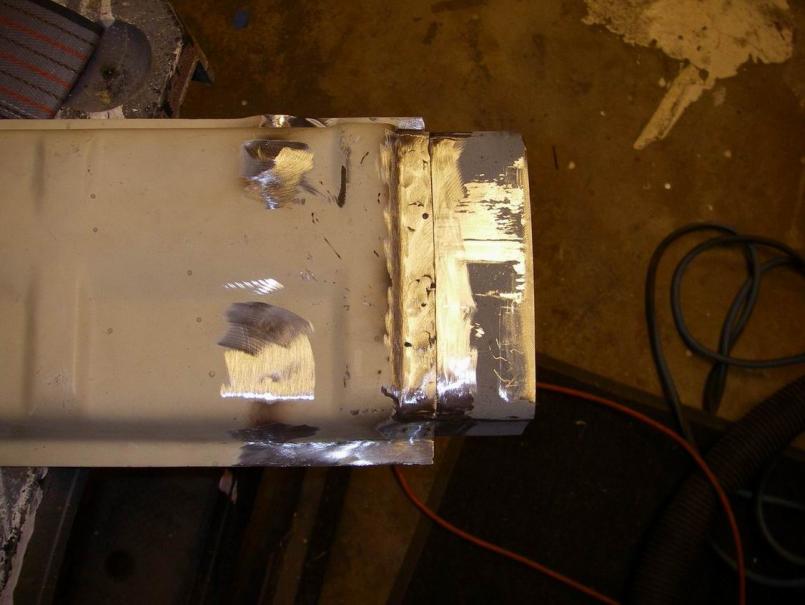

Next: Prepare the new outer long. Fit and add a sleeve for the infamous Hail butt weld. Sleeves make the joint twice as strong and provide a solid joint to burn in without blowing holes. A tight fitting backer is the key to a good structural joint. Really not a butt weld but a modified butt/ lap... kind of.


Attached thumbnail(s)
Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeff Hail
post Feb 21 2010, 10:48 PM
Post #450


Senior Member
***

Group: Members
Posts: 1,141
Joined: 3-May 07
From: LA/ CA
Member No.: 7,712

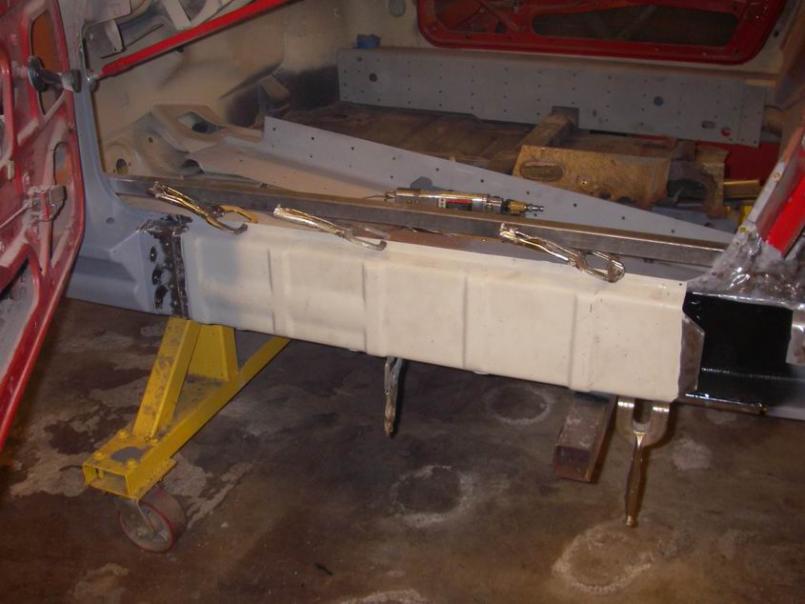

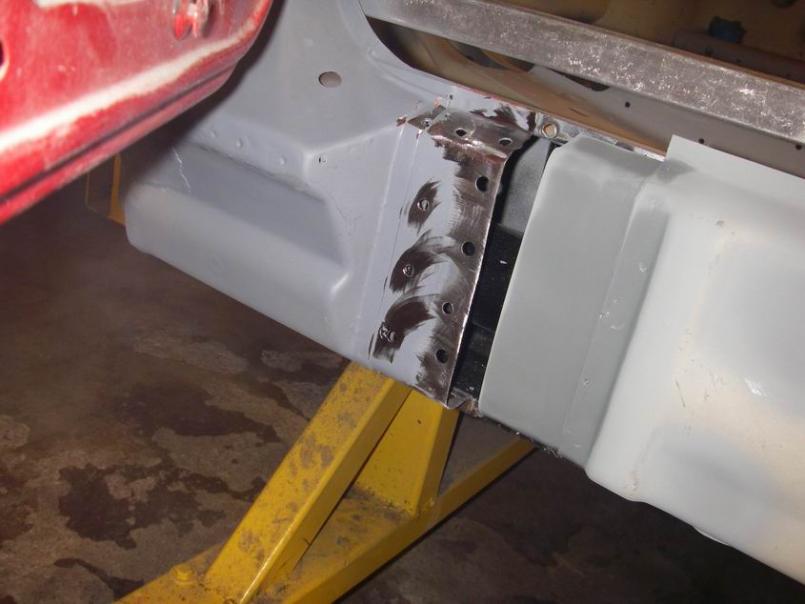

Test fit of the Left Outer Long. Check for level and top and bottom flanges.
Clamp in place.

Punch the requisite holes and grind the flanges as appropriate.


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeff Hail
post Feb 21 2010, 10:49 PM
Post #451


Senior Member
***

Group: Members
Posts: 1,141
Joined: 3-May 07
From: LA/ CA
Member No.: 7,712

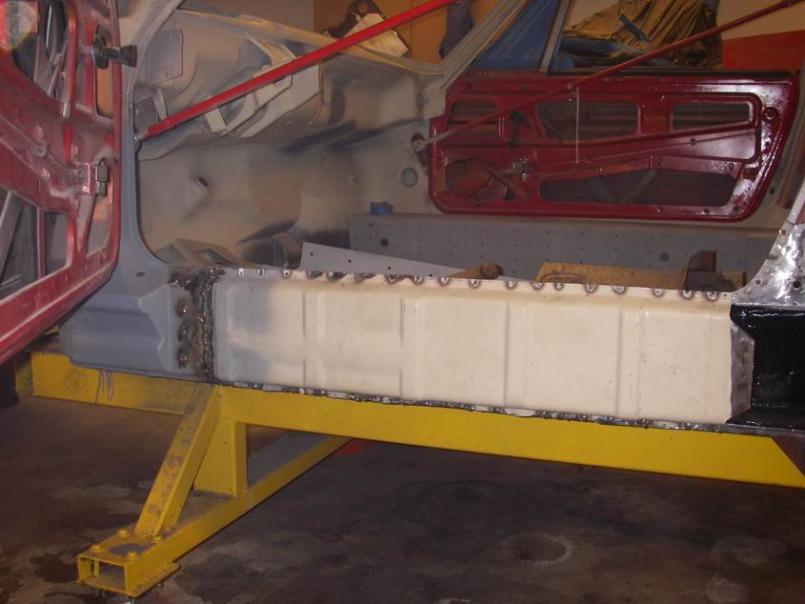

Lets burn some metal. Alchemy!!

Grinding the plugs is next. BTW.. the upper flange was welded on the inside as I pre-drilled the holes on the inner long. Makes for a better cleaner finished product on the outside.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeff Hail
post Feb 21 2010, 11:09 PM
Post #452


Senior Member
***

Group: Members
Posts: 1,141
Joined: 3-May 07
From: LA/ CA
Member No.: 7,712

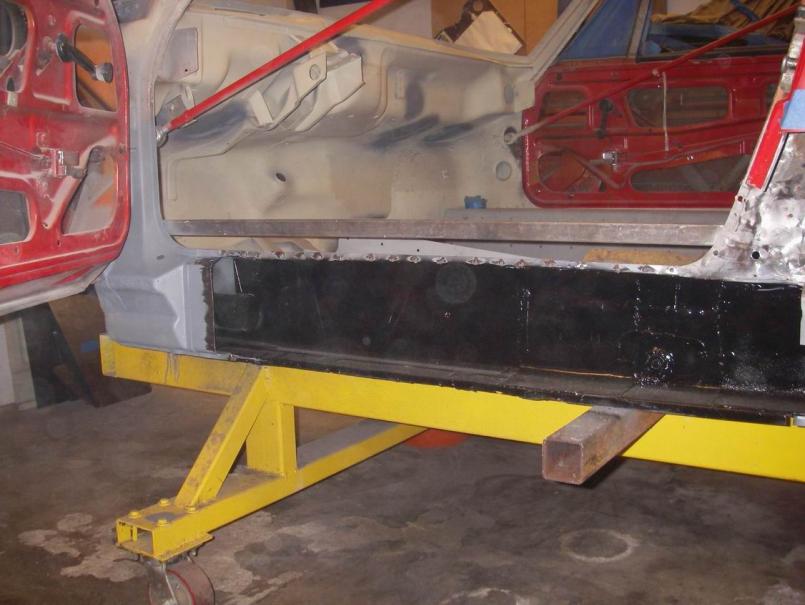

I removed the brace just above the inner long before I welded the outer together.

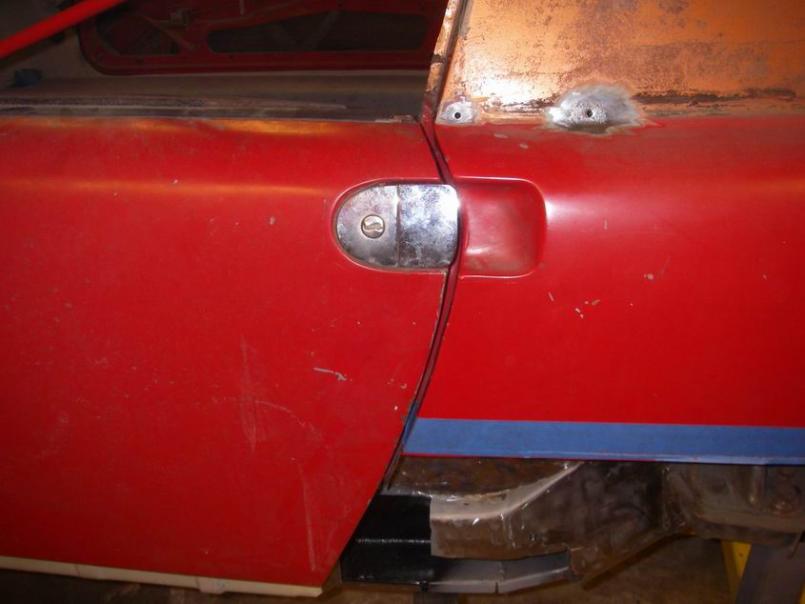

The door gap stayed perfect.

Lot of talk lately on the site about twisted chassis when welding in roll cages and long reinforcements.

The only conclusion is "Occums Razor".. aka welding to fast. I burned the outer long in about 45 minutes while piping in air flow with an air nozzle laying inside the long. Just a bleed of air flow to cool the metal as I plugged along.

I would say I generated the same amount of heat welding the outer long as installing an Engman reinforcement. Weld slowly! Take your time.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Eric_Shea
post Feb 27 2010, 03:38 PM
Post #453


PMB Performance
***************

Group: Admin
Posts: 19,289
Joined: 3-September 03
From: Salt Lake City, UT
Member No.: 1,110
Region Association: Rocky Mountains
QUOTE
Did ya notice the hinges? Weight Watchers for Fat Girls style.


Jeff, What method did you use to get the support bar out of the hinge?

(nevermind...upon further inspection, it looks to still be in place.)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeff Hail
post Feb 28 2010, 02:56 AM
Post #454


Senior Member
***

Group: Members
Posts: 1,141
Joined: 3-May 07
From: LA/ CA
Member No.: 7,712
Hi Eric
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeff Hail
post Feb 28 2010, 02:58 AM
Post #455


Senior Member
***

Group: Members
Posts: 1,141
Joined: 3-May 07
From: LA/ CA
Member No.: 7,712
A few mnutes to play...

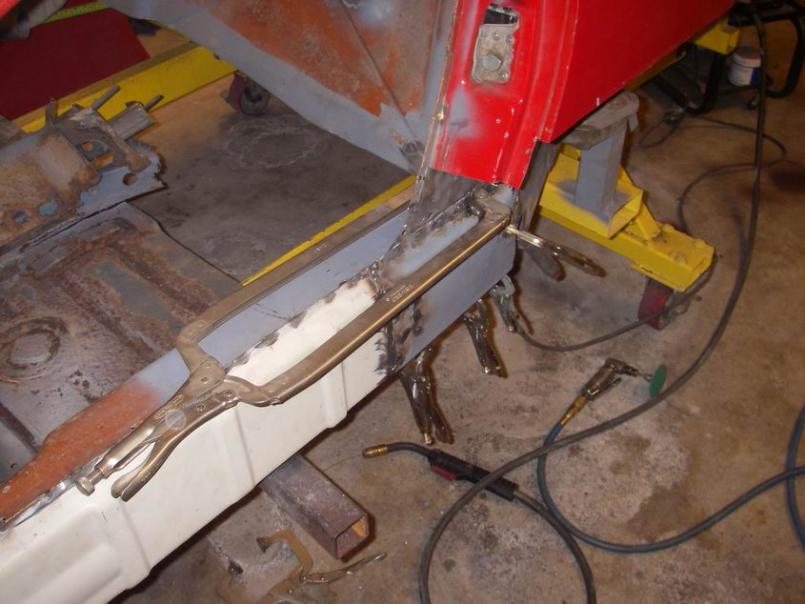

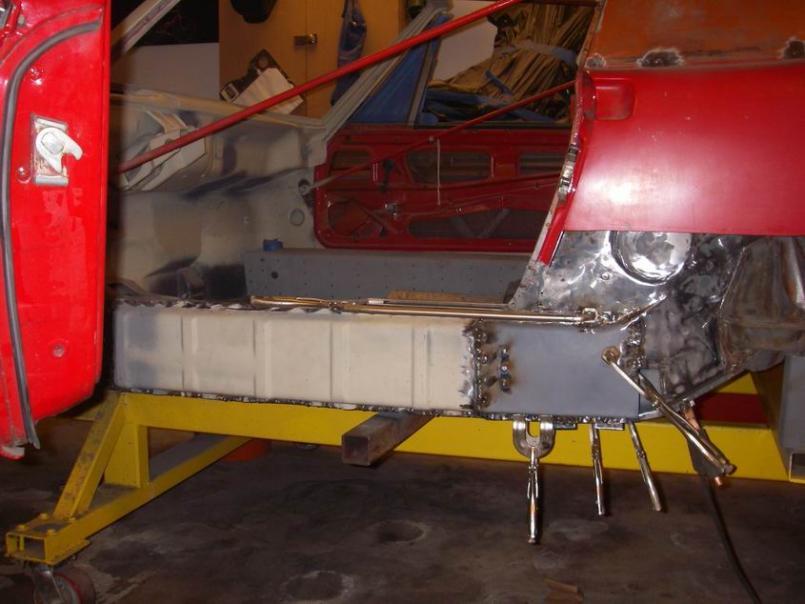

Final fitting of the rear outer rocker closing plate. Burn it in! I will grind all the welds down tomorrow.


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeff Hail
post Feb 28 2010, 03:06 AM
Post #456


Senior Member
***

Group: Members
Posts: 1,141
Joined: 3-May 07
From: LA/ CA
Member No.: 7,712
Ok shit that hurts. Anyone who works with sheetmetal is gonna get a "hurts donut" inevitably. Got this one when the vise grip slipped and banged my knuckle on the edge where the qtr panel is cut off for access. Yep it went to the bone and was a bleeder. Probably should have gotten 3-4 stitches. No time but cyanoacrylate closed it right up.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post Feb 28 2010, 08:05 AM
Post #457


Hey nice rack! -Celette
***************

Group: Members
Posts: 20,785
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region
Nice work Jeff! (IMG:style_emoticons/default/thumb3d.gif) REAlly nice gash! (IMG:style_emoticons/default/chowtime.gif) (IMG:style_emoticons/default/biggrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Krank
post Feb 28 2010, 09:07 AM
Post #458


Member
**

Group: Members
Posts: 140
Joined: 11-October 09
From: Winnipeg, MB
Member No.: 10,922
Region Association: Canada
A little lemon and salt on there and I bet the vodka would go down really fast! Nice thread Jeff, lots of great info for peeps of all levels here. Thanks for all the extra time spent on pics and documentation. It takes enough time just getting the work done.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cairo94507
post Feb 28 2010, 09:25 AM
Post #459


Michael
**********

Group: Members
Posts: 10,093
Joined: 1-November 08
From: Auburn, CA
Member No.: 9,712
Region Association: Northern California
Wow; Jeff you are one talented man. Any chance you might move to Alamo California anytime soon? I would love to have your skill set.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
d914
post Feb 28 2010, 10:40 AM
Post #460


Advanced Member
****

Group: Members
Posts: 2,343
Joined: 12-July 03
From: Atlanta, ga
Member No.: 904
Region Association: South East States
I WAS married to a red head!! Say no more I fully understand!!!!! (IMG:style_emoticons/default/smile.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
