Jeff Hail
post Feb 23 2011, 11:21 PM
Post #541


Senior Member
***

Group: Members
Posts: 1,141
Joined: 3-May 07
From: LA/ CA
Member No.: 7,712

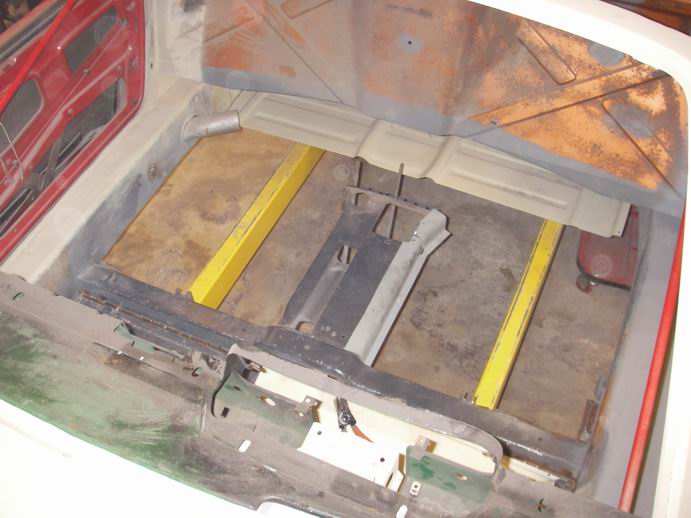

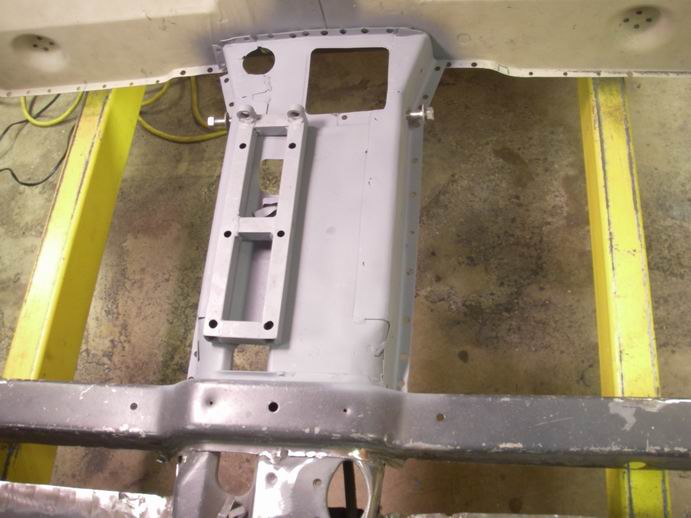

Installed some new metal on the left side of the tunnel where the flange/ floor meet.

Trim, trim, trim and drill a bazillion spot welds. The left side floor crossmember has twice as many resistance welds as the passenger side. Some rust under the crossmember flange actually "rust welded" the floor together.

I might make new crossmember overlays if it doesnt come apart at the flanges easily. An air chisel will tear the flanges up and a hand spot weld buster is already doing that.



Attached image(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
krazykonrad
post Feb 24 2011, 10:48 AM
Post #542


Senior Member
***

Group: Members
Posts: 1,141
Joined: 21-February 06
From: Canton, GA
Member No.: 5,610
QUOTE(Jeff Hail @ Feb 23 2011, 09:21 PM) *

"rust welded"



Don't cut out the rust welds. Those are original from the factory! (IMG:style_emoticons/default/blink.gif)

Konrad
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeff Hail
post Mar 7 2011, 05:03 PM
Post #543


Senior Member
***

Group: Members
Posts: 1,141
Joined: 3-May 07
From: LA/ CA
Member No.: 7,712

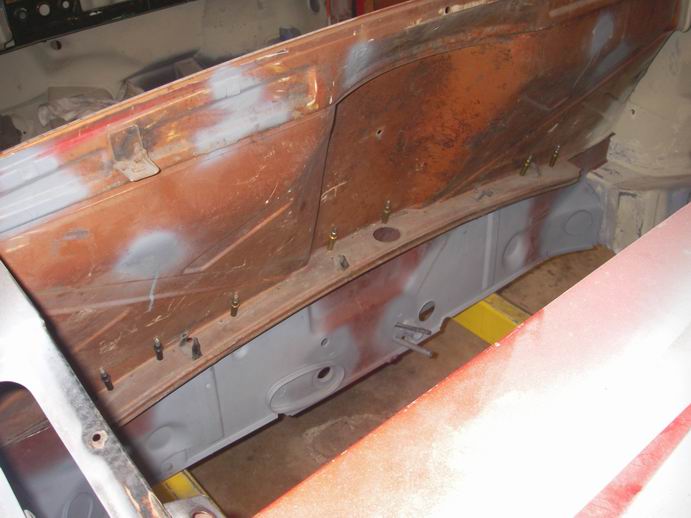

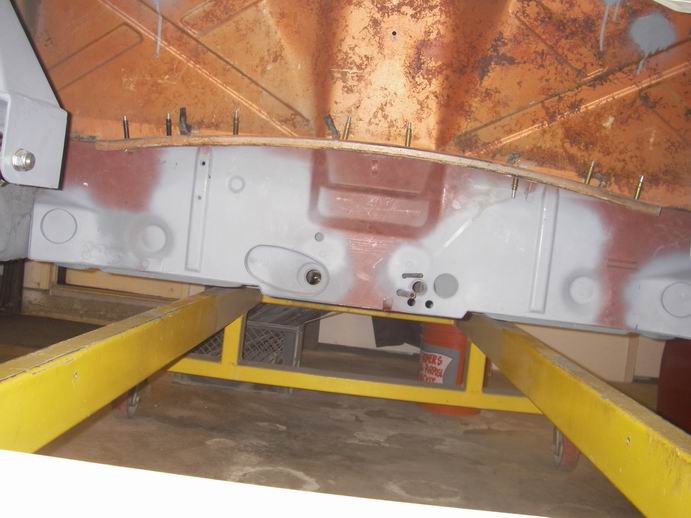

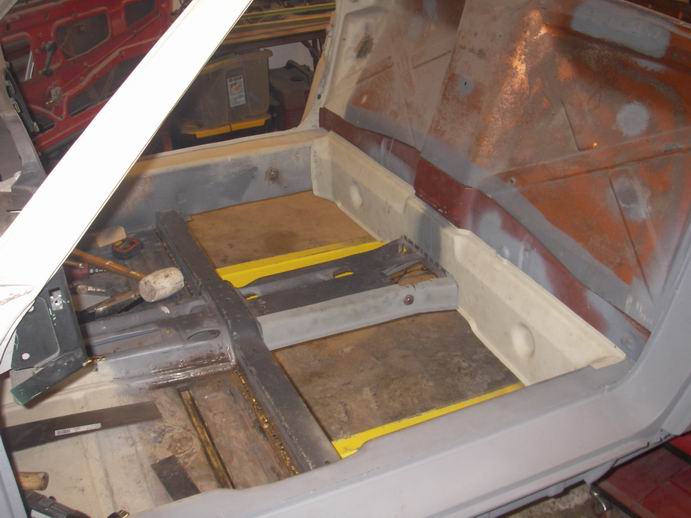

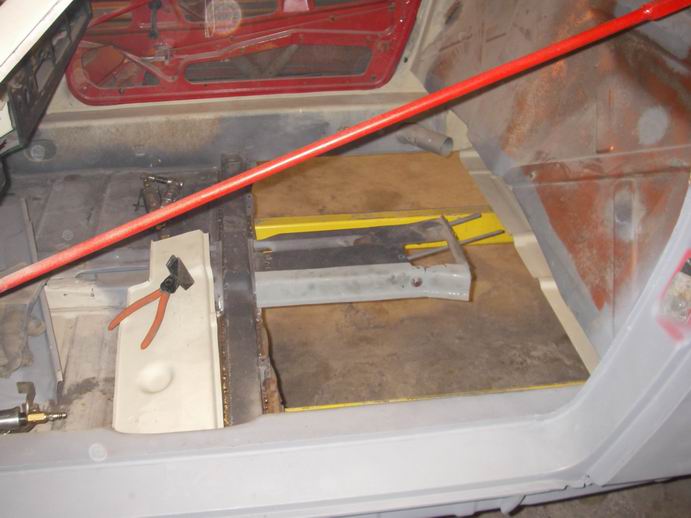

A few more modifications to the early firewall. Closed off the heater cable tube holes and airtube exits from the inside.

Early/ Late lower firewall:
The brake presure regulator and brake line exit sits farther to the left on the early firewall. I think I will leave them where the early panel locates them. Not sure if the later location will interfere with the 3.2 but I don't want to find out later.

Lower firewall final fit up done. Held with Cleco's. Inner reinforcement (AA) halves welded together to create a single panel...easier to assemble.









Attached image(s)
Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeff Hail
post Mar 7 2011, 05:06 PM
Post #544


Senior Member
***

Group: Members
Posts: 1,141
Joined: 3-May 07
From: LA/ CA
Member No.: 7,712
Next I will fit the floor and trim as needed. Take it all apart and punch the holes for the plugs.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeff Hail
post Mar 7 2011, 05:08 PM
Post #545


Senior Member
***

Group: Members
Posts: 1,141
Joined: 3-May 07
From: LA/ CA
Member No.: 7,712
QUOTE(krazykonrad @ Feb 24 2011, 08:48 AM) *

QUOTE(Jeff Hail @ Feb 23 2011, 09:21 PM) *

"rust welded"



Don't cut out the rust welds. Those are original from the factory! (IMG:style_emoticons/default/blink.gif)

Konrad


I missed that Konrad. You're a funny guy! I wonder if "Rustone" was a factory color code option?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeff Hail
post Mar 21 2011, 11:55 PM
Post #546


Senior Member
***

Group: Members
Posts: 1,141
Joined: 3-May 07
From: LA/ CA
Member No.: 7,712
Bunch of little things to tidy up, fabricate... before I button the floor up....

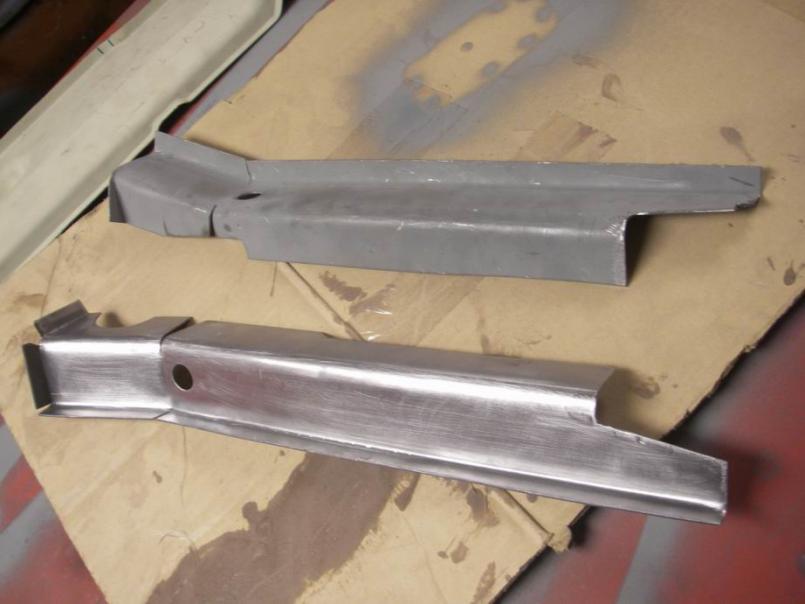

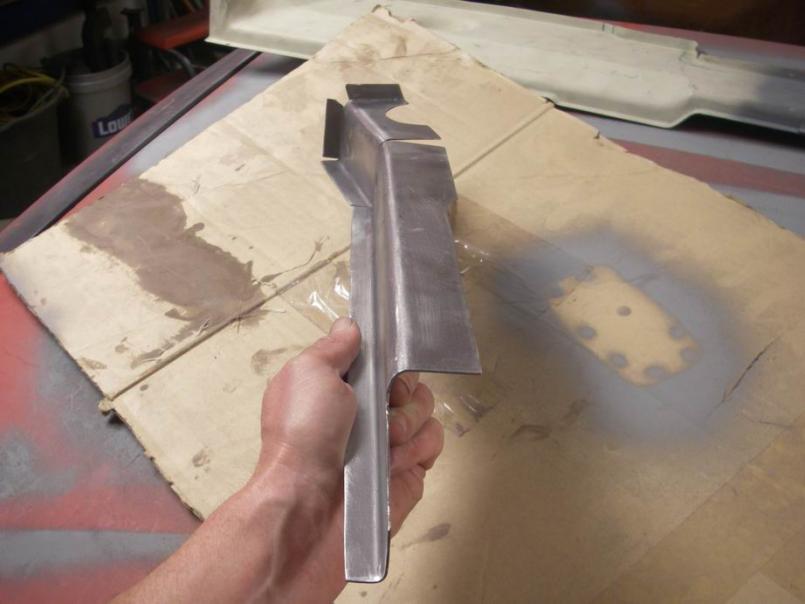

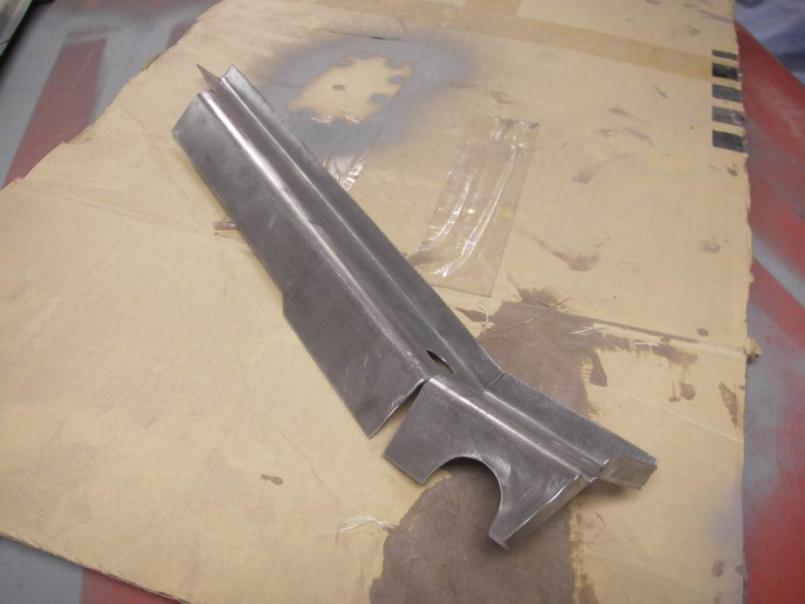

1)FABRICATE THE PASSENGER SIDE TUNNEL REPAIR PART.

Fabrication is easy. Doing it twice with opposites is a challenge. Even know the parts are dimensionally symetrical they are not the same. ( Cutouts, notches etc)

Came out a beautiful piece of metal !!!


Attached thumbnail(s)
Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeff Hail
post Mar 21 2011, 11:56 PM
Post #547


Senior Member
***

Group: Members
Posts: 1,141
Joined: 3-May 07
From: LA/ CA
Member No.: 7,712

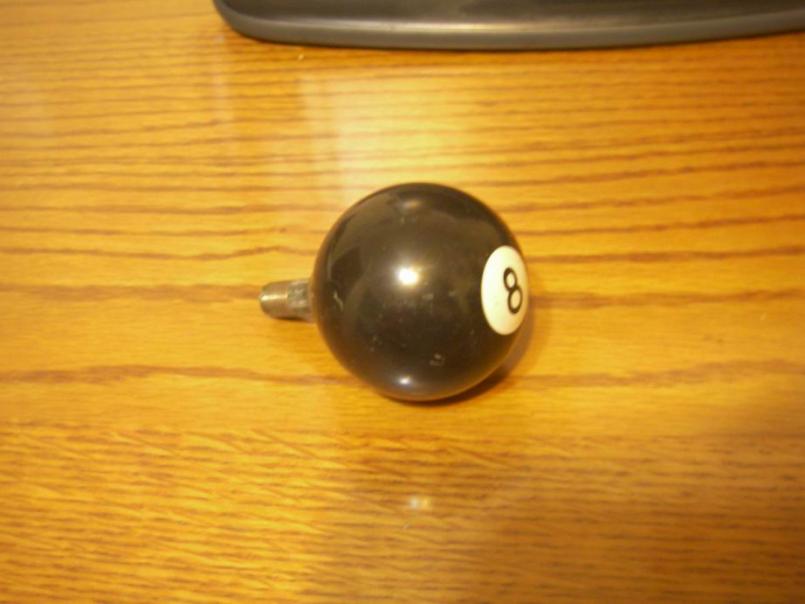

Now thats a SHIFT knob !!

Whatcha think?



Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
KELTY360
post Mar 22 2011, 12:13 AM
Post #548


914 Neferati
*****

Group: Members
Posts: 5,089
Joined: 31-December 05
From: Pt. Townsend, WA
Member No.: 5,344
Region Association: Pacific Northwest
QUOTE(Jeff Hail @ Mar 21 2011, 09:56 PM) *

Now thats a SHIFT knob !!

Whatcha think?


I can get behind that.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Hontec
post Mar 25 2011, 12:26 PM
Post #549


I see things.....
**

Group: Members
Posts: 261
Joined: 23-September 10
From: Netherlands
Member No.: 12,210
Region Association: Europe
I just read your topic and maybe I read over it, but the lower part of the firewall on the engine side, who makes that panel? AA or restoration design or did you manage to get an original one?

Thanks and I love the way you're doing this, extremely nice work!!!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914outlaw
post Mar 26 2011, 09:33 AM
Post #550


Dave
**

Group: Members
Posts: 201
Joined: 2-June 10
From: Central, NJ
Member No.: 11,800
Region Association: North East States
QUOTE(Jeff Hail @ Mar 22 2011, 01:55 AM) *

Bunch of little things to tidy up, fabricate... before I button the floor up....

1)FABRICATE THE PASSENGER SIDE TUNNEL REPAIR PART.

Fabrication is easy. Doing it twice with opposites is a challenge. Even know the parts are dimensionally symetrical they are not the same. ( Cutouts, notches etc)

Came out a beautiful piece of metal !!!



Nice work Jeff. What gauge steel did you use by the way?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeff Hail
post Apr 6 2011, 08:58 AM
Post #551


Senior Member
***

Group: Members
Posts: 1,141
Joined: 3-May 07
From: LA/ CA
Member No.: 7,712
QUOTE(Hontec @ Mar 25 2011, 11:26 AM) *

I just read your topic and maybe I read over it, but the lower part of the firewall on the engine side, who makes that panel? AA or restoration design or did you manage to get an original one?

Thanks and I love the way you're doing this, extremely nice work!!!


The lower outer firewall is a New Old Stock panel for an early car.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeff Hail
post Apr 6 2011, 08:59 AM
Post #552


Senior Member
***

Group: Members
Posts: 1,141
Joined: 3-May 07
From: LA/ CA
Member No.: 7,712
QUOTE(dpires914 @ Mar 26 2011, 08:33 AM) *

QUOTE(Jeff Hail @ Mar 22 2011, 01:55 AM) *

Bunch of little things to tidy up, fabricate... before I button the floor up....

1)FABRICATE THE PASSENGER SIDE TUNNEL REPAIR PART.

Fabrication is easy. Doing it twice with opposites is a challenge. Even know the parts are dimensionally symetrical they are not the same. ( Cutouts, notches etc)

Came out a beautiful piece of metal !!!



Nice work Jeff. What gauge steel did you use by the way?



16 guage
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
obscurity
post Apr 6 2011, 09:34 AM
Post #553


Member
**

Group: Members
Posts: 411
Joined: 24-February 06
From: Atlanta ,GA
Member No.: 5,628
Region Association: South East States
QUOTE(Jeff Hail @ Apr 6 2011, 10:58 AM) *

QUOTE(Hontec @ Mar 25 2011, 11:26 AM) *

I just read your topic and maybe I read over it, but the lower part of the firewall on the engine side, who makes that panel? AA or restoration design or did you manage to get an original one?

Thanks and I love the way you're doing this, extremely nice work!!!


The lower outer firewall is a New Old Stock panel for an early car.


Where did you find the part? Was it pricey?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
krazykonrad
post Apr 8 2011, 09:05 PM
Post #554


Senior Member
***

Group: Members
Posts: 1,141
Joined: 21-February 06
From: Canton, GA
Member No.: 5,610
Jeff-

Your level of craftsmanship is incredible! Every time i see this thread, I'm just amazed.

Konrad
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeff Hail
post May 7 2011, 12:05 AM
Post #555


Senior Member
***

Group: Members
Posts: 1,141
Joined: 3-May 07
From: LA/ CA
Member No.: 7,712
A bit of a hiatus after two back to back surgeries. Nothing major just time away for healing.


I have never been a fan of articulated headlamps. Loss of form when raised and aerodynamically handicapped. Added weight etc, etc, etc. I have been on the hunt for three years for a viable compact alternative to the original.

Hella offers a solution but not econonical at $1400 a pair including ballast. F that!

I have seen flush mounted lamps that frankly look and are cheap substitutes for a functional alternative to the original.

CRITERIA:
1) A more powerful lighting solution.
2) Improved illumination with less power draw on high beam than the original sealed beams
3) Cost effective and easy to fabricate/modify.
4) Able to fit into the original lamp bucket without cutting original material away (in case I ever want to revert back to the pop ups)
5) Somewhat plug and play.

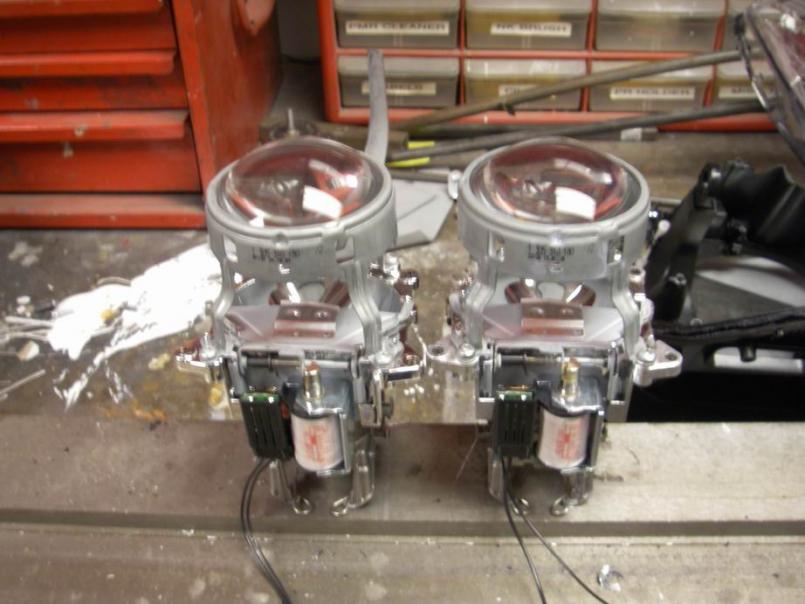

Enter Bi-Xenon lamps: ake Daimlers "Xenarc" projector headlamp
A compact and short Bi-Xenon projector assembly

Both the 2010 SL55 and E class use the same Xenon projector assembly. The lamp assemblies are completly different as the SL55 has adaptive (pan, tilt) servos BUT the actual projector inside the lamp is the same identical unit. A friend at a Benz shop has damaged assemblies all day long BUT the projector is always OK.

I take a few junk damaged headlamp assemblies home and start destroying them for the guts. The high end cars have about 180 individual pieces that make up ONE headlamp assembly. I am only after the projector with the shutter actuator. Bi-Xenon lamps do not have a low and high beam. The lamp is always on. What differentiates high and low beams is a shutter or brow that blocks off a partial amount of light like a camera lens shutter or iris.

These are light weight, short and compact. I only need to fabricate a housing like the 944 flush headlamps and lens. Make sure it is servicable and sealed.

If Lamborghini could get away with using 92 Nissan 300ZX headlamps on the Diablo I can do this easily. (bet you never knew that)


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Loser_Cruiser
post May 21 2011, 08:58 PM
Post #556


Member
**

Group: Members
Posts: 407
Joined: 4-April 05
From: Bellingham, WA
Member No.: 3,873
Region Association: Pacific Northwest
any updates? (IMG:style_emoticons/default/smile.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeff Hail
post May 21 2011, 10:39 PM
Post #557


Senior Member
***

Group: Members
Posts: 1,141
Joined: 3-May 07
From: LA/ CA
Member No.: 7,712
QUOTE(Loser_Cruiser @ May 21 2011, 07:58 PM) *

any updates? (IMG:style_emoticons/default/smile.gif)


Nope... busy elsewhere.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
saigon71
post May 23 2011, 02:38 PM
Post #558


Advanced Member
****

Group: Members
Posts: 2,006
Joined: 1-June 09
From: Dillsburg, PA
Member No.: 10,428
Region Association: MidAtlantic Region
Awesome work Jeff! I have learned a lot from this thread. (IMG:style_emoticons/default/welder.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeff Hail
post May 25 2011, 11:18 PM
Post #559


Senior Member
***

Group: Members
Posts: 1,141
Joined: 3-May 07
From: LA/ CA
Member No.: 7,712
A little time to play last night. Been busy everywhere else.

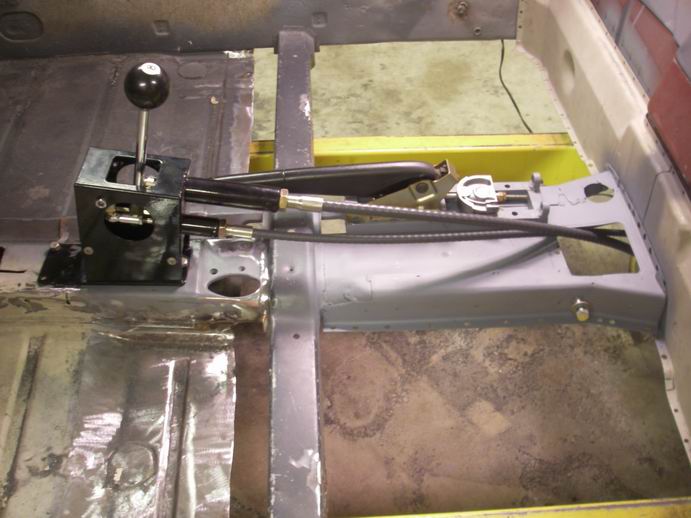

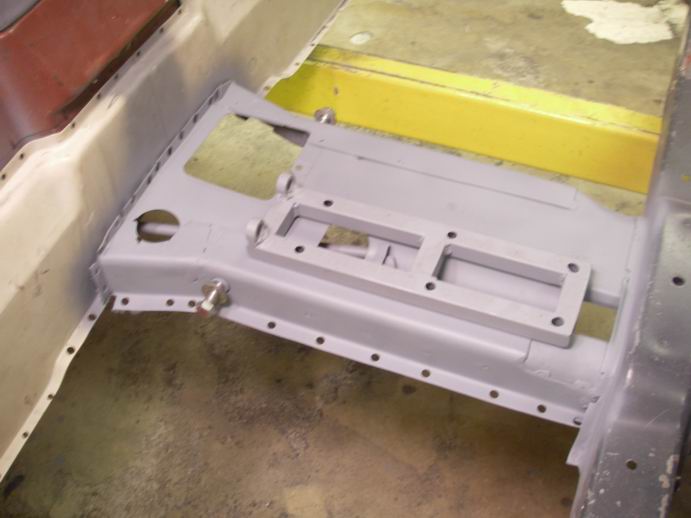

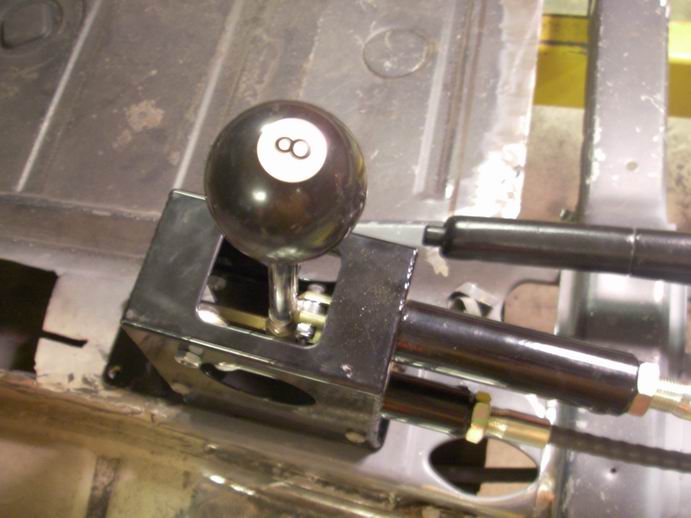

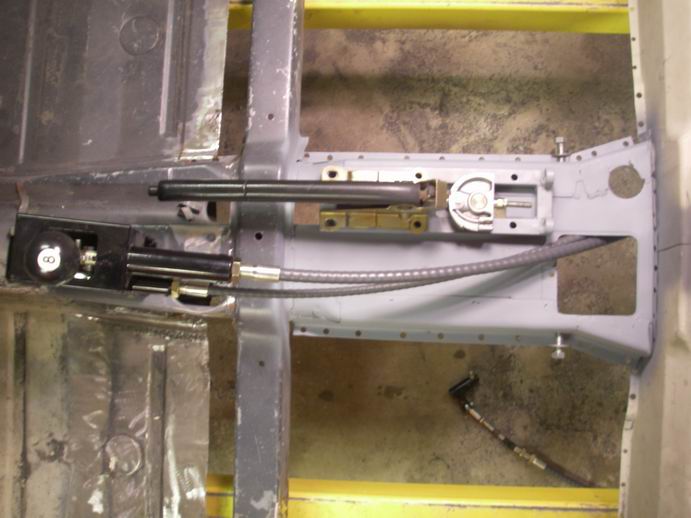

The rear portion of the tunnel is done and welded. Spent a lot of time fitting the floor to the tunnel flanges and lower rear firewall. Lots of trimming here and there, leveling and self tapping screws for positioning. Then take it all apart again for the last time before I weld everything up.

1)Still need to weld in the mid bracing for both the clutch and throttle cable tubes rom the underside. Need to pickup some copper rod to shove inside the tubes so I dont blow holes.

2) Contemplating moving the shifter tower back a couple of inches.

3) Need to media blast the inside of the tunnel to remove the last of any scale.



Attached image(s)
Attached Image Attached Image Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
speed metal army
post May 25 2011, 11:52 PM
Post #560


Waiting for the rain to stop...
***

Group: Members
Posts: 1,068
Joined: 4-September 10
From: PNW
Member No.: 12,137
Region Association: Canada
QUOTE(Jeff Hail @ Mar 21 2011, 10:56 PM) *

Now thats a SHIFT knob !!

Whatcha think?

I think youre on the right track.Fu**in A! (IMG:style_emoticons/default/aktion035.gif) (IMG:style_emoticons/default/aktion035.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
