> FYI: Official Alien Build thread Started 2003, Alien Resurection is underway. Boxster Transaxle and MSDS Headers
rick 918-S
post Jul 26 2024, 05:44 PM
Post #681


Hey nice rack! -Celette
***************

Group: Members
Posts: 20,646
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region
QUOTE(Chris914n6 @ Jul 26 2024, 05:40 PM) *

If it was me




Ya haven't started on the left yet
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ClayPerrine
post Jul 27 2024, 05:31 AM
Post #682


Life's been good to me so far.....
***************

Group: Admin
Posts: 15,789
Joined: 11-September 03
From: Hurst, TX.
Member No.: 1,143
Region Association: NineFourteenerVille
Maybe @Tygaboy will lend you the "Header Legos" he used to make the 914 Ferrari headers?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Jul 27 2024, 07:36 AM
Post #683


914 Guru
*****

Group: Members
Posts: 5,417
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
QUOTE(ClayPerrine @ Jul 27 2024, 04:31 AM) *

Maybe @Tygaboy will lend you the "Header Legos" he used to make the 914 Ferrari headers?


@ClayPerrine @Rick 918-S Rick, the header kit I have is 1 5/8". If that'll work for you, let me know. I'd be happy to lend it to you. If you want to check it out, look up Ice Engine Works.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Jul 27 2024, 09:26 AM
Post #684


Advanced Member
****

Group: Members
Posts: 4,800
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None

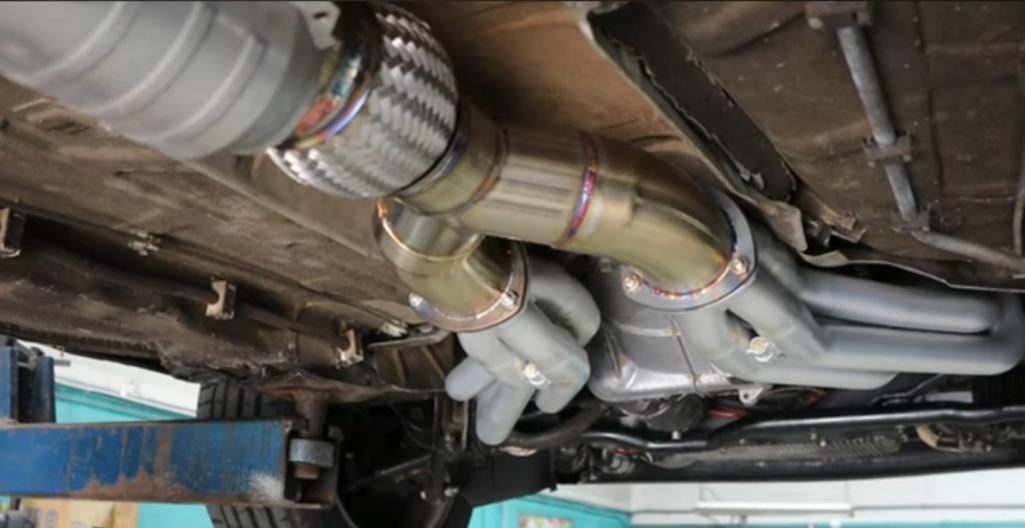

The MSDS design for OE 928 clears a bellhousing and quickly tapers contour for the floorboard just under the torque tube. Check out the newer Gen-2 style merge collectors/ slip on and will be easier for you to join the 'Newer 4 tube arrangement that you are slicing + dicing !
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Jul 27 2024, 09:33 AM
Post #685


Advanced Member
****

Group: Members
Posts: 4,800
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None

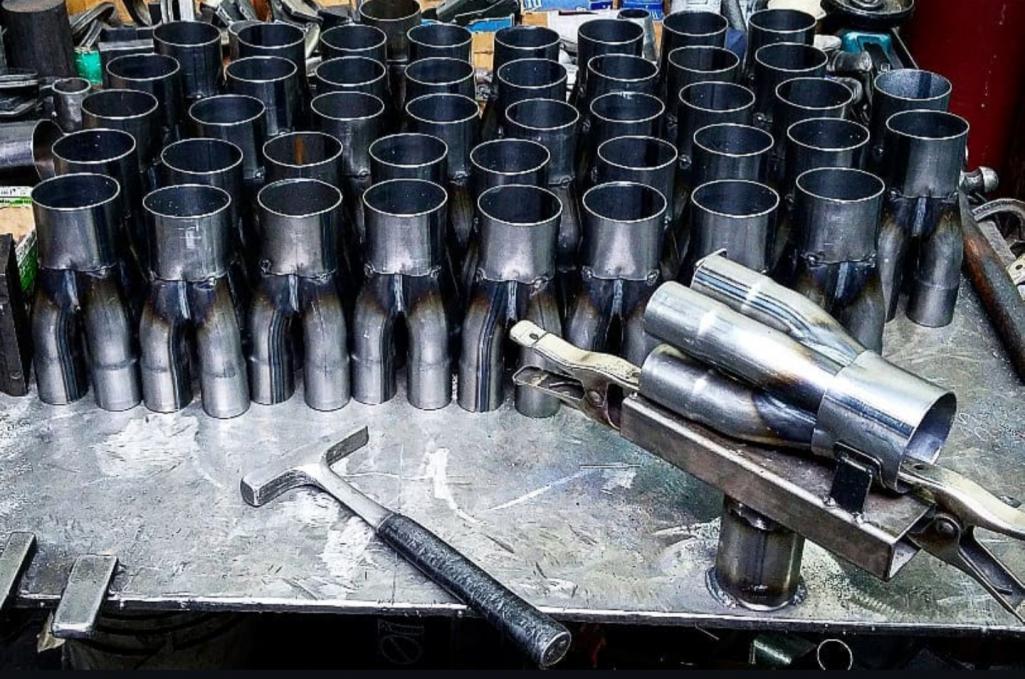

I'll send you a couple of these + 2 new flanges, make your collector point a lot easier. Note that the 4 tubes will spread out a few fractions of an inch more>>just plan on that. When finished just weld on 1 pinch bolt design / each side; a few miles driving and these joints will seal with carbon.
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Jul 27 2024, 09:36 AM
Post #686


Advanced Member
****

Group: Members
Posts: 4,800
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None

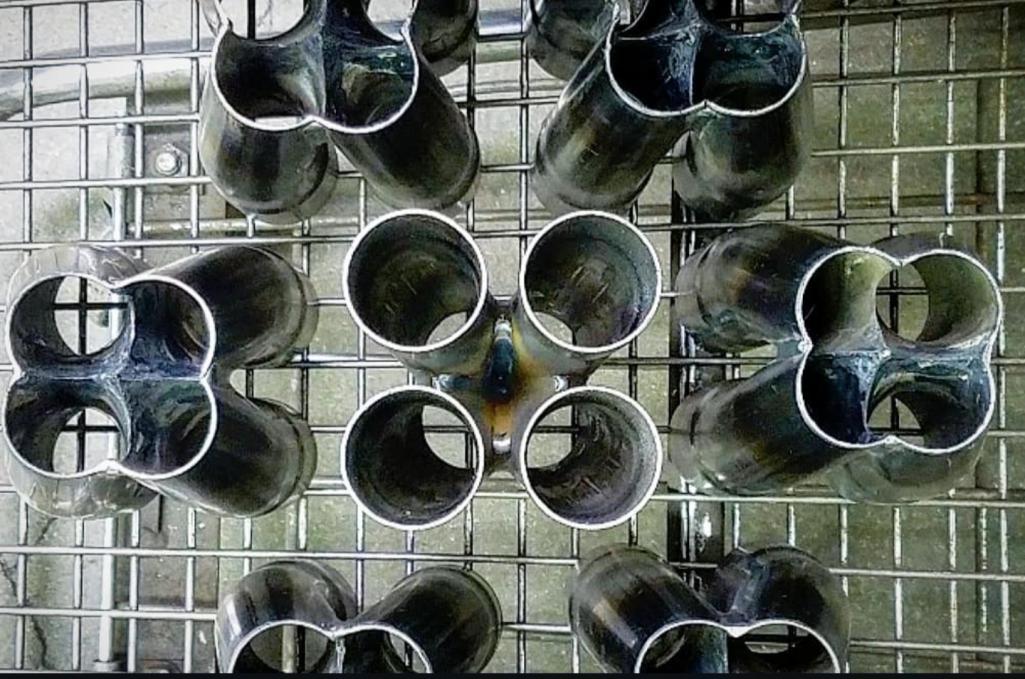

...inner view merged collectors
Attached Image
(IMG:style_emoticons/default/marty914.jpg)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post Jul 27 2024, 07:53 PM
Post #687


Hey nice rack! -Celette
***************

Group: Members
Posts: 20,646
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region
QUOTE(tygaboy @ Jul 27 2024, 08:36 AM) *

QUOTE(ClayPerrine @ Jul 27 2024, 04:31 AM) *

Maybe @Tygaboy will lend you the "Header Legos" he used to make the 914 Ferrari headers?


@ClayPerrine @Rick 918-S Rick, the header kit I have is 1 5/8". If that'll work for you, let me know. I'd be happy to lend it to you. If you want to check it out, look up Ice Engine Works.


Thank you for the offer. Looks like Marty has a simple solution. I was just going to deconstruct 2 of the tubes from the collectors, Rotate the tubes inward to take the hips out of the set. The way I have it planned I won't loose any of the equal length tubes.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post Jul 27 2024, 08:00 PM
Post #688


Hey nice rack! -Celette
***************

Group: Members
Posts: 20,646
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region
QUOTE(Maltese Falcon @ Jul 27 2024, 10:36 AM) *

...inner view merged collectors
Attached Image
(IMG:style_emoticons/default/marty914.jpg)



Cool! Sent you a PM.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post Jul 28 2024, 08:57 PM
Post #689


Hey nice rack! -Celette
***************

Group: Members
Posts: 20,646
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region

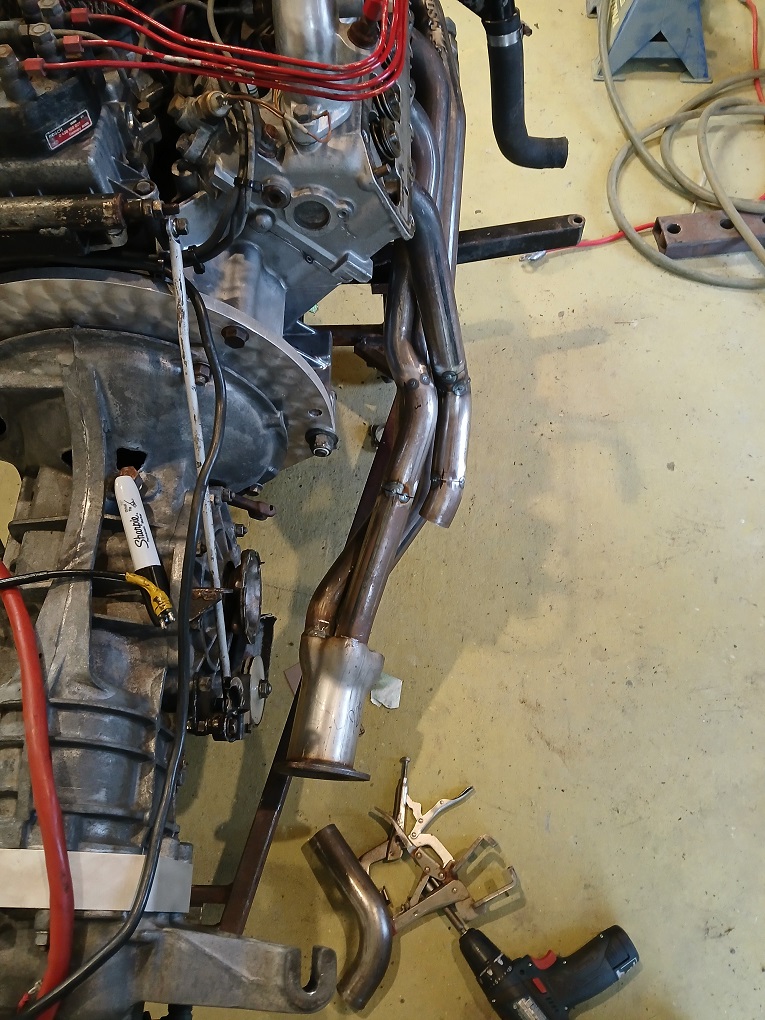

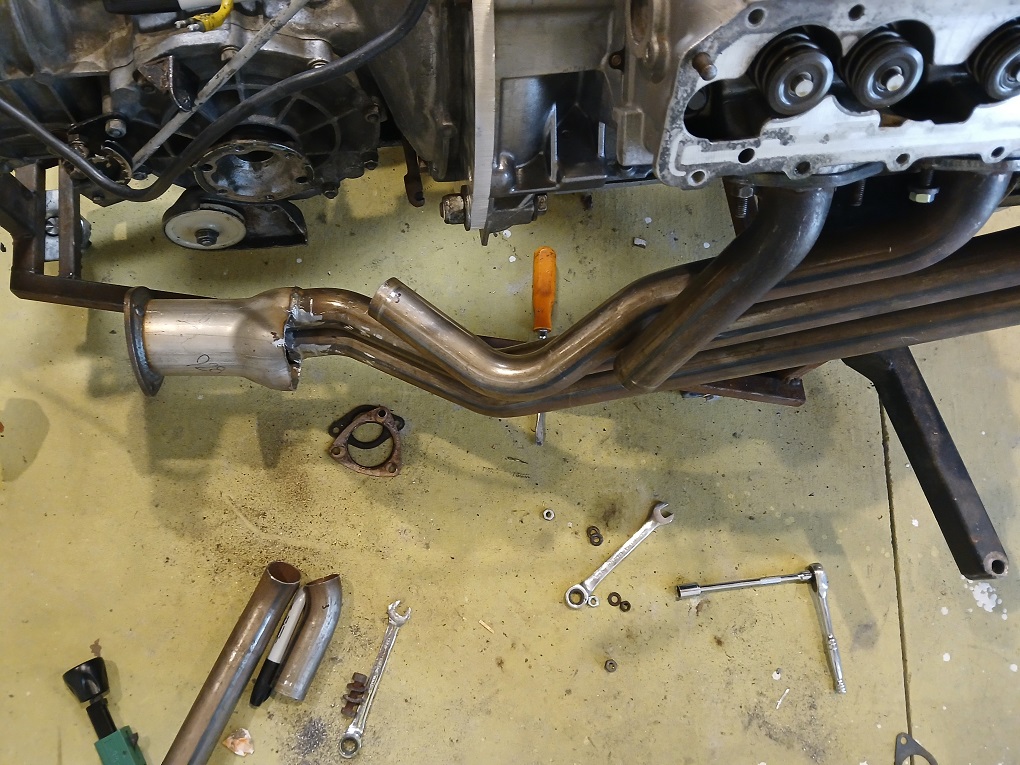

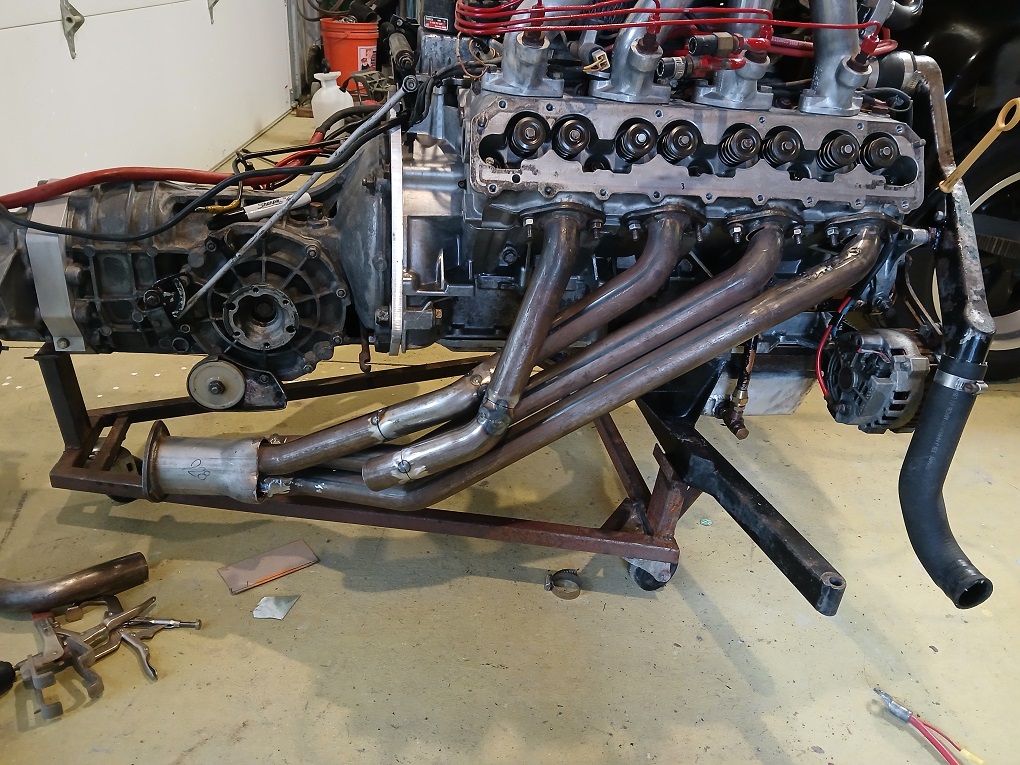

Well I was able to deconstruct two of the header tubes on the right side today. I cut the bottom of the first two tubes at the head flange and tipped the header out to move it away from the cable pulley. Then I started reshaping the third and forth tubes for a tighter fit.

Attached Image
Attached Image
Attached Image

I started tacking the tubes back together. I have some mandrel bends on order to finish out the tubes.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
technicalninja
post Jul 28 2024, 09:26 PM
Post #690


Senior Member
***

Group: Members
Posts: 1,807
Joined: 31-January 23
From: Granbury Texas
Member No.: 27,135
Region Association: Southwest Region
QUOTE(Maltese Falcon @ Jul 27 2024, 10:36 AM) *

...inner view merged collectors
Attached Image
(IMG:style_emoticons/default/marty914.jpg)


OMG are those NICE! (IMG:style_emoticons/default/new_shocked.gif)

So much better than the collectors on the exhaust now.

I'd HAVE to have those!
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Jul 28 2024, 09:42 PM
Post #691


Advanced Member
****

Group: Members
Posts: 4,800
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None
@technicalninja we use this merge style collector on all of our production headers; 928, 928 32v, 944, 944 16v, 968. A bit more HP/tQ and throttle response with the merge !
Rick I'm sure that once you get them big hips outta there, you're fab skills + final detailing on the primaries = you will have a good pair of custom headers. Hope you make the 914 meet up !
(IMG:style_emoticons/default/sawzall-smiley.gif) (IMG:style_emoticons/default/welder.gif) (IMG:style_emoticons/default/marty914.jpg)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post Jul 28 2024, 10:40 PM
Post #692


Hey nice rack! -Celette
***************

Group: Members
Posts: 20,646
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region
QUOTE(Maltese Falcon @ Jul 28 2024, 10:42 PM) *

@technicalninja we use this merge style collector on all of our production headers; 928, 928 32v, 944, 944 16v, 968. A bit more HP/tQ and throttle response with the merge !
Rick I'm sure that once you get them big hips outta there, you're fab skills + final detailing on the primaries = you will have a good pair of custom headers. Hope you make the 914 meet up !
(IMG:style_emoticons/default/sawzall-smiley.gif) (IMG:style_emoticons/default/welder.gif) (IMG:style_emoticons/default/marty914.jpg)


Thanks Marty!! This engine is going to be completely different with these cams and these headers!! (IMG:style_emoticons/default/aktion035.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post Aug 3 2024, 06:07 PM
Post #693


Hey nice rack! -Celette
***************

Group: Members
Posts: 20,646
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region

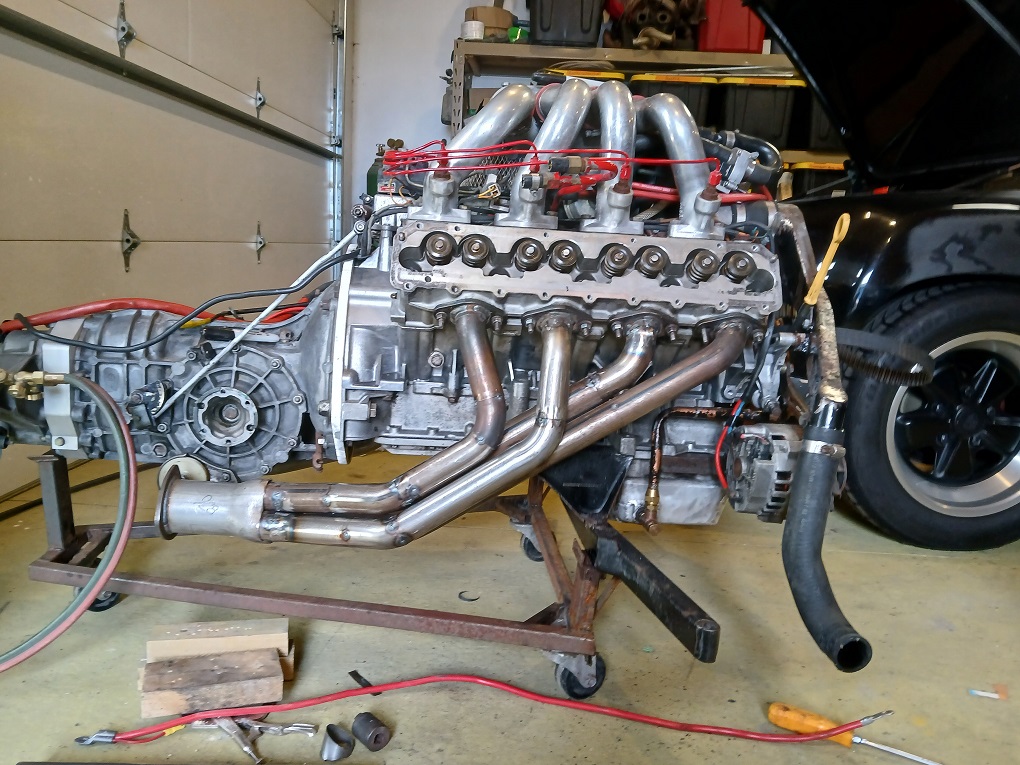

Ok, so I have been working on this header issue over the week. As I was working on the first redesign I realized the header was too low and too long to really connect up to the out put tubes.

So back to the drawing board. This is what I ended up with. I am loosing the equal length effect a "little" but I don't have a tubing bender and didn't have any real tight bends to shoot the two rear tubes forward radically then back. Everything is tacked and ready to TIG weld. Ultimately I think it was worth the effort so far.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Root_Werks
post Aug 6 2024, 03:00 PM
Post #694


Village Idiot
*****

Group: Members
Posts: 8,408
Joined: 25-May 04
From: About 5NM from Canada
Member No.: 2,105
Region Association: Pacific Northwest
That is pretty sweet! Can't wait to see how it all fits together in the 914.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post Aug 6 2024, 07:39 PM
Post #695


Hey nice rack! -Celette
***************

Group: Members
Posts: 20,646
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region

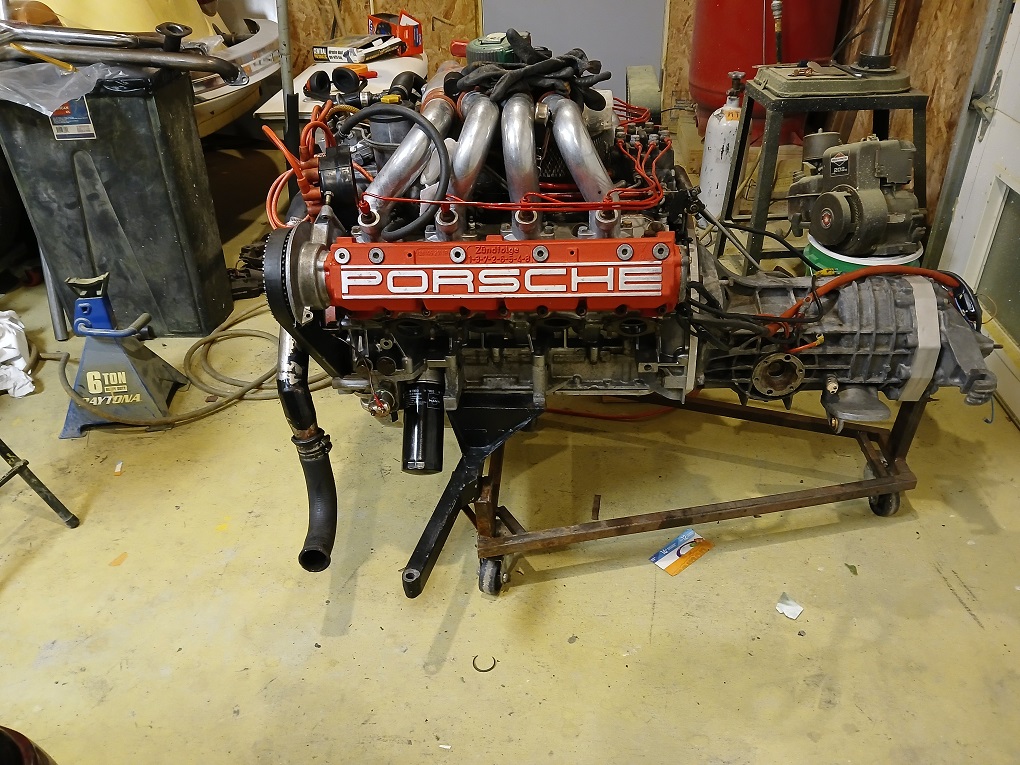

New 12200 cams are installed and the valve covers are back on.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JmuRiz
post Aug 6 2024, 08:42 PM
Post #696


914 Guru
*****

Group: Members
Posts: 5,485
Joined: 30-December 02
From: NoVA
Member No.: 50
Region Association: MidAtlantic Region
Sweet, better than ever alien (IMG:style_emoticons/default/very_first_smiley[1].gif)

8cyl goodness with the feels of my old 2.7 cis runners look.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rhodyguy
post Aug 6 2024, 09:00 PM
Post #697


Chimp Sanctuary NW. Check it out.
***************

Group: Members
Posts: 22,184
Joined: 2-March 03
From: Orion's Bell. The BELL!
Member No.: 378
Region Association: Galt's Gulch
You have mad skills Rick! First rate detail.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Aug 7 2024, 07:58 AM
Post #698


Advanced Member
****

Group: Members
Posts: 4,800
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None
QUOTE(rhodyguy @ Aug 6 2024, 08:00 PM) *

You have mad skills Rick! First rate detail.


(IMG:style_emoticons/default/welder.gif) (IMG:style_emoticons/default/pray.gif)
(IMG:style_emoticons/default/marty914.jpg)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post Aug 13 2024, 02:18 PM
Post #699


Hey nice rack! -Celette
***************

Group: Members
Posts: 20,646
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region

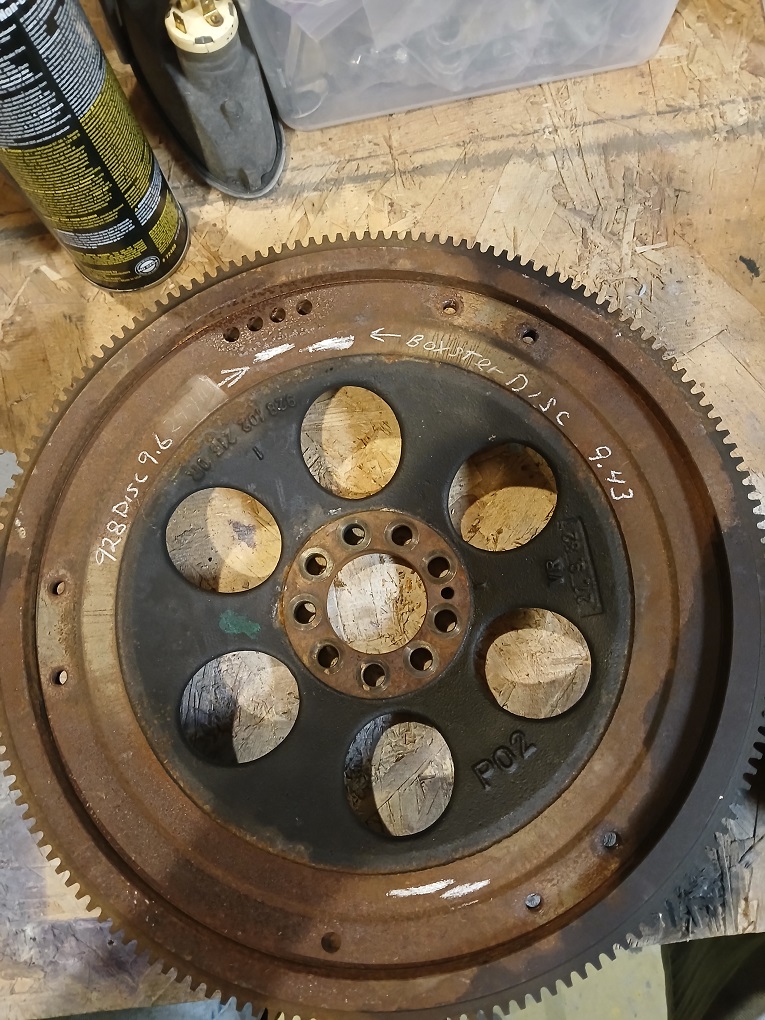

Started the research on the flywheel for the Boxster Conversion. This is a 928 Automatic Transaxle flywheel I think I can machine the ring gear off and use it.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Root_Werks
post Aug 13 2024, 02:26 PM
Post #700


Village Idiot
*****

Group: Members
Posts: 8,408
Joined: 25-May 04
From: About 5NM from Canada
Member No.: 2,105
Region Association: Pacific Northwest
Can't remember or find in this thread, is your 901 essentially a 4spd or are you able to make use of 1st?
User is offlineProfile CardPM
