> FYI: Official Alien Build thread Started 2003, Alien Resurection is underway. The Flywheel is finished the transaxle is bolted
rick 918-S
post Oct 22 2024, 08:56 PM
Post #741


Hey nice rack! -Celette
***************

Group: Members
Posts: 20,733
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region

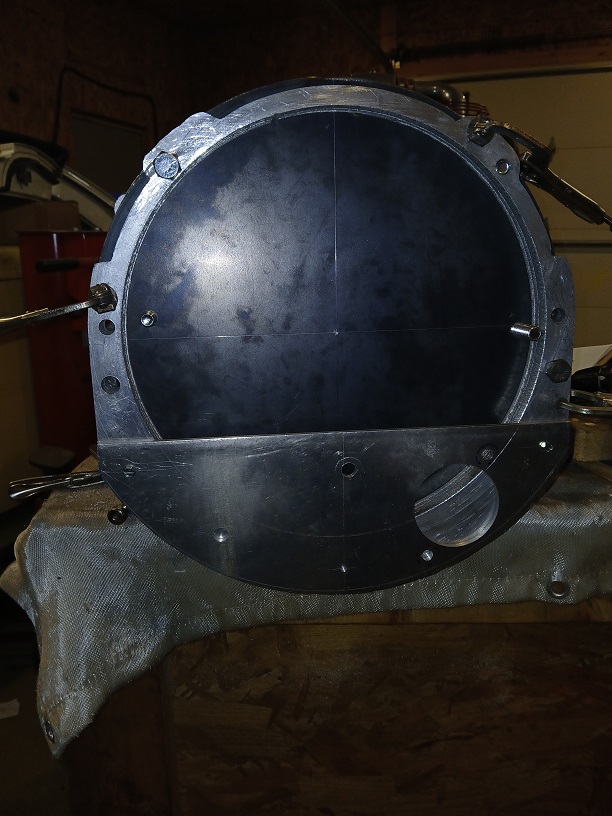

Waiting for the flywheel. Here is a mockup of the starter mount.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post Oct 23 2024, 10:31 PM
Post #742


Hey nice rack! -Celette
***************

Group: Members
Posts: 20,733
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region

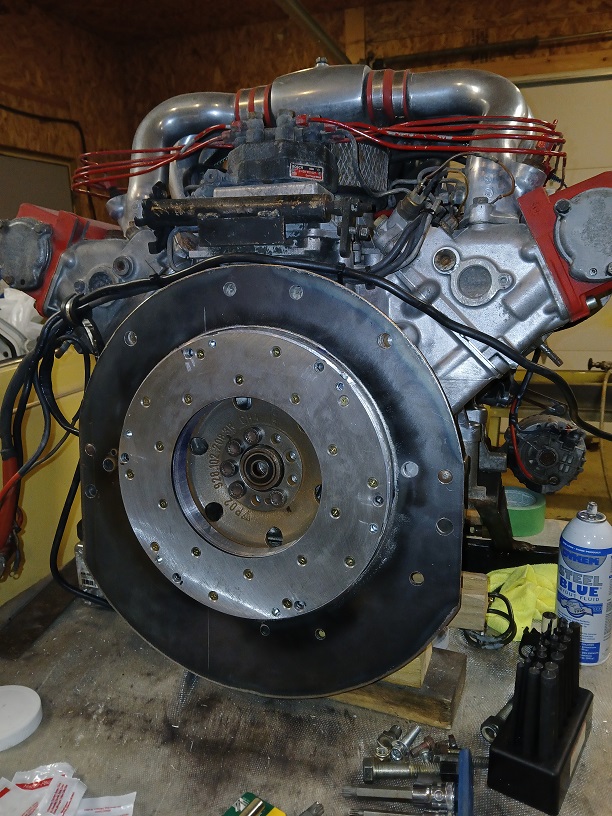

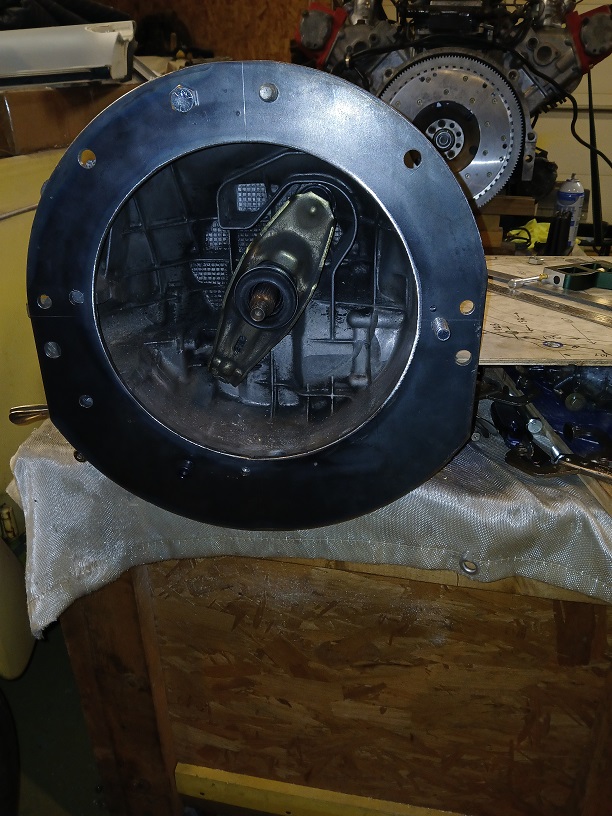

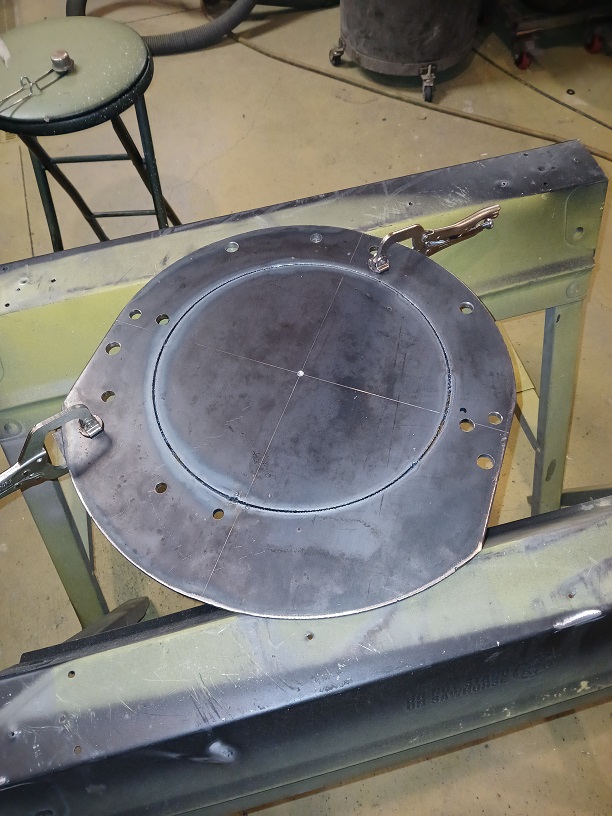

I got the flywheel back from the clutch and brake place. The aluminum spacer was fine. I assembled the parts and mounted the flywheel. I was also able to cut out the 1/4" plate.

Attached Image

First Test fit

Attached Image
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
East coaster
post Oct 24 2024, 05:40 AM
Post #743


Senior Member
***

Group: Members
Posts: 1,767
Joined: 28-March 03
From: Millville, NJ
Member No.: 487
Region Association: None



Do you plan on balancing the assembly?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post Oct 24 2024, 05:53 AM
Post #744


Hey nice rack! -Celette
***************

Group: Members
Posts: 20,733
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region



QUOTE(East coaster @ Oct 24 2024, 06:40 AM) *

Do you plan on balancing the assembly?


Yes I have a friend that has done it for me for my 914 setup.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Root_Werks
post Oct 24 2024, 09:25 AM
Post #745


Village Idiot
*****

Group: Members
Posts: 8,456
Joined: 25-May 04
From: About 5NM from Canada
Member No.: 2,105
Region Association: Pacific Northwest



Dang that turned out nice! Boxster trans matted to a 928 engine.....has to be a one off!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post Oct 24 2024, 09:33 AM
Post #746


Hey nice rack! -Celette
***************

Group: Members
Posts: 20,733
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region



QUOTE(Root_Werks @ Oct 24 2024, 10:25 AM) *

Dang that turned out nice! Boxster trans matted to a 928 engine.....has to be a one off!


So I was thinking about this whole design early this morning and I think I am working on a redesign already. More to come.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
worn
post Oct 24 2024, 09:11 PM
Post #747


can't remember
****

Group: Members
Posts: 3,325
Joined: 3-June 11
From: Madison, WI
Member No.: 13,152
Region Association: Upper MidWest



QUOTE(rick 918-S @ Oct 24 2024, 08:33 AM) *

QUOTE(Root_Werks @ Oct 24 2024, 10:25 AM) *

Dang that turned out nice! Boxster trans matted to a 928 engine.....has to be a one off!


So I was thinking about this whole design early this morning and I think I am working on a redesign already. More to come.

Reminds me of the project creep that can annoy and satisfy. Good luck!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Oct 24 2024, 09:29 PM
Post #748


914 Guru
*****

Group: Members
Posts: 5,445
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California



QUOTE(rick 918-S @ Oct 24 2024, 08:33 AM) *

QUOTE(Root_Werks @ Oct 24 2024, 10:25 AM) *

Dang that turned out nice! Boxster trans matted to a 928 engine.....has to be a one off!


So I was thinking about this whole design early this morning and I think I am working on a redesign already. More to come.


Do-overs... I know the feeling. We're always happier with version N+1! (IMG:style_emoticons/default/happy11.gif)
Such a cool build.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post Oct 25 2024, 05:59 AM
Post #749


Hey nice rack! -Celette
***************

Group: Members
Posts: 20,733
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region



QUOTE(tygaboy @ Oct 24 2024, 10:29 PM) *

QUOTE(rick 918-S @ Oct 24 2024, 08:33 AM) *

QUOTE(Root_Werks @ Oct 24 2024, 10:25 AM) *

Dang that turned out nice! Boxster trans matted to a 928 engine.....has to be a one off!


So I was thinking about this whole design early this morning and I think I am working on a redesign already. More to come.


Do-overs... I know the feeling. We're always happier with version N+1! (IMG:style_emoticons/default/happy11.gif)
Such a cool build.


I hear ya. I already scrapped the 1" adapter I spent a month sourcing materials, chasing parts, and cutting the dang thing out. But hey, I learned alot and had to re-remember what I did way back in 2003 when I started this thing.

What triggered the redesign was the thread on the failed clutch on the LS Boxster post. I did a search on line and see the flywheel for the LS has a very extended "HAT" I will call it. So I took some measurements for what I currently have and figured out a way to extend mine without moving the flywheel out away from the block.

I even called Kennedy to see if they would attach their part to my flywheel. I received a very cold reception and answer. So much for the easy route.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Chris914n6
post Oct 25 2024, 11:31 AM
Post #750


Jackstands are my life.
****

Group: Members
Posts: 3,407
Joined: 14-March 03
From: Las Vegas, NV
Member No.: 431
Region Association: Southwest Region



I have an issue with Kennedy too.

Inquired about getting an adapter ring spec'd for the 3.5 timing plate and they said they had a new design and I would need a $900 flywheel made. So I fiddled with it more and all I needed to do was rotate the ring 45*.

Then I decided to postpone the upgrade and mount the 3.5 to a subaru trans instead.

Sorry I can't offer more help, I have no idea how all your stuff fits together... (IMG:style_emoticons/default/smile.gif)
I was super impressed you got it done the first time.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post Oct 27 2024, 09:49 PM
Post #751


Hey nice rack! -Celette
***************

Group: Members
Posts: 20,733
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region

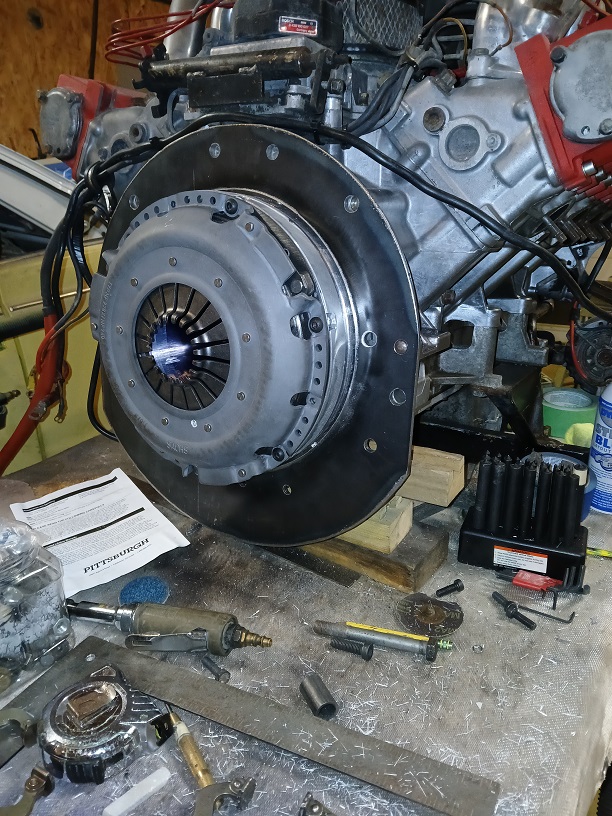

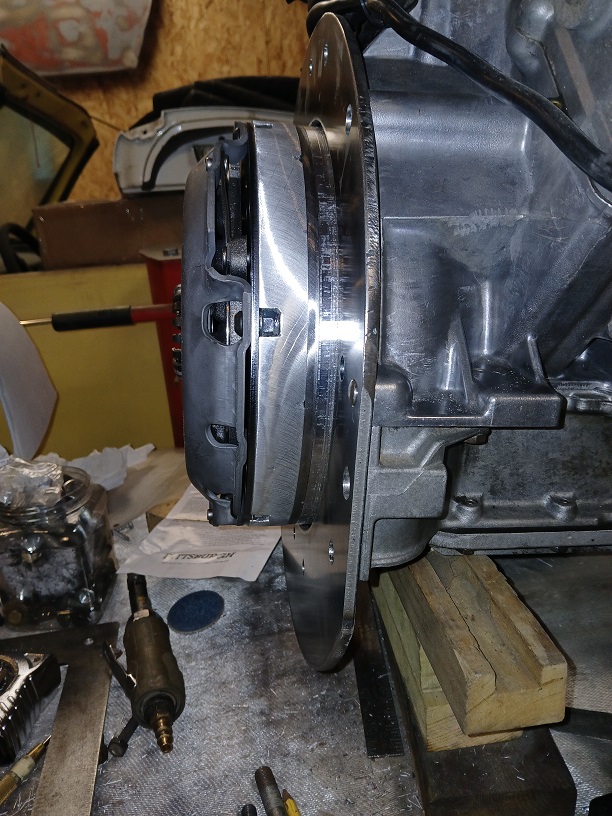

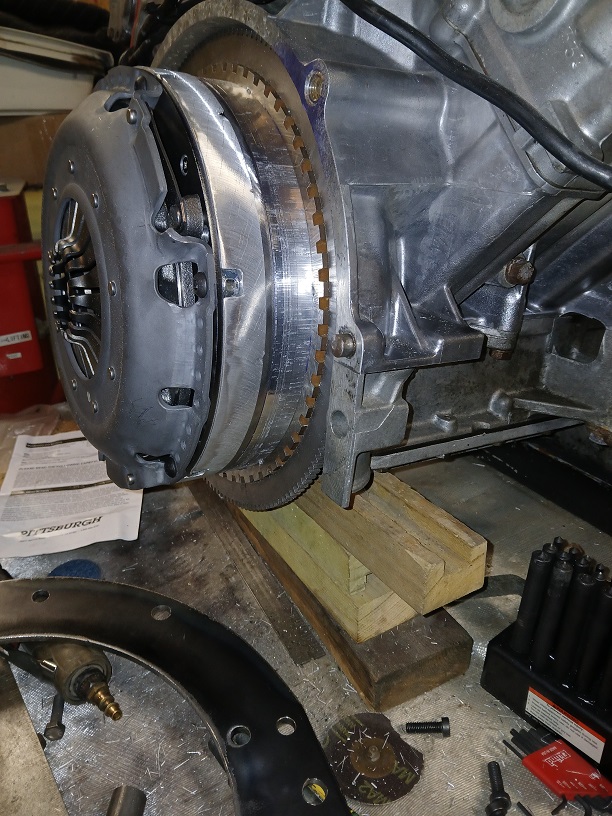

I have been doing more research on the factory style Boxster clutch. I realized they have a duel mass flywheel. I read that and asked myself " what the heck is a duel mass flywheel?? I called Clay and asked him. He described it as two discs with rubber between them. I thought What the Heck, What if I design something similar without the rubber. So I cut out a second 1" disc and used a 1/4" plate and ended up with the exact measurement I needed to install the transaxle without surgery.

One step closer (IMG:style_emoticons/default/idea.gif)

Attached Image
Attached Image
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914 Ranch
post Oct 28 2024, 05:54 AM
Post #752


Team Sharp where the 914 grow wings
***

Group: Members
Posts: 1,455
Joined: 29-January 16
From: TheNorth Shore Retreat. Deland
Member No.: 19,611
Region Association: South East States



Hey Rick , your gunna love this. When I was sophomore in HS my father put a Jag clutch disk on his '56 AH 100. He was fallowing Carol Shelby's example of a 260 ford AH hot rod. I think you can do almost anything you can imagine. Come on, the slippers use counter weights and multiple plates. I have a slipper in a sandrail that used shimmes to space the pressure plate from the flywheel.

Do you still have your 100S?

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post Oct 28 2024, 06:41 AM
Post #753


Hey nice rack! -Celette
***************

Group: Members
Posts: 20,733
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region



QUOTE(914 Ranch @ Oct 28 2024, 06:54 AM) *

Hey Rick , your gunna love this. When I was sophomore in HS my father put a Jag clutch disk on his '56 AH 100. He was fallowing Carol Shelby's example of a 260 ford AH hot rod. I think you can do almost anything you can imagine. Come on, the slippers use counter weights and multiple plates. I have a slipper in a sandrail that used shimmes to space the pressure plate from the flywheel.

Do you still have your 100S?


Hey Joe! Thanks for the kind words. This is seems to be a never ending project. I sold the 100-4 several years ago and spent the money to purchase the Raspberry 914.

I would love to here those new traps! Miss you my friend. Hope our paths cross again some day. Drive it like you stole it! (IMG:style_emoticons/default/driving.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post Oct 29 2024, 07:55 AM
Post #754


Hey nice rack! -Celette
***************

Group: Members
Posts: 20,733
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region

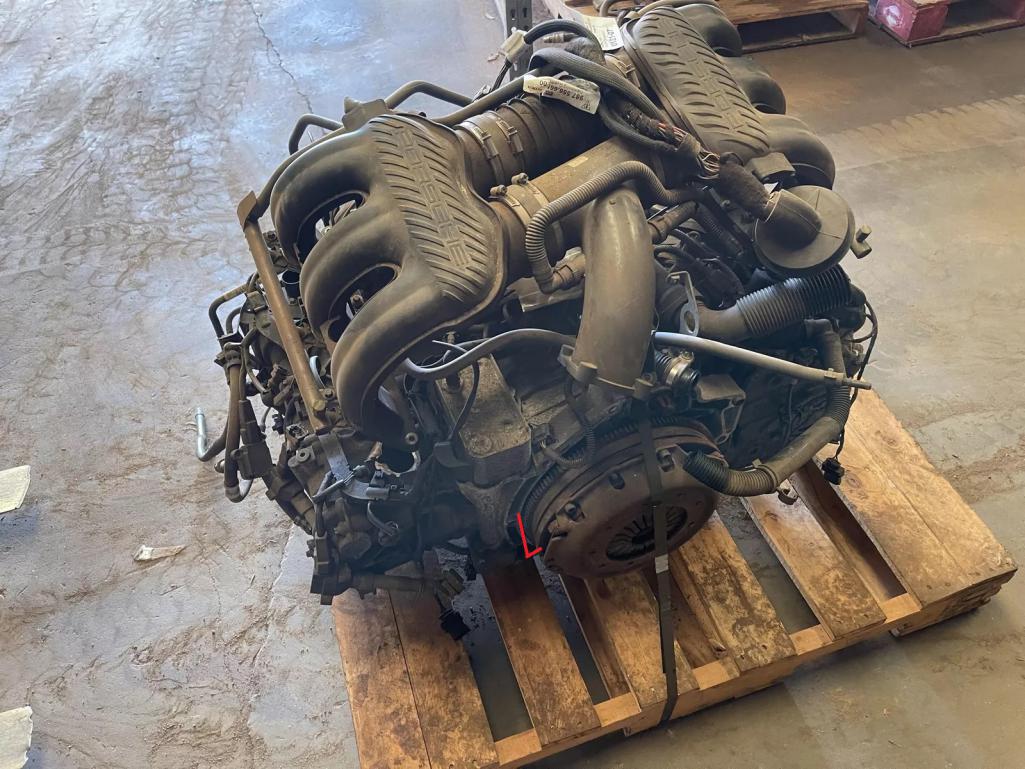

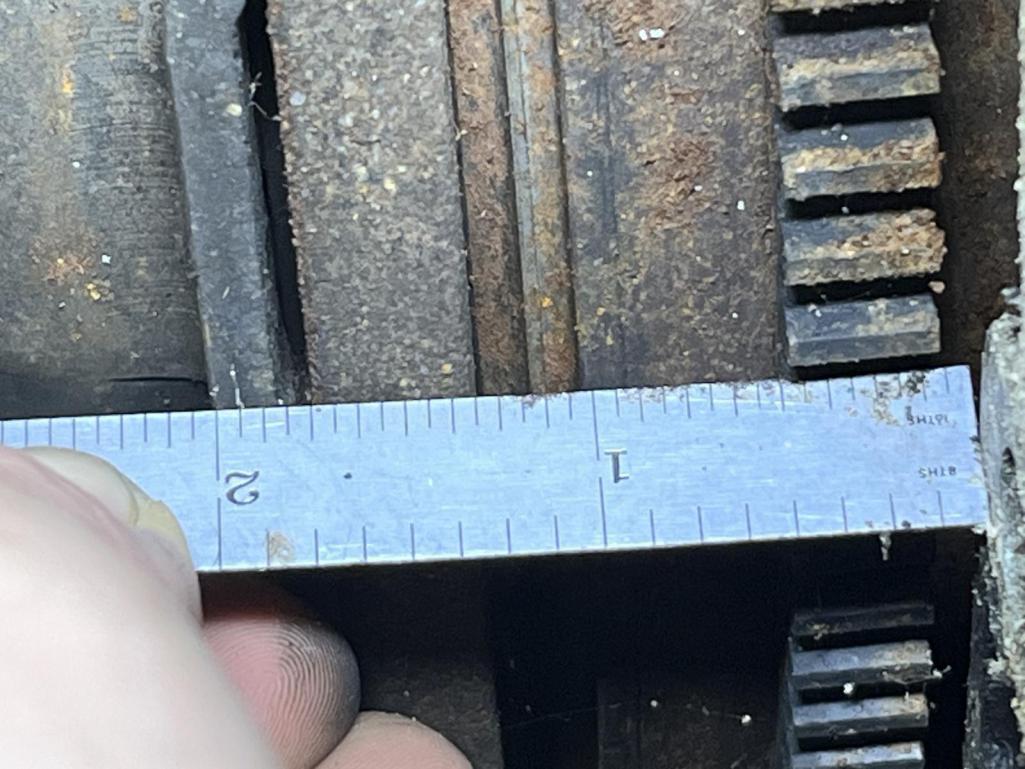

I thought I would lend some validity to the direction I am going with this flywheel. This is a Boxster Engine. The distance from the trans mounting surface on the block to the face of the clutch disc surface is 4.5cm or 1 3/4" that is what I have now.

Attached Image
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post Oct 30 2024, 09:27 PM
Post #755


Hey nice rack! -Celette
***************

Group: Members
Posts: 20,733
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region

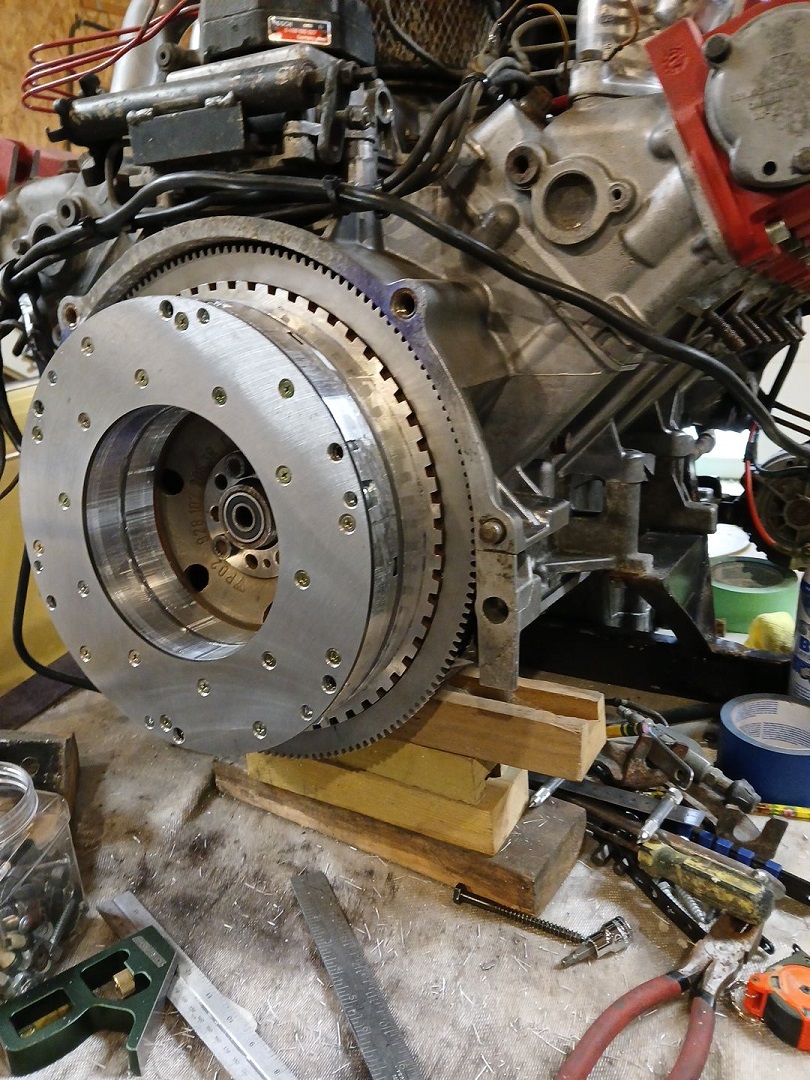

Finished the flywheel today. I cut the center out of the 1/4 steel spacer and the second 1" aluminum spacer ring and used my router to finish the aluminum to size. I still need to send it to get balanced but this is a major hurtle.

Attached Image

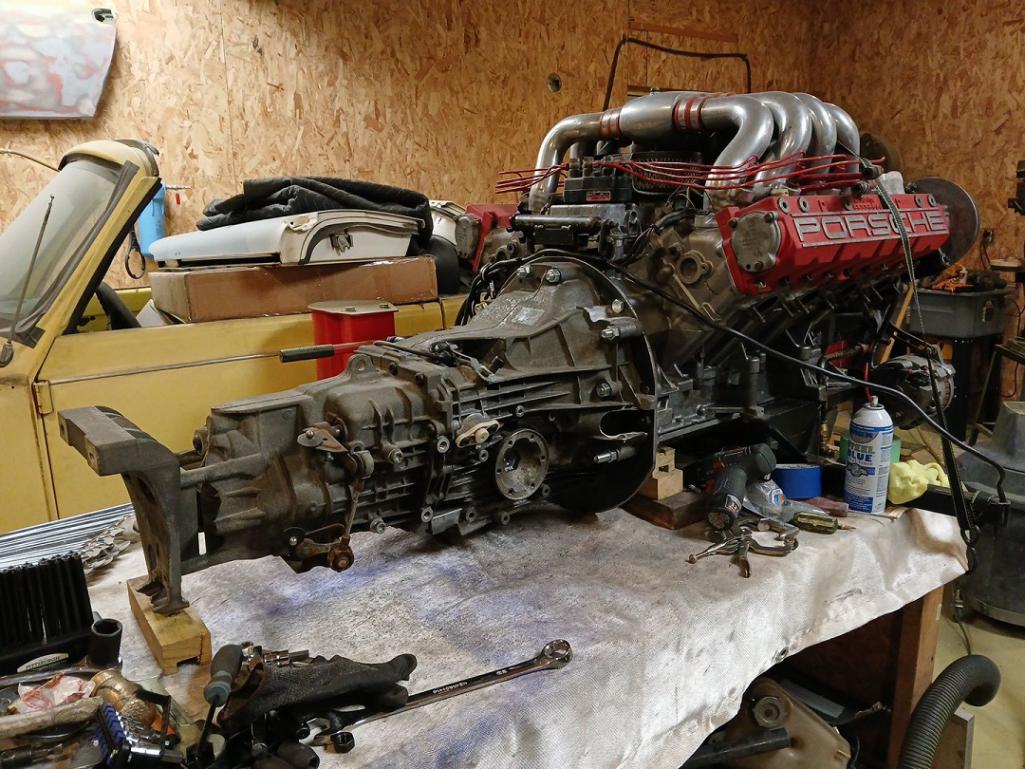

I finished the adapter plate tonight and bolted the transaxle to the engine.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
East coaster
post Oct 31 2024, 04:50 AM
Post #756


Senior Member
***

Group: Members
Posts: 1,767
Joined: 28-March 03
From: Millville, NJ
Member No.: 487
Region Association: None



Nice!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Root_Werks
post Oct 31 2024, 10:58 AM
Post #757


Village Idiot
*****

Group: Members
Posts: 8,456
Joined: 25-May 04
From: About 5NM from Canada
Member No.: 2,105
Region Association: Pacific Northwest



Holy crap! I bet that's a first for anyone to do or see, nice!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jd74914
post Oct 31 2024, 11:39 AM
Post #758


Its alive
****

Group: Members
Posts: 4,811
Joined: 16-February 04
From: CT
Member No.: 1,659
Region Association: North East States



Wow, that's awesome!!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
worn
post Oct 31 2024, 07:06 PM
Post #759


can't remember
****

Group: Members
Posts: 3,325
Joined: 3-June 11
From: Madison, WI
Member No.: 13,152
Region Association: Upper MidWest



QUOTE(rick 918-S @ Oct 30 2024, 08:27 PM) *


I finished the adapter plate tonight and bolted the transaxle to the engine.

Attached Image

And that fits into…a 914? Wow. Wow.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post Oct 31 2024, 09:30 PM
Post #760


Hey nice rack! -Celette
***************

Group: Members
Posts: 20,733
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region



Working on the starter mount tonight. I may end up using the botched 1" adapter plate after all. At least the bottom section... (IMG:style_emoticons/default/idea.gif) (IMG:style_emoticons/default/shades.gif)
