> Tangerine Six Build, ***Update; 07/17/11***
9146FAN
post Jul 6 2008, 10:25 PM
Post #41


Member
**

Group: Members
Posts: 294
Joined: 20-July 04
From: ROSSMOOR, CA
Member No.: 2,378
Attached Image

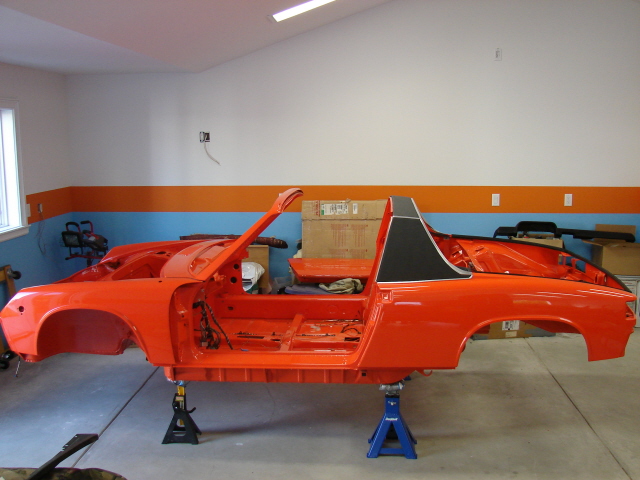

My neighbor told me I should pick-up the pace. If not, I won't be driving before 2010
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Root_Werks
post Jul 7 2008, 08:06 AM
Post #42


Village Idiot
*****

Group: Members
Posts: 8,484
Joined: 25-May 04
From: About 5NM from Canada
Member No.: 2,105
Region Association: Pacific Northwest
(IMG:style_emoticons/default/drooley.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
9146FAN
post Sep 1 2008, 08:59 PM
Post #43


Member
**

Group: Members
Posts: 294
Joined: 20-July 04
From: ROSSMOOR, CA
Member No.: 2,378
Attached Image

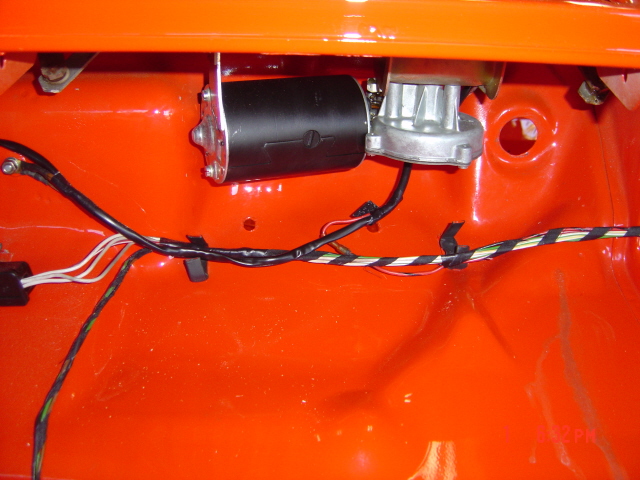

Got the NOS genuine 6 wiper motor installed. While I had the wiper transmission out, I disassembled it, cleaned and lubricated all parts and replaced the bushings,
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
9146FAN
post Sep 1 2008, 09:05 PM
Post #44


Member
**

Group: Members
Posts: 294
Joined: 20-July 04
From: ROSSMOOR, CA
Member No.: 2,378
Attached Image

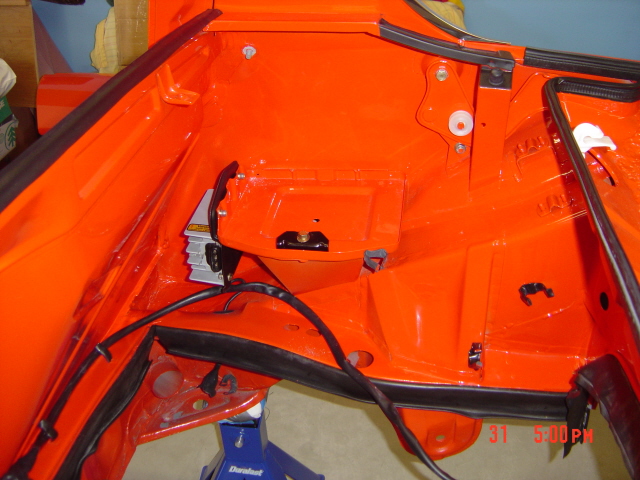

I had some extra time so I installed the New bracket for the CD along with a Bosch rebuilt CDI box.

I got the engine seal in there too. that was a PITA!

The rear deck hinges and new plastic rollers are in. I was thinkin' about using the updated brass rollers, but these look cooler (to me). The shoulder bolts should be body color, but I thought it would be a shame to paint them after the nice yellow zink plating job.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
9146FAN
post Sep 1 2008, 09:10 PM
Post #45


Member
**

Group: Members
Posts: 294
Joined: 20-July 04
From: ROSSMOOR, CA
Member No.: 2,378
Attached Image

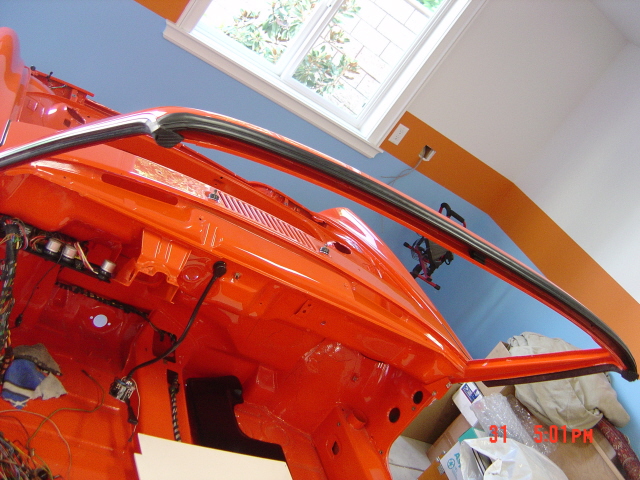

The NOS front windshield seal went in easier than I thought it would, maybe because the aluminum channels are new?

I used Windex as a lubricant, maybe that was why it went in easy? Either way, it's in and looks great.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
9146FAN
post Sep 1 2008, 09:13 PM
Post #46


Member
**

Group: Members
Posts: 294
Joined: 20-July 04
From: ROSSMOOR, CA
Member No.: 2,378
Attached Image

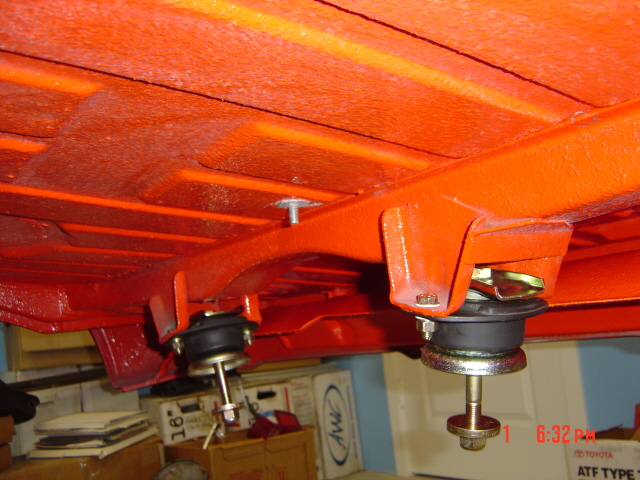

Last items I did this weekend was installing the muffler heat shield and the genuine 6 transmission mounts. The freshly plated hardware looks cool, maybe a bit too brite, but cool.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Sep 1 2008, 09:15 PM
Post #47


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest
I love this build, you have great attention to detail.
This car is turning out amazing, keep up the good work!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
BIGKAT_83
post Sep 1 2008, 09:42 PM
Post #48


Senior Member
***

Group: Members
Posts: 1,798
Joined: 25-January 03
From: Way down south Bogart,GA
Member No.: 194
Region Association: South East States
DAMN.............. this is great
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
r_towle
post Sep 1 2008, 10:22 PM
Post #49


Custom Member
***************

Group: Members
Posts: 24,645
Joined: 9-January 03
From: Taxachusetts
Member No.: 124
Region Association: North East States
I like it just the way it is....
Clean the rest of the crap out of the garage and just leave it on display...

Finish up the garage wiring....and for crying out loud...marble would look alot better than concrete...

Love the car.
Rich
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
skeates
post Sep 1 2008, 11:07 PM
Post #50


Member
**

Group: Members
Posts: 218
Joined: 28-February 05
From: Sacramento, ca
Member No.: 3,684
Region Association: Northern California
Your bolts are so much prettier than mine... (IMG:style_emoticons/default/drooley.gif)

You are doing an awesome job on that car!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
FourBlades
post Sep 2 2008, 07:44 AM
Post #51


From Wreck to Rockin
****

Group: Members
Posts: 2,056
Joined: 3-December 07
From: Brevard, FL
Member No.: 8,414
Region Association: South East States

This is an awesome build, love the car.

I wish someone would sell a complete plated hardware, nut and bolt kit for 914s.

That would be a big seller for sure.

How long will zinc plated hardware retain its color in a well cared for (but driven)
car? Does the zinc corrode over time?

John
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
9146FAN
post Sep 28 2008, 09:47 PM
Post #52


Member
**

Group: Members
Posts: 294
Joined: 20-July 04
From: ROSSMOOR, CA
Member No.: 2,378

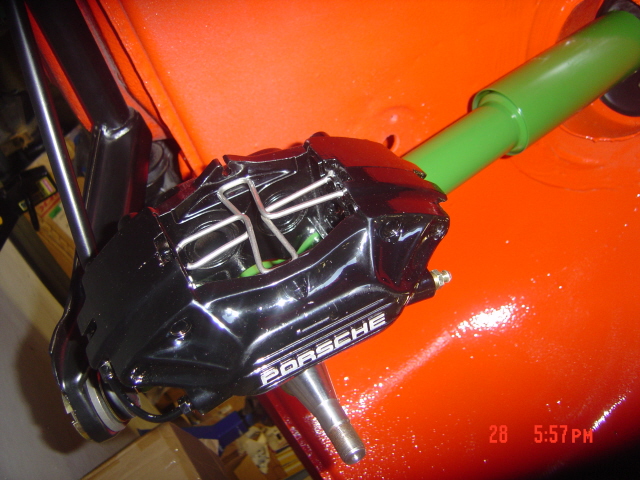

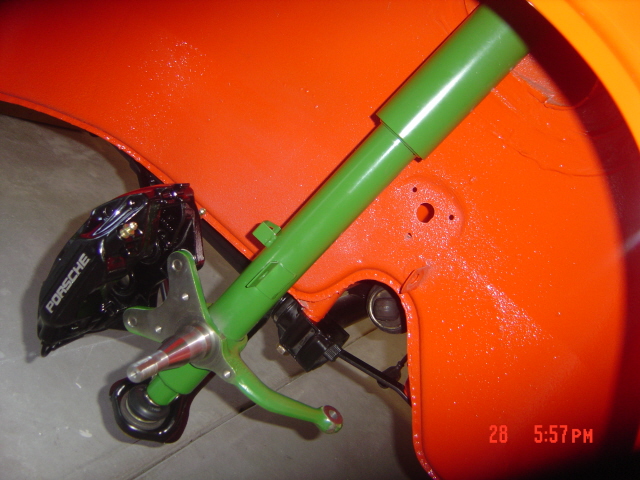

Got my butt out to the garage today and installed the lower control arms and cross member. I think they're the originals, they had no rust, but I took them to bare metal and painted them with mat epoxy. The steering rack cleaned-up nicely. I will install a new set of Turbo Tie Rods too.

The struts are NOS Bilsteins. Of course I installed new ball-joints. Calipers are rear 968 which were modified to fit the 3.5" struts.


Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
9146FAN
post Sep 28 2008, 09:49 PM
Post #53


Member
**

Group: Members
Posts: 294
Joined: 20-July 04
From: ROSSMOOR, CA
Member No.: 2,378

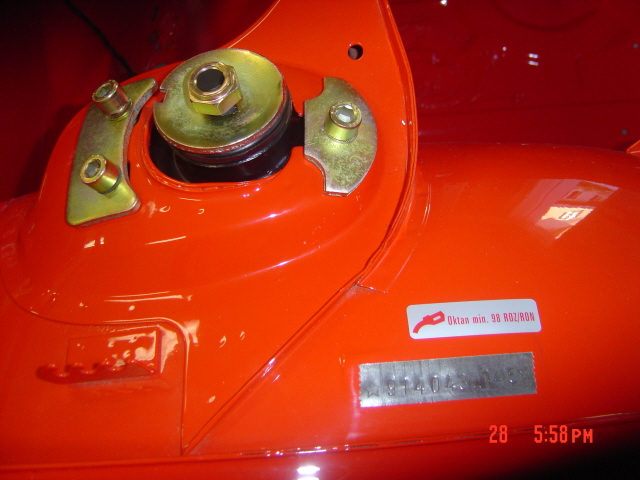

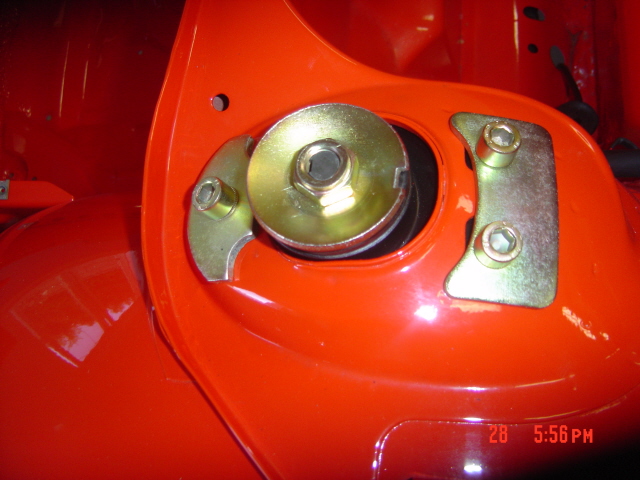

The freshly plated yellow zinks looks a little too nice... NOT

Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
9146FAN
post Sep 28 2008, 09:51 PM
Post #54


Member
**

Group: Members
Posts: 294
Joined: 20-July 04
From: ROSSMOOR, CA
Member No.: 2,378

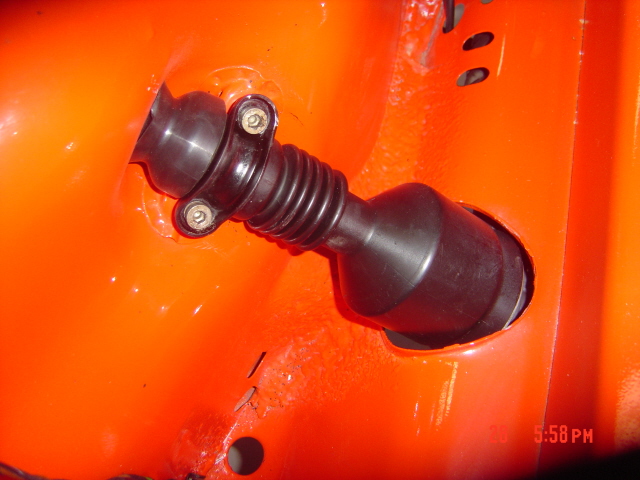

Inside Gas Tank area where steering rack connects.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
9146FAN
post Sep 28 2008, 09:56 PM
Post #55


Member
**

Group: Members
Posts: 294
Joined: 20-July 04
From: ROSSMOOR, CA
Member No.: 2,378
QUOTE(FourBlades @ Sep 2 2008, 06:44 AM) *

This is an awesome build, love the car.

I wish someone would sell a complete plated hardware, nut and bolt kit for 914s.

That would be a big seller for sure.

How long will zinc plated hardware retain its color in a well cared for (but driven)
car? Does the zinc corrode over time?

John


John-

I have no idea how long the plating will last. When I took the car apart, there was a lot of visable yellow plating. Most of it was pretty nasty though.

Eddie
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
TJB/914
post Sep 28 2008, 10:02 PM
Post #56


Mid-Engn.
****

Group: Members
Posts: 4,380
Joined: 24-February 03
From: Plymouth & Petoskey, MI
Member No.: 346
Region Association: Upper MidWest
9146FAN

Wow, This is the first time I saw your post. Beautiful workmanship and attention to detail. I am really impressed and congratulations on your project. I love the color.

Tom
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
9146FAN
post Sep 28 2008, 10:10 PM
Post #57


Member
**

Group: Members
Posts: 294
Joined: 20-July 04
From: ROSSMOOR, CA
Member No.: 2,378
QUOTE(Thomas J Bliznik @ Sep 28 2008, 09:02 PM) *

9146FAN

Wow, This is the first time I saw your post. Beautiful workmanship and attention to detail. I am really impressed and congratulations on your project. I love the color.

Tom


Tom-

Thanks for lookin'. The deatail is the reason it's so slow going for me.

I was checkin' your thread too. That's a lota werk you're doing, and it looks like you're doing it the right way. Keep up the great werk.

Eddie
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
9146FAN
post Sep 28 2008, 10:33 PM
Post #58


Member
**

Group: Members
Posts: 294
Joined: 20-July 04
From: ROSSMOOR, CA
Member No.: 2,378

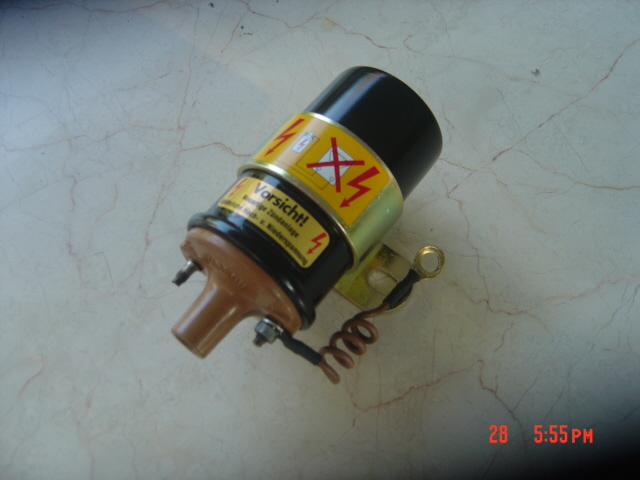

Also painted the orig coil and put the new stickers on.


Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
9146FAN
post Nov 9 2008, 10:36 PM
Post #59


Member
**

Group: Members
Posts: 294
Joined: 20-July 04
From: ROSSMOOR, CA
Member No.: 2,378

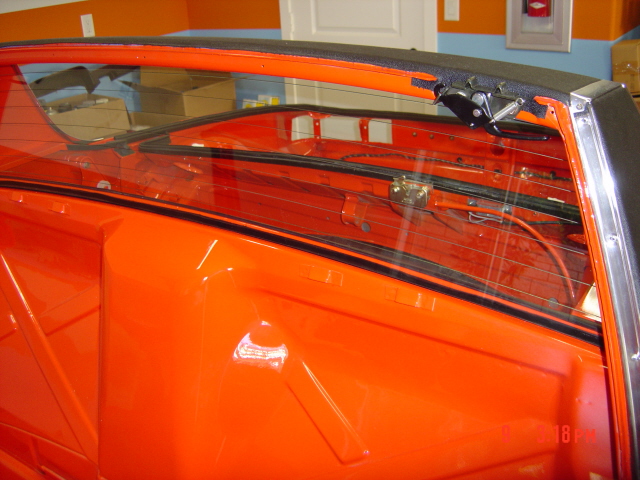

Got the back glass (w/ defroster) and New lower seal installed today.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
9146FAN
post Nov 9 2008, 10:47 PM
Post #60


Member
**

Group: Members
Posts: 294
Joined: 20-July 04
From: ROSSMOOR, CA
Member No.: 2,378

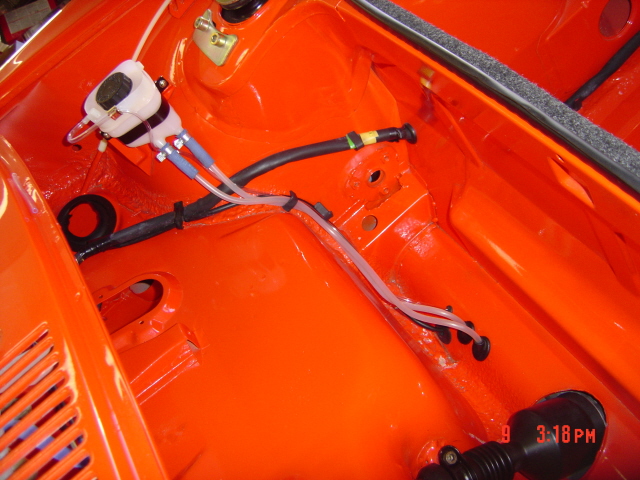

New brake fluid resivoir with supplyy lines and a clear plastic over-flow hose (from Pet Smart).


Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
