> Fiid's Project Progress Thead., The Legend of Narparu
SirAndy
post Jan 3 2004, 07:58 PM
Post #41


Resident German
*************************

Group: Admin
Posts: 41,945
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
QUOTE(fiid @ Jan 2 2004, 11:05 PM)
Anyone have a suggestion on how to get around the starter motor problem??

the high-torque starter i had (and brad sold (IMG:style_emoticons/default/smile.gif) ) was smaller and had a different shape.

lighter -> smaller -> better

get one!
Andy
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Brad Roberts
post Jan 3 2004, 08:22 PM
Post #42


914 Freak!
***************

Group: Members
Posts: 19,148
Joined: 23-December 02
Member No.: 8
Region Association: None
But the solenoid was in the same place as stock and you couldnt change the clocking.

Most of the places stopped selling that starter.


B
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Brad Roberts
post Jan 3 2004, 08:24 PM
Post #43


914 Freak!
***************

Group: Members
Posts: 19,148
Joined: 23-December 02
Member No.: 8
Region Association: None
Oh.. and I would imagine you would have to modify the trunk floor. I know when we rais the engine and trans in a race car.. the stock starter solenoid will hit the trunk floor. Rotate this one up and I would imagine the same thing happening.


B
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
John2kx
post Jan 3 2004, 08:39 PM
Post #44


Senior Member
***

Group: Members
Posts: 502
Joined: 22-August 03
From: Augusta, Ga.
Member No.: 1,066

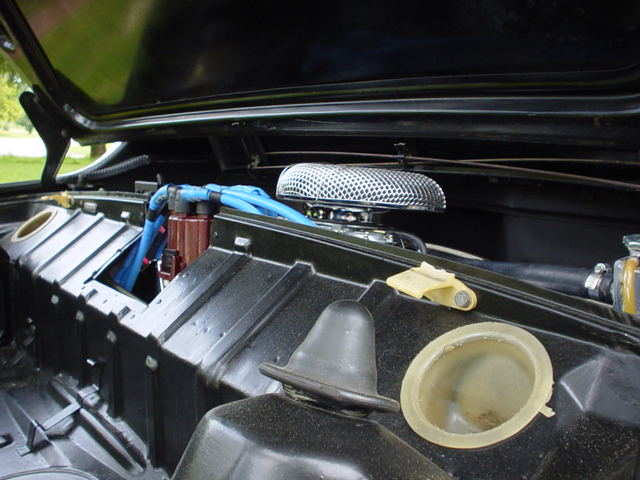

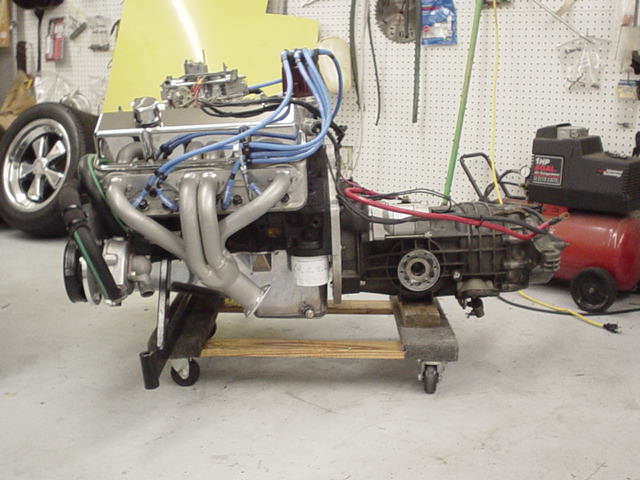

I was thinking the same thing Brad......about having to take a chunk out of the trunk floor after seeing all the stuff on top of his engine.

Just looking at the side pic of your engine (without a ruler) I'd guess a 2' x 2' opening will have to be made where my distributor opening is.

John


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
John2kx
post Jan 3 2004, 08:41 PM
Post #45


Senior Member
***

Group: Members
Posts: 502
Joined: 22-August 03
From: Augusta, Ga.
Member No.: 1,066
Fiid,

This might shine a little more light on the subject.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Brad Roberts
post Jan 3 2004, 08:43 PM
Post #46


914 Freak!
***************

Group: Members
Posts: 19,148
Joined: 23-December 02
Member No.: 8
Region Association: None
We can actaully move his engine forward several inches if need be. RH moves them back.. no reason we cant go forward (I had planned to do this with another friend doing a Scuby conversion).


B
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
John2kx
post Jan 4 2004, 06:46 AM
Post #47


Senior Member
***

Group: Members
Posts: 502
Joined: 22-August 03
From: Augusta, Ga.
Member No.: 1,066
I didn't think about that B. Since my drivetrain is moved back 1-3/4" (with v8), you will be able to move forward ~ 3" from my location.

John
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Brad Roberts
post Jan 4 2004, 11:53 AM
Post #48


914 Freak!
***************

Group: Members
Posts: 19,148
Joined: 23-December 02
Member No.: 8
Region Association: None
I try not to think.. but sometimes it gets in my way and I have to do it...LOL

Lots of people love your car John. It really paints a nice picture for those thinking of doing a V8 conversion. It is so rare to see one done NICE.. easy on the eyes and a pleasure to look at all the pics. (IMG:style_emoticons/default/clap56.gif)

Sooner or later we will have the gallery software up and running. I have failed to make it run on my W2K machine, but it should work just fine on the Linux box. Hang in there.

B
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
redshift
post Jan 4 2004, 11:54 AM
Post #49


Bless the Hell out of you!
**********

Group: Members
Posts: 10,926
Joined: 29-June 03
Member No.: 869
I see John's car, and I stop wondering why everyone moved the hell out of my way when I went home for Christmas..

(IMG:style_emoticons/default/smile.gif)

M
-Augusta Boy-
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
fiid
post Jan 4 2004, 05:22 PM
Post #50


Turbo Megasquirted Subaru Member
****

Group: Members
Posts: 2,827
Joined: 7-April 03
From: San Francisco, CA
Member No.: 530
Region Association: Northern California
Mo Engine Pics. Lat night I pulled the intake manifold off. Getting this thing going is going to be a bastard. There are an ungodly amount of tubes, sensors, etc.

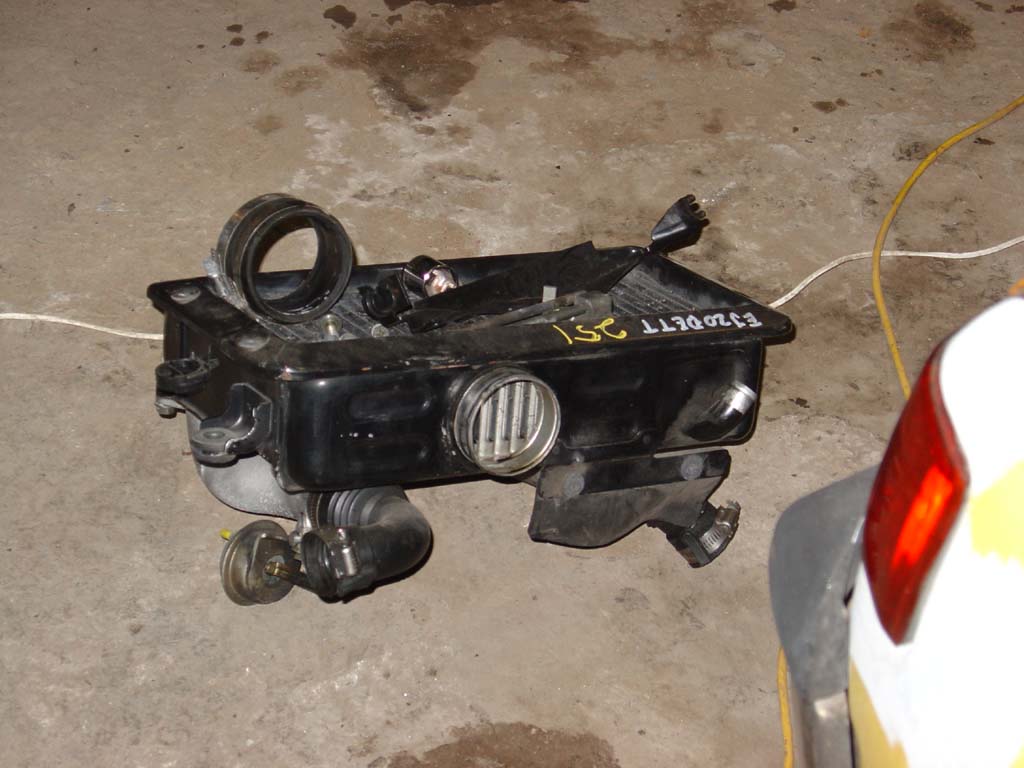

This is the (air to air) intercooler.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
fiid
post Jan 4 2004, 05:25 PM
Post #51


Turbo Megasquirted Subaru Member
****

Group: Members
Posts: 2,827
Joined: 7-April 03
From: San Francisco, CA
Member No.: 530
Region Association: Northern California
Side shot of engine with intake on backwards (just looking for fit).


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
fiid
post Jan 4 2004, 05:25 PM
Post #52


Turbo Megasquirted Subaru Member
****

Group: Members
Posts: 2,827
Joined: 7-April 03
From: San Francisco, CA
Member No.: 530
Region Association: Northern California

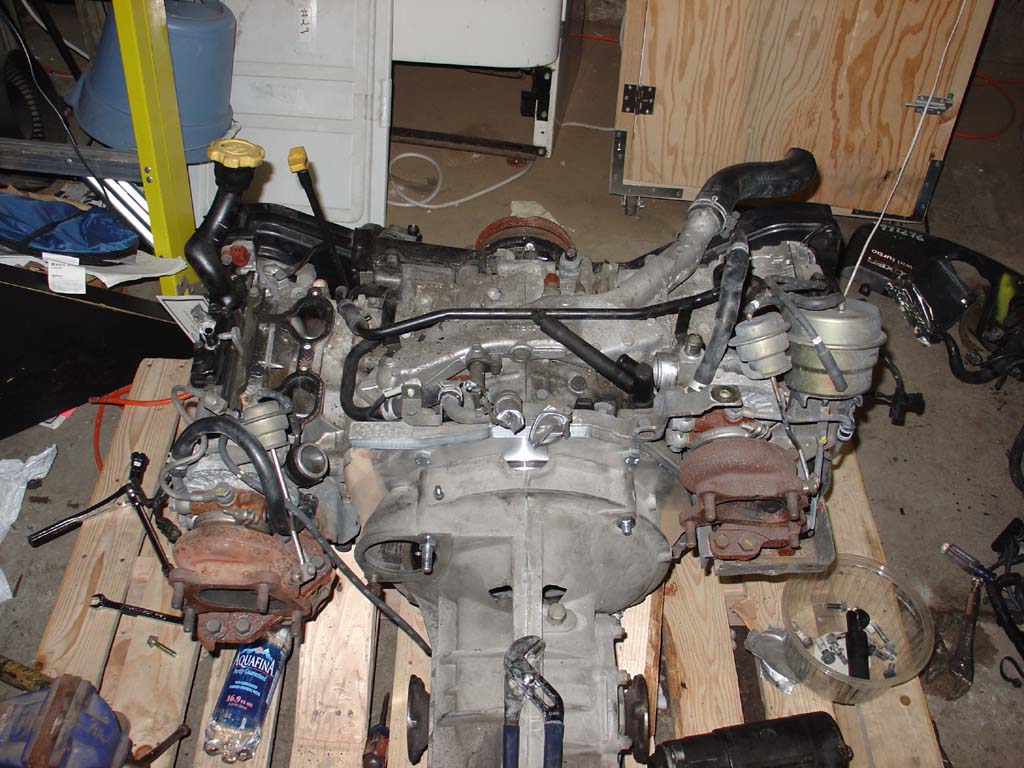

Aft shot of engine with intake on backards.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
fiid
post Jan 4 2004, 05:26 PM
Post #53


Turbo Megasquirted Subaru Member
****

Group: Members
Posts: 2,827
Joined: 7-April 03
From: San Francisco, CA
Member No.: 530
Region Association: Northern California

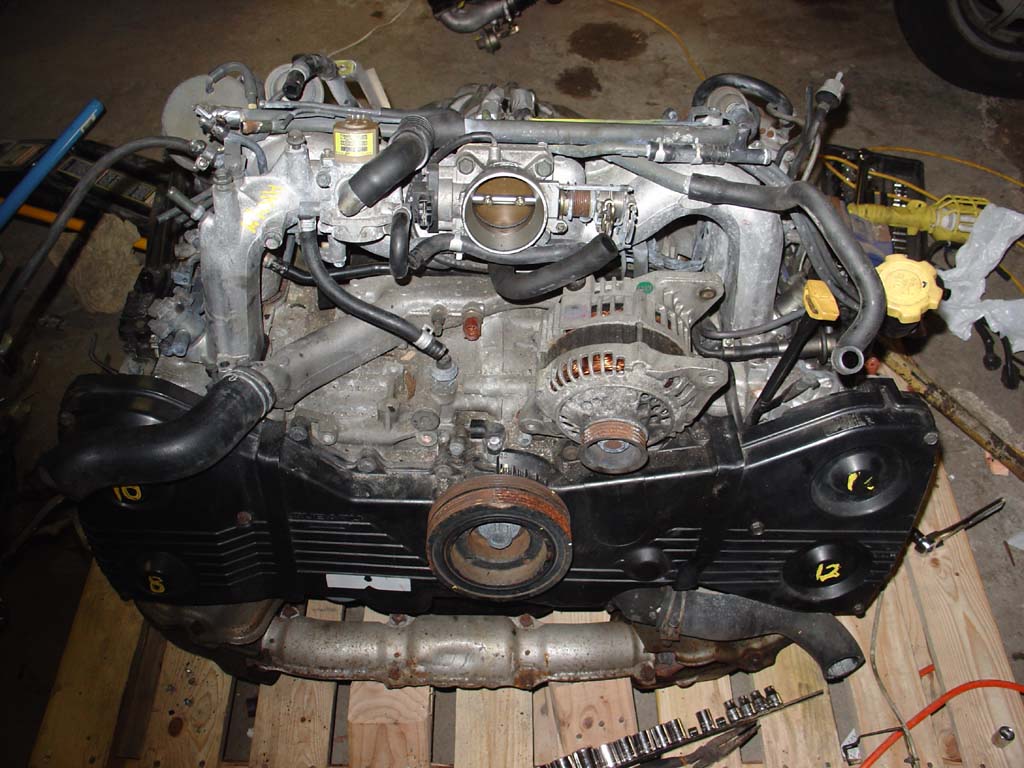

Front view of engine with alternator resting approx where it will be, and intake manifold backwards.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
fiid
post Jan 4 2004, 05:28 PM
Post #54


Turbo Megasquirted Subaru Member
****

Group: Members
Posts: 2,827
Joined: 7-April 03
From: San Francisco, CA
Member No.: 530
Region Association: Northern California

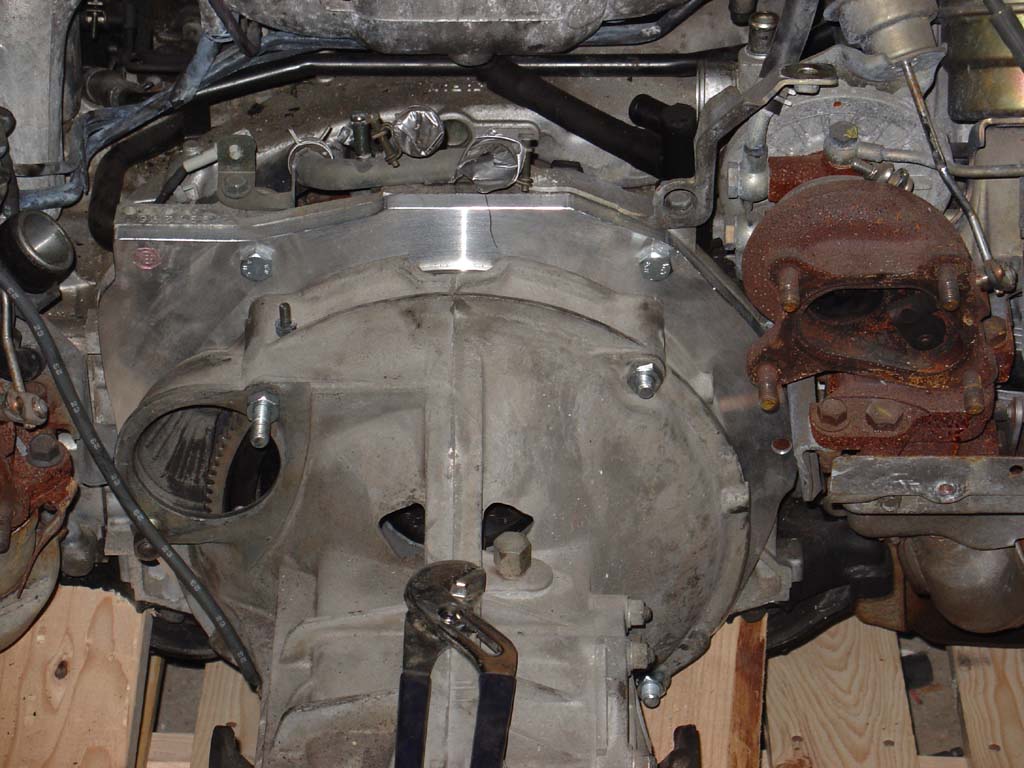

Close up of Kennedy Adaptor plate. At the top you can see the ports that supply water to the heater element in a subaru. I will probably just put a hose from one to the other. This water circuit also goes through the intake manifold and throttle body - presumably to warm the charge in the cold.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
fiid
post Jan 4 2004, 05:32 PM
Post #55


Turbo Megasquirted Subaru Member
****

Group: Members
Posts: 2,827
Joined: 7-April 03
From: San Francisco, CA
Member No.: 530
Region Association: Northern California
This is the oil filler neck and intake runners (1 & 2 cylinders). To the right, there is some interference between some fuel rail stuffage and the turbo. The bracket behind the filler neck has to be modified to clear the neck, and this holds up the water expansion tank.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
fiid
post Jan 4 2004, 05:33 PM
Post #56


Turbo Megasquirted Subaru Member
****

Group: Members
Posts: 2,827
Joined: 7-April 03
From: San Francisco, CA
Member No.: 530
Region Association: Northern California

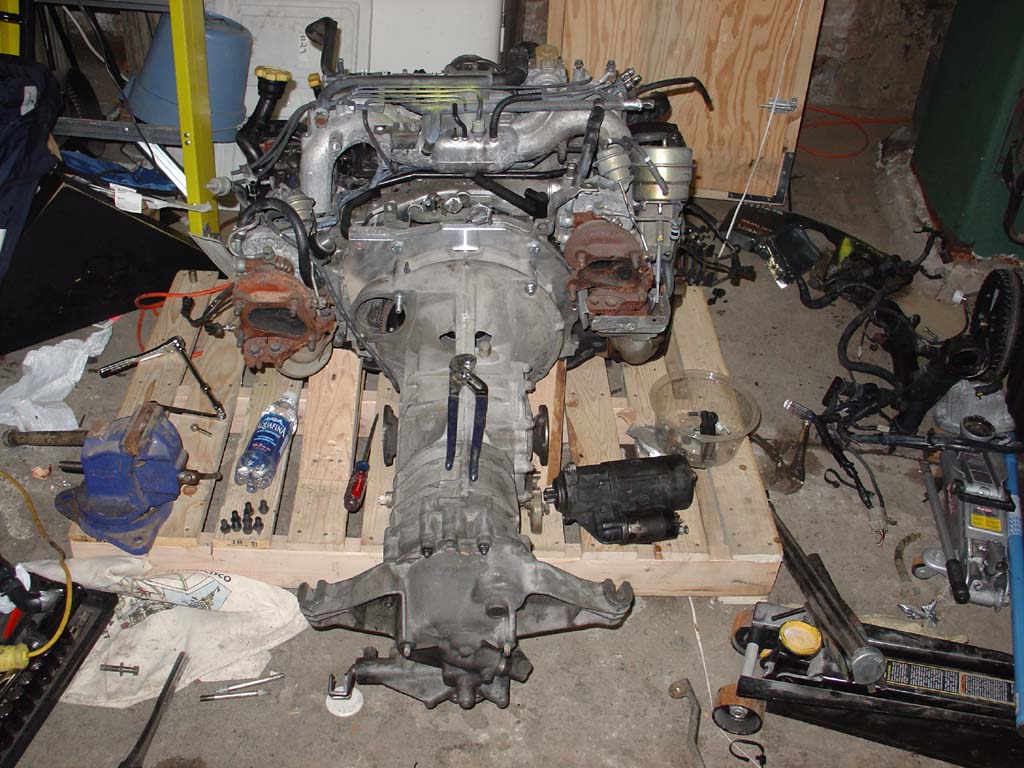

The engine and tranny with no intake manifold.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
fiid
post Jan 4 2004, 05:35 PM
Post #57


Turbo Megasquirted Subaru Member
****

Group: Members
Posts: 2,827
Joined: 7-April 03
From: San Francisco, CA
Member No.: 530
Region Association: Northern California

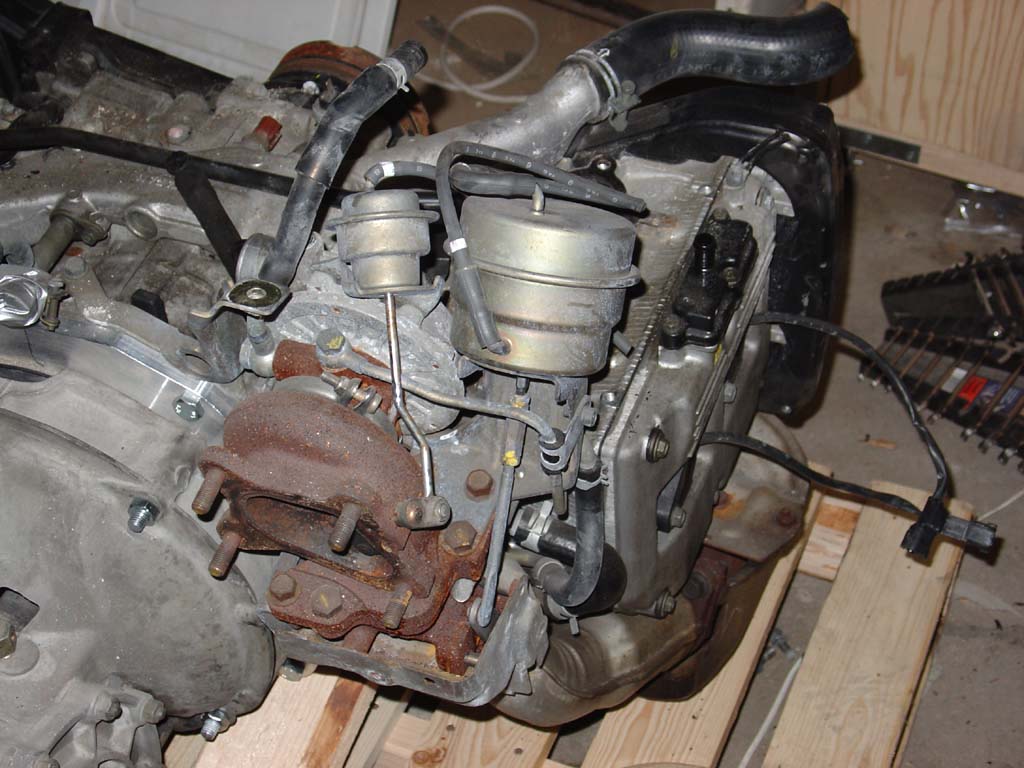

Closeup of right side stage 2 turbo. The large air-bellows here are the sensor or control (not sure which) that allows exhaust to flow in to this turbo. Next to it is the wastegate controller for this turbo.

I am worried about this lot interfering with the body, since this is right next to the transmission/engine border.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
fiid
post Jan 4 2004, 05:37 PM
Post #58


Turbo Megasquirted Subaru Member
****

Group: Members
Posts: 2,827
Joined: 7-April 03
From: San Francisco, CA
Member No.: 530
Region Association: Northern California

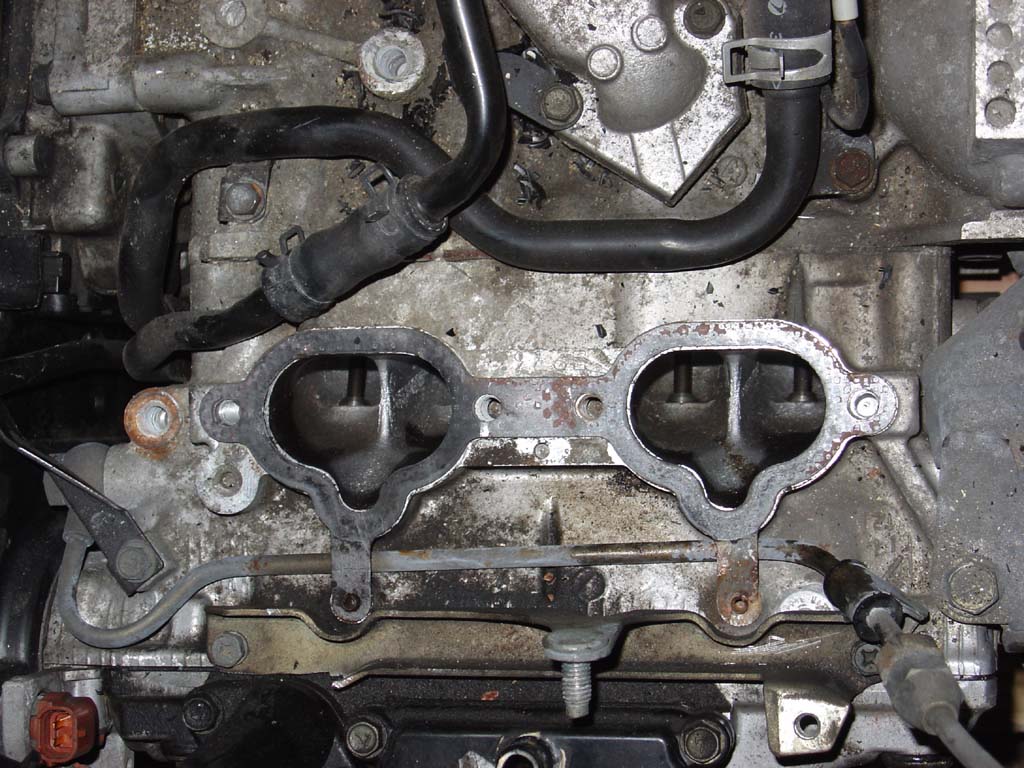

MMMMMMMMM. Intake valves.

The line shown here is the oil supply to the Stage 1 turbo.

You can see my modified bracket at the bottom of the picture.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
fiid
post Jan 4 2004, 05:38 PM
Post #59


Turbo Megasquirted Subaru Member
****

Group: Members
Posts: 2,827
Joined: 7-April 03
From: San Francisco, CA
Member No.: 530
Region Association: Northern California

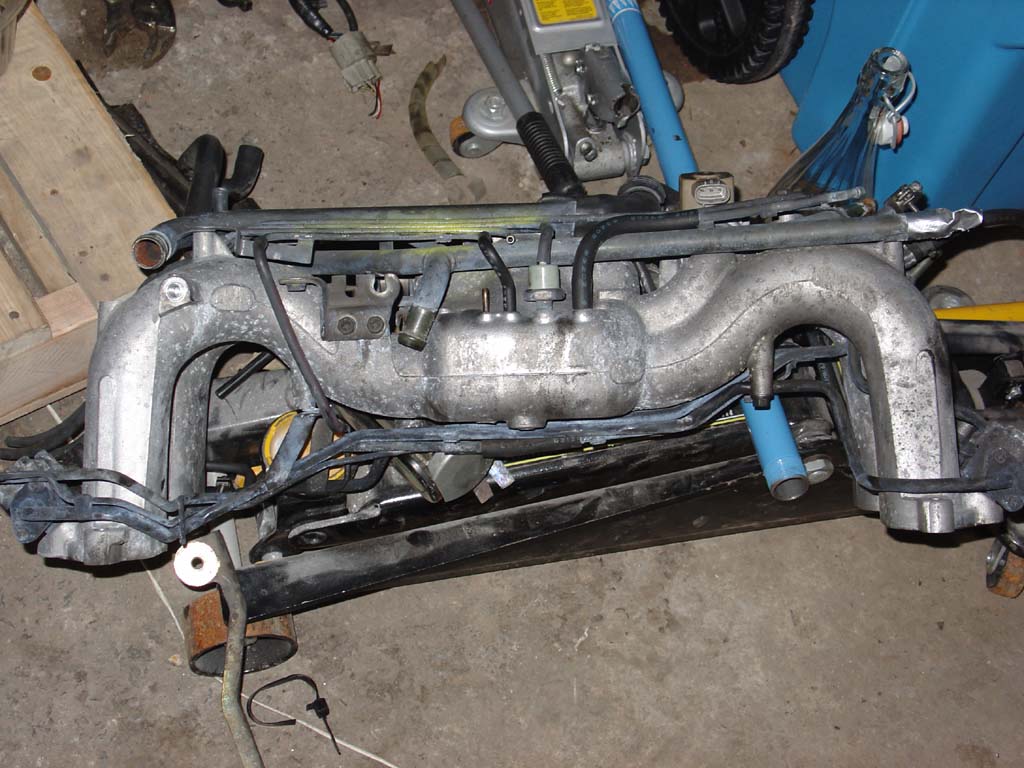

And here is a 4 legged alien.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
fiid
post Jan 4 2004, 05:39 PM
Post #60


Turbo Megasquirted Subaru Member
****

Group: Members
Posts: 2,827
Joined: 7-April 03
From: San Francisco, CA
Member No.: 530
Region Association: Northern California
Another fun thing about this engine. There are brown and black FI and spark ports on the harness - the brown ones go forward, just like the type IV.
