> Member's 914 Pictures, Show us your cars!!
rgalla9146
post Jan 5 2011, 11:19 AM
Post #3641


Advanced Member
****

Group: Members
Posts: 4,654
Joined: 23-November 05
From: Paramus NJ
Member No.: 5,176
Region Association: None
My 6 since 1983
Ooops ! ....picture problem
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jtg
post Jan 11 2011, 07:45 PM
Post #3642


Newbie
*

Group: Members
Posts: 45
Joined: 20-December 09
From: FL
Member No.: 11,153
Region Association: South East States
Attached Image

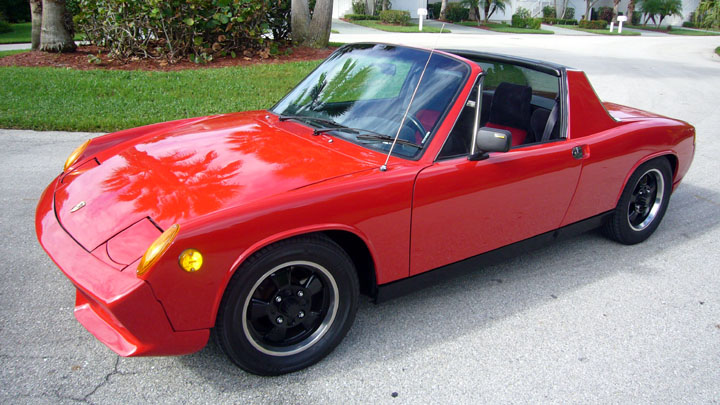

1971 Converted to electric, 0-60 in 11.5 sec, 106 MPH top speed.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
oldschool
post Jan 11 2011, 08:33 PM
Post #3643


Advanced Member
****

Group: Members
Posts: 3,372
Joined: 29-October 08
From: P-town
Member No.: 9,705
Region Association: Southern California
QUOTE(jtg @ Jan 11 2011, 05:45 PM) *

Attached Image

1971 Converted to electric, 0-60 in 11.5 sec, 106 MPH top speed.


very cool can you share some close ups
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
utah914
post Jan 16 2011, 09:59 PM
Post #3644


Member
**

Group: Members
Posts: 96
Joined: 22-May 06
From: South Jordan, UT
Member No.: 6,048
Region Association: None

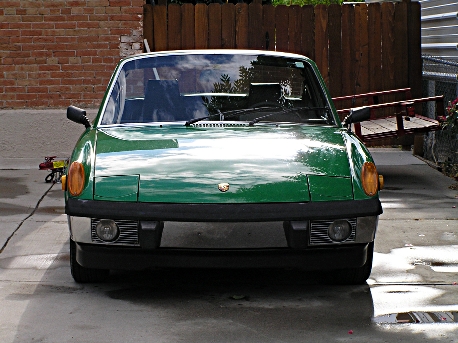

1974 Zambezi Green 2.0. This picture is from the first time we owned it, summer of 2006. Sold it in spring of 2008. Bought it back in October 2009.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
racerbvd
post Jan 17 2011, 10:35 PM
Post #3645


Advanced Member
****

Group: Members
Posts: 2,369
Joined: 3-February 03
From: Sunny FL.
Member No.: 226
Region Association: None
Old pix, chicks kept getting in the way..

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jtg
post Jan 19 2011, 11:29 AM
Post #3646


Newbie
*

Group: Members
Posts: 45
Joined: 20-December 09
From: FL
Member No.: 11,153
Region Association: South East States

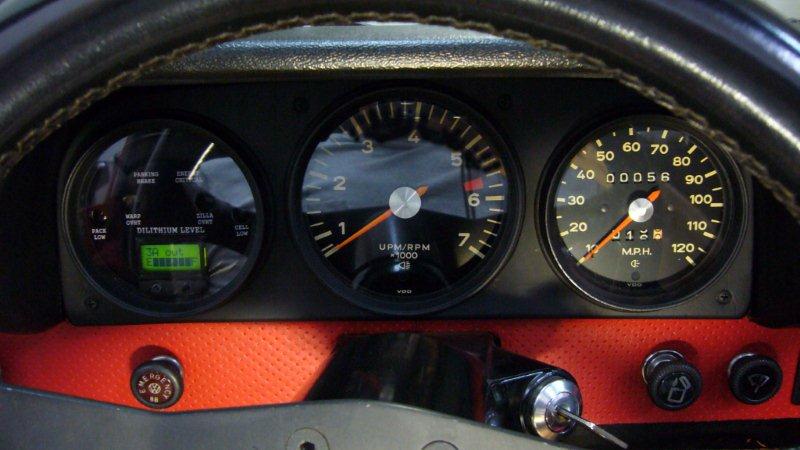

Here's my modified instrument cluster after my restoration. Moved odometer to 0 since it wasn't working at all when purchased

Attached Image

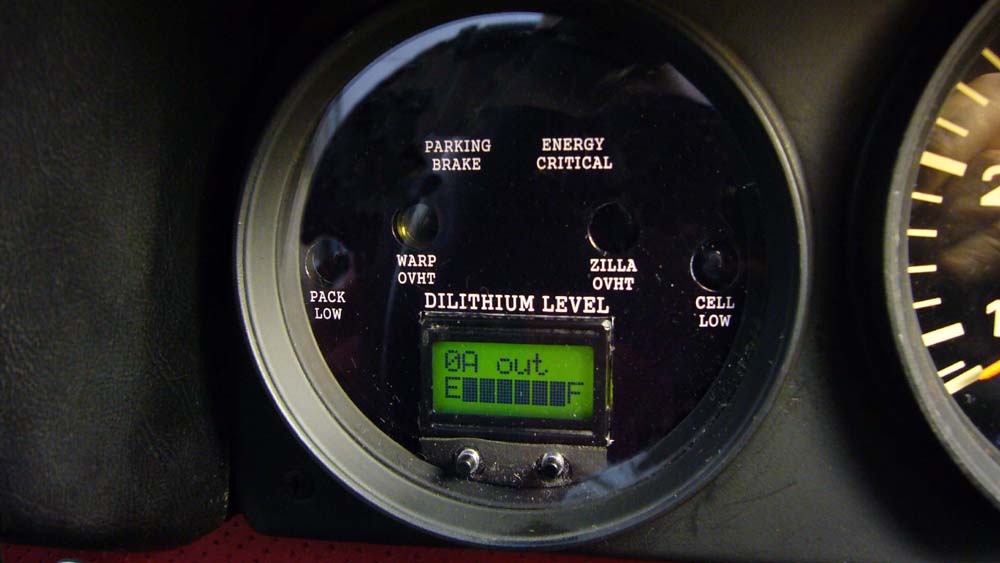

Close up of modified "gas gage". I haven't put gas in it in a year! 950 miles so far as of this date. "0A out" gauge counts amps in and out of batteries. I see up to 500 amps under max acceleration. Bars indicate empty or full. I had to put some "sci fy" labels on it just to have fun.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
racerbvd
post Jan 19 2011, 02:53 PM
Post #3647


Advanced Member
****

Group: Members
Posts: 2,369
Joined: 3-February 03
From: Sunny FL.
Member No.: 226
Region Association: None

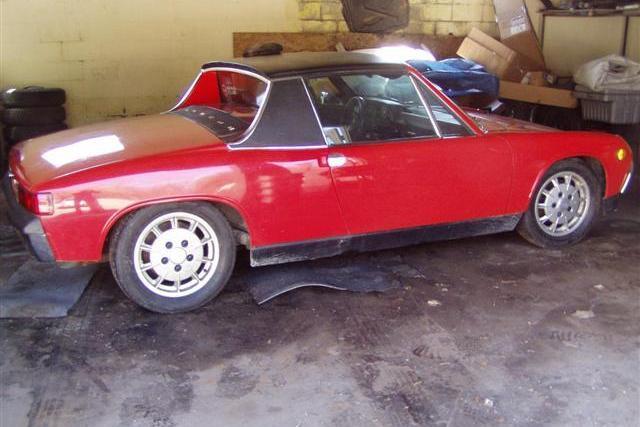

Our 914-6 (IMG:style_emoticons/default/evilgrin.gif)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jtg
post Jan 19 2011, 05:27 PM
Post #3648


Newbie
*

Group: Members
Posts: 45
Joined: 20-December 09
From: FL
Member No.: 11,153
Region Association: South East States

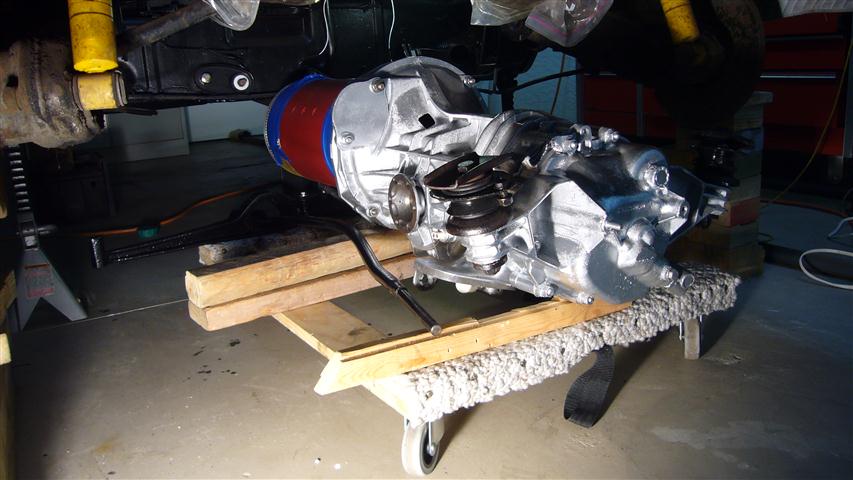

Electric motor bolted to original clutch and transmission:

Attached Image


Transmission overhauled by Dr. Evil.

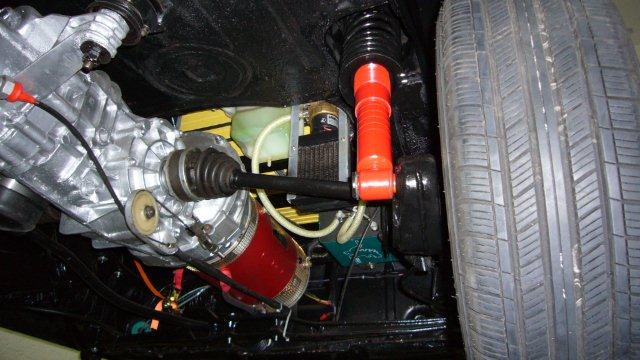

Motor / transmission installed:

Attached Image

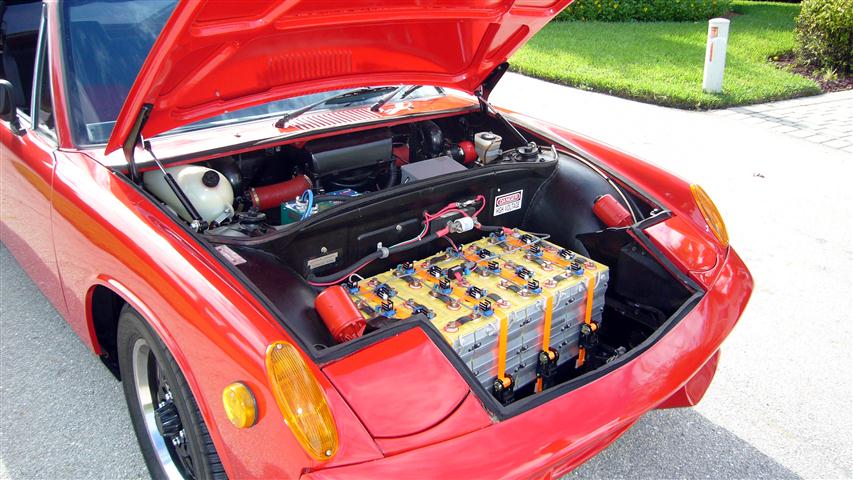

Front battery pack, charger, 12v aux battery:

Attached Image

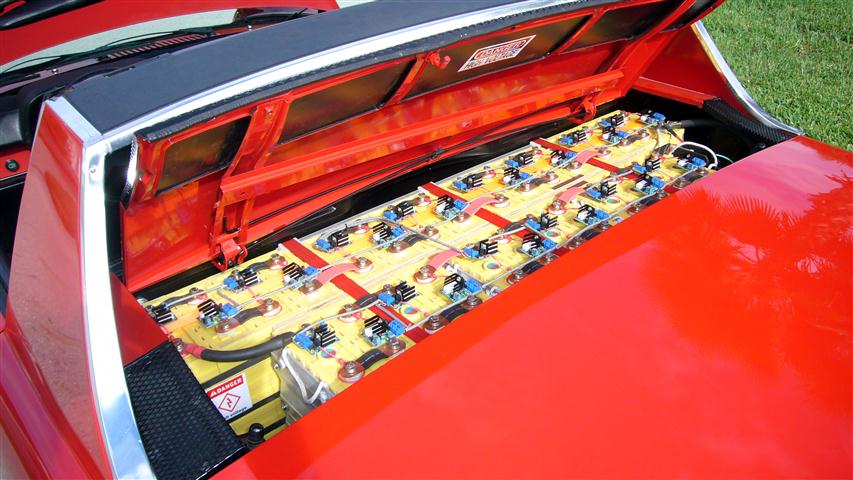

Rear battery pack mounted above electric motor:

Attached Image

Range on single charge is over 132 miles.

Attached Image

Too much fun!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jtg
post Jan 19 2011, 05:34 PM
Post #3649


Newbie
*

Group: Members
Posts: 45
Joined: 20-December 09
From: FL
Member No.: 11,153
Region Association: South East States

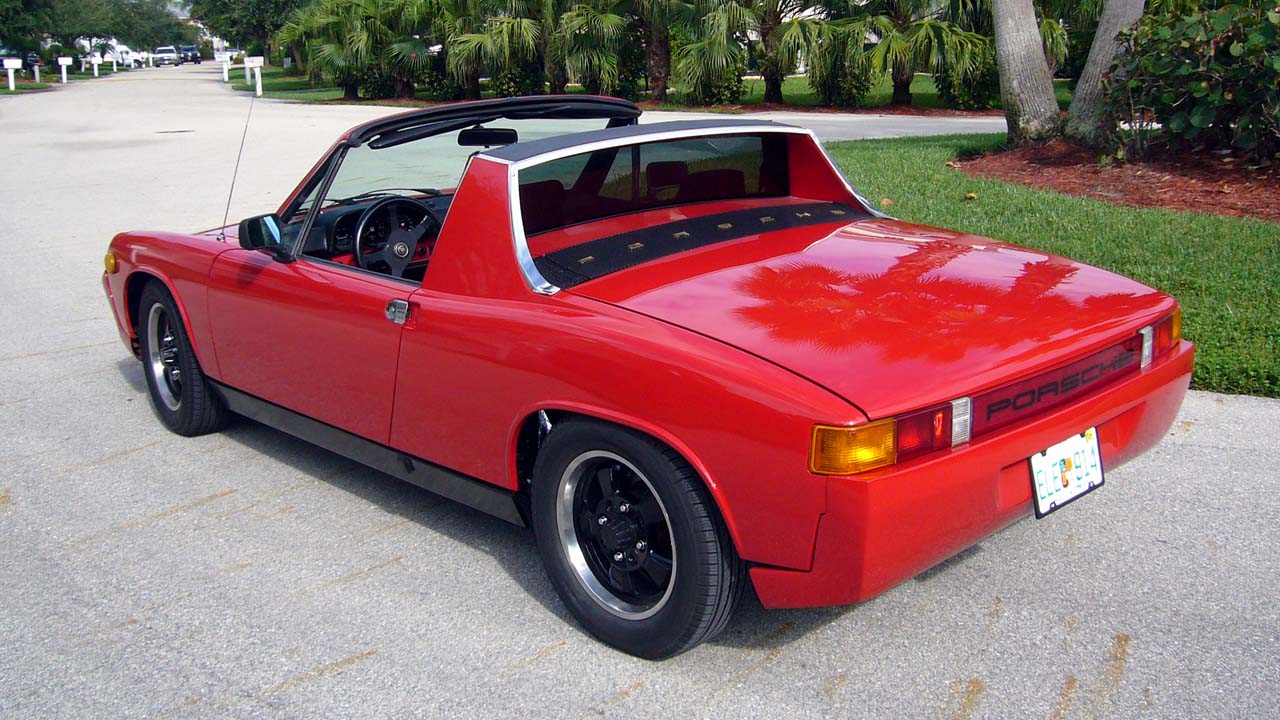

Attached Image


I got lots of help from the folks in this forum. Thanks!

(IMG:style_emoticons/default/driving.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
flipb
post Jan 20 2011, 07:50 AM
Post #3650


Senior Member
***

Group: Members
Posts: 1,766
Joined: 2-September 09
From: Fairfax, VA
Member No.: 10,752
Region Association: MidAtlantic Region
QUOTE(jtg @ Jan 19 2011, 06:34 PM) *

Attached Image


I got lots of help from the folks in this forum. Thanks!

(IMG:style_emoticons/default/driving.gif)


So cool. I love the idea of electric conversions. Can you start a build thread and go through what you did? How much power does your motor produce? Regen braking or just the original friction brakes?

Someday... (IMG:style_emoticons/default/idea.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Beach914
post Jan 20 2011, 08:03 AM
Post #3651


Senior Member
***

Group: Members
Posts: 980
Joined: 28-March 10
From: Aliso Viejo
Member No.: 11,519
Region Association: Southern California
QUOTE(jtg @ Jan 19 2011, 03:27 PM) *

Electric motor bolted to original clutch and transmission:

Transmission overhauled by Dr. Evil. Motor / transmission installed:

Front battery pack, charger, 12v aux battery:

Rear battery pack mounted above electric motor:

Range on single charge is over 132 miles.

Too much fun!



Your "Hell Hole" must really look bad !!!!! Just kidding.

What an awesome job on the car.

You're mileage on a charge is impressive. How long do you expect the batteries to last? I used to change out 6V Trojans on golf carts when I was a teenager. Reason for my bad back today.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jtg
post Jan 21 2011, 06:20 AM
Post #3652


Newbie
*

Group: Members
Posts: 45
Joined: 20-December 09
From: FL
Member No.: 11,153
Region Association: South East States
QUOTE
You're mileage on a charge is impressive. How long do you expect the batteries to last? I used to change out 6V Trojans on golf carts when I was a teenager. Reason for my bad back today.

Thanks for the nice comments beach914 and flipb.

Batteries are Lithium, manufacturer claims 3000-5000 cycles. That should be about 300,000 miles conservatively. We'll see..... (lead acid are good for about 700 cycles and I would have half the range. 35,000 miles before a battery change.)

I went simple, no regenerative braking. The car is light enough with the lithiums (2500 lbs) that the standard brakes are great. I do expect to go through them a little faster.

The motor is a WarP 9 (yes, that's the real name) made by Netgain. About 27 hp as measured like electric motors are measured. No relation to gas motor HP. Since I have a little more performance than the 1.8L car I'm guessing it's equivalent to 85 HP. I could get more performance but I'm limiting the amps going to the motor for longer life. O - 60 in 12 seconds is good enough for around town driving. We live in SW Florida, Have over a 1000 miles on it so far.

No plans to do a thread. Having to much fun driving it! A quick internet search indicates that over 30 914's have been converted so far. Check out http://www.evalbum.com/
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Madswede
post Jan 22 2011, 03:38 PM
Post #3653


Flat Out Driver
***

Group: Members
Posts: 853
Joined: 13-September 06
From: Rio Rancho NM
Member No.: 6,831
Region Association: Rocky Mountains
QUOTE(jtg @ Jan 21 2011, 05:20 AM) *

The motor is a WarP 9 (yes, that's the real name) made by Netgain. About 27 hp as measured like electric motors are measured. No relation to gas motor HP. Since I have a little more performance than the 1.8L car I'm guessing it's equivalent to 85 HP. I could get more performance but I'm limiting the amps going to the motor for longer life. O - 60 in 12 seconds is good enough for around town driving. We live in SW Florida, Have over a 1000 miles on it so far.


I bet the effective HP is higher than the 1.8L-85 HP because your car is likely heavier than the 1.8L was with all those batteries. Yet it still performs about the same! Nice! (IMG:style_emoticons/default/sunglasses.gif)

I'm still going to hold out for when electric cars can go 250 miles per charge over lots of hills, still have some performance capability better than a riding lawnmower, and when the electricity I use to charge them is made by nuclear energy. (IMG:style_emoticons/default/rolleyes.gif)

- Nelson
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jtg
post Jan 22 2011, 04:28 PM
Post #3654


Newbie
*

Group: Members
Posts: 45
Joined: 20-December 09
From: FL
Member No.: 11,153
Region Association: South East States
Here in FL over 75% of the electricity used to charge my 914 comes from clean nuclear or natural gas power plants. I can burn rubber both in first and reverse. This is all old technology, mostly from the 40's. I usually go 3 to 4 days between charges. Just went over 1000 miles since the conversion yesterday. Soooo fun to drive!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
orange914
post Jan 22 2011, 05:12 PM
Post #3655


http://5starmediaworks.com/index.html
****

Group: Members
Posts: 3,371
Joined: 26-March 05
From: Ceres, California
Member No.: 3,818
Region Association: Northern California
QUOTE(jtg @ Jan 19 2011, 03:27 PM) *

Motor / transmission installed:

Attached Image

Too much fun!

that is really cool and looks very nicely done. how does it seem to handle vrs. gas engine/weight distribution? i bet acceleration is a kick. i've heard the new electric cars are so quite that they are discussing adding some sort of noise to alert others around for saftey reasons

what do you figure it cost per "fillup"? how long does a full charge take?

if you don't mind, i always wondered roughly what kind of $ a nice job like yours would cost to do.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
echocanyons
post Jan 23 2011, 04:25 PM
Post #3656


Advanced Member
****

Group: Benefactors
Posts: 2,096
Joined: 24-December 02
From: Bay Area, CA
Member No.: 7
Region Association: Central California

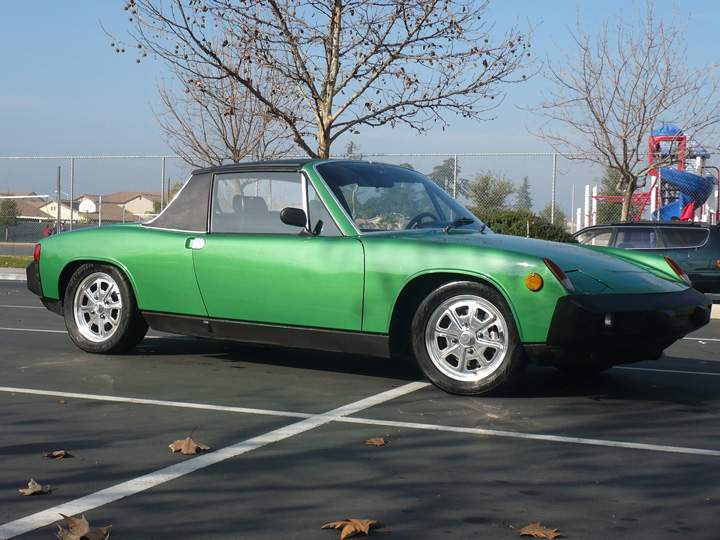

Another shot of my driver. I have driven this nearly daily for about a year no0w with no real problems.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jtg
post Jan 24 2011, 09:03 AM
Post #3657


Newbie
*

Group: Members
Posts: 45
Joined: 20-December 09
From: FL
Member No.: 11,153
Region Association: South East States
QUOTE
that is really cool and looks very nicely done. how does it seem to handle vrs. gas engine/weight distribution? i bet acceleration is a kick. i've heard the new electric cars are so quite that they are discussing adding some sort of noise to alert others around for saftey reasons

what do you figure it cost per "fillup"? how long does a full charge take?

if you don't mind, i always wondered roughly what kind of $ a nice job like yours would cost to do.



Car: $3500, Electrical conversion: $16,000 (due mostly to batteries: $9000).

6 months restoring a mostly rust free roller.
3 months converting to electric.

About $3 worth of electricity to charge to get over 130 miles.

A friend that owned a 914 drove it and said the handling was just as good and was faster than his. Batteries were placed to keep the weight distribution the same.

It does make noise: Transmission, brake drag, tire noise, wind noise. All the stuff that the gas engine normally masks. I haven't been able to "sneak up" on anyone yet!

Most of the work was restoring / repairing this 40 year old car.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Rand
post Feb 5 2011, 12:23 AM
Post #3658


Cross Member
*****

Group: Members
Posts: 7,409
Joined: 8-February 05
From: OR
Member No.: 3,573
Region Association: None
Nice work. What is the final total weight of the car with all batteries on board?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Rand
post Feb 5 2011, 12:35 AM
Post #3659


Cross Member
*****

Group: Members
Posts: 7,409
Joined: 8-February 05
From: OR
Member No.: 3,573
Region Association: None
QUOTE
About $3 worth of electricity to charge to get over 130 miles.

That seems a lot lower than what I've heard for other vehicles. Is this typical? How much do different electric-power rates come into play? Does it matter where you live, or whether you charge at night? Well, of course.... I just haven't made this math work yet. Curious.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
orange914
post Feb 5 2011, 11:44 PM
Post #3660


http://5starmediaworks.com/index.html
****

Group: Members
Posts: 3,371
Joined: 26-March 05
From: Ceres, California
Member No.: 3,818
Region Association: Northern California
QUOTE(jtg @ Jan 24 2011, 07:03 AM) *

QUOTE
that is really cool and looks very nicely done. how does it seem to handle vrs. gas engine/weight distribution? i bet acceleration is a kick. i've heard the new electric cars are so quite that they are discussing adding some sort of noise to alert others around for saftey reasons

what do you figure it cost per "fillup"? how long does a full charge take?

if you don't mind, i always wondered roughly what kind of $ a nice job like yours would cost to do.



Car: $3500, Electrical conversion: $16,000 (due mostly to batteries: $9000).

6 months restoring a mostly rust free roller.
3 months converting to electric.

About $3 worth of electricity to charge to get over 130 miles.

A friend that owned a 914 drove it and said the handling was just as good and was faster than his. Batteries were placed to keep the weight distribution the same.

It does make noise: Transmission, brake drag, tire noise, wind noise. All the stuff that the gas engine normally masks. I haven't been able to "sneak up" on anyone yet!

Most of the work was restoring / repairing this 40 year old car.

would you consider selling? (IMG:style_emoticons/default/smile.gif)
