> HOW TO: Convert to real 5-lug in the rear using 944 CVs
matthepcat
post Jun 8 2011, 05:23 PM
Post #41


Meat Popsicle
***

Group: Members
Posts: 1,462
Joined: 13-December 09
From: Saratoga CA
Member No.: 11,125
Region Association: Northern California
QUOTE(PeeGreen 914 @ Jun 8 2011, 03:13 PM) *

You can use spacers on the caliper to line them up (IMG:style_emoticons/default/confused24.gif)



Maybe. I guess I feel that this is sort of "janky". Have you seen this method used for a similar application?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Jun 8 2011, 05:29 PM
Post #42


Resident German
*************************

Group: Admin
Posts: 41,886
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
QUOTE(matthepcat @ Jun 8 2011, 03:06 PM) *
Update on 944 hubs.

They don't work becuase they push the brake rotor out too far. This makes the brake caliper to rotor alignment incorrect.

I knew there was a reason i didn't use the 944 hubs ... (IMG:style_emoticons/default/smile.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Eric_Shea
post Jun 8 2011, 05:47 PM
Post #43


PMB Performance
***************

Group: Admin
Posts: 19,289
Joined: 3-September 03
From: Salt Lake City, UT
Member No.: 1,110
Region Association: Rocky Mountains
Have you tried the 944 rear rotor? Its quite a bit shallower.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
matthepcat
post Jun 8 2011, 05:50 PM
Post #44


Meat Popsicle
***

Group: Members
Posts: 1,462
Joined: 13-December 09
From: Saratoga CA
Member No.: 11,125
Region Association: Northern California
No I haven't but I assume this would require me to run a different rear brake caliper?


Matt

QUOTE(Eric_Shea @ Jun 8 2011, 04:47 PM) *

Have you tried the 944 rear rotor? Its quite a bit shallower.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Eric_Shea
post Jun 8 2011, 05:57 PM
Post #45


PMB Performance
***************

Group: Admin
Posts: 19,289
Joined: 3-September 03
From: Salt Lake City, UT
Member No.: 1,110
Region Association: Rocky Mountains
Why? I believe they're within 1mm in diameter.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
matthepcat
post Jun 8 2011, 07:29 PM
Post #46


Meat Popsicle
***

Group: Members
Posts: 1,462
Joined: 13-December 09
From: Saratoga CA
Member No.: 11,125
Region Association: Northern California
QUOTE(Eric_Shea @ Jun 8 2011, 04:57 PM) *

Why? I believe they're within 1mm in diameter.



Hmm, Thanks for the tip.

I never really payed any attention to them when I pulled the hubs off at the junk yard. I thought the rear rotors on the 944 were vented, and therefore much thicker.


I will give it a try.

Matt
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Eric_Shea
post Jun 8 2011, 09:37 PM
Post #47


PMB Performance
***************

Group: Admin
Posts: 19,289
Joined: 3-September 03
From: Salt Lake City, UT
Member No.: 1,110
Region Association: Rocky Mountains
Ahhhhh.. That, yes, they are vented. For some reason I though you were using vented with this setup.

Go with the caliper spacers... Good enough for Ferrari good enough for you (IMG:style_emoticons/default/wink.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Jun 9 2011, 12:06 AM
Post #48


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
If caliper spacers are too janky, then pull your trailing arms, weld more material onto the caliper mounts, mill it, drill it, and tap it. Ahhhh, perfection. (IMG:style_emoticons/default/biggrin.gif)

Or maybe some red anodized billet aluminum spacers. (IMG:style_emoticons/default/laugh.gif)

Just giving you a hard time... (IMG:style_emoticons/default/poke.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
PRS914-6
post Jun 9 2011, 06:56 AM
Post #49


Excellence Magazine Project 914 3.6
***

Group: Retired Members
Posts: 1,278
Joined: 20-May 06
From: Central California
Member No.: 6,031
Region Association: None
QUOTE(McMark @ Jun 8 2011, 11:06 PM) *

If caliper spacers are too janky, then pull your trailing arms, weld more material onto the caliper mounts, mill it, drill it, and tap it. Ahhhh, perfection. (IMG:style_emoticons/default/biggrin.gif)

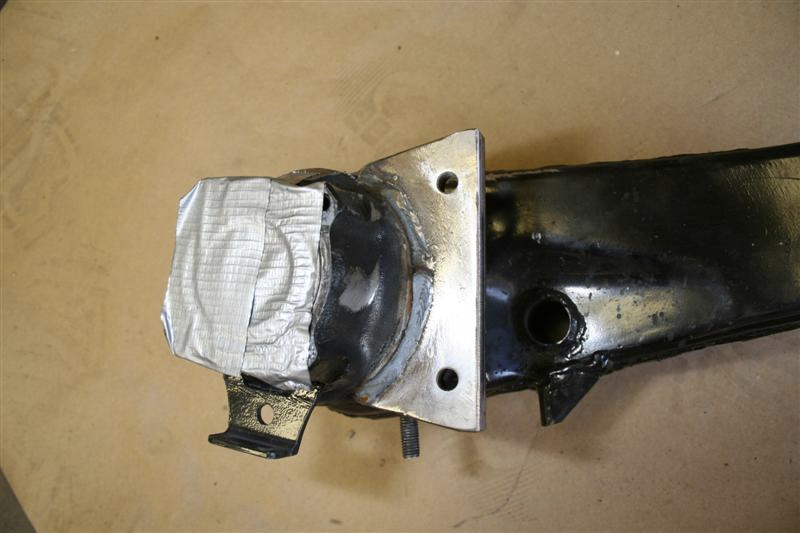

Get out the cutting torch.....there's joy in that! Then you can have any thing you want......

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
matthepcat
post Jun 9 2011, 08:27 AM
Post #50


Meat Popsicle
***

Group: Members
Posts: 1,462
Joined: 13-December 09
From: Saratoga CA
Member No.: 11,125
Region Association: Northern California
Haha! Well I think swapping hubs would be a tad easier than metal fabrication (IMG:style_emoticons/default/smile.gif)

Spacers it is.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jaxdream
post Jun 9 2011, 08:46 AM
Post #51


Senior Member
***

Group: Members
Posts: 974
Joined: 8-July 08
From: North Central Tennessee
Member No.: 9,270
Region Association: South East States
QUOTE(matthepcat @ Jun 9 2011, 06:27 AM) *

Haha! Well I think swapping hubs would be a tad easier than metal fabrication (IMG:style_emoticons/default/smile.gif)

Spacers it is.


Matt did you measure the amount of offset the 944 hubs create ?? Just curious as to the dimensions and wondering if using 944 hubs and rotors would give similar setup specs to the other methods of modification. I went with thw SC hubcentric hub/ stub combo for the 944 cv mod and using the 911 24mm vented rotor with M rear calipers, got 5mm spacer washers from Eric Shea to get the caliper / rotor offset alingment .

Jack
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
matthepcat
post Jun 9 2011, 12:17 PM
Post #52


Meat Popsicle
***

Group: Members
Posts: 1,462
Joined: 13-December 09
From: Saratoga CA
Member No.: 11,125
Region Association: Northern California
Hey Jack,

I have not measured yet (hopefully get some time in this weekend).

If you are looking to push out your wheels for inner clearance, this would help for sure. I will take some measurements this weekend and post back.

So you are running m rear calipers in the rear? Did you lose the e-brake?

Matt

QUOTE(jaxdream @ Jun 9 2011, 07:46 AM) *

QUOTE(matthepcat @ Jun 9 2011, 06:27 AM) *

Haha! Well I think swapping hubs would be a tad easier than metal fabrication (IMG:style_emoticons/default/smile.gif)

Spacers it is.


Matt did you measure the amount of offset the 944 hubs create ?? Just curious as to the dimensions and wondering if using 944 hubs and rotors would give similar setup specs to the other methods of modification. I went with thw SC hubcentric hub/ stub combo for the 944 cv mod and using the 911 24mm vented rotor with M rear calipers, got 5mm spacer washers from Eric Shea to get the caliper / rotor offset alingment .

Jack
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jaxdream
post Jun 9 2011, 04:12 PM
Post #53


Senior Member
***

Group: Members
Posts: 974
Joined: 8-July 08
From: North Central Tennessee
Member No.: 9,270
Region Association: South East States

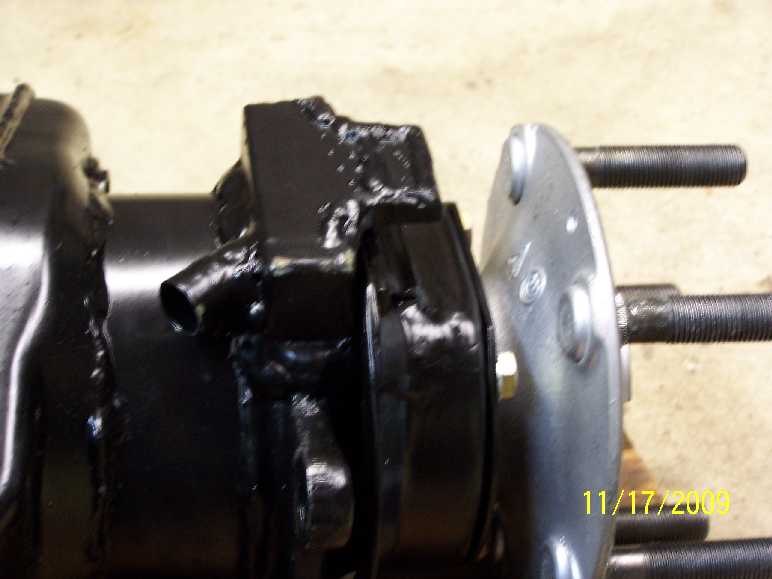

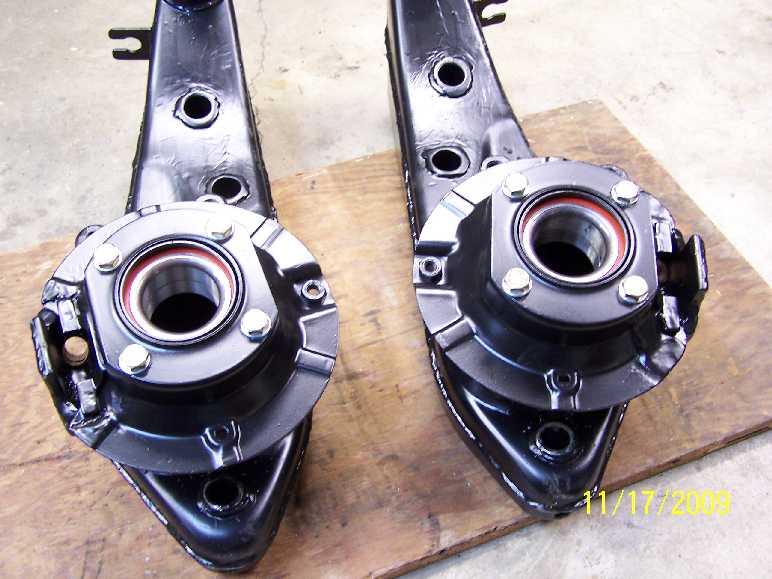

Yes M rear calipers and converted to alternative e-brake. I modified the arms to use 944/928 e brake shoes with 944 shoe expanders. The welds and mod looks fffuuuugggly , but it will work using the 914 passenger side cable modified with the 944 ends to the shoe expander. I check and check mocking the operation of it , inside the 911 rear rotor / drum it doesn't need to expand very far. Haven't installed the cables and such yet , all bench testing . Used part of a 928 and 911 backing plated grafted together to hold shoes and spreader . Welded a 1/4 thick piece of angle for the anchor plate for the shoes . Plans ( yeah right ) are to use a 964 e-brake lever center mounted over the rear of the tunnel , on the list to do in the future and have read just about every thread / post on e-brake mods that I can find.
Jack
Attached Image
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jimkelly
post Nov 18 2011, 07:56 AM
Post #54


Delaware USA
****

Group: Members
Posts: 4,969
Joined: 5-August 04
From: Delaware, USA
Member No.: 2,460
Region Association: MidAtlantic Region
some cv dim info
http://blindchickenracing.com/How_to/CVJoi..._joints_101.htm

for clarification - this set up requires four 33 spline 944 cvs which are from years 1986/87. pelican has them for $78.25 each.
http://www.pelicanparts.com/catalog/shopca...l_pg1.htm#item0

cause my next car will be suby engine and suby trans and porcharu's magic flanges, i will only be needing from tsi set up for my set up. 2 911 stub axles and 2 911 hubs - along with complete bus axle assys with 100mm cvs.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Aaron Cox
post Mar 11 2012, 03:59 PM
Post #55


Professional Lawn Dart
***************

Group: Retired Admin
Posts: 24,541
Joined: 1-February 03
From: OC
Member No.: 219
Region Association: Southern California
Andy,

Many thanks for putting this write up together. I'm in the middle of this same project.

Question - Do the 944 CV's require CV gaskets between the stub/cv and trans/cv?

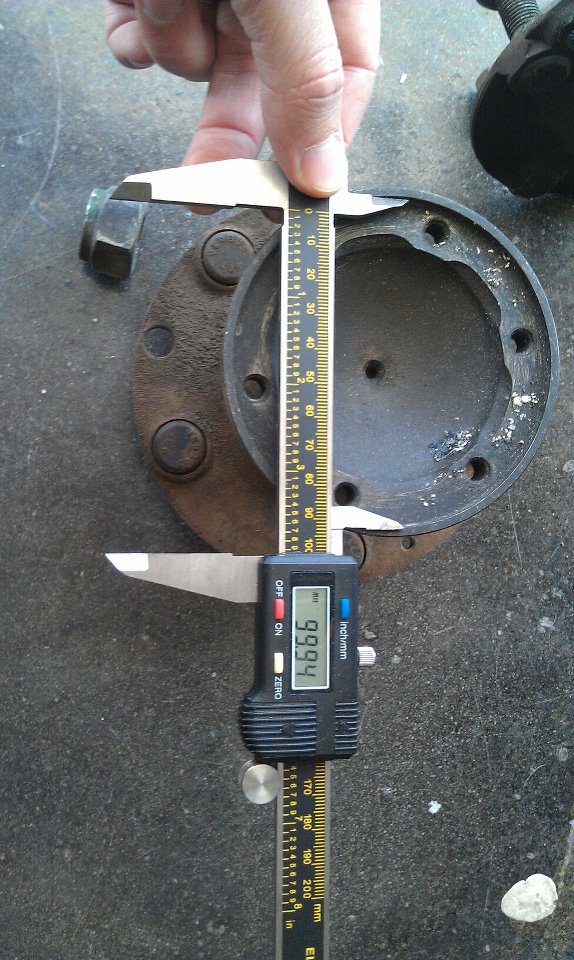

Another way to accomplish this task is with 944/951 stub axles instead of SC stubs. A 5mm spacer is required on the bearing flange (944's/later 911's used a 5mm wider bearing).
Attached Image

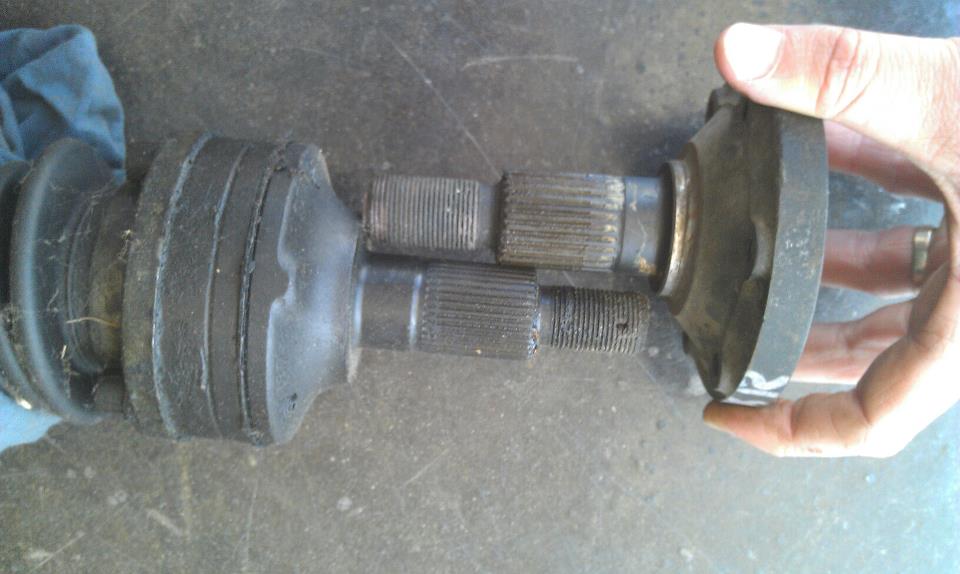

And it appears the 951 stubs do not require a cv gasket (they are flanged to fit over the corners of the cv joint).

See 951 stub below - no cv gasket required.
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
matthepcat
post Mar 12 2012, 01:10 AM
Post #56


Meat Popsicle
***

Group: Members
Posts: 1,462
Joined: 13-December 09
From: Saratoga CA
Member No.: 11,125
Region Association: Northern California
I had to use a cv gasket between the inner cv and trans output flange.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ClayPerrine
post Mar 12 2012, 11:23 AM
Post #57


Life's been good to me so far.....
***************

Group: Admin
Posts: 15,899
Joined: 11-September 03
From: Hurst, TX.
Member No.: 1,143
Region Association: NineFourteenerVille
Yes, they do require a CV gasket. If you don't put them in, it slings grease everywhere... BTDT!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Aaron Cox
post Mar 12 2012, 11:36 AM
Post #58


Professional Lawn Dart
***************

Group: Retired Admin
Posts: 24,541
Joined: 1-February 03
From: OC
Member No.: 219
Region Association: Southern California
QUOTE(ClayPerrine @ Mar 12 2012, 10:23 AM) *

Yes, they do require a CV gasket. If you don't put them in, it slings grease everywhere... BTDT!


even the stub axle side??

Wow. Grease slinga!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
matthepcat
post Mar 12 2012, 03:25 PM
Post #59


Meat Popsicle
***

Group: Members
Posts: 1,462
Joined: 13-December 09
From: Saratoga CA
Member No.: 11,125
Region Association: Northern California
No.

Only on the inner CV.

QUOTE(Aaron Cox @ Mar 12 2012, 09:36 AM) *

QUOTE(ClayPerrine @ Mar 12 2012, 10:23 AM) *

Yes, they do require a CV gasket. If you don't put them in, it slings grease everywhere... BTDT!


even the stub axle side??

Wow. Grease slinga!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Aaron Cox
post Mar 12 2012, 03:45 PM
Post #60


Professional Lawn Dart
***************

Group: Retired Admin
Posts: 24,541
Joined: 1-February 03
From: OC
Member No.: 219
Region Association: Southern California
roger matt. Thanks.

BTW - anyone need any 951 stub axle spacers made? Having my machinist bang out a set for me, and figured - while he's making some......
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
