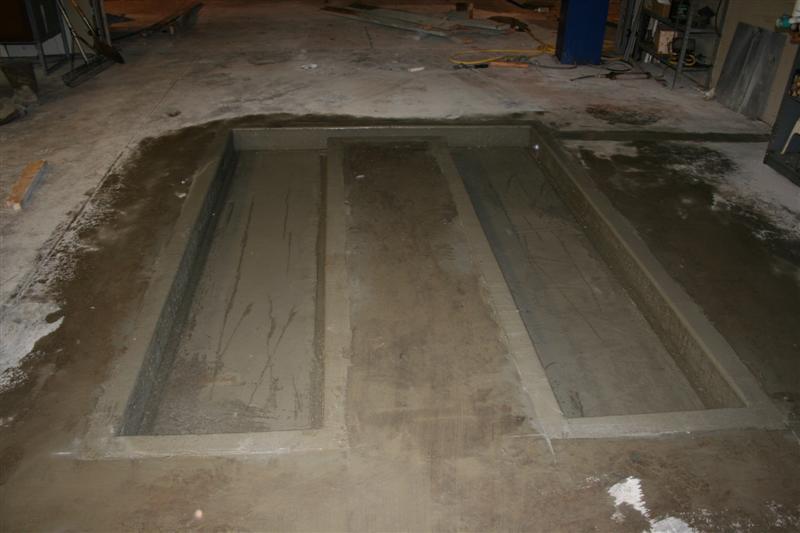

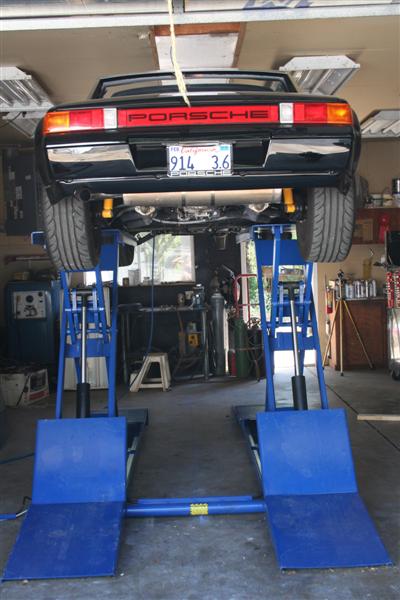

Thought I would post my installation of a scissor lift. It's a full rise scissor lift made by Bend Pak and will raise a vehicle 6 feet. It's designed to sit on the floor and ramps were included but I hated that you could only get one car at a time in the shop and the lift kind of consumed the area. The two post systems are much cheaper but then you have posts to deal with.

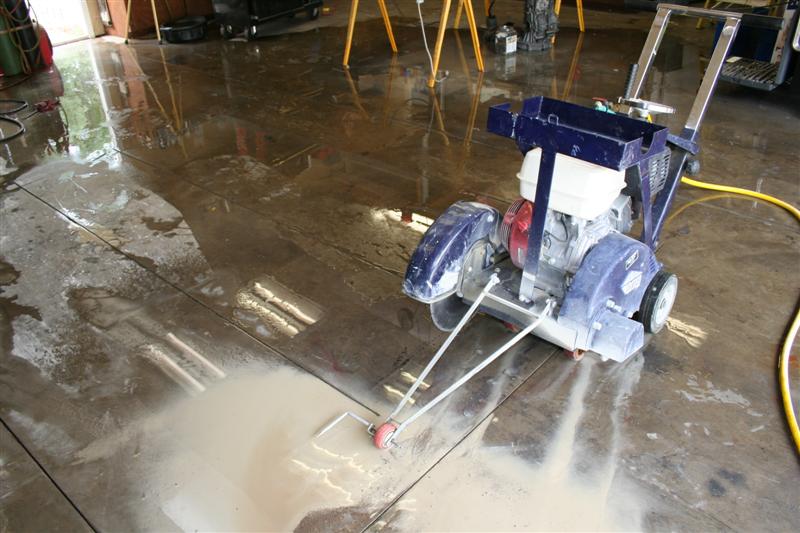

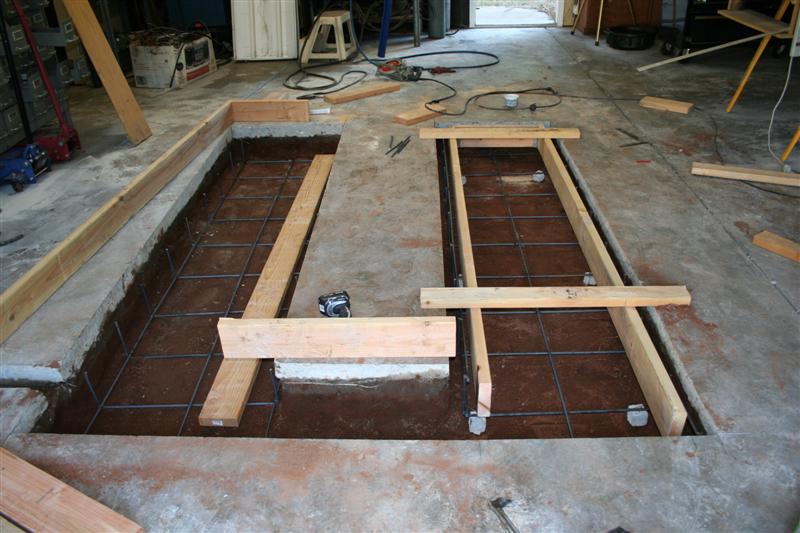

So, out came the saw, shovel, forms and concrete truck. Once the concrete cures, I will drop it in the new hole and the lift will be flush with the surface of my shop with 3/4" clearance all the way around. No more ramps or metal sticking up. I even installed an underground conduit for the hydraulic hoses and the air emergency lock system.

The idea being to be able to use the garage like normal and still have a lift. It was a lot of work but I hope it will be worth it in the long run.
Attached Image
Attached Image
Attached Image
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Eric_Shea
post May 31 2008, 12:17 AM
Post #2


PMB Performance
***************

Group: Admin
Posts: 19,289
Joined: 3-September 03
From: Salt Lake City, UT
Member No.: 1,110
Region Association: Rocky Mountains
Yeowza... nice job (as usual)

Humor us; show us a picture of something you've done 1/2 assed! Let us know you're mortal damn it!! (IMG:style_emoticons/default/biggrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
biosurfer1
post May 31 2008, 12:31 AM
Post #3


Teener fo Life!
****

Group: Members
Posts: 3,020
Joined: 3-August 03
From: Roseville, CA
Member No.: 977
Region Association: Northern California
So when do us locals get a tour??
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
PRS914-6
post May 31 2008, 12:38 AM
Post #4


Excellence Magazine Project 914 3.6
***

Group: Retired Members
Posts: 1,278
Joined: 20-May 06
From: Central California
Member No.: 6,031
Region Association: None
QUOTE(biosurfer1 @ May 30 2008, 10:31 PM) *

So when do us locals get a tour??


My plan is to paint my shop and replace the lighting in the next month. Once I'm done with that I'm planning on having a "celebration" BBQ since the car is done too. Can't pick a date until I'm done though.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
URY914
post May 31 2008, 06:49 AM
Post #5


I built the lightest 914 in the history of mankind.
****************************************************************************************************

Group: Members
Posts: 124,370
Joined: 3-February 03
From: Jacksonville, FL
Member No.: 222
Region Association: None
Very nice. If you're going to do a job, do it right. And you did.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
iamchappy
post May 31 2008, 07:56 AM
Post #6


It all happens so fast!
****

Group: Members
Posts: 4,893
Joined: 5-November 03
From: minnetonka, mn
Member No.: 1,315
Region Association: Upper MidWest
Just what i dont need, having to start on another project, Thanks!

Good work, I have considered recessing my lift into the floor as well, I have to use wooden ramps to drive up on to clear the lift.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Gint
post May 31 2008, 08:14 AM
Post #7


Mike Ginter
***************

Group: Admin
Posts: 16,095
Joined: 26-December 02
From: Denver CO.
Member No.: 20
Region Association: Rocky Mountains
Nice!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
PRS914-6
post May 31 2008, 08:29 AM
Post #8


Excellence Magazine Project 914 3.6
***

Group: Retired Members
Posts: 1,278
Joined: 20-May 06
From: Central California
Member No.: 6,031
Region Association: None
Another thing to consider if you are doing this and have a roll up door......I installed a Liftmaster 3800 jackshaft door opener. It operates off the spring shaft on the wall unlike the chain or screw style that sits overhead in the middle of the garage, just ripe to stick through the top of your car. (IMG:style_emoticons/default/sad.gif) I also extended the door tracking up 12". When open my door almost touches the ceiling, only eating up a few inches of ceiling height now.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Gint
post May 31 2008, 08:38 AM
Post #9


Mike Ginter
***************

Group: Admin
Posts: 16,095
Joined: 26-December 02
From: Denver CO.
Member No.: 20
Region Association: Rocky Mountains
I've been considering one of those for some time now to get the extra clearance for my lift. How much room does the liftmaster box need on the side of the door?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Krieger
post May 31 2008, 08:52 AM
Post #10


Advanced Member
****

Group: Members
Posts: 4,771
Joined: 24-May 04
From: Santa Rosa CA
Member No.: 2,104
Region Association: None
(IMG:style_emoticons/default/smilie_pokal.gif) Very nice! I've never seen anything like that. Please post some pics when complete.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
PRS914-6
post May 31 2008, 08:58 AM
Post #11


Excellence Magazine Project 914 3.6
***

Group: Retired Members
Posts: 1,278
Joined: 20-May 06
From: Central California
Member No.: 6,031
Region Association: None
QUOTE(Gint @ May 31 2008, 06:38 AM) *

I've been considering one of those for some time now to get the extra clearance for my lift. How much room does the liftmaster box need on the side of the door?


Normally you need about 3 inches vertical and 9" on the side. It can mount on the right or left side. I actually cheated by notching out the sheetrock and raised my shaft and operator even higher. The limiting factor is the spring shaft, not the operator. To get maximum clearance, I raised the shaft as high as possible and then raised the end of the track as high as possible. The result is a track that is not quite level overhead but it really doesn't hurt anything and it gives maximum clearance in the center where you really need it. With my 10' ceiling, I can raise the 914 the full height of the lift and walk under the car without bending over. I'm a short guy though.......
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Gint
post May 31 2008, 11:39 AM
Post #12


Mike Ginter
***************

Group: Admin
Posts: 16,095
Joined: 26-December 02
From: Denver CO.
Member No.: 20
Region Association: Rocky Mountains
My ceiling is only 9.5' and I'm not really short. I need all the room I can get. I'm using a hydraulic stool on wheels and roll around underneath. It actually works pretty well, but I'd love to get the extra height.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
roadster fan
post May 31 2008, 02:49 PM
Post #13


Project Frankenstein !!!!!!!!
***

Group: Members
Posts: 1,009
Joined: 24-November 05
From: Aptos, CA
Member No.: 5,184
Region Association: Northern California
(IMG:style_emoticons/default/wub.gif) Another inspiration. I agree with Eric, please show us something you did in your shop below your usual standard. please, please, please....... (IMG:style_emoticons/default/pray.gif)

Awesome job. I saw a similiar project on another forum (garage journal maybe) that had a cover over it to make a smooth floor when not being used. No chance to roll an ankle etc.

Jim
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post May 31 2008, 06:22 PM
Post #14


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest
Wow, nice setup. I need one!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ConeDodger
post Jun 1 2008, 11:55 AM
Post #15


Apex killer!
***************

Group: Members
Posts: 23,859
Joined: 31-December 04
From: Tahoe Area
Member No.: 3,380
Region Association: Northern California
QUOTE(Eric_Shea @ May 30 2008, 11:17 PM) *

Yeowza... nice job (as usual)

Humor us; show us a picture of something you've done 1/2 assed! Let us know you're mortal damn it!! (IMG:style_emoticons/default/biggrin.gif)


E,

You ought to see his tractor leak hydraulic fluid! (IMG:style_emoticons/default/biggrin.gif) I benefitted from this purchase and install. I got his previous lift that goes to about 40" high... Plenty for me.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
So.Cal.914
post Jun 1 2008, 12:02 PM
Post #16


"...And it has a front trunk too."
*****

Group: Members
Posts: 6,588
Joined: 15-February 04
From: Low Desert, CA./ Hills of N.J.
Member No.: 1,658
Region Association: None
QUOTE(ConeDodger @ Jun 1 2008, 10:55 AM) *

QUOTE(Eric_Shea @ May 30 2008, 11:17 PM) *

Yeowza... nice job (as usual)

Humor us; show us a picture of something you've done 1/2 assed! Let us know you're mortal damn it!! (IMG:style_emoticons/default/biggrin.gif)


E,

You ought to see his tractor leak hydraulic fluid! (IMG:style_emoticons/default/biggrin.gif) I benefitted from this purchase and install. I got his previous lift that goes to about 40" high... Plenty for me.


To bad Clay didn't have you around when him and Slits had there 'Height' contest.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
PRS914-6
post Jun 1 2008, 12:15 PM
Post #17


Excellence Magazine Project 914 3.6
***

Group: Retired Members
Posts: 1,278
Joined: 20-May 06
From: Central California
Member No.: 6,031
Region Association: None
QUOTE(ConeDodger @ Jun 1 2008, 09:55 AM) *

[You ought to see his tractor leak hydraulic fluid! (IMG:style_emoticons/default/biggrin.gif)


Hey I fixed that!!! (IMG:style_emoticons/default/chair.gif) Of course the reason was that the leaking hydraulic fluid was costing me 10 times more than the damn seal to fix it.

Yep, I admit I am anally picky. Think about my poor wife having to deal with that (IMG:style_emoticons/default/slap.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ConeDodger
post Jun 1 2008, 12:28 PM
Post #18


Apex killer!
***************

Group: Members
Posts: 23,859
Joined: 31-December 04
From: Tahoe Area
Member No.: 3,380
Region Association: Northern California
QUOTE(PRS914-6 @ Jun 1 2008, 11:15 AM) *

QUOTE(ConeDodger @ Jun 1 2008, 09:55 AM) *

[You ought to see his tractor leak hydraulic fluid! (IMG:style_emoticons/default/biggrin.gif)


Hey I fixed that!!! (IMG:style_emoticons/default/chair.gif) Of course the reason was that the leaking hydraulic fluid was costing me 10 times more than the damn seal to fix it.

Yep, I admit I am anally picky. Think about my poor wife having to deal with that (IMG:style_emoticons/default/slap.gif)


Well there you go... I have been to Paul's house several times and the tractor was the only thing that came up a little short... And now, even that is (IMG:style_emoticons/default/biggrin.gif)

Paul, do you have pics of the lift in the sunken bed yet?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
PRS914-6
post Jun 1 2008, 12:43 PM
Post #19


Excellence Magazine Project 914 3.6
***

Group: Retired Members
Posts: 1,278
Joined: 20-May 06
From: Central California
Member No.: 6,031
Region Association: None
QUOTE(ConeDodger @ Jun 1 2008, 10:28 AM) *

Paul, do you have pics of the lift in the sunken bed yet?


Not yet. I'm really chomping at the bit to stick it in there (IMG:style_emoticons/default/w00t.gif) but I don't want to chip the concrete since it's so green. That lift weighs about 1500 lbs and it will tough to drop it in without incident.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ConeDodger
post Jun 1 2008, 01:50 PM
Post #20


Apex killer!
***************

Group: Members
Posts: 23,859
Joined: 31-December 04
From: Tahoe Area
Member No.: 3,380
Region Association: Northern California
QUOTE(PRS914-6 @ Jun 1 2008, 11:43 AM) *

QUOTE(ConeDodger @ Jun 1 2008, 10:28 AM) *

Paul, do you have pics of the lift in the sunken bed yet?


Not yet. I'm really chomping at the bit to stick it in there (IMG:style_emoticons/default/w00t.gif) but I don't want to chip the concrete since it's so green. That lift weighs about 1500 lbs and it will tough to drop it in without incident.


Do you need help dropping it in? I know you are tight with your neighbors but I could come up if you want. I want to get you to install those Elephant Bushings on my rear control arms anyway. And I have a little repair to do on some lugs I got from Eric Shea. Two popped out during the shipping. He tack welds them in and maybe you could reweld them?

Are you going to lower it in with the tractor?
