> The Project Anklebiter Build Thread., 8/29 Lid latches and glamor shots...
plymouth37
post Nov 28 2015, 11:31 AM
Post #1141


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest

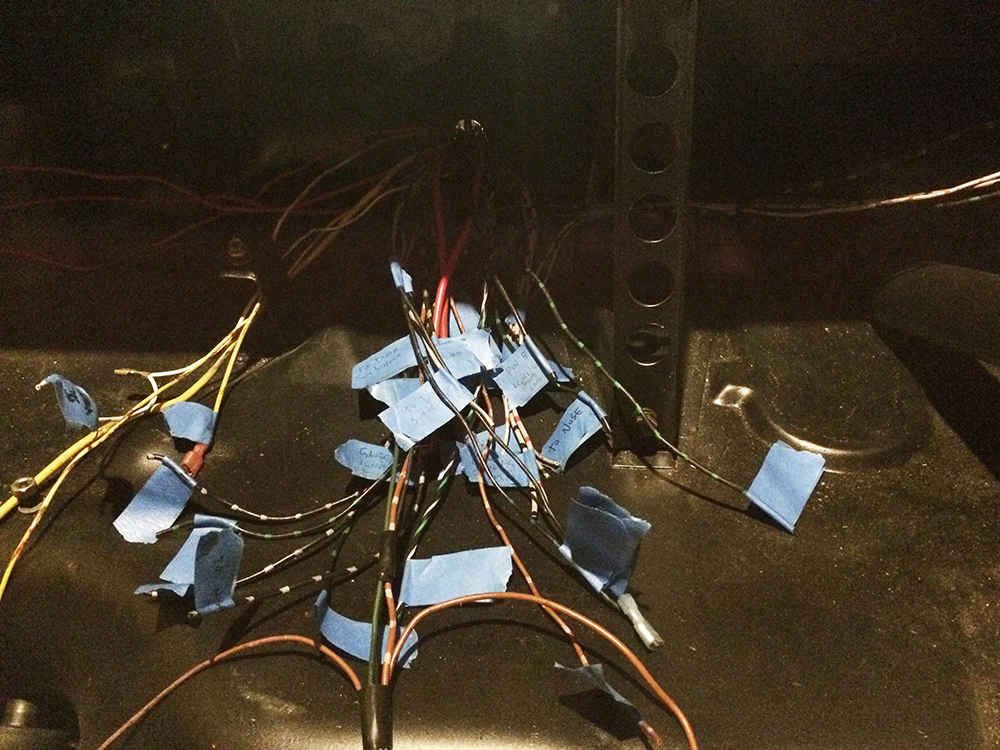

I have been doing a lot of wiring work on the car over the past couple of weeks but there isn't much to see, I have sorted and identified all of the wires that I need to wire my new relay and fuse panel into, and culled any unneeded wires. Now that the wires are under control I will start building the relay/fuse panel soon.
Attached Image

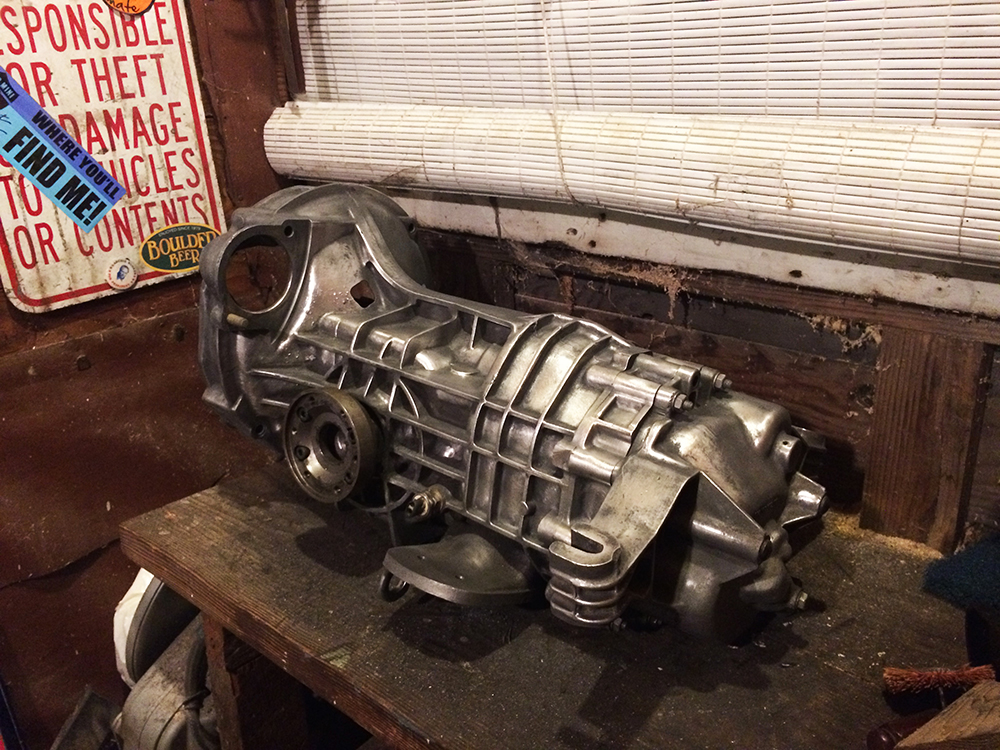

While I am waiting on clutch components I took the opportunity to clean the transaxle, it will get a fresh coat of Eastwood Alumablast as soon at it is warm enough to spray.
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bigkensteele
post Nov 28 2015, 09:57 PM
Post #1142


Major Member
****

Group: Members
Posts: 2,197
Joined: 30-August 04
From: Cincinnati, OH
Member No.: 2,660
Region Association: South East States
Interesting - you are sticking with the 901. With your fab skills and the insane nature of this build, I am just wondering why you wouldn't go to a Subi or Boxster trans?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mgp4591
post Nov 29 2015, 12:31 AM
Post #1143


914 Guru
*****

Group: Members
Posts: 5,481
Joined: 1-August 12
From: Salt Lake City Ut
Member No.: 14,748
Region Association: Intermountain Region
QUOTE(bigkensteele @ Nov 28 2015, 08:57 PM) *

Interesting - you are sticking with the 901. With your fab skills and the insane nature of this build, I am just wondering why you wouldn't go to a Subi or Boxster trans?

STI six speed? Maybe take advantage of all the boosted power?! Oh, and the more robust case would make for a better stressed member platform? (IMG:style_emoticons/default/idea.gif) (IMG:style_emoticons/default/popcorn[1].gif)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Nov 29 2015, 12:51 AM
Post #1144


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest
While entertaining, switching which tranny I use this late in the build would ensure this car never runs again, maybe I upgrade later but I am keeping forward momentum on this project and not looking back. 901 is fine for now, the car only weighs 1500 lbs, it doesn't need a huge tranny.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mgp4591
post Nov 29 2015, 12:56 AM
Post #1145


914 Guru
*****

Group: Members
Posts: 5,481
Joined: 1-August 12
From: Salt Lake City Ut
Member No.: 14,748
Region Association: Intermountain Region
QUOTE(plymouth37 @ Nov 28 2015, 11:51 PM) *

While entertaining, switching which tranny I use this late in the build would ensure this car never runs again, maybe I upgrade later but I am keeping forward momentum on this project and not looking back. 901 is fine for now, the car only weighs 1500 lbs, it doesn't need a huge tranny.

Sounds good to me if it's good for you- I think most of us want to see your end result as much as you do! Well second thought, you probably want it more... (IMG:style_emoticons/default/shades.gif)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Dec 31 2015, 03:50 PM
Post #1146


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest
So I just finished up the new relay and fuse board wiring diagram. I am using most of the stock wiring harness with a few new additions, and running it with modern fuses, relays and micro switches. All lighting will be LED so amp draw is pretty minimal, next step is to fab up the board and wire it for real! Happy New Year Everybody! (IMG:style_emoticons/default/drunk.gif)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
wingnut86
post Dec 31 2015, 04:11 PM
Post #1147


...boola la boo boola boo...
***

Group: Members
Posts: 1,053
Joined: 22-April 10
From: South Carolina
Member No.: 11,645
Region Association: South East States
Same to you Dane!

Here's hoping the storms didn't dampen your spirit too much. Let me know if you need something from my sale cache.

Happy New Year!

Dave
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Jan 30 2016, 12:41 PM
Post #1148


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest

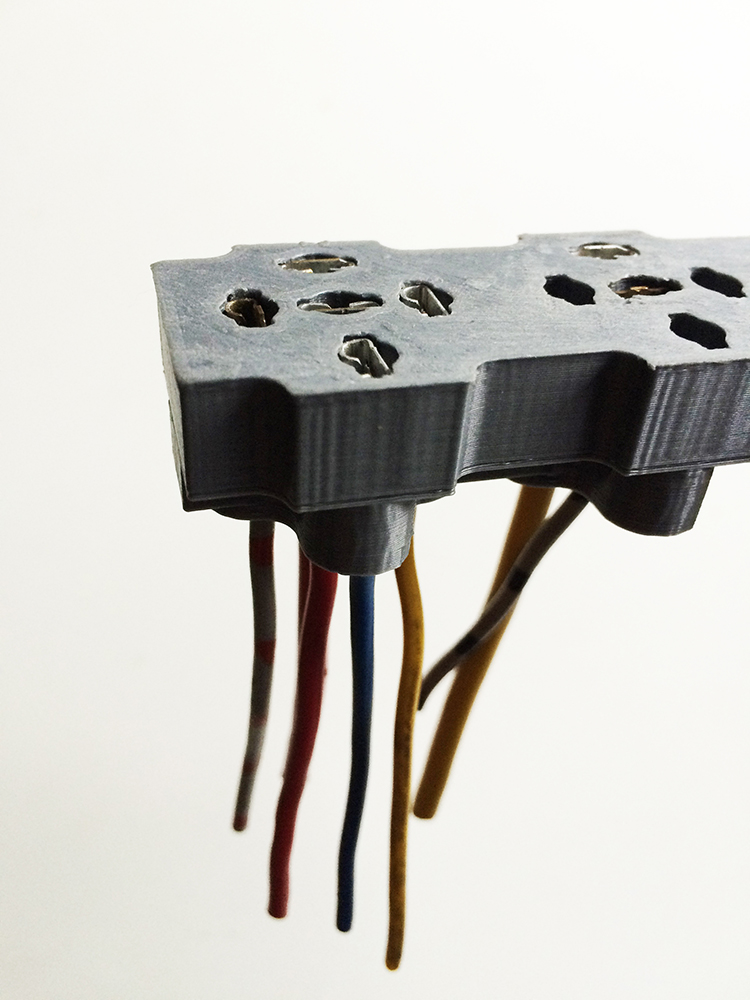

Now that the wiring has been diagrammed I have started work on the relay and fuse board. I wasn't really happy with the relay blocks that are out there so I decided to make them myself. I 3D printed a couple mockups and after a couple iterations got something that worked pretty well.

Attached Image

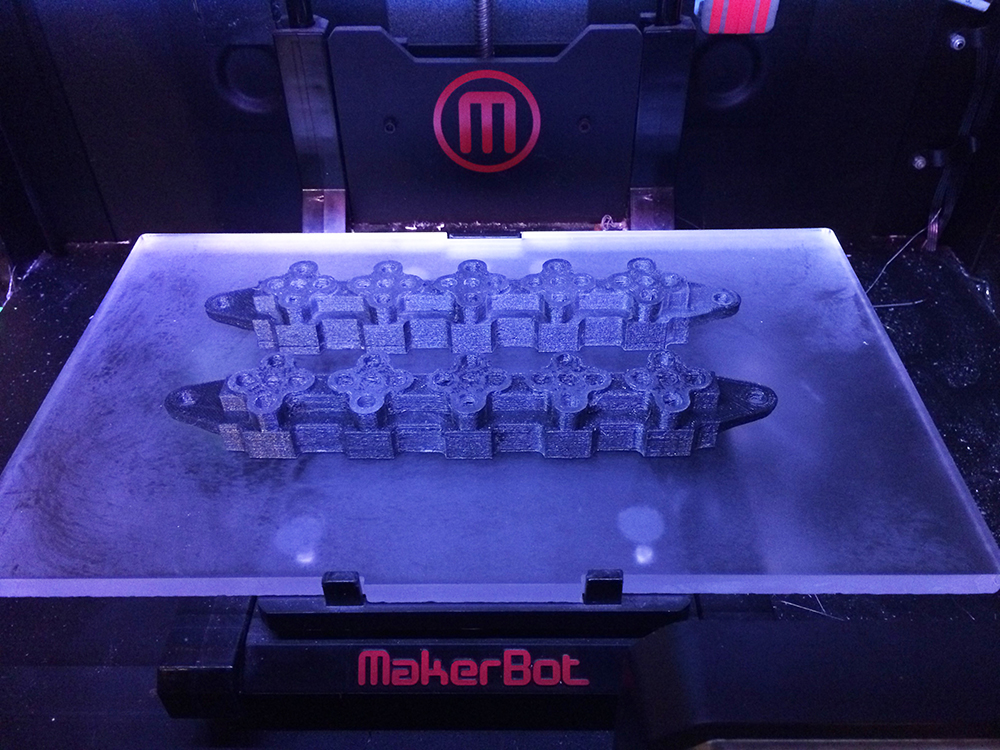

Here are the final pieces fresh off the printer.

Attached Image

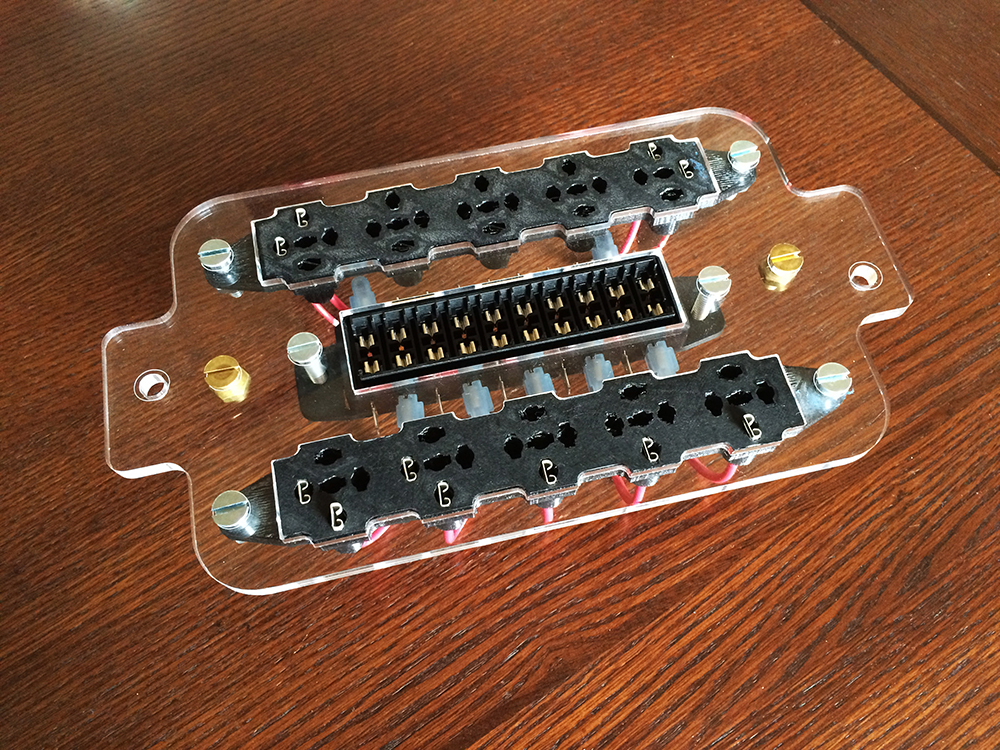

I bought a fuse block, and laser cut a piece of acrylic as a temporary jig to mount everything for wiring.

Attached Image

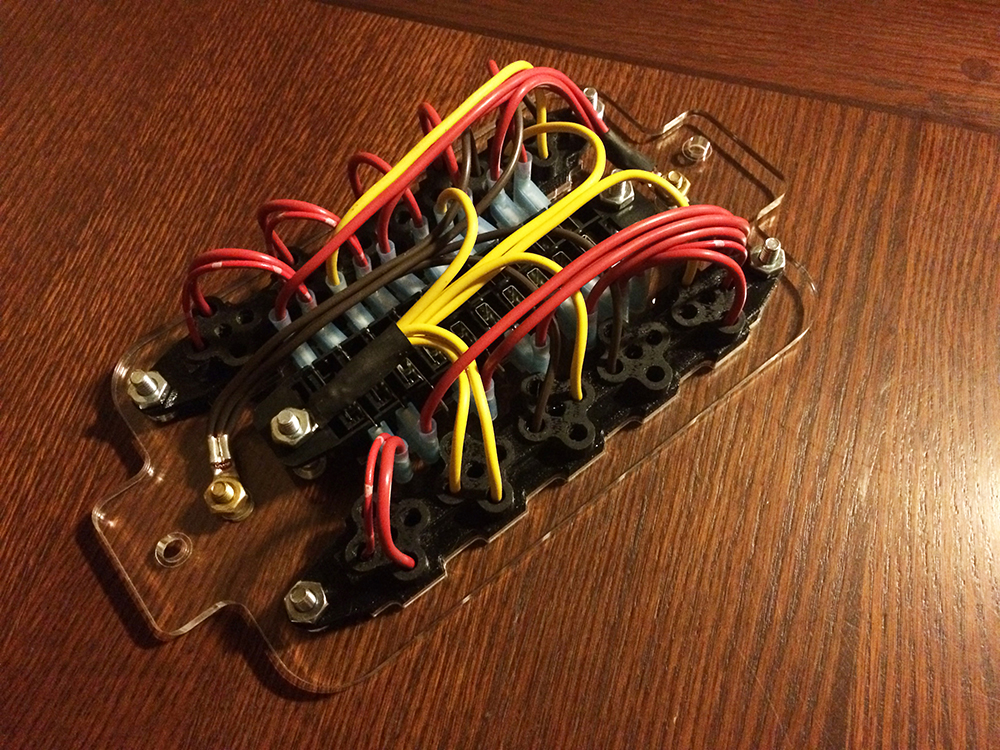

I assembled the board and started running primary power, ignition, and ground wires.

Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
KELTY360
post Jan 30 2016, 04:37 PM
Post #1149


914 Neferati
*****

Group: Members
Posts: 5,089
Joined: 31-December 05
From: Pt. Townsend, WA
Member No.: 5,344
Region Association: Pacific Northwest
Why doesn't this standard of innovation surprise me? Superb!

Glad to see you posting Dane. Will The Anklebiter move on it's own power this year?

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cairo94507
post Jan 30 2016, 05:51 PM
Post #1150


Michael
**********

Group: Members
Posts: 10,093
Joined: 1-November 08
From: Auburn, CA
Member No.: 9,712
Region Association: Northern California
What planet are you from? Seriously, every aspect of this car is just incredible. (IMG:style_emoticons/default/smilie_pokal.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jd74914
post Jan 30 2016, 06:08 PM
Post #1151


Its alive
****

Group: Members
Posts: 4,814
Joined: 16-February 04
From: CT
Member No.: 1,659
Region Association: North East States
Looks great!

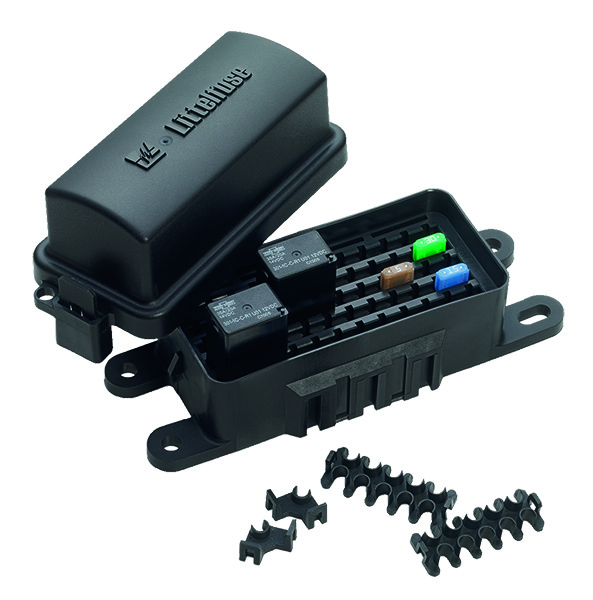

Just out or curiosity, why did you go the custom route rather than with a Bussman RFRM/RTMR or Littelfuse HWB combination fuse/relay block?

(IMG:http://www.914world.com/bbs2/uploads_offsite/www.cooperindustries.com-1659-1454198879.1.jpg) (IMG:http://www.914world.com/bbs2/uploads_offsite/www.littelfuse.com-1659-1454198958.1.jpg)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Jan 30 2016, 09:42 PM
Post #1152


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest
QUOTE(jd74914 @ Jan 30 2016, 06:08 PM) *

Looks great!

Just out or curiosity, why did you go the custom route rather than with a Bussman RFRM/RTMR or Littelfuse HWB combination fuse/relay block?



I had a specific number of relays and fuses that I needed to house which none of the standard blocks had, and already had a mount installed so the custom route made more sense.
I like to geek out on wiring too and didn't want to miss out on the fun of wiring this!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
thieuster
post Jan 31 2016, 12:55 AM
Post #1153


Member
**

Group: Members
Posts: 447
Joined: 31-January 15
From: 275 mls NW from Stuttgart.
Member No.: 18,384
Region Association: Europe
QUOTE(Cairo94507 @ Jan 31 2016, 12:51 AM) *

What planet are you from? Seriously, every aspect of this car is just incredible. (IMG:style_emoticons/default/smilie_pokal.gif)


Nicely said what I was thinking - well, I wasn't thinking this: I was still looking for my lower jaw on the floor. I dropped the jaw in a moment of total awesomeness...

Are you sure you want to remain an architect for the rest of your life? Architect, inventor, engineer... There was this man in Florence/Firenze, Italy when I visited the town last summer. I think his name was Leonardo...

Menno
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
EdwardBlume
post Jan 31 2016, 06:39 AM
Post #1154


914 Wizard
**********

Group: Members
Posts: 12,338
Joined: 2-January 03
From: SLO
Member No.: 81
Region Association: Central California
Yeah, just build your own fuse box and wire a 914 for the enjoyment!

Friggin awesome. This world is going to need you someday! (IMG:style_emoticons/default/pray.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Feb 3 2016, 09:21 PM
Post #1155


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest

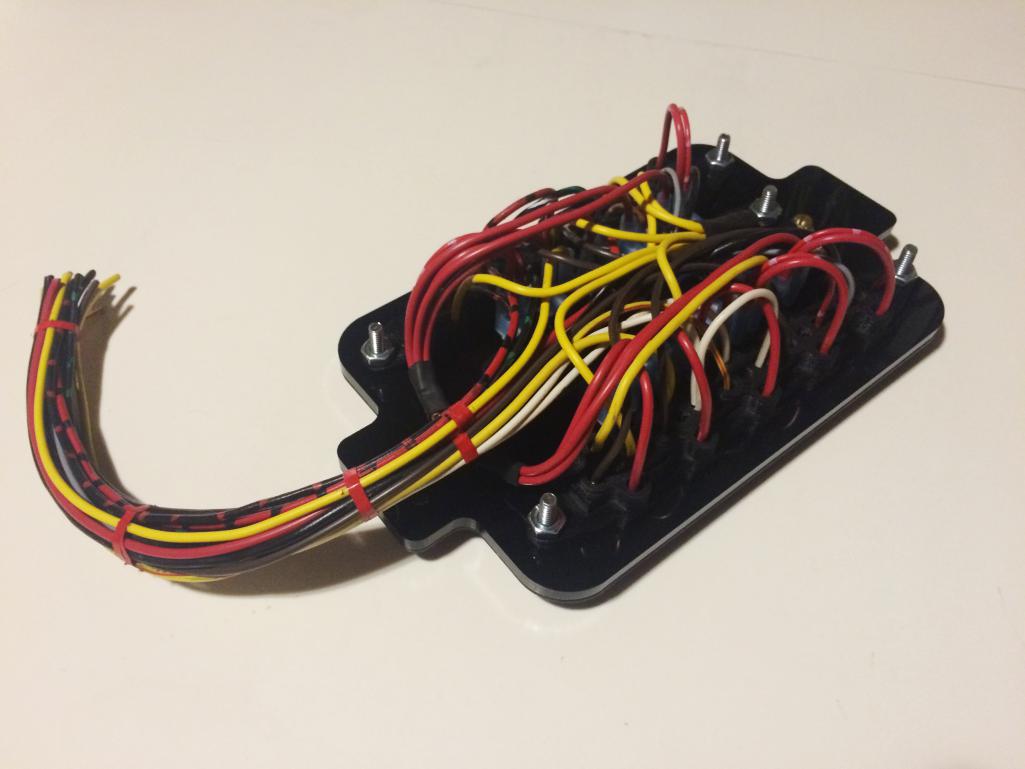

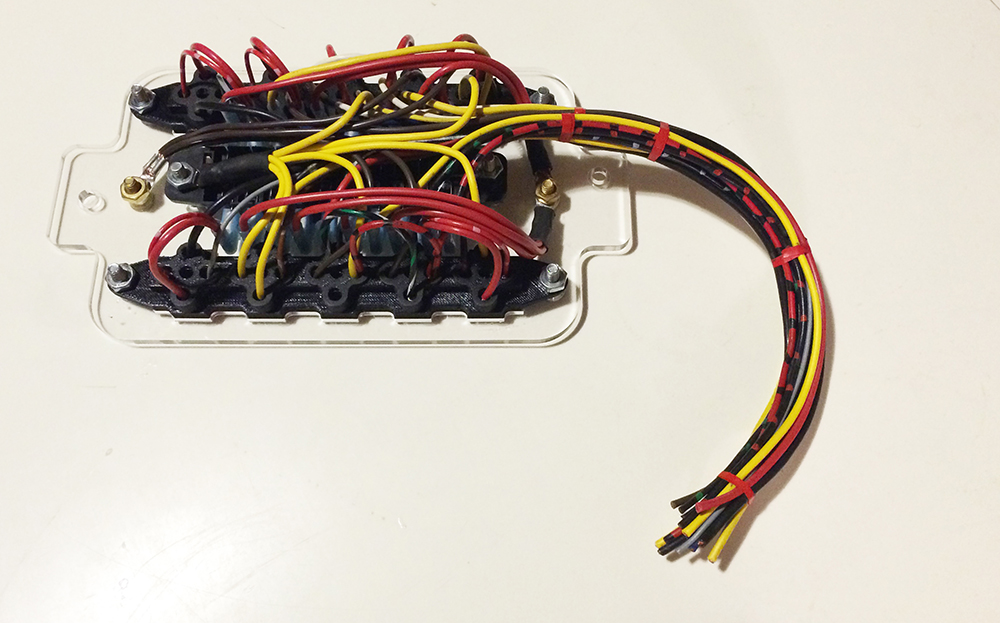

Well it took couple days but I finished wiring the board!
Attached Image

Attached Image

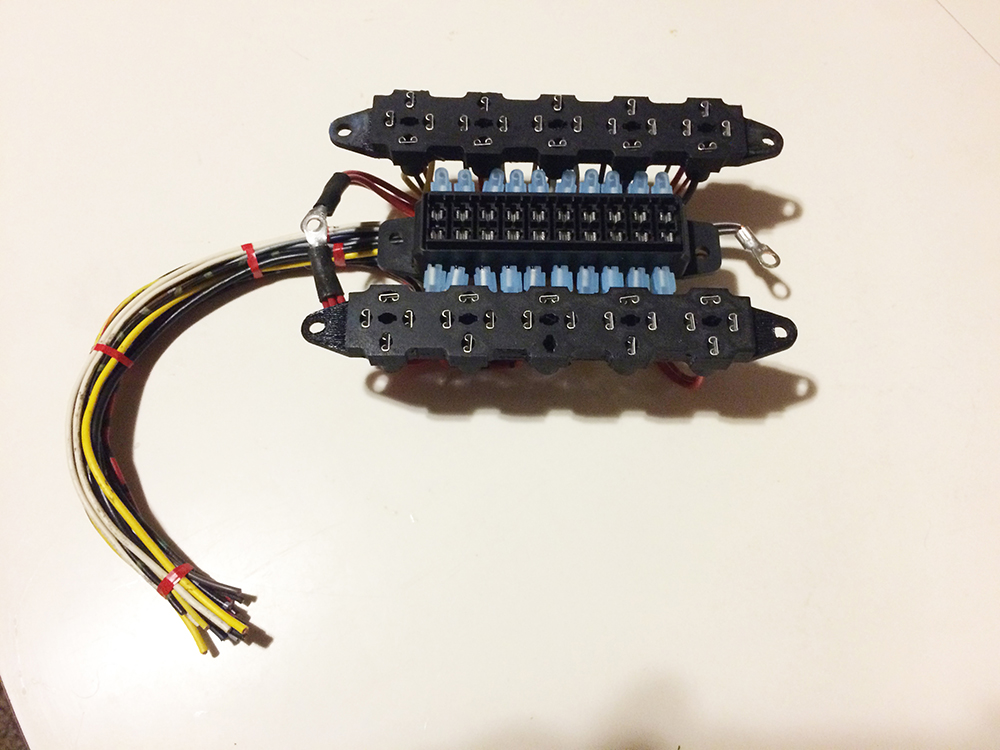

I removed the jig in preparation for the final plate.
Attached Image

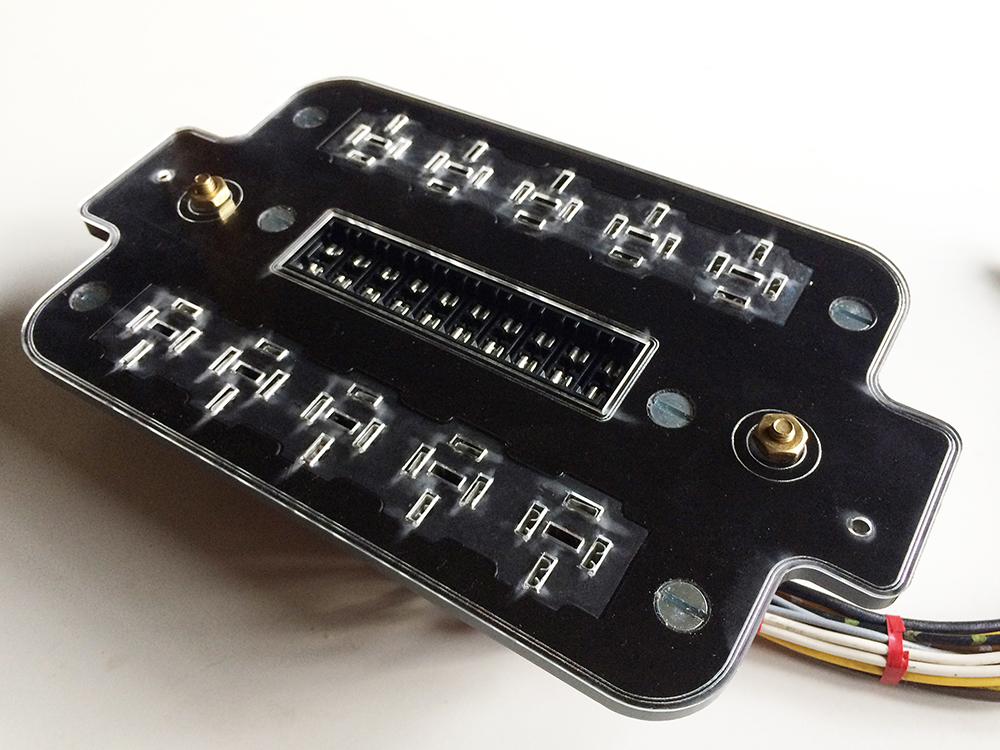

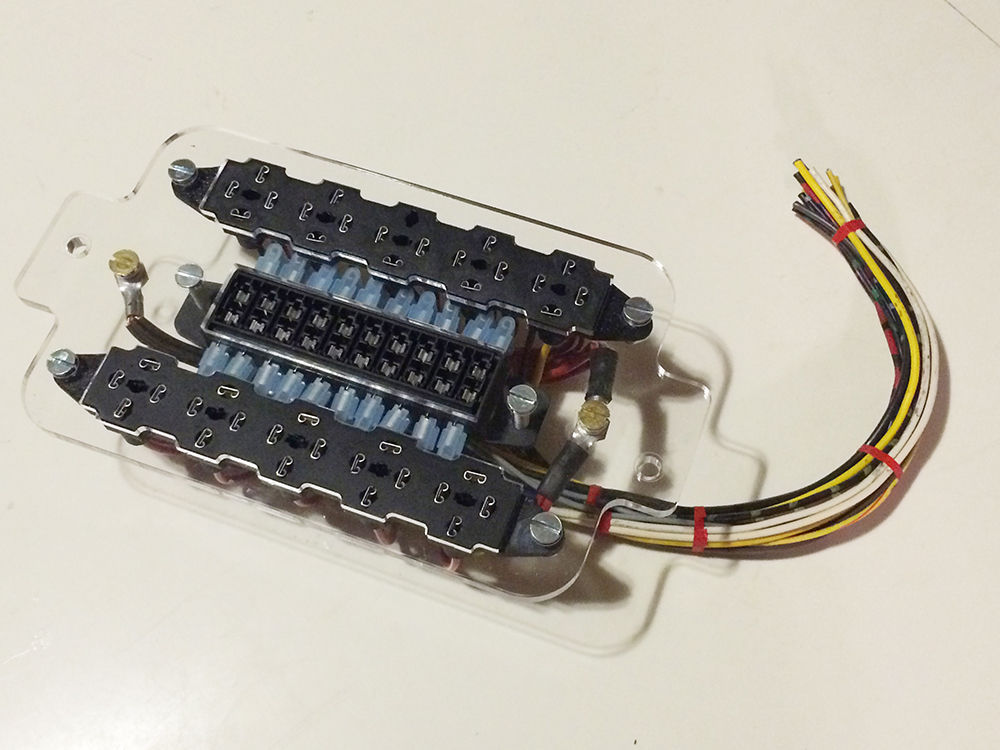

I laser cut the final iteration of the base plate out of black acrylic, I countersunk the hardware and mocked everything up, along with a template for the top cover.
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Feb 4 2016, 03:54 PM
Post #1156


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest
QUOTE(KELTY360 @ Jan 30 2016, 04:37 PM) *

Why doesn't this standard of innovation surprise me? Superb!

Glad to see you posting Dane. Will The Anklebiter move on it's own power this year?



I sure hope so, I am focusing on finishing critical drivetrain systems now which consist roughly of:

finishing the wiring harness
welding in new fuel tank bungs
painting the tranny
replacing/resurfacing clutch components
throttle/clutch cables
restoring and assembling the suspension
checking and torqueing every nut and bolt on the car
and probably 10 other things I have forgotten

It would be great to at least have it running by end of year, moving might or might not be possible, I will do my best!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Feb 6 2016, 10:17 AM
Post #1157


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest

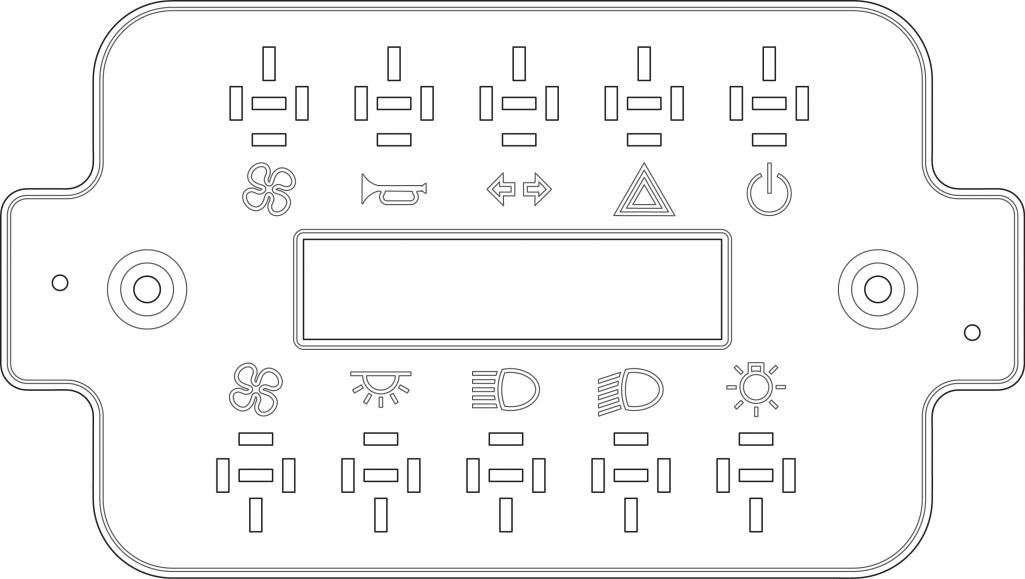

I drew up the file for the face plate. Since I have access to a Laser cutter I used this file to not only cut out the face plate but to cut out masking tape for back painting as well.
Attached Image

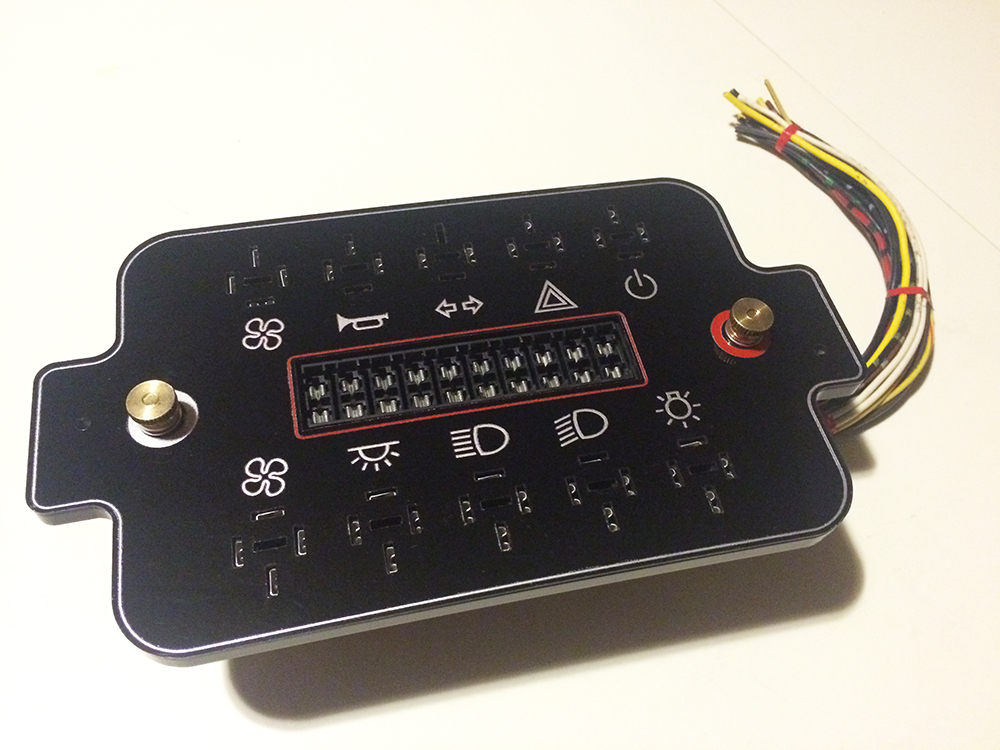

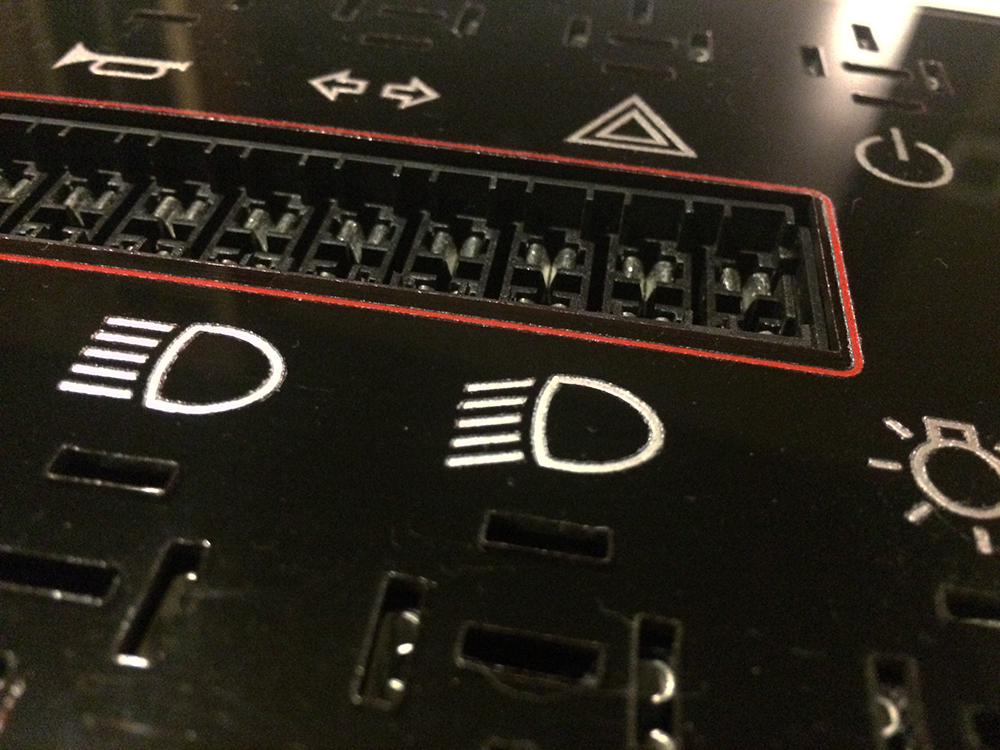

Here you can see the finished result, by strategically removing layers of the laser cut masking tape you can layer the paint on the back of the clear sheet creating the result below. The faceplate also locks the relay plugs in place. I decided to connect the common power and ground leads to studs rather than hidden hardware so I have a reliable power source to tap into if I need one.
Attached Image

I used the standard federal automotive icons for continuity but swapped out the normal fan icon for the radiator fans because it looked better.
Attached Image

Now all I have left is to trim the hardware and mount the board, I will buy mounting hardware today and see how it looks in the car.
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
effutuo101
post Feb 6 2016, 10:28 AM
Post #1158


Advanced Member
****

Group: Members
Posts: 2,735
Joined: 10-April 05
From: Lemon Grove
Member No.: 3,914
Region Association: Southern California
Just wow.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
wingnut86
post Feb 6 2016, 12:38 PM
Post #1159


...boola la boo boola boo...
***

Group: Members
Posts: 1,053
Joined: 22-April 10
From: South Carolina
Member No.: 11,645
Region Association: South East States
Dane,

Sending you a PM...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
NS914
post Mar 14 2016, 09:51 AM
Post #1160


Member
**

Group: Members
Posts: 198
Joined: 9-June 09
From: Dartmouth, Nova Scotia
Member No.: 10,455
Region Association: Canada
Dane, I had to laugh....geeking out on wiring....I love it....I have been lazy as heck with other volunteer stuff taking up all my free time...Spring has sprung here in Nova Scotia so I am back at it.

The stock location for the fuse panel is just a pain so I too am going to move mine...congratulations on new family and car too!
[/quote]
