> The Project Anklebiter Build Thread., 8/29 Lid latches and glamor shots...
Ferg
post Aug 31 2017, 03:24 PM
Post #1261


914 Guru
*****

Group: Members
Posts: 5,948
Joined: 8-January 03
From: Boulder CO
Member No.: 116
Region Association: None
You are going to paint it brown right? (IMG:style_emoticons/default/laugh.gif) (IMG:style_emoticons/default/popcorn[1].gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Aug 31 2017, 11:13 PM
Post #1262


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest
QUOTE(Ferg @ Aug 31 2017, 03:24 PM) *

You are going to paint it brown right? (IMG:style_emoticons/default/laugh.gif) (IMG:style_emoticons/default/popcorn[1].gif)


Maybe! Put in a nice plaid interior, why not?
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Aug 31 2017, 11:24 PM
Post #1263


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest

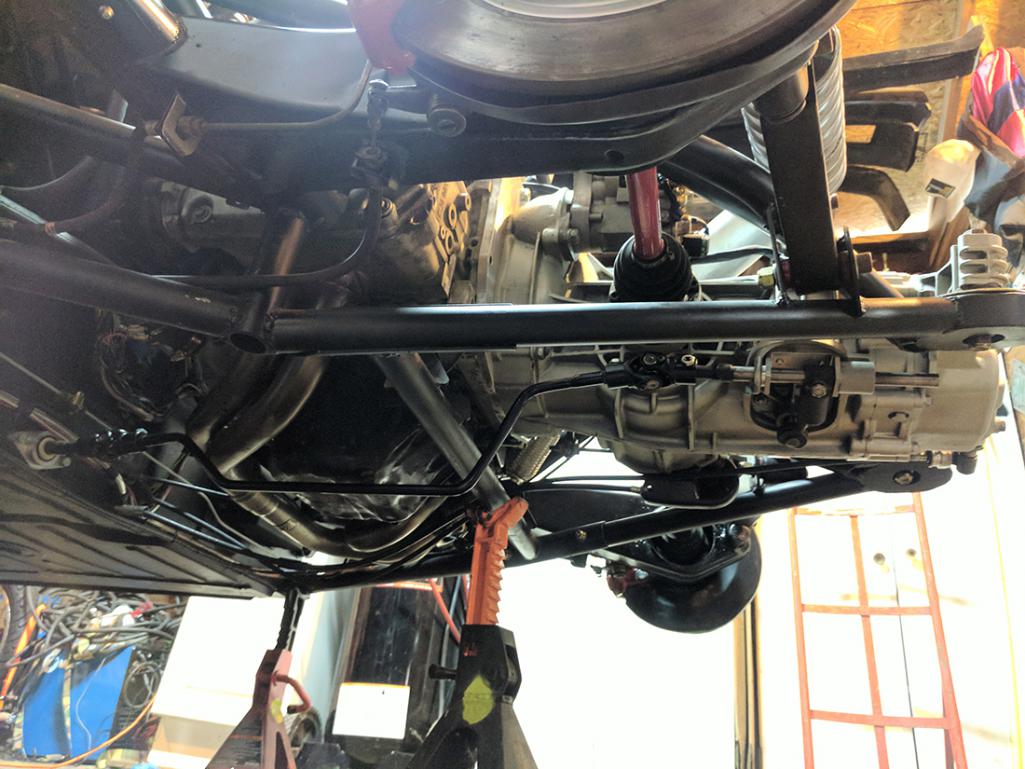

Shifter rod is in, I adjusted the shifter and have it dialed in pretty well.
Throttle, clutch, and speedometer cables are in as well.
Still some work to do here but this chassis is pretty darn complete!

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cairo94507
post Sep 1 2017, 10:30 AM
Post #1264


Michael
**********

Group: Members
Posts: 10,093
Joined: 1-November 08
From: Auburn, CA
Member No.: 9,712
Region Association: Northern California
Sweet. I can't wait to see that going down the street. (IMG:style_emoticons/default/smilie_pokal.gif)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
tmckenna
post Dec 22 2017, 10:09 AM
Post #1265


Newbie
*

Group: Members
Posts: 5
Joined: 1-December 17
From: Long Island
Member No.: 21,665
Region Association: North East States
I just read this entire thread, and WOW just WOW. Everything is so well done, the car seems incredible. Ive always dreamed of building a (semi) street legal, tube chassis, LS powered, mid engine car and was looking into the 914 for feasibility. I'm super impressed, hope you made some progress since september. Id love to see some videos of this thing at the track someday, I'm sure it'll be hard to beat considering the power, weight, and suspension setup. Awesome job man keep it up (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
2mAn
post Dec 22 2017, 10:39 AM
Post #1266


trying to see how long I can go without a 914
**

Group: Members
Posts: 487
Joined: 14-November 13
From: Westchester (Los Angeles)
Member No.: 16,644
Region Association: Southern California
I dont frequent 914world much anymore, but I still get notifications on this thread and everytime I come back, Im just shocked at the build...

I also watched Leno driving Eric Sheas car last night and the urge is coming back... Luckily I dont have a garage to stuff a 914 into... yet (IMG:style_emoticons/default/smile.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Feb 10 2018, 12:15 AM
Post #1267


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest

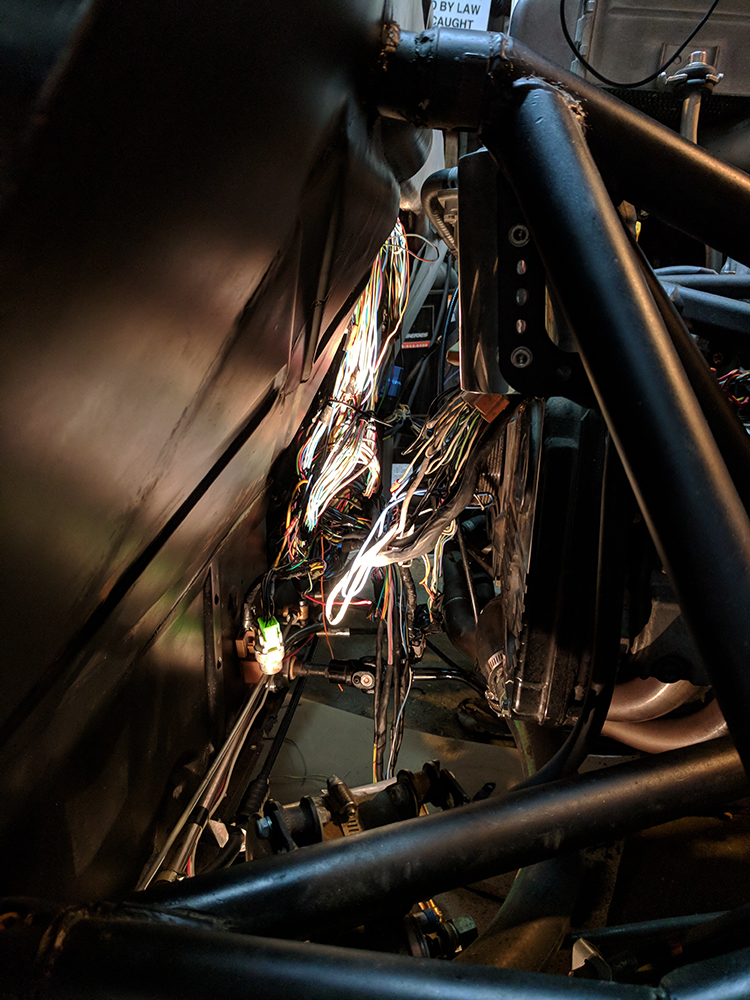

Hey everybody, fear not, I haven't forgot about you or this build. We bought our first house in August and that kind of derailed the car build, but here we go, time to get back to it!

Now that the car is reliably running it is time to tear into the WRX engine wiring harness, This may look pretty tidy but in reality there is about 10 extra feet of harness wrapped around in here, time to get out the wire cutters and shorten it to fit!
Attached Image

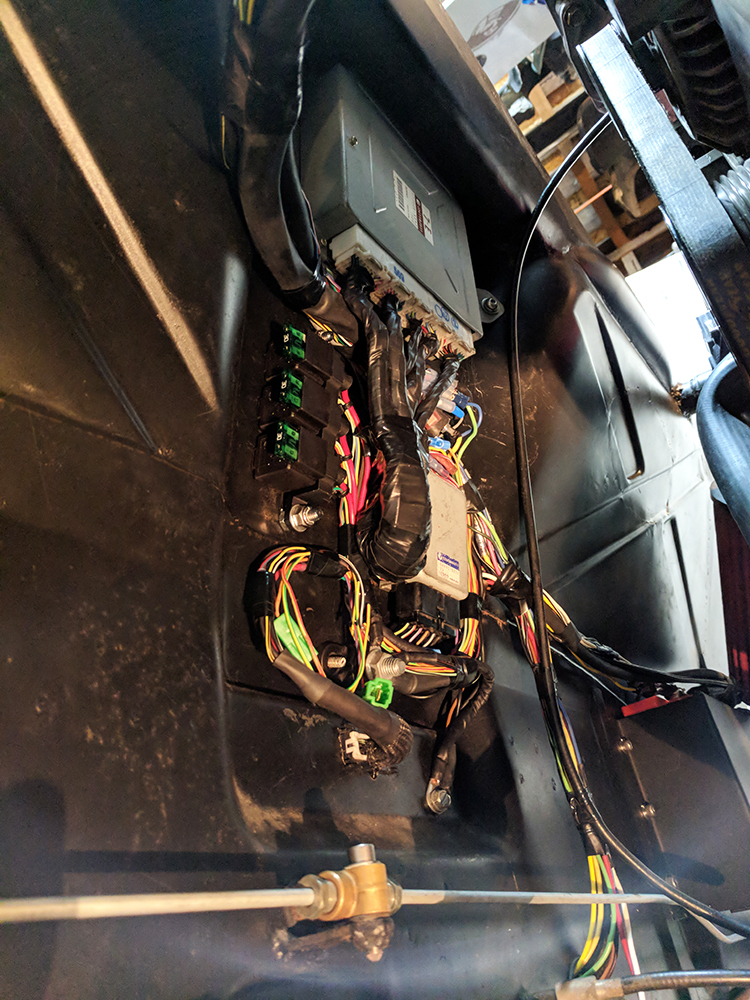

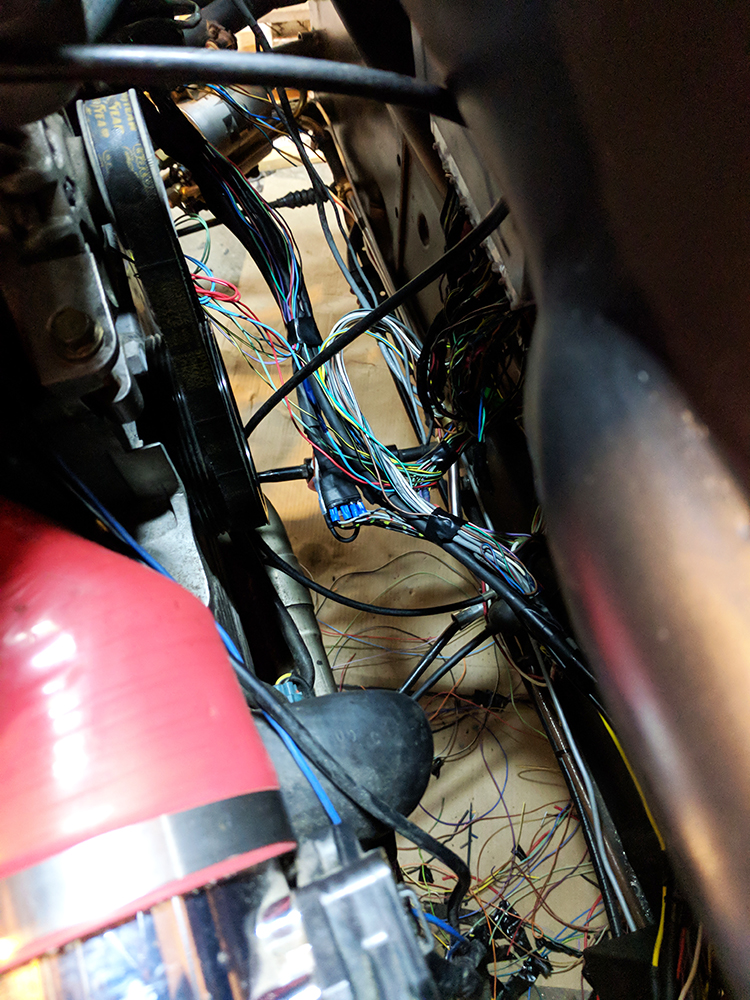

I started with the brown main plug in the engine harness, this holds the power and trigger wires for the injectors and coils, as well as a series of ground wires from the ecu. I shortened it by about 10' and soldered and shrink wrapped the connections.
Attached Image

I wanted to wait to do this until the engine ran so i could start up the engine and check the codes as I modified the harness be able to catch a problem as i did it rather than after cutting literally every wire that controls the engine. I finished the Brown plug, it fired up well, no extra codes, here is how much extra wire I am dealing with here. Next I shortened the black plug's wires, these hold the sensor leads and grounds. There is an extra gray plug as well that has the cam and crank sensor wires that I merged into unused spots in the black plug so now I only have 2 main plugs leading to the engine.
Attached Image

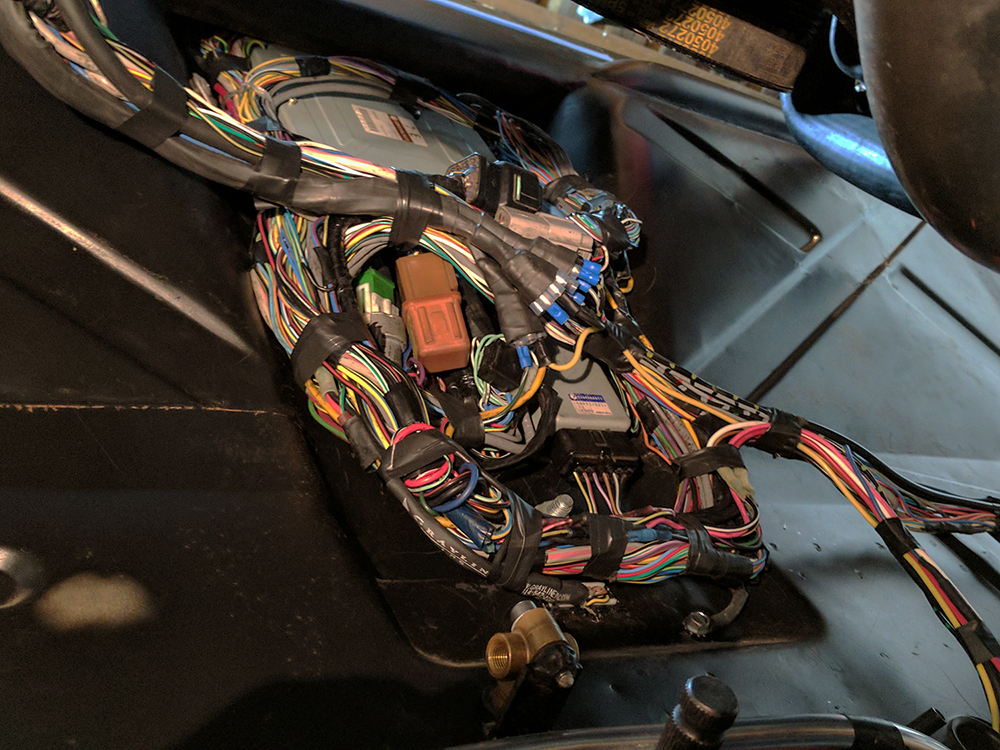

I also removed the stock WRX fuel and ignition relays and replaced them with a new relay panel I fabbed up. These power the two main ignition circuits for the engine as well as the fuel pump.
Attached Image

Here is a view of how it is shaping up from the top.
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Feb 10 2018, 12:15 AM
Post #1268


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest

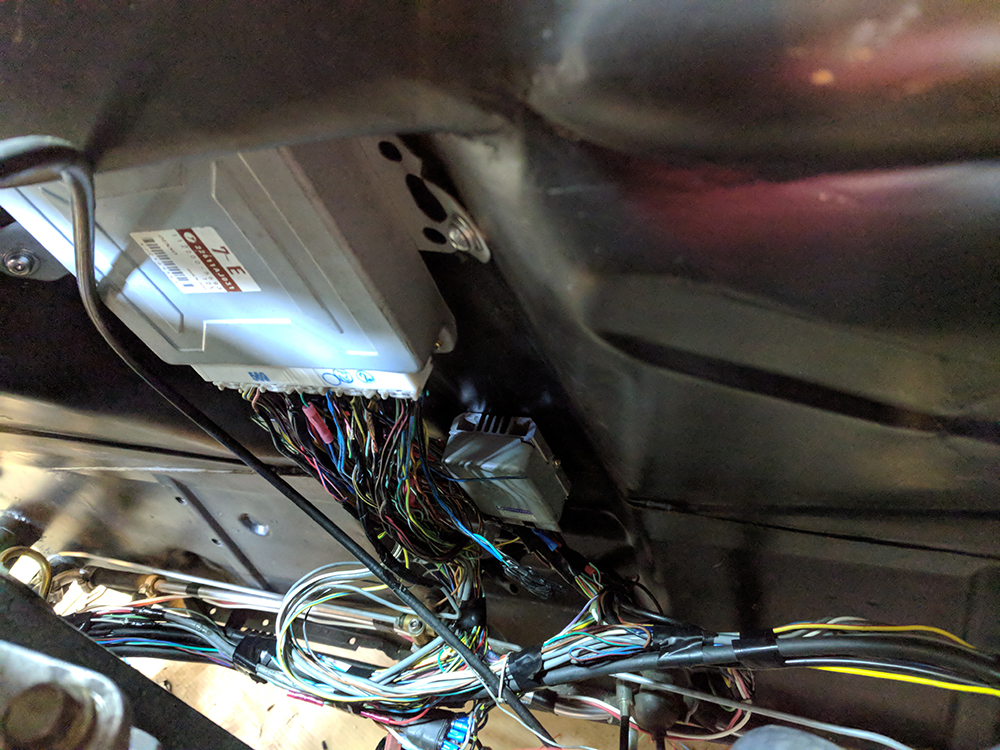

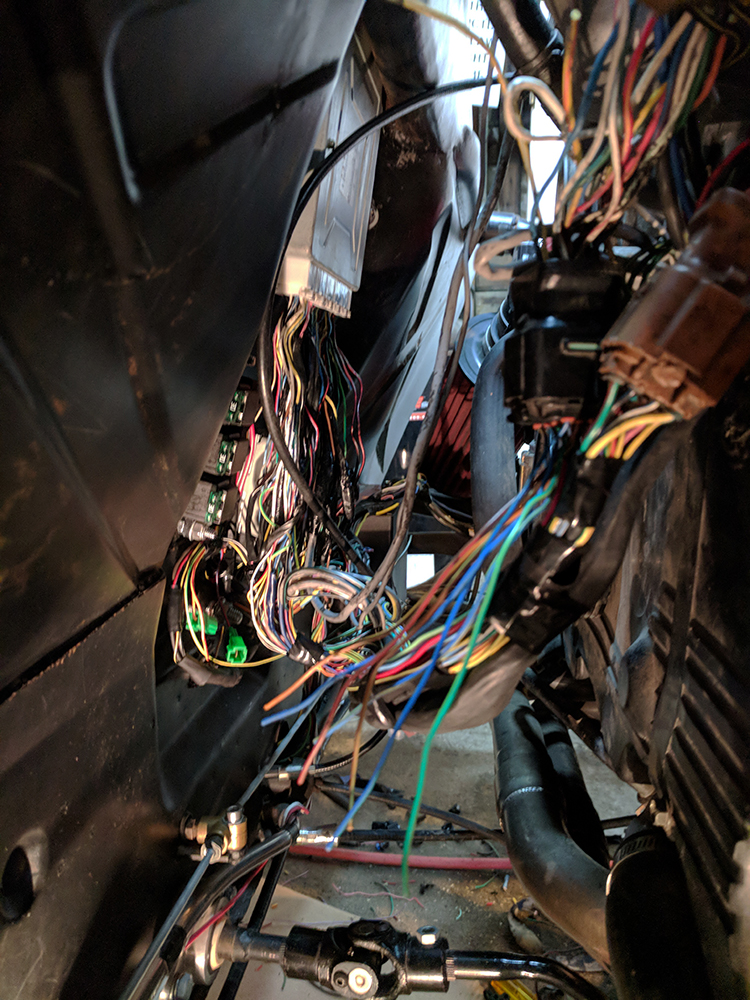

Here you can see the 2 main plugs and the wires waiting to be spliced.
Attached Image

It is starting to look manageable!
Attached Image

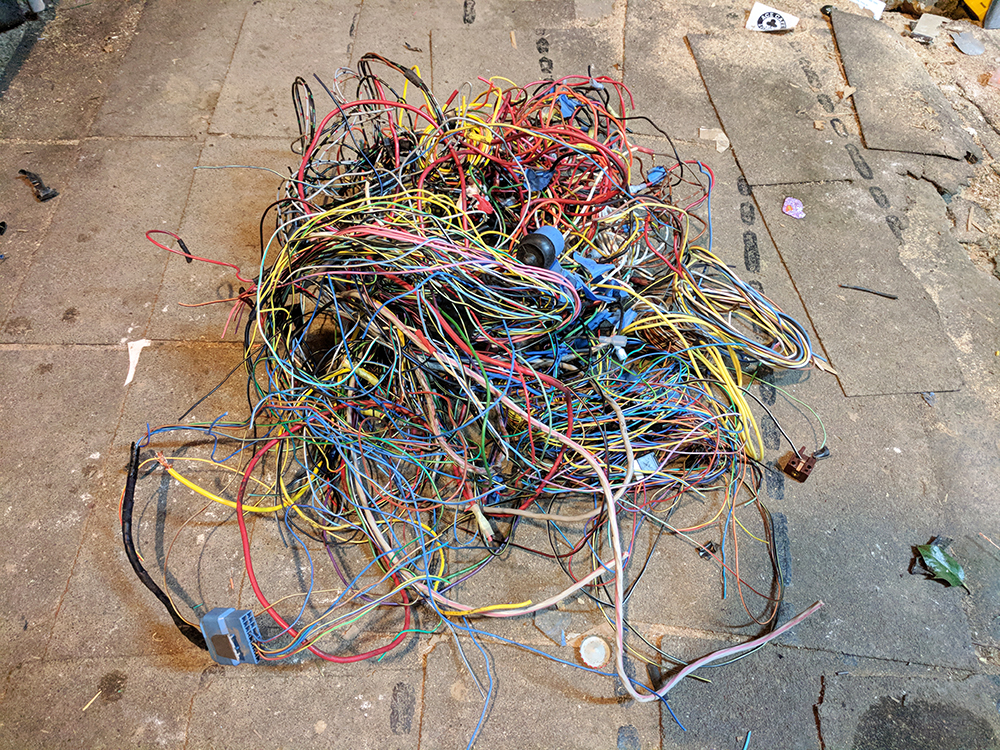

And here is the final product, looks a heck of a lot better, I think the car runs better too. Best part was actually taking the time to understand how this system works, i didn't blindly cut and splice, I got a wiring diagram and figured it out which was really rewarding, this was one of the last big chunks of the car i really didn't understand or want to mess with.
Next I will fab up a cover and wrap everything up for real.
Attached Image

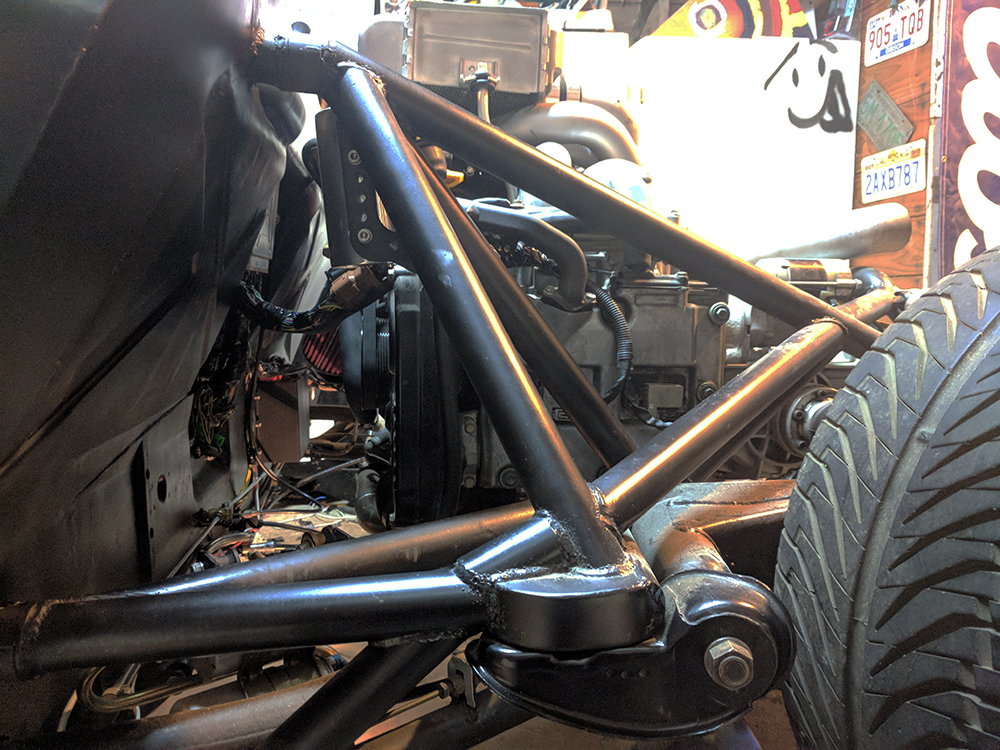

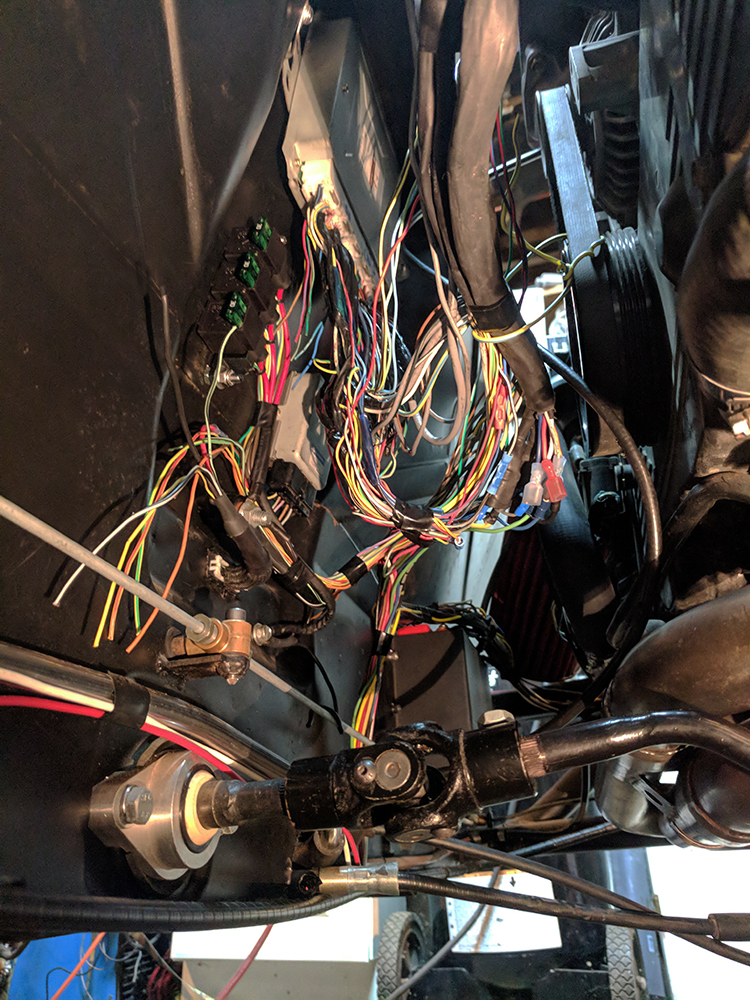

Here is a side view, boy do i have room for a few extra cylinders in there or what?
Attached Image

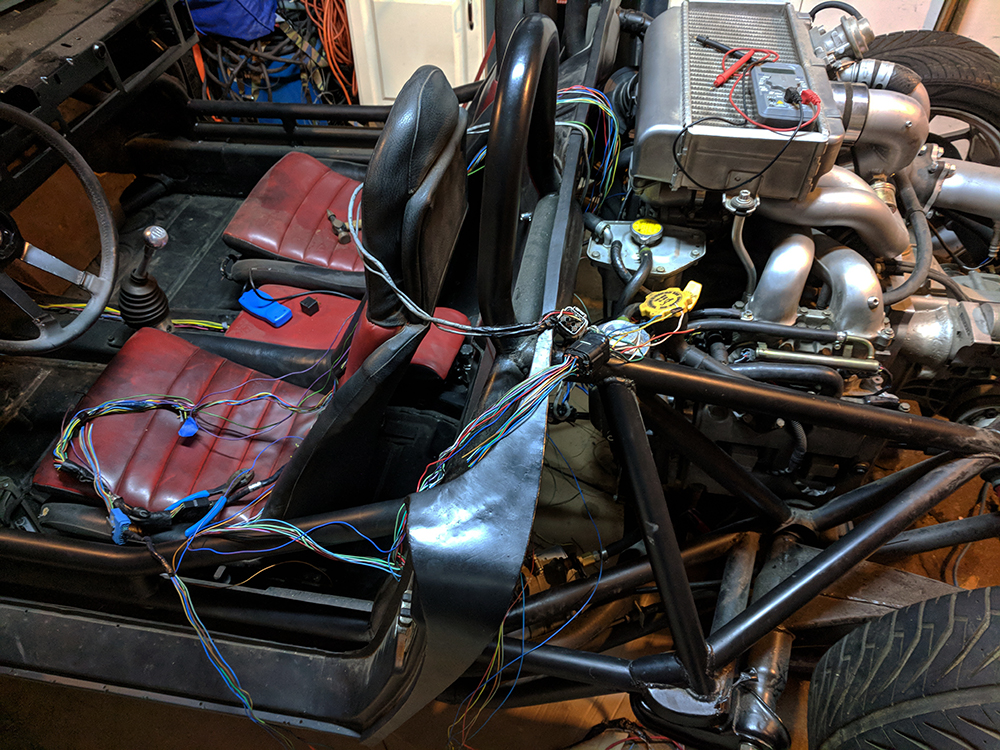

Well I think that brings an end to the cleaning and modifying of the entire cars harness, I added my newly culled wires to the pile, I have cut so much wire out of this thing!
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
effutuo101
post Feb 10 2018, 12:29 AM
Post #1269


Advanced Member
****

Group: Members
Posts: 2,735
Joined: 10-April 05
From: Lemon Grove
Member No.: 3,914
Region Association: Southern California
Nice!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cairo94507
post Feb 10 2018, 07:38 AM
Post #1270


Michael
**********

Group: Members
Posts: 10,093
Joined: 1-November 08
From: Auburn, CA
Member No.: 9,712
Region Association: Northern California
This is a great build thread. (IMG:style_emoticons/default/smilie_pokal.gif)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
EdwardBlume
post Feb 10 2018, 07:42 AM
Post #1271


914 Wizard
**********

Group: Members
Posts: 12,338
Joined: 2-January 03
From: SLO
Member No.: 81
Region Association: Central California
and a well earned bottle cap in the wiring to celebrate.... (IMG:style_emoticons/default/beer3.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Charlesforfun
post Feb 25 2018, 10:53 PM
Post #1272


Newbie
*

Group: Members
Posts: 1
Joined: 4-September 17
From: Indiana
Member No.: 21,402
Region Association: Upper MidWest
wow. just. wow. I just finished taking my engine out for the first time, have to replace some piston rings. It took me just about an entire weekend just to get the type 4 out of there. (IMG:style_emoticons/default/sad.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post Feb 25 2018, 11:36 PM
Post #1273


914 Freak!
***************

Group: Members
Posts: 17,150
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None
Impressive work as always on this build.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
KELTY360
post Feb 25 2018, 11:43 PM
Post #1274


914 Neferati
*****

Group: Members
Posts: 5,089
Joined: 31-December 05
From: Pt. Townsend, WA
Member No.: 5,344
Region Association: Pacific Northwest
So, have you calculated the weight savings yet? (IMG:style_emoticons/default/shades.gif)

Congrats on buying a house; no small feat in this market. Are you still in Snoqualmie?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Jun 6 2018, 10:29 AM
Post #1275


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest

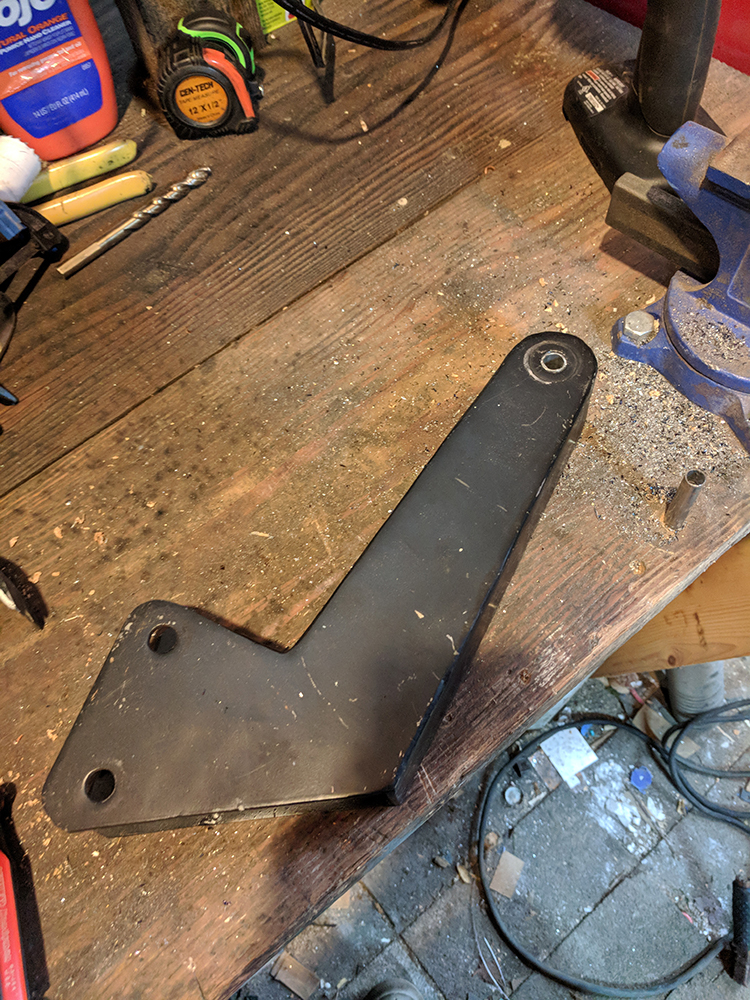

One of the last big tasks I had for the suspension was putting bushings in the rocker arms, previously there was just a 1/2" hole with a bolt through it.
Attached Image

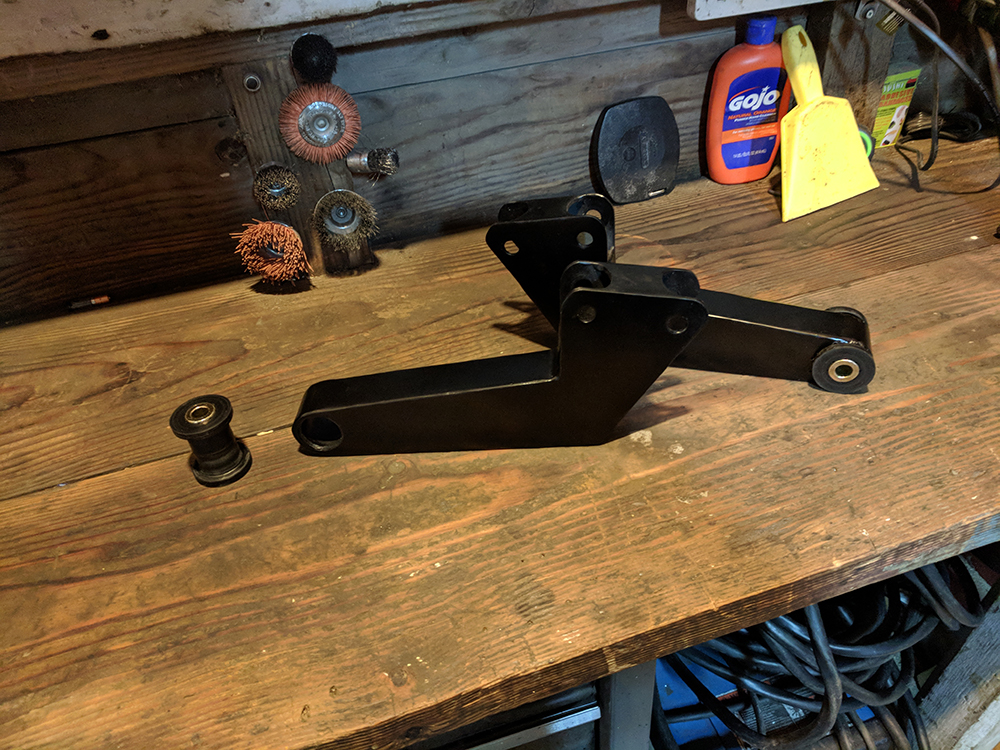

I drilled out a hole in the rocker and welded in a sleeve, then put in the bushings.
These rocker arms are definitely prototypes, I want to drive the car to see what they do, then reevaluate from there, I have a CNC at work, Maybe we mill version 2.0...
Attached Image

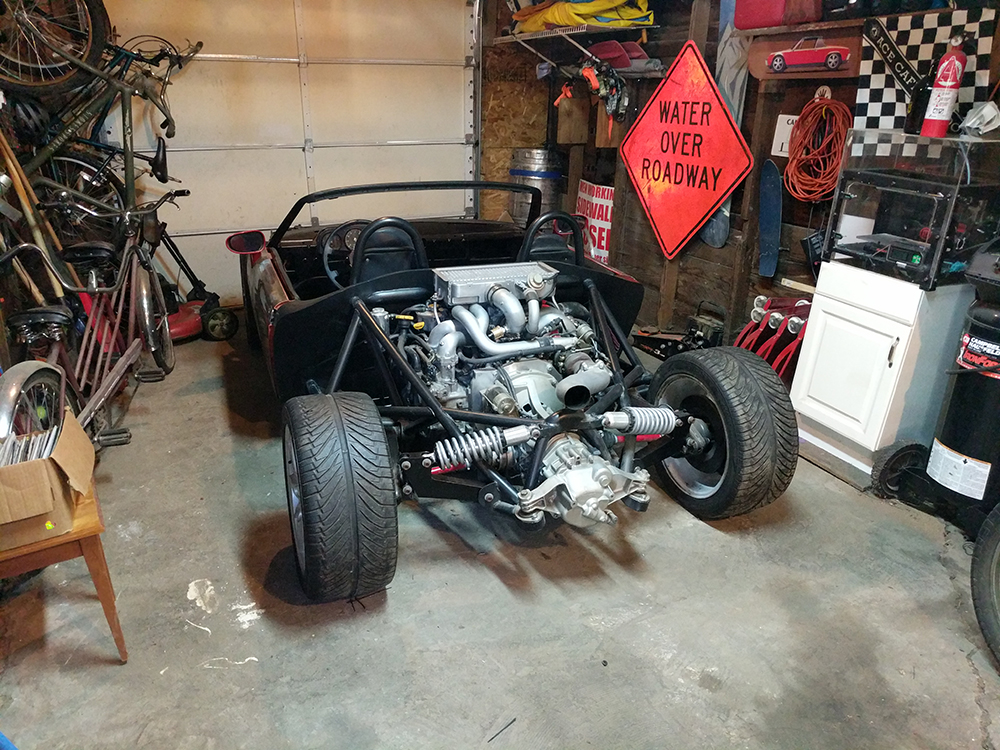

I reinstalled the rocker arms, put on the doors and dropped it back down on its wheels.
Now I am going to run it up to temperature and see if anything blows up...
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Jun 6 2018, 10:31 AM
Post #1276


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest
QUOTE(KELTY360 @ Feb 25 2018, 11:43 PM) *

So, have you calculated the weight savings yet? (IMG:style_emoticons/default/shades.gif)

Congrats on buying a house; no small feat in this market. Are you still in Snoqualmie?


Thanks! We actually bought the house we were renting, no moving, no realtor! Same tiny garage (IMG:style_emoticons/default/sad.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JmuRiz
post Jun 6 2018, 10:36 AM
Post #1277


914 Guru
*****

Group: Members
Posts: 5,504
Joined: 30-December 02
From: NoVA
Member No.: 50
Region Association: MidAtlantic Region
(IMG:http://www.914world.com/bbs2/uploads_offsite/media.giphy.com-50-1528302979.1.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Jun 6 2018, 11:02 AM
Post #1278


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest
QUOTE(JmuRiz @ Jun 6 2018, 10:36 AM) *

(IMG:http://www.914world.com/bbs2/uploads_offsite/media.giphy.com-50-1528302979.1.gif)


(IMG:style_emoticons/default/av-943.gif) (IMG:style_emoticons/default/av-943.gif) (IMG:style_emoticons/default/av-943.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
76-914
post Jun 6 2018, 11:45 AM
Post #1279


Repeat Offender & Resident Subaru Antagonist
**********

Group: Members
Posts: 13,634
Joined: 23-January 09
From: Temecula, CA
Member No.: 9,964
Region Association: Southern California
(IMG:style_emoticons/default/wub.gif) Such a build! It will be good to see it hit the road. (IMG:style_emoticons/default/beerchug.gif)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
PeeGreen 914
post Jun 6 2018, 01:02 PM
Post #1280


Just when you think you're done...wait, there is more..lol
**********

Group: Members
Posts: 10,219
Joined: 21-September 06
From: Seattle, WA... actually Everett
Member No.: 6,884
Region Association: Pacific Northwest
QUOTE(plymouth37 @ Jun 6 2018, 09:31 AM) *

QUOTE(KELTY360 @ Feb 25 2018, 11:43 PM) *

So, have you calculated the weight savings yet? (IMG:style_emoticons/default/shades.gif)

Congrats on buying a house; no small feat in this market. Are you still in Snoqualmie?


Thanks! We actually bought the house we were renting, no moving, no realtor! Same tiny garage (IMG:style_emoticons/default/sad.gif)



Where are you at Dana? Our shop is in Greenwood off of 79th.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
