> The Project Anklebiter Build Thread., 8/29 Lid latches and glamor shots...
SirAndy
post Mar 28 2019, 03:01 PM
Post #1361


Resident German
*************************

Group: Admin
Posts: 42,190
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
(IMG:style_emoticons/default/smilie_pokal.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Mar 28 2019, 03:30 PM
Post #1362


914 Wiring Harnesses & Beekeeper
*****

Group: Members
Posts: 8,887
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None
"...and this is a budget build..." Glad you clarified that for us mere mortals....

(IMG:style_emoticons/default/lol-2.gif) (IMG:style_emoticons/default/laugh.gif) (IMG:style_emoticons/default/smiley_notworthy.gif) (IMG:style_emoticons/default/Jumpy.gif) (IMG:style_emoticons/default/clap.gif)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Cairo94507
post Mar 28 2019, 03:57 PM
Post #1363


Michael
**********

Group: Members
Posts: 10,294
Joined: 1-November 08
From: Auburn, CA
Member No.: 9,712
Region Association: Northern California
I am just amazed at the work you have done and the skills you have. (IMG:style_emoticons/default/pray.gif) (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Millerwelds
post Mar 28 2019, 04:17 PM
Post #1364


Pleepleus
***

Group: Members
Posts: 728
Joined: 24-June 08
From: Grass Valley, CA
Member No.: 9,206
Region Association: Northern California
Need video! (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sixnotfour
post Mar 28 2019, 04:19 PM
Post #1365


914 Wizard
**********

Group: Members
Posts: 10,788
Joined: 12-September 04
From: Life Elevated..planet UT.
Member No.: 2,744
Region Association: Rocky Mountains
QUOTE
oh and doors (maybe), woohoo!


I have some CF doors ..????
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Mar 28 2019, 04:31 PM
Post #1366


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest
QUOTE(Millerwelds @ Mar 28 2019, 04:17 PM) *

Need video! (IMG:style_emoticons/default/beerchug.gif)


I will grab a gopro and take you all along for the next ride!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Mar 28 2019, 04:31 PM
Post #1367


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest
QUOTE(sixnotfour @ Mar 28 2019, 04:19 PM) *

QUOTE
oh and doors (maybe), woohoo!


I have some CF doors ..????


(IMG:style_emoticons/default/idea.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
PanelBilly
post Mar 28 2019, 05:48 PM
Post #1368


914 Guru
*****

Group: Members
Posts: 5,879
Joined: 23-July 06
From: Kent, Wa
Member No.: 6,488
Region Association: Pacific Northwest
Drive it to breakfast Sunday
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Porschef
post Mar 28 2019, 08:55 PM
Post #1369


How you doin'
****

Group: Members
Posts: 2,180
Joined: 7-September 10
From: LawnGuyland
Member No.: 12,152
Region Association: North East States
QUOTE(plymouth37 @ Mar 28 2019, 04:42 PM) *

Next priorities are real seats, real belts and a windshield, oh and doors (maybe), woohoo!



Awesome stuff.



Those are some big trees. Drive mindfully...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JRust
post Mar 29 2019, 12:55 AM
Post #1370


914 Guru
*****

Group: Members
Posts: 6,316
Joined: 10-January 03
From: Albany Oregon
Member No.: 129
Region Association: Pacific Northwest
Awesome to see bro (IMG:style_emoticons/default/driving.gif) Congrats! I still like it better with the full body on it. But damned if that doesn't look bad ass as is
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Andyrew
post Mar 29 2019, 08:48 AM
Post #1371


Spooling.... Please wait
**********

Group: Members
Posts: 13,377
Joined: 20-January 03
From: Riverbank, Ca
Member No.: 172
Region Association: Northern California
(IMG:style_emoticons/default/driving.gif) (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
KELTY360
post Mar 29 2019, 02:55 PM
Post #1372


914 Neferati
*****

Group: Members
Posts: 5,121
Joined: 31-December 05
From: Pt. Townsend, WA
Member No.: 5,344
Region Association: Pacific Northwest
QUOTE(JRust @ Mar 28 2019, 10:55 PM) *

Awesome to see bro (IMG:style_emoticons/default/driving.gif) Congrats! I still like it better with the full body on it. But damned if that doesn't look bad ass as is


(IMG:style_emoticons/default/agree.gif) It's almost a shame to cover up that gorgeous infrastructure, but I'm sure it's going to be equally badass with body panels.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rhodyguy
post Mar 29 2019, 05:41 PM
Post #1373


Chimp Sanctuary NW. Check it out.
***************

Group: Members
Posts: 22,237
Joined: 2-March 03
From: Orion's Bell. The BELL!
Member No.: 378
Region Association: Galt's Gulch
Where are you going to put the 'it's a 914' sign?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Apr 1 2019, 10:39 AM
Post #1374


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest

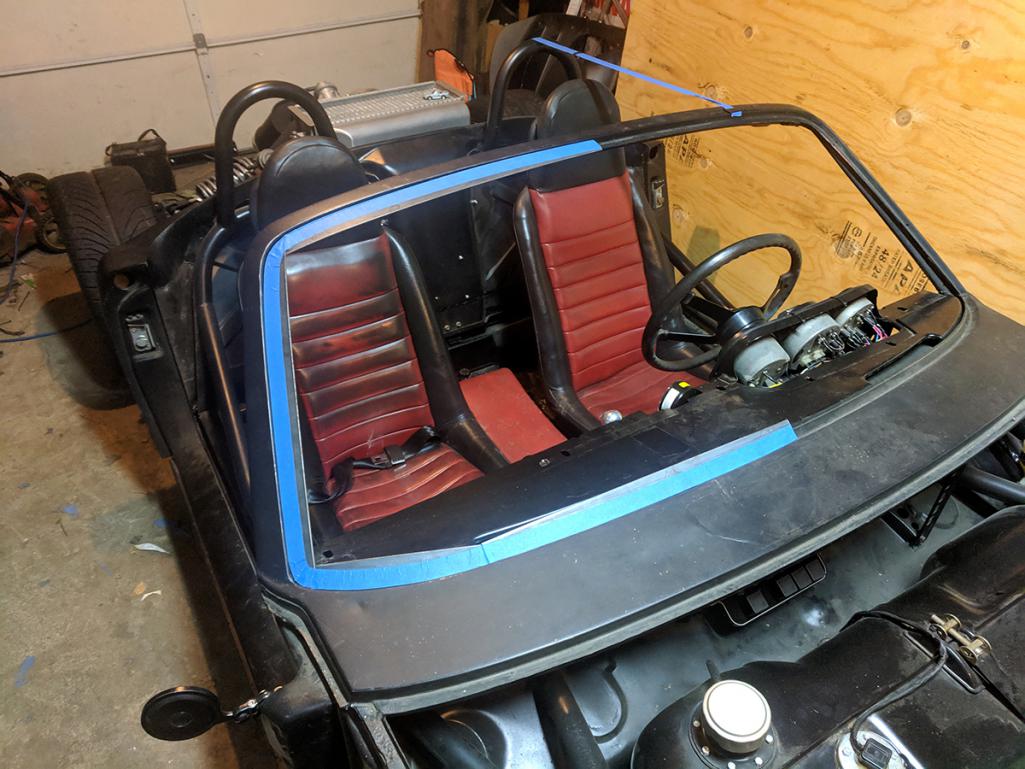

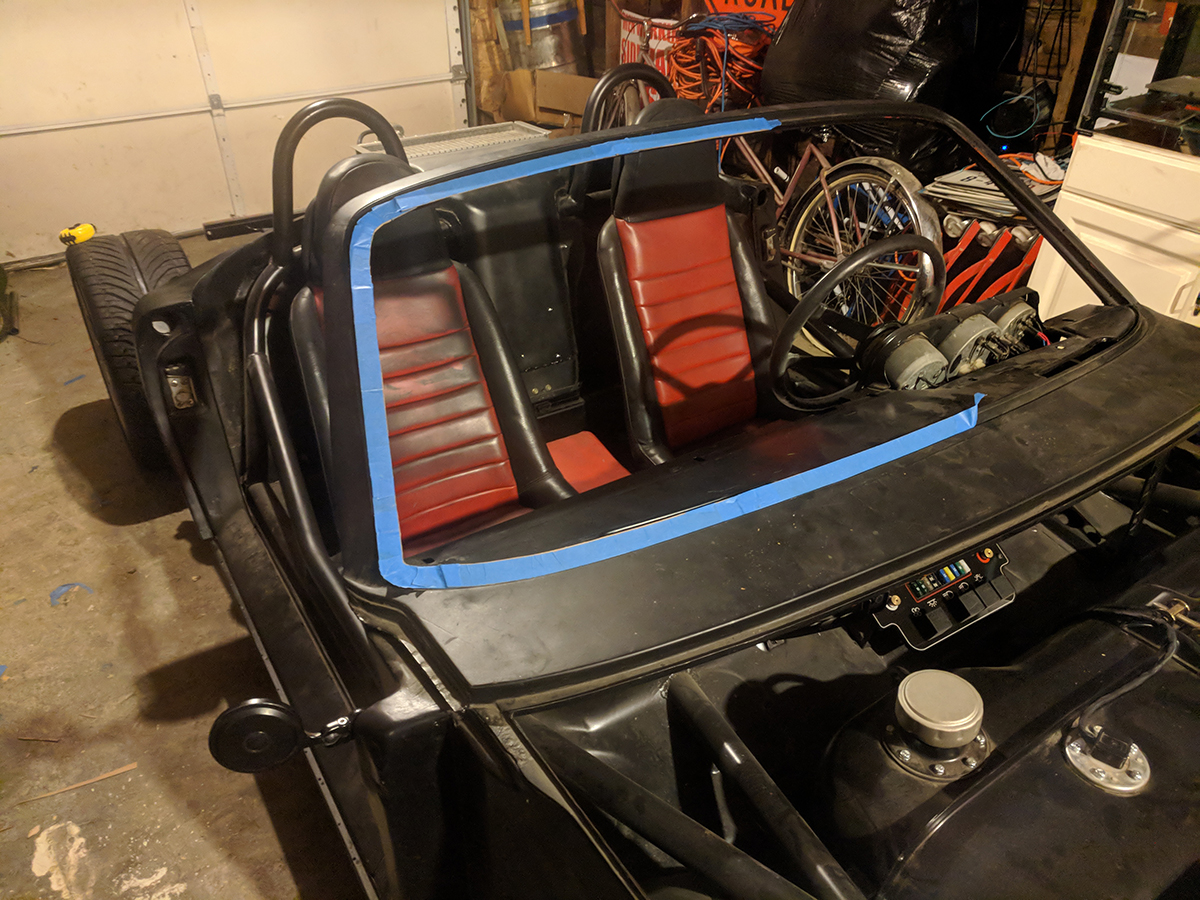

The most glaring and complicated thing I have left to finish on the chassis is a windshield. Since this car's windshield frame is chopped and raked, I am going to be making all of this from scratch.

I am going to try to bend a polycarbonate piece into the shape I need, I don't want to use exposed fasteners like most non-glass windshields use, instead I am going to hold the windshield in with a bolted in windshield frame. I started out by making some cardboard templates.
Attached Image

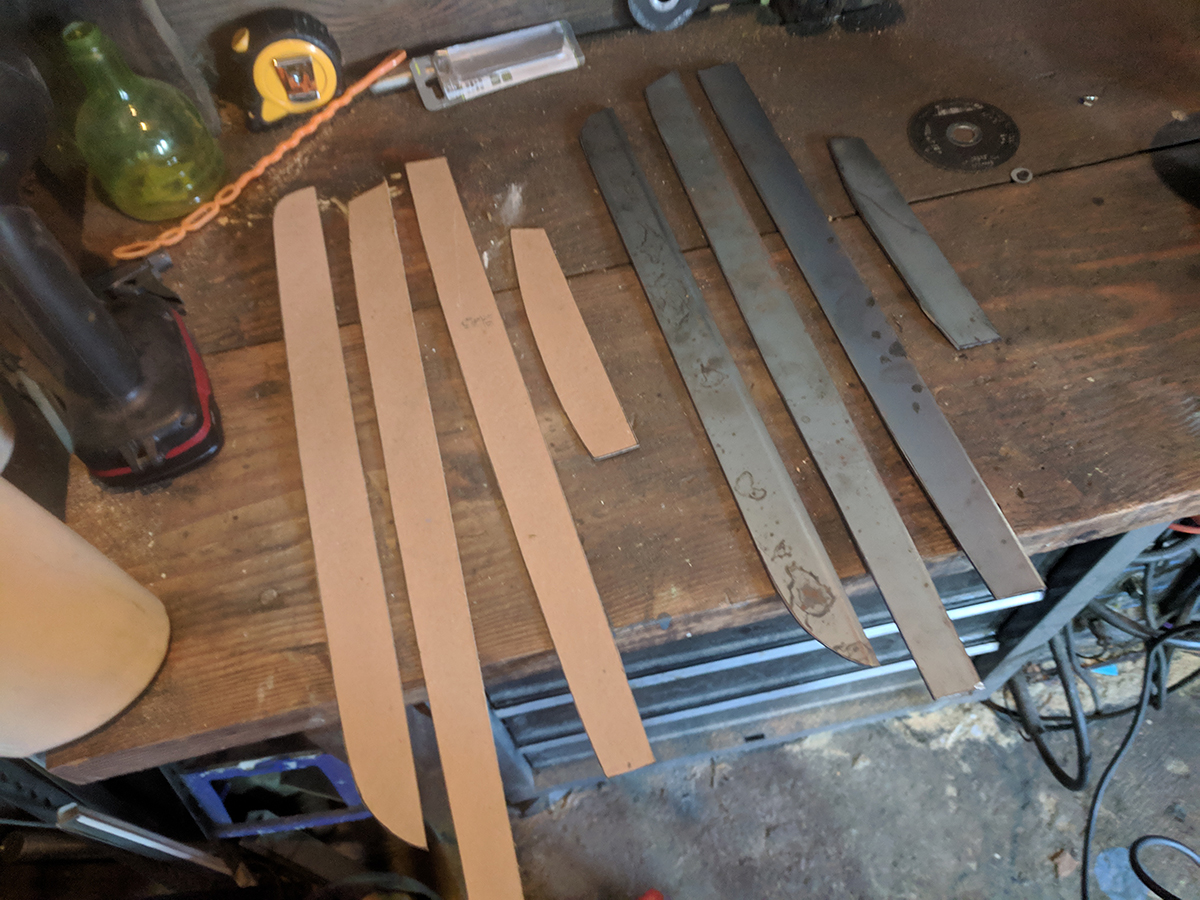

I then transferred these rough templates to some 3/16" steel, I want this frame to be beefy enough that I can use it to help inform the shape of the poly.
Attached Image

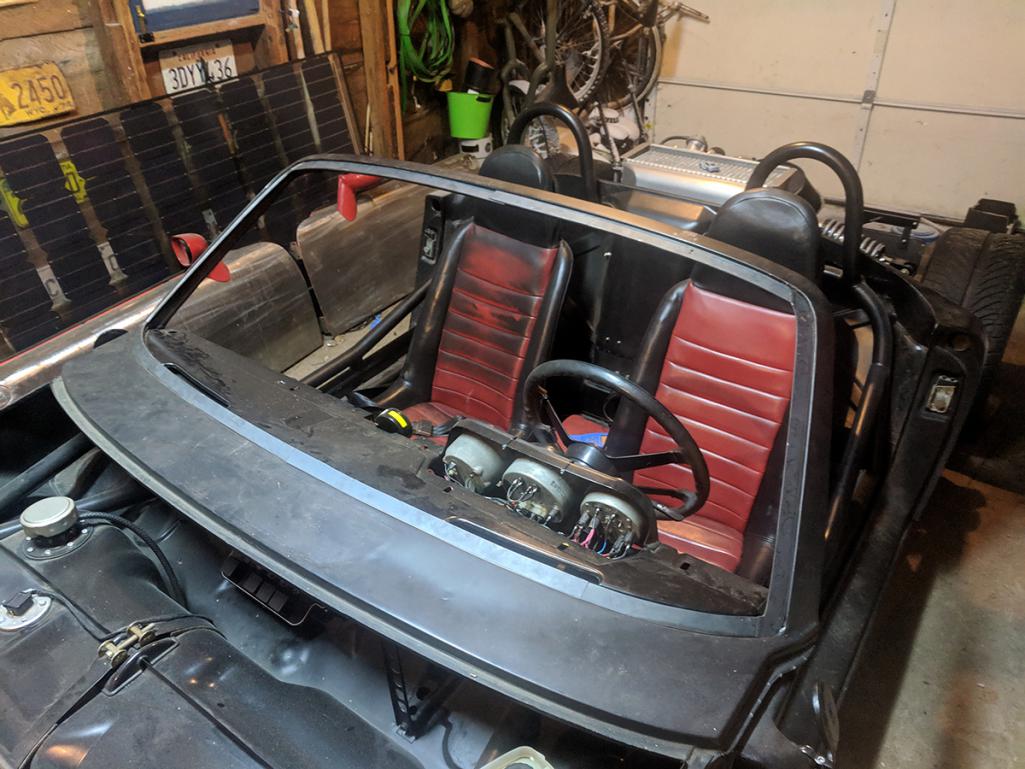

Here are the rough cut pieces in place, I am using magnets as spacers to leave enough of a gap for the windshield and gasket.
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Apr 1 2019, 10:40 AM
Post #1375


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest

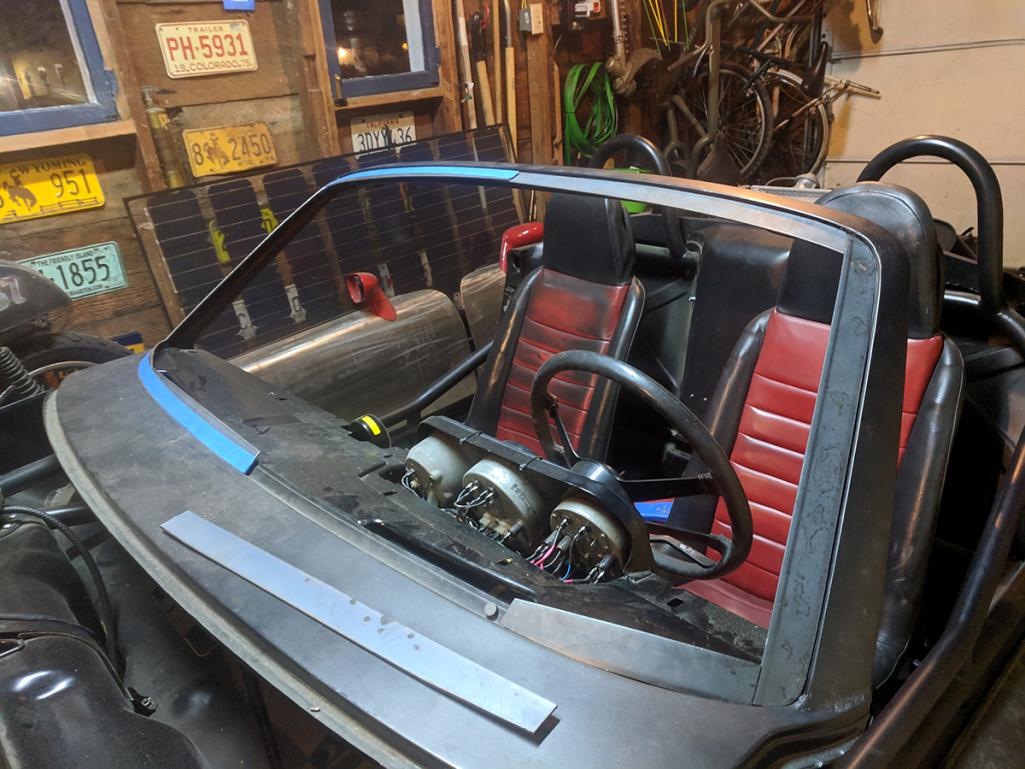

I made some more templates and made the pieces for the passenger side.
Attached Image

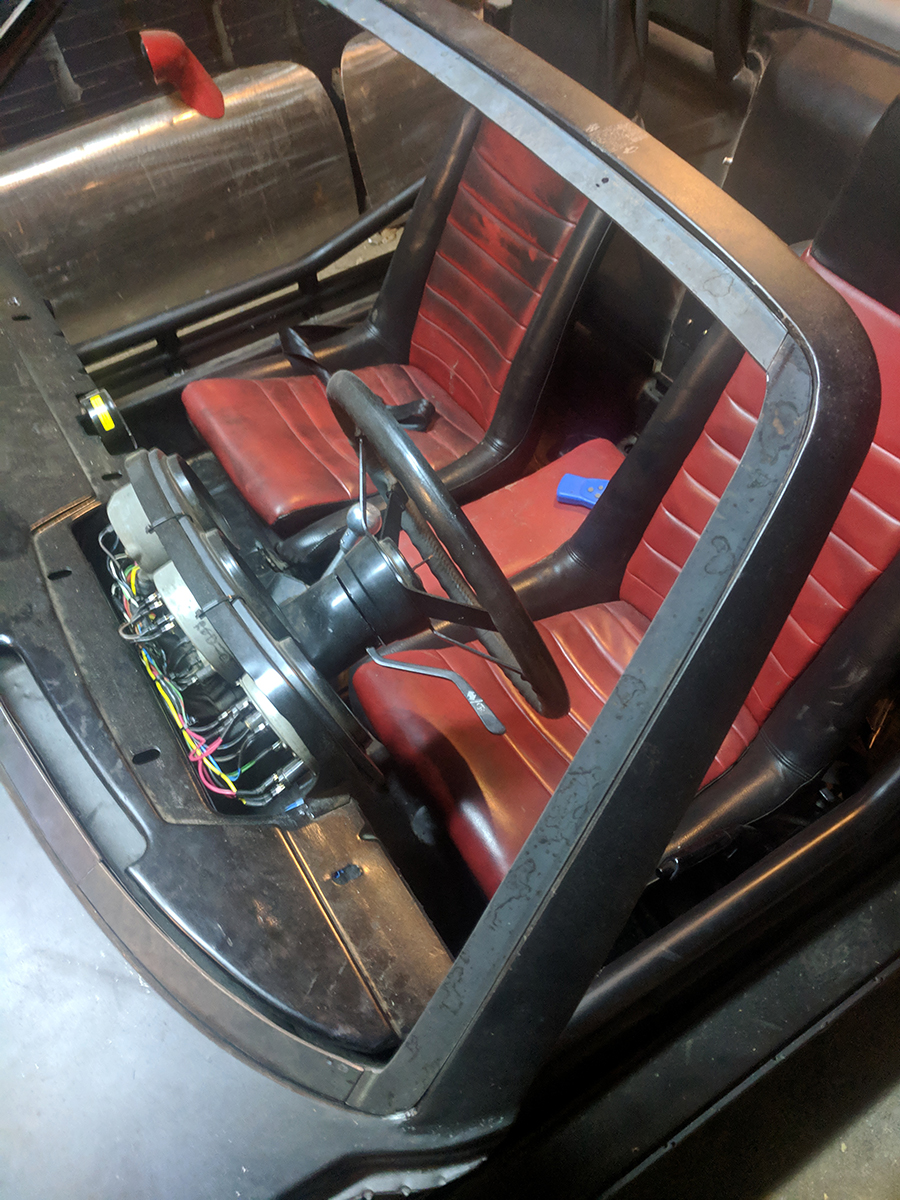

I am grinding these to fit as tight as I can against the frame, after I get everything dialed in I will go back and cut a gap into this part. good to leave it long for now!
Attached Image

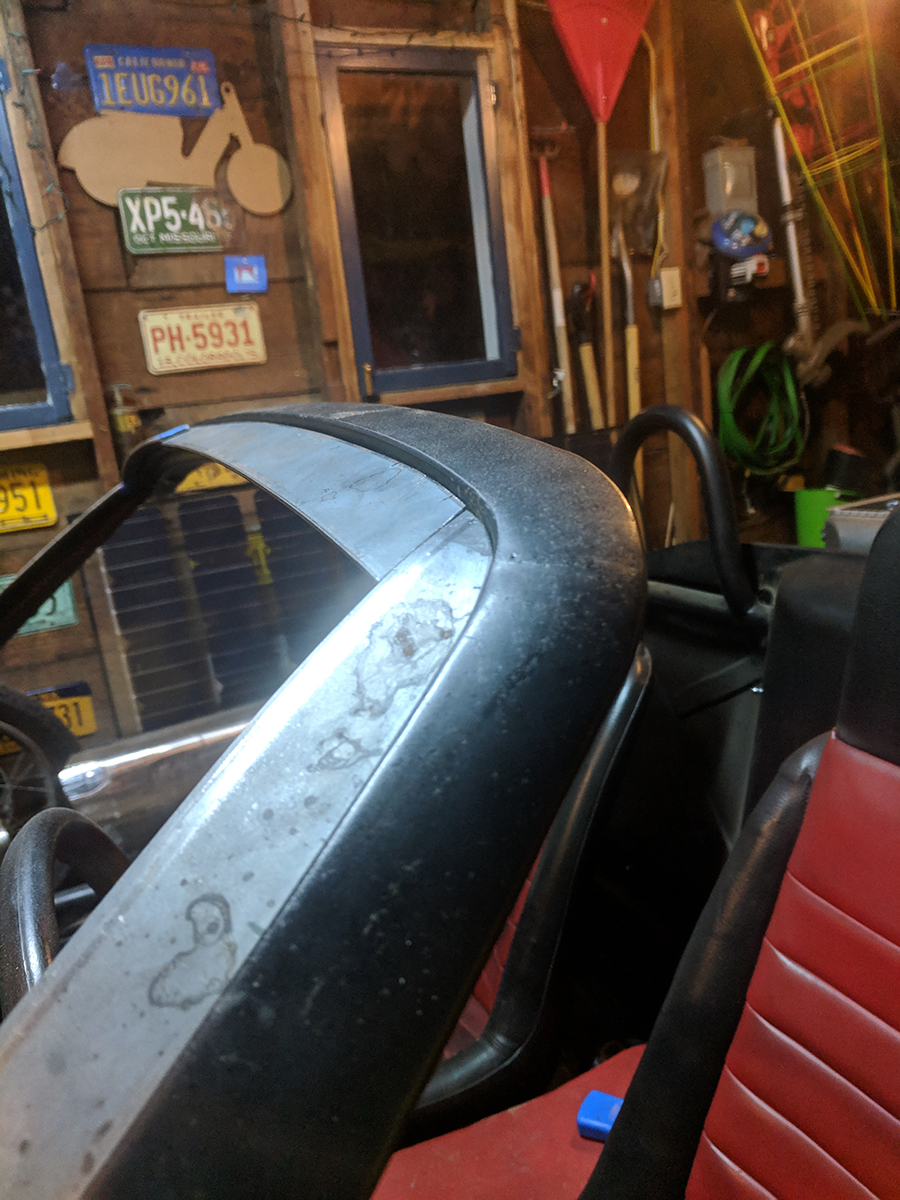

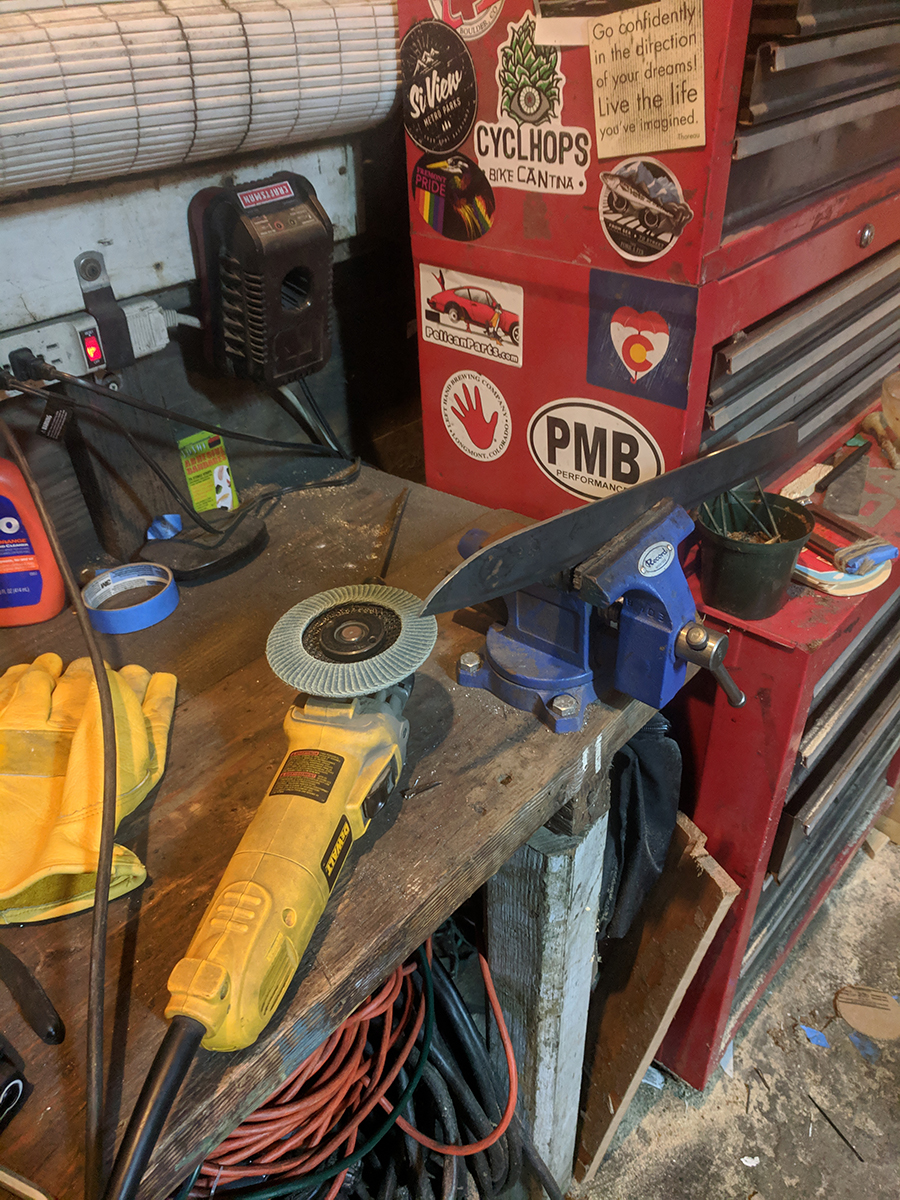

A lot of effort went into shaping these into the correct shape.
Attached Image

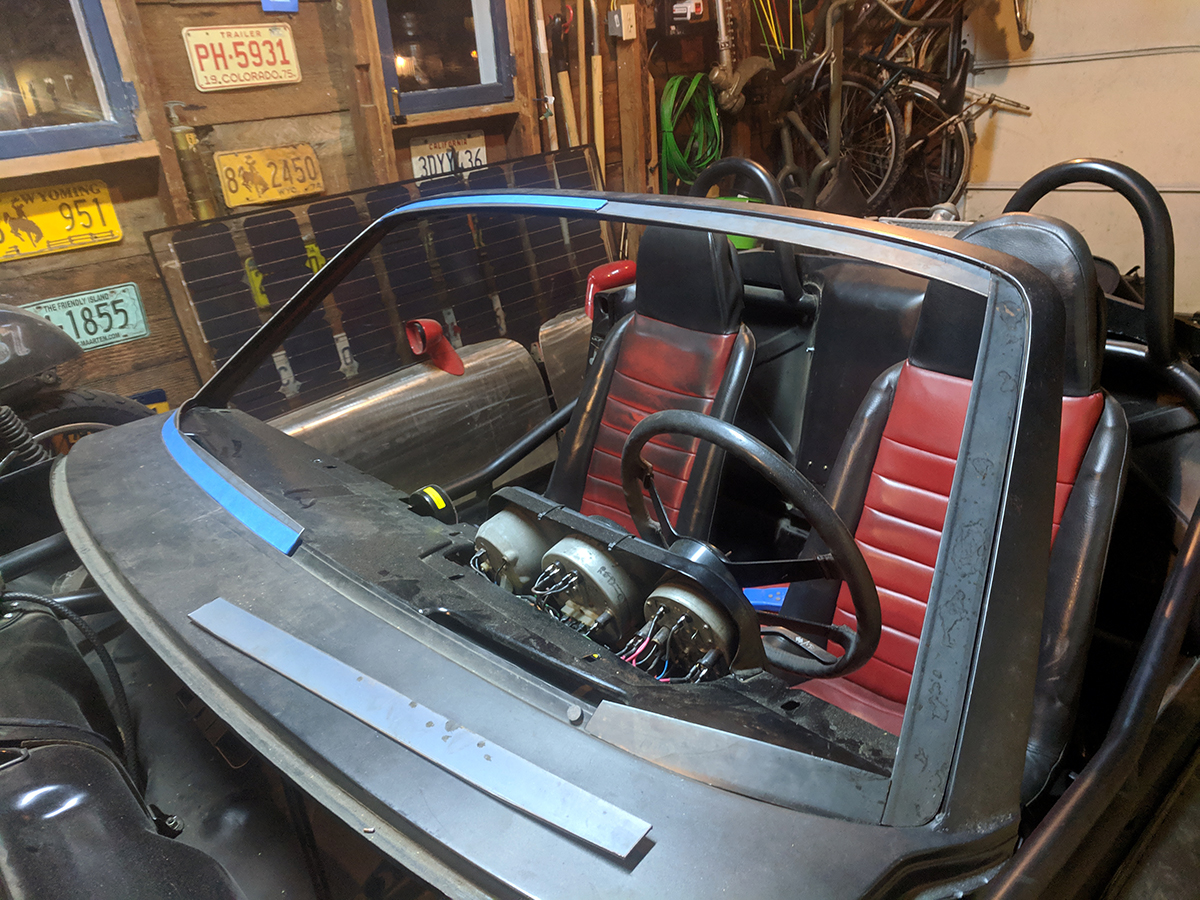

Outside is shaped! Time to do the inside cut!
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Apr 1 2019, 10:40 AM
Post #1376


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest
These are still oversized, I am going to need to do a lot of work on these and need to leave a buffer for grinding.
Attached Image

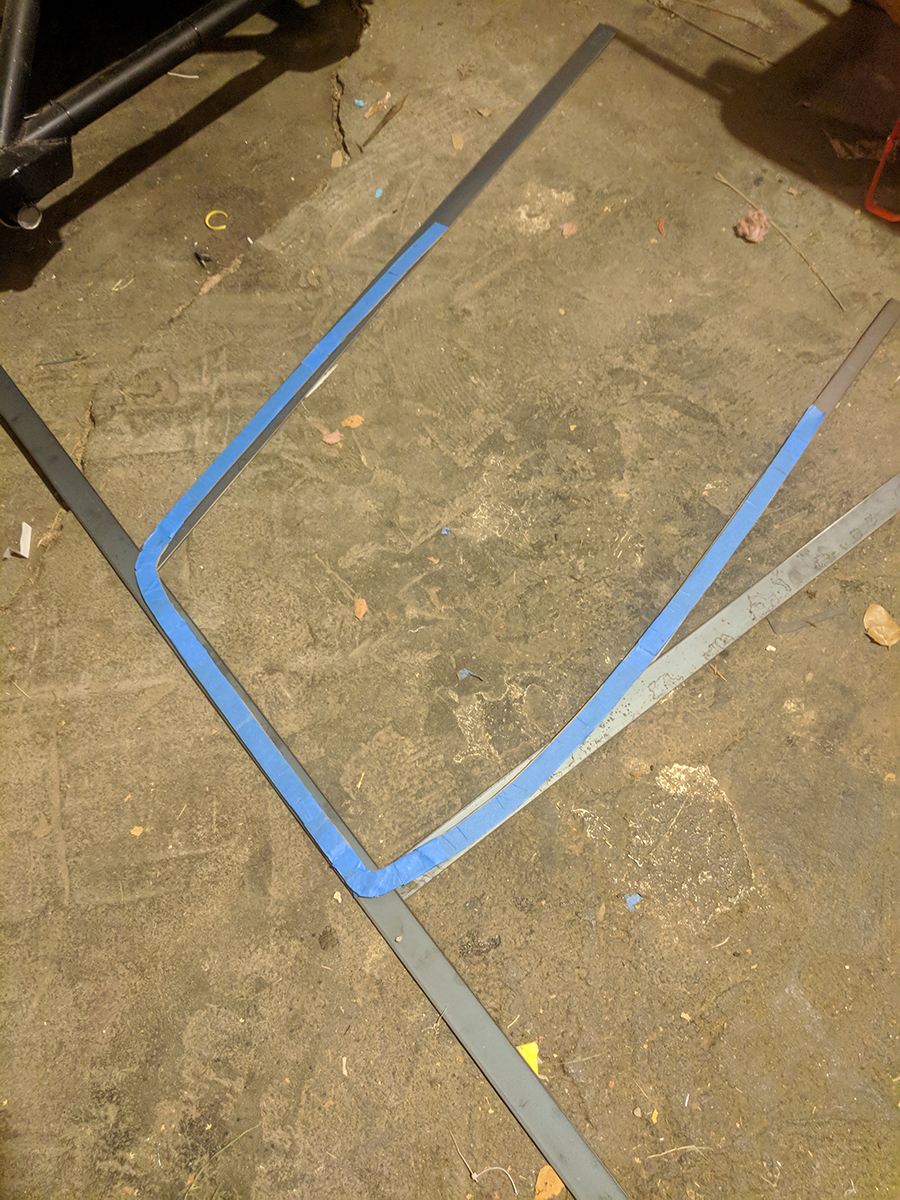

Looking at the shape the Polycarbonate will have to take is encouraging though, I think I may actually be able to pull this off!
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Ferg
post Apr 1 2019, 01:07 PM
Post #1377


914 Guru
*****

Group: Members
Posts: 5,948
Joined: 8-January 03
From: Boulder CO
Member No.: 116
Region Association: None
Doors and a windscreen. Big year year for sure (IMG:style_emoticons/default/laugh.gif) (IMG:style_emoticons/default/bye1.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Apr 1 2019, 03:55 PM
Post #1378


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest
QUOTE(Ferg @ Apr 1 2019, 01:07 PM) *

Doors and a windscreen. Big year year for sure (IMG:style_emoticons/default/laugh.gif) (IMG:style_emoticons/default/bye1.gif)


they grow up so fast (IMG:style_emoticons/default/biggrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Spoke
post Apr 1 2019, 05:24 PM
Post #1379


Jerry
*****

Group: Members
Posts: 7,149
Joined: 29-October 04
From: Allentown, PA
Member No.: 3,031
Region Association: None
Amazing project. Your crafting skills are beyond belief. The Police that pulled you over didn't even know to ask you "Is this a Fiat?" since it didn't have it's 914 skin on it.

When you get the front and rear on and if it uses the standard 914 front and rear light fixtures, I'd gladly donate LED brake, turnsignals, and reverse lights to the project.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Apr 1 2019, 09:56 PM
Post #1380


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest
QUOTE(Spoke @ Apr 1 2019, 05:24 PM) *

Amazing project. Your crafting skills are beyond belief. The Police that pulled you over didn't even know to ask you "Is this a Fiat?" since it didn't have it's 914 skin on it.

When you get the front and rear on and if it uses the standard 914 front and rear light fixtures, I'd gladly donate LED brake, turnsignals, and reverse lights to the project.


Heck yeah! That would be amazing! Even more motivation to get going on body work! Thank you!
