I'm BAAACK! Actually, I never really left, just did a couple other projects, built a house, took about a year off the car, but never fear, progress has been made, and now it is time to share the last year of work with you.

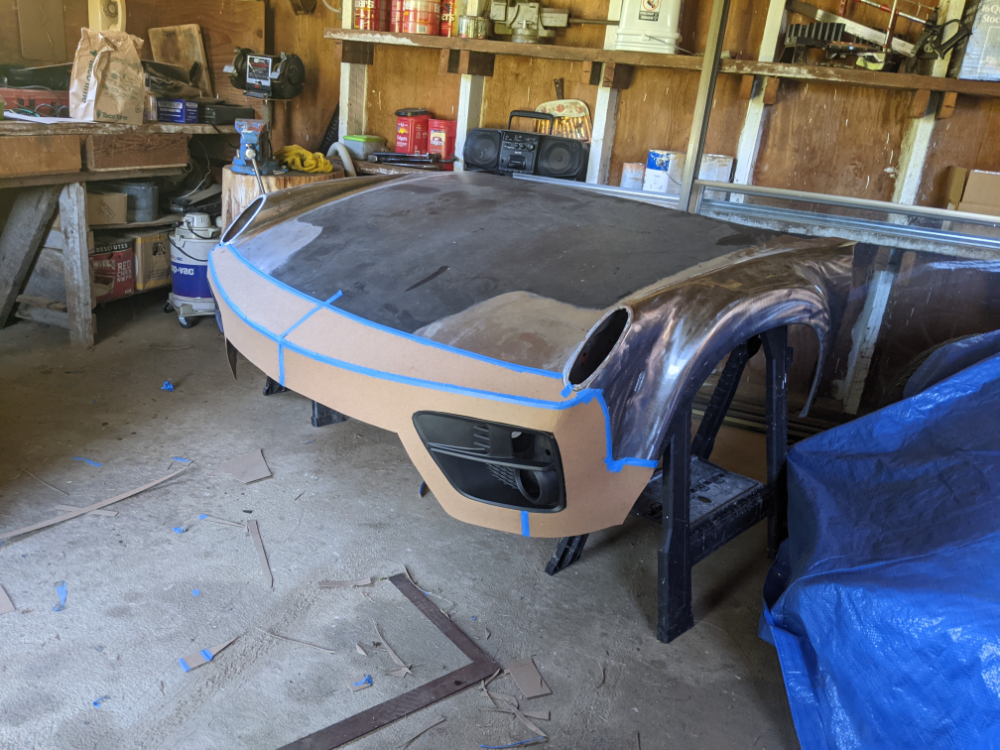

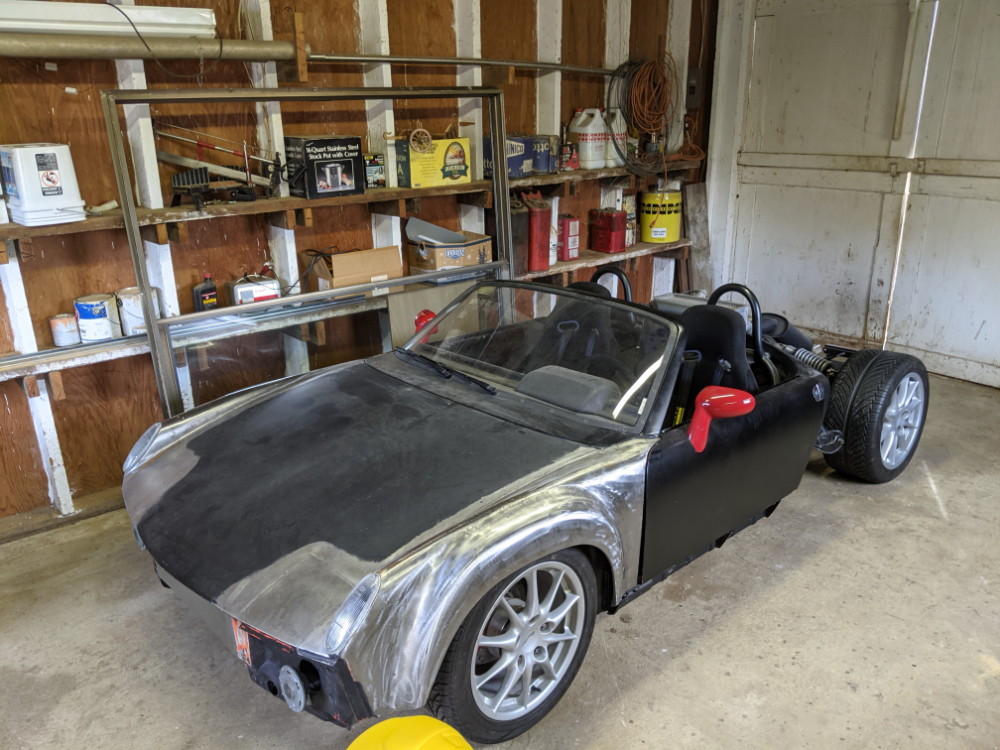

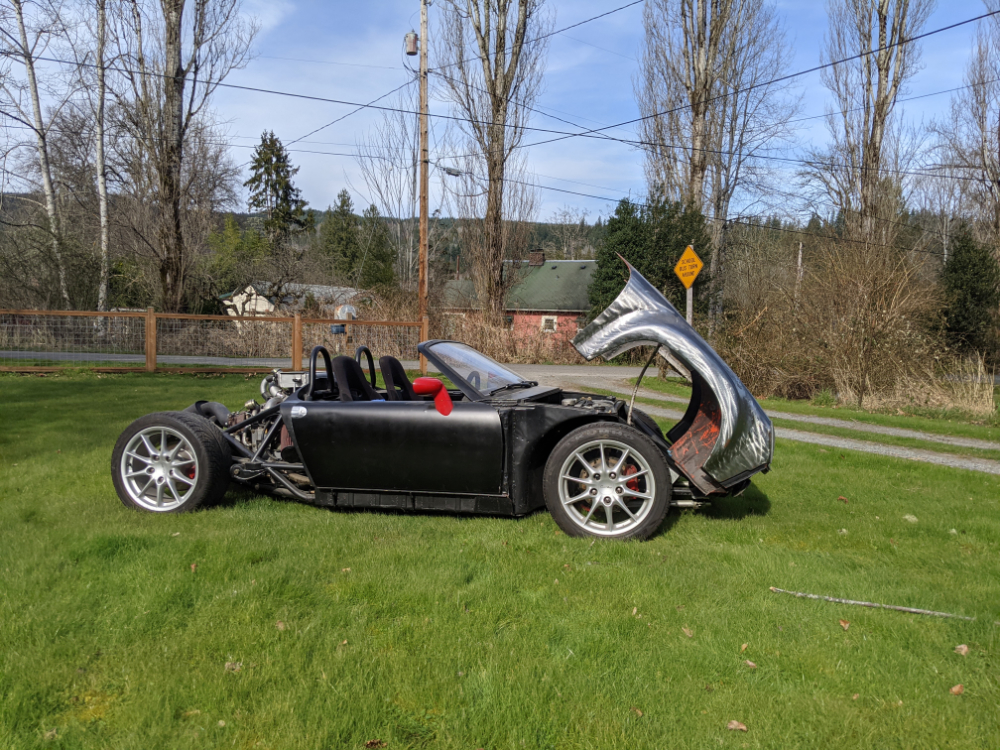

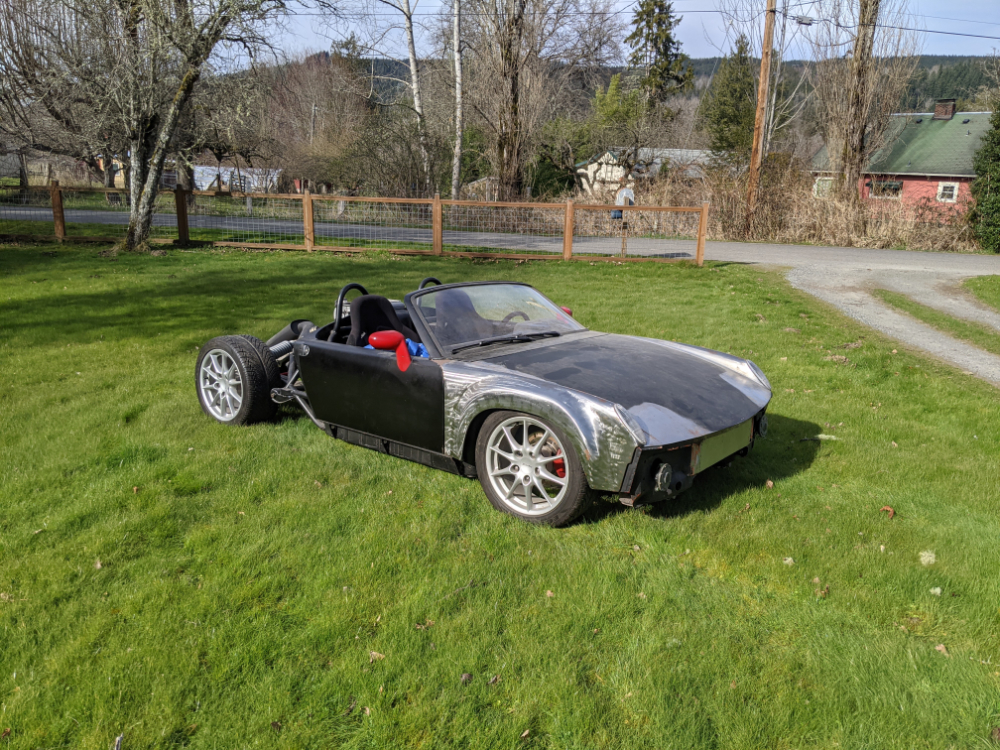

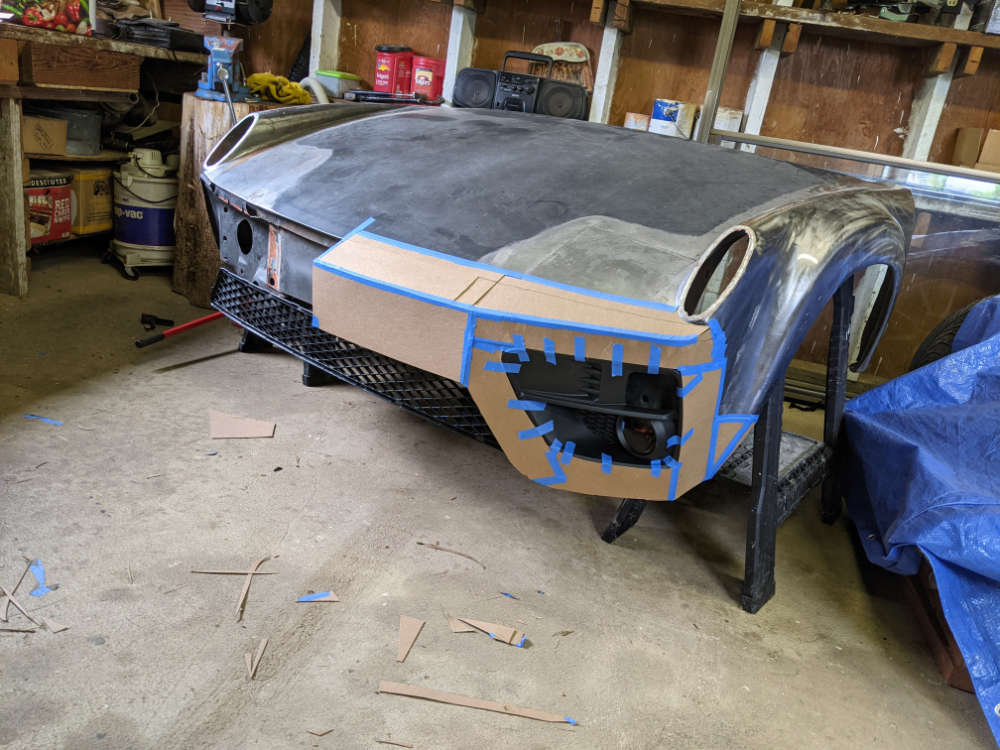

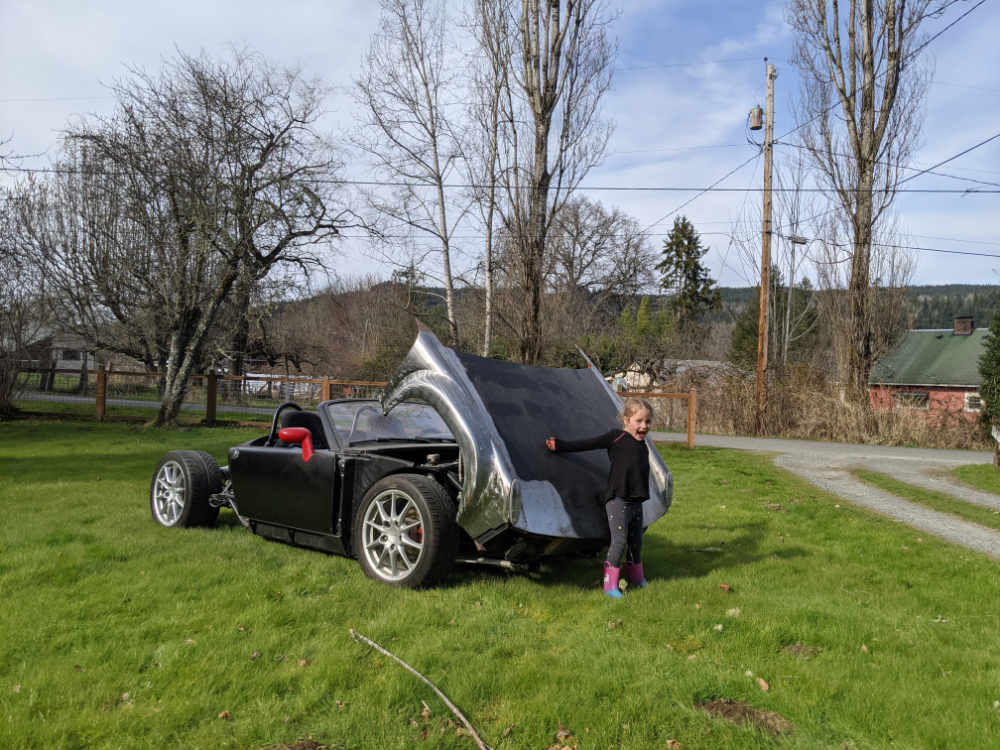

Here is where I left off, the front clamshell was just about together, just waiting for a bumper and some bodywork:

Attached Image

Attached Image

Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Nov 9 2022, 05:44 PM
Post #1523


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest
I went to bolt on my fiberglass stock-ish bumper and just could not talk myself into liking the look of it, I have just modified this car too much to bolt on something off the shelf. I started researching 916 bumpers and a post on 914 world resonated with me, someone complained that fiberglass 916 bumpers fit so bad that they might as well build one themselves, so that is what I planned to do. The new bumper will be made from steel and modeled after a new take on the 916/Porsche design aesthetic.

This is my design inspiration board, a hint of 916, some contemporary Porsche, and a hint of the similarly styled wrx.
Attached Image

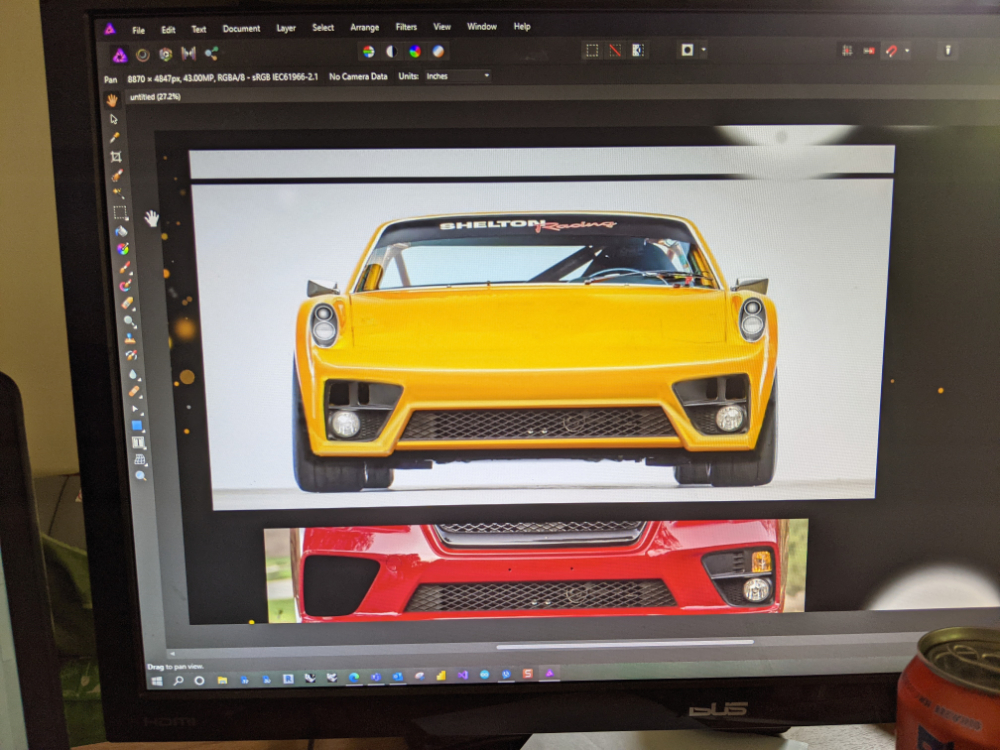

Using the wrx grills as a loose starting place I did some sketching in Photoshop to get in the ballpark
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Nov 9 2022, 05:44 PM
Post #1524


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest

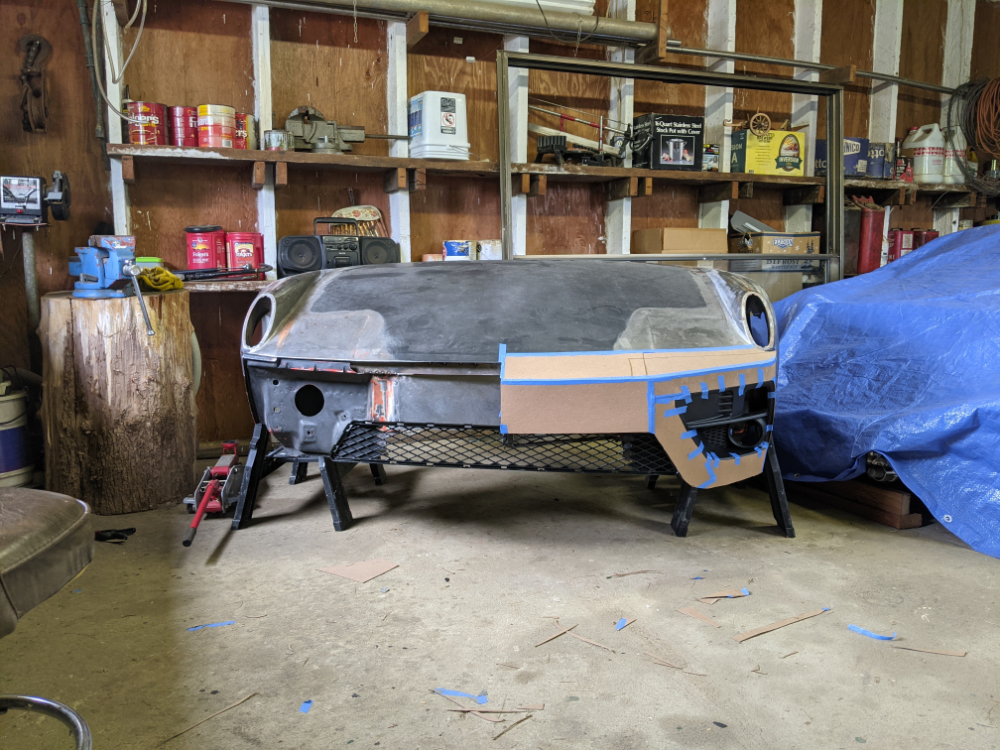

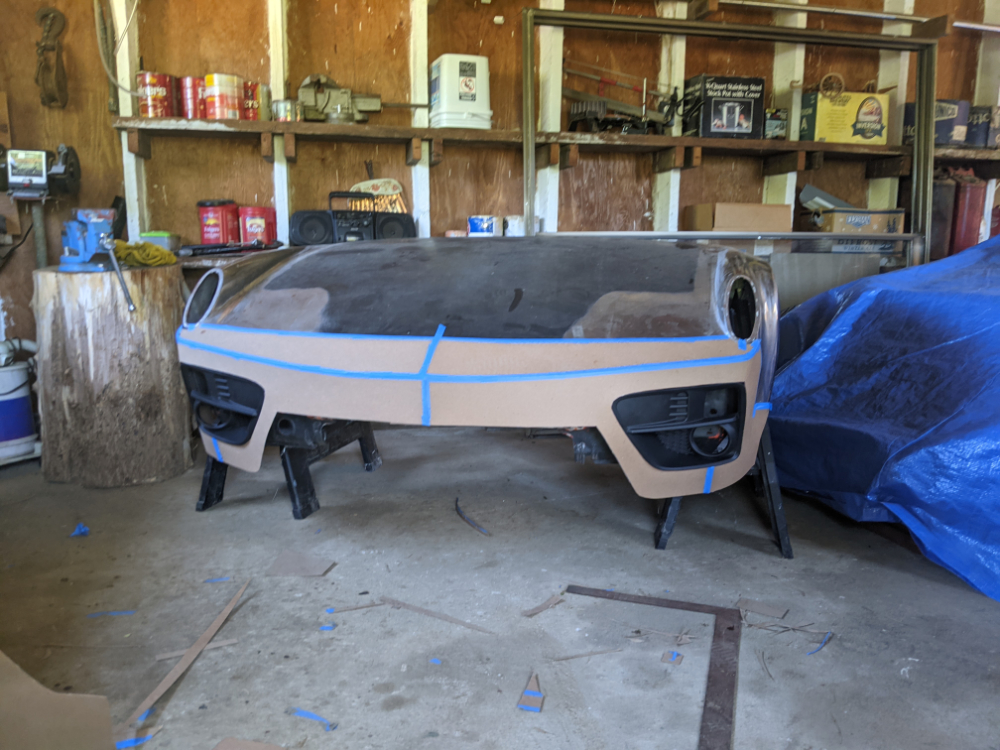

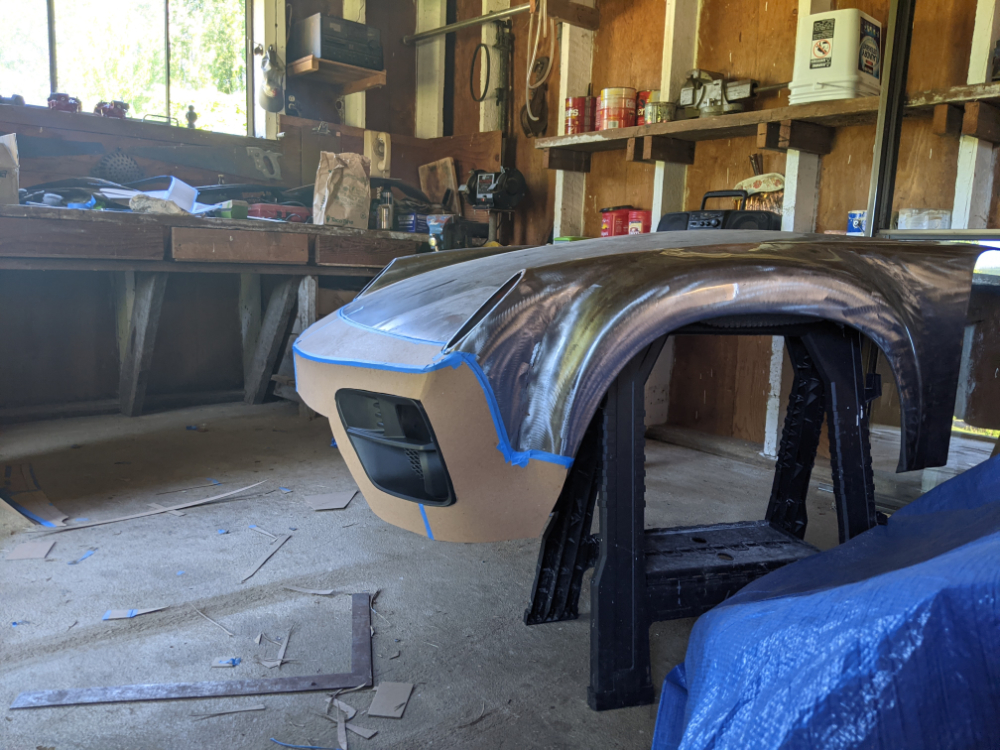

I started feeling out the shape by buying a 2014 wrx grill set and trying to integrate them into the 914 with chip board, still rough but I am starting to get a sense of the 3-dimensional shape that will be required to get everything to flow together.

Attached Image

Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Nov 9 2022, 05:44 PM
Post #1525


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest

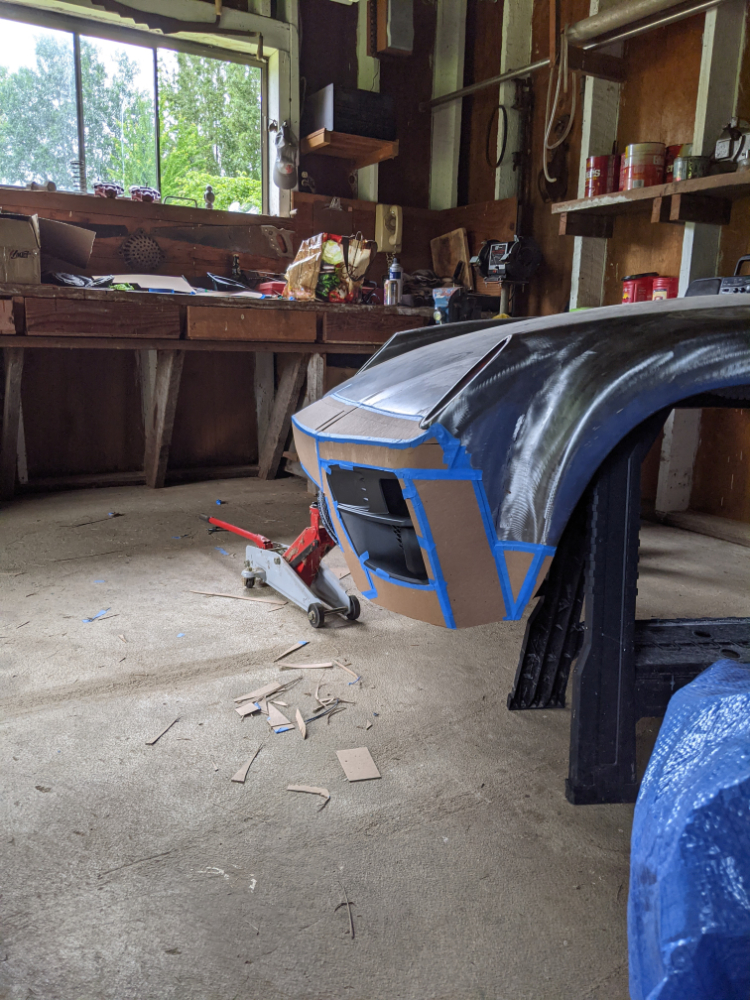

After I got that in the ballpark I remade my templates and mirrored them for the other side, there are still some waves in the template seams but I have a trick for that.
Stay tuned for next week where I get out the tubing roller and start welding in some structure!

Attached Image

Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Nov 9 2022, 05:46 PM
Post #1526


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest
QUOTE(KELTY360 @ Nov 3 2022, 03:46 PM) *

QUOTE(914werke @ Nov 3 2022, 12:23 PM) *

Hey Dana here is a (IMG:style_emoticons/default/icon_bump.gif)
hope you are still tweezing on the Anklebiter. (IMG:style_emoticons/default/smile.gif)


(IMG:style_emoticons/default/agree.gif) @plymouth37 hope you’re doing well these days, Dana.



(IMG:style_emoticons/default/beerchug.gif)

Hi Friends! Thanks for checking in!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914werke
post Nov 9 2022, 06:49 PM
Post #1527


"I got blisters on me fingers"
**********

Group: Members
Posts: 10,934
Joined: 22-March 03
From: USofA
Member No.: 453
Region Association: Pacific Northwest
(IMG:style_emoticons/default/aktion035.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914Sixer
post Nov 9 2022, 07:22 PM
Post #1528


914 Guru
*****

Group: Members
Posts: 9,016
Joined: 17-January 05
From: San Angelo Texas
Member No.: 3,457
Region Association: Southwest Region
Really like the look, late Cayman style
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
burton73
post Nov 9 2022, 08:01 PM
Post #1529


burton73
****

Group: Members
Posts: 3,670
Joined: 2-January 07
From: Los Angeles
Member No.: 7,414
Region Association: Southern California
Great to see you back on this fantastic build. Very tasteful custom job

Best Bob B
(IMG:style_emoticons/default/first.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
g911
post Nov 9 2022, 08:05 PM
Post #1530


Member
**

Group: Members
Posts: 222
Joined: 13-January 06
From: Not Tellin'
Member No.: 5,413
Region Association: None
(IMG:style_emoticons/default/piratenanner.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
infraredcalvin
post Nov 9 2022, 10:33 PM
Post #1531


Distracted Member
***

Group: Members
Posts: 1,571
Joined: 25-August 08
From: Ladera Ranch, CA
Member No.: 9,463
Region Association: Southern California
I think you nailed it with your design, fits right in with overall car aesthetic. Only critique I have (and it’s an over the top item) is the big plastic inserts, including the grill don’t tie into the all metal look of the car….
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Krieger
post Nov 9 2022, 11:34 PM
Post #1532


Advanced Member
****

Group: Members
Posts: 4,763
Joined: 24-May 04
From: Santa Rosa CA
Member No.: 2,104
Region Association: None
WOW! This might be my all time favorite front end for the 914. I can't wait to see your work on this!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Nov 10 2022, 07:58 AM
Post #1533


914 Wiring Harnesses
*****

Group: Members
Posts: 8,739
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None
Followed this for a long time, what a great project.

You have good eye for design Dana, obviously. Does the non-parallel curvature of the outer bumper edge and front trunk lid edge give you any pause or concern?
User is online!Profile CardPM
Go to the top of the page
+Quote Post
autopro
post Nov 10 2022, 10:22 AM
Post #1534


Member
**

Group: Members
Posts: 306
Joined: 14-January 18
From: San Diego / Tijuana
Member No.: 21,797
Region Association: Southern California
That front end is coming out great! (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rjames
post Nov 10 2022, 10:50 AM
Post #1535


I'm made of metal
****

Group: Members
Posts: 4,141
Joined: 24-July 05
From: Shoreline, WA
Member No.: 4,467
Region Association: Pacific Northwest
Love what you're doing for the front end! (IMG:style_emoticons/default/smilie_pokal.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
siverson
post Nov 10 2022, 10:56 AM
Post #1536


Advanced Member
****

Group: Benefactors
Posts: 2,451
Joined: 5-May 03
From: San Diego, CA
Member No.: 654
Region Association: Southern California
Wow! Nice work!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
r_towle
post Nov 10 2022, 09:42 PM
Post #1537


Custom Member
***************

Group: Members
Posts: 24,645
Joined: 9-January 03
From: Taxachusetts
Member No.: 124
Region Association: North East States
I’m so happy you are still working on this!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tazz9924
post Nov 11 2022, 06:53 AM
Post #1538


Senior Member
***

Group: Members
Posts: 716
Joined: 31-May 15
From: Mooresville NC
Member No.: 18,779
Region Association: None
This is one of the two (likely more) main cars that inspired me to build mine!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cairo94507
post Nov 11 2022, 07:43 AM
Post #1539


Michael
**********

Group: Members
Posts: 10,089
Joined: 1-November 08
From: Auburn, CA
Member No.: 9,712
Region Association: Northern California
So glad to see progress on your car Dana. I like the direction the front end is taking. (IMG:style_emoticons/default/beerchug.gif)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Nov 12 2022, 08:17 PM
Post #1540


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest
One of the most distinctive design characteristics of many Porsches new and old is the rounded transition from the hood surface to the vertical bumper surface, as you can see in this random assortment of Porsche bumpers:
Attached Image

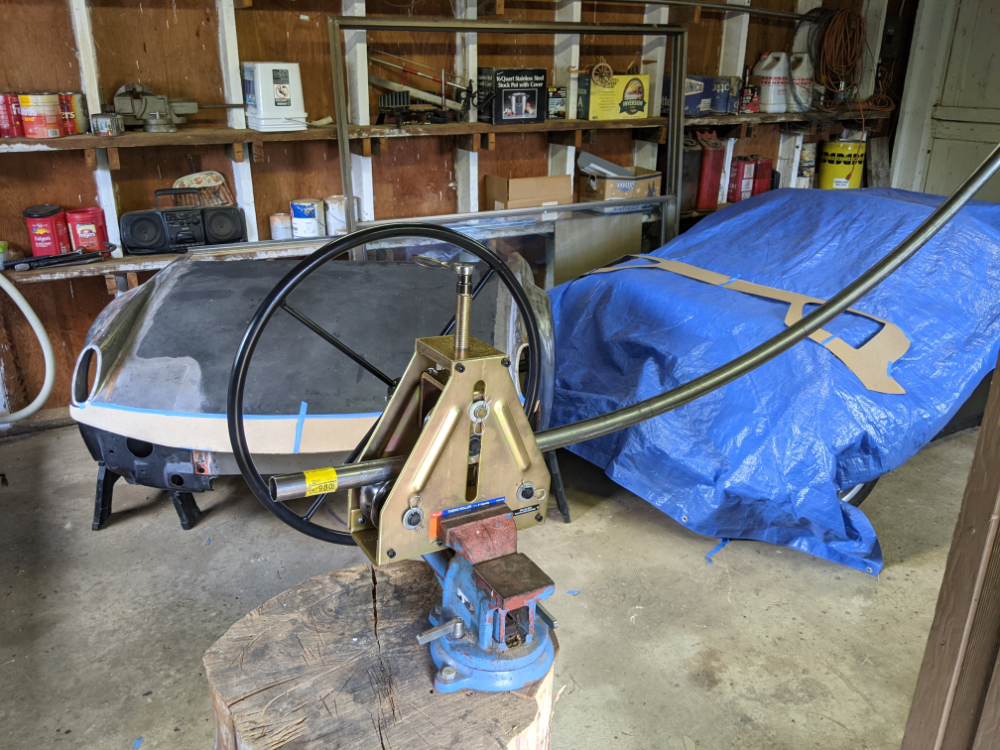

This would be a really hard dual curvature piece to fabricate so I figured out a hack, I bought a relatively cheap tubing roller at Harbor Freight and some .0625 wall 1.5" tubing and rolled the shape I wanted into it. It isn't a continuous curve, it is a little more rounded in the middle, and a hair flatter around the side grill areas
Attached Image

Then I duct taped it into place:

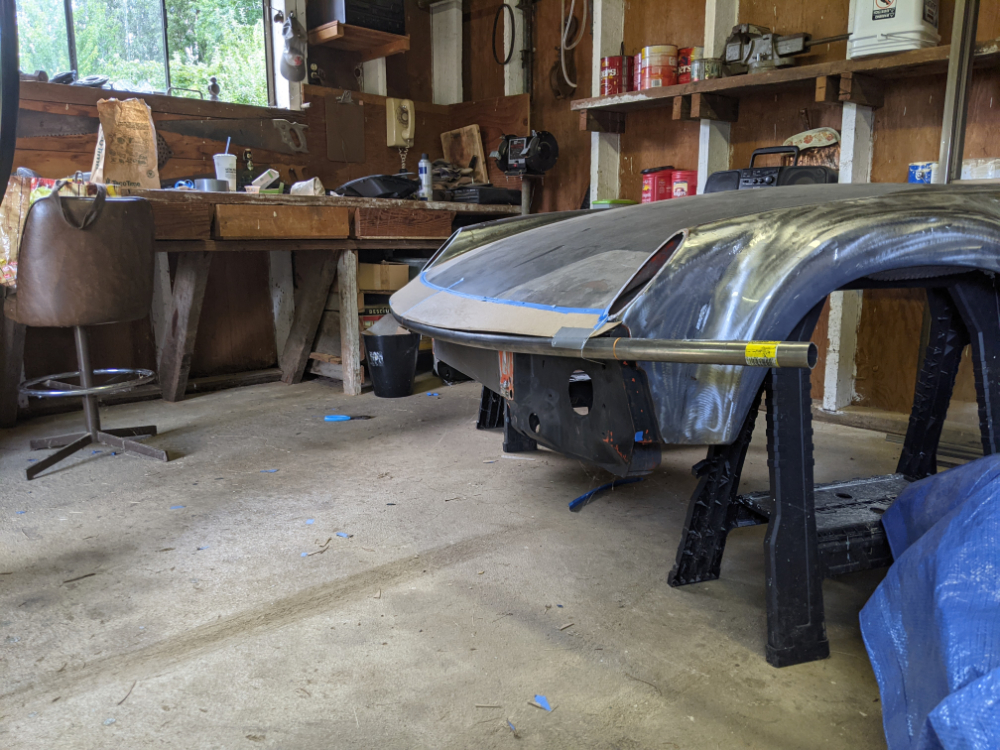

Attached Image

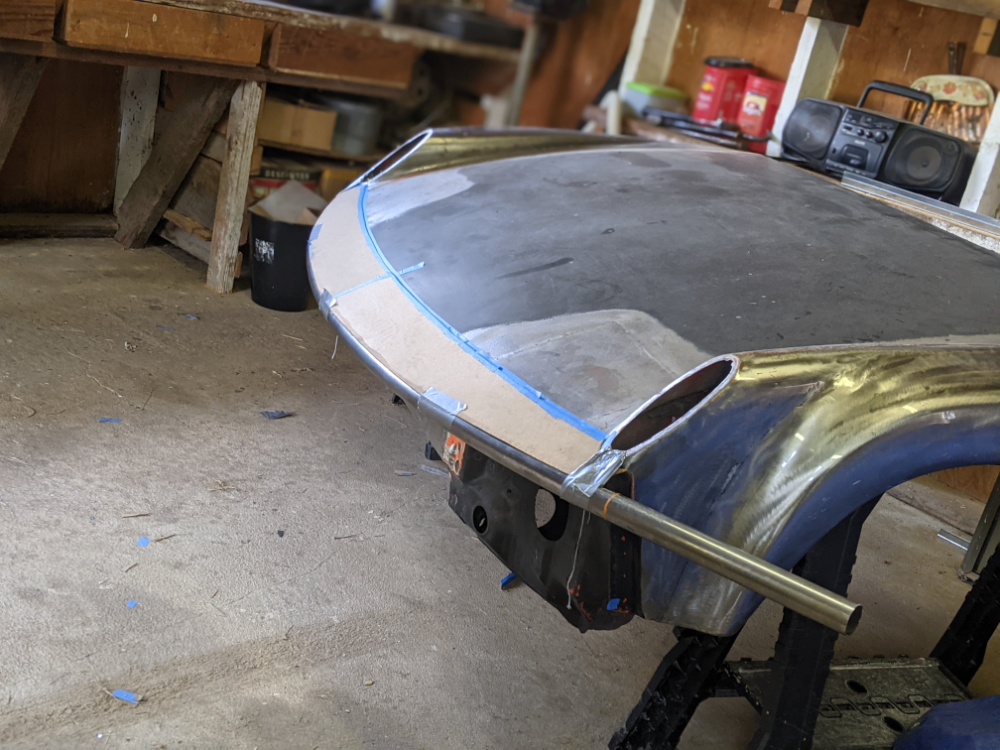

I had initially planned to cut out a quarter of this tube and butt weld it to the other sheet metal but it doesn't weigh much, and i kind of like the idea of an integrated bash bar in here so I think I will leave it whole and build the rest of the bumper around it.
