Cool! Nice to see some updating going on today. (IMG:style_emoticons/default/boldblue.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
effutuo101
post Nov 20 2008, 10:41 PM
Post #262


Advanced Member
****

Group: Members
Posts: 2,735
Joined: 10-April 05
From: Lemon Grove
Member No.: 3,914
Region Association: Southern California
Very nice, I can't wait to see how the defuser fits in with all of this. Are you going to move the radiator to the back now? Looks like you have a bunch more room now.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Nov 20 2008, 11:15 PM
Post #263


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest
I had thought about moving the radiator to the rear but I think it will bring alot of extra heat to the engine bay. I have a feeling it will be hard enough to get the intercooler cool as it is, running a belly pan and diffuser will seriously limit airflow to the engine bay. Who needs trunk space anyway? (IMG:style_emoticons/default/biggrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Dec 4 2008, 04:30 PM
Post #264


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest

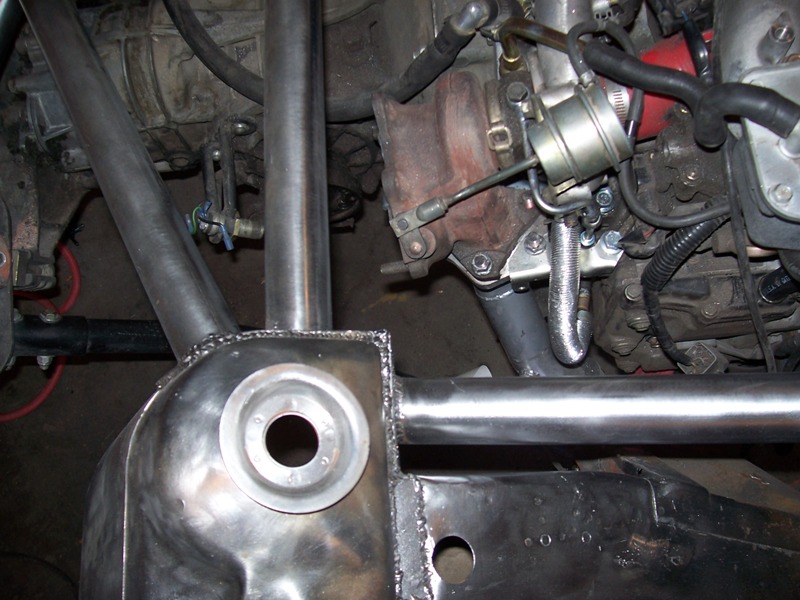

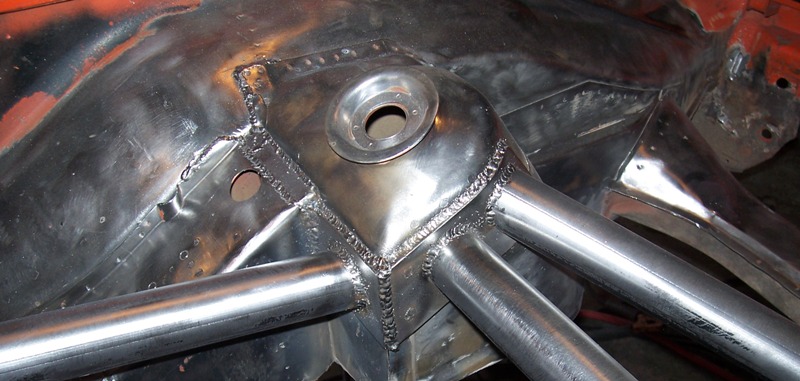

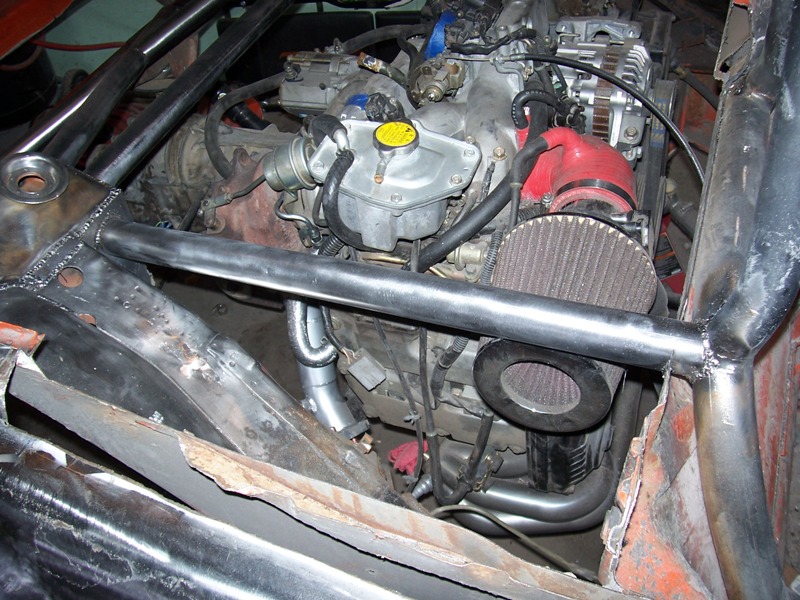

I did a little welding today.
I reinforced the rest of the tower and tied the rear tubes into the main cage.
While I had the welder out I patched all of the un-needed holes in the "trunk" and engine bay.

Attached Image

Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Dec 4 2008, 04:30 PM
Post #265


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest

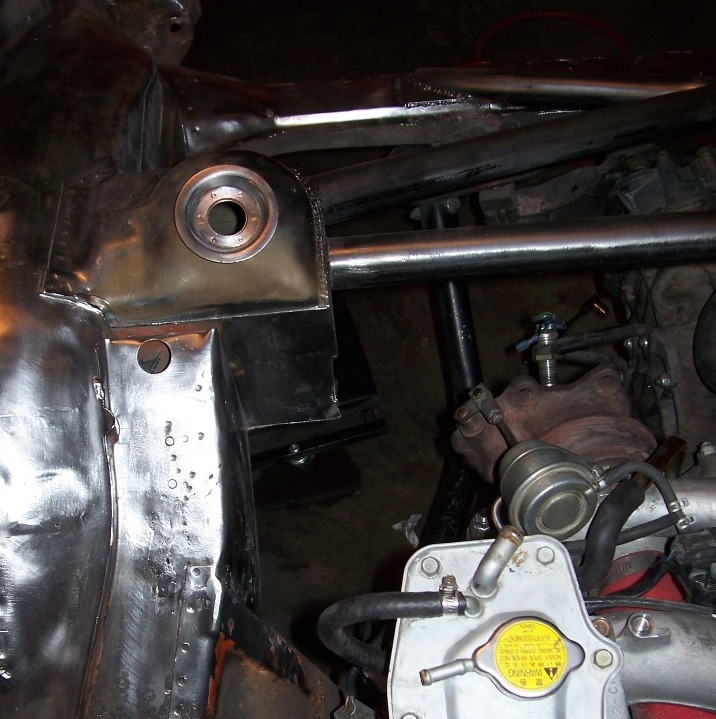

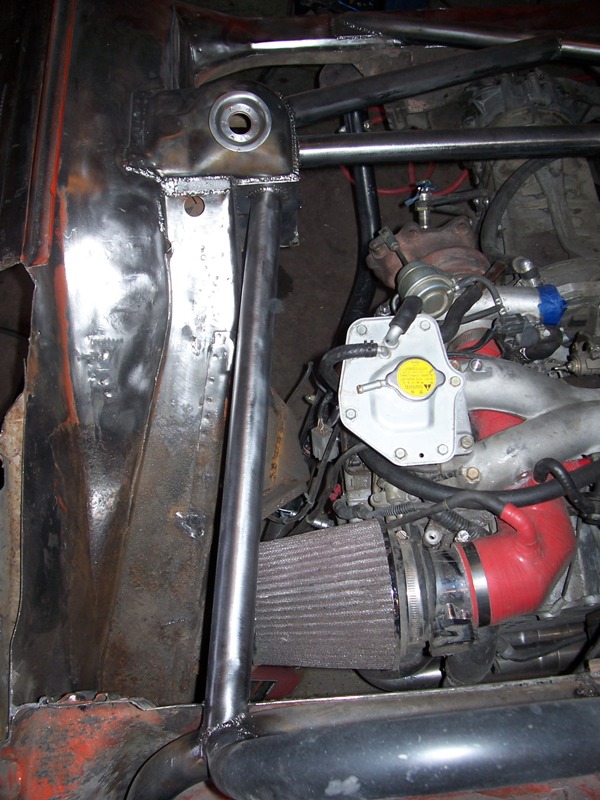

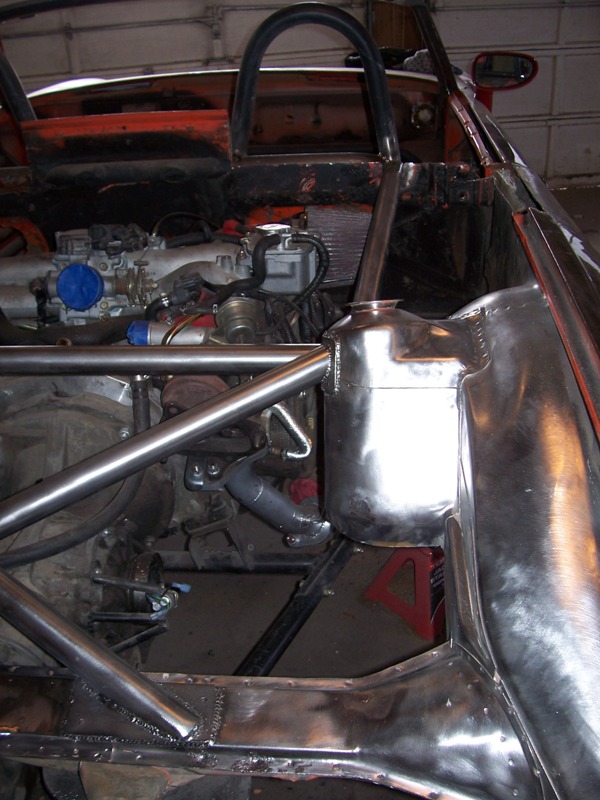

I had planned on welding tubes into both sides today but it is 9 degrees here so I gave in to the cold after only finishing the passenger side.
I should be able to weld in the other side tomorrow.
I also properly attached the framerail to the tower, it looks like the only thing attaching the two in the stock car were 3 tiny spot welds.

Attached Image

Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
PeeGreen 914
post Dec 4 2008, 05:08 PM
Post #266


Just when you think you're done...wait, there is more..lol
**********

Group: Members
Posts: 10,219
Joined: 21-September 06
From: Seattle, WA... actually Everett
Member No.: 6,884
Region Association: Pacific Northwest
(IMG:style_emoticons/default/piratenanner.gif) (IMG:style_emoticons/default/aktion035.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Brett W
post Dec 5 2008, 02:38 PM
Post #267


Advanced Member
****

Group: Members
Posts: 2,858
Joined: 17-September 03
From: huntsville, al
Member No.: 1,169
Region Association: None
Are you using that bzt-bzt-bzt-bzt welding technique that I see so many kids using now days when welding with a MIG machine? Your welds look funny.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Dec 5 2008, 03:20 PM
Post #268


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest
Yeah I use the bzt-bzt technique, the welds run a little on the cooler side but I find that I have better control of the weld quality this way.
The welds do look a little crazy in the pictures, because I polished them with the wire wheel the cameras flash goes nuts and makes them look all wonkey, trust me they look a lot better in person!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Dec 7 2008, 01:44 PM
Post #269


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest

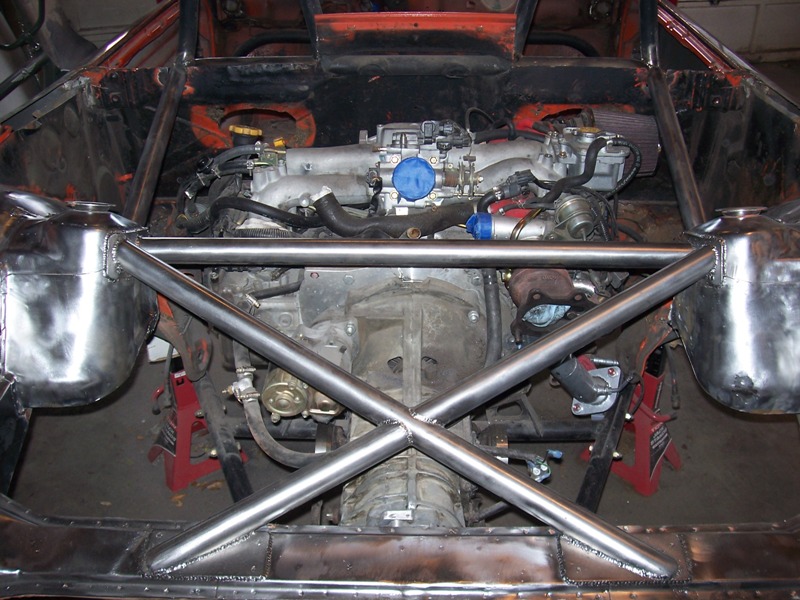

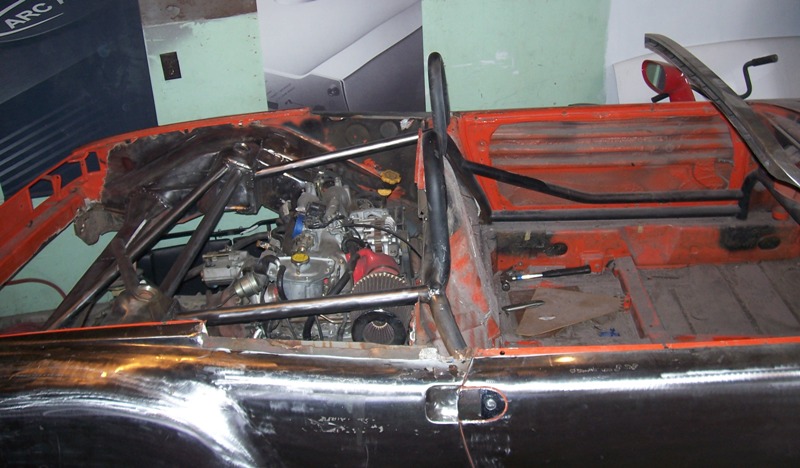

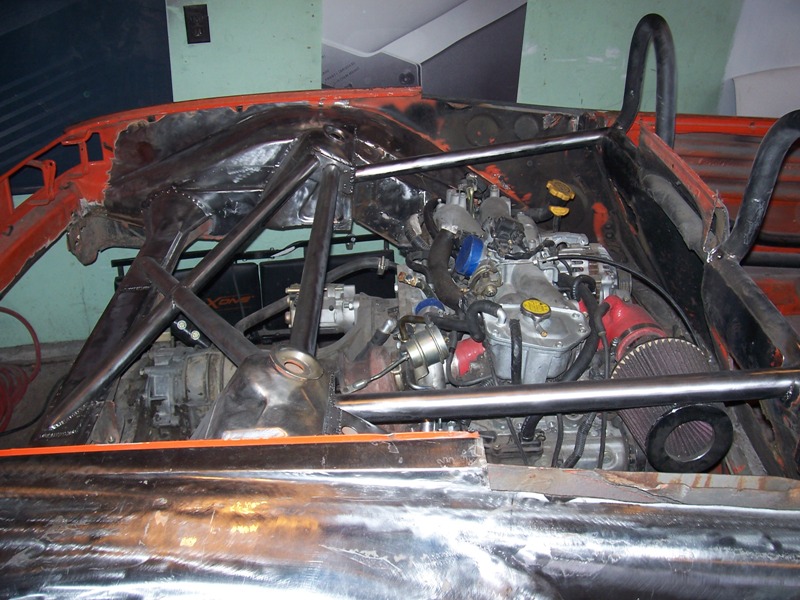

I finished the cage today.
Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Dec 7 2008, 01:44 PM
Post #270


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest

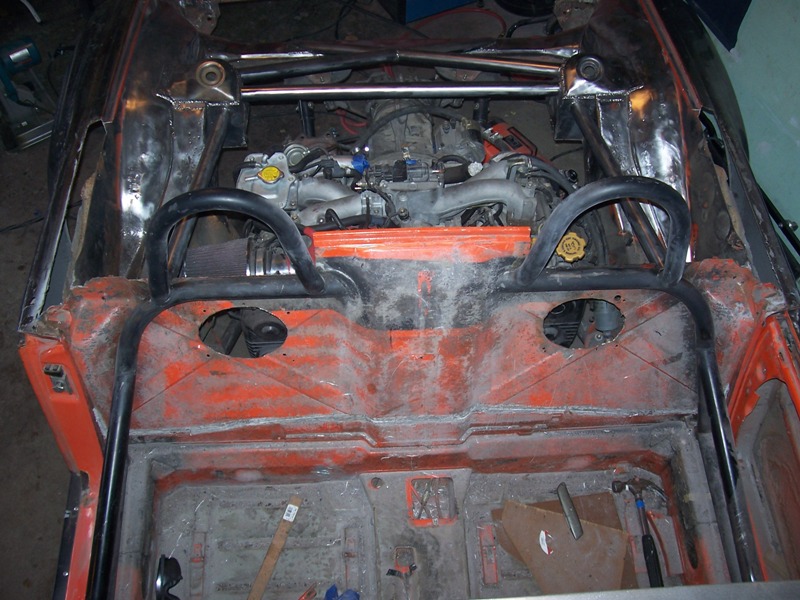

After cutting out the trunk floor and welding in all of the rear tubes I dropped a total of 3.2 pounds, not bad considering what was done.
Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Zaney
post Dec 7 2008, 03:27 PM
Post #271


Deuchland en der Haus
**

Group: Members
Posts: 461
Joined: 1-March 04
From: Engine 11 Redmond, WA
Member No.: 1,738
Region Association: Pacific Northwest
Now there should be no problem in finding room to upgrade your 901 to a WRX 5 speed someday.
Looks awesome! (IMG:style_emoticons/default/drooley.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Wilhelm
post Dec 8 2008, 01:50 AM
Post #272


Member
**

Group: Members
Posts: 408
Joined: 7-September 07
From: Hooterville, OR
Member No.: 8,088
Region Association: None
I'm concerned that the hoops of your roll bars are not continuous to the frame rails and are entirely dependent for their strength on the welds at their bases. They are also not triangulated and worry they will fold over onto your noggin in a crash. Don't get me wrong, I like what your doing overall, just want you to be safe.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Dec 8 2008, 10:34 AM
Post #273


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest
I totally agree, at this point the hoops are not nearly as strong as they could be.
I have decided to run 5-point harnesses so it would probably be a good idea to triangulate the hoops with another bar.
It will be tough to squeeze another bar under the humps, I will have a better idea of what is possible after I finish the firewall.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
BKLA
post Dec 8 2008, 10:36 AM
Post #274


Really old member
***

Group: Members
Posts: 1,253
Joined: 14-August 05
From: OR
Member No.: 4,590
Region Association: Pacific Northwest
great job!

(IMG:style_emoticons/default/popcorn[1].gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Dec 8 2008, 07:10 PM
Post #275


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest

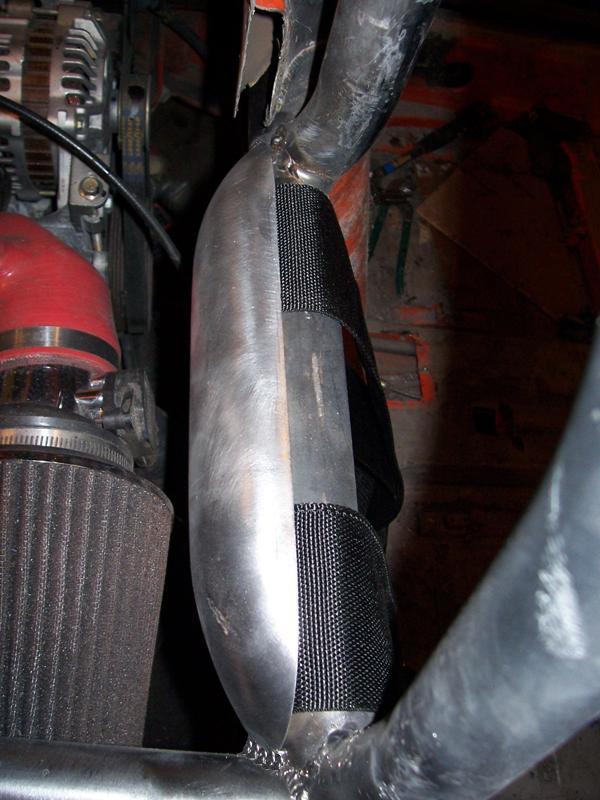

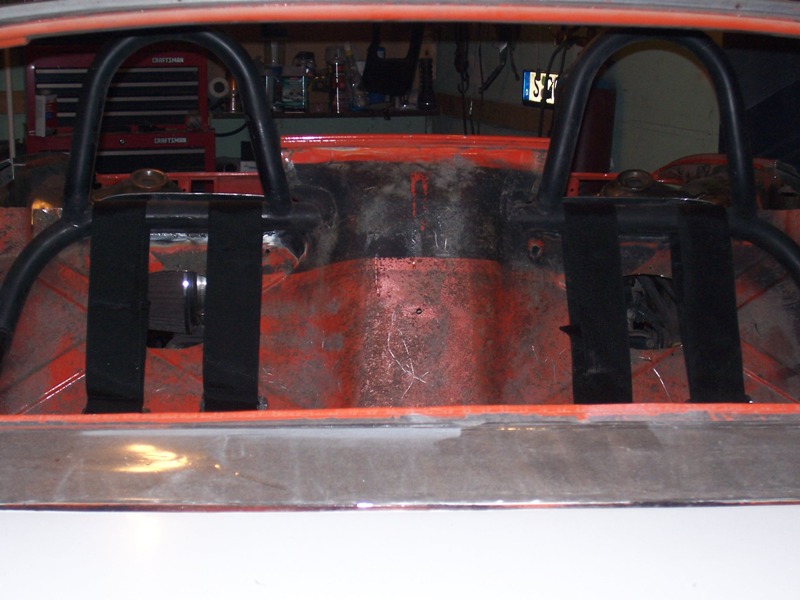

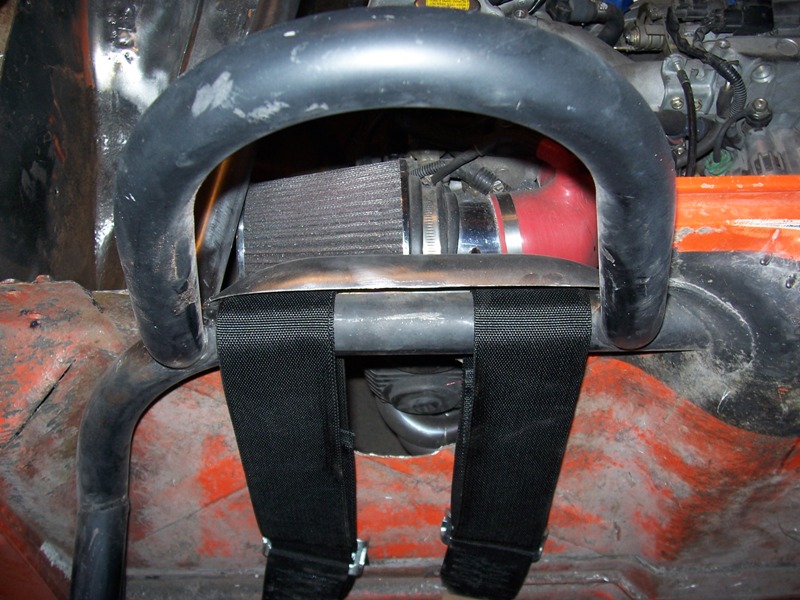

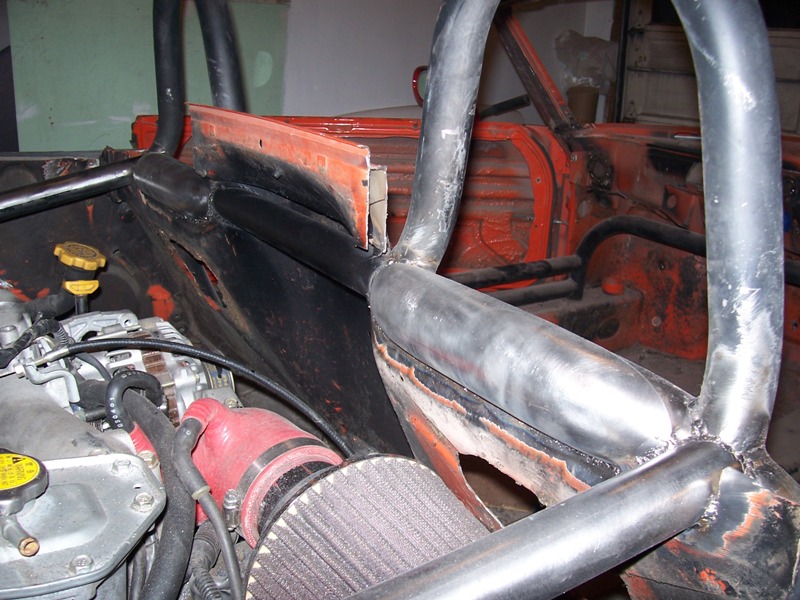

Today I started rebuilding the firewall. Since I cut off the targa bar that held the upper seat belt bracket I have decided to go with 5-point harnesses. Luckly my main hoop is in a great position to anchor the shoulder belts but the firewall needed to be recessed to clear the belts.

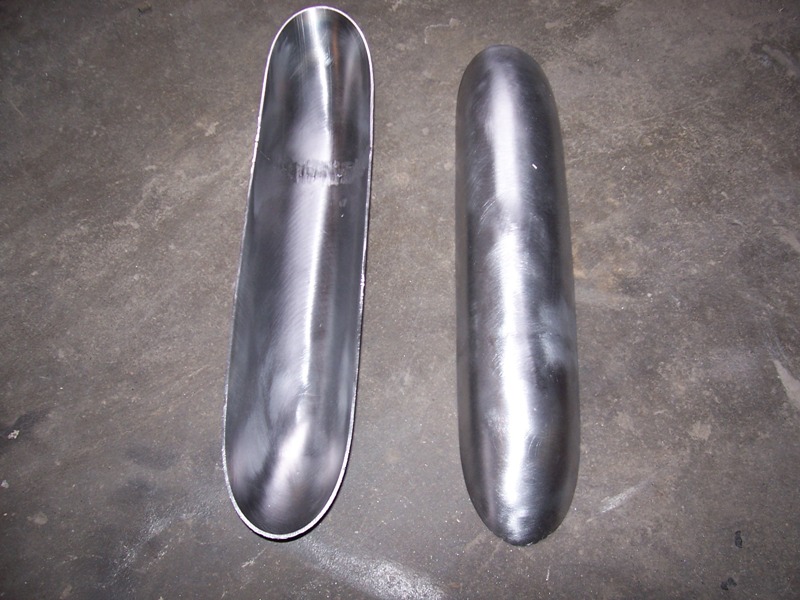

I made these blisters then welded them into the firewall.

Attached Image

Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Dec 8 2008, 07:22 PM
Post #276


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest
Attached Image
.
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Dec 16 2008, 06:06 PM
Post #277


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest

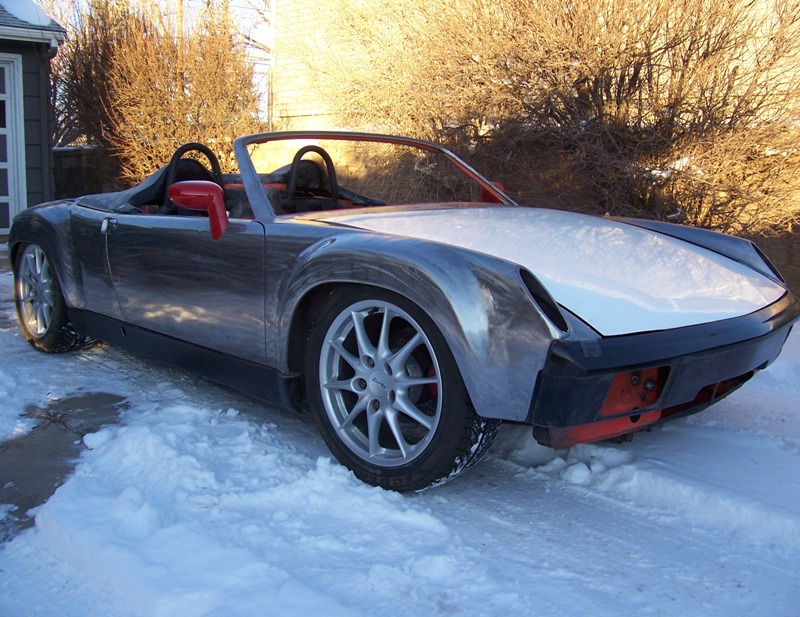

Big news, My wife and I are moving to Boulder Colorado in a couple weeks. I am transferring to CU Boulder in time for the spring semester. We got a nice place with a garage so work can continue on the Anklebiter. I dropped it back onto it's wheels to move it and decided to take some pics.

Attached Image

Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Dec 16 2008, 06:07 PM
Post #278


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest

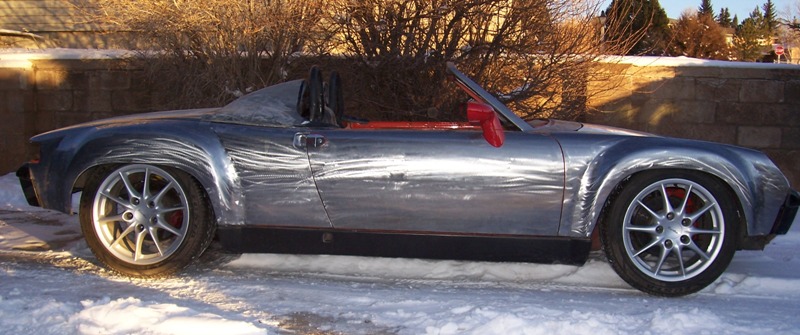

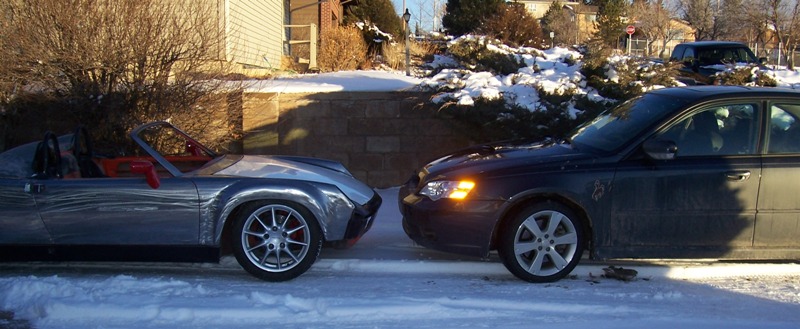

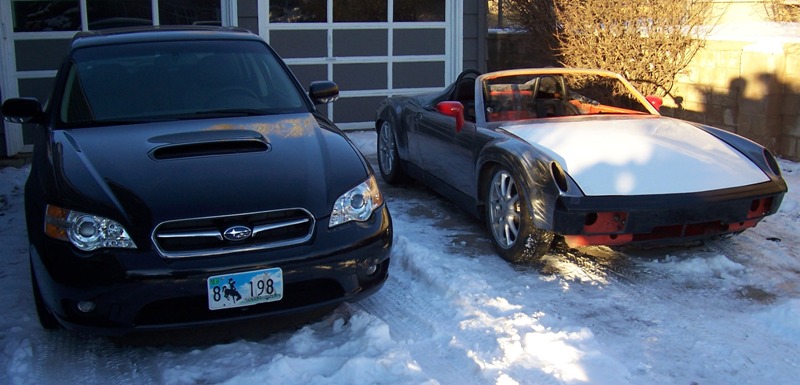

After having the car on 18" jackstands for a year I could not believe how low it was after I dropped it down on its wheels.

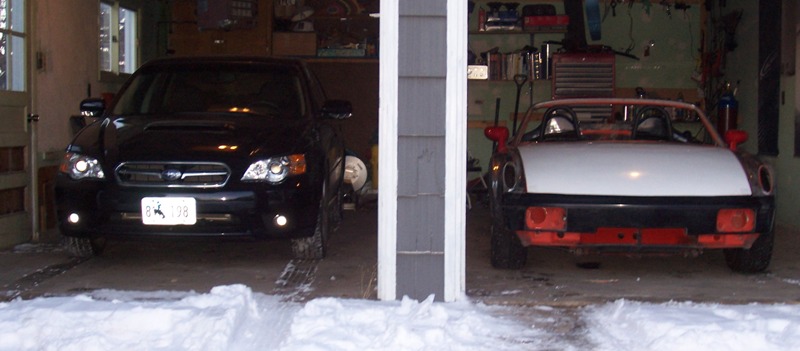

I took a couple pictures of the car next to our Subies to show just how low a 41" tall car really is.
The car is sitting at 5" from the ground to the donuts, I could go a little lower but I think things are looking pretty good as they are.

Attached Image

Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
scotty b
post Dec 16 2008, 06:10 PM
Post #279


rust free you say ?
***************

Group: Members
Posts: 16,375
Joined: 7-January 05
From: richmond, Va.
Member No.: 3,419
Region Association: None
DAMN that thing is wicked !! (IMG:style_emoticons/default/aktion035.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
spaceshuttle
post Dec 16 2008, 07:16 PM
Post #280


Member
**

Group: Members
Posts: 73
Joined: 25-November 06
From: SouthCarolina
Member No.: 7,258
WOW. I am thinking Porsche should reintroduce the 914 ala the Camaro/Challenger/Mustang and just copy your design. Sign me up.
