> The Project Anklebiter Build Thread., 8/29 Lid latches and glamor shots...
plymouth37
post Oct 29 2009, 08:12 PM
Post #381


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest
QUOTE(BKLA @ Oct 29 2009, 01:09 PM) *

Its time for an update!!!!

(IMG:style_emoticons/default/smile.gif)


I know, this is totally ridiculous, it has almost been a year since I tore into this car. I could give you all a ton of excuses but I will just say that hopefully if no one minds I will get back to it soon. Hang in there, I am trying to get back to work soon!
-Dane
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Gint
post Oct 29 2009, 08:21 PM
Post #382


Mike Ginter
***************

Group: Admin
Posts: 16,094
Joined: 26-December 02
From: Denver CO.
Member No.: 20
Region Association: Rocky Mountains
Give the guy a break already. He's so busy he can't even spell his own name correctly!

Hi Dana. (IMG:style_emoticons/default/bye1.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Kirmizi
post Oct 29 2009, 08:45 PM
Post #383


Senior Member
***

Group: Members
Posts: 836
Joined: 12-February 06
From: Wyoming, US
Member No.: 5,568
Region Association: None
Yeah Dana, better get to it before the snow flies....
Oh wait. Glad I'm in Feenix! (IMG:style_emoticons/default/bootyshake.gif)
Mike
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Nov 12 2009, 11:10 PM
Post #384


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest

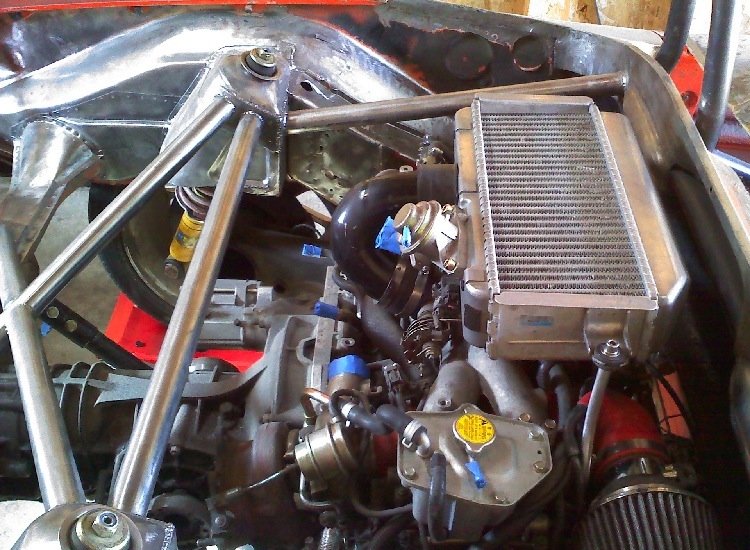

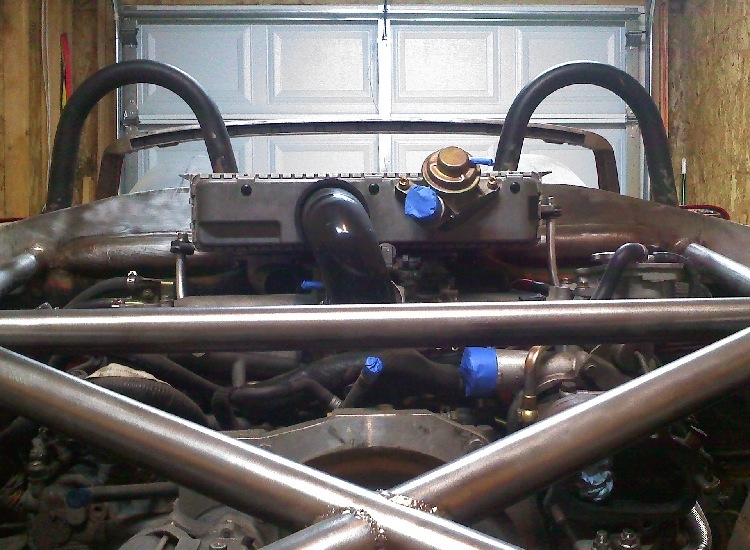

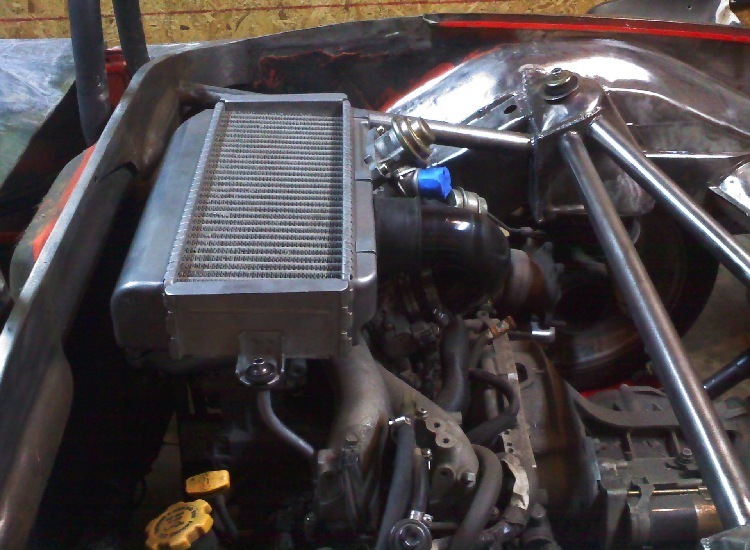

So after almost a year of down time I have finally started back into the car.
I was originally planning on running a custom intercooler. After playing with the stock one and calculating flow rates of other aftermarket intercoolers it became pretty clear that the stock intercooler was a pretty good fit for what I needed, and it's free! I will just have to get its fins straightened and give it a good cleaning and it will be ready to go.
I am going to cut subtle but effective venting slots in between the head humps and use a couple small electric fans to draw air into the intercooler.

To mount the intercooler I threaded a couple 1/2" aluminum bars at each end. One end screws into the engine block and the intercooler bolts into the other end. I think they look pretty clean and they are surprisingly sturdy, most importantly they weigh almost nothing.

Attached Image

Attached Image

Attached Image

I wanted to get a start on running the inlet tubes for the intercooler but out of the thousands of feet of tubing I have none of it is 2", looks like I will have to hit up the exhaust shop tomorrow...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
PeeGreen 914
post Nov 13 2009, 09:55 AM
Post #385


Just when you think you're done...wait, there is more..lol
**********

Group: Members
Posts: 10,219
Joined: 21-September 06
From: Seattle, WA... actually Everett
Member No.: 6,884
Region Association: Pacific Northwest
(IMG:style_emoticons/default/piratenanner.gif) Sweet. Glad to se you back at it Dana (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
effutuo101
post Nov 13 2009, 10:14 AM
Post #386


Advanced Member
****

Group: Members
Posts: 2,735
Joined: 10-April 05
From: Lemon Grove
Member No.: 3,914
Region Association: Southern California
No matter how many times I look at this thread, I am always impressed. Keep it up Dana.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
BKLA
post Nov 13 2009, 03:38 PM
Post #387


Really old member
***

Group: Members
Posts: 1,253
Joined: 14-August 05
From: OR
Member No.: 4,590
Region Association: Pacific Northwest
OK..... I'm good now.... For a while!

(IMG:style_emoticons/default/clap56.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Nov 15 2009, 12:09 AM
Post #388


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest

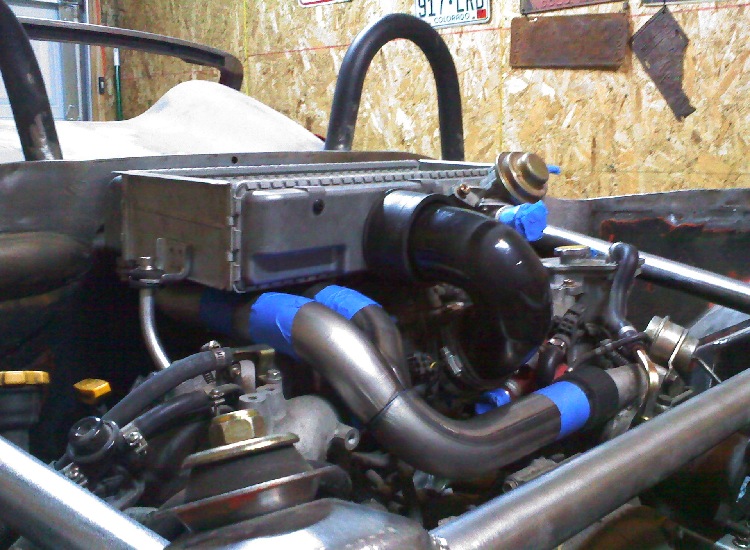

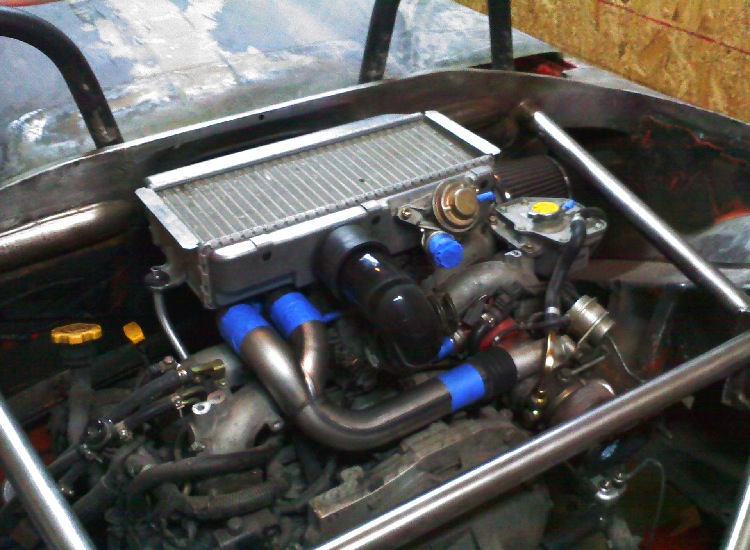

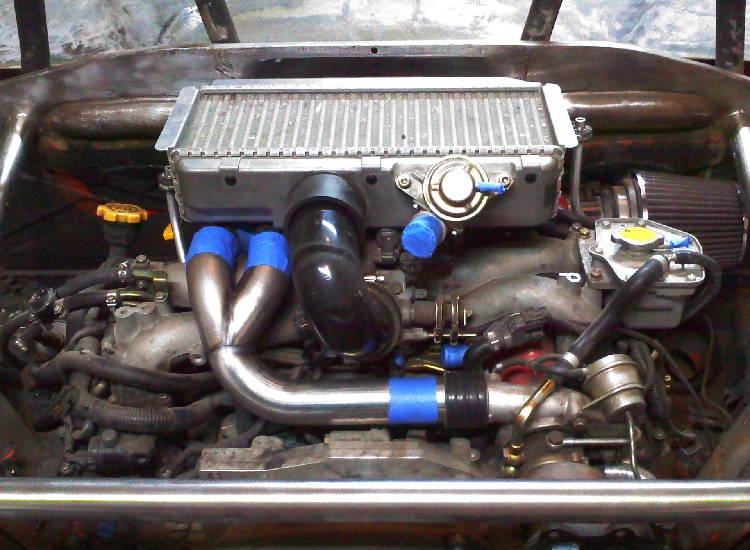

I drove down to Littleton, CO this morning and picked up some 2" mandrel u-bends. I then pieced together the intercooler intake tubes. They are only held together with tape now because I still haven't figured out my welder situation. I only have 110 at my place and my 220 welders are up at my in-laws place in Cheyenne. I may have to make some time for welding when I go up there for thanksgiving. Some day I would love to swap these out for aluminum but that is more trouble then it is worth right now, I still managed to drop 4 pounds because this plumbing system is much shorter than the previous version. That brings the total up to around 414 pounds shed. Sorry for the fuzzy pics, my camera couldn't figure out all of the shiny tubing.

Attached Image

Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
scrz914
post Nov 15 2009, 01:46 AM
Post #389


Member
**

Group: Members
Posts: 401
Joined: 21-April 04
From: Santa Cruz, CA
Member No.: 1,960
Region Association: Central California
I just saw this on the Porsche website. Didn't know they made a roadster.
I like yours better.



Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Nov 15 2009, 01:50 AM
Post #390


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest
I think they copied me, I started production way before they did!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SECHSER
post Nov 15 2009, 01:40 PM
Post #391


Member
**

Group: Members
Posts: 73
Joined: 5-March 06
From: smell A
Member No.: 5,669
Region Association: Southern California
hey, just gotta say "wow!!!.." what an amazing effort and it sure is turning out looking really good. keep up the good work man, looking forward to see the updates.

oh btw, i noticed that you're rather a subie fan. i really dig my saabaru except on the 05 ej205 had a crappy oil pump and straved my crank bearings.. i'm looking into ways to get that puppy back on the road..
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Nov 16 2009, 11:21 AM
Post #392


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest

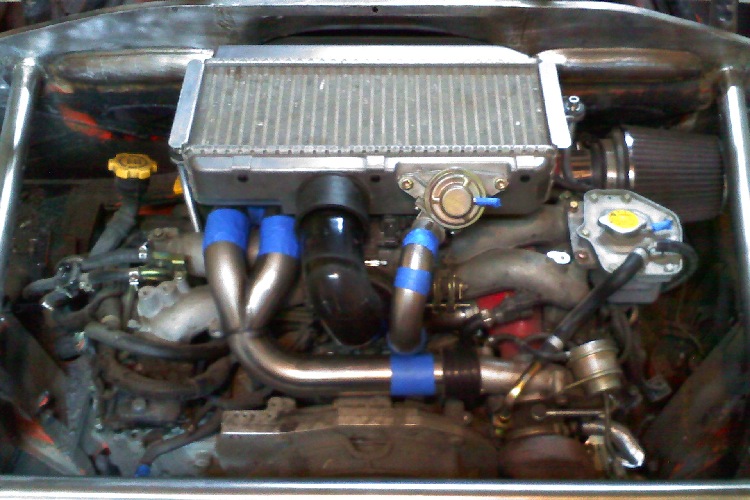

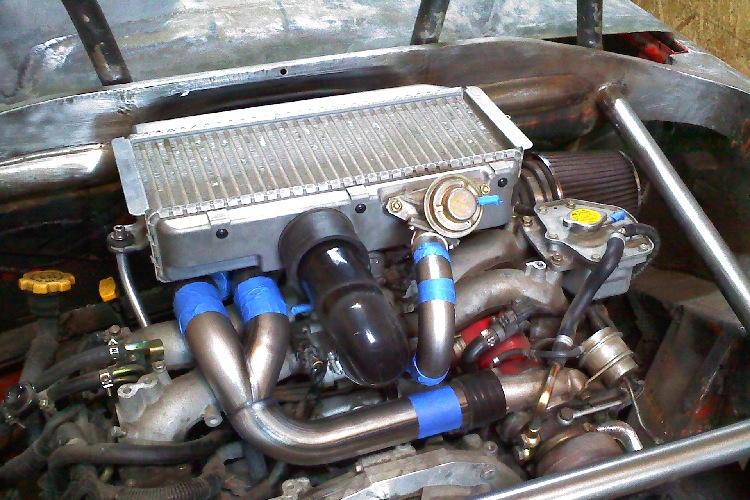

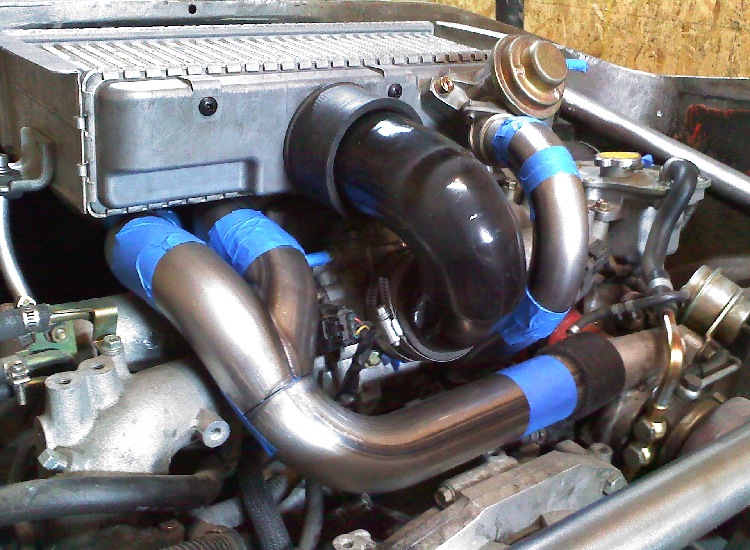

Last night I mocked up the blowoff valve tubing. Other than welding these pieces up the intake system is fairly complete. I think I will have these three tubes painted body color.

Attached Image

Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Rand
post Nov 16 2009, 11:30 AM
Post #393


Cross Member
*****

Group: Members
Posts: 7,409
Joined: 8-February 05
From: OR
Member No.: 3,573
Region Association: None
QUOTE(plymouth37 @ Nov 16 2009, 09:21 AM) *

I think I will have these three tubes painted body color.

They already are! (IMG:style_emoticons/default/smile.gif)
Glad to see you back on this Dana. We all look forward to the next episode. I hope I get to see this thing in person some day.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Nov 16 2009, 11:33 AM
Post #394


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest
QUOTE(Rand @ Nov 16 2009, 10:30 AM) *

QUOTE(plymouth37 @ Nov 16 2009, 09:21 AM) *

I think I will have these three tubes painted body color.

They already are! (IMG:style_emoticons/default/smile.gif)

(IMG:style_emoticons/default/av-943.gif) Smartass!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
BKLA
post Nov 16 2009, 11:41 AM
Post #395


Really old member
***

Group: Members
Posts: 1,253
Joined: 14-August 05
From: OR
Member No.: 4,590
Region Association: Pacific Northwest
We all give you a hard time, but this IS the coolest thread on the "world". We just love to see what you come up with and how you build it.

We are... so not worthly!

A little poo flinging is all in fun.

Now, get back to work so that we can feel inadequate and small!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Nov 16 2009, 11:48 AM
Post #396


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest
Believe me, one of the main reasons I hang out here is to give you all a hard time, I appreciate it when someone throws it back (IMG:style_emoticons/default/smile.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Nov 16 2009, 12:02 PM
Post #397


Resident German
*************************

Group: Admin
Posts: 41,890
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
QUOTE(plymouth37 @ Nov 16 2009, 09:48 AM) *

I appreciate it when someone throws it back (IMG:style_emoticons/default/smile.gif)

So, when are you going to clean that thing and make it purdy? (IMG:style_emoticons/default/poke.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Nov 16 2009, 12:05 PM
Post #398


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest
QUOTE(SirAndy @ Nov 16 2009, 11:02 AM) *

QUOTE(plymouth37 @ Nov 16 2009, 09:48 AM) *

I appreciate it when someone throws it back (IMG:style_emoticons/default/smile.gif)

So, when are you going to clean that thing and make it purdy? (IMG:style_emoticons/default/poke.gif)

Hopefully sometime before I die...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Crazyhippy
post Nov 16 2009, 01:42 PM
Post #399


Insert witty comment here...
***

Group: Members
Posts: 1,659
Joined: 28-July 05
From: Home of the Coyotes, AZ
Member No.: 4,493
Region Association: None
Looking good Dana...

Just a heads up, the MAF might need to be clocked slightly to get a pure reading. Ran into an issue on an 05 stang w/ a vortech. Some places it would read very erratically based on RPM, and just twisting it around really cleaned up the signal.

BJ
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Slider
post Nov 16 2009, 01:44 PM
Post #400


Problems are like cockroaches you find 1 and theres a 100 more
**

Group: Members
Posts: 223
Joined: 11-March 07
From: Fort Collins Colorado
Member No.: 7,591
Region Association: Rocky Mountains
good to see your back at it Dana!

keep us posted and someday i will see it in real life
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
