> The Project Anklebiter Build Thread., 8/29 Lid latches and glamor shots...
plymouth37
post May 20 2010, 08:21 PM
Post #541


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest

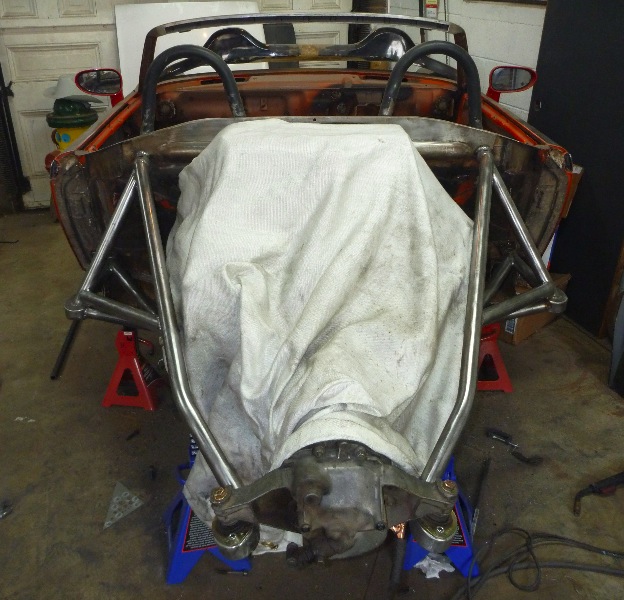

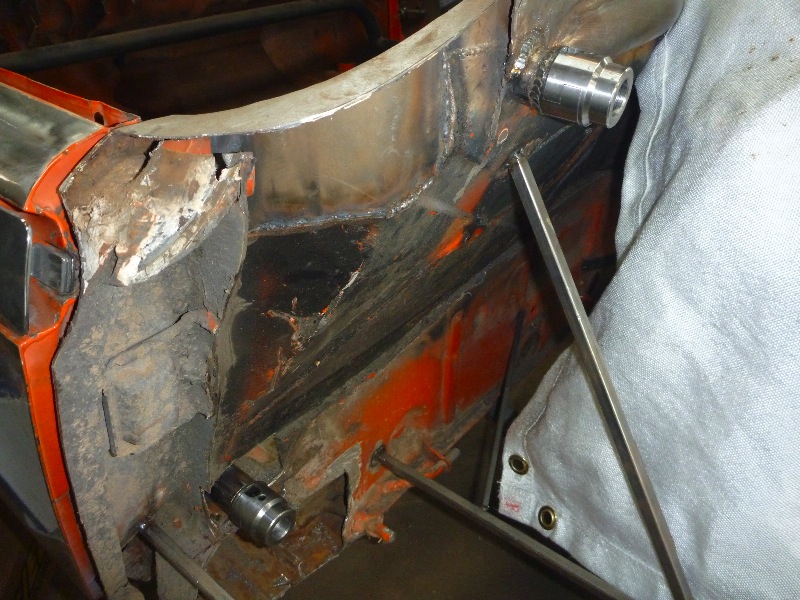

I welded in the rear frame mounts, The entire back half of the frame and the body attached to it will be removable for easy access and/or replacement.
Attached Image

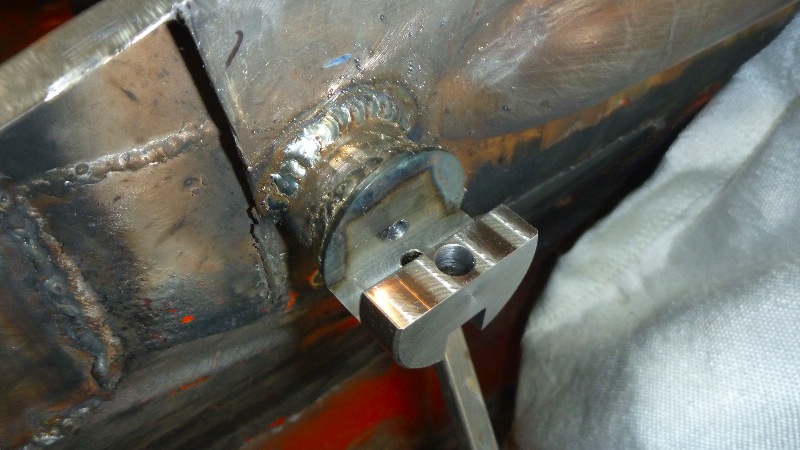

The couplers are really machined well and are guaranteed to some ridiculously high shear strength.
Attached Image

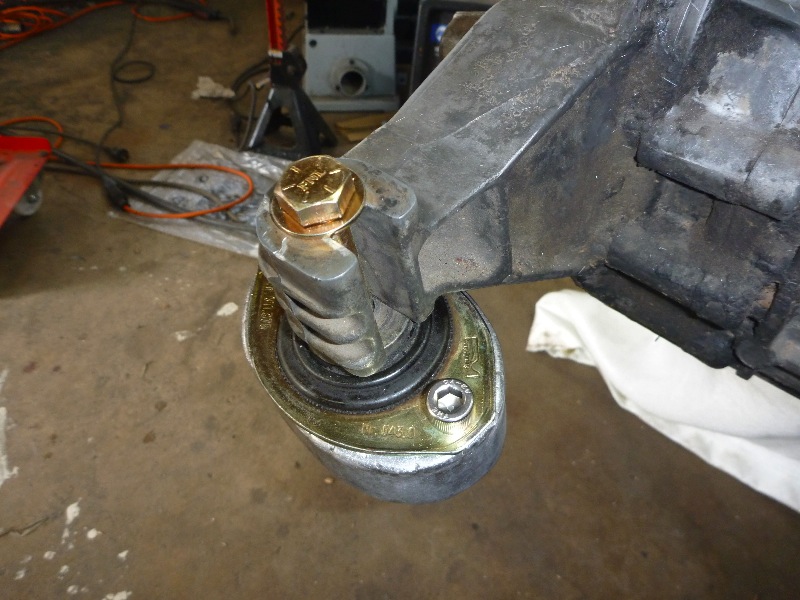

I also fabbed up the tranny mounts, the tranny mounts are oriented in the stock direction but I put them under the tranny rather than hanging it from them.
This location will work much better for the cage design I have in mind.
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post May 20 2010, 08:44 PM
Post #542


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest

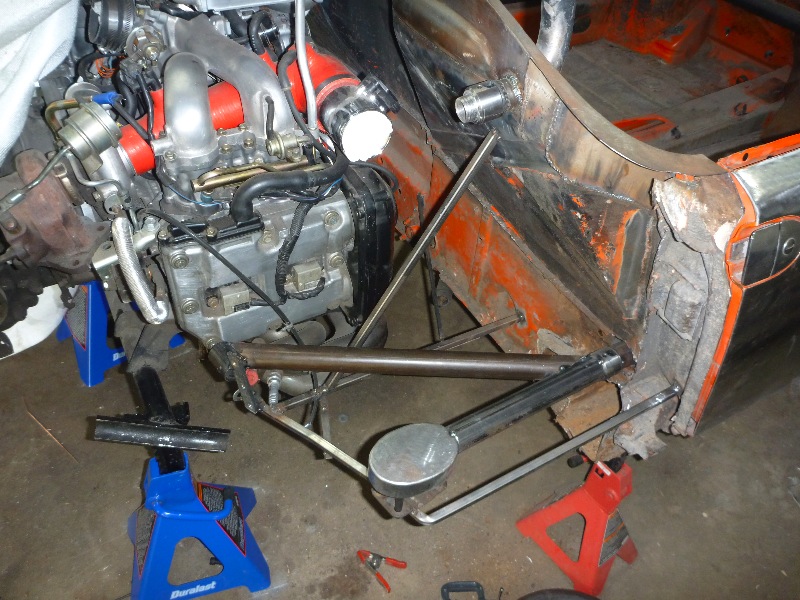

I moved the swing arm mounts up 2" so the swing arm sits level at ride height and ran the main tube back to the tranny mounts.
Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Krieger
post May 20 2010, 08:58 PM
Post #543


Advanced Member
****

Group: Members
Posts: 4,764
Joined: 24-May 04
From: Santa Rosa CA
Member No.: 2,104
Region Association: None
Very cool! Nice ideas and execution.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post May 20 2010, 09:30 PM
Post #544


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest

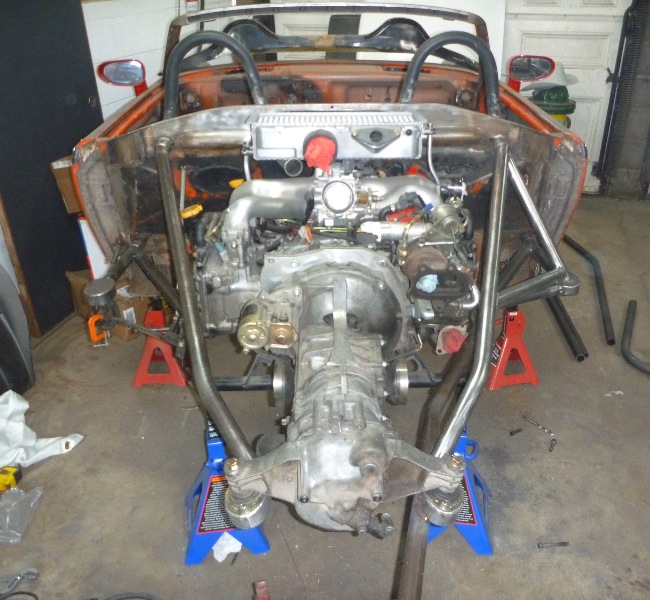

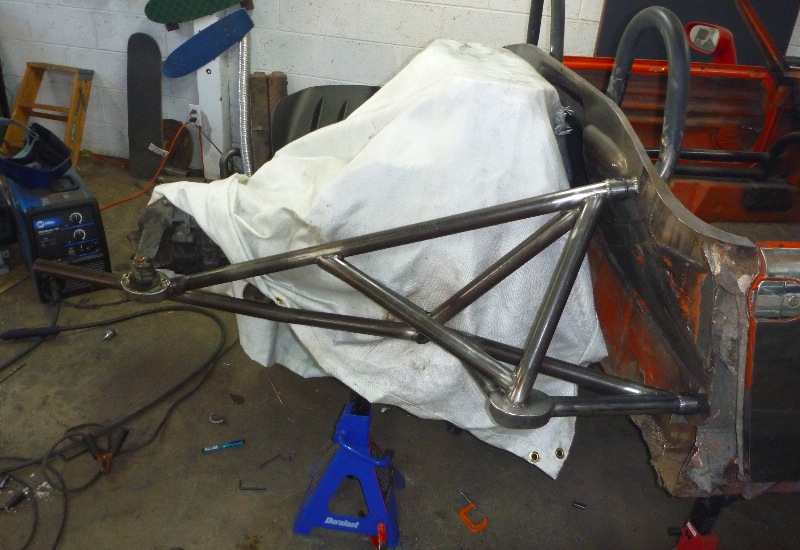

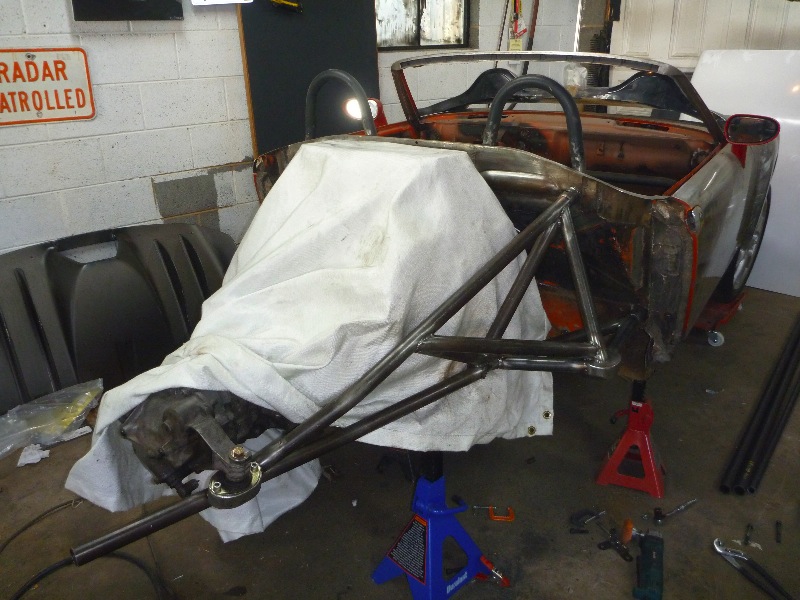

I finished up the passenger side "frame rail" and moved on to the drivers side.
Attached Image

Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post May 20 2010, 09:39 PM
Post #545


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest

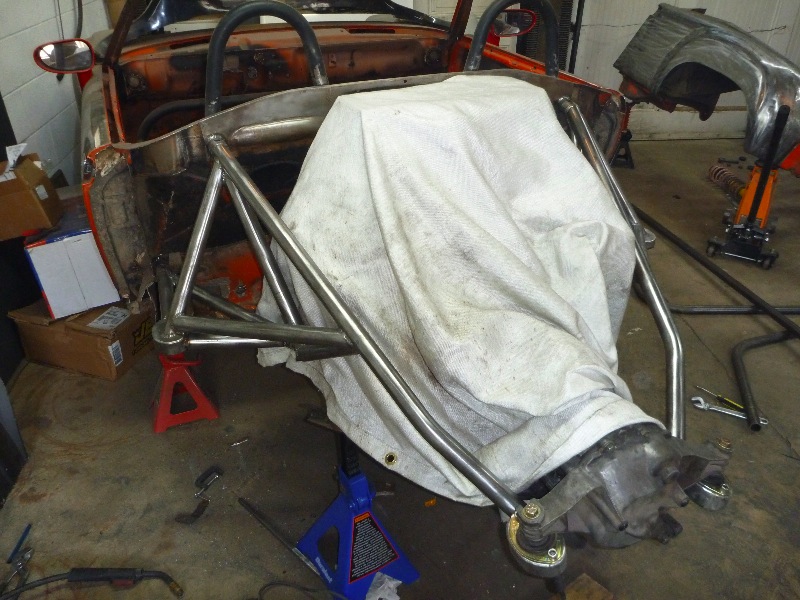

I then wrapped up the drivers side.
When I get back from Rome in a month I will build the X-Brace and the lower tube that will connect to the tranny.
Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Zaney
post May 20 2010, 09:51 PM
Post #546


Deuchland en der Haus
**

Group: Members
Posts: 461
Joined: 1-March 04
From: Engine 11 Redmond, WA
Member No.: 1,738
Region Association: Pacific Northwest
Porsche needs to hire you and have you in charge of the 918 or 'modern 914' project!
This is insane!!! (IMG:style_emoticons/default/sawzall-smiley.gif) (IMG:style_emoticons/default/smash.gif) (IMG:style_emoticons/default/welder.gif)

Say 'Hi' to Roma for me.

(IMG:style_emoticons/default/beerchug.gif) Nate
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
KELTY360
post May 20 2010, 11:30 PM
Post #547


914 Neferati
*****

Group: Members
Posts: 5,089
Joined: 31-December 05
From: Pt. Townsend, WA
Member No.: 5,344
Region Association: Pacific Northwest
Breathtaking
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
PeeGreen 914
post May 20 2010, 11:34 PM
Post #548


Just when you think you're done...wait, there is more..lol
**********

Group: Members
Posts: 10,219
Joined: 21-September 06
From: Seattle, WA... actually Everett
Member No.: 6,884
Region Association: Pacific Northwest
Wow Dana (IMG:style_emoticons/default/beerchug.gif) (IMG:style_emoticons/default/aktion035.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
shoguneagle
post May 21 2010, 04:51 AM
Post #549


shoguneagle
***

Group: Members
Posts: 1,180
Joined: 3-January 03
From: CA, OR, AZ (CAZOR); New Mexico
Member No.: 84
Region Association: Northern California
WHAT A SURPRISE!!! I LOVE IT!!! Very, very nice adaption and goes beyond the normal car conversions, either body and/or engine configurations. I love projects that are being developed/are developed such as this one. Warms my heart to see engineering and project execution done with such talent, thought, and . . . . . . . . .! Keep going!!

You probably are doing what a lot of us would like to do - I am pulling for you, Tiger.

Steve Hurt
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
J P Stein
post May 21 2010, 06:14 AM
Post #550


Irrelevant old fart
*****

Group: Members
Posts: 8,797
Joined: 30-December 02
From: Vancouver, WA
Member No.: 45
Region Association: None
Like building a house, everything starts with the foundation. You've shown us part of the framing, but not the foundation. What is happening forward of the firewall?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post May 21 2010, 07:15 AM
Post #551


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest

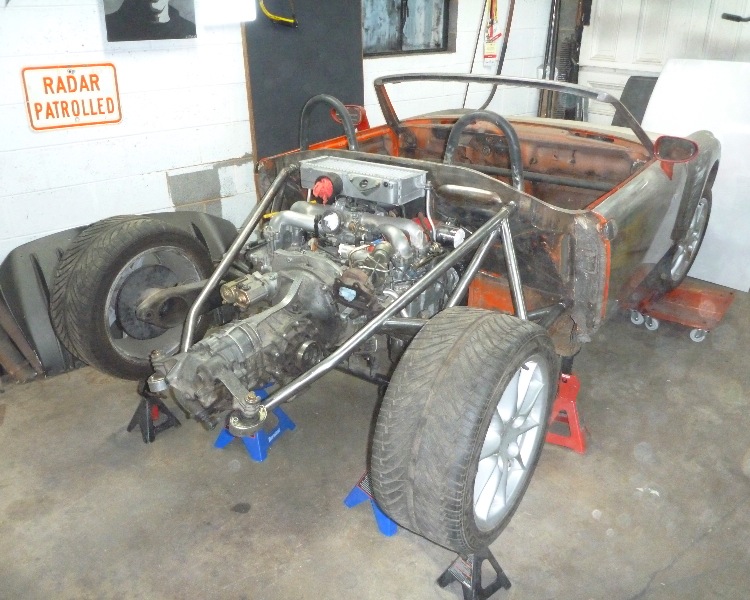

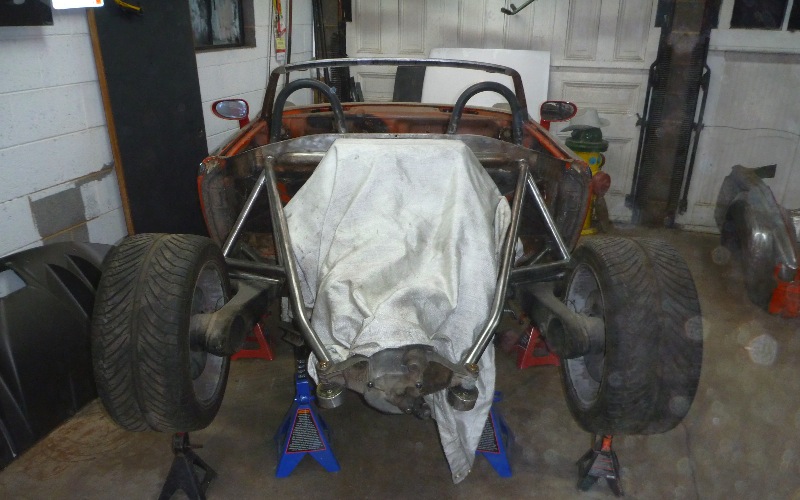

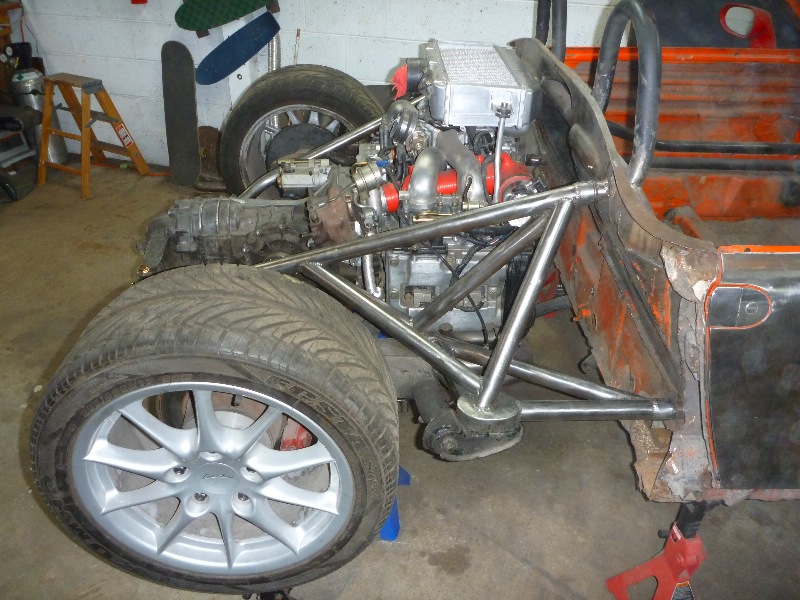

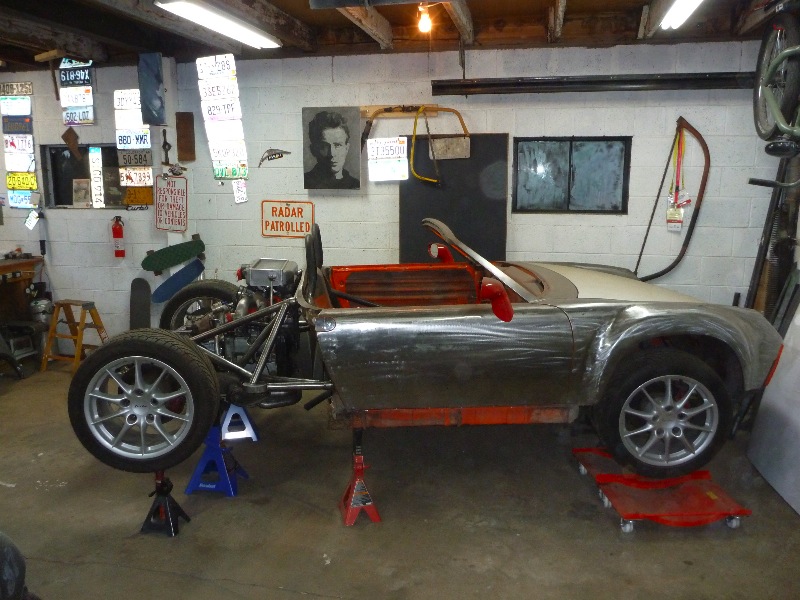

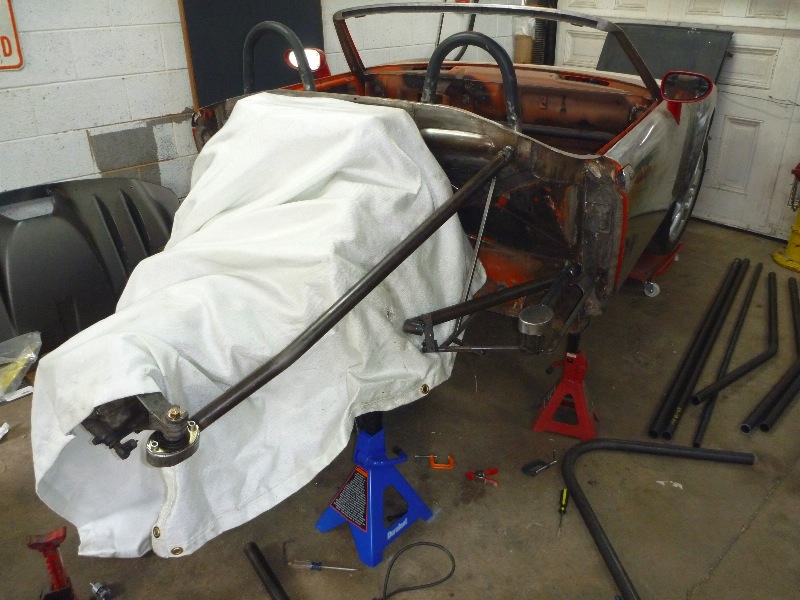

I couldn't resist mocking up the trailing arms and wheels to see how it looks.
JP, you can kind of see the main cage in these pics, I will post better views later, I am going to add some tubing to the passenger compartment to strengthen the tie in points for the new rear chassis section in a month or so.
Attached Image

Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post May 21 2010, 07:18 AM
Post #552


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest
The rear section that I have fabbed up so far weighs in at 52 pounds, the rest of what I am adding will not weigh more than 30 or so pounds including the f/g fenders so it looks like I am looking at losing around 100 pounds bringing the grand total to 550.4 pounds lost or the equivalent of gaining 100.7 horsepower.
Do I win the "most jackstands used to hold up a 914" award?


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
MDG
post May 21 2010, 07:26 AM
Post #553


Wolf in wolf's clothing.
*****

Group: Members
Posts: 8,652
Joined: 3-February 09
From: Toronto
Member No.: 10,018
Region Association: None
Unreal stuff, Dana. You're turning into a mad scientist before our eyes.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dr Evil
post May 21 2010, 08:41 AM
Post #554


Send me your transmission!
***************

Group: Members
Posts: 23,032
Joined: 21-November 03
From: Loveland, OH 45140
Member No.: 1,372
Region Association: MidAtlantic Region
Dude, you have a real problem. When you get tired if this foolishness (after it is completed) you should sell it to me. I will start donating plasma now to save up (IMG:style_emoticons/default/wink.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Scott S
post May 21 2010, 09:17 AM
Post #555


Small Member
***

Group: Members
Posts: 1,698
Joined: 30-April 03
From: Colorado
Member No.: 633
you get more done in a week than I do in a year!! Cant wait to see the car. Simply fantastic work!! (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
KELTY360
post May 21 2010, 09:50 AM
Post #556


914 Neferati
*****

Group: Members
Posts: 5,089
Joined: 31-December 05
From: Pt. Townsend, WA
Member No.: 5,344
Region Association: Pacific Northwest
Still not sure how you'll make it rust. (IMG:style_emoticons/default/screwy.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
J P Stein
post May 21 2010, 11:10 AM
Post #557


Irrelevant old fart
*****

Group: Members
Posts: 8,797
Joined: 30-December 02
From: Vancouver, WA
Member No.: 45
Region Association: None
QUOTE(plymouth37 @ May 21 2010, 06:15 AM) *

I couldn't resist mocking up the trailing arms and wheels to see how it looks.
JP, you can kind of see the main cage in these pics, I will post better views later, I am going to add some tubing to the passenger compartment to strengthen the tie in points for the new rear chassis section in a month or so.



I was thinkin' that was the case....you haven't done anything half assed yet. (IMG:style_emoticons/default/biggrin.gif)
I've been watching your thread with interest....more so now as there may be a Subi in the shitboxes' future. It needs another 150hp and the 2 valve motor won't go there
at a reasonable price. I hear there a JDM TT Subi motor.....true?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post May 21 2010, 02:23 PM
Post #558


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest

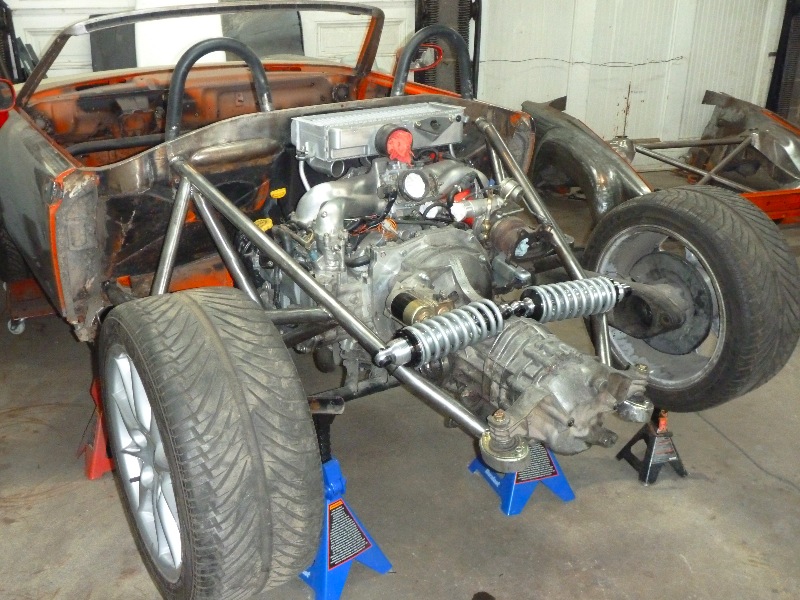

Okay so here is where it gets interesting, as you can see the frame is not set up for the conventional vertical coilover placement. Having to build the frame a foot higher than it needed to be seemed like a waste of tubing and an unnecessary weight addition up high so I am going cantilever. And I rendered a little diagram:

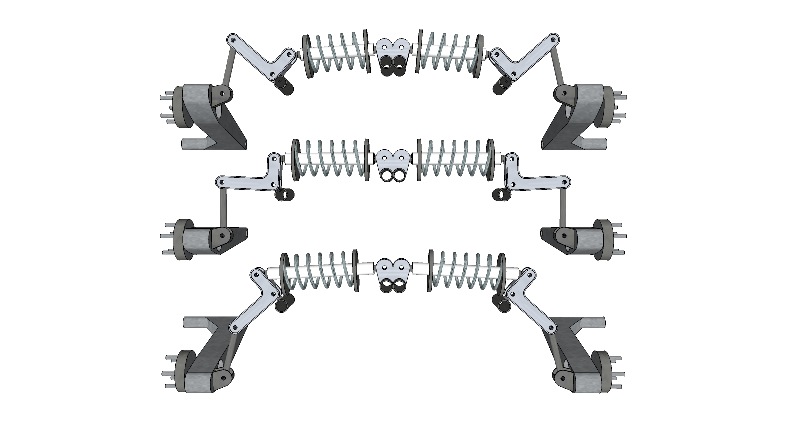

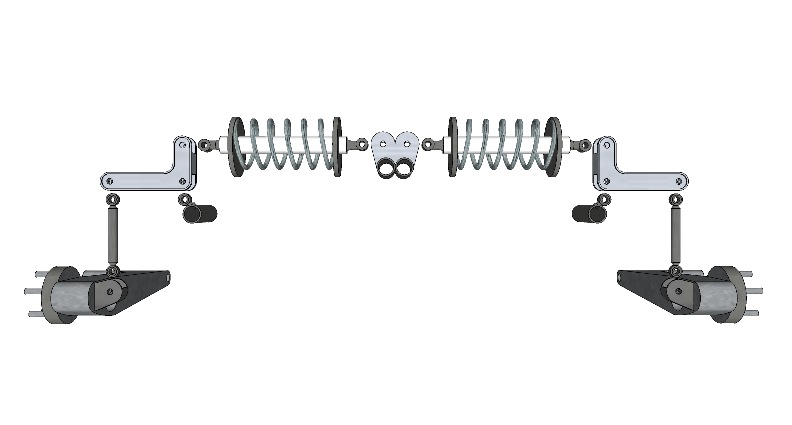

Here is an exploded view:
Attached Image

And here it is with one inch past maximum travel in either direction.
Attached Image

I am using QA1 aluminum shocks with 400# springs and 4" travel, with the 2-1 lever the suspension will see 8" of travel and a 200# spring force.

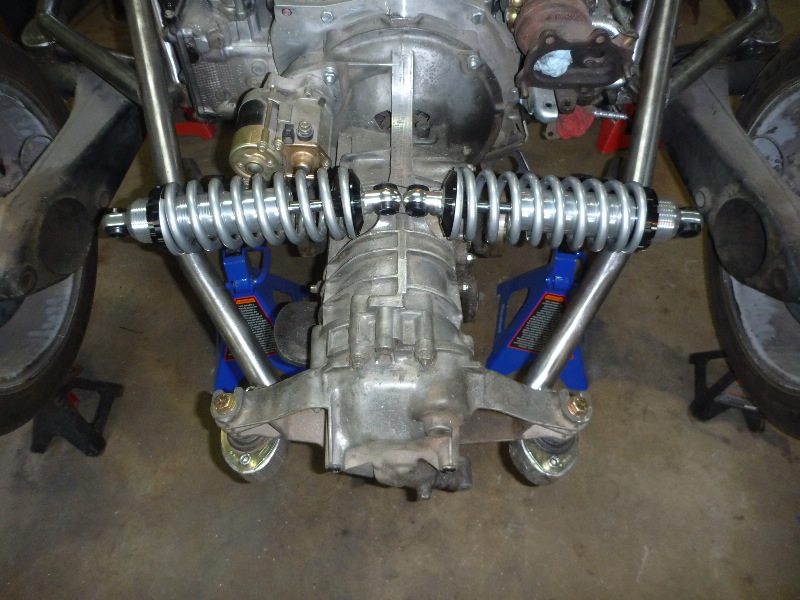

The top of the shocks will mount on the X-member right above the diff, kind of like this very loose mock up. The coilovers also weigh a total of 6 pounds less than the stockers and that is pretty significant for a partially unsprung part.
Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dr Evil
post May 21 2010, 03:11 PM
Post #559


Send me your transmission!
***************

Group: Members
Posts: 23,032
Joined: 21-November 03
From: Loveland, OH 45140
Member No.: 1,372
Region Association: MidAtlantic Region
SICK!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
MDG
post May 21 2010, 03:18 PM
Post #560


Wolf in wolf's clothing.
*****

Group: Members
Posts: 8,652
Joined: 3-February 09
From: Toronto
Member No.: 10,018
Region Association: None
(IMG:style_emoticons/default/blink.gif) Like I said, Mad Scientist. This is actually the apparatus that channels the lightning strike into creating life . . ..

QUOTE(plymouth37 @ May 21 2010, 04:23 PM) *

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
