> The Project Anklebiter Build Thread., 8/29 Lid latches and glamor shots...
Ferg
post Sep 29 2010, 07:57 AM
Post #621


914 Guru
*****

Group: Members
Posts: 5,948
Joined: 8-January 03
From: Boulder CO
Member No.: 116
Region Association: None
Glad your Dog made it in the pic (IMG:style_emoticons/default/smile.gif) Can't wait to meet her Sunday.

Ferg (IMG:style_emoticons/default/bye1.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Britain Smith
post Sep 29 2010, 10:24 AM
Post #622


Nano Member
****

Group: Members
Posts: 2,354
Joined: 27-February 03
From: Hillsboro, OR
Member No.: 364
QUOTE(jt914-6 @ Sep 29 2010, 03:24 AM) *

Great looking build.....your rear shock set up looks like what a friend of mine did to his race car....BTW this car is/was up for sale....unique center drive, hand built from the ground up 914 race car.....

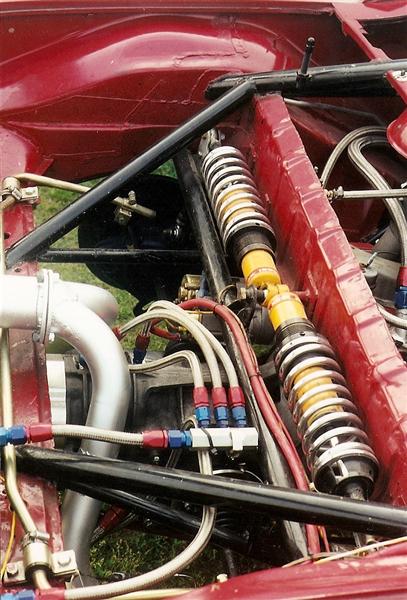

(IMG:http://www.914world.com/bbs2/uploads/post-9003-1285755835.jpg)




Do you have any more pictures of this car, looks very interesting. Does it have custom control arms in the rear?

-Britain
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cupomeat
post Sep 29 2010, 03:15 PM
Post #623


missing my NY 914 in VA
***

Group: Members
Posts: 1,338
Joined: 26-November 07
From: Oakton VA
Member No.: 8,376
Region Association: MidAtlantic Region
Yes, Very interesting.

Do you have a picture of the shock actuator pivot arm and mount? Do you know what the ratio used was?

LOVE THIS STUFF! (IMG:style_emoticons/default/aktion035.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jt914-6
post Sep 29 2010, 04:54 PM
Post #624


Driving & working on teeners 41 years
***

Group: Members
Posts: 1,786
Joined: 3-May 08
From: Bryant, Arkansas
Member No.: 9,003
Region Association: South East States
Don't know about the actuator ratio or don't have a better pic....he was a little secretive about it but I'm sure he'd share info. He was a student of mine when I was instructing DE's. He's missed his calling in life. He built it from the ground up including body work & paint. PM me and I'll see if he'll share info. He's not a member of the world. Last time I talked to him it was for sale......

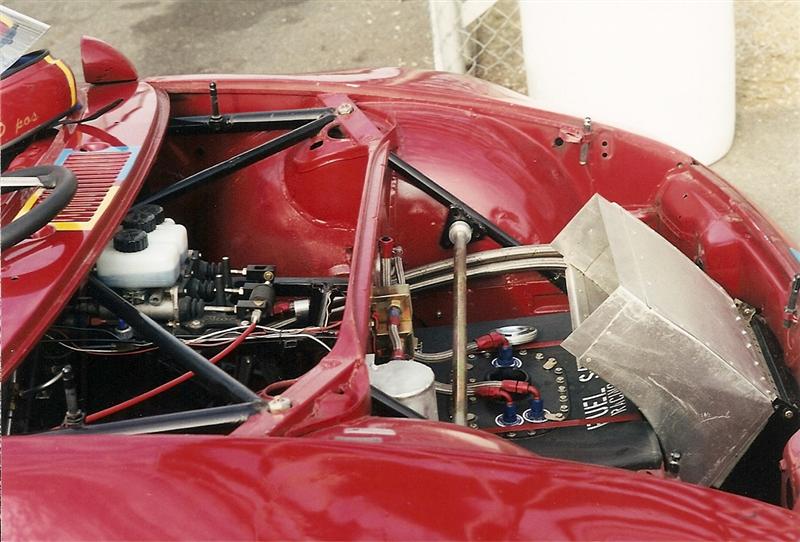

A older pic....

Attached Image

What it looks like now.....

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Britain Smith
post Sep 29 2010, 05:00 PM
Post #625


Nano Member
****

Group: Members
Posts: 2,354
Joined: 27-February 03
From: Hillsboro, OR
Member No.: 364
Nice...if it is for sale, try to get some more pictures.

-Britain
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Steve
post Sep 29 2010, 05:03 PM
Post #626


914 Guru
*****

Group: Members
Posts: 5,728
Joined: 14-June 03
From: Orange County, CA
Member No.: 822
Region Association: Southern California
Very nice car and amazing craftmanship, but I am always curious why someone puts so much money and time into a car and then sells it. Was the car not competitive? Hardship? Got bored of it and wanted to try something else? (IMG:style_emoticons/default/confused24.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jt914-6
post Sep 29 2010, 05:45 PM
Post #627


Driving & working on teeners 41 years
***

Group: Members
Posts: 1,786
Joined: 3-May 08
From: Bryant, Arkansas
Member No.: 9,003
Region Association: South East States
QUOTE(Steve @ Sep 29 2010, 06:03 PM) *

Very nice car and amazing craftmanship, but I am always curious why someone puts so much money and time into a car and then sells it. Was the car not competitive? Hardship? Got bored of it and wanted to try something else? (IMG:style_emoticons/default/confused24.gif)

He runs it in GT5 in PCA club racing and it has many wins and beats many others in higher classes. He's raced it and at least one other 914 for years. He is a family practice MD and I'm sure it has taken lots of his time. No hardship. As I said, he's missed his calling in life. (IMG:style_emoticons/default/biggrin.gif) Rear control arms are modified stock. I think he just may be tired of racing and his "pit crew" daughter is older now and is not going to races.
A couple of more pics

Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Britain Smith
post Sep 29 2010, 08:54 PM
Post #628


Nano Member
****

Group: Members
Posts: 2,354
Joined: 27-February 03
From: Hillsboro, OR
Member No.: 364
Looks awesome. Where is it listed for sale?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Sep 29 2010, 10:30 PM
Post #629


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest
Cool project, it's nice to see that a cantilever suspension like this has been done before on a 914, thanks for the pics!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jt914-6
post Sep 30 2010, 04:57 AM
Post #630


Driving & working on teeners 41 years
***

Group: Members
Posts: 1,786
Joined: 3-May 08
From: Bryant, Arkansas
Member No.: 9,003
Region Association: South East States
QUOTE(plymouth37 @ Sep 29 2010, 11:30 PM) *

Cool project, it's nice to see that a cantilever suspension like this has been done before on a 914, thanks for the pics!

Thanks......your car is going to be great.....hijack over.....anyone wanting to know more about the center drive 914.....pm me.....
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
brant
post Sep 30 2010, 07:56 AM
Post #631


914 Wizard
**********

Group: Members
Posts: 11,795
Joined: 30-December 02
From: Colorado
Member No.: 47
Region Association: Rocky Mountains
I ran wheel to wheel against your friends car. Nice car
that was about 1996 ish...

heartland park, topeka kansas...
spoke with him at length. The car was a lot less modified then. He that same front hood (metal) and gave me the idea of doing it to my hood. That is actually how I learned to weld too. After talking to your friend and building up the courage, I bought a welder and cut my hood. First thing I ever MIG welded... Twas not pretty... but with enough bondo it worked fine.

brant
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
RJMII
post Nov 20 2010, 02:50 PM
Post #632


Jim McIntosh
****

Group: Members
Posts: 3,125
Joined: 11-September 07
From: Sandy, Utah
Member No.: 8,112
Region Association: None
Dana... here's your thread. It's lonely. (IMG:style_emoticons/default/smile.gif) It wants more pictures of recent progress that you've done. (IMG:style_emoticons/default/poke.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Nov 20 2010, 03:38 PM
Post #633


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest
QUOTE(RJMII @ Nov 20 2010, 02:50 PM) *

Dana... here's your thread. It's lonely. (IMG:style_emoticons/default/smile.gif) It wants more pictures of recent progress that you've done. (IMG:style_emoticons/default/poke.gif)


Funny you should say that, I found a hole in my overwhelming school schedule to work on the beast, I am working out the geometry of the cantilever suspension now, should be able to post progress soon!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
majkos
post Nov 20 2010, 09:17 PM
Post #634


Senior Member
***

Group: Members
Posts: 1,370
Joined: 29-February 04
From: Mile High 914
Member No.: 1,729
Region Association: Rocky Mountains
QUOTE(plymouth37 @ Nov 20 2010, 01:38 PM) *

QUOTE(RJMII @ Nov 20 2010, 02:50 PM) *

Dana... here's your thread. It's lonely. (IMG:style_emoticons/default/smile.gif) It wants more pictures of recent progress that you've done. (IMG:style_emoticons/default/poke.gif)


Funny you should say that, I found a hole in my overwhelming school schedule to work on the beast, I am working out the geometry of the cantilever suspension now, should be able to post progress soon!


(IMG:style_emoticons/default/popcorn[1].gif) (IMG:style_emoticons/default/beer3.gif) (IMG:style_emoticons/default/popcorn[1].gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Hontec
post Nov 20 2010, 11:19 PM
Post #635


I see things.....
**

Group: Members
Posts: 261
Joined: 23-September 10
From: Netherlands
Member No.: 12,210
Region Association: Europe
Yep (IMG:style_emoticons/default/popcorn[1].gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Nov 21 2010, 12:10 AM
Post #636


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest

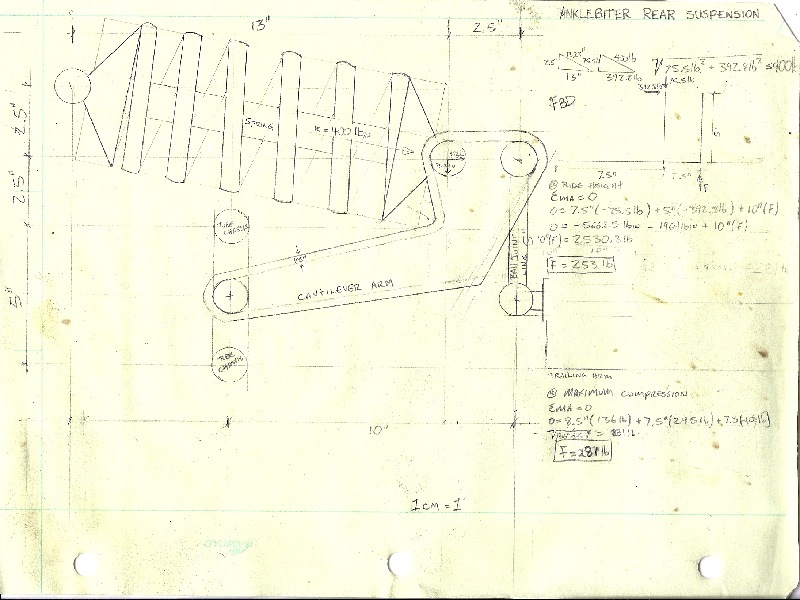

Here is what I have been playing with, it is a nice compact setup with a low cg. The springs are 400 lb/in and with the cantilever this is equivalent to about 250 lb/in at ride height and around 280 lb/in at full compression.
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Hontec
post Nov 21 2010, 12:29 AM
Post #637


I see things.....
**

Group: Members
Posts: 261
Joined: 23-September 10
From: Netherlands
Member No.: 12,210
Region Association: Europe
Just my 2C: but by putting the pivotpoint of the cantilever that far inward, in your setup, most of the force is used to raise the complete coilover instead of using that force to compress it. I could be wrong but by glancing over your drawing, that's the first thing that springs to my mind.

Randall
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Nov 21 2010, 12:37 AM
Post #638


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest
From what I can figure out, there is a good amount of force used to rotate the assembly but ultimately the spring should properly counteract the rotation of the cantilever arm. I could be wrong though, anybody else have a couple cents they want to pitch in?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Hontec
post Nov 21 2010, 01:04 AM
Post #639


I see things.....
**

Group: Members
Posts: 261
Joined: 23-September 10
From: Netherlands
Member No.: 12,210
Region Association: Europe
Your upward movement of the trailing arm now results in a lateral force on the pivot arm. By moving the pivot point out and slightly tilting the triangle you get only vertical force as a result from trailing arm movement, this is what you want. The cantilever only translates this into lateral force onto the coilover. Avoiding slight up/down movement of the coilover is almost impossible, but in trying you wil get the best linear suspension travel.

Trying to find a pic, but doing this from my i-phone in a hotelroom...... Doesn't work

Randall
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Nov 21 2010, 01:22 AM
Post #640


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest
I see what you are saying, I have played around with a couple designs that were closer to what you are talking about. My main issue with those designs i was that it forced me to mount the springs very high in the car in order to make the geometry work, which in turn was blocking the path for my exhaust to make it to the back of the car. Should have sucked it up and gone with double a-arms in the rear, would have made mounting shocks a lot easier.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
