> The Project Anklebiter Build Thread., 8/29 Lid latches and glamor shots...
Chris Pincetich
post Jan 6 2011, 03:28 PM
Post #741


B-)
****

Group: Members
Posts: 2,082
Joined: 3-October 05
From: Point Reyes Station, CA
Member No.: 4,907
Region Association: Northern California
Awesome build. And since you got all of us in the peanut gallery at 914world watching, you are never really without a net (IMG:style_emoticons/default/biggrin.gif)

Interested in seeing the rear suspension with axles in there. Looks like the axles go either behind or inside the black squared-off piece?

Also super interested in a rear diffuser for the 914...

That exhaust would be just fine popping up out the top like a stinger on a Baja Bug! I love that look!

Thanks for sharing all the great photos and posts (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jsayre914
post Jan 6 2011, 04:26 PM
Post #742


Speed Up !!!
****

Group: Members
Posts: 3,206
Joined: 10-February 08
From: Timonium MD 21093
Member No.: 8,696
Region Association: MidAtlantic Region
QUOTE(scotty b @ Sep 19 2010, 09:32 PM) *

I M N awe. Definitely one of the best threads EVER on this site (IMG:style_emoticons/default/beerchug.gif)

AGREE!!

(IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Jan 8 2011, 12:12 AM
Post #743


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest

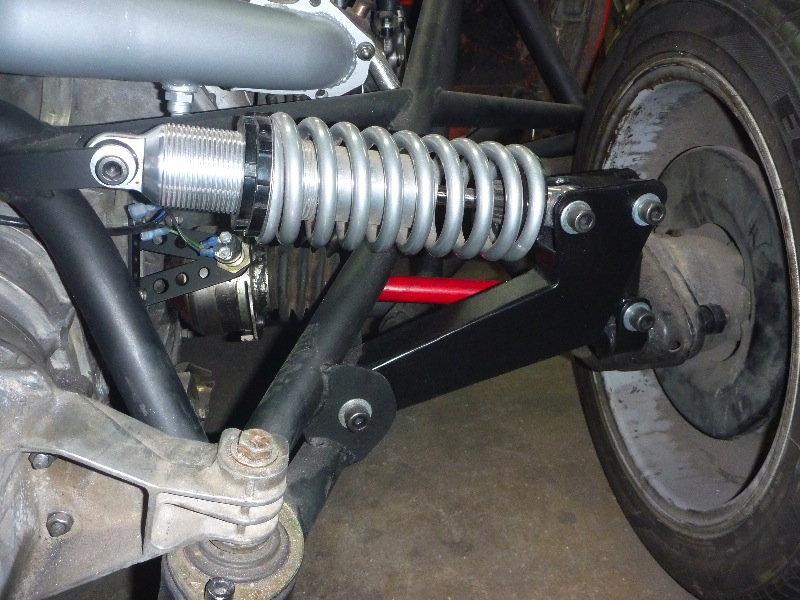

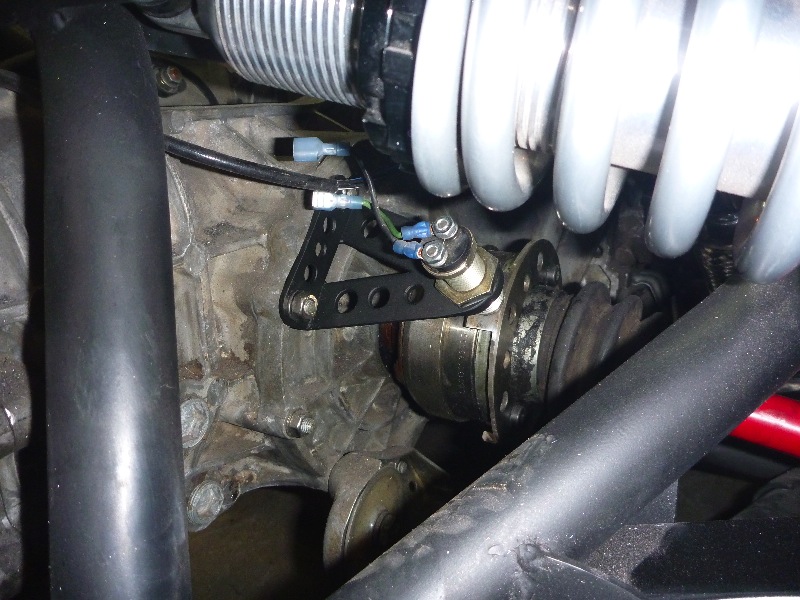

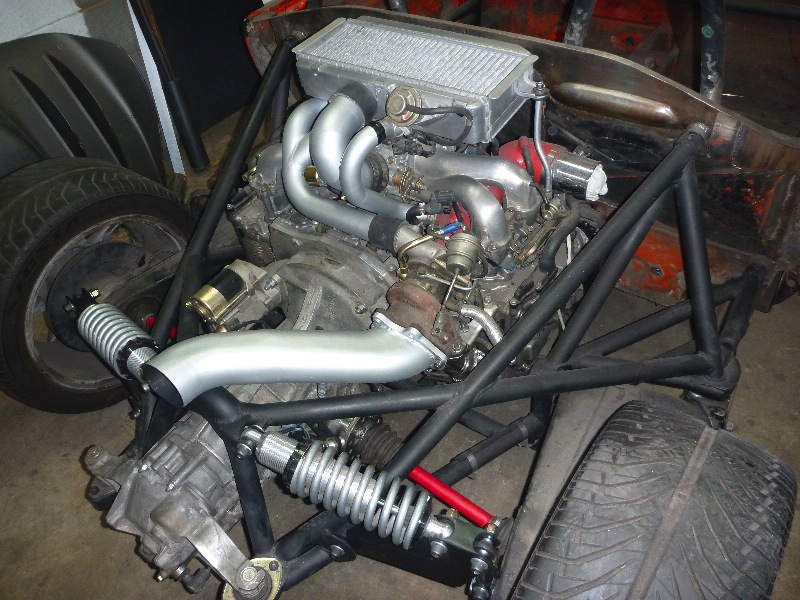

I built the speed sensor bracket today, installed the axles, and painted the intercooler tubing and exhaust.
Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Jan 8 2011, 12:12 AM
Post #744


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest

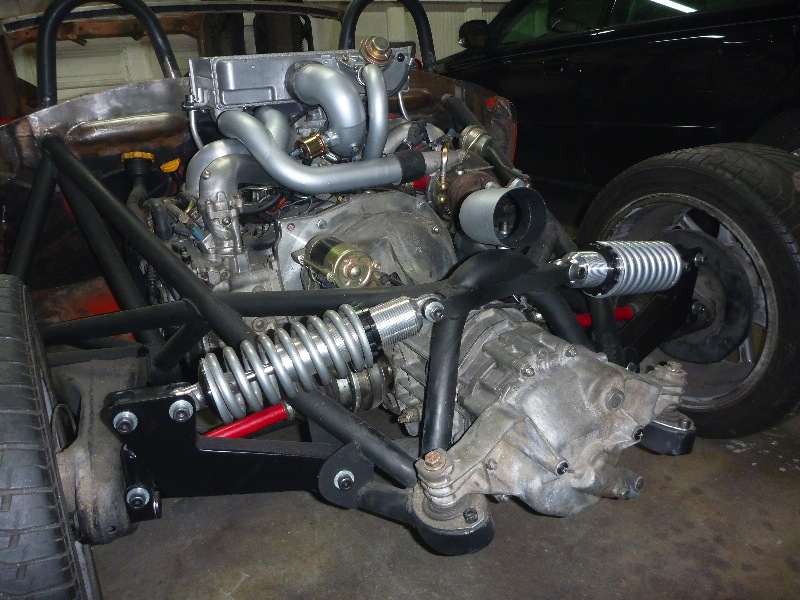

Attached Image
Check out inside the exhaust in this pic, you can see the O2 sensor and all the way back to the wastegate, this should flow pretty well!
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
KELTY360
post Jan 8 2011, 12:18 AM
Post #745


914 Neferati
*****

Group: Members
Posts: 5,089
Joined: 31-December 05
From: Pt. Townsend, WA
Member No.: 5,344
Region Association: Pacific Northwest
Looking at that bracket makes me wonder how your weight saving tally is going. Do you have a target weight?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Jan 8 2011, 12:26 AM
Post #746


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest
Right now the weight savings are somewhere around 525 pounds give or take. If it ends up around 1800 pounds when it is completely done I would be happy, could end up much lighter though.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Britain Smith
post Jan 8 2011, 03:33 AM
Post #747


Nano Member
****

Group: Members
Posts: 2,354
Joined: 27-February 03
From: Hillsboro, OR
Member No.: 364
What are you using for a speed sensor?

I got a Hall Effect Sensor from Small Car Performance for mine, but I haven't installed it yet.

-Britain
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Hontec
post Jan 8 2011, 03:57 AM
Post #748


I see things.....
**

Group: Members
Posts: 261
Joined: 23-September 10
From: Netherlands
Member No.: 12,210
Region Association: Europe
Superb Dana!!!! Excellent work.... can't wait to see how you are going to build the body.. (IMG:style_emoticons/default/piratenanner.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
MDG
post Jan 8 2011, 08:35 AM
Post #749


Wolf in wolf's clothing.
*****

Group: Members
Posts: 8,652
Joined: 3-February 09
From: Toronto
Member No.: 10,018
Region Association: None
I'm pretty sure when Dana gets an idea, right before he executes it, he goes "BWAHAHAHAaaaaaa . . ."

Too cool for words. (IMG:style_emoticons/default/thumb3d.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Jan 8 2011, 10:35 AM
Post #750


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest
QUOTE(Britain Smith @ Jan 8 2011, 03:33 AM) *

What are you using for a speed sensor?

I got a Hall Effect Sensor from Small Car Performance for mine, but I haven't installed it yet.

-Britain


I honestly don't remember all it says on it is "0140", I think I got it from North Hollywood Speedometer, pretty sure it is the one Renegade sells for their Subie kits.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Jan 15 2011, 10:39 AM
Post #751


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest

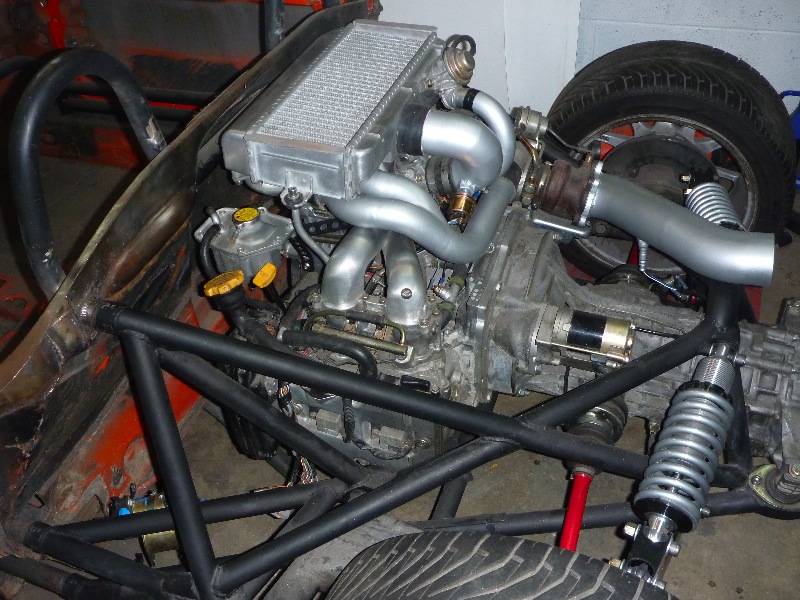

I made a little progress yesterday.
I built the mounts for the coolant tank and the fuel pump/filter assembly.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Jan 15 2011, 10:40 AM
Post #752


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest

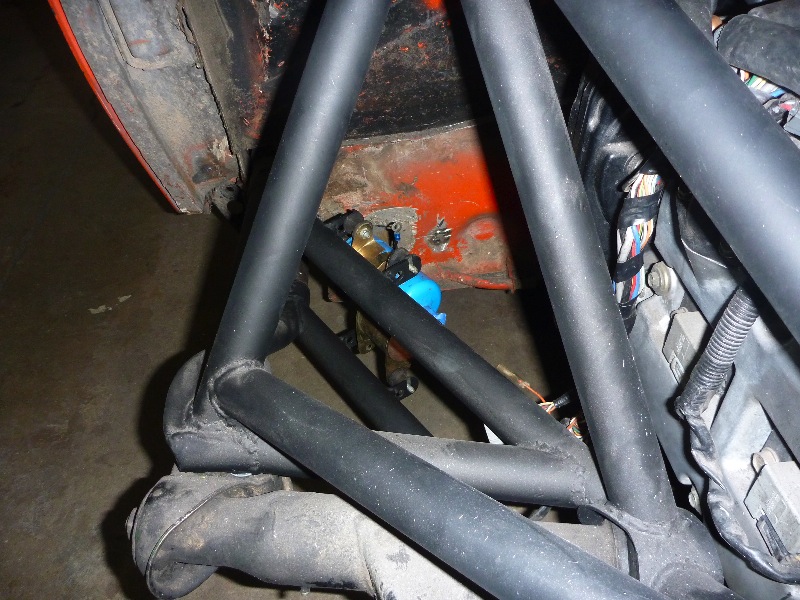

I am running a 928S pump on its stock bracket, the filter is on its way. Sorry for the bad shot, it is hard to get a good view of it.
Attached Image

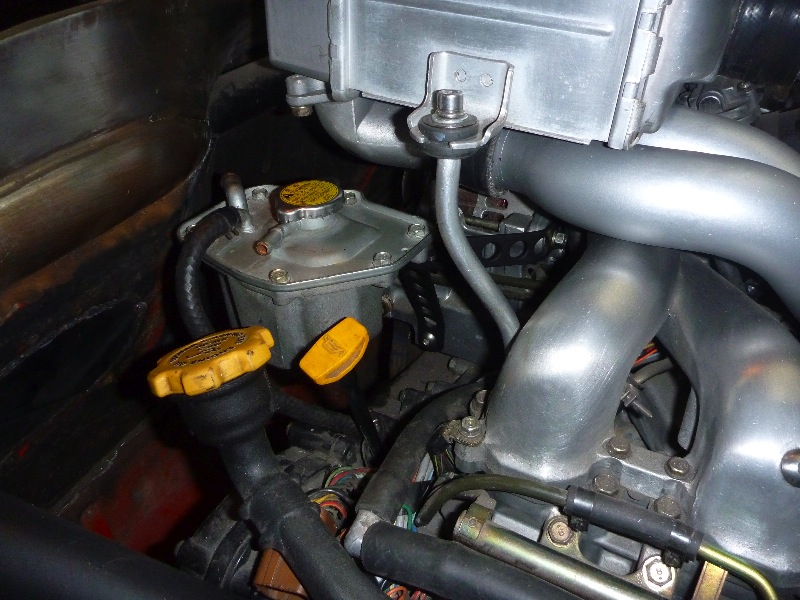

The coolant tank is stock WRX, just relocated to the other side of the engine.
By deleting the throttle body heater I was able to lower the coolant tank by about 3" while still keeping it at the highest point in the system by 4 or so inches.
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Jan 15 2011, 10:49 AM
Post #753


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest

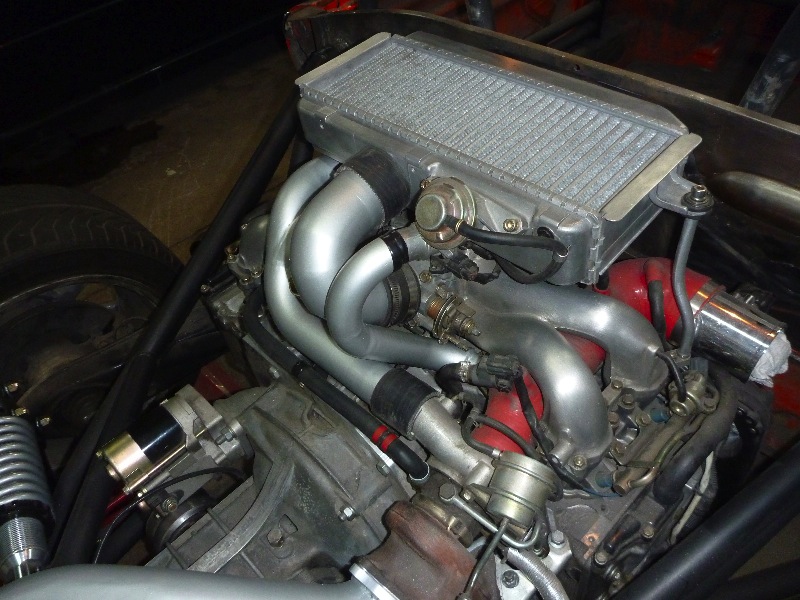

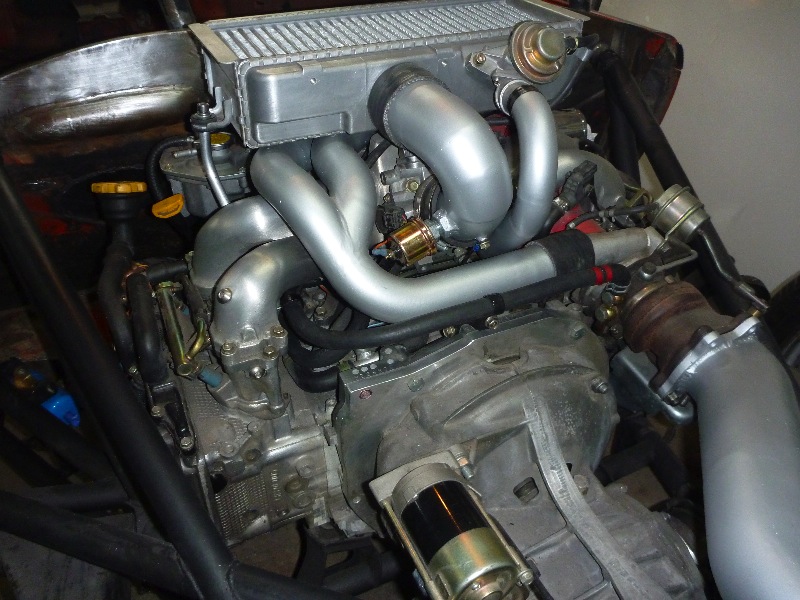

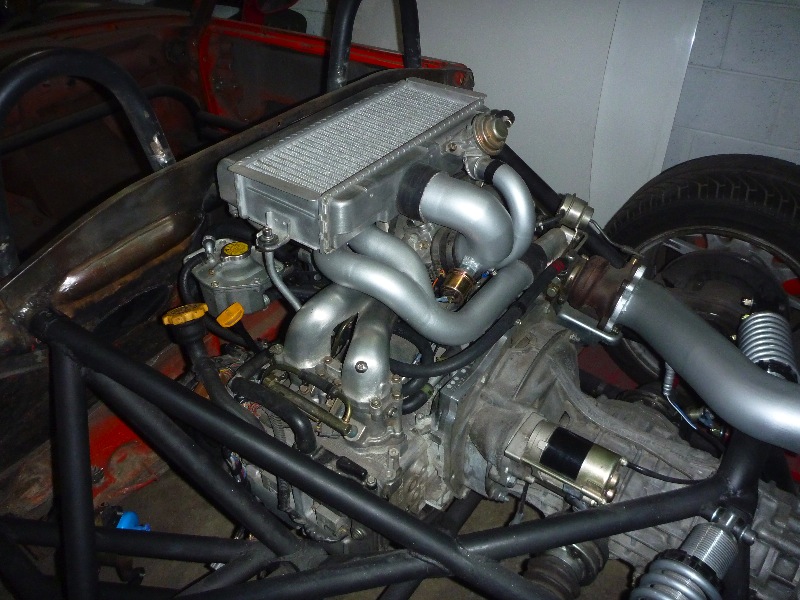

Then I plumbed the rest of the engine's coolant lines.
Attached Image

Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
KELTY360
post Jan 15 2011, 12:13 PM
Post #754


914 Neferati
*****

Group: Members
Posts: 5,089
Joined: 31-December 05
From: Pt. Townsend, WA
Member No.: 5,344
Region Association: Pacific Northwest
Looks like you had to modify the oil filler tube. Is that still the SVX piece or did you use something else?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Jan 15 2011, 12:20 PM
Post #755


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest
QUOTE(KELTY360 @ Jan 15 2011, 12:13 PM) *

Looks like you had to modify the oil filler tube. Is that still the SVX piece or did you use something else?


I have the stock wrx filler in there for now, the clearances were close enough with the engine raised that I was keeping the SVX piece off of the car while I put in the engine cross bar for fear of breaking it, I will be swapping it back in after I am done working on the tube chassis.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Britain Smith
post Jan 15 2011, 10:27 PM
Post #756


Nano Member
****

Group: Members
Posts: 2,354
Joined: 27-February 03
From: Hillsboro, OR
Member No.: 364
What did you use for a throttle cable?

-Britain
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Jan 15 2011, 11:57 PM
Post #757


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest
I got it custom made by terrycable when I did my conversion at Renegade, I think they sell them now.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Britain Smith
post Jan 16 2011, 12:05 AM
Post #758


Nano Member
****

Group: Members
Posts: 2,354
Joined: 27-February 03
From: Hillsboro, OR
Member No.: 364
Really...I will give them a call. How do did you route it? What does the end at the throttle pedal look like? Does it just go into the stock ball socket?

-Britain
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Britain Smith
post Jan 16 2011, 12:06 AM
Post #759


Nano Member
****

Group: Members
Posts: 2,354
Joined: 27-February 03
From: Hillsboro, OR
Member No.: 364
Looking at their catalog, didn't see the Subaru conversion cable....but it is a good thing they list a cable for a Porsche 935. Bet they sell a lot of those.

-Britain
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Jan 16 2011, 12:35 AM
Post #760


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest
It is a custom cable, you specify length and what threads you need on the ends, then they supply the necessary hardware to adapt to whatever you need. It is routed like the stock one through the tunnel and attaches to the pedal like the original.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
