> The Project Anklebiter Build Thread., 8/29 Lid latches and glamor shots...
plymouth37
post Mar 23 2011, 03:42 PM
Post #821


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest
QUOTE(fat73 @ Mar 23 2011, 03:26 PM) *

So does this mean it's going to have a flip open front with wish-bone suspension?

Ed


I will be running a flip up front while retaining the Carrera front suspension. I will post some mockups sometime this afternoon.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Mar 23 2011, 06:20 PM
Post #822


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest

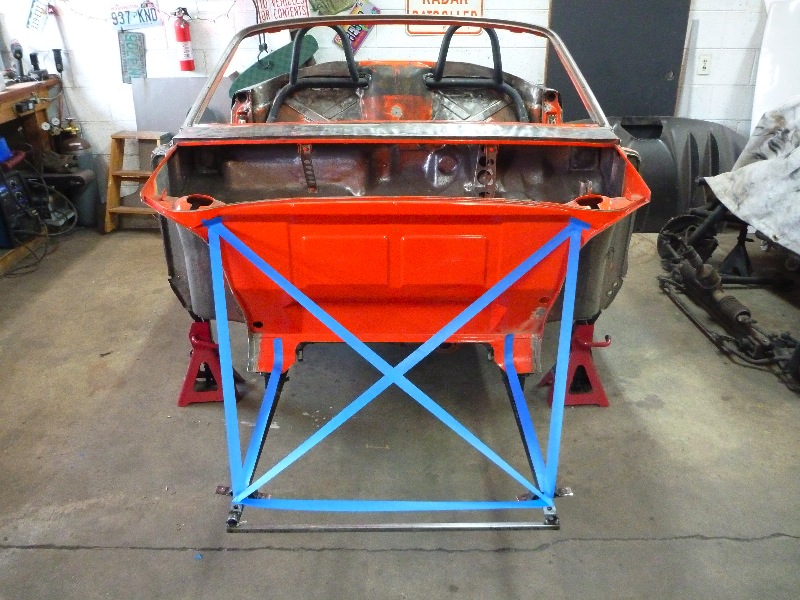

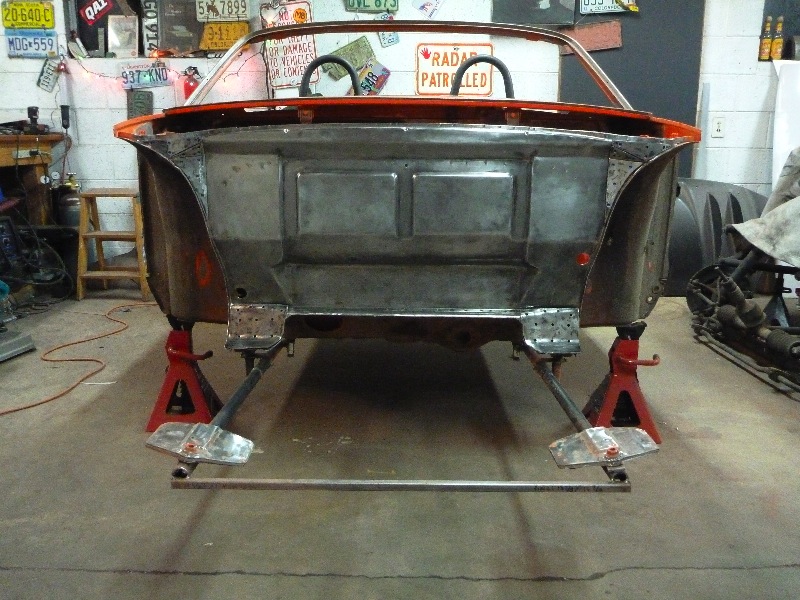

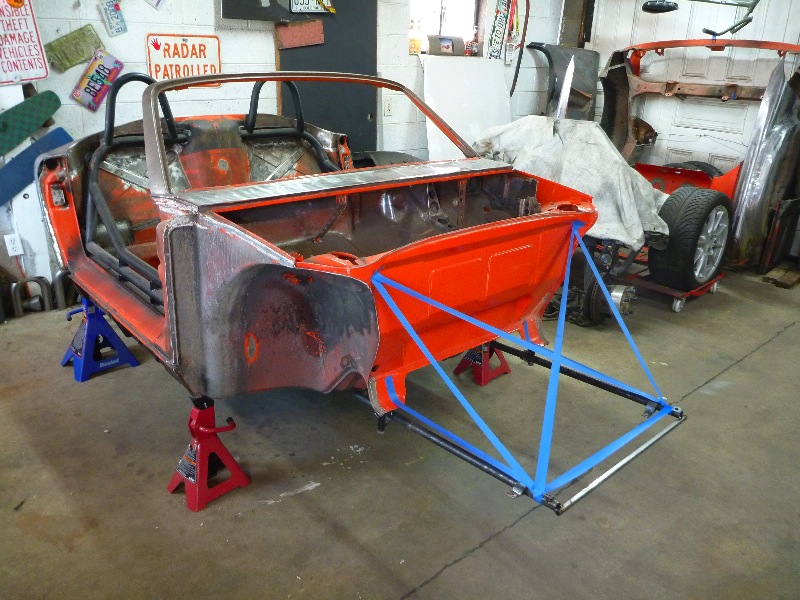

I bolted the suspension jig back on and mocked up the front subframe.
Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jd74914
post Mar 23 2011, 10:14 PM
Post #823


Its alive
****

Group: Members
Posts: 4,814
Joined: 16-February 04
From: CT
Member No.: 1,659
Region Association: North East States
cough...cough...unequal length a-arms with custom uprights...cough cough. (IMG:style_emoticons/default/hide.gif)



(IMG:style_emoticons/default/laugh.gif) Its looking great!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Mar 24 2011, 08:08 AM
Post #824


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest
QUOTE(jd74914 @ Mar 23 2011, 10:14 PM) *

cough...cough...unequal length a-arms with custom uprights...cough cough. (IMG:style_emoticons/default/hide.gif)



(IMG:style_emoticons/default/laugh.gif) Its looking great!


You have no idea how tempting that is, don't think I can swing a new suspension on a college kid's budget though.
If anybody feels like donating one I wouldn't turn them down (IMG:style_emoticons/default/biggrin.gif)
Check out this one (IMG:style_emoticons/default/drooley.gif)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Kirmizi
post Mar 24 2011, 08:32 AM
Post #825


Senior Member
***

Group: Members
Posts: 836
Joined: 12-February 06
From: Wyoming, US
Member No.: 5,568
Region Association: None
Dana, you really need to pick up the pace a bit spring break's almost over (IMG:style_emoticons/default/poke.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jhadler
post Mar 24 2011, 08:54 AM
Post #826


Long term tinkerer...
***

Group: Members
Posts: 1,879
Joined: 7-April 03
From: Lyons, CO
Member No.: 529
QUOTE(plymouth37 @ Mar 24 2011, 06:08 AM) *

You have no idea how tempting that is, don't think I can swing a new suspension on a college kid's budget though.
If anybody feels like donating one I wouldn't turn them down (IMG:style_emoticons/default/biggrin.gif)


Not to contaminate this amazing and brilliant design, but what about harvesting an SLA front suspension from something else? Say... something you could find cheaply at a local pick-n-pull? Say... something that is a proven, effective design? Say... <gasp-choke> from a <cough - choke> Miata?

Since the front end is basically a blank slate right now, you could build around the suspension once the space requirements are set.

By the way Dana, any chance I could drop by to gaze in wide-eyed wonder at this creation in person?

-Josh2
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Ferg
post Mar 24 2011, 09:05 AM
Post #827


914 Guru
*****

Group: Members
Posts: 5,948
Joined: 8-January 03
From: Boulder CO
Member No.: 116
Region Association: None
Blue Tape!! (IMG:style_emoticons/default/FERG.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Scott S
post Mar 24 2011, 09:31 AM
Post #828


Small Member
***

Group: Members
Posts: 1,698
Joined: 30-April 03
From: Colorado
Member No.: 633
(IMG:style_emoticons/default/laugh.gif)
HA! Ferg -you just made me shoot water out of my nose!!! (we need a water-coming-out-of-the-nose smiley...)


Again Dana, project is simply amazing. It has taken me two nights to mount the
-6 breather tank in my trunk... about the same amount of time it would take you re-engineer and rebuild the Empire State Building....
(IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Mar 24 2011, 09:47 AM
Post #829


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest
QUOTE(jhadler @ Mar 24 2011, 08:54 AM) *


Not to contaminate this amazing and brilliant design, but what about harvesting an SLA front suspension from something else? Say... something you could find cheaply at a local pick-n-pull? Say... something that is a proven, effective design? Say... <gasp-choke> from a <cough - choke> Miata?

Since the front end is basically a blank slate right now, you could build around the suspension once the space requirements are set.

By the way Dana, any chance I could drop by to gaze in wide-eyed wonder at this creation in person?

-Josh2


If anybody wants to stop by just send me a PM, my doors are always open!

I will be sticking to the Porsche suspension just because it is free and easy but here is a Miata front for comparison.

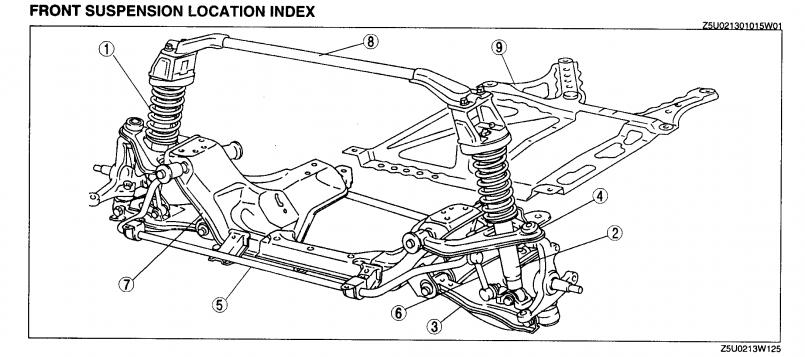

Miata's really do have great suspensions, compact and almost infinitely adjustable.
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Mar 24 2011, 09:59 AM
Post #830


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest
Wow! Just noticed the view counter, up over 75,000!
Thanks for the support everybody! (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
PeeGreen 914
post Mar 24 2011, 10:51 AM
Post #831


Just when you think you're done...wait, there is more..lol
**********

Group: Members
Posts: 10,219
Joined: 21-September 06
From: Seattle, WA... actually Everett
Member No.: 6,884
Region Association: Pacific Northwest
QUOTE(plymouth37 @ Mar 24 2011, 08:47 AM) *


If anybody wants to stop by just send me a PM, my doors are always open!



Currently the doors are off (IMG:style_emoticons/default/laugh.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Britain Smith
post Mar 24 2011, 11:04 AM
Post #832


Nano Member
****

Group: Members
Posts: 2,354
Joined: 27-February 03
From: Hillsboro, OR
Member No.: 364
I have been look at alternative front suspension options as well. One question I have when running a set-up from a Miata or something else, what do you do with the bolt pattern? Are you have to have a different bolt pattern on the front vs. the rear of the car?

-Britain
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Mar 24 2011, 11:32 AM
Post #833


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest
QUOTE(Britain Smith @ Mar 24 2011, 11:04 AM) *

I have been look at alternative front suspension options as well. One question I have when running a set-up from a Miata or something else, what do you do with the bolt pattern? Are you have to have a different bolt pattern on the front vs. the rear of the car?

-Britain

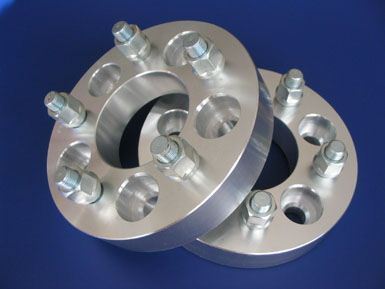

Wheel adapter plates would probably be the easiest option, you would probably be running spacers anyway, so you could just have them adapt the bolt pattern too.
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Mar 24 2011, 09:48 PM
Post #834


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest
I fabbed up some plates for the front subframe to attach to. (My cordless drill died on me so those rosette weld holes will be a little bigger)
Attached Image
Here is how they will mount. Hopefully I can get most of the front end welded up tomorrow.
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rohar
post Mar 25 2011, 01:22 PM
Post #835


Senior Member
***

Group: Members
Posts: 924
Joined: 25-October 08
From: spokane
Member No.: 9,685
Region Association: None
QUOTE(Britain Smith @ Mar 24 2011, 10:04 AM) *

I have been look at alternative front suspension options as well. One question I have when running a set-up from a Miata or something else, what do you do with the bolt pattern? Are you have to have a different bolt pattern on the front vs. the rear of the car?

-Britain



I'm running aluminum front hubs at 4/114.whatever. I ended up having the rears redrilled/bossed. Redrilling from 4x bolt pattern to 4x leaves a LOT of metal so I'm not so worried about failure.

Besides, there's a TON of rims available in early Miata 4x100.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Mar 25 2011, 11:05 PM
Post #836


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest

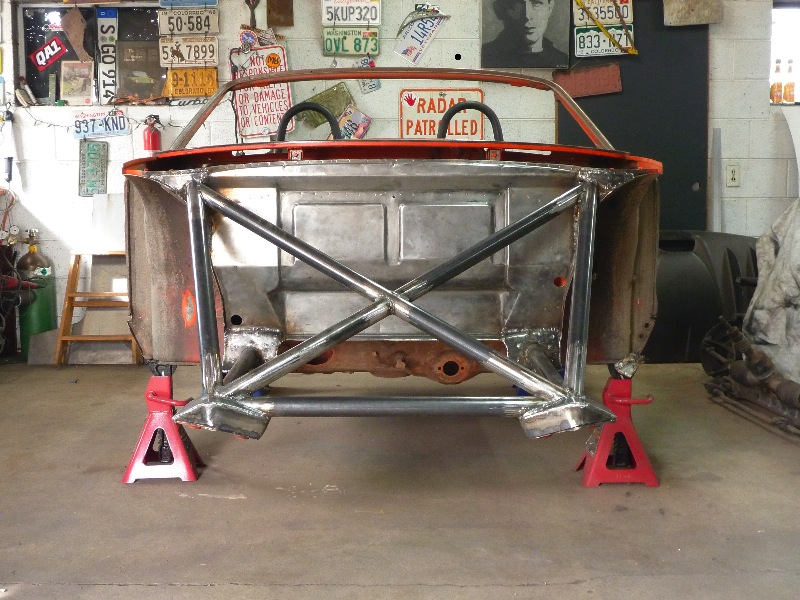

I got most of the front welded up today, just the front torsion bar mounts and the other cross bar to go.
Attached Image
Everything stayed square so I should be able to test fit the entire chassis tomorrow.
Just about time to get this thing back on its wheels to see how it looks in one piece!
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Mar 26 2011, 04:16 PM
Post #837


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest

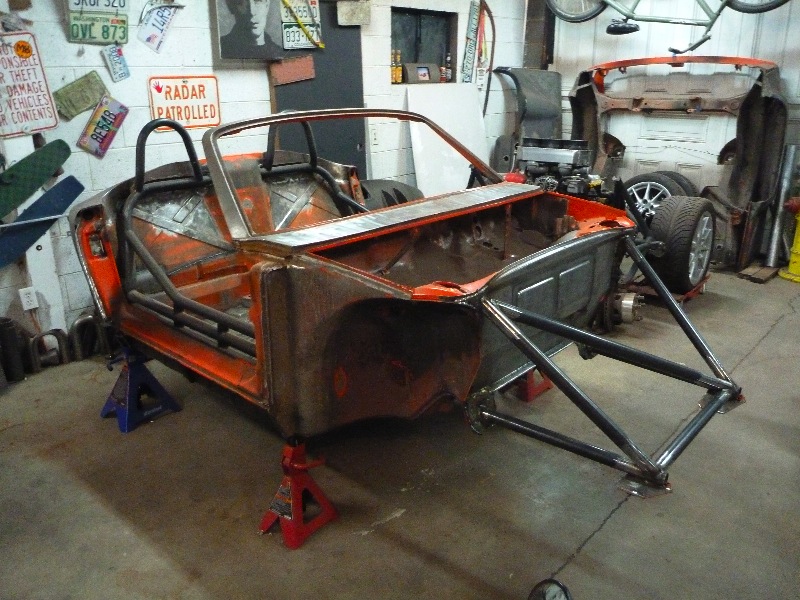

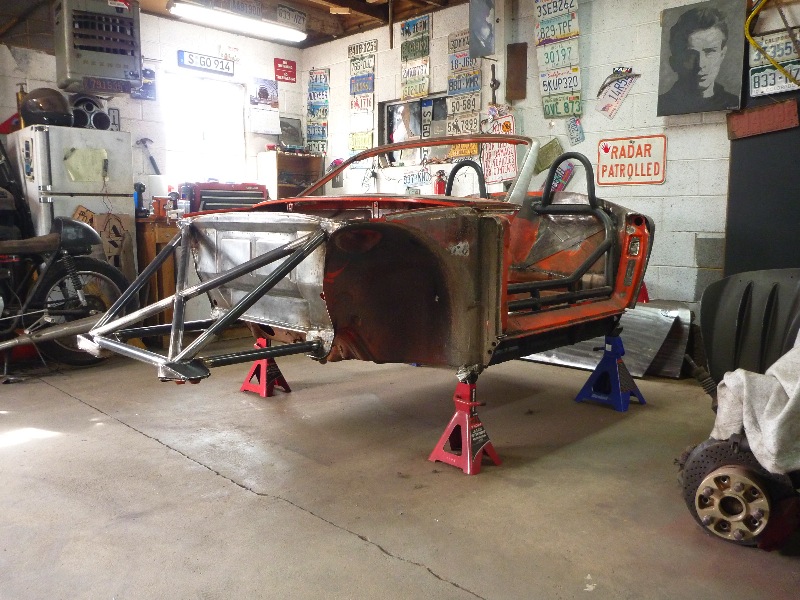

I finished up the front end today, I will try to mock up the suspension tonight to see how everything fits.
Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Mar 26 2011, 09:25 PM
Post #838


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest

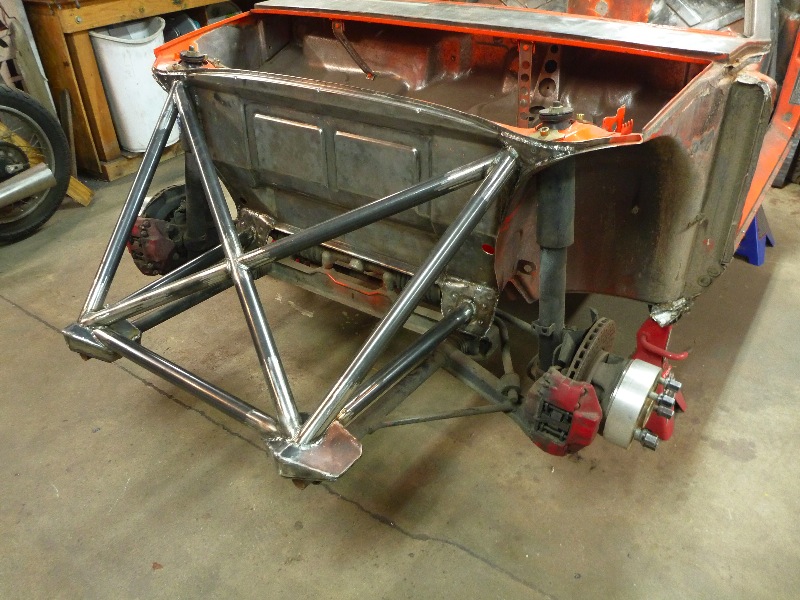

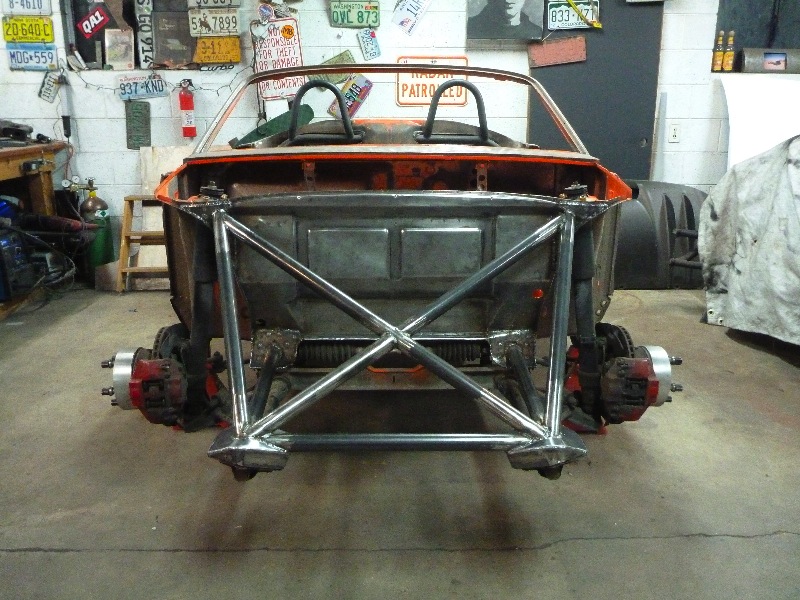

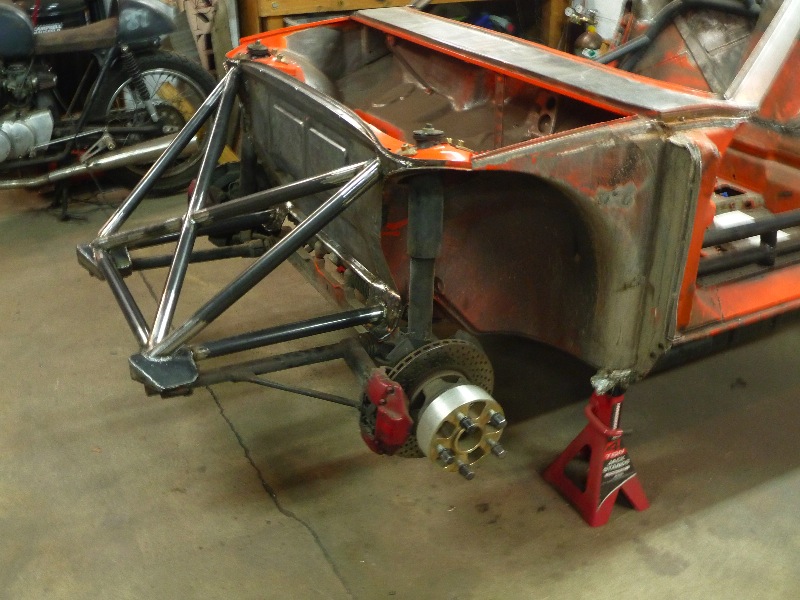

I test fit the front suspension tonight, the chassis stayed straight and everything bolted up the way it should, lost a bit of trunk space though!
I will bolt on the back half tomorrow and put it back down on its wheels.
Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Mar 26 2011, 09:26 PM
Post #839


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest
Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Rand
post Mar 26 2011, 09:44 PM
Post #840


Cross Member
*****

Group: Members
Posts: 7,409
Joined: 8-February 05
From: OR
Member No.: 3,573
Region Association: None
So I assume front shocktower to hoop in the cab is eminent?

Anyway, so nice to see the front suspension getting tied in terminator style.

Keep it coming Dana!
