 Rear brake cable attachment pictorial, because I could not find one... |
|
|
|
Porsche, and the Porsche crest are registered trademarks of Dr. Ing. h.c. F. Porsche AG.
This site is not affiliated with Porsche in any way. Its only purpose is to provide an online forum for car enthusiasts. All other trademarks are property of their respective owners. |
|
|
  |
| neo914-6 |
 Jul 22 2008, 01:27 AM
Post
#1
|
|
neo life  Group: Members Posts: 5,086 Joined: 16-January 03 From: Willow Glen (San Jose) Member No.: 159  |

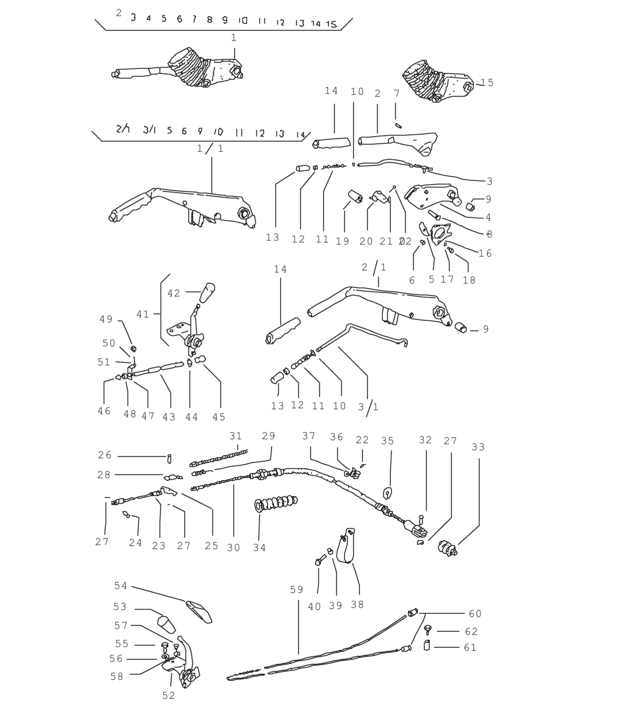

This car had no e-brake because it was a track car and the Haynes and Pelican diagram's weren't so clear to me.

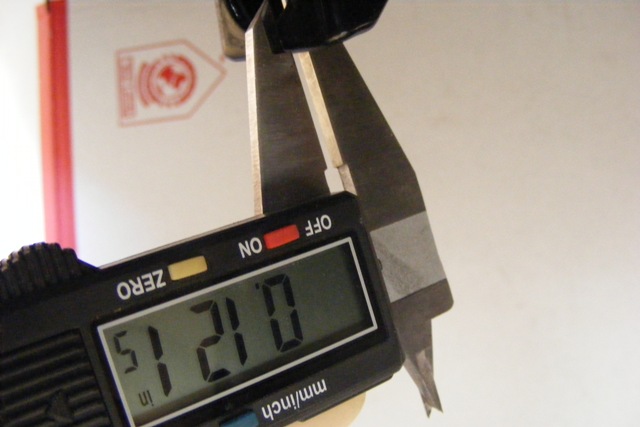

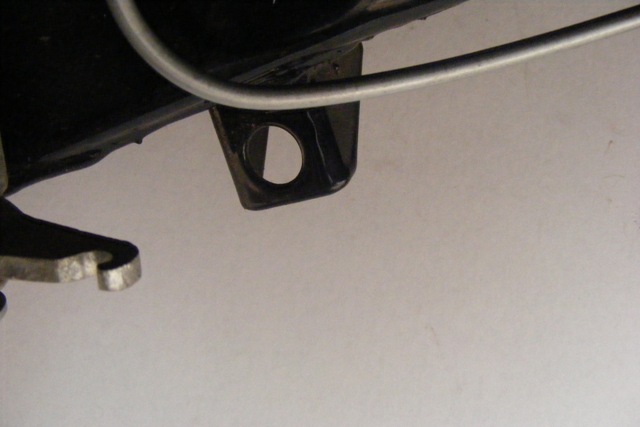

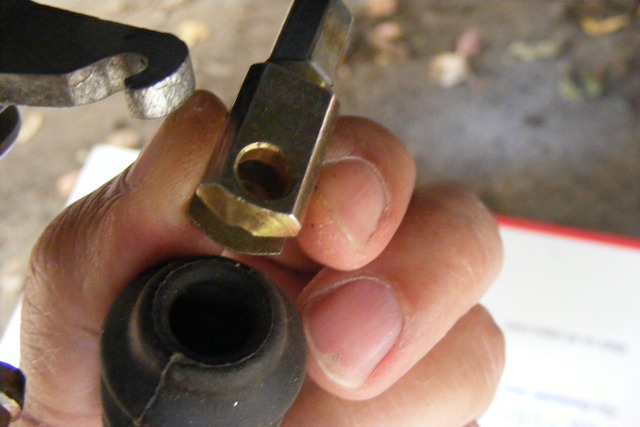

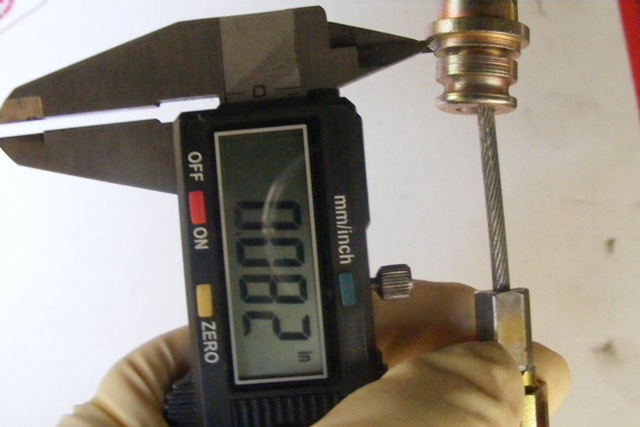

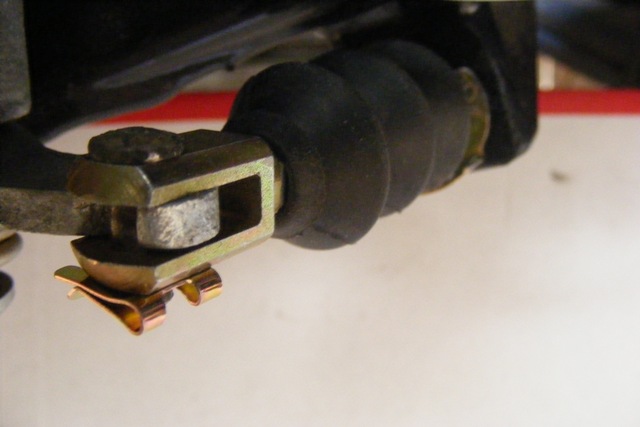

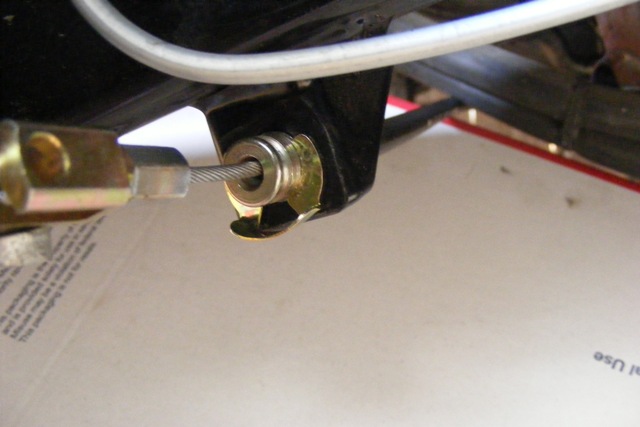

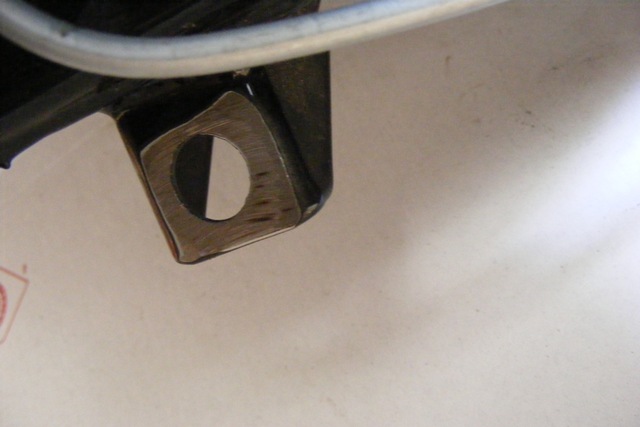

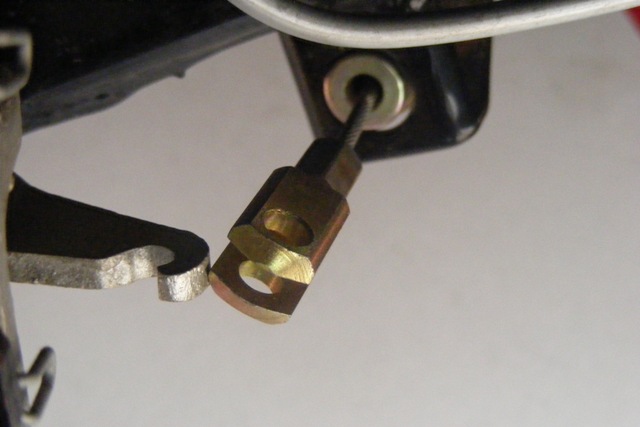

Pelican Part #'s, hope this helps... bracket on trailing arm:  new cable:  hmmm, can't see the clip groove:  could be the powdercoat thickness:  fix with grinder, file, and rattlecan:  ahh, clip (swivel pin 99918801702) fits now:  Good thing new rubber boot is very pliable (Hand Brake Sealing Sleeve 914-424-591-00-OEM):  Insert pin and clip (Hood Shock Lock Ring 911 Turbo 89-94 N-012-645-2-M100), completed assembly:  next the handbrake side... |
   |

|
| pin31 |
Jul 22 2008, 05:41 AM
Post
#2
|
|
Member Group: Members Posts: 398 Joined: 30-January 07 From: Newport, Rhode Island Member No.: 7,492 Region Association: North East States |
|
|
|
|
| toon1 |
Jul 22 2008, 01:37 PM
Post
#3
|
|
Senior Member Group: Members Posts: 1,849 Joined: 29-October 05 From: tracy,ca Member No.: 5,022 |
Thank's for noting the powder coat prob.. I am getting ready to P coat some trailing arms myself.
Good pics. |
|
|
|
| neo914-6 |
Jul 30 2008, 02:27 PM
Post
#4
|
|
neo life Group: Members Posts: 5,086 Joined: 16-January 03 From: Willow Glen (San Jose) Member No.: 159 |
On the handbrake side there appears to be something missing. Spring and where it attaches. McMark installed the Engman chassis kit but there's some other sheetmetal between the pass through tubes/holes. Where does the spring attach?

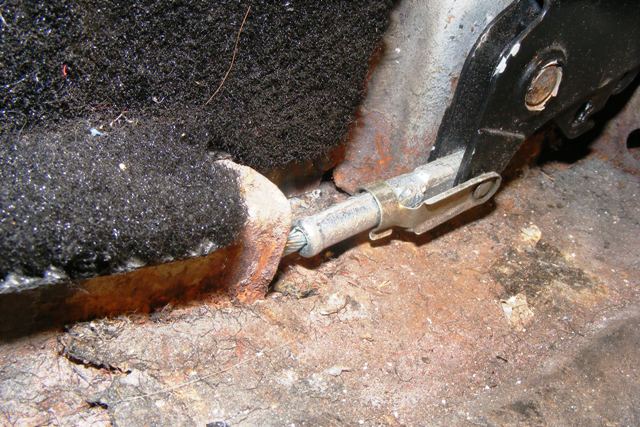

 Hope this is correct:  Something else is missing, the pivot bolt. I have a bolt that fits but without the shoulder. Looks like I'll need some parts...  Oh snap, Return spring (OEM-91442454500) is $24.25, is there an "alternative"? Sealing sleeve (914-424-592-00) at engine bay side is NLA, may check the dealer Bolt, for, pawl (901-424-511-00-OEM ) $1.00 Could use a brake arm thin bushing too (Bush OEM-91442424700) $9.00  |
|
|
|
| roadster fan |
Jul 30 2008, 03:03 PM
Post
#5
|
|
Project Frankenstein !!!!!!!! Group: Members Posts: 1,009 Joined: 24-November 05 From: Aptos, CA Member No.: 5,184 Region Association: Northern California |
Felix,
I probably have the spring you need, will go dig around. There is a tab with a hole where the spring attaches mounted between the tubes in your pic. I will try and take a pic of the one on my 73. I used a regular bolt from the hardware store, works great. I used a nylon bushing from OSH that was the approx size, split it to make it fit snug and was done with it for .50cents. I am heading up to pick up the shifters before I dig around in the parts stash (IMG:style_emoticons/default/shades.gif) Jim |
|
|
|
| watsonrx13 |
Jul 30 2008, 05:11 PM
Post
#6
|
|
Advanced Member Group: Members Posts: 2,735 Joined: 18-February 03 From: Plant City, FL Member No.: 312 Region Association: South East States |

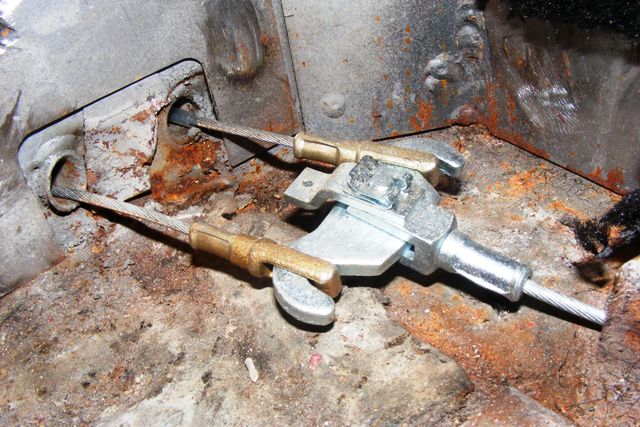

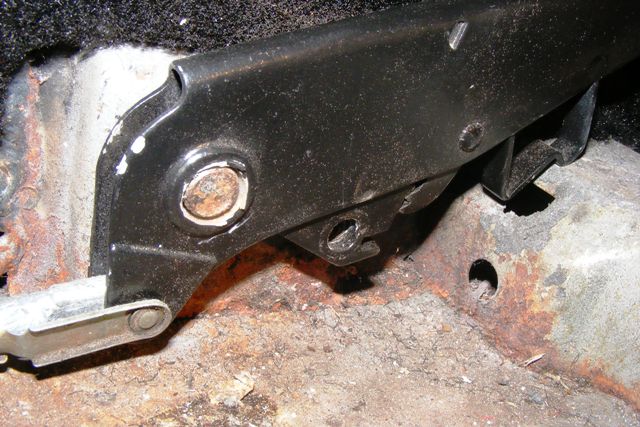

Felix, here's a shot from my website.... As Jim stated, it's just a tab spot welded to the firewall...
BTW, glad to see you back on the board, I hope things are going well for you. -- Rob (IMG:http://www.tampabay914.com/pics/orig/91420050904_06_org.jpg) |
|
|
|
| neo914-6 |
Jul 30 2008, 10:45 PM
Post
#7
|
|
neo life Group: Members Posts: 5,086 Joined: 16-January 03 From: Willow Glen (San Jose) Member No.: 159 |
QUOTE(watsonrx13 @ Jul 30 2008, 04:11 PM)  Felix, here's a shot from my website.... As Jim stated, it's just a tab spot welded to the firewall... BTW, glad to see you back on the board, I hope things are going well for you. -- Rob Hey Rob! Things are not as well as I'd like but I'm still alive and kicking so I might as well get a few things done. (IMG:style_emoticons/default/biggrin.gif) Thanks for the pic, can you tell I love pictorials? It looks like my tab is not whole and bent down. It may have enough metal to drill a new hole... |
|
|
|
| jim_hoyland |
Jul 31 2008, 08:46 PM
Post
#8
|
|
Get that VIN ? Group: Members Posts: 9,528 Joined: 1-May 03 From: Sunset Beach, CA Member No.: 643 Region Association: Southern California
|
How does the spring function ? Does the handbrake work different if it's missing ?
|
|
|
|
|
