> Crank Position Sensor, for stock cooling engines
McMark
post Jul 13 2009, 10:11 AM
Post #1


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
Since quite a few people were interested in crank fire and aftermarket FI system I finally finished up my crank position sensor setup. So if you want to run distributor-less ignition or modern FI, this setup is the ONLY setup built specifically to bolt onto a Type 4.

It's a complete bolt on upgrade, which means no drilling or modifying any parts to make this work. Only the cooling fan needs to be removed to complete the installation.

This setup is great for modern FI system, which need a 'trigger signal'. Fuel only setups usually get their signal from the coil firing, but that signal is DIRTY and unreliable. This crank fire setup is smooth and clean. You can't beat it.

There is no other setup built specifically for our motors. Quick easy installation with no headaches.

Complete package price is $175 and includes the trigger wheel, the sensor w/ connector (pigtail or uncrimped), and the mounting bracket. You won't need to go searching for anything else.

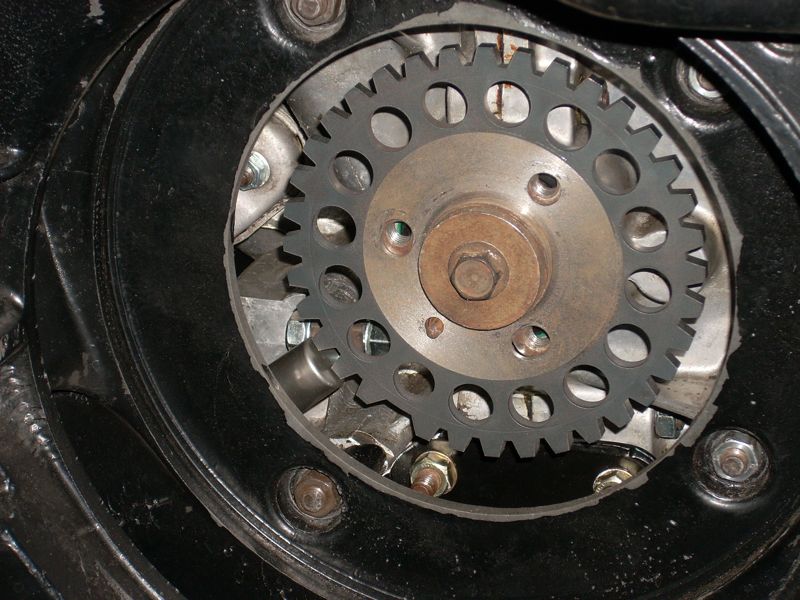

(IMG:http://www.914world.com/bbs2/uploads/post-419-1244942673.jpg)

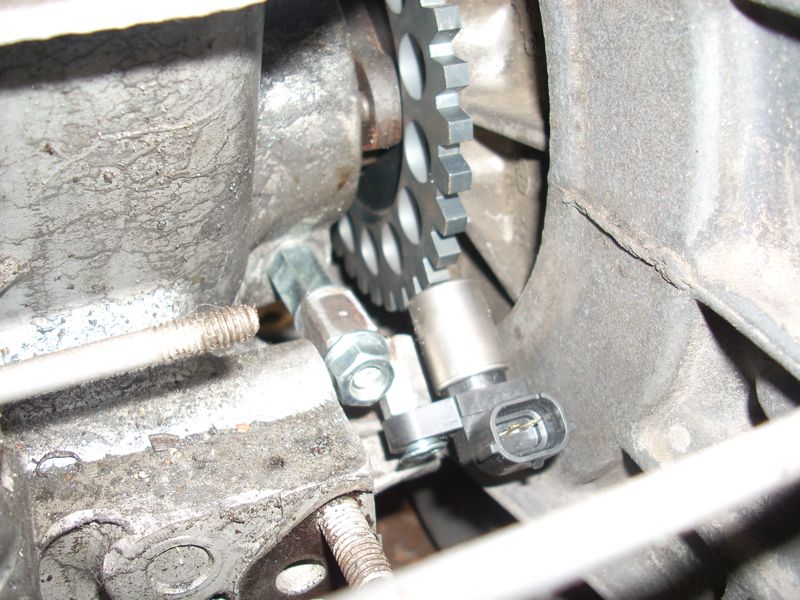

(IMG:http://www.914world.com/bbs2/uploads/post-419-1245008370.jpg)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914werke
post Jul 13 2009, 01:13 PM
Post #2


"I got blisters on me fingers"
**********

Group: Members
Posts: 10,938
Joined: 22-March 03
From: USofA
Member No.: 453
Region Association: Pacific Northwest
I want one of these!
What about a harness/connector? Is Jeff making those?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JazonJJordan
post Jul 15 2009, 10:04 AM
Post #3


Member
**

Group: Members
Posts: 340
Joined: 6-June 09
From: Atlanta-Augusta, Georgia area
Member No.: 10,446
Region Association: South East States
(IMG:style_emoticons/default/smilie_pokal.gif) Excellent work- McMark! I will get one of these next month too! (IMG:style_emoticons/default/popcorn[1].gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
euro911
post Jul 16 2009, 12:05 AM
Post #4


Retired & living the dream. God help me if I wake up!
*****

Group: Members
Posts: 8,858
Joined: 2-December 06
From: So.Cal. & No.AZ (USA)
Member No.: 7,300
Region Association: Southern California
(IMG:style_emoticons/default/beerchug.gif) Very nice, but a question comes to mind:

How do you deal with the added thickness? ... will one need to shave [whatever the thickness of the 'trigger wheel' is] off the back of the fan mount to keep the belt aligned with the alternator pulley?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
hcdmueller
post Jul 16 2009, 08:01 AM
Post #5


?????????????
***

Group: Members
Posts: 542
Joined: 4-February 06
From: UK
Member No.: 5,527
Region Association: England
The trigger wheel is machined to be the correct thickness. You just replace the big washer with the trigger wheel. I got mine in the mail and it is beautiful. I can't wait to get it hooked up and running.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Jul 17 2009, 10:56 AM
Post #6


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
QUOTE(rdauenhauer @ Jul 13 2009, 11:13 AM) *

I want one of these!
What about a harness/connector? Is Jeff make those?

I am soldering on wires and filling the connector with epoxy. But I'm still searching for the appropriate connector.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Jul 17 2009, 10:58 AM
Post #7


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
QUOTE(euro911 @ Jul 15 2009, 10:05 PM) *
How do you deal with the added thickness? ... will one need to shave [whatever the thickness of the 'trigger wheel' is] off the back of the fan mount to keep the belt aligned with the alternator pulley?

Yup, there is no added thickness. This is a 100% bolt on application. It can be done in about 5 minutes (with the motor out, but completely assembled) and requires absolutely no modification of anything.
(IMG:style_emoticons/default/cool.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
euro911
post Jul 21 2009, 11:50 PM
Post #8


Retired & living the dream. God help me if I wake up!
*****

Group: Members
Posts: 8,858
Joined: 2-December 06
From: So.Cal. & No.AZ (USA)
Member No.: 7,300
Region Association: Southern California
So the sensor replaces the trigger points in the distributor?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Jul 24 2009, 02:15 PM
Post #9


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
This sensor is a key component of installing aftermarket fuel injection and/or some aftermarket ignition setups. What I'm offering here takes the guess work out of building these parts. But for a stock engine, these parts are useless. This setup essentially does nothing by itself, but as part of a bigger picture, they are very valuable.

If you've heard the term "crank fire" this product is the central component of that setup.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JazonJJordan
post Jul 24 2009, 09:34 PM
Post #10


Member
**

Group: Members
Posts: 340
Joined: 6-June 09
From: Atlanta-Augusta, Georgia area
Member No.: 10,446
Region Association: South East States
QUOTE(McMark @ Jul 24 2009, 04:15 PM) *

This sensor is a key component of installing aftermarket fuel injection and/or some aftermarket ignition setups. What I'm offering here takes the guess work out of building these parts. But for a stock engine, these parts are useless. This setup essentially does nothing by itself, but as part of a bigger picture, they are very valuable.

If you've heard the term "crank fire" this product is the central component of that setup.

McMark;

Any likelyhood you will progress this further into a full package/solution?

Just curious, great product. Thanks-
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Jul 24 2009, 09:39 PM
Post #11


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
I'm trying to motivate my genius EE into developing the ignition circuitry. The fuel injection setup I've been working on is complete as a fuel only solution. I'm working now on a coil on plug solution that will allow for fuel & ignition in one package.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
euro911
post Jul 25 2009, 04:16 AM
Post #12


Retired & living the dream. God help me if I wake up!
*****

Group: Members
Posts: 8,858
Joined: 2-December 06
From: So.Cal. & No.AZ (USA)
Member No.: 7,300
Region Association: Southern California
QUOTE(McMark @ Jul 24 2009, 01:15 PM) *

This sensor is a key component of installing aftermarket fuel injection and/or some aftermarket ignition setups. What I'm offering here takes the guess work out of building these parts. But for a stock engine, these parts are useless. This setup essentially does nothing by itself, but as part of a bigger picture, they are very valuable.

If you've heard the term "crank fire" this product is the central component of that setup.
I was curious as to 'how' and 'where' ignition timing adjustments were to be made (IMG:style_emoticons/default/idea.gif) ... I see what you're doing now. Thanks for splaining.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914werke
post Sep 19 2009, 01:30 AM
Post #13


"I got blisters on me fingers"
**********

Group: Members
Posts: 10,938
Joined: 22-March 03
From: USofA
Member No.: 453
Region Association: Pacific Northwest
Does the placement of the Pickup preclude the use of "full flow" plumbing?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Sep 19 2009, 01:36 AM
Post #14


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
I think it might interfere with the return line. I'll check tomorrow and if it does I'll have to redesign the bracket, which isn't too big of a deal.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914werke
post Sep 26 2009, 12:02 AM
Post #15


"I got blisters on me fingers"
**********

Group: Members
Posts: 10,938
Joined: 22-March 03
From: USofA
Member No.: 453
Region Association: Pacific Northwest
Perhaps if it was moved to the case pinch bolt just below the oil fill tower?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
LotusJoe
post Dec 8 2009, 04:51 PM
Post #16


Europa Twink Driver
**

Group: Members
Posts: 406
Joined: 30-November 09
From: Southern California
Member No.: 11,085
Region Association: Southern California
Is your trigger system still avail.?

Thanks
Joe
Southern California
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Dec 8 2009, 05:19 PM
Post #17


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
Yes it is.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ConeDodger
post Dec 16 2009, 11:17 AM
Post #18


Apex killer!
***************

Group: Members
Posts: 23,823
Joined: 31-December 04
From: Tahoe Area
Member No.: 3,380
Region Association: Northern California
Since this WOULD be the perfect solution for me, if it works with SDS EFI I am wondering what SDS is using? Surely, they have not reinvented the wheel. Are they using some kind of GM electronics that can be adapted to your wheel and plugged in to their harness? Whoops! Answered my own question. GM LSX 24 Tooth. Seems to me you are redesigning to many more teeth than that. 48:1?

Invent more stuff! I want a billet aluminum YoYo with Porsche emblems on the side or 914!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Dec 16 2009, 09:15 PM
Post #19


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
Looks like SDS is 'working on' toothed wheel setups. I've emailed them about what the latest is.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
arvcube
post Dec 16 2009, 11:09 PM
Post #20


Member
**

Group: Members
Posts: 170
Joined: 25-September 07
From: poway, ca
Member No.: 8,147
dont their systems currently work on magnetic triggers? requiring proper positioning of magnets on crank pulley or what not?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
