> Fix a six, Like Neil Young says...rust is an insomniac
Speedo
post May 30 2021, 05:11 PM
Post #561


Senior Member
***

Group: Members
Posts: 553
Joined: 7-November 06
From: Boulder
Member No.: 7,170
Region Association: Rocky Mountains

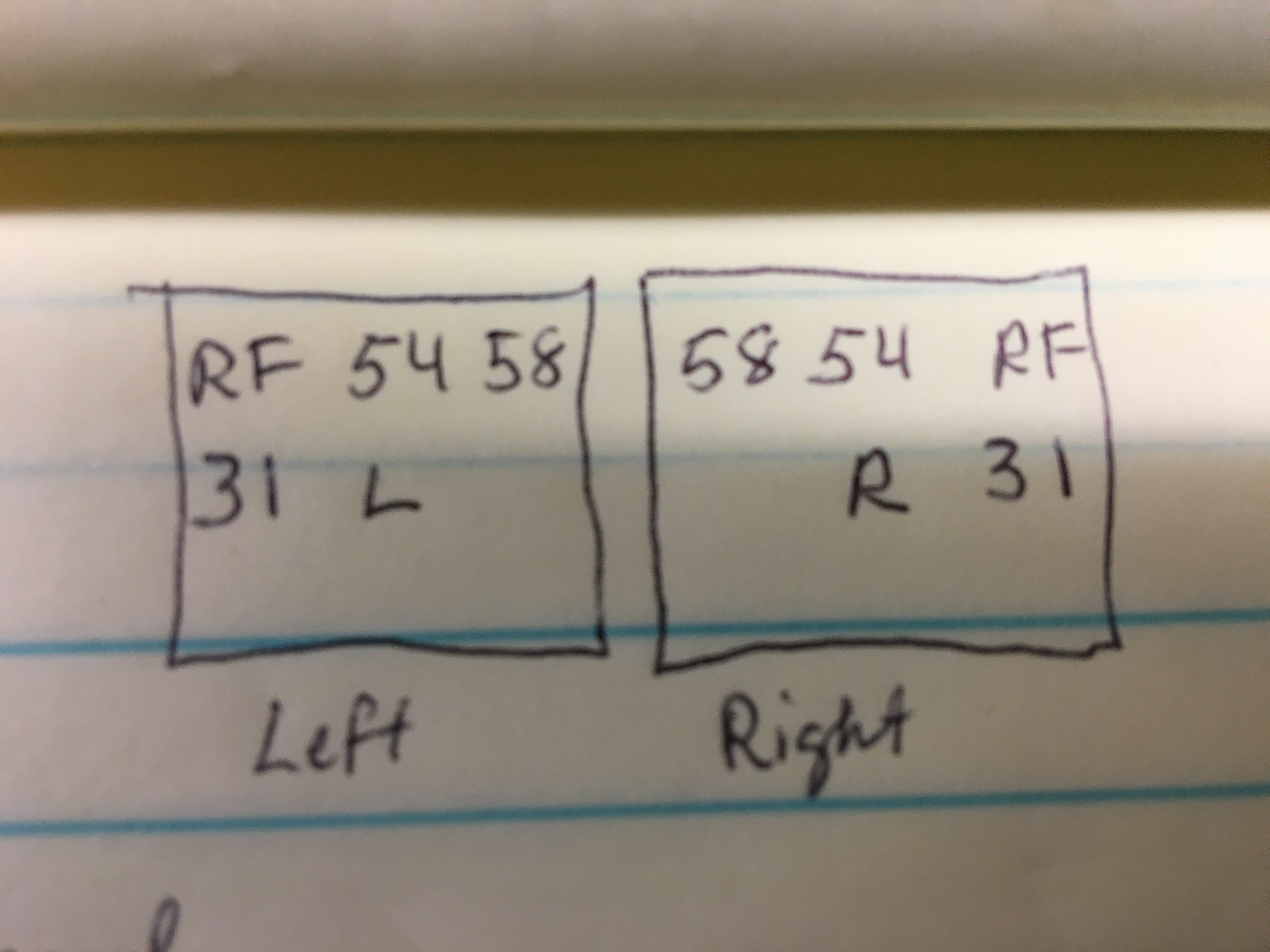

Also I was preparing to install the tail light housings and couldn't remember where my wiring notes ended up. The L and R turns are obvious, but need to figure out what goes to 54, 58, RF and 31. Obviously running lights, brake lights, back up and ground. If someone has those handy that would help. (IMG:style_emoticons/default/rolleyes.gif)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Speedo
post Jun 20 2021, 05:44 PM
Post #562


Senior Member
***

Group: Members
Posts: 553
Joined: 7-November 06
From: Boulder
Member No.: 7,170
Region Association: Rocky Mountains
Big day...got my lift back (IMG:style_emoticons/default/biggrin.gif)

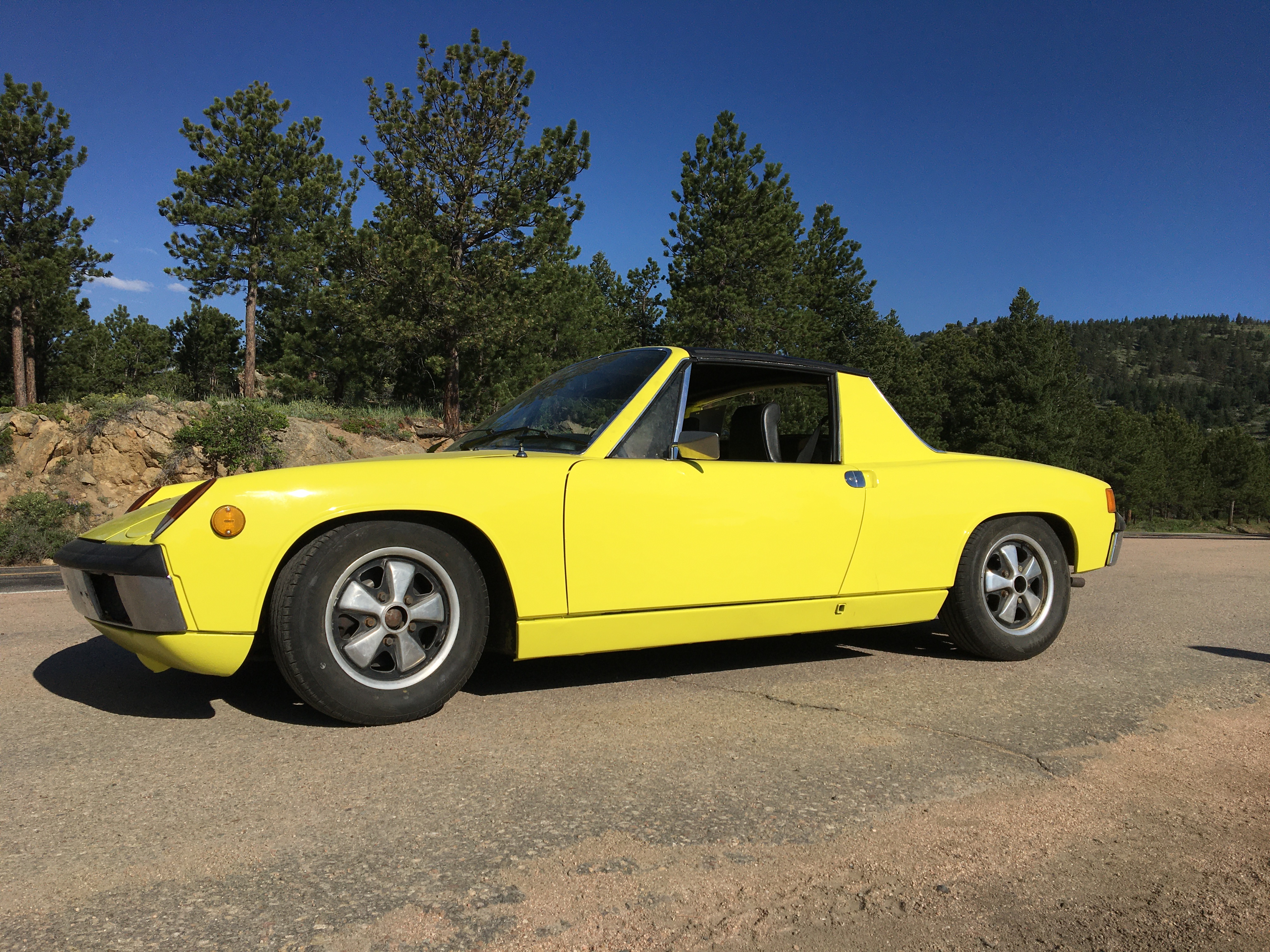

Son came home for two weeks to push through the post-paint re-assembly of his 72 1.7 yellow beast. Had to spend some time going back and forth to the painter to get it right. Done except for the interior. Very nice.
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Speedo
post Jun 20 2021, 05:46 PM
Post #563


Senior Member
***

Group: Members
Posts: 553
Joined: 7-November 06
From: Boulder
Member No.: 7,170
Region Association: Rocky Mountains
This changes everything. No more crawling under the dolly. My knees are thankful.Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Speedo
post Jun 20 2021, 05:48 PM
Post #564


Senior Member
***

Group: Members
Posts: 553
Joined: 7-November 06
From: Boulder
Member No.: 7,170
Region Association: Rocky Mountains

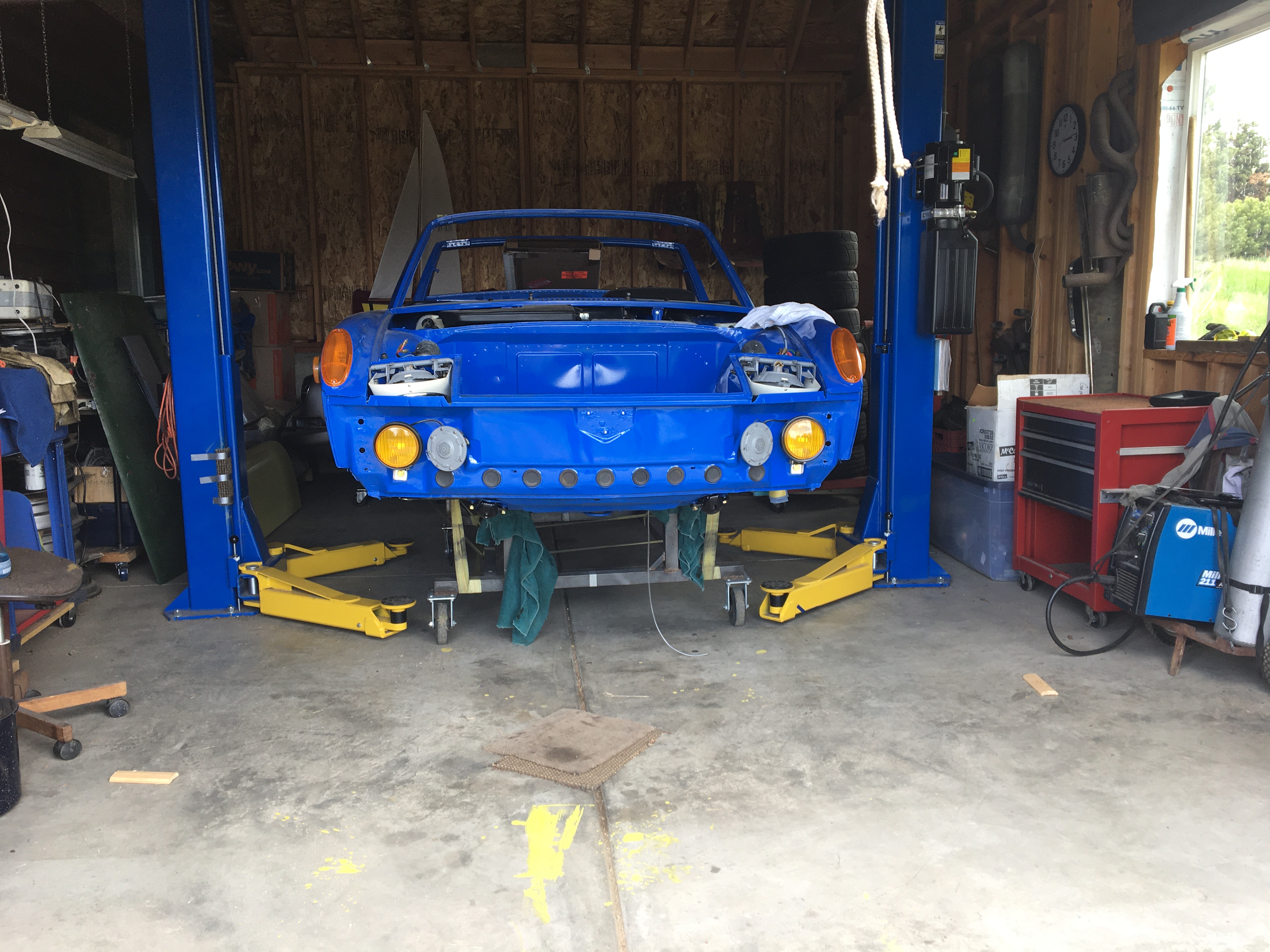

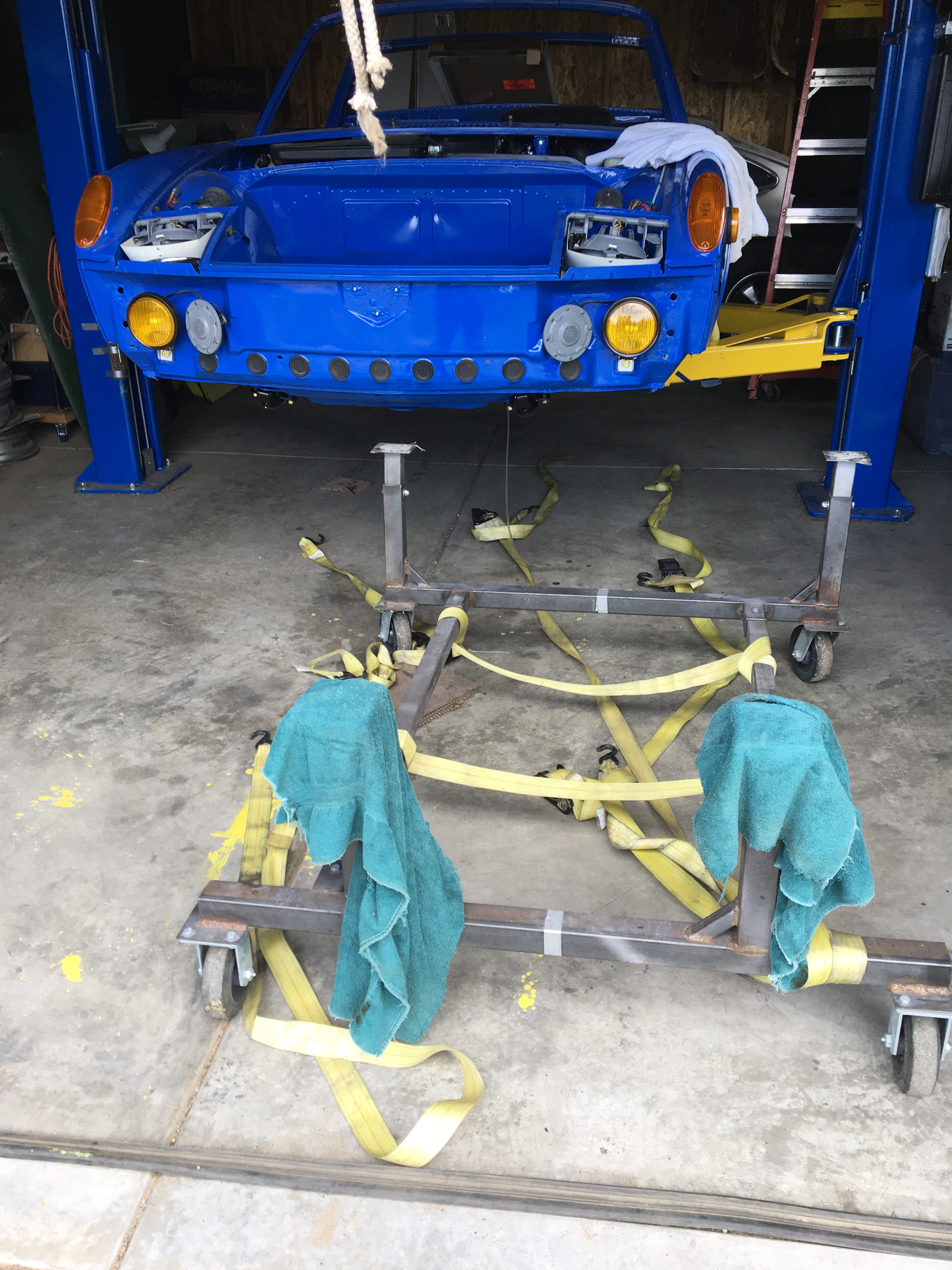

Almost...
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Speedo
post Jun 20 2021, 05:49 PM
Post #565


Senior Member
***

Group: Members
Posts: 553
Joined: 7-November 06
From: Boulder
Member No.: 7,170
Region Association: Rocky Mountains

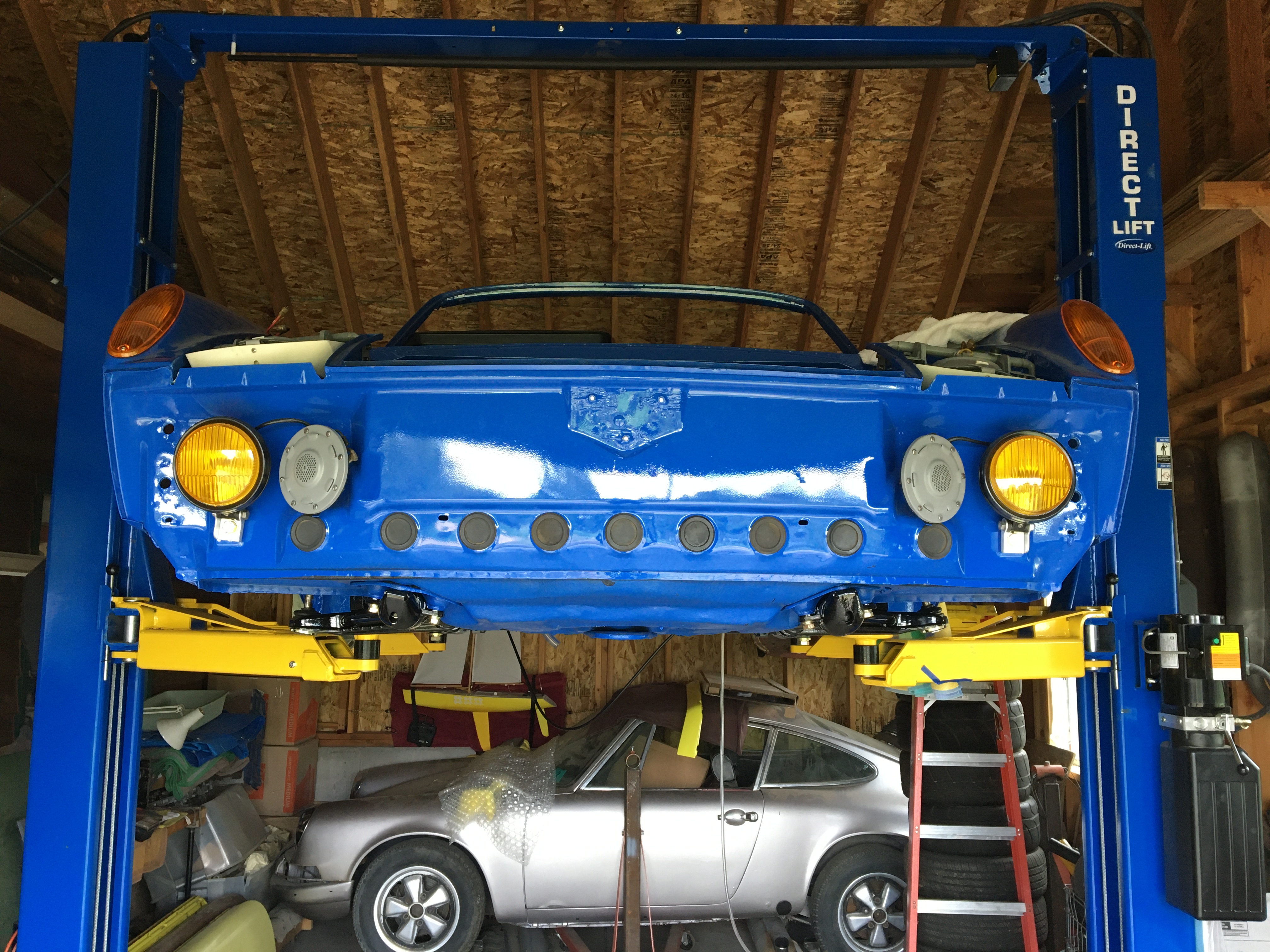

Liftoff...
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Speedo
post Jun 20 2021, 05:51 PM
Post #566


Senior Member
***

Group: Members
Posts: 553
Joined: 7-November 06
From: Boulder
Member No.: 7,170
Region Association: Rocky Mountains
Time to finish up the suspension and send my wheels off to Al Reed.Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Speedo
post Jul 3 2021, 05:15 PM
Post #567


Senior Member
***

Group: Members
Posts: 553
Joined: 7-November 06
From: Boulder
Member No.: 7,170
Region Association: Rocky Mountains

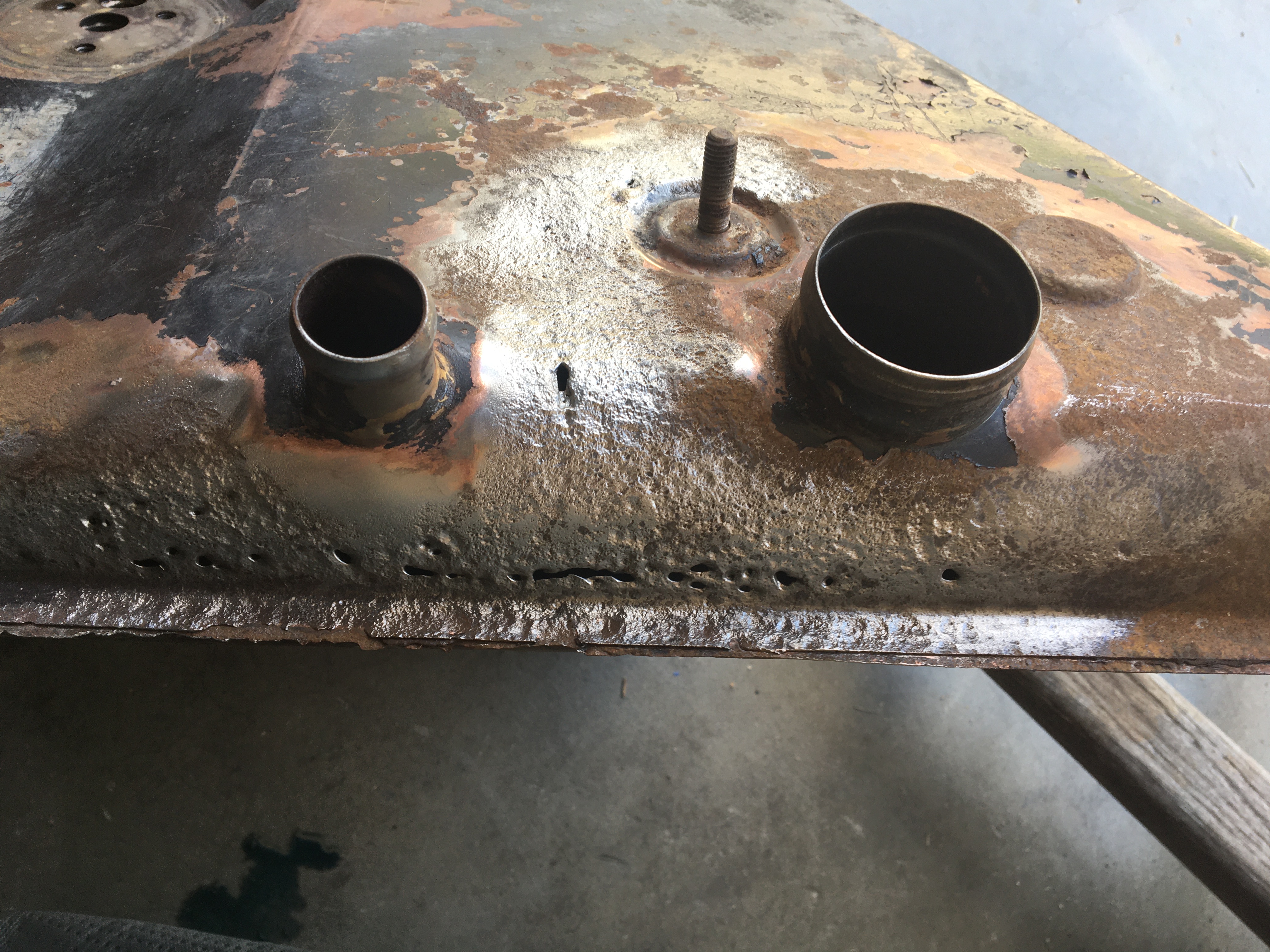

Started cleaning up my oil tank...bad decision. What looked solid covered in road grime wasn't. Small perforations along the top seam where the rear wheels picked up debris and deposited it there. It held moisture which over time ate through the copper and then the steel. As the perforations were along the top edge, it suffered no obvious leaks. Rest of the tank is very solid so I am going to repair this one. No sense in mig welding it, and as it is not structural, I think I can get by with brazing it. Pretty small holes. Once brazed it will get completely wire brushed and sealed. Before...
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Speedo
post Jul 12 2021, 06:06 PM
Post #568


Senior Member
***

Group: Members
Posts: 553
Joined: 7-November 06
From: Boulder
Member No.: 7,170
Region Association: Rocky Mountains

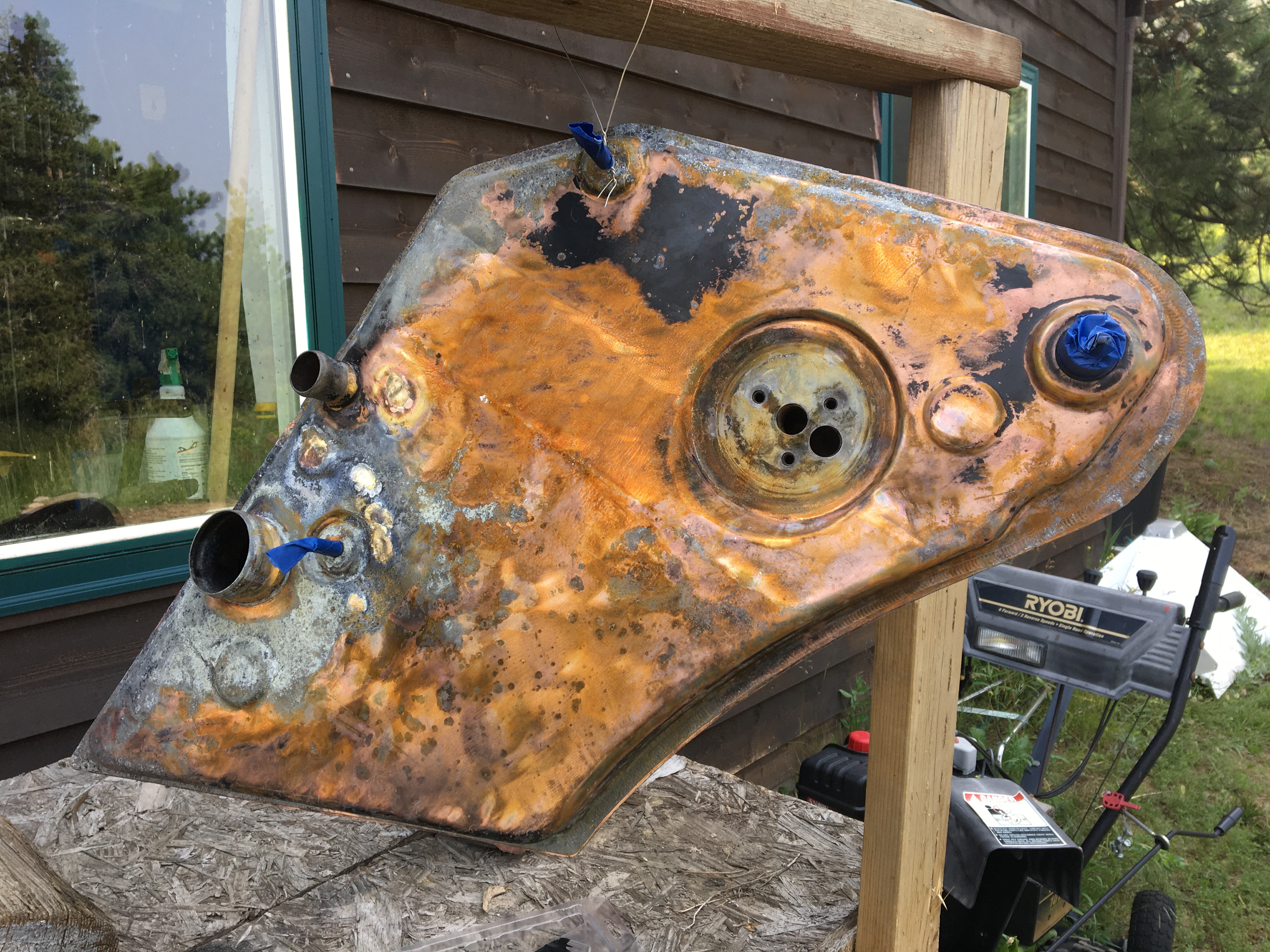

During...
So the brazing went well and the tank was wire brushed and etched. It looks pretty sketchy at this point...completely de-nuded
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Speedo
post Jul 12 2021, 06:08 PM
Post #569


Senior Member
***

Group: Members
Posts: 553
Joined: 7-November 06
From: Boulder
Member No.: 7,170
Region Association: Rocky Mountains

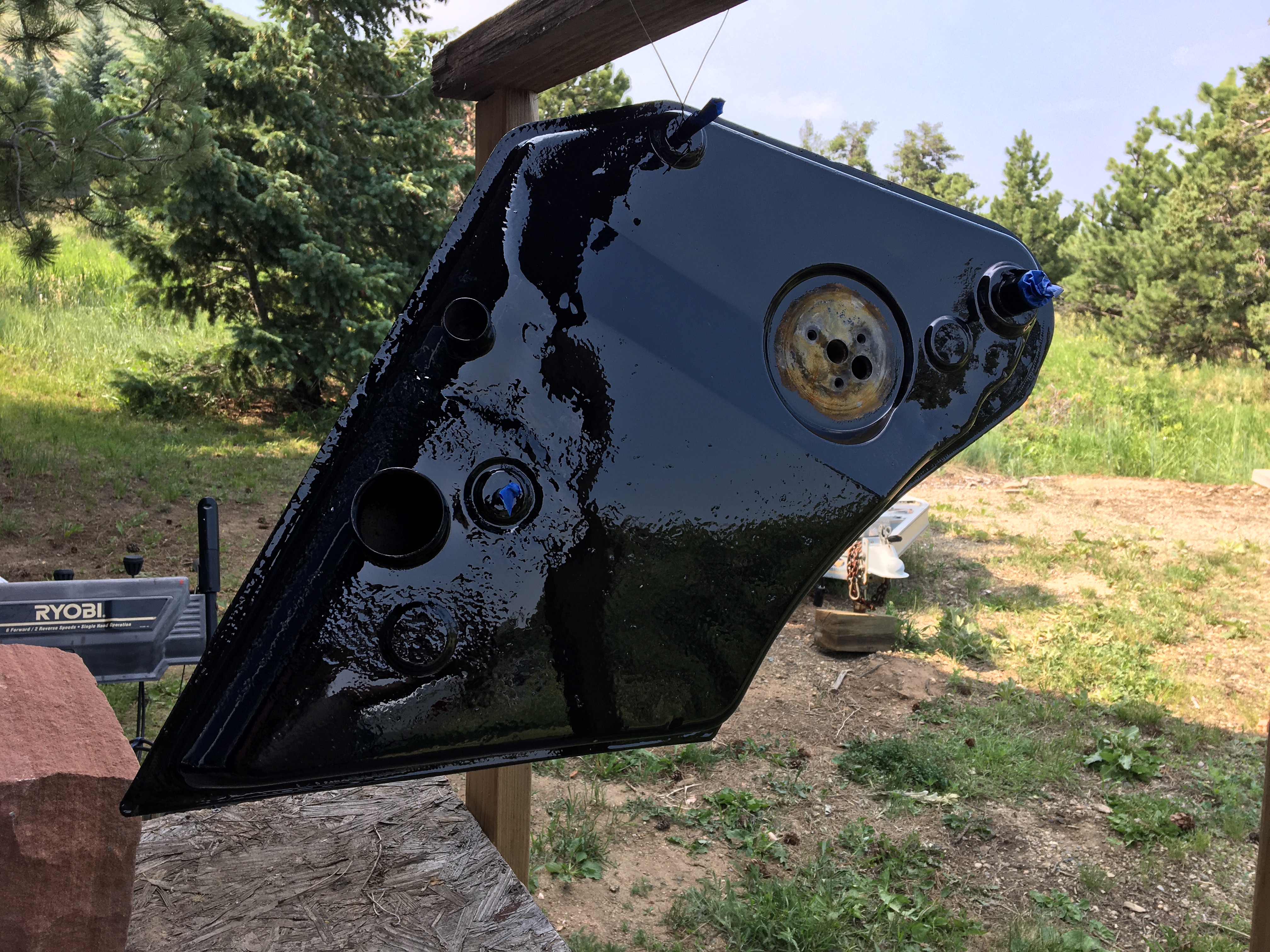

And after...
Treated to a couple liberal coats of POR 15 and it looks much better.Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Speedo
post Jul 13 2021, 06:51 AM
Post #570


Senior Member
***

Group: Members
Posts: 553
Joined: 7-November 06
From: Boulder
Member No.: 7,170
Region Association: Rocky Mountains

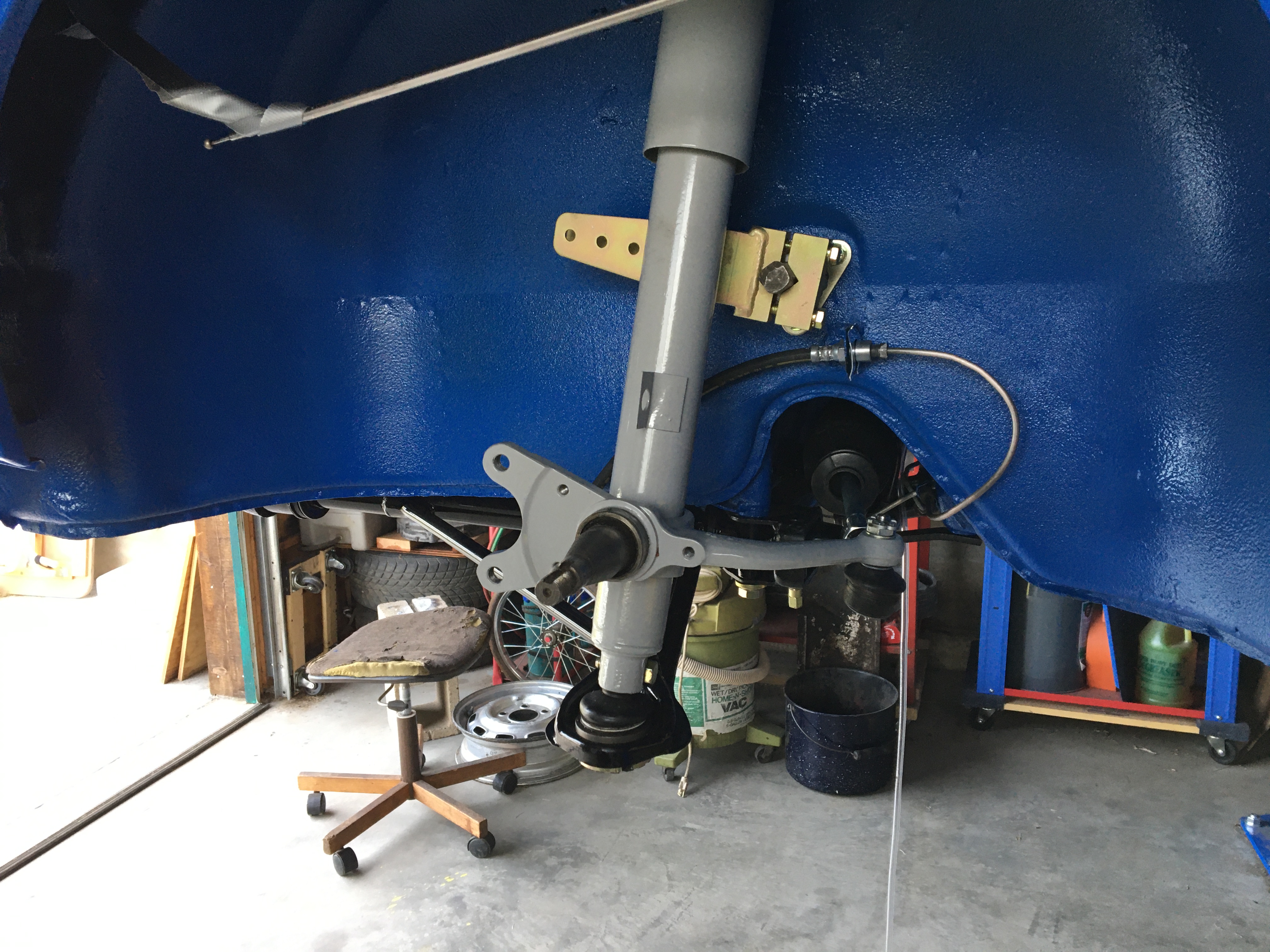

Working away on the front suspension. Something very satisfying about bolting up fresh parts. Slight dilemma with my bump steer modification...upper two U-joints were binding.
Figured out where the binding was happening, and removed about an 1/8th on the washer and binding disappeared so everything got tightened back up.
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Speedo
post Aug 5 2021, 06:05 PM
Post #571


Senior Member
***

Group: Members
Posts: 553
Joined: 7-November 06
From: Boulder
Member No.: 7,170
Region Association: Rocky Mountains

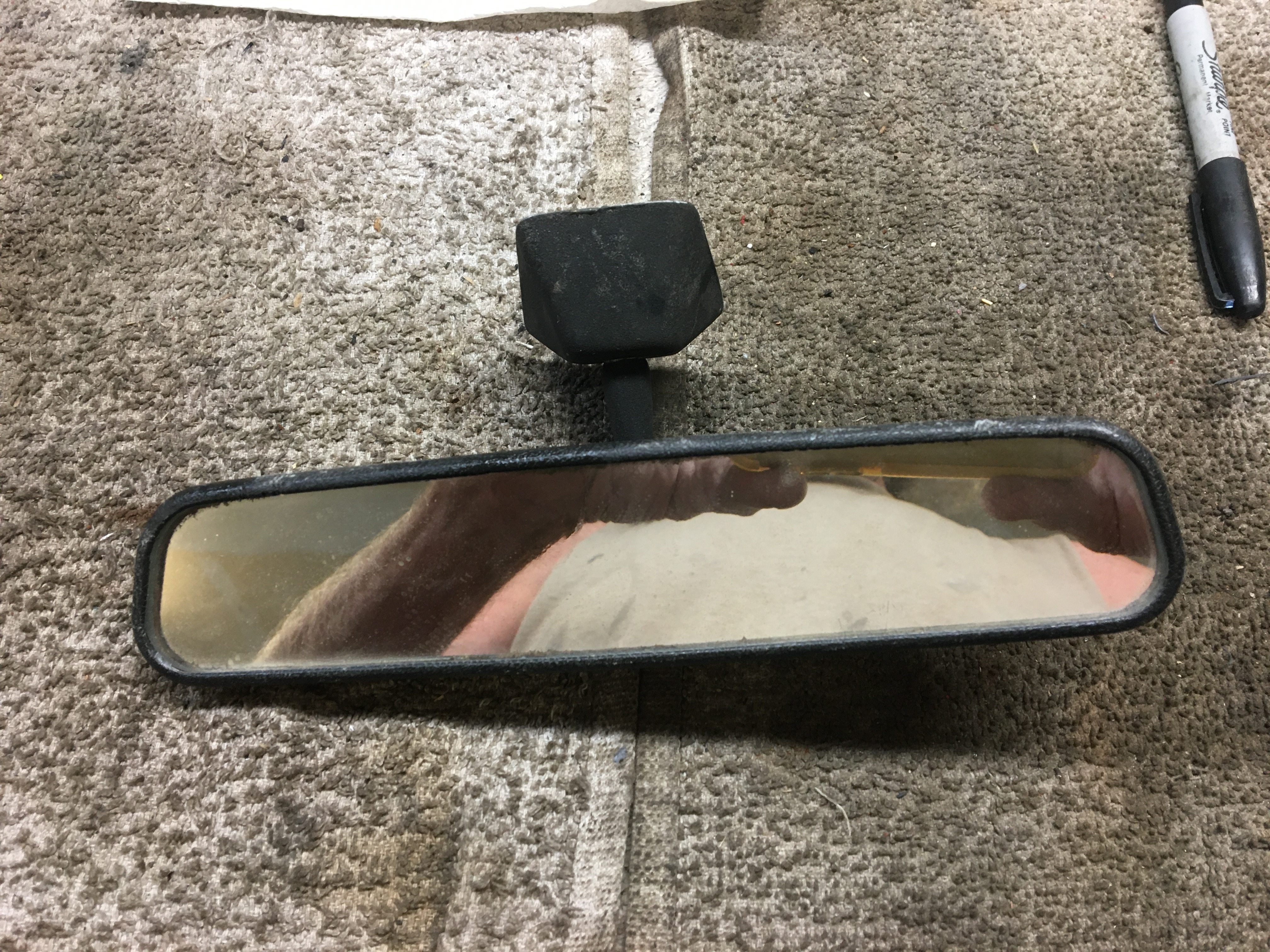

Could this be the correct mirror for my 6? Wasn't where it was supposed to be...but it is long and narrow with the correct base.
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post Aug 5 2021, 07:34 PM
Post #572


914-6 GT in waiting
***************

Group: Members
Posts: 19,594
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region
QUOTE(Speedo @ Aug 5 2021, 08:05 PM) *

Could this be the correct mirror for my 6? Wasn't where it was supposed to be...but it is long and narrow with the correct base.
Attached Image

Looks correct to me.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Root_Werks
post Aug 6 2021, 03:12 PM
Post #573


Village Idiot
*****

Group: Members
Posts: 8,484
Joined: 25-May 04
From: About 5NM from Canada
Member No.: 2,105
Region Association: Pacific Northwest
Having a lift is a game changer. My last shop had one and I used it often. Looking great!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cairo94507
post Aug 6 2021, 03:18 PM
Post #574


Michael
**********

Group: Members
Posts: 10,093
Joined: 1-November 08
From: Auburn, CA
Member No.: 9,712
Region Association: Northern California
That is definitely the correct mirror for your Six. (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Speedo
post Aug 14 2021, 06:09 PM
Post #575


Senior Member
***

Group: Members
Posts: 553
Joined: 7-November 06
From: Boulder
Member No.: 7,170
Region Association: Rocky Mountains

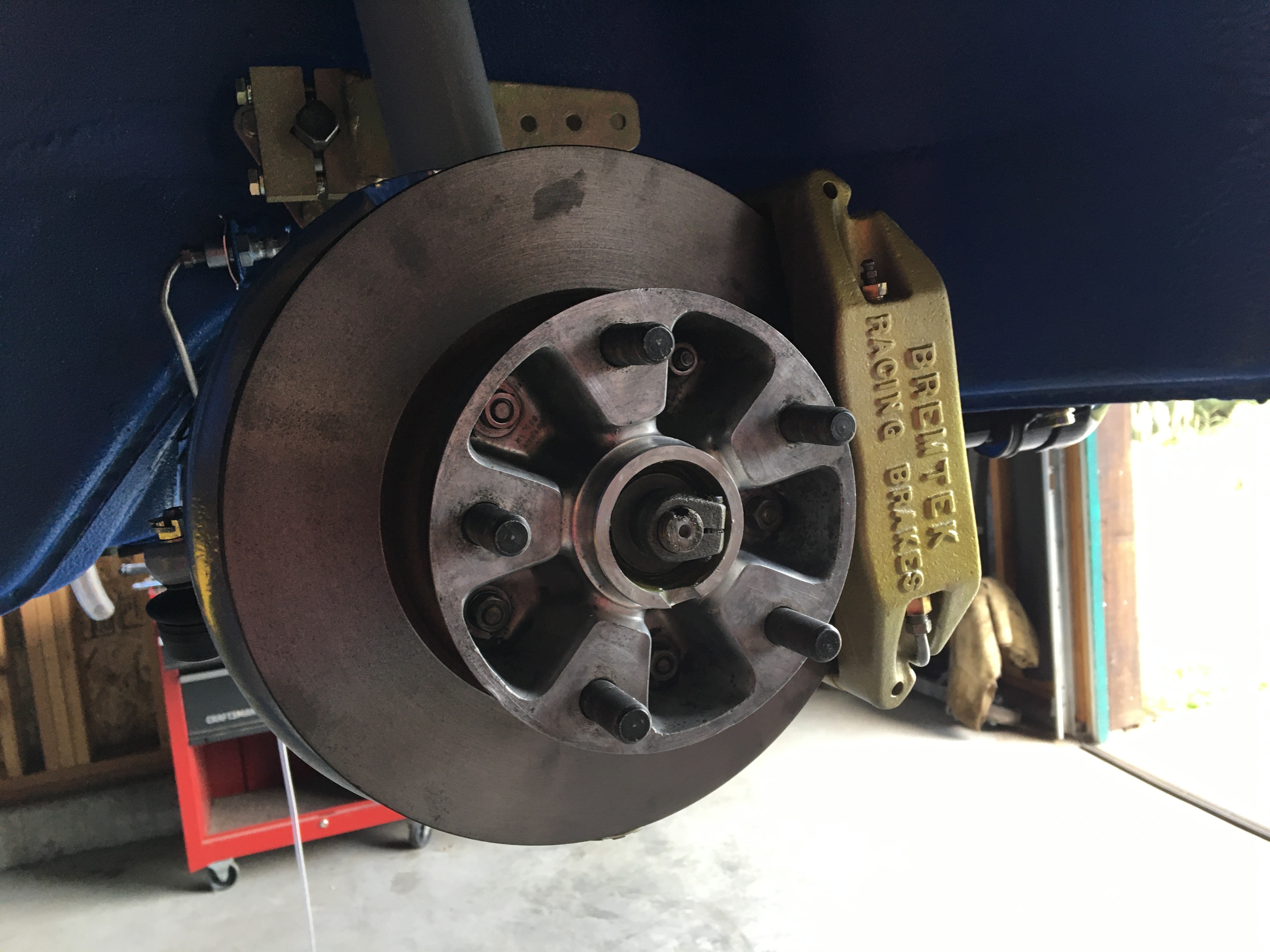

Suspension and brakes
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Speedo
post Aug 14 2021, 06:10 PM
Post #576


Senior Member
***

Group: Members
Posts: 553
Joined: 7-November 06
From: Boulder
Member No.: 7,170
Region Association: Rocky Mountains

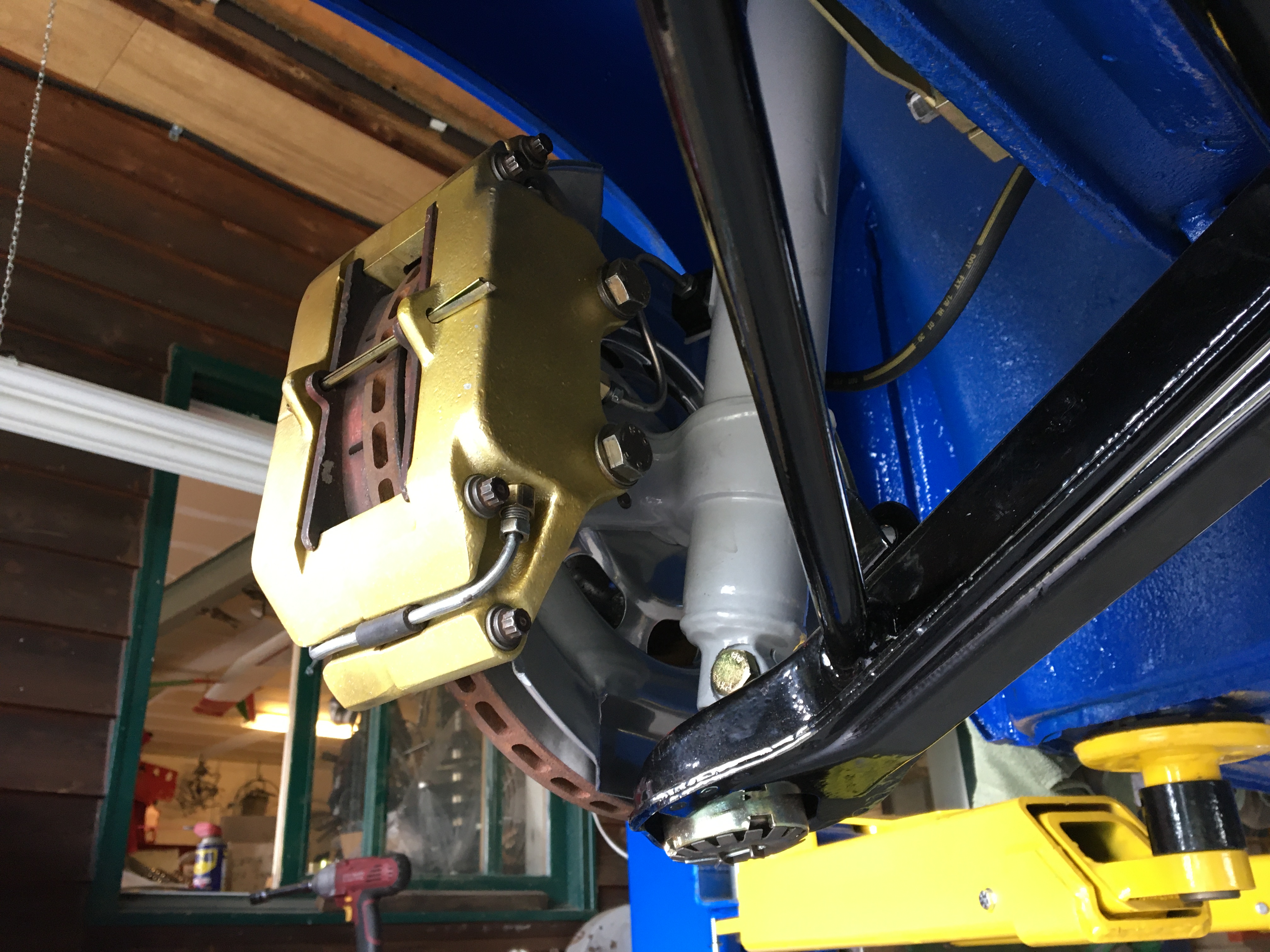

These front brakes are monsters
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Speedo
post Aug 14 2021, 06:14 PM
Post #577


Senior Member
***

Group: Members
Posts: 553
Joined: 7-November 06
From: Boulder
Member No.: 7,170
Region Association: Rocky Mountains
Rears are done except for dust shields and e-brakes. New coil overs and hardware. PET does not show where the bracket that supports the front of the rear brake dust shield goes. Is it under the head of the bolt and lock washer?
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Speedo
post Aug 14 2021, 06:15 PM
Post #578


Senior Member
***

Group: Members
Posts: 553
Joined: 7-November 06
From: Boulder
Member No.: 7,170
Region Association: Rocky Mountains
And the frosting on the cake...
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Speedo
post Aug 14 2021, 06:17 PM
Post #579


Senior Member
***

Group: Members
Posts: 553
Joined: 7-November 06
From: Boulder
Member No.: 7,170
Region Association: Rocky Mountains
Waiting for the tires to arrive and get mounted...then I will have a roller after many years.
Oil tank install tomorrow... (IMG:style_emoticons/default/smile.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
KELTY360
post Aug 14 2021, 06:25 PM
Post #580


914 Neferati
*****

Group: Members
Posts: 5,090
Joined: 31-December 05
From: Pt. Townsend, WA
Member No.: 5,344
Region Association: Pacific Northwest
Oh man! You show the box and not the goodies? Guess I’ll have to be in suspense til the next edition. Love following this build.
