Well it has been a while but I have been collecting "stuff" so that I can start and not have to stop too often. I purchased a 2000 996 C4 that was involved in a fire. I am able to use the full suspension, Brembo big reds, jic coil overs, radiators, ac condensors, power steering, power brakes, transmission, axles, pedal assembly.

Whats your plan on using the transaxle in mid engine conversion. I don't think you can rotate the 996 transaxle to run in a inverted posistion. Is the ring gear reverseable like in the 930 boxes. (IMG:style_emoticons/default/idea.gif)

You can invert the 996 gearbox. Verified with GBOX. Only thing is that I think that I will need to add taller ring and pinion. If I use a 325/30 19 tire with stock rear it will cruise 70 MPH at 2550 rpm. If I use the 3:1 rear end, then it will cruise 70 MPH at 2200 rpm. I'm getting a quote to do the taller rear and LSD. Let's see what it ends up at.

[Curbandgutter]

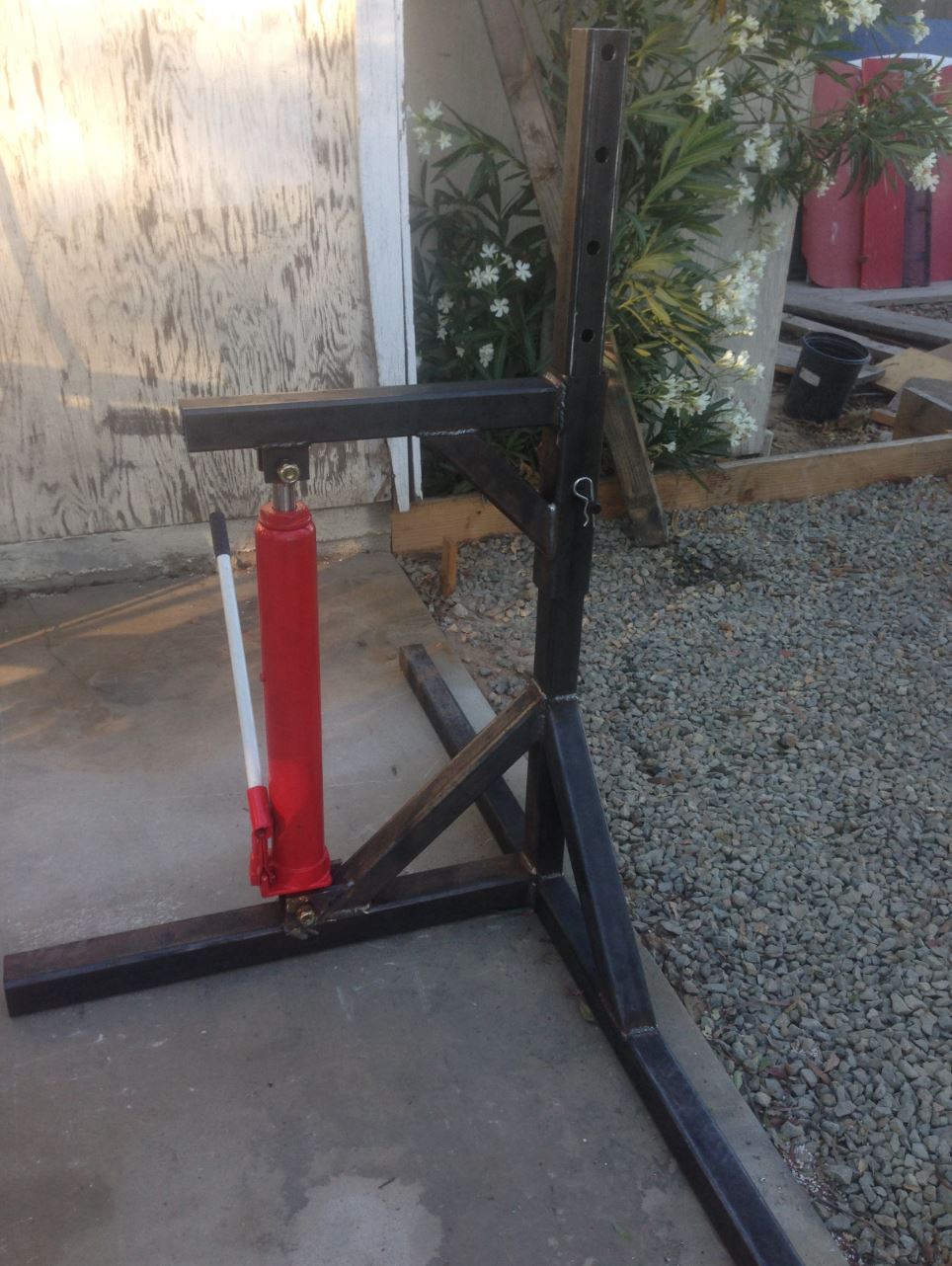

It's been a while......life happens. I'm back on track and started to build the rotisserie. I'll finish this weekend and then I'm going to media blast. Enjoy the pics.

[rick 918-S]

How'd I miss this? Belated (IMG:style_emoticons/default/welcome.png)

[arkitect]

Can't wait to see more.

Dave

[Curbandgutter]

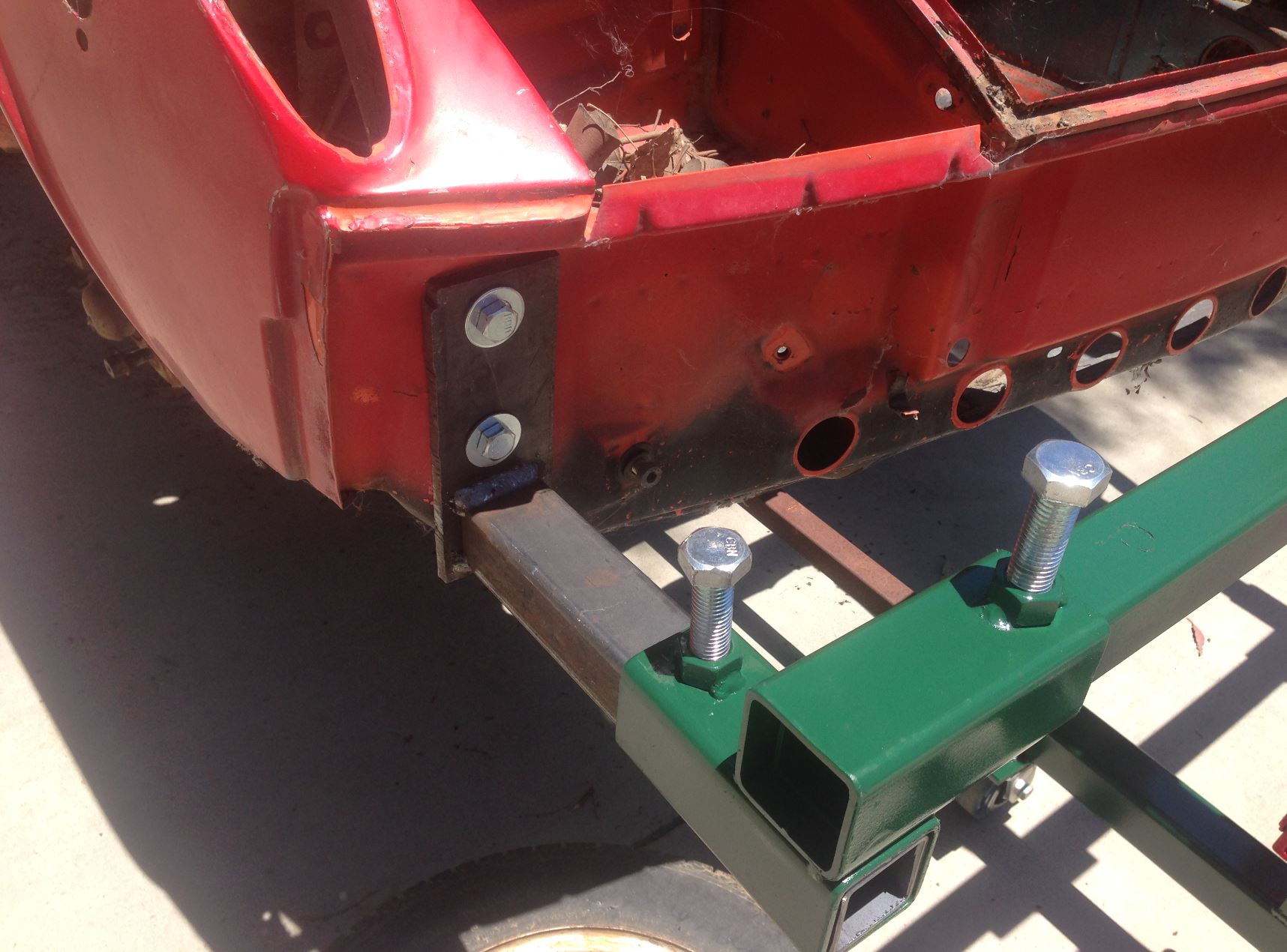

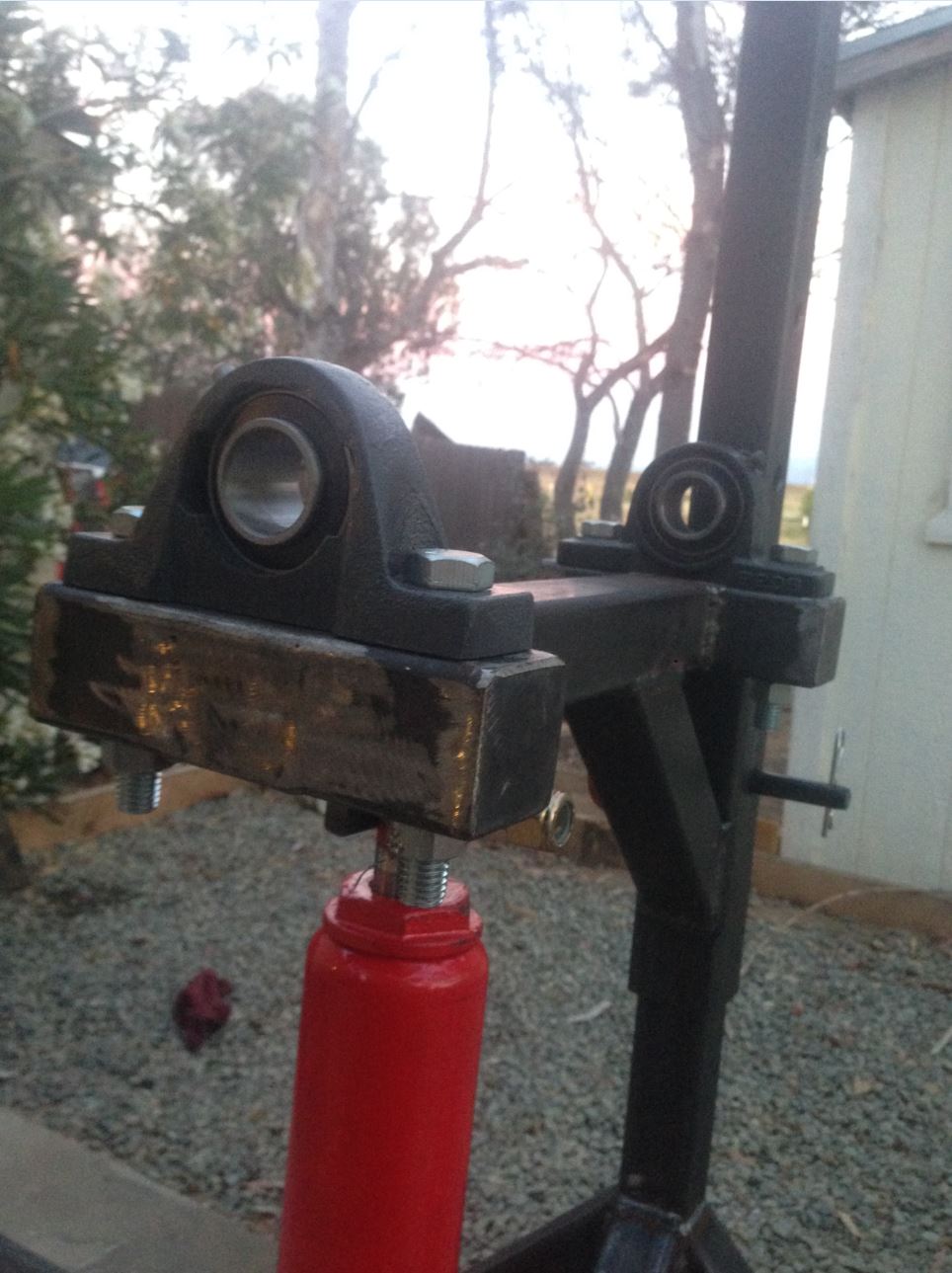

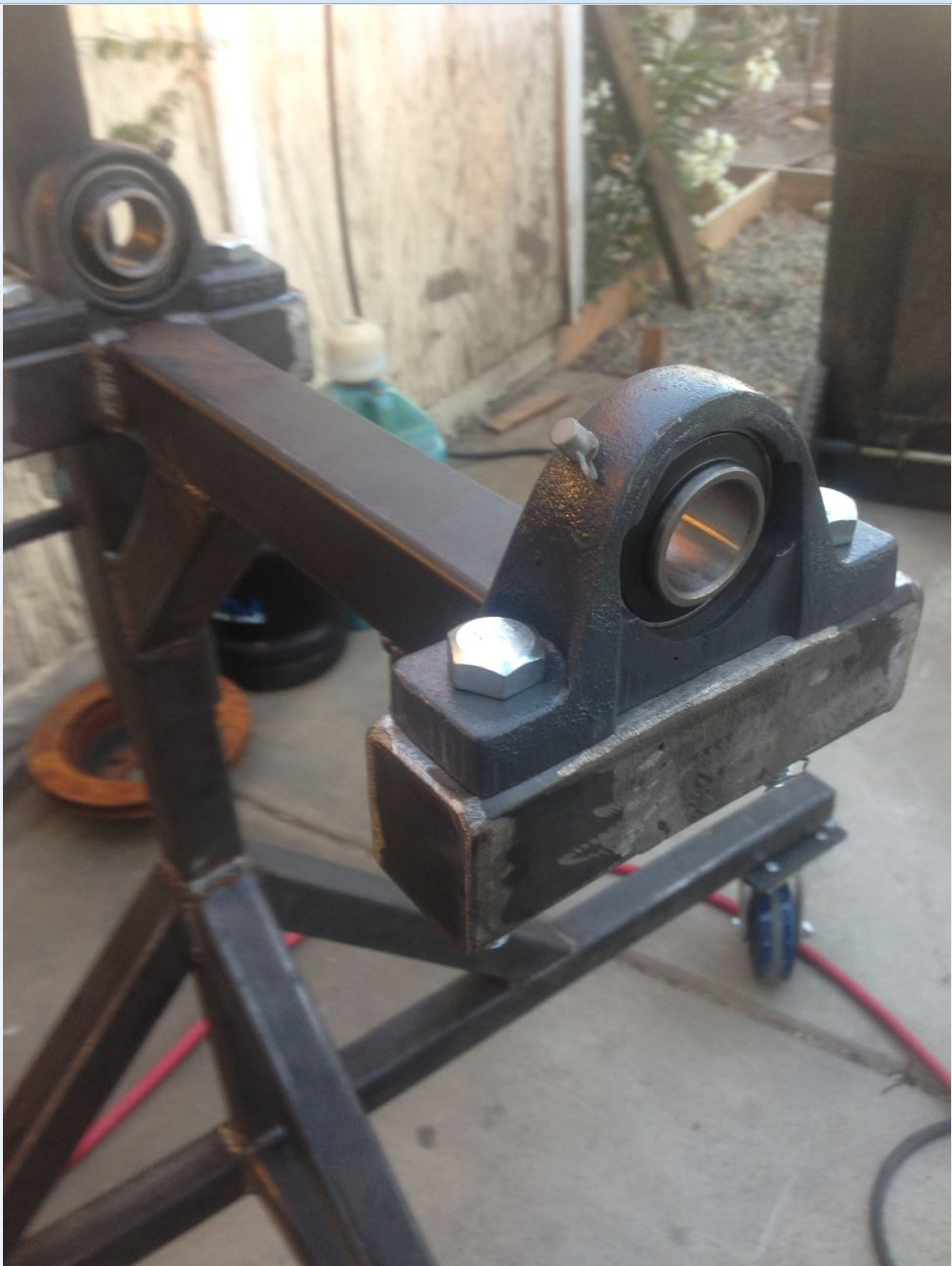

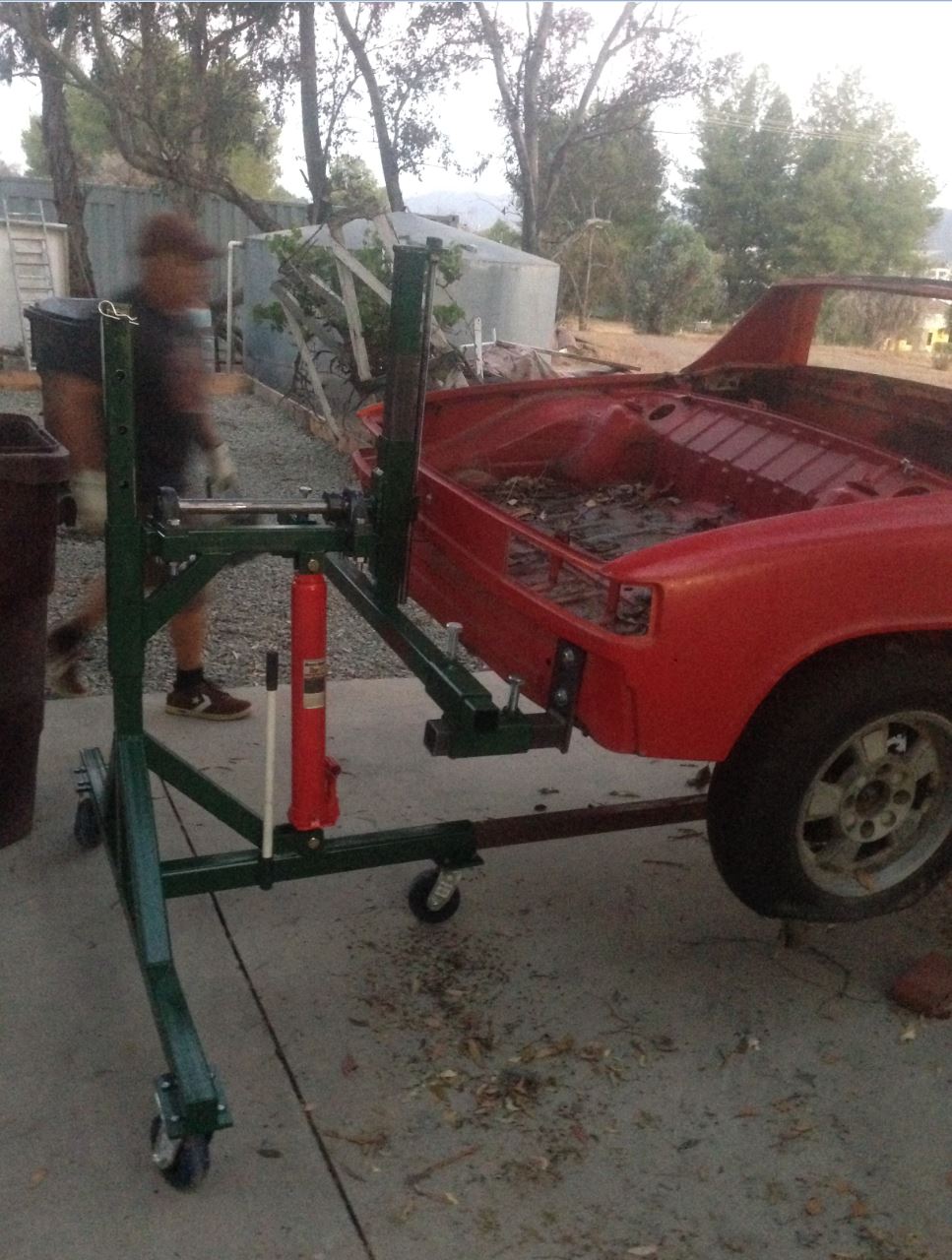

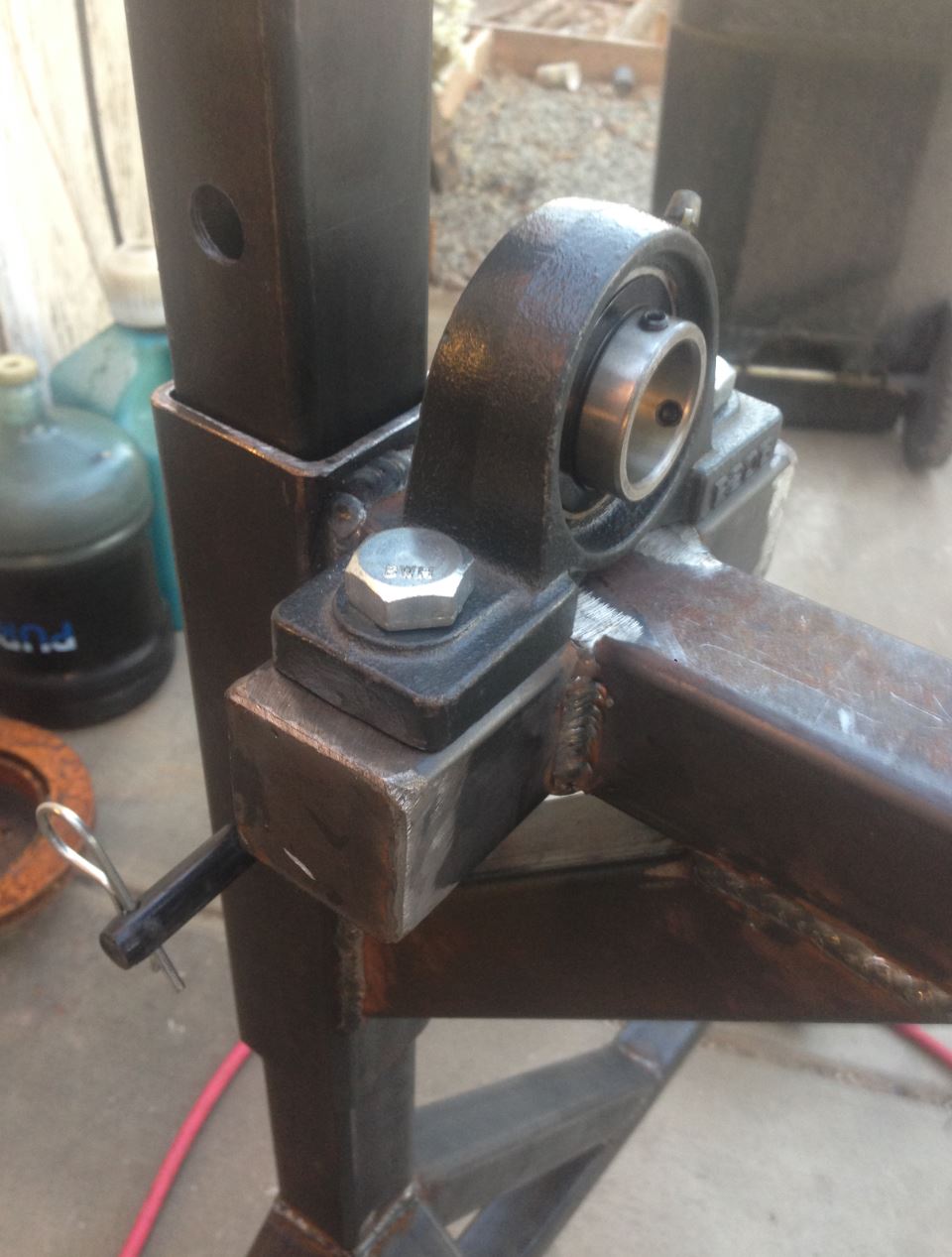

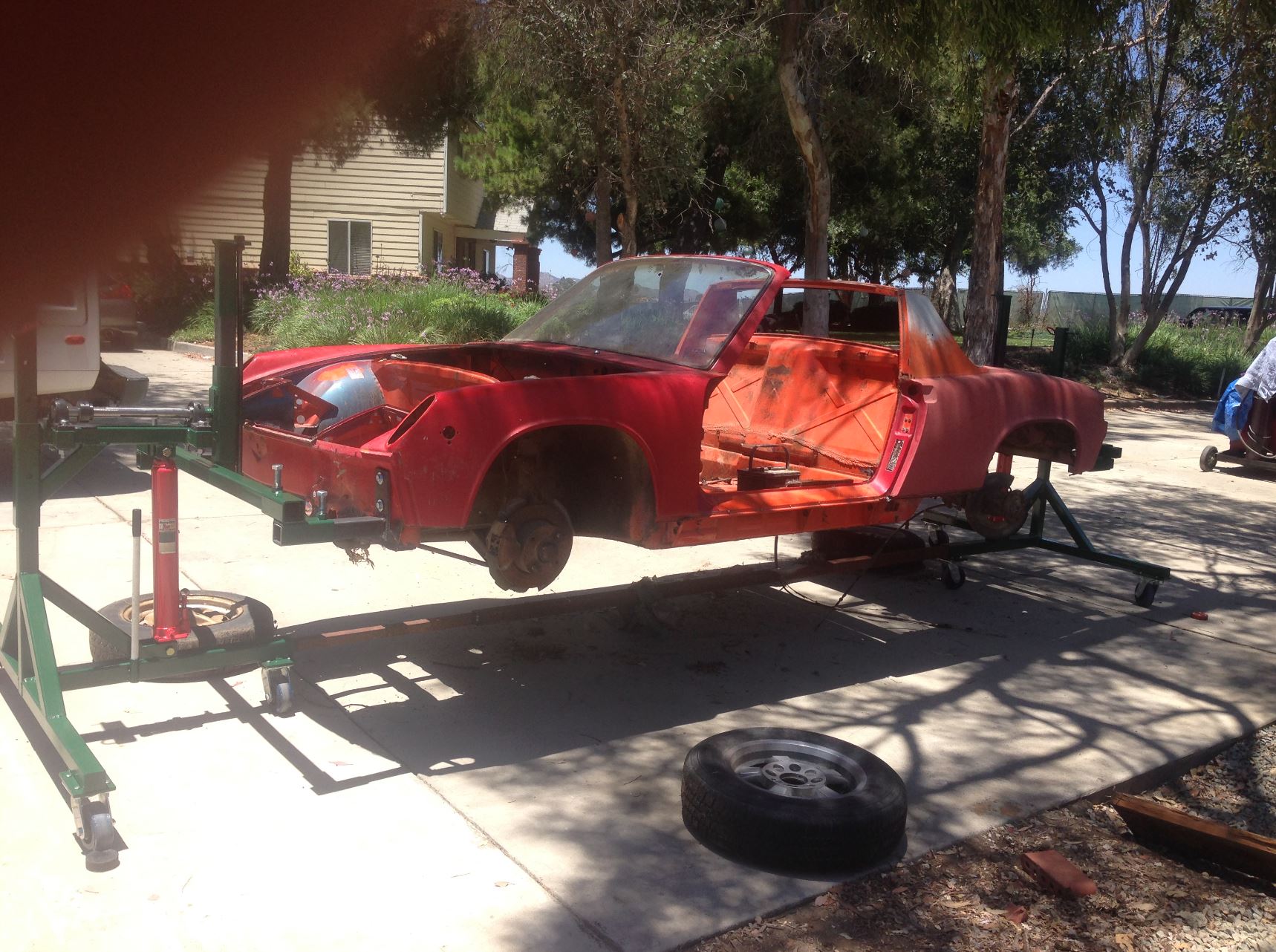

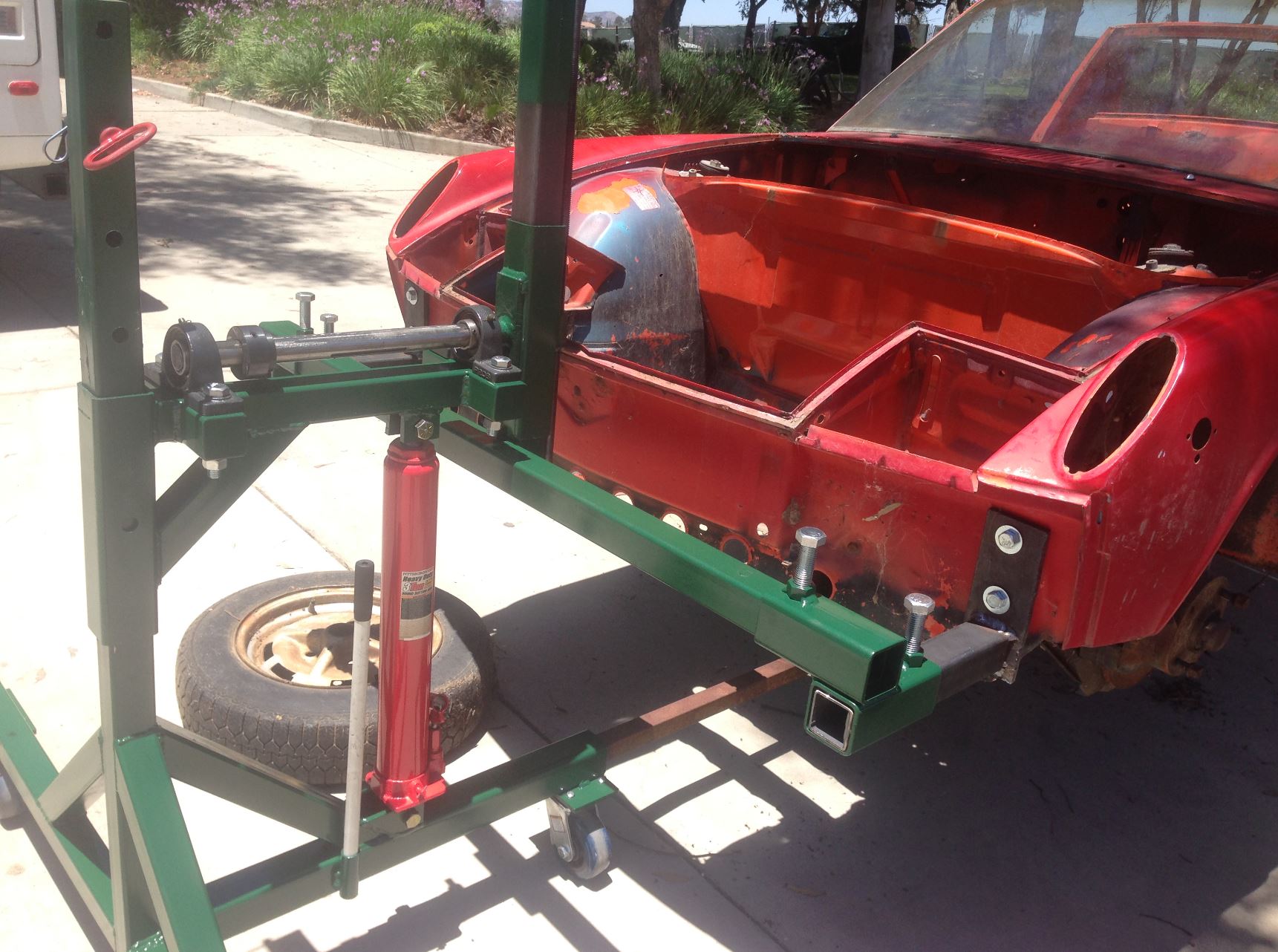

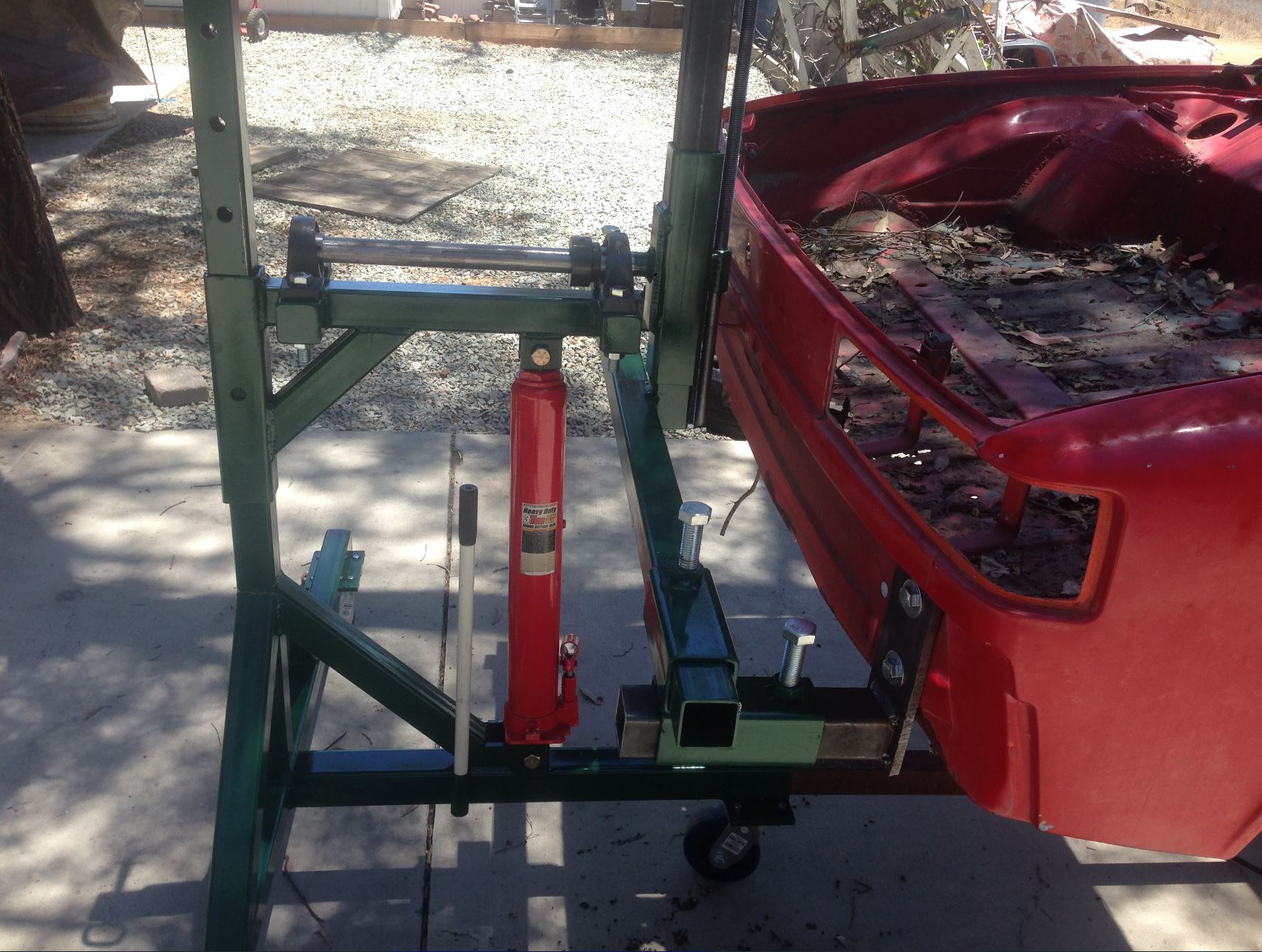

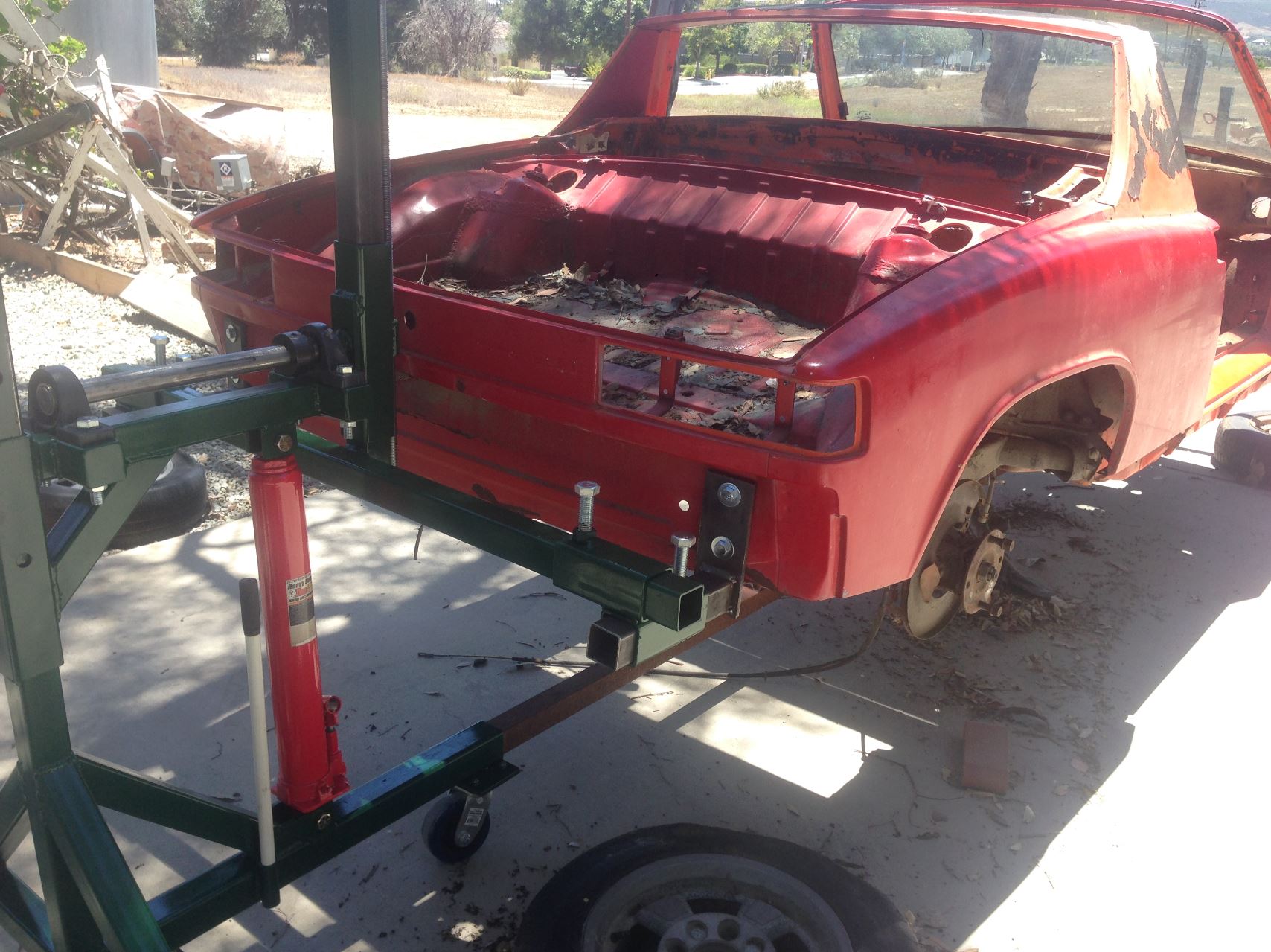

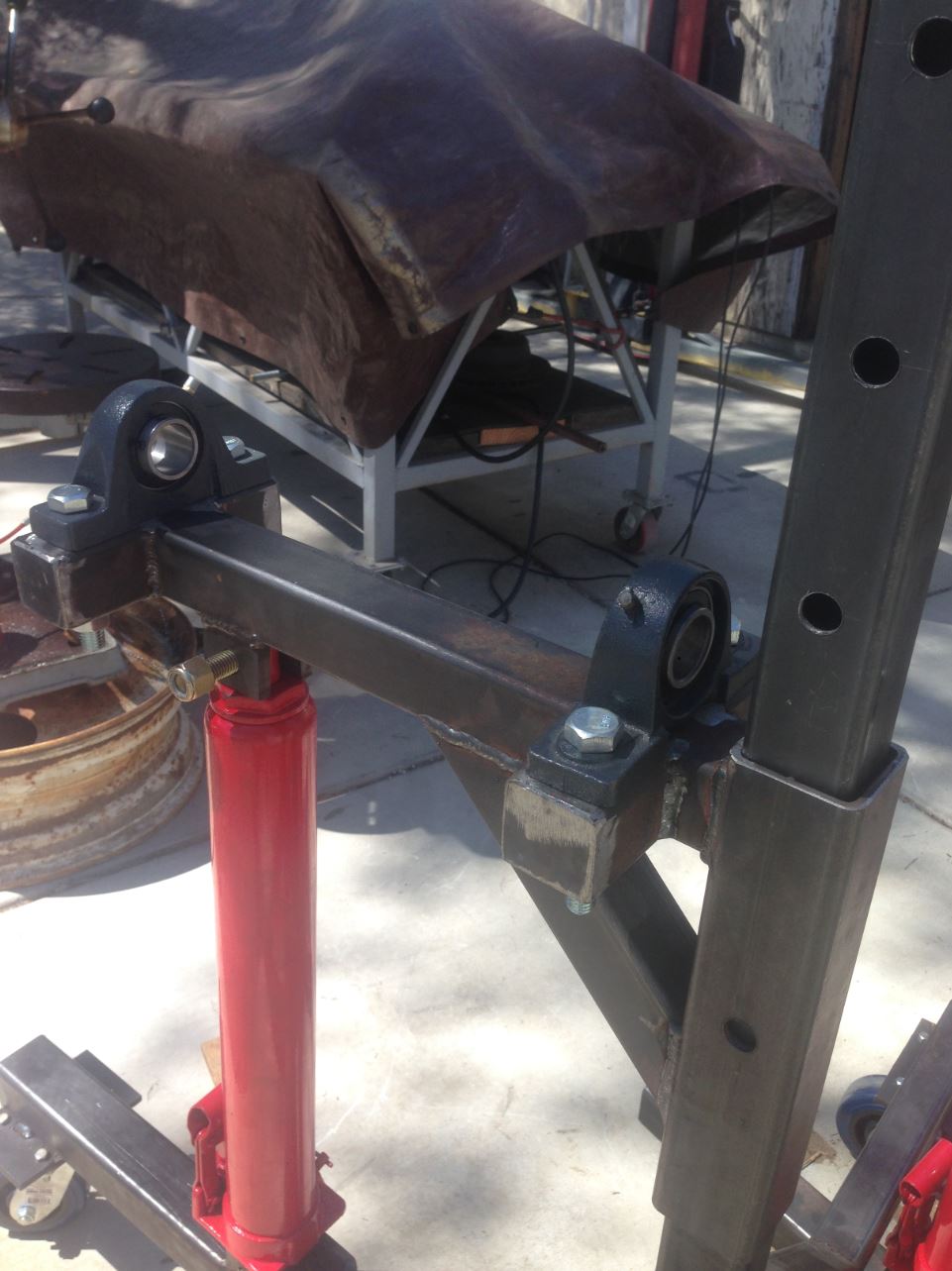

Well here is the rotisserie that I made. I took the best ideas from all of the different ones and made my own. I am satisfied with the way the rotisserie came out. I'm now waiting for my wet sandblasting kit from Power Eagle. They are on back order and will be available at end of June. For now I will just pick up the recycled glass and wait.

[Curbandgutter]

How'd I miss this? Belated (IMG:style_emoticons/default/welcome.png)

Thanks.

[76-914]

Looking forward to this. Damn nice rotisserie. John Deere green from Tractor Supply? (IMG:style_emoticons/default/popcorn[1].gif)

[Curbandgutter]

Looking forward to this. Damn nice rotisserie. John Deere green from Tractor Supply? (IMG:style_emoticons/default/popcorn[1].gif)

Thanks for the comment. The color is actually Rust O'Leum Hunter Green from the Home Depot on Maddison, in Murrieta. (IMG:style_emoticons/default/biggrin.gif)

[Curbandgutter]

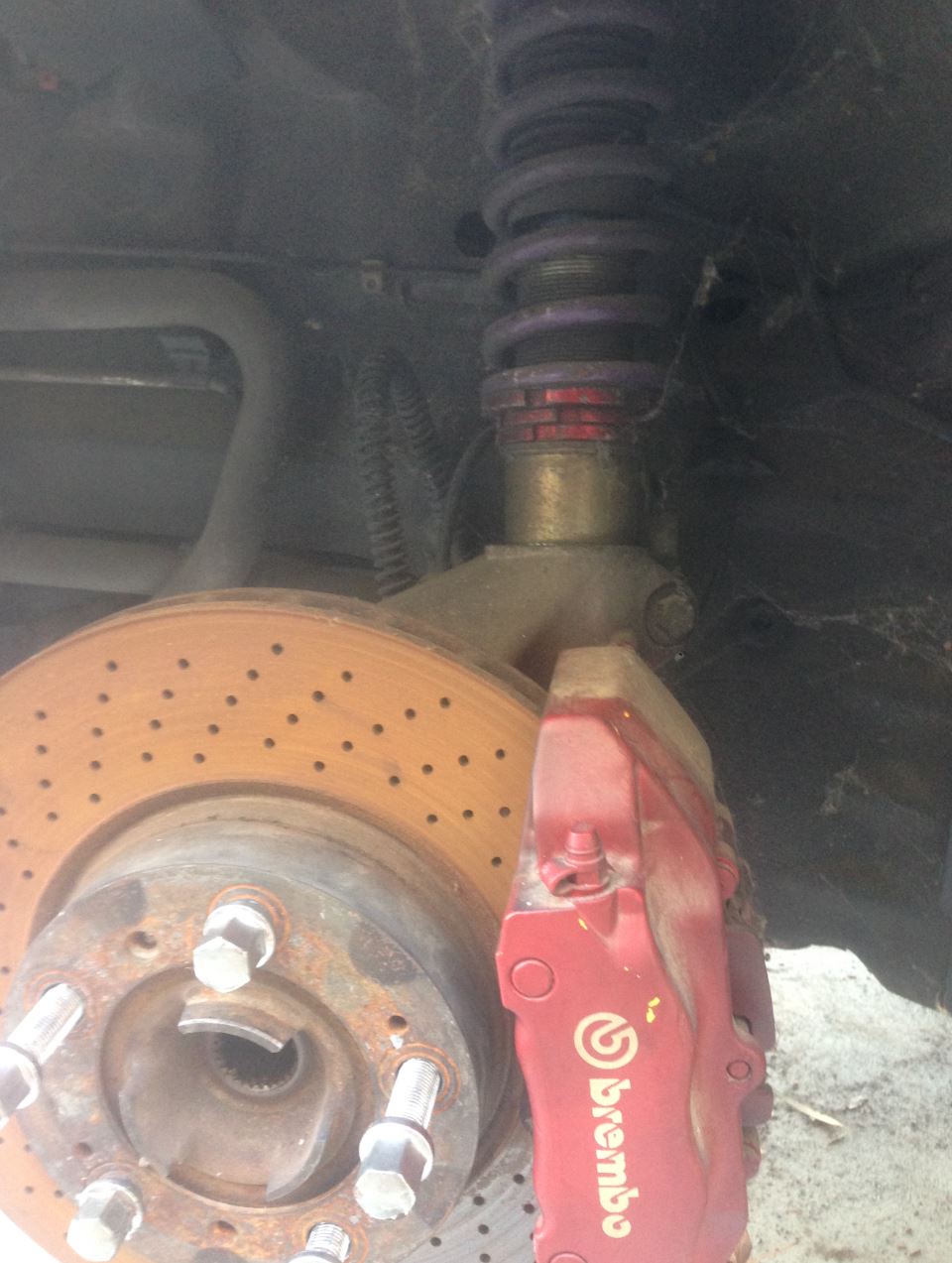

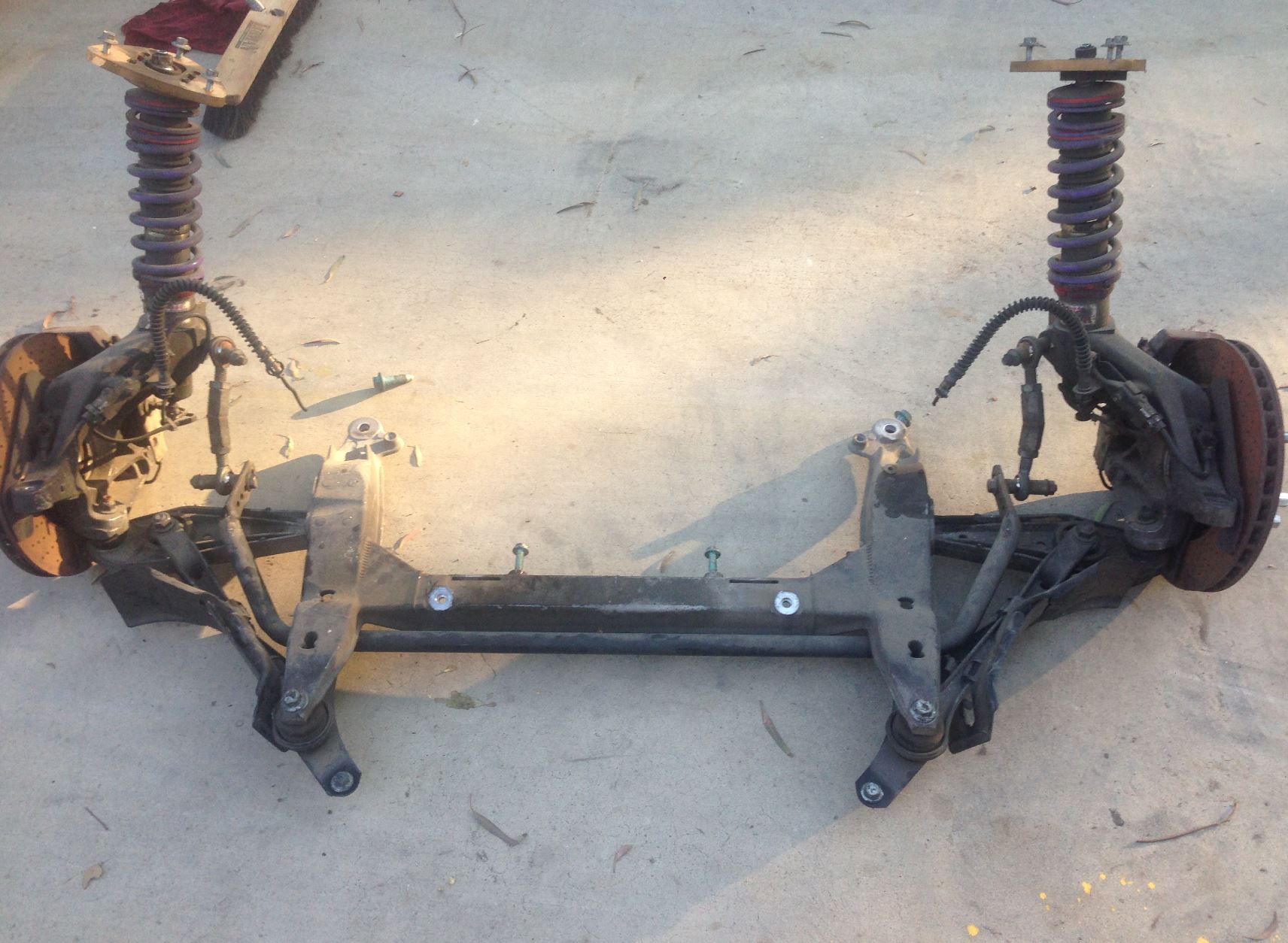

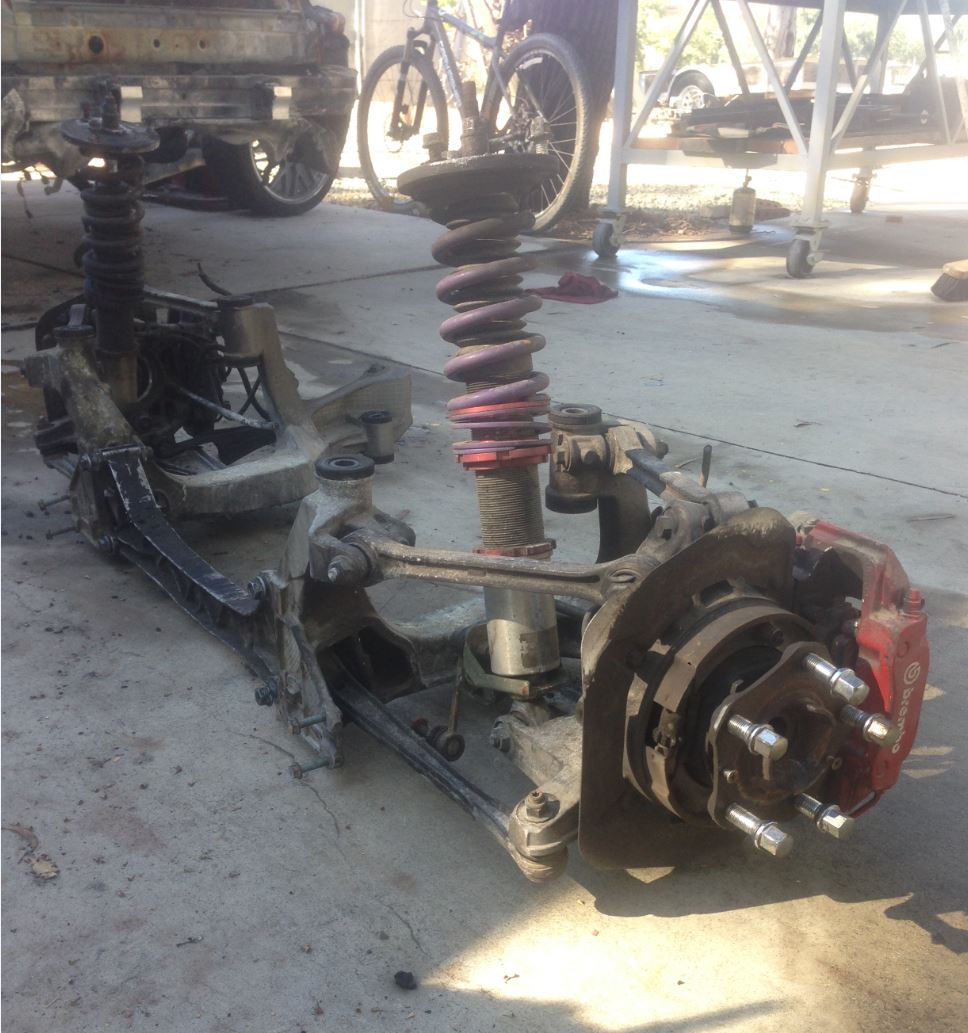

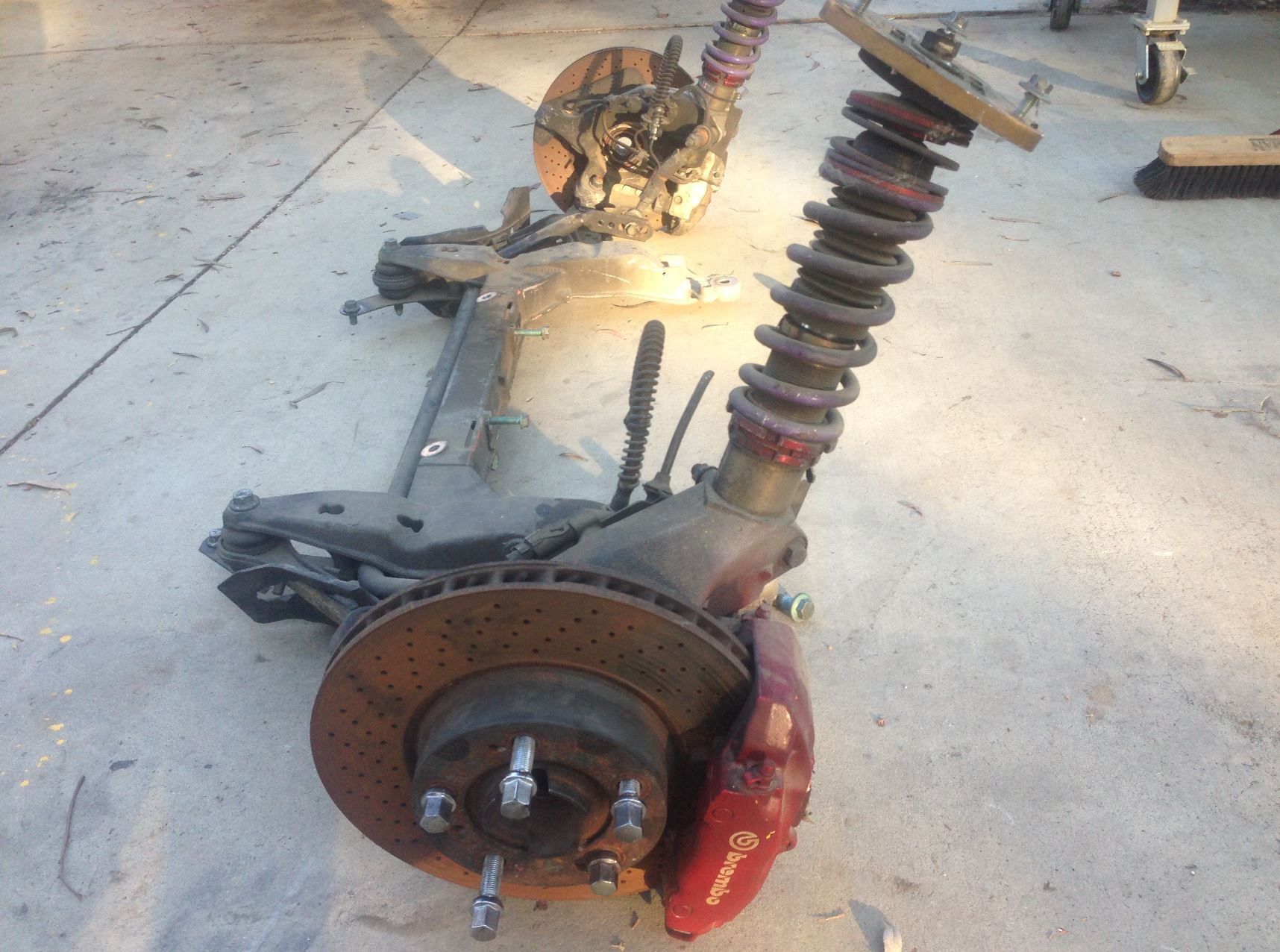

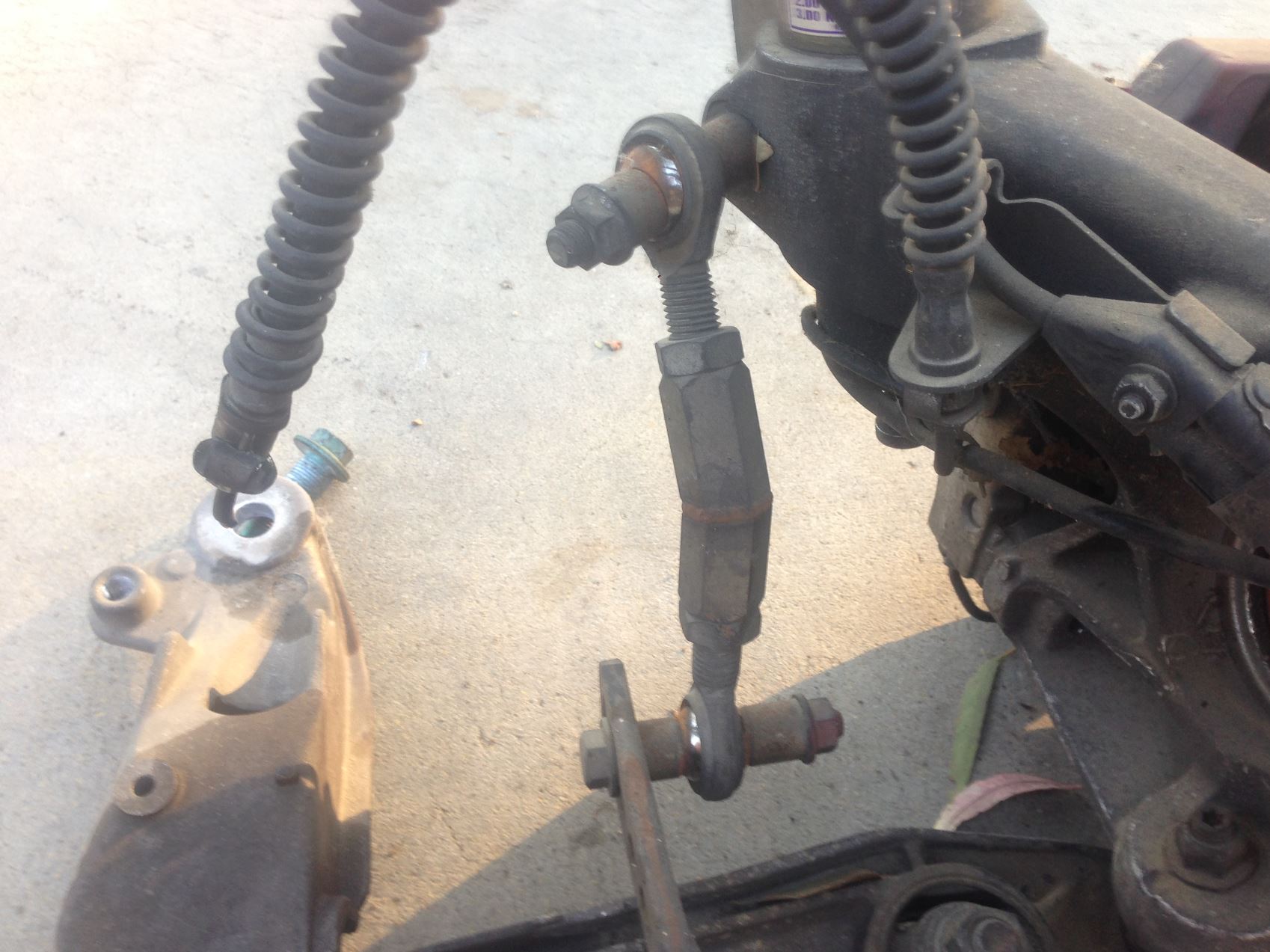

Well since I have to wait until my sand blast kit shows up, I'm taking the front and rear suspension off the 996 to mock up on the 914. Looks like the front will be easy. The rear will require a tube frame. That's OK though since I am planning to tube the rear. I'm planning to pressure wash the suspension this weekend and mock it up on the rotisserie with the car upside down. (IMG:style_emoticons/default/cheer.gif)

[87m491]

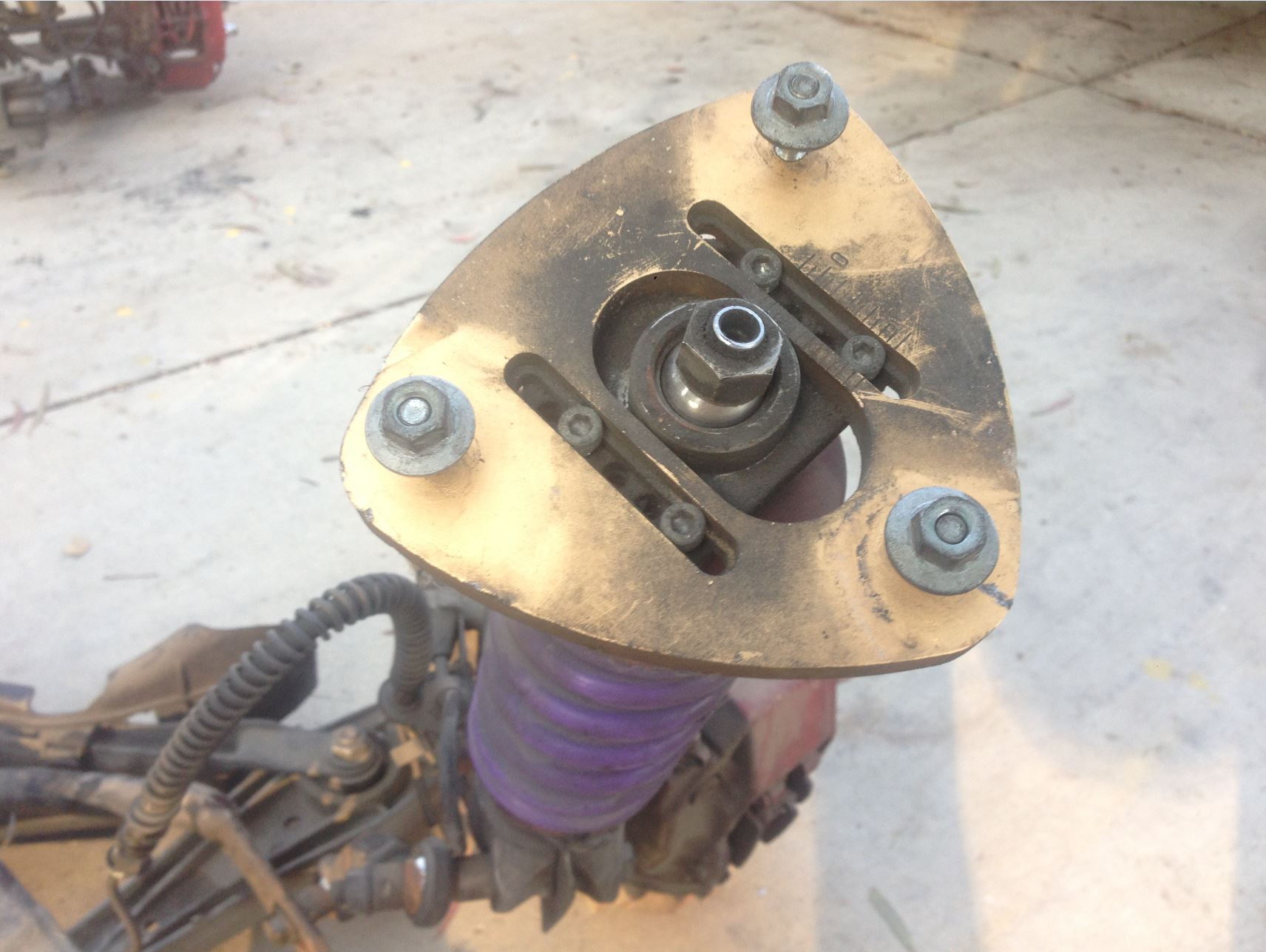

Wow, a ton of adjustment (and adjusters!) on those coil overs.

Well since I have to wait until my sand blast kit shows up, I'm taking the front and rear suspension off the 996 to mock up on the 914. Looks like the front will be easy. The rear will require a tube frame. That's OK though since I am planning to tube the rear. I'm planning to pressure wash the suspension this weekend and mock it up on the rotisserie with the car upside down. (IMG:style_emoticons/default/cheer.gif)

[2mAn]

Im not sure which body kit you are looking for but this guy might have a NOS setup for you. He's in Fresno

There is an older body kit still in the box, I don't plan on using it and I'm not sure he was either. I have spare parts as well including doors, quarter panels, seats, etc.

[Mueller]

Neat project.

For mounting the suspension, what are you using for a datum or reference plane to make sure the a-arms are not tilted too far forward or back? Any part of the suspension that is supposed to be parallel with the floor pan?

[Curbandgutter]

Im not sure which body kit you are looking for but this guy might have a NOS setup for you. He's in Fresno

There is an older body kit still in the box, I don't plan on using it and I'm not sure he was either. I have spare parts as well including doors, quarter panels, seats, etc.

I've really thought it through and finally came to the conclusion that a modified 916 look is what I will do. I will extend the 916 flares enough to cover the 245/18 front tires and 335/18 rear tires. I have thought it through though as I want to stuff the wide tires but I don't want a ridiculous bulge at each corner. I have a couple of tricks up my sleeve to accomplish this though. Also the 996 suspension will make this car to have a 5" wider track in the front and a 4.8" wider track in the rear. It's interesting that the wheelbase of the 914 is 4" longer than the 911?? (IMG:style_emoticons/default/dry.gif)

[Curbandgutter]

Neat project.

For mounting the suspension, what are you using for a datum or reference plane to make sure the a-arms are not tilted too far forward or back? Any part of the suspension that is supposed to be parallel with the floor pan?

I will be building a chassis table. Also I have the 996 on hand to compare the measurements. I will be putting all of the measurements into software that will tell me what the instantaneous roll center (IRC) of the 996 is. Then I can make sure that I am not lowering the IRC. If anything I might set the suspension cradle of the 996 further up into the 914 chassis to lower my CG. When I place the 914 on the chassis table I will carry out a twist test to see what the torsional stiffness of the 914 is before I add the 8 point roll cage. I have structural software to design the roll cage as well.

[2mAn]

I've really thought it through and finally came to the conclusion that a modified 916 look is what I will do. I will extend the 916 flares enough to cover the 245/18 front tires and 335/18 rear tires. I have thought it through though as I want to stuff the wide tires but I don't want a ridiculous bulge at each corner. I have a couple of tricks up my sleeve to accomplish this though. Also the 996 suspension will make this car to have a 5" wider track in the front and a 4.8" wider track in the rear. It's interesting that the wheelbase of the 914 is 4" longer than the 911?? (IMG:style_emoticons/default/dry.gif)

whats the smallest wheel that you need to clear the brakes? I would aim for that size. 18s are way too big for a 914. 17 would probably look good with that wide body and still fit over the brakes

[Curbandgutter]

I've really thought it through and finally came to the conclusion that a modified 916 look is what I will do. I will extend the 916 flares enough to cover the 245/18 front tires and 335/18 rear tires. I have thought it through though as I want to stuff the wide tires but I don't want a ridiculous bulge at each corner. I have a couple of tricks up my sleeve to accomplish this though. Also the 996 suspension will make this car to have a 5" wider track in the front and a 4.8" wider track in the rear. It's interesting that the wheelbase of the 914 is 4" longer than the 911?? (IMG:style_emoticons/default/dry.gif)

whats the smallest wheel that you need to clear the brakes? I would aim for that size. 18s are way too big for a 914. 17 would probably look good with that wide body and still fit over the brakes

Is it your opinion that it is too big because of your preference or that the wheel is too big and won't fit. If it's just your preference I can respect that. However if you're saying that the wheel is too big then ponder on this. The original 914 wheel rolling diameter for a 914 is 25.4" the 335/30-18 rolling diameter is 25.9"??? Also as they say a picture is worth a thousand words see the attached picture which shows a stock 914 wheel next to a 265/35-18. As you can see that tire is shorter (it is under inflated), however it's rolling diameter calcs out at 25.3 in. Am I missing something?

[76-914]

Damn Bubba, your in my backyard. PM me your address. I'll send you mine. I'd love to "visit" your project while I await my engine seal kit. Kent (IMG:style_emoticons/default/beerchug.gif)

[Curbandgutter]

Damn Bubba, your in my backyard. PM me your address. I'll send you mine. I'd love to "visit" your project while I await my engine seal kit. Kent (IMG:style_emoticons/default/beerchug.gif)

PM sent

[Andyrew]

I've really thought it through and finally came to the conclusion that a modified 916 look is what I will do. I will extend the 916 flares enough to cover the 245/18 front tires and 335/18 rear tires. I have thought it through though as I want to stuff the wide tires but I don't want a ridiculous bulge at each corner. I have a couple of tricks up my sleeve to accomplish this though. Also the 996 suspension will make this car to have a 5" wider track in the front and a 4.8" wider track in the rear. It's interesting that the wheelbase of the 914 is 4" longer than the 911?? (IMG:style_emoticons/default/dry.gif)

whats the smallest wheel that you need to clear the brakes? I would aim for that size. 18s are way too big for a 914. 17 would probably look good with that wide body and still fit over the brakes

Is it your opinion that it is too big because of your preference or that the wheel is too big and won't fit. If it's just your preference I can respect that. However if you're saying that the wheel is too big then ponder on this. The original 914 wheel rolling diameter for a 914 is 25.4" the 335/30-18 rolling diameter is 25.9"??? Also as they say a picture is worth a thousand words see the attached picture which shows a stock 914 wheel next to a 265/35-18. As you can see that tire is shorter (it is under inflated), however it's rolling diameter calcs out at 25.3 in. Am I missing something?

Thats a preference thing for sure.


I run 18's rear and think it looks great. I personally prefer 17's in the front though as to have a little better ride quality.

[Curbandgutter]

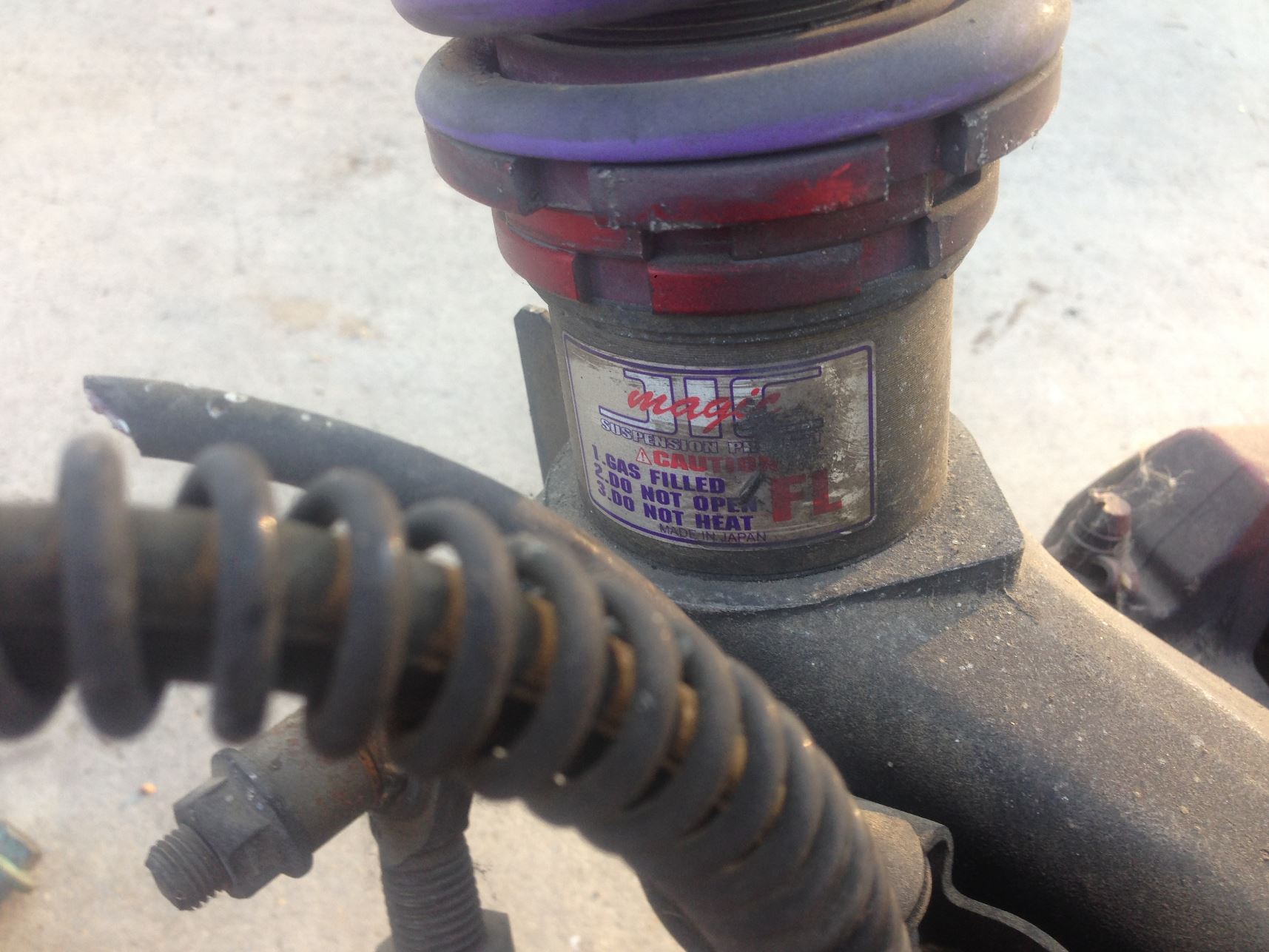

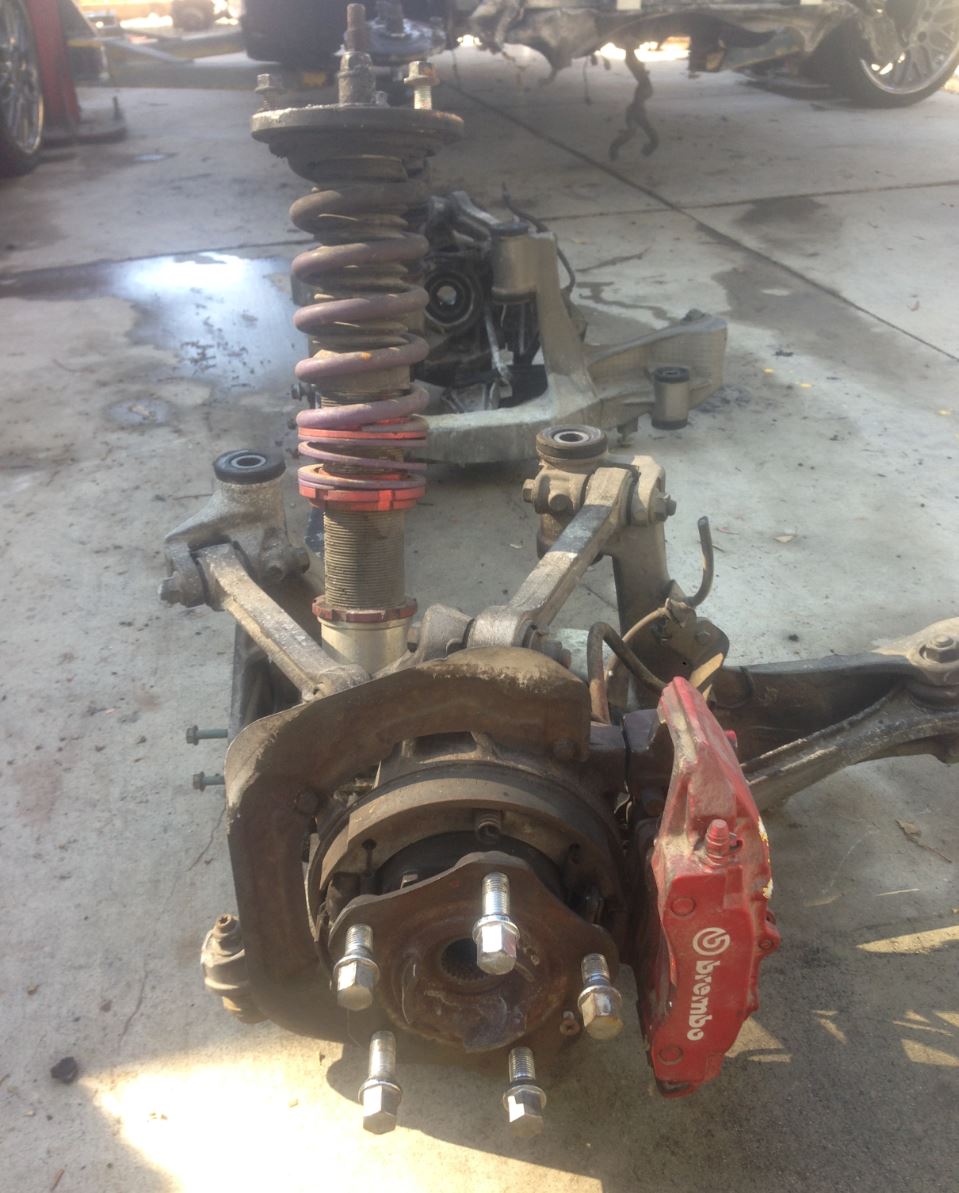

And here is the front suspension. I'll be power washing it Saturday morning and then mocking it up on the 914.
