> PIX, Pix Of Enlightenment
veekry9
post Sep 19 2014, 04:51 AM
Post #121


OldMember
****

Group: Retired Members
Posts: 3,068
Joined: 17-June 13
From: TO
Member No.: 16,025
Region Association: Canada



QUOTE(bulitt @ Jun 5 2014, 06:33 AM) *

Looks like the door gaps on my first tub... (IMG:style_emoticons/default/blink.gif)

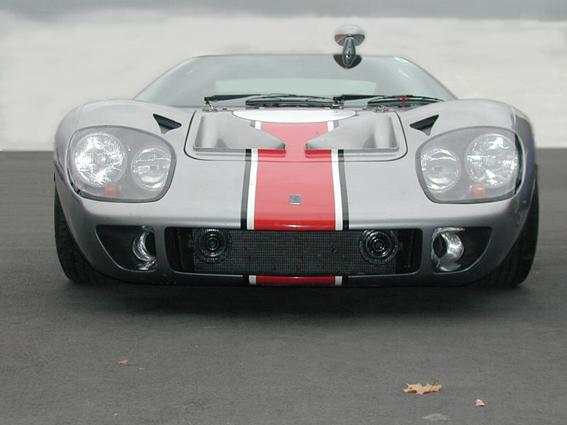

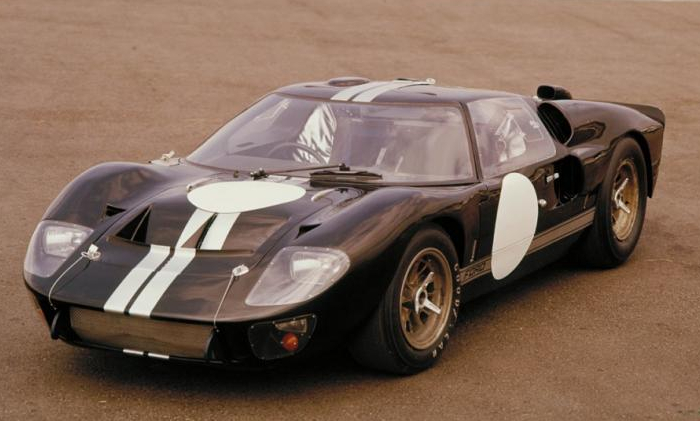

Yup..

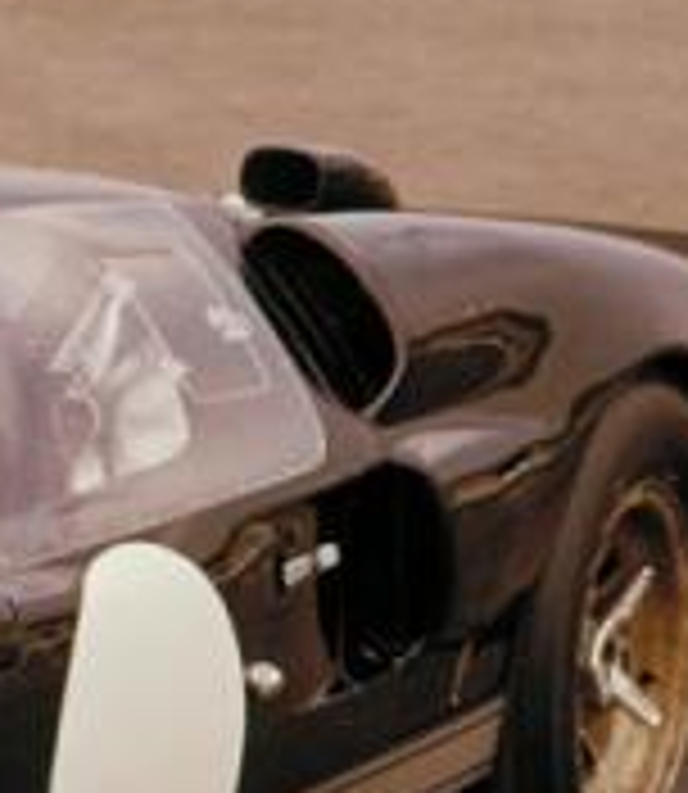

Real big air scoops

Attached Image Attached Image

more power,more air,more drag,more power...

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
veekry9
post Sep 19 2014, 05:32 AM
Post #122


OldMember
****

Group: Retired Members
Posts: 3,068
Joined: 17-June 13
From: TO
Member No.: 16,025
Region Association: Canada

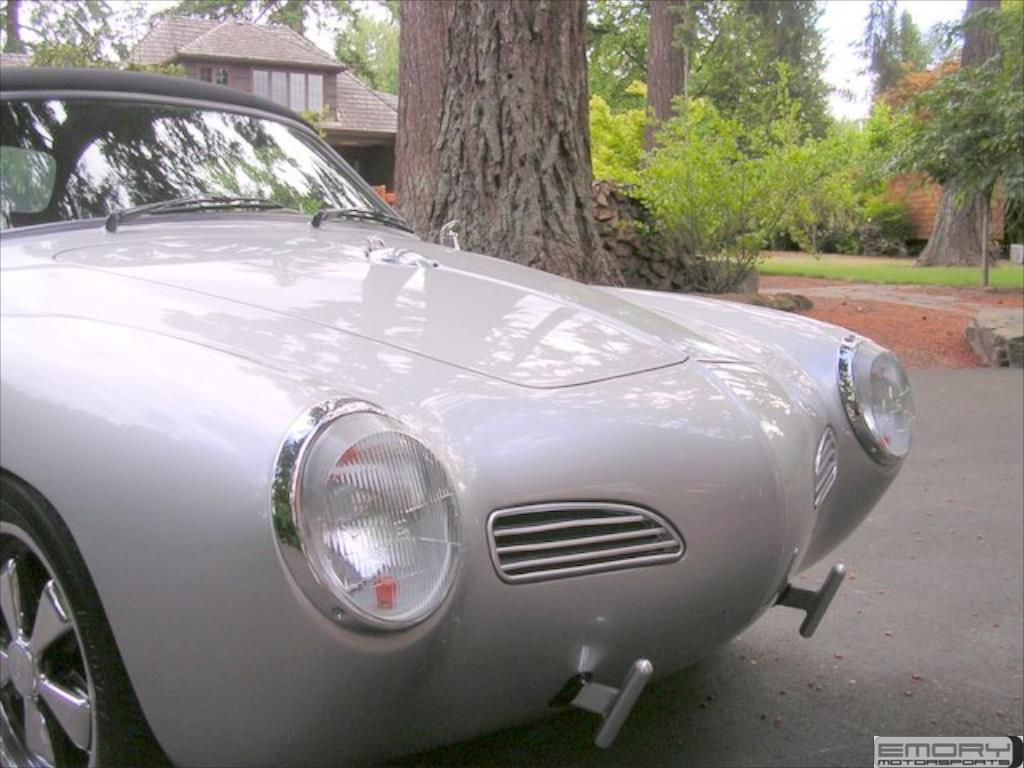

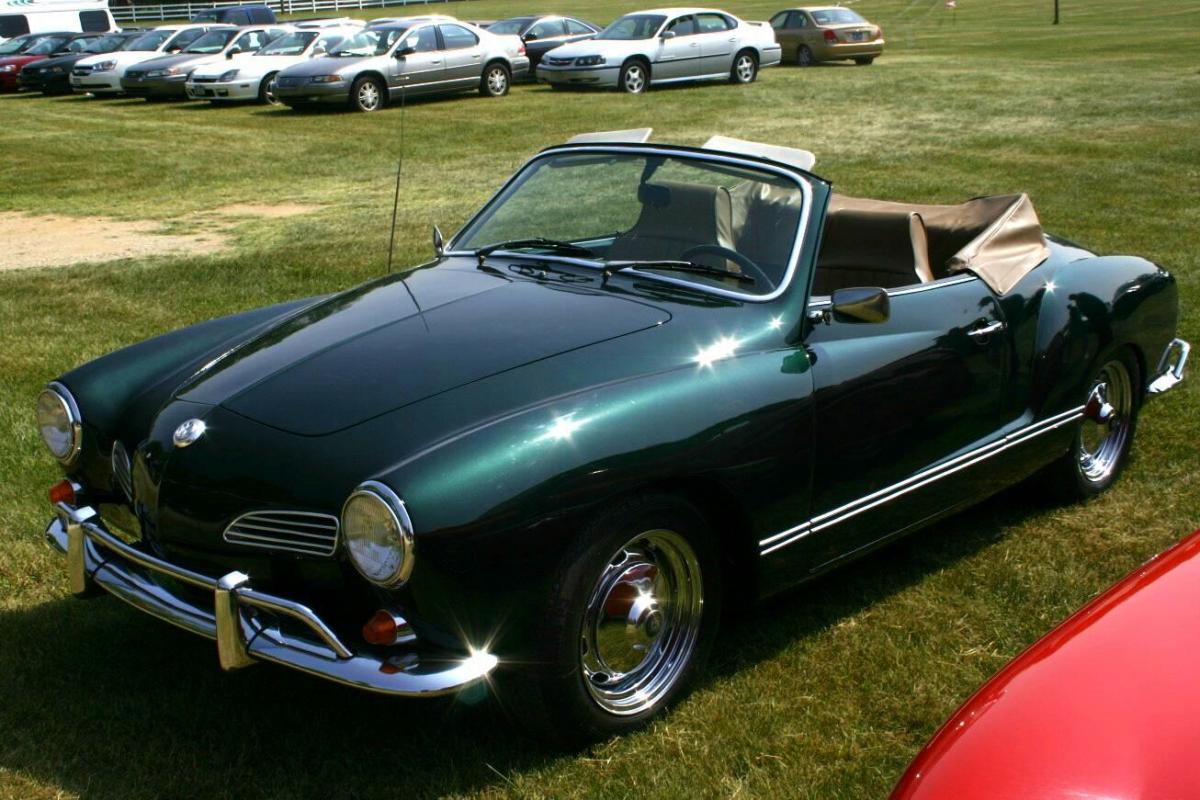

Ghia by Karmann
Liked them back then,still do.

Attached Image

Big Sis,early 60s,had that new VW aroma.

Attached Image

updated headlamps
nerf bars

(edit:12/16/15)
http://www.oldbug.com/finch.htm
A more accurate report of this gorgeous Ghia.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
veekry9
post Sep 19 2014, 07:11 AM
Post #123


OldMember
****

Group: Retired Members
Posts: 3,068
Joined: 17-June 13
From: TO
Member No.: 16,025
Region Association: Canada



QUOTE(7TPorsh @ Jun 5 2014, 11:53 AM) *

Always thought this was interesting....
Attached Image


Attached Image

an attempt at sloping the headlamps to approximate the windscreen.
the chrome rings are retained
conformal
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
veekry9
post Sep 19 2014, 08:03 AM
Post #124


OldMember
****

Group: Retired Members
Posts: 3,068
Joined: 17-June 13
From: TO
Member No.: 16,025
Region Association: Canada



Attached Image

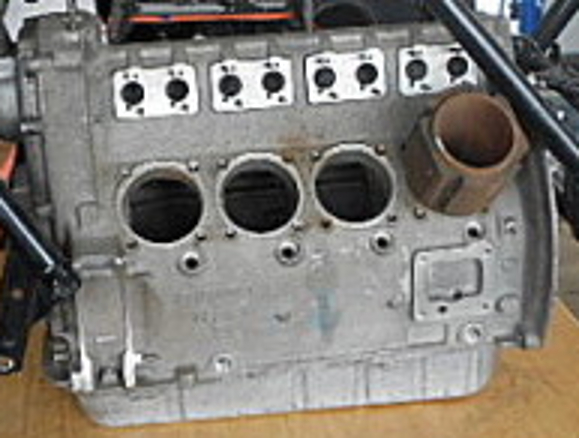

Side view with cam tower exposed showing lifter-block registers and seats.
A custom barrel to carry a roller lifter can be fabricated to seat in the existing bore.

(Edit:10/21/14)
The stud spacing appears to be wide enough to accommodate an 90mm bore cylinder.
Visible cylinder bore is 75mm,so perhaps as much as 90mm(+15mm)
Anyone out there have real specifications of the head stud spacing?
(as resolved from drawing,102mm bcd)

http://www.914world.com/bbs2/index.php?sho...22522&st=98

edit:an 80mm(+8mm) stroke would yield 4.07 L,an increase of 1.5L .

Aircooled V8 hemispherical head 16 V pushrod alloy engine.
What's not to like?The crank is likely forged as the diesel manufacturing requires them.
All around a decent small V8 with great potential,just needs some modern tech applied to them.
/
(edit:11/10/15)
Have a look at these few vids.
https://www.youtube.com/results?search_quer...gine&page=1
/
(edit:08/06/16):
Attached Image

http://retrorides.proboards.com/thread/148...a-sport-v8-pics
/
(edit:08/08/16):
Attached Image

The numbers here are very close,so,a maximum bore diameter of ~90mm.
The cast iron lifter bore bodies are seen attached to the cam tower.Custom versions made to carry roller lifters would fit nicely.
At the bottom,one of the oil coolers is seated on it's seal flanges,the temperature sender at the top of the stud.
The distributor barrel is at the right.
(IMG:style_emoticons/default/smile.gif)
/
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
veekry9
post Sep 20 2014, 05:23 AM
Post #125


OldMember
****

Group: Retired Members
Posts: 3,068
Joined: 17-June 13
From: TO
Member No.: 16,025
Region Association: Canada

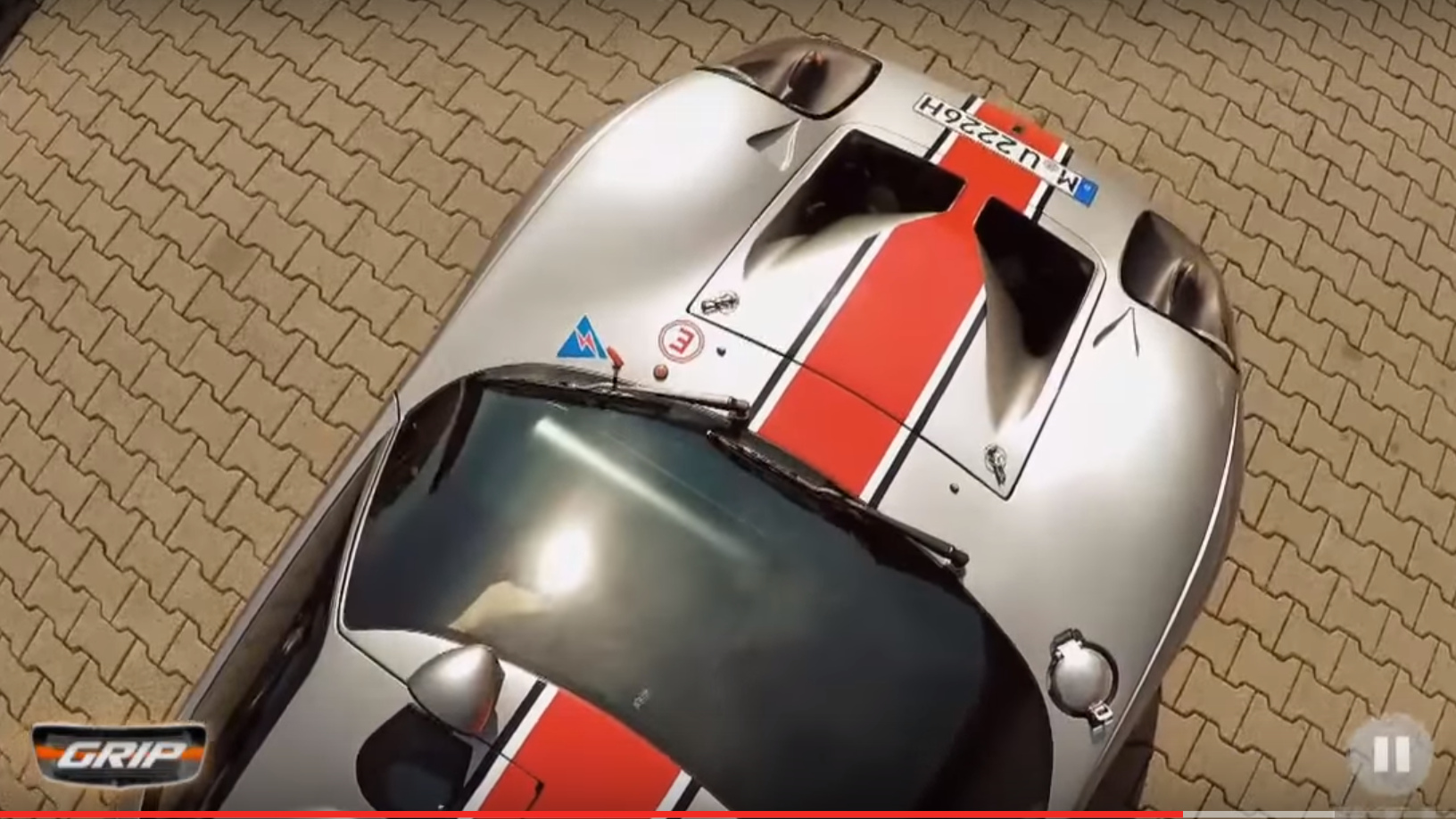

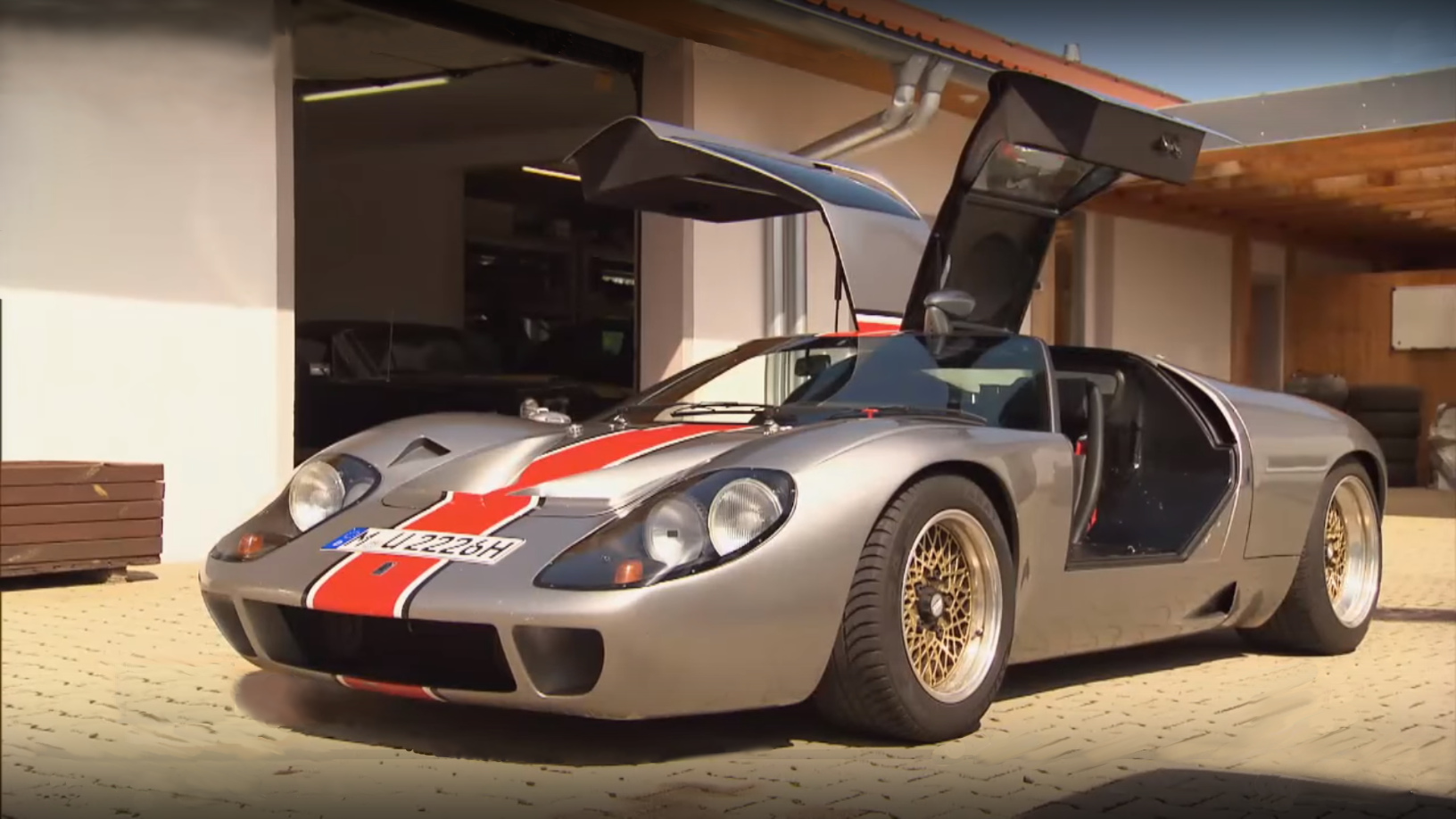

Isdera Erator GTE,Eberhard Shulz.
I even like his first off.
There was a yewtube of it being thrashed through the black forest,driver's view.(now removed)

Attached Image


https://www.youtube.com/watch?v=MyYgYho43mQ

https://www.youtube.com/watch?v=khxgb2EP5ac


https://www.youtube.com/watch?v=f2AMLaTDXAo


(edit:07/08/16)
https://www.google.ca/search?q=Isdera+Erato...QkJBa0Q_AUIBigB
https://www.google.ca/search?q=isdera+imper...UoeAFAQ_AUIBigB
/
(Edit:08/14/16):
Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
veekry9
post Sep 21 2014, 11:23 AM
Post #126


OldMember
****

Group: Retired Members
Posts: 3,068
Joined: 17-June 13
From: TO
Member No.: 16,025
Region Association: Canada



Attached Image

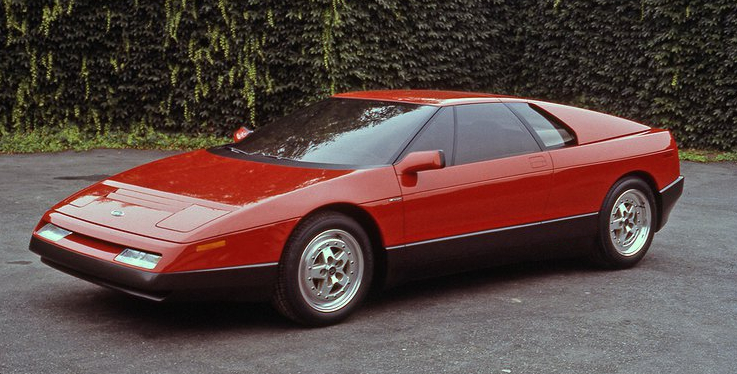

hmmm Fiero not,a Ford mockup.

http://www.italdesign.it/en/projects/ford-maya-iies-eng/
/
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
veekry9
post Sep 21 2014, 11:31 AM
Post #127


OldMember
****

Group: Retired Members
Posts: 3,068
Joined: 17-June 13
From: TO
Member No.: 16,025
Region Association: Canada



Attached Image

http://www.fiero.nl/forum/Forum3/HTML/000091-53.html

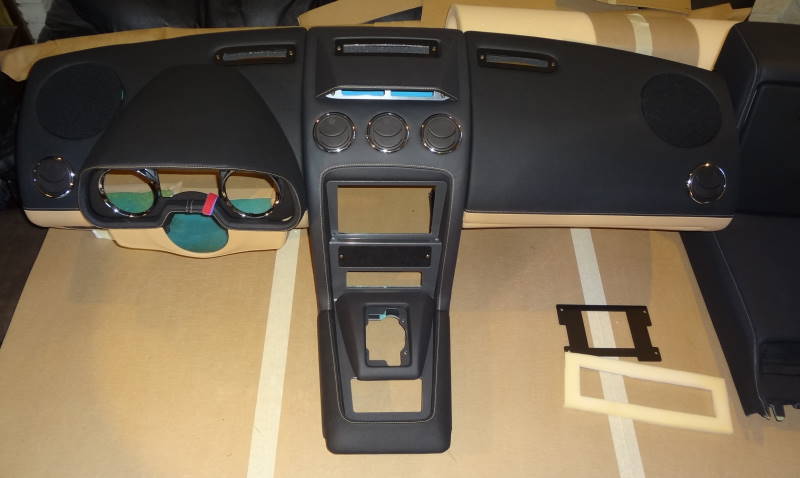

Looking for a new dash?
Some ideas from the custom Fiero world
Immaculate work by Amida
10/10
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
veekry9
post Sep 21 2014, 09:19 PM
Post #128


OldMember
****

Group: Retired Members
Posts: 3,068
Joined: 17-June 13
From: TO
Member No.: 16,025
Region Association: Canada



QUOTE(Sleepin @ Sep 17 2014, 12:39 PM) *



https://www.youtube.com/watch?v=oZZXKIDqv2c



https://www.youtube.com/watch?v=v39Z8oFpbbE


https://www.youtube.com/watch?v=ClRqT2uoXTo...cuI_ZXOUvqXEFKA

the stuffing of an aircooled v8 into a light sports car..


https://www.youtube.com/watch?v=x3zW9uaiVNk
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
veekry9
post Sep 29 2014, 04:55 AM
Post #129


OldMember
****

Group: Retired Members
Posts: 3,068
Joined: 17-June 13
From: TO
Member No.: 16,025
Region Association: Canada



Discovery!

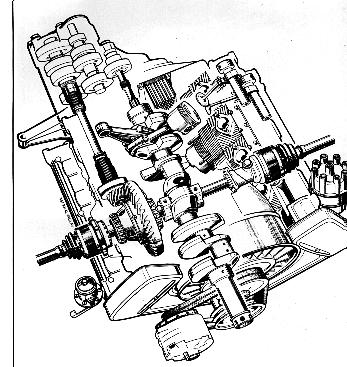

The manufacture of an aircooled V8 integral with transmission and final drive.
The Tatra 613 V8 and
The Tatra 700 V8.

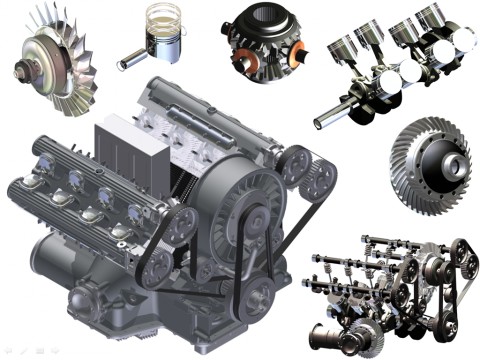

Attached Image

Attached Image

Attached Image

compact design places crankshaft above axle.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
veekry9
post Sep 29 2014, 05:41 AM
Post #130


OldMember
****

Group: Retired Members
Posts: 3,068
Joined: 17-June 13
From: TO
Member No.: 16,025
Region Association: Canada



Attached Image

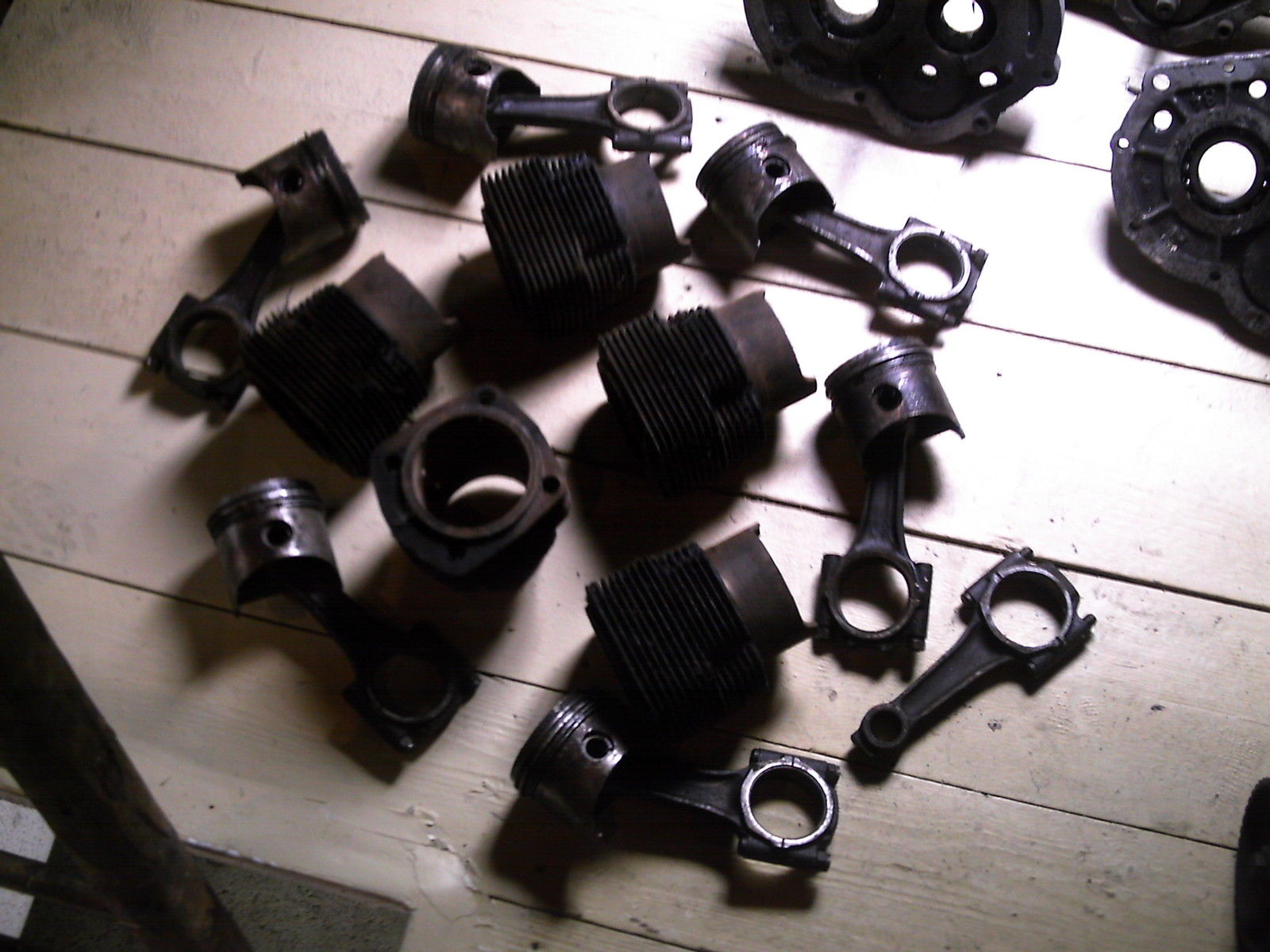

85mm bore iron cylinders

Attached Image

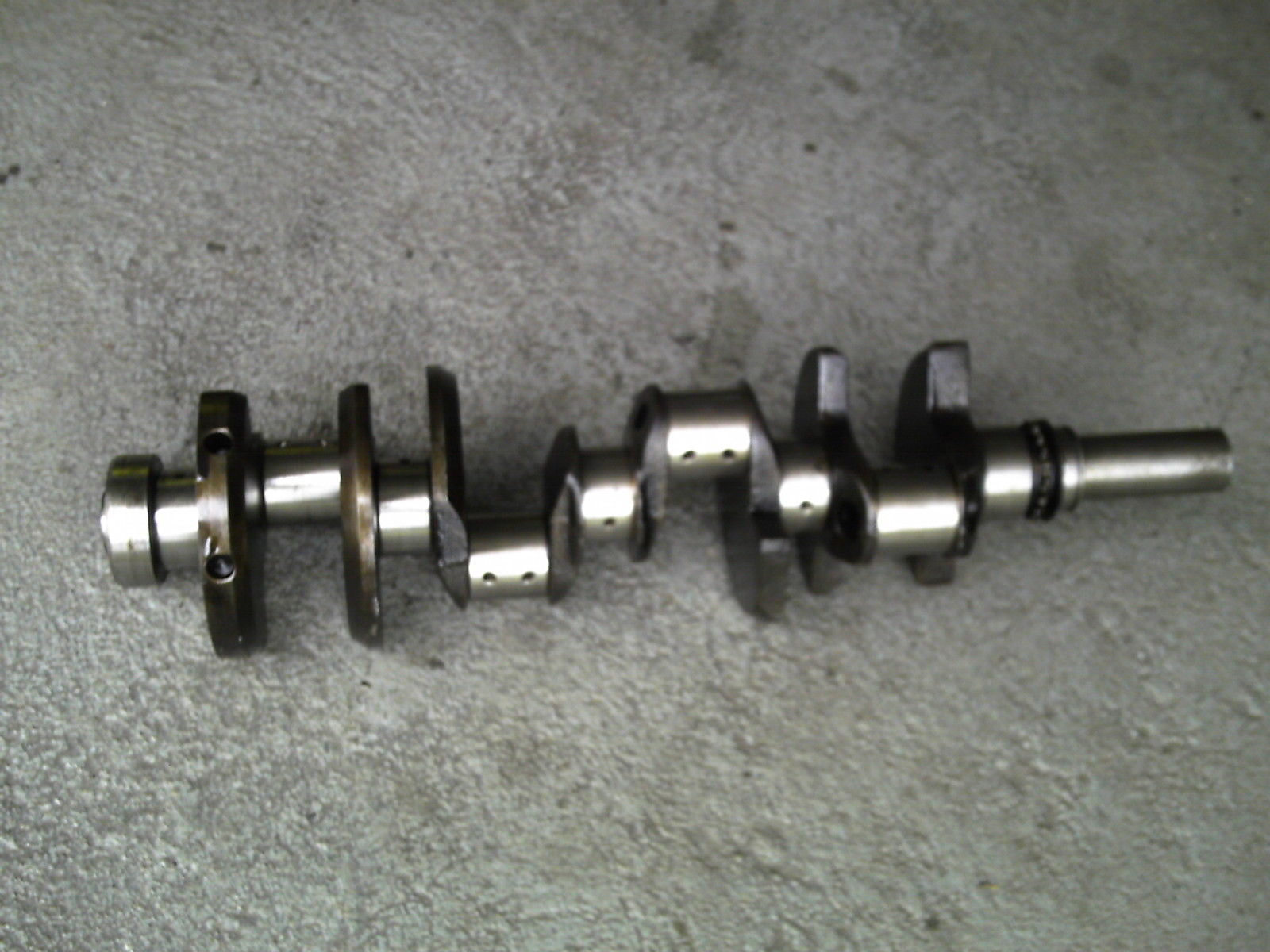

77mm stroke crank

Attached Image

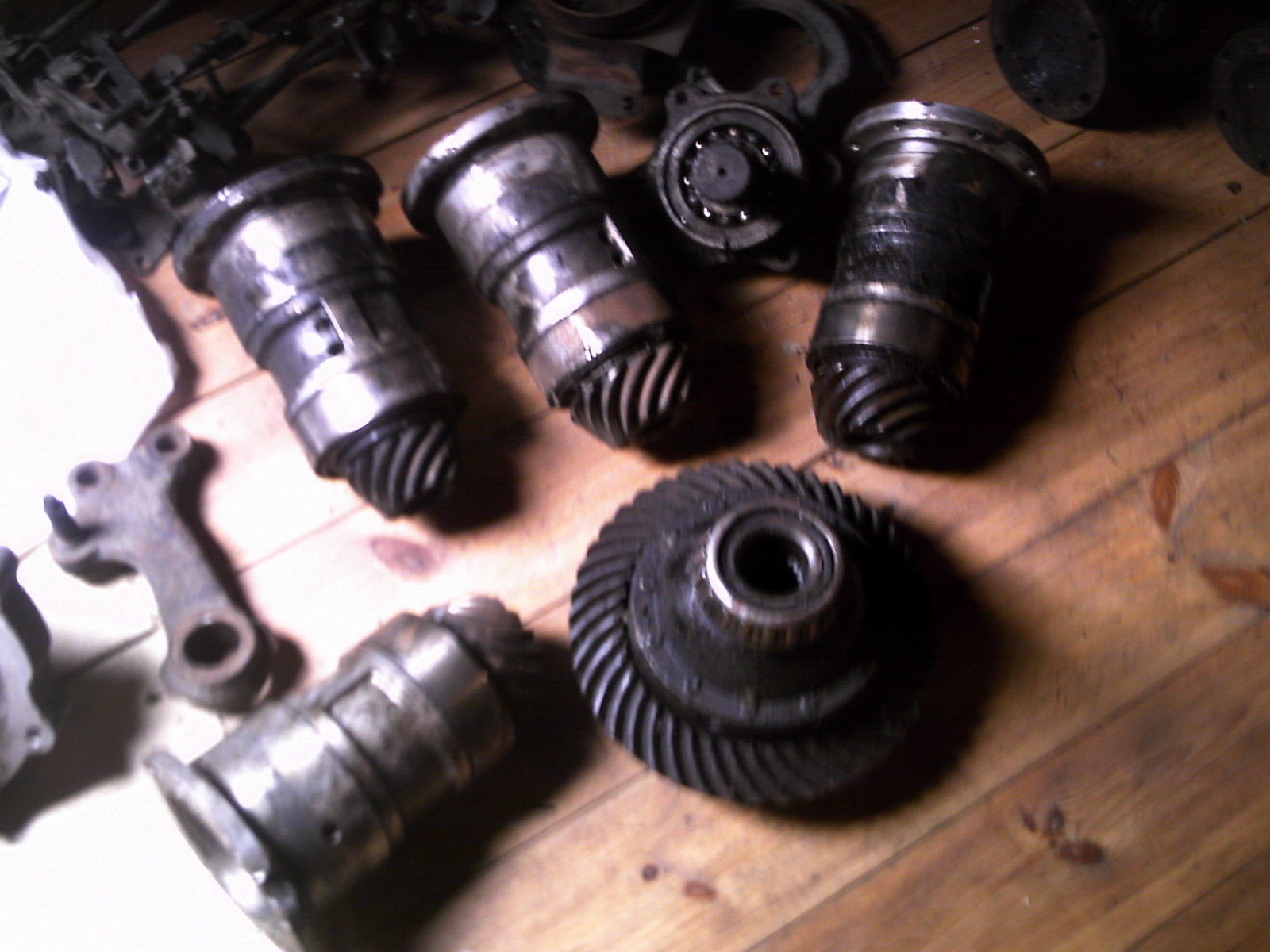

driveshaft,pinion and crown

Attached Image

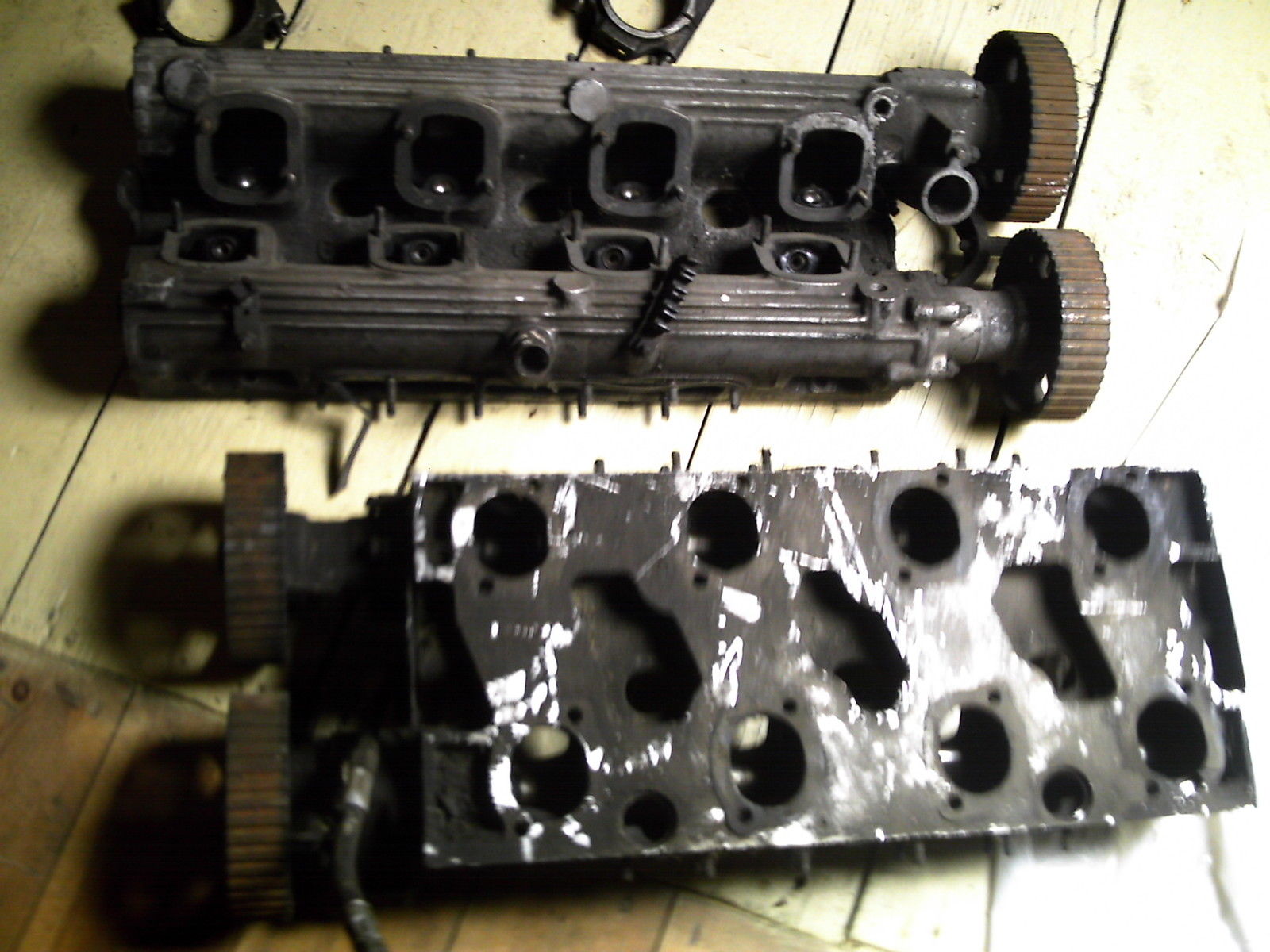

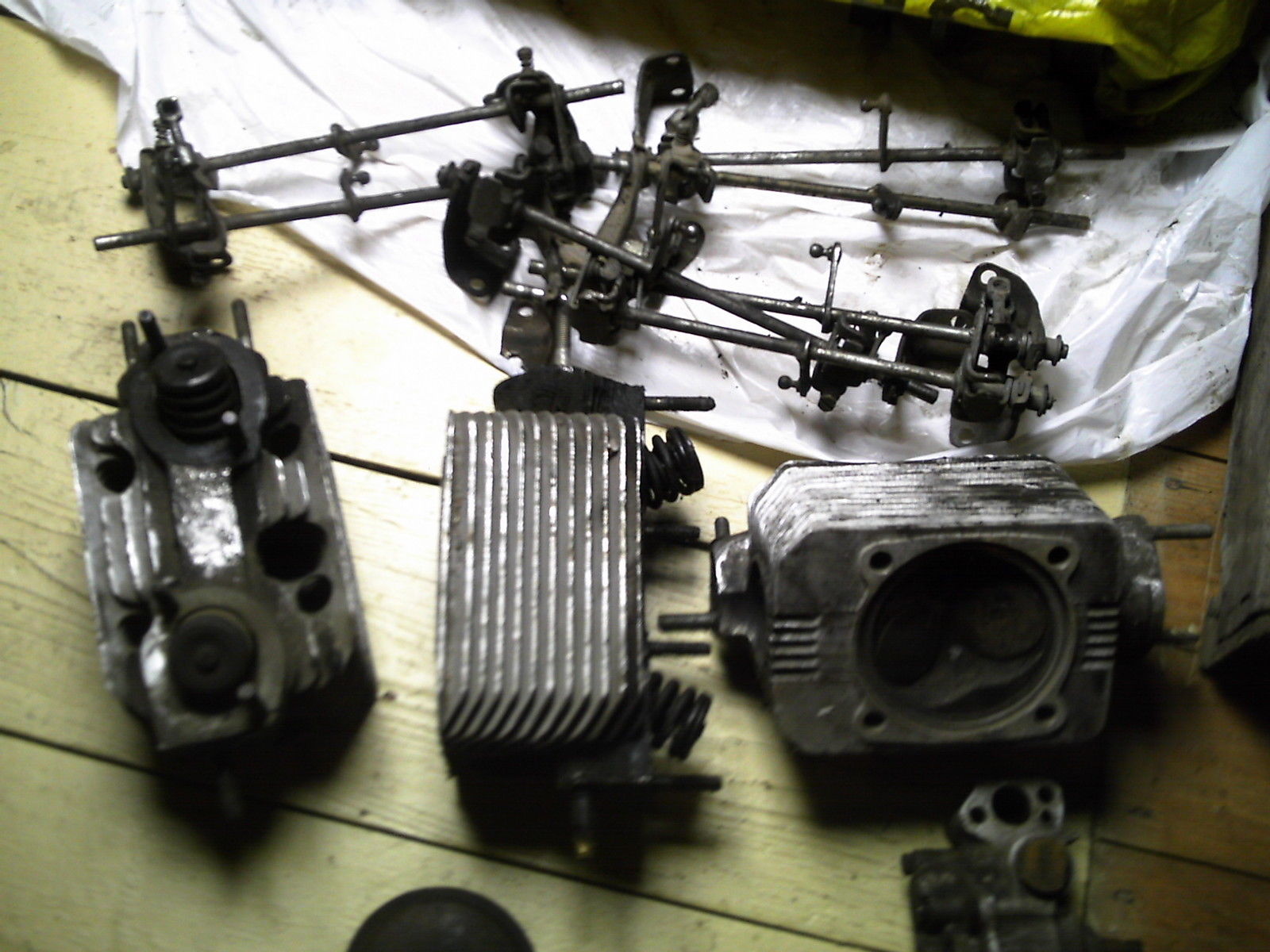

cam carriers,top and bottom

Attached Image
hemi heads

it all seems familiar
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
veekry9
post Sep 29 2014, 09:25 AM
Post #131


OldMember
****

Group: Retired Members
Posts: 3,068
Joined: 17-June 13
From: TO
Member No.: 16,025
Region Association: Canada



Attached Image

in fact the axle passes below the crankshaft middle main bearing journal perhaps as little as 25-30mm.


Attached Image

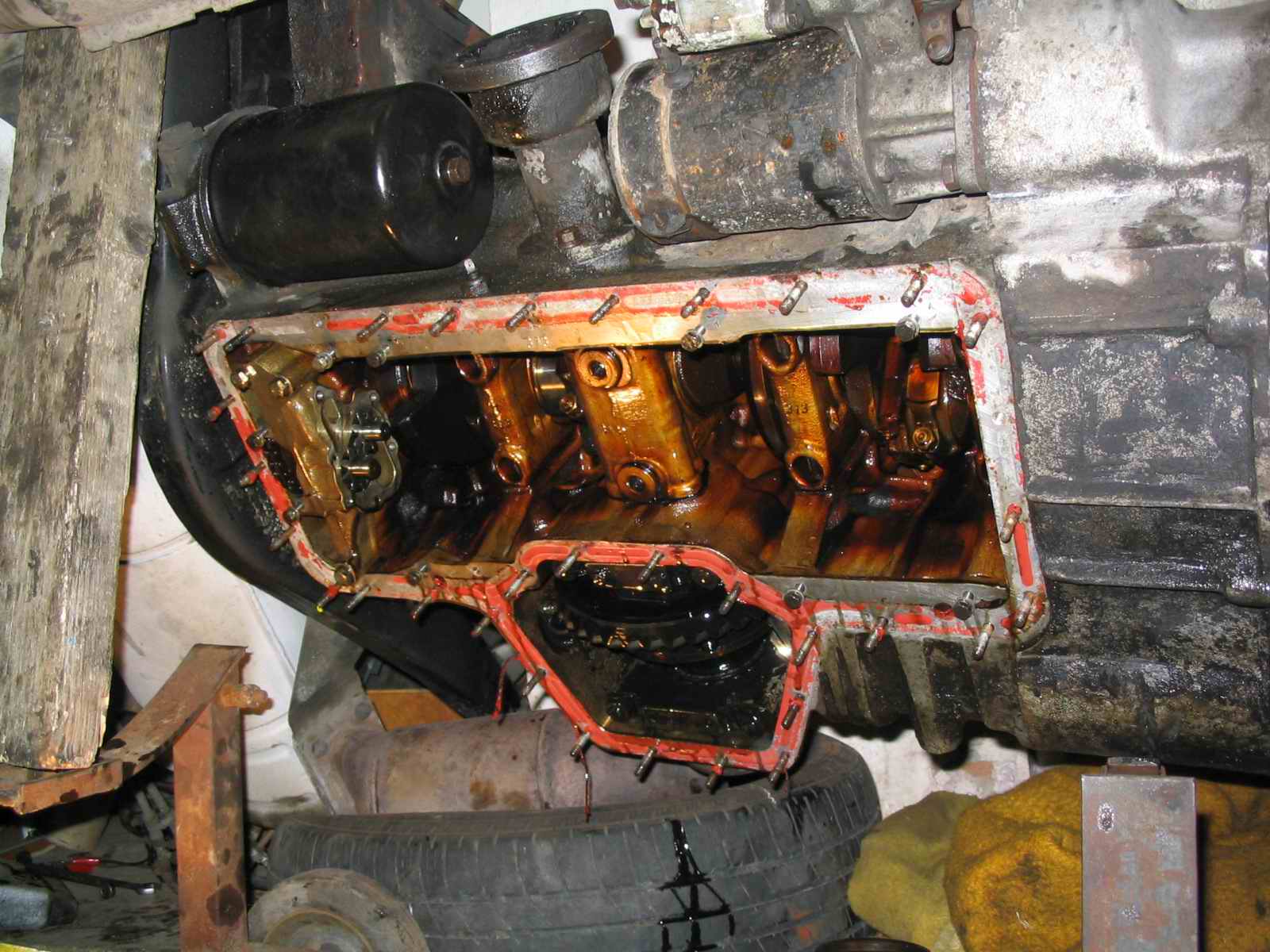

With the sump pan removed,you can see the main bearing cap that carries the axle.
Note chain driven oilpump and filter mount,starter to the right.Aluminum bearing caps are cross-bolted,the block rails extended far below the crank CL,perhaps suitable to carry structural loads.
Mounting the block in front of 901 TX seems possible although the uneeded portions of the casting create a 5-7 kg weight penalty,easily removed.

Attached Image

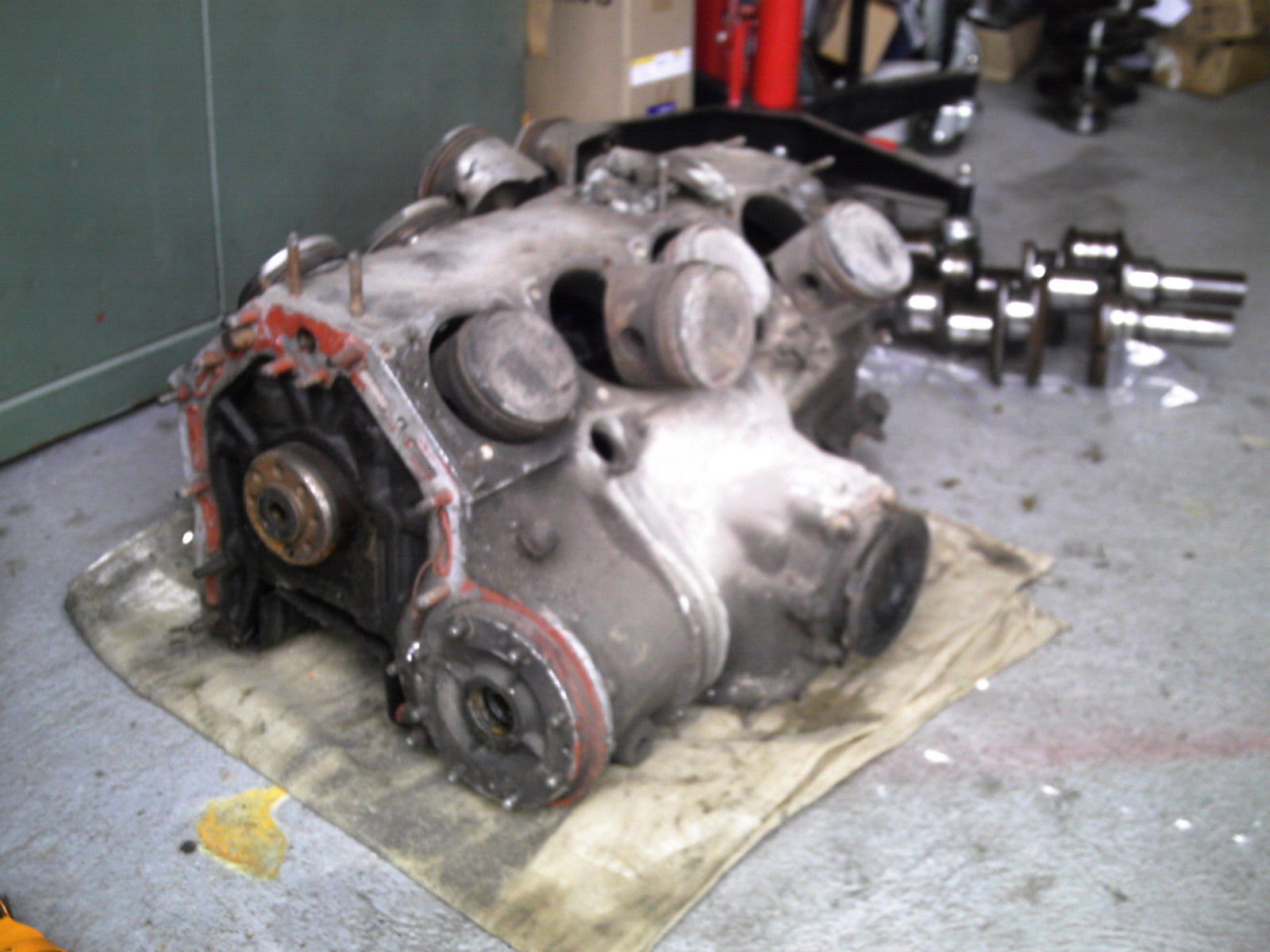

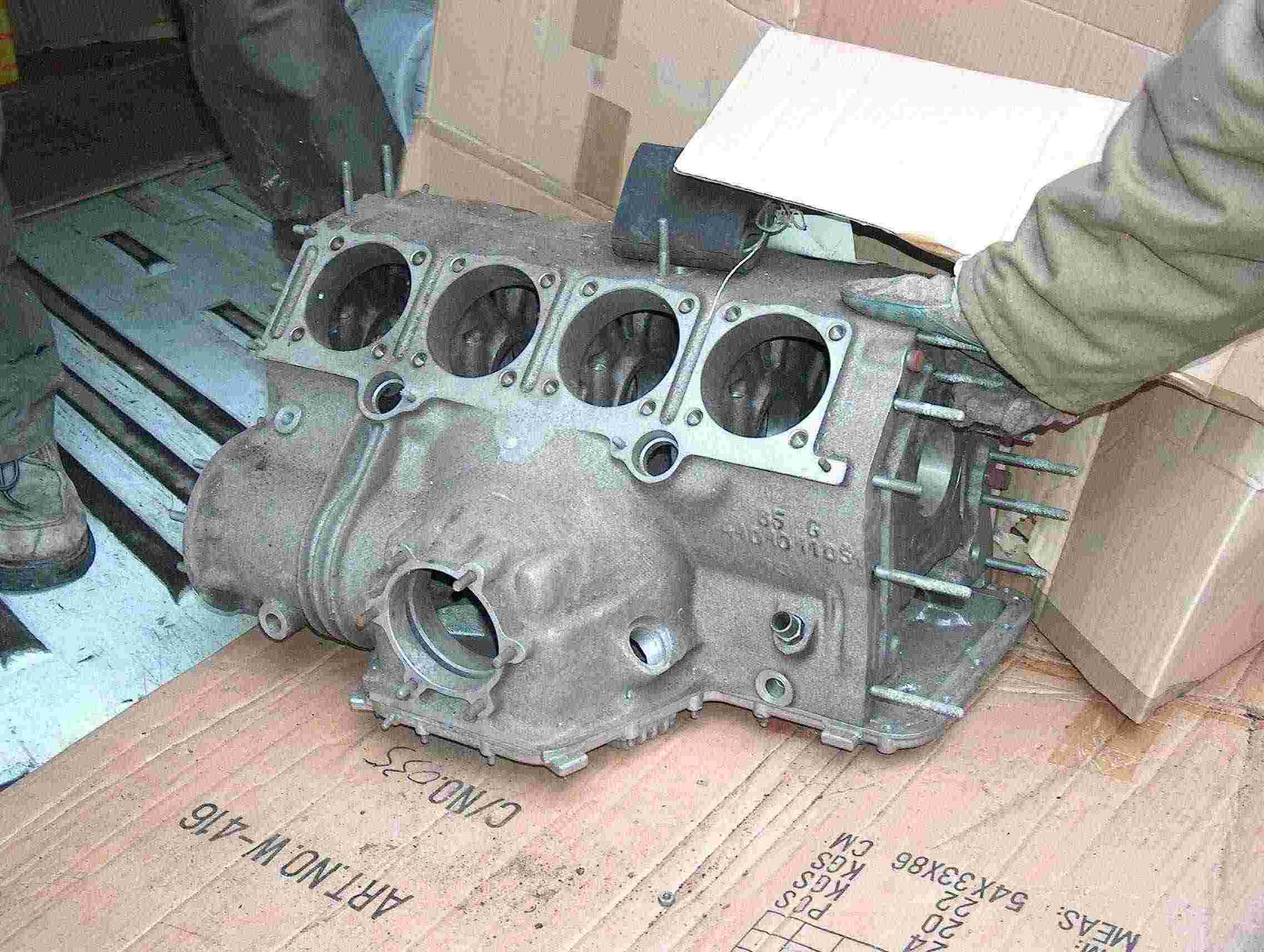

bare Y-block,differential cast integrally.Front(Rear) fan casting mounts on right,cam drive.

Attached Image

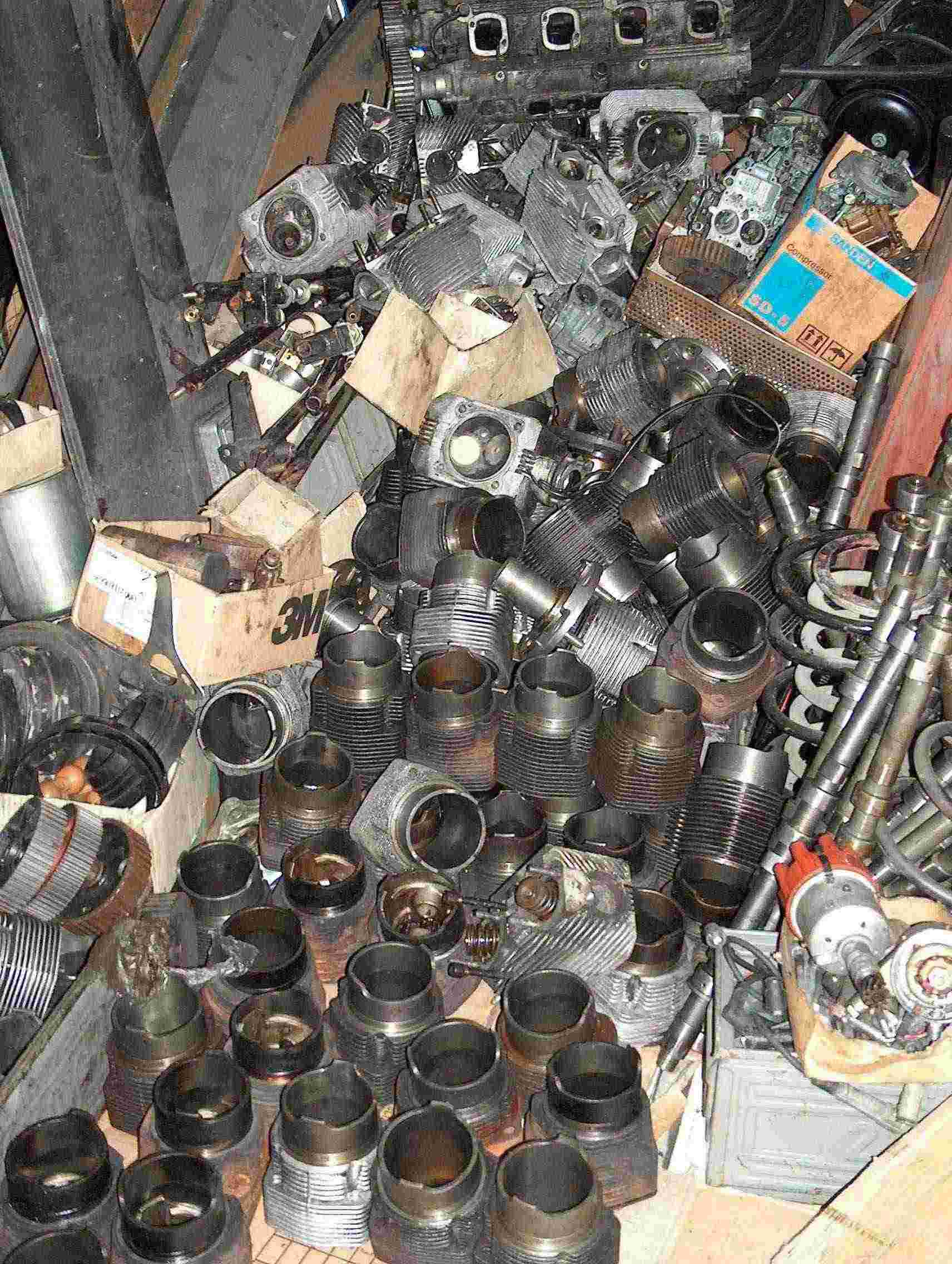

the stash at the wreckers,found at this link:
Obviously unaware of the huge demand for these parts.

http://www.lhotkanet.cz/mirror/aek4470.finalnet.cz/
/
(edit:07/31/16):

Attached Image

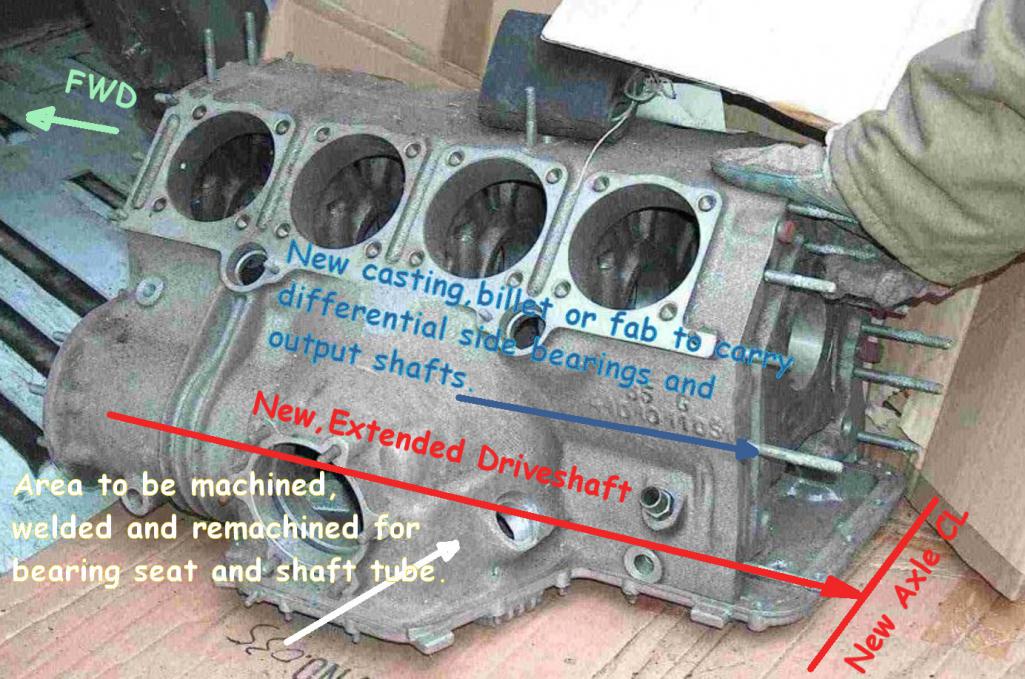

A unique design modification,to allow the use of the engine in a mid configuration.
The original driveshaft is used to drive a cv joint where the differential formerly was.
A new casting is made to carry the diff,raised from the factory position,dropping the CG,and pan to ride height.
The engine is run with a crank and cam position trigger,for coil on twin plug ignition,no dizzy.
A conversion to chain drive for the cams,and vvt takes less room at the drive end of the block.
A hyvo chain to drive a shaft going forward to a front diff,can make for a awd car.
(IMG:style_emoticons/default/idea.gif)

http://retrorides.proboards.com/thread/148...a-sport-v8-pics
/
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mike Bellis
post Sep 29 2014, 09:19 PM
Post #132


Resident Electrician
*****

Group: Members
Posts: 8,346
Joined: 22-June 09
From: Midlothian TX
Member No.: 10,496
Region Association: None



Since the axle is too far forward for a 914, you should... Weld the diff like a spool, mount the engine transversly, install a AWD drivetrain and make the first air cooled V8 AWD 914. The transmission diff will act as the transfer case.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
veekry9
post Sep 30 2014, 12:11 AM
Post #133


OldMember
****

Group: Retired Members
Posts: 3,068
Joined: 17-June 13
From: TO
Member No.: 16,025
Region Association: Canada



The original intent of the designer was to package an entire powerplant and drivetrain into a light compact discrete component.A twin engine 4x4 for example would only require installing an engine package as there are no auxilary peripherals needed,being aircooled.An engine over the axle is a design suitable for front drive and or rear drive and is suitable for adaptation to other applications.Mounting the engine in place of a 914's 4 cylinder,you gain displacement and a few pounds that theoretically at least,is easily shed.I can find no faults in the design and a few unique solutions that simplify the manufacture and maintenance of it.The engine has no inherent problems with pulling studs out of the block or bearing failures,as it's a robust ribbed casting.

Attached Image

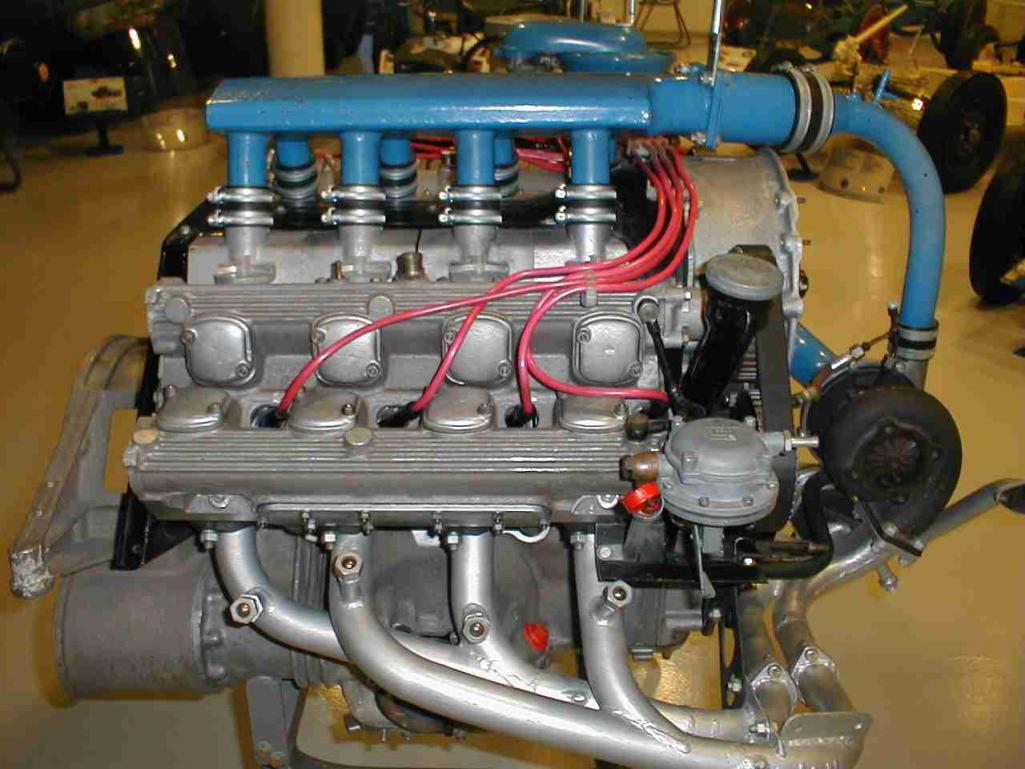

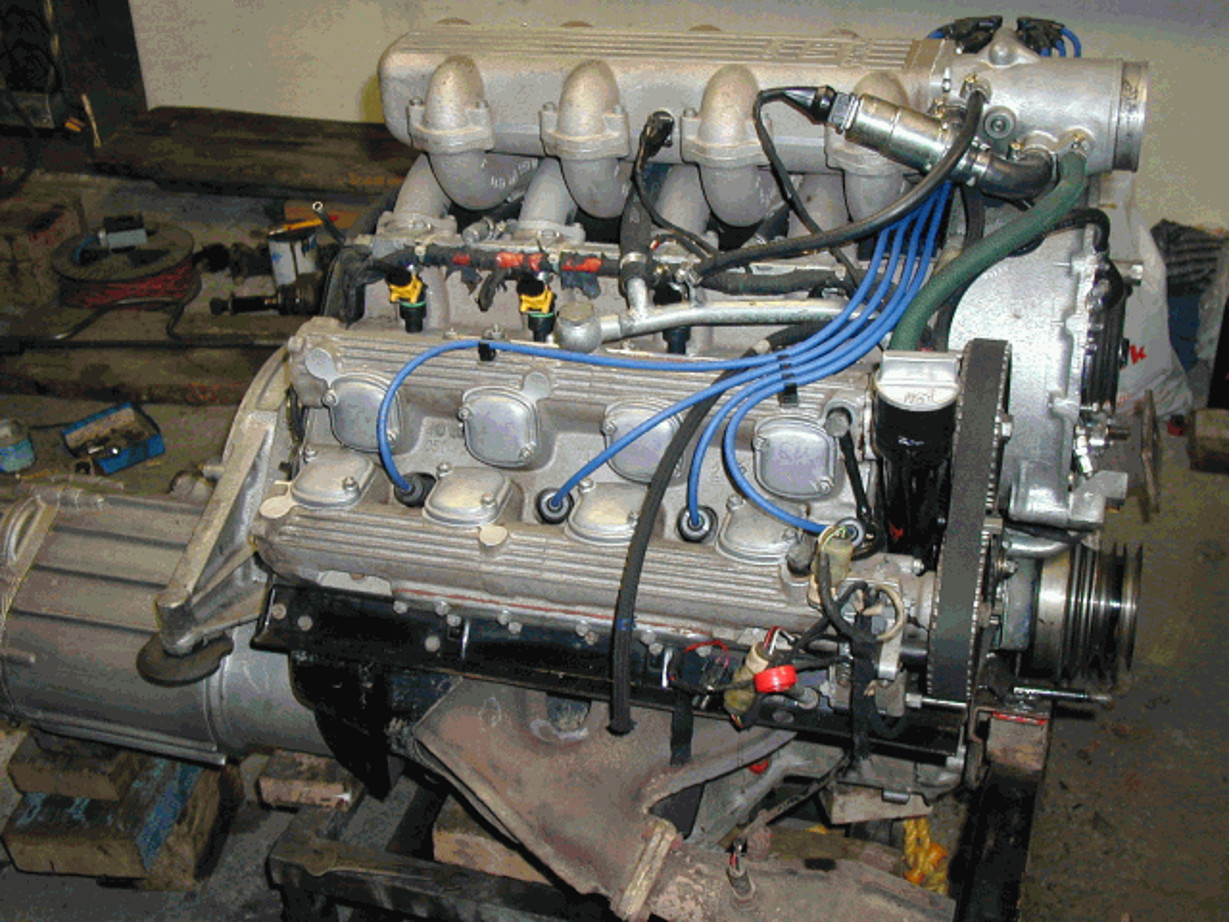

here's an example with a turbo mounted,likely with stock components internally.

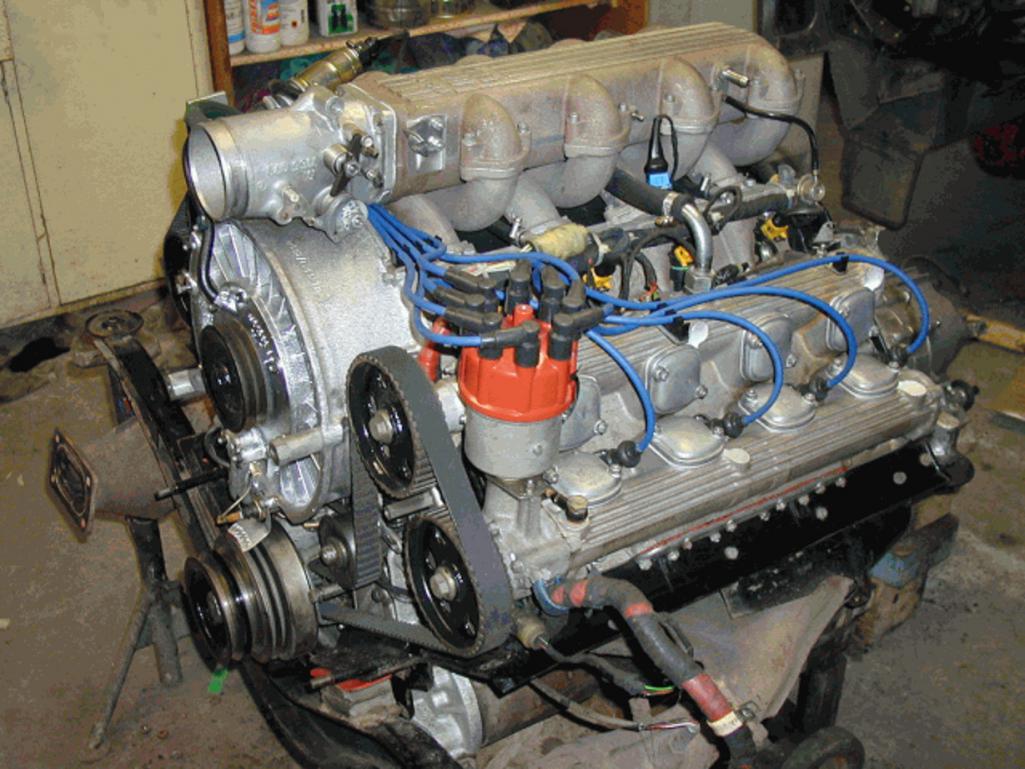

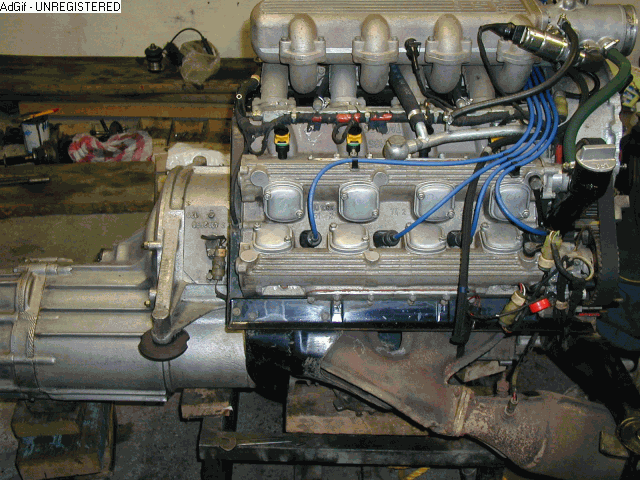

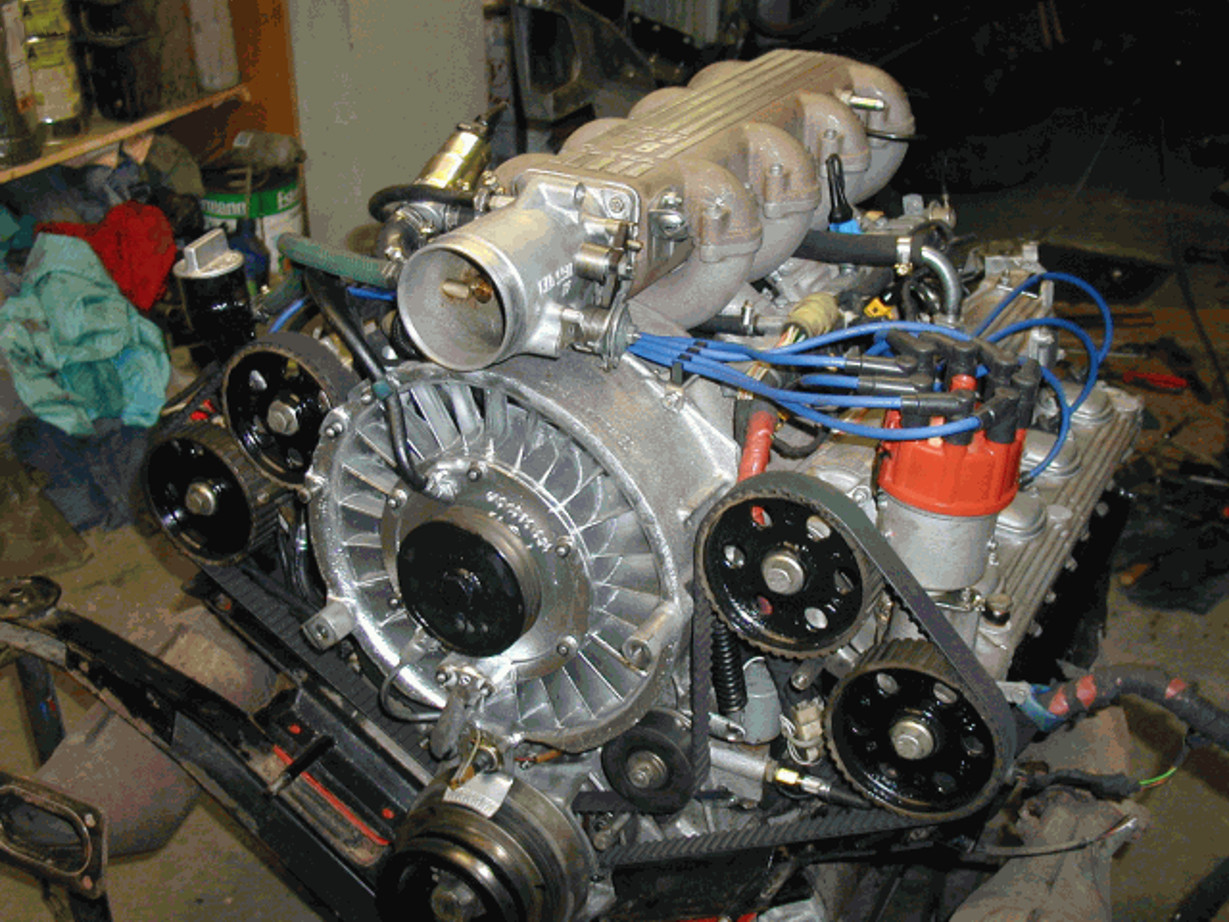

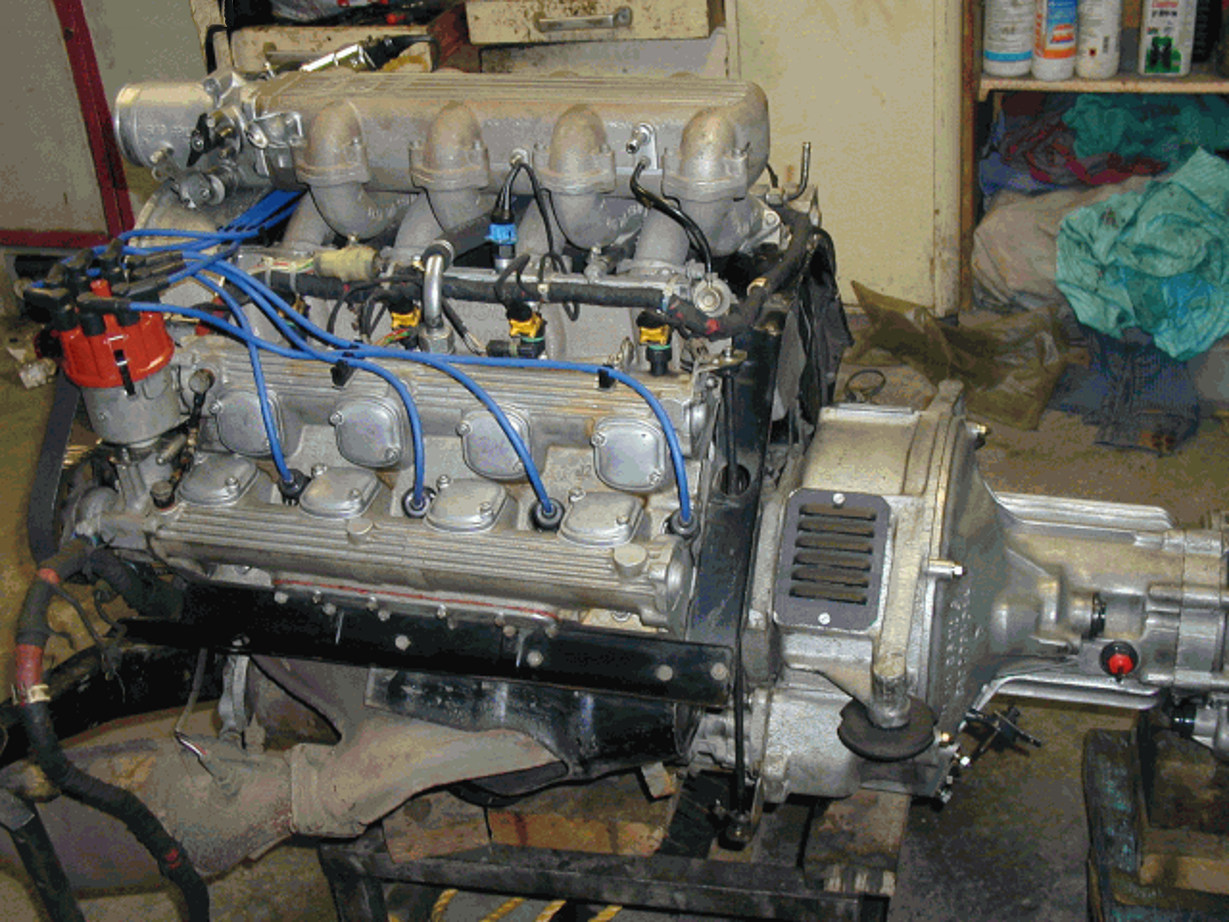

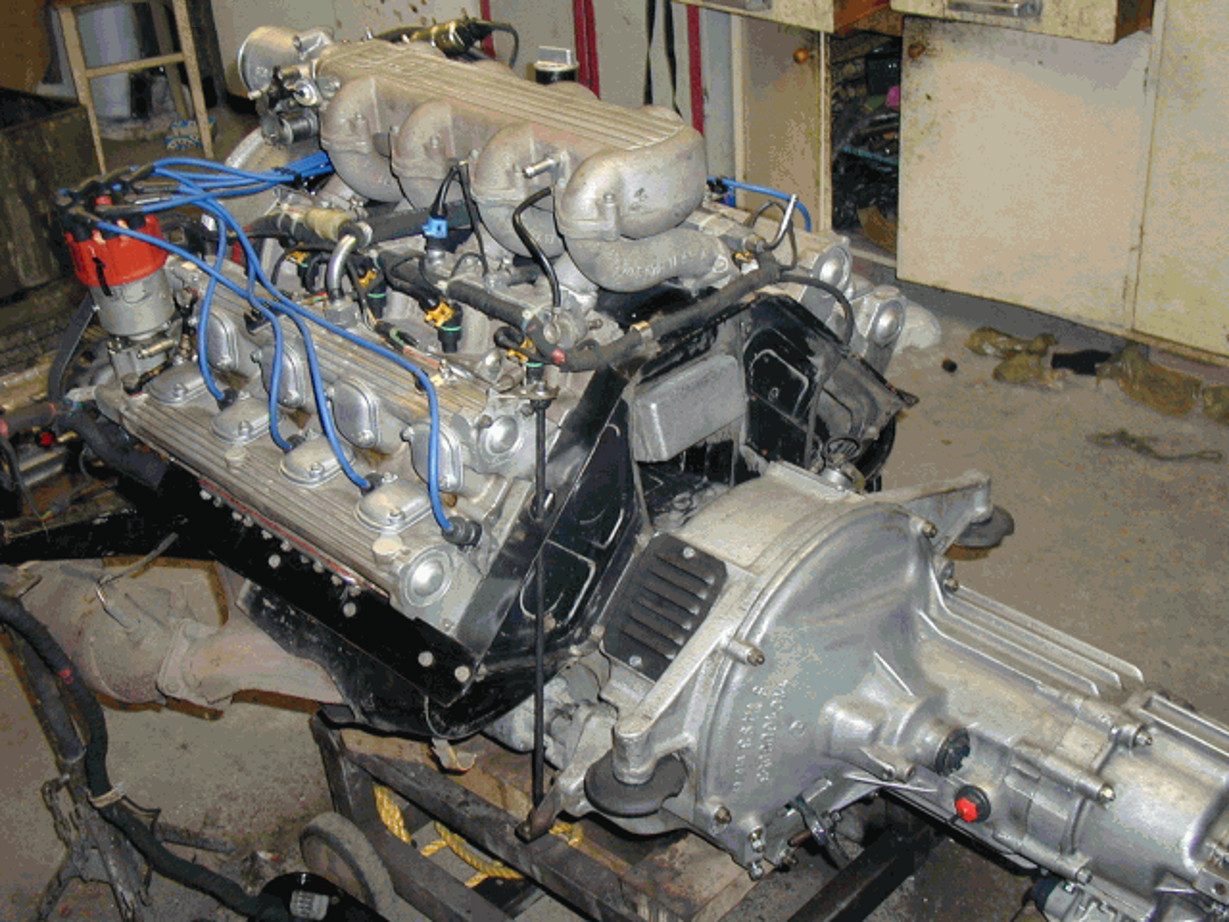

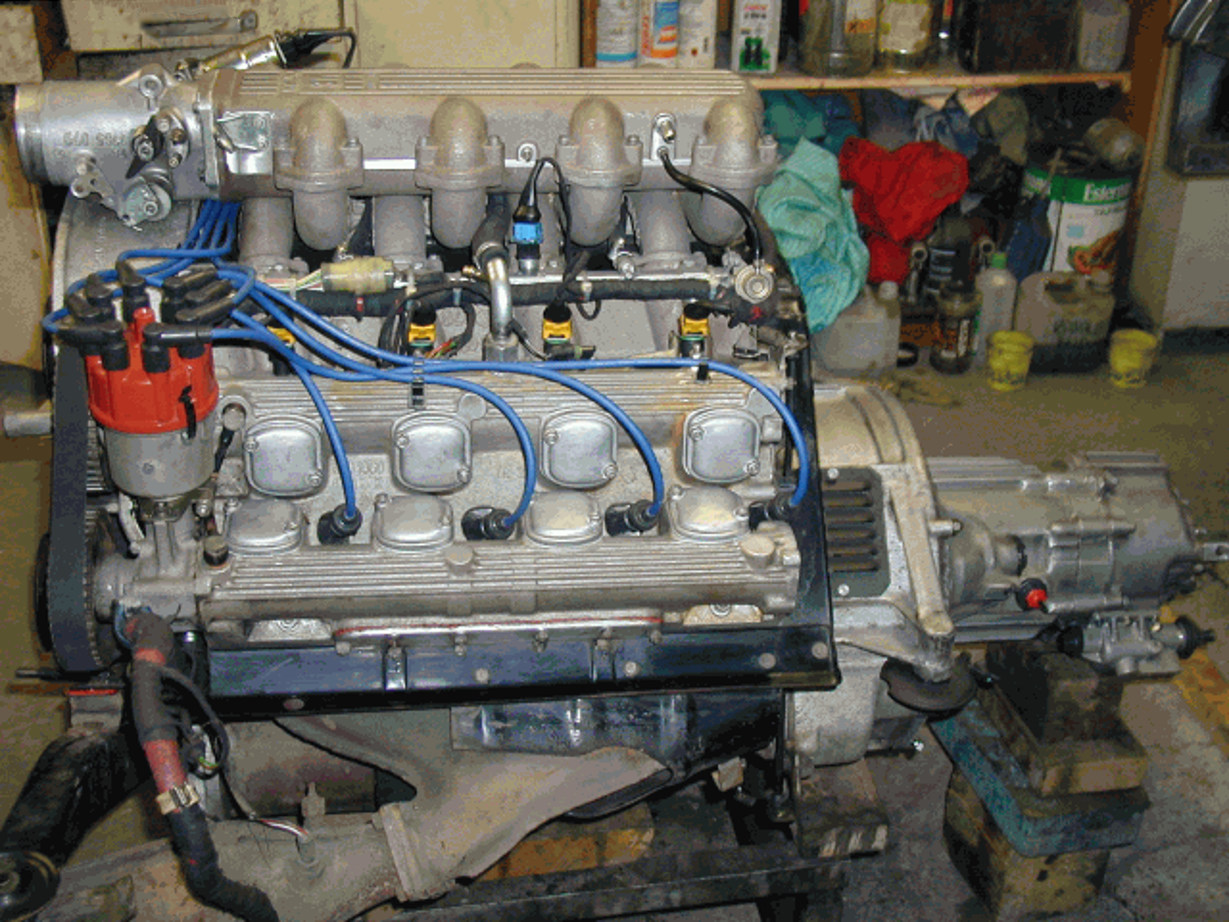

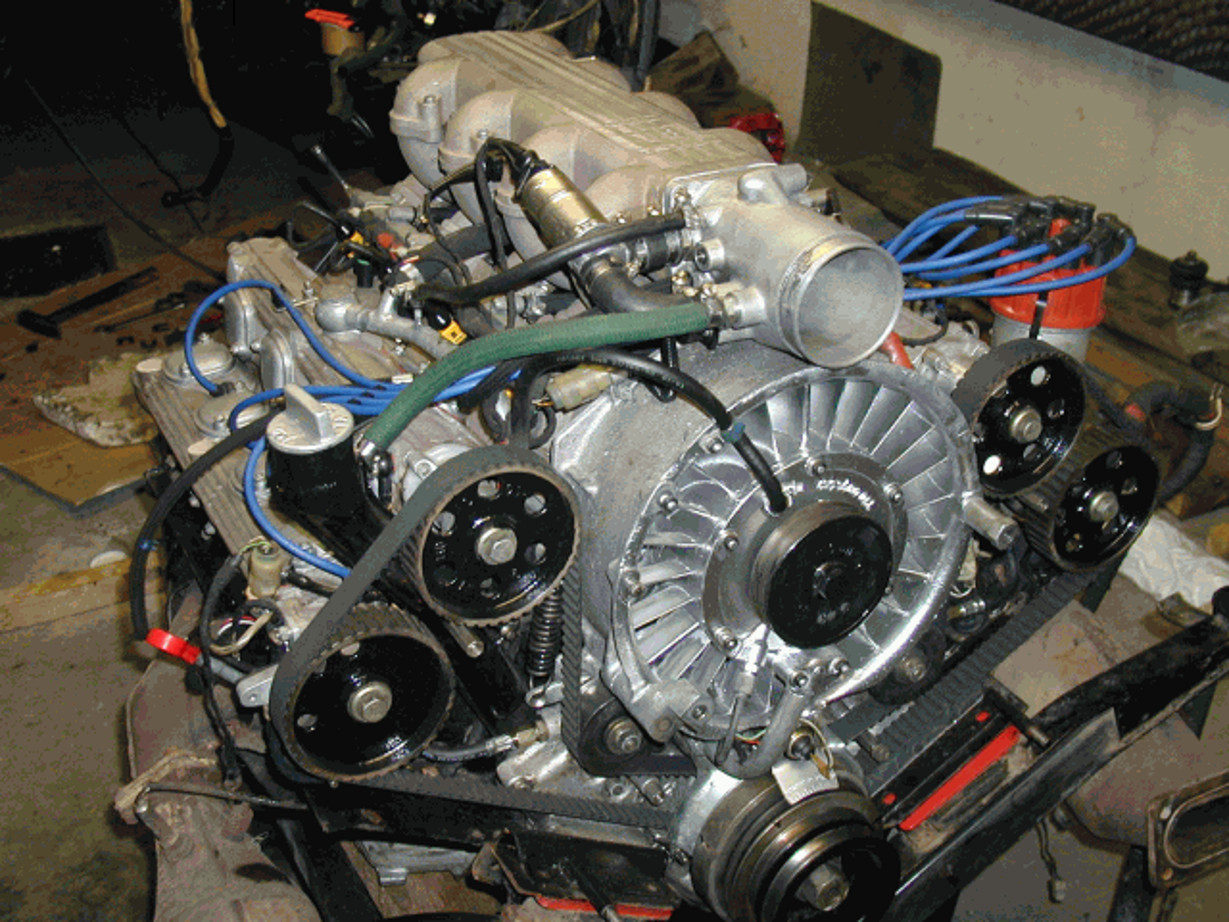

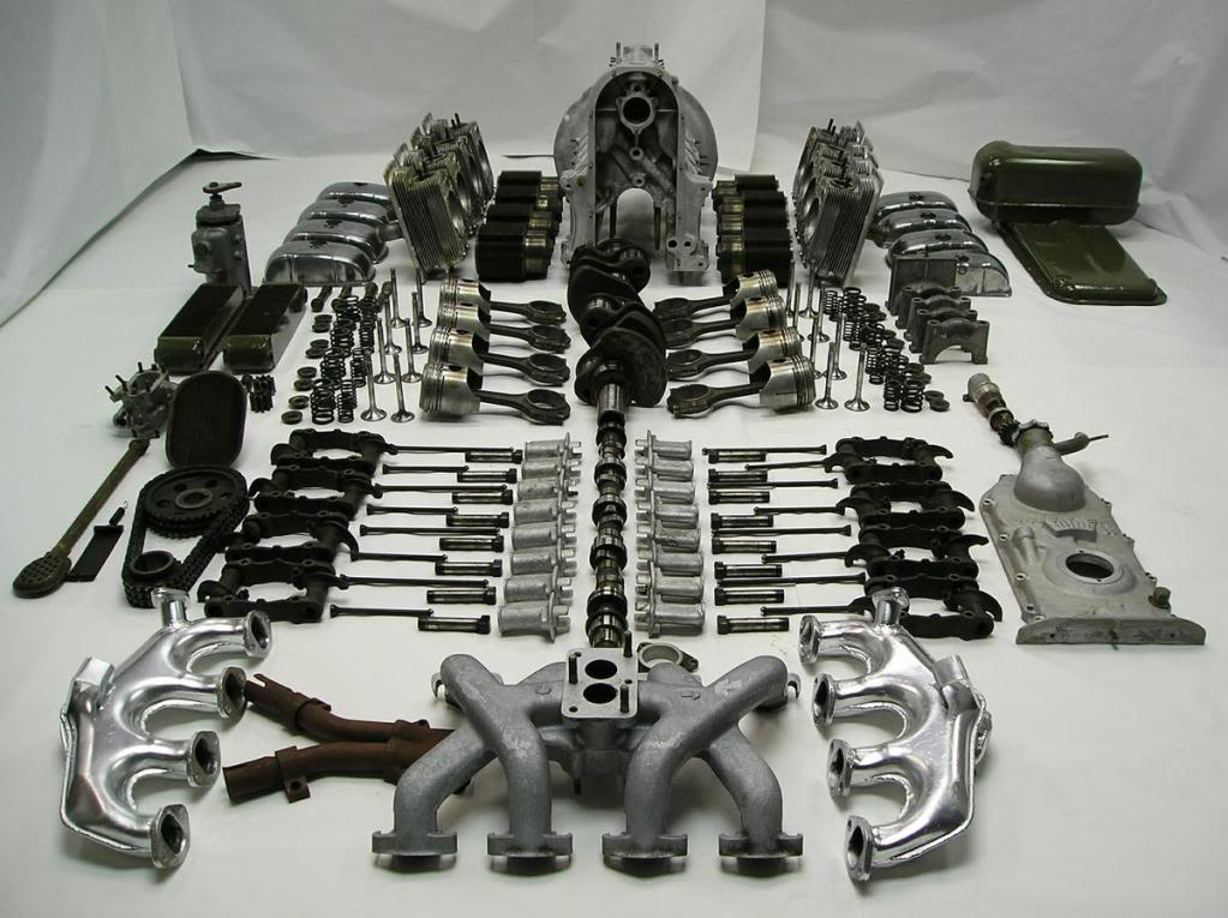

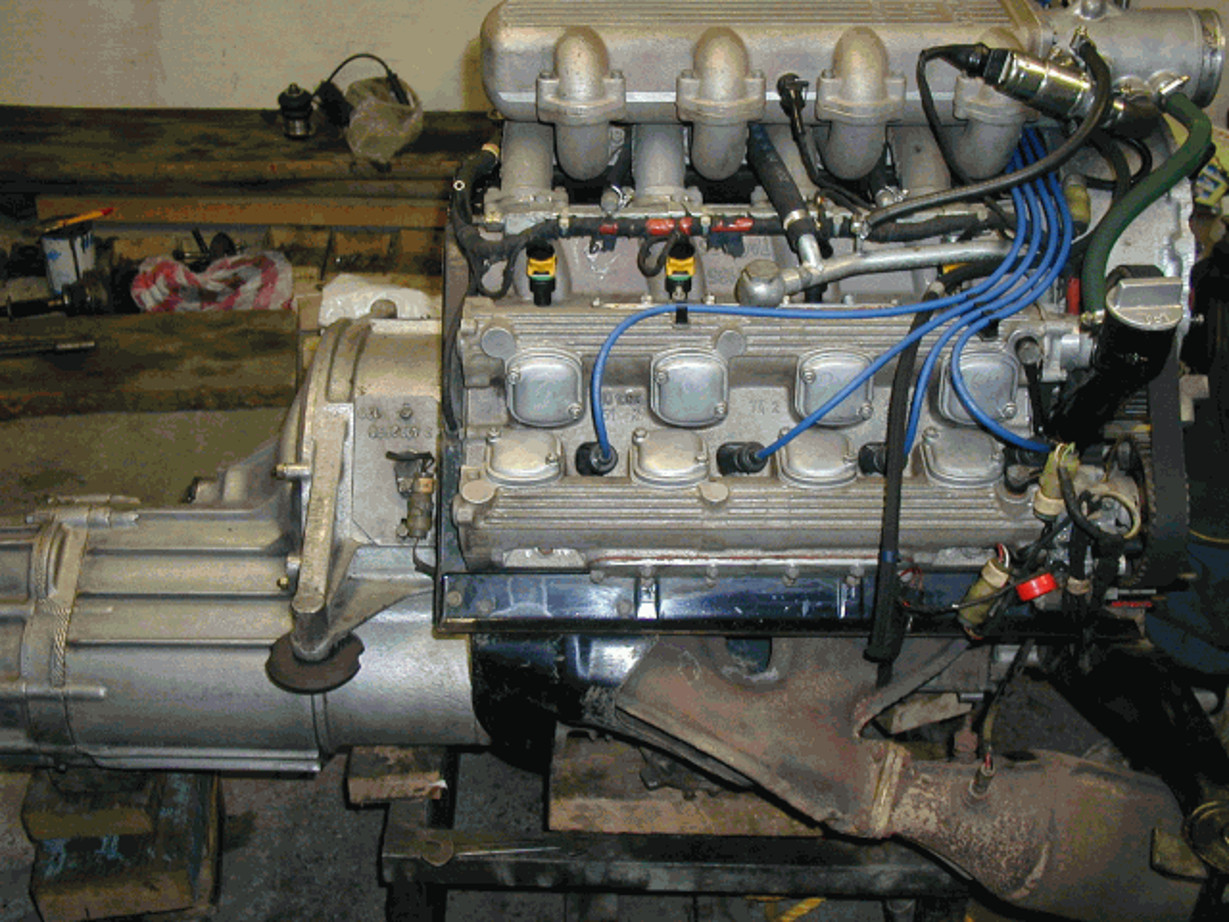

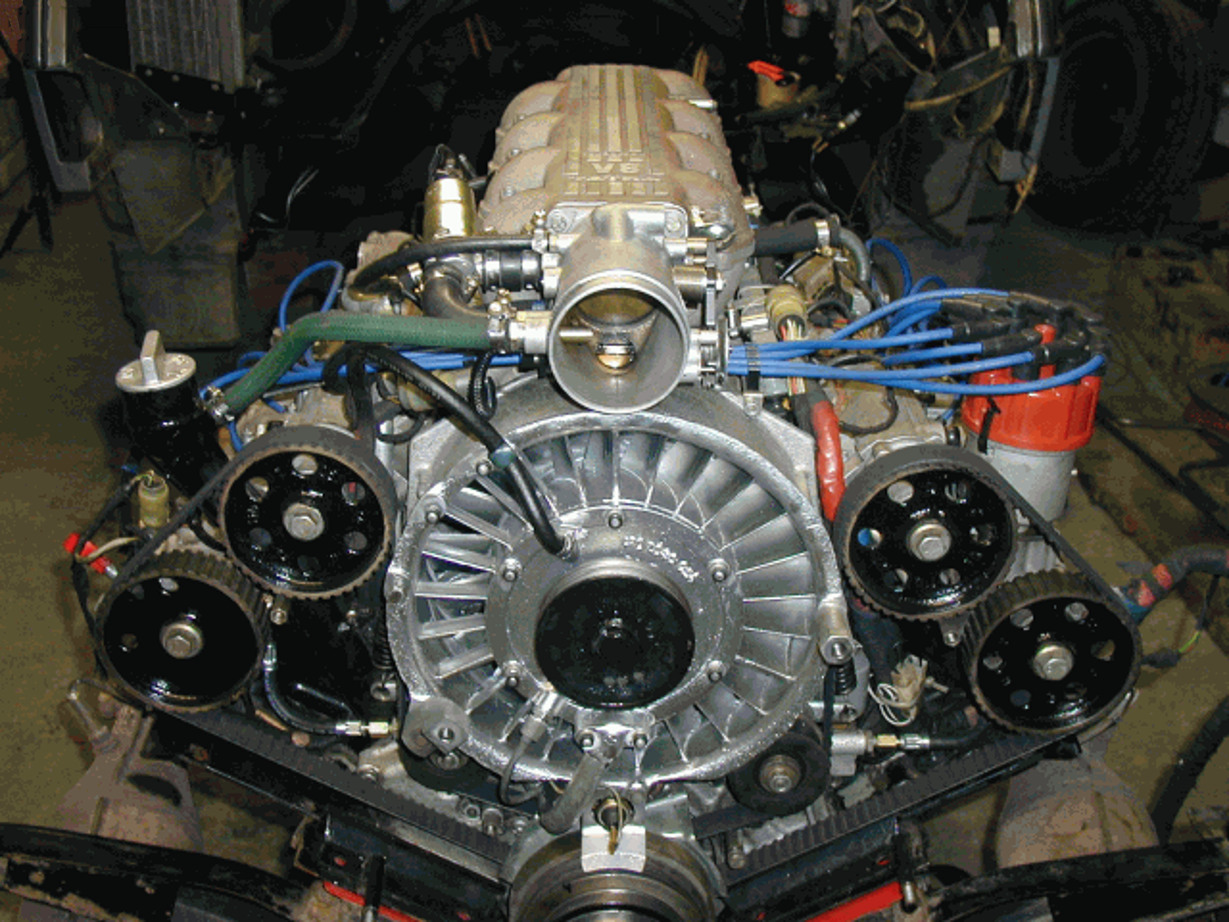

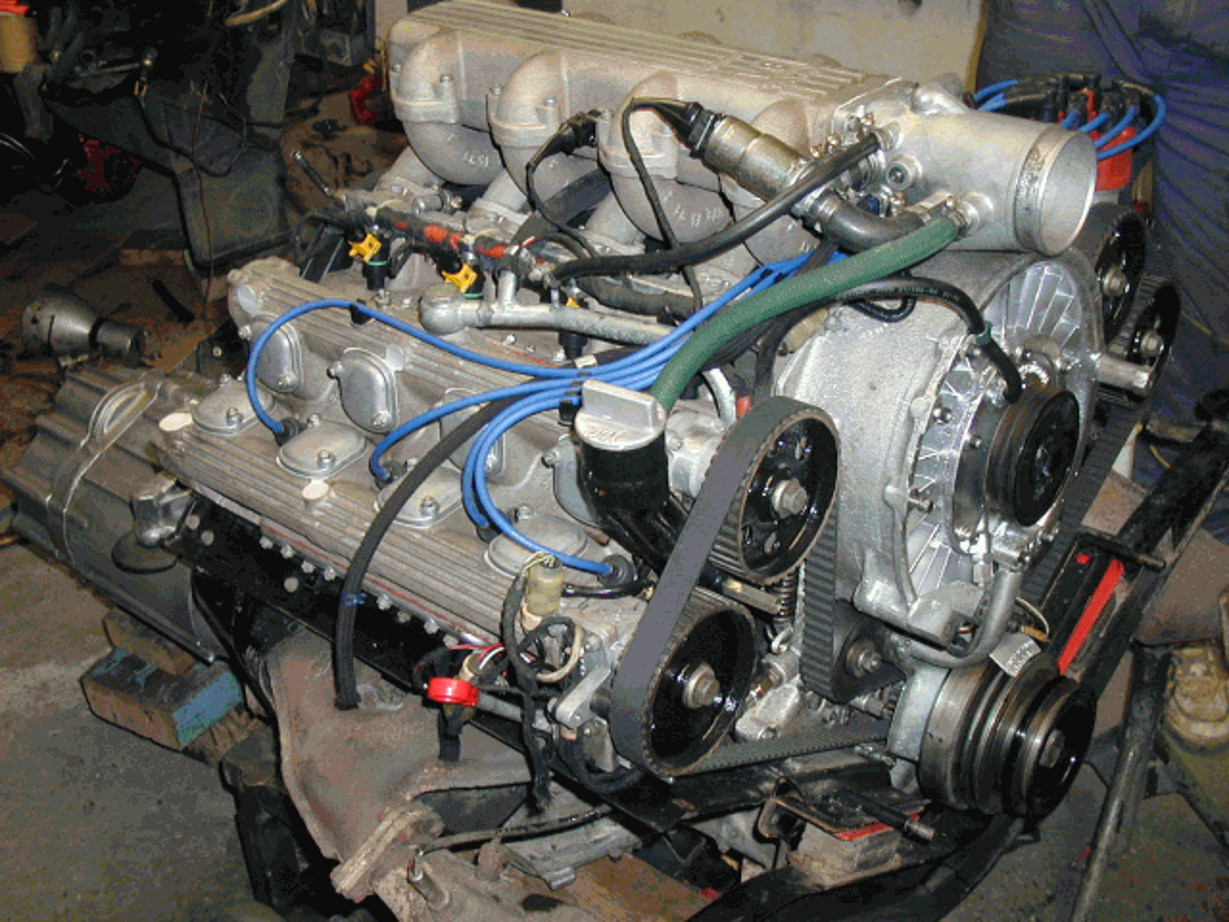

This is the Tatra-700-EFI:

Attached Image

Attached Image

Attached Image

Attached Image

Attached Image

Attached Image

Attached Image

Attached Image

Attached Image

Attached Image

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
veekry9
post Oct 5 2014, 04:24 PM
Post #134


OldMember
****

Group: Retired Members
Posts: 3,068
Joined: 17-June 13
From: TO
Member No.: 16,025
Region Association: Canada



Attached Image

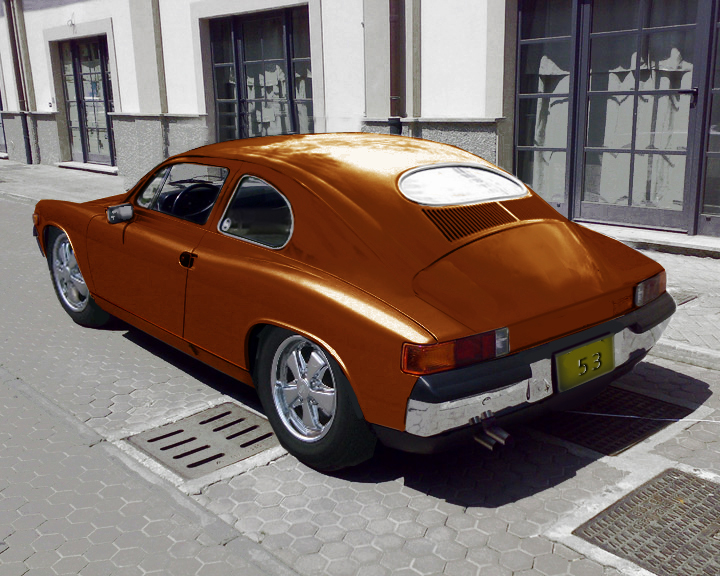

This is really cute,but somehow the taillights and bumper look too modern for the bug roofline.Perhaps a little Ghia,?

Stuffing an early '63 914 with a 2.5 to 4.4 Litre V8 of an aircooled design has to be OK.
Turns out there may be as few as 10 Tatra V8 engines in North America.
There may be a HotRodder in the EU who may wish to give it a go.
The 4-cam 613 could run with the heads swapped for a hot-V.
Convenient for turbocharging and intercooling plumbing.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
veekry9
post Oct 5 2014, 07:35 PM
Post #135


OldMember
****

Group: Retired Members
Posts: 3,068
Joined: 17-June 13
From: TO
Member No.: 16,025
Region Association: Canada

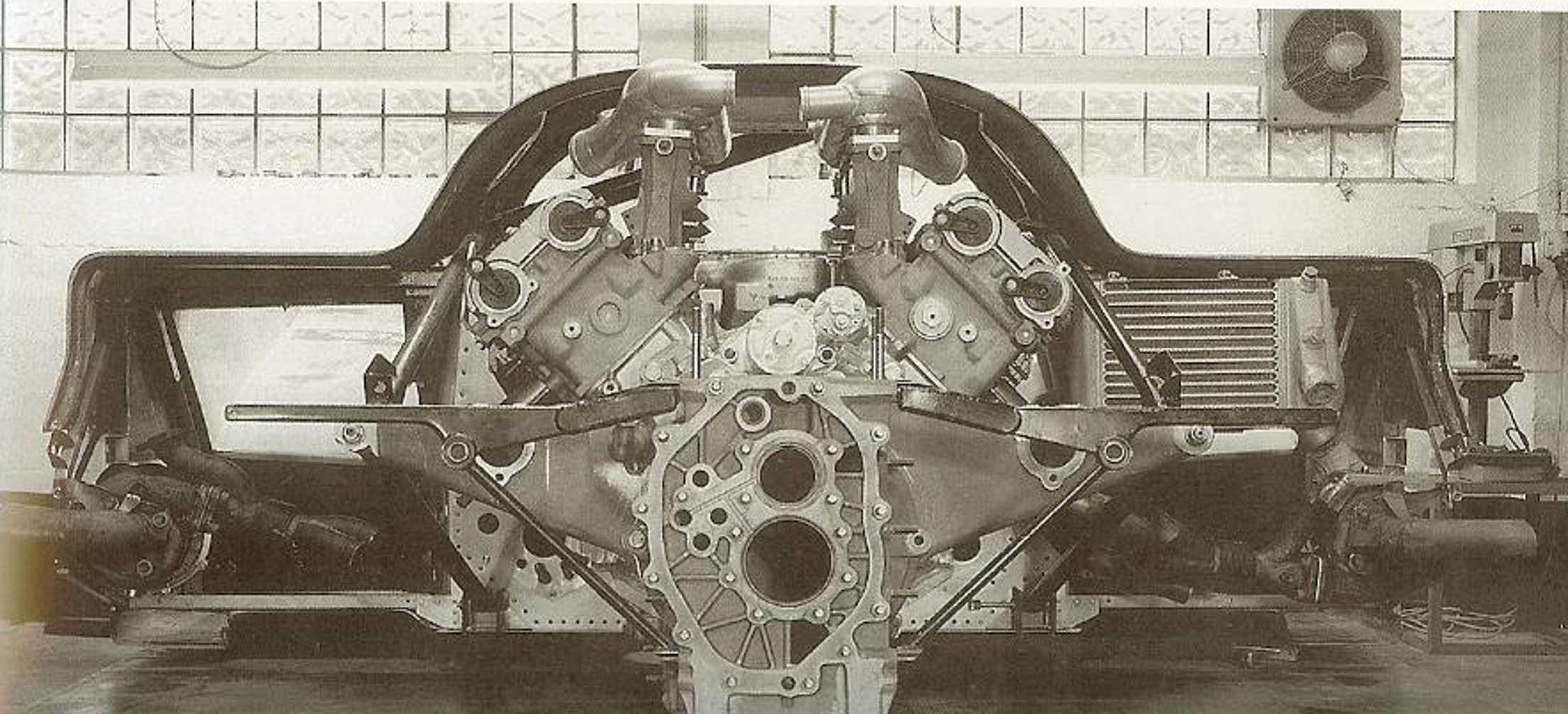

Attached Image

Outrigger TwinTurbo
928 S4
Anyone here recognize the trans-axle?(edit 05/03/15:956/962)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
veekry9
post Oct 5 2014, 08:12 PM
Post #136


OldMember
****

Group: Retired Members
Posts: 3,068
Joined: 17-June 13
From: TO
Member No.: 16,025
Region Association: Canada



Attached Image

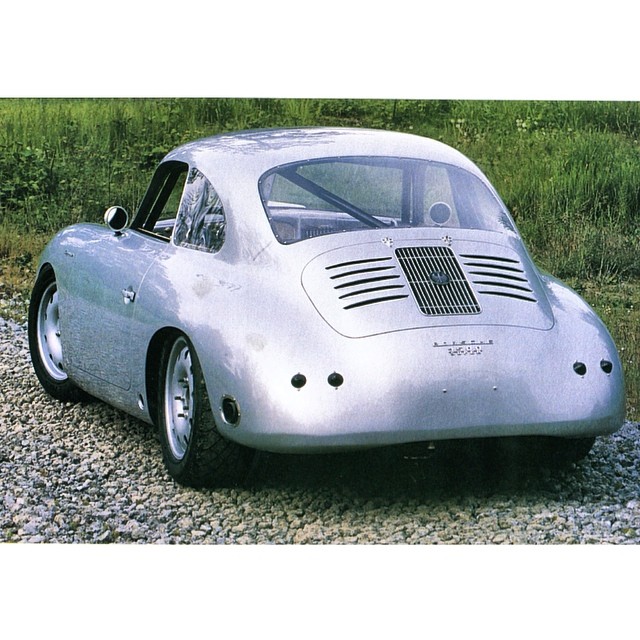

Like this Outlaw POLO 356,the '63 914 has a rounded,curved house.
If the hips pinch in at the tail,and the roof-line blends into the vertical face below the trunk-line,a nice Ghia like curvature will result.Voluptuous.
Add a little sponson and the two lamp treatment.
Very 60's retro.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
veekry9
post Oct 19 2014, 12:49 AM
Post #137


OldMember
****

Group: Retired Members
Posts: 3,068
Joined: 17-June 13
From: TO
Member No.: 16,025
Region Association: Canada

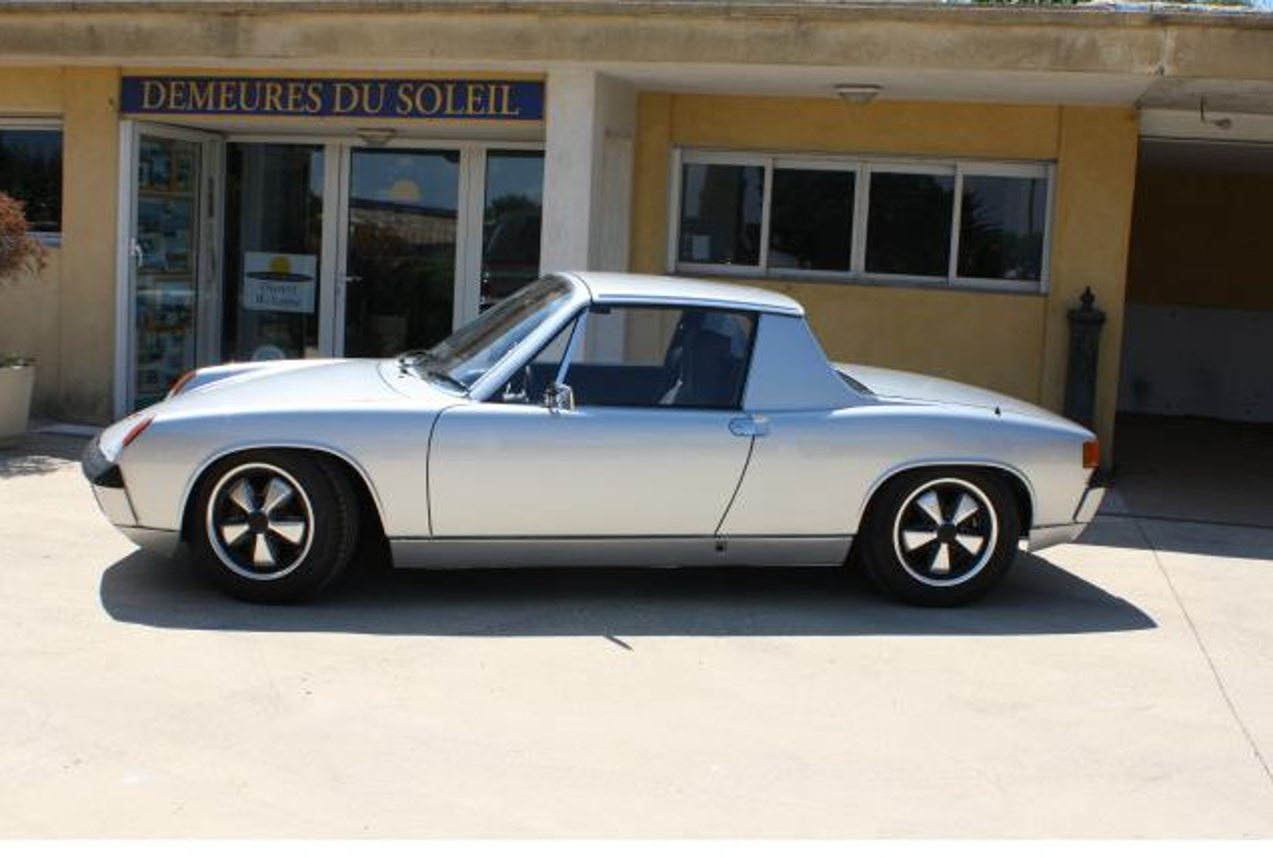

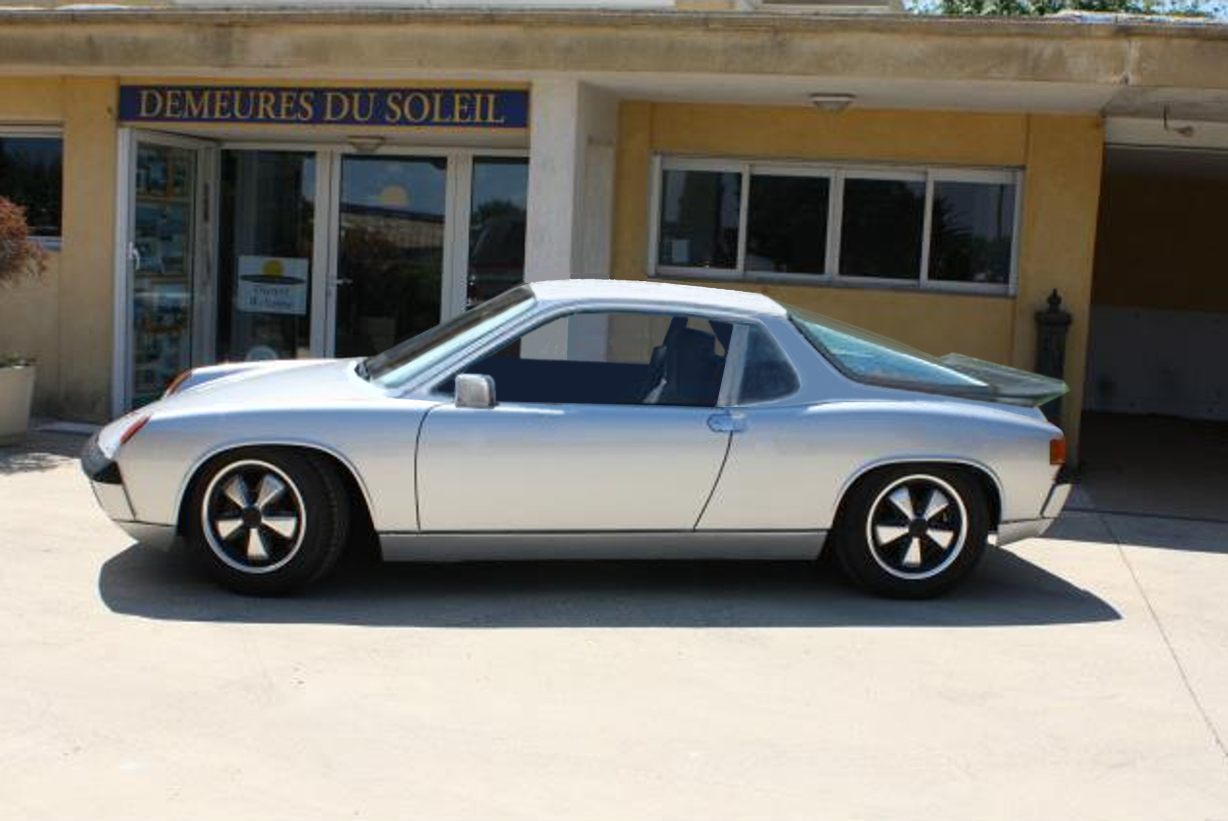

Attached Image

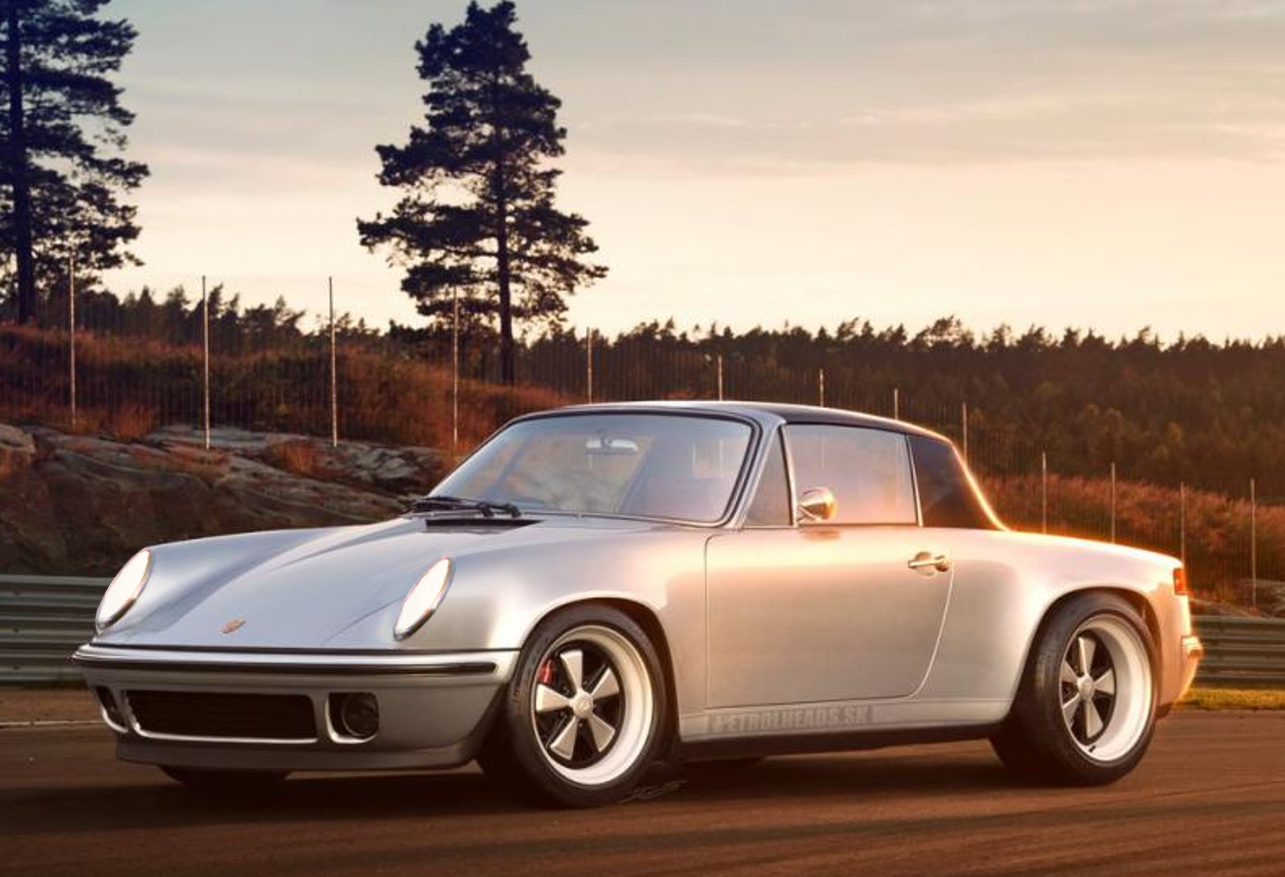

Very nice Silver

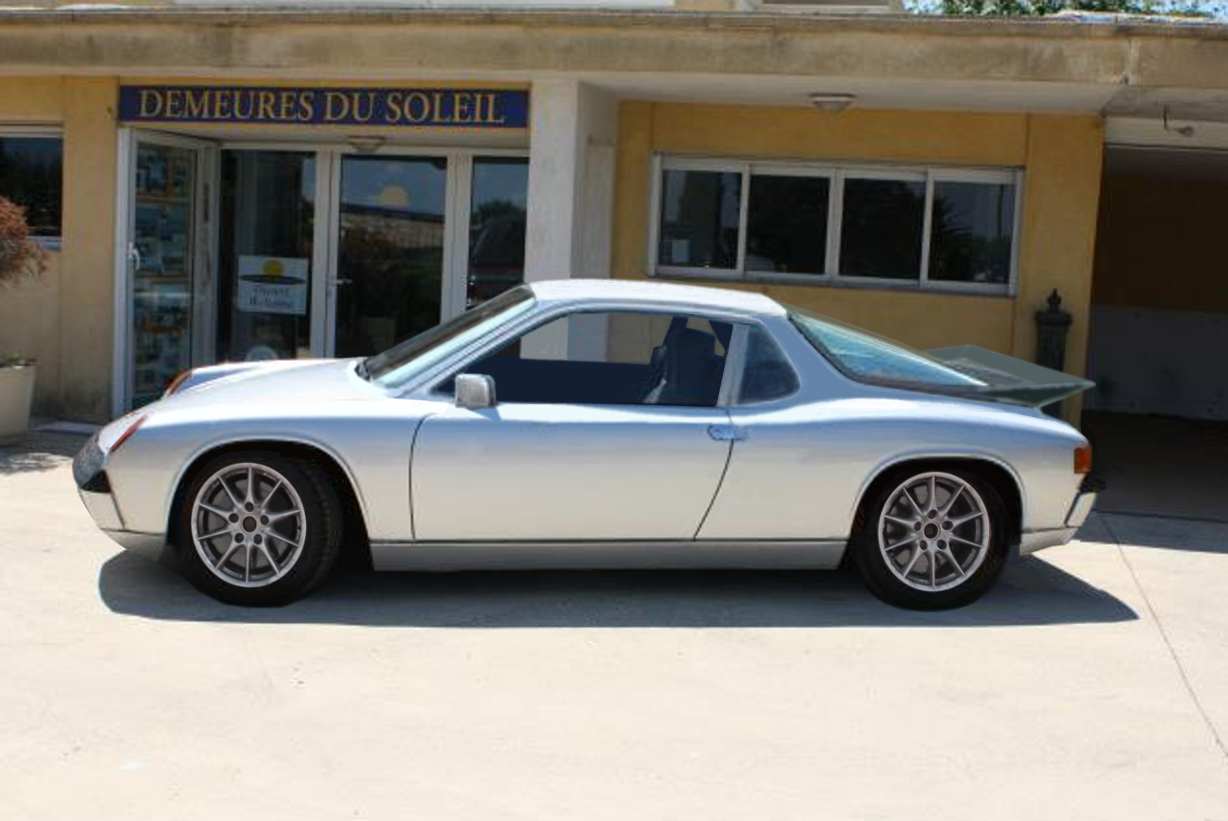

Attached Image

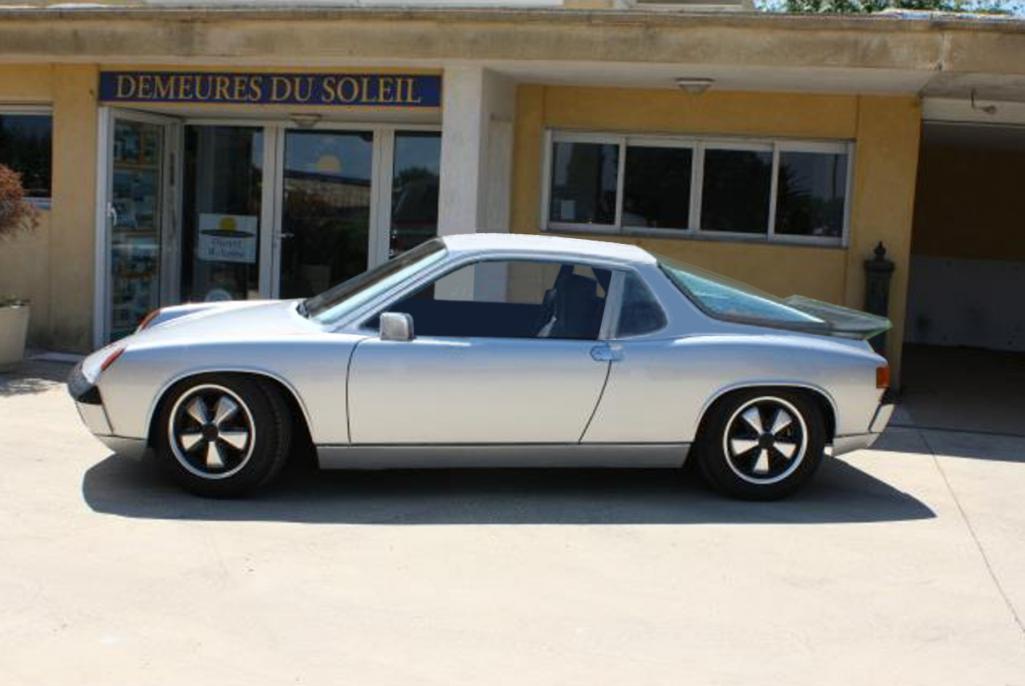

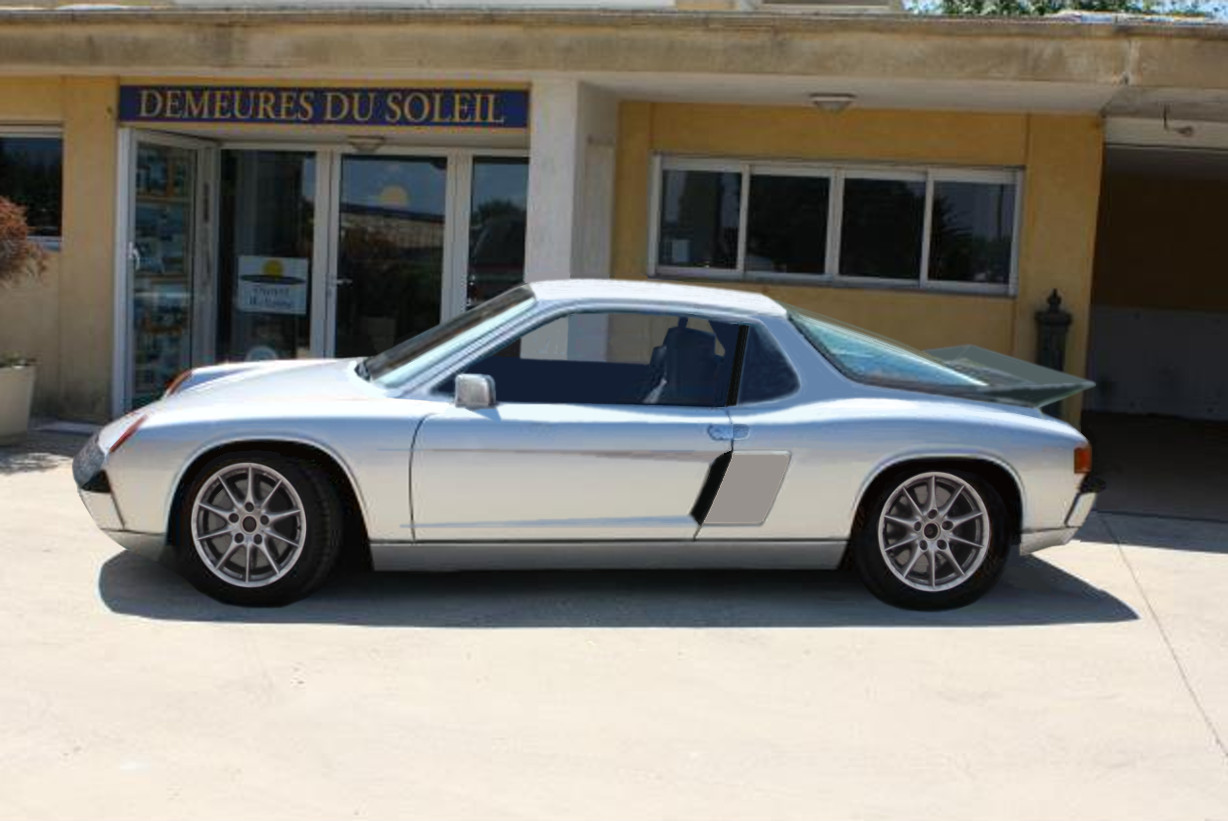

A 944 windscreen+roof+hatch+spoiler
Only for those with skills in metalshaping.


User is offlineProfile CardPM
Go to the top of the page
+Quote Post
veekry9
post Oct 19 2014, 08:10 AM
Post #138


OldMember
****

Group: Retired Members
Posts: 3,068
Joined: 17-June 13
From: TO
Member No.: 16,025
Region Association: Canada



Attached Image

+10in (254mm) Wider overall
+4 in (100mm) Wheelbase
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
veekry9
post Oct 20 2014, 03:01 PM
Post #139


OldMember
****

Group: Retired Members
Posts: 3,068
Joined: 17-June 13
From: TO
Member No.: 16,025
Region Association: Canada



Attached Image

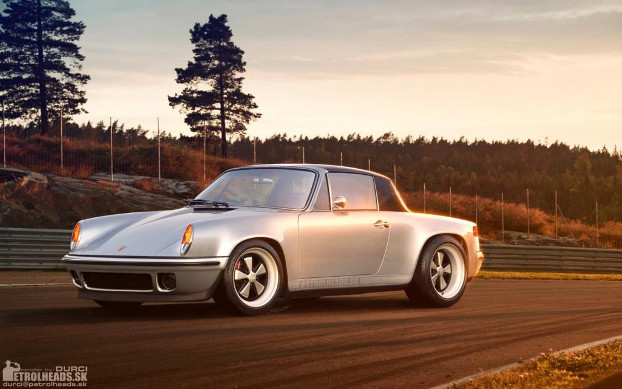

Intercoolers + Turbos mid mounted
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
veekry9
post Oct 20 2014, 04:56 PM
Post #140


OldMember
****

Group: Retired Members
Posts: 3,068
Joined: 17-June 13
From: TO
Member No.: 16,025
Region Association: Canada



Attached Image

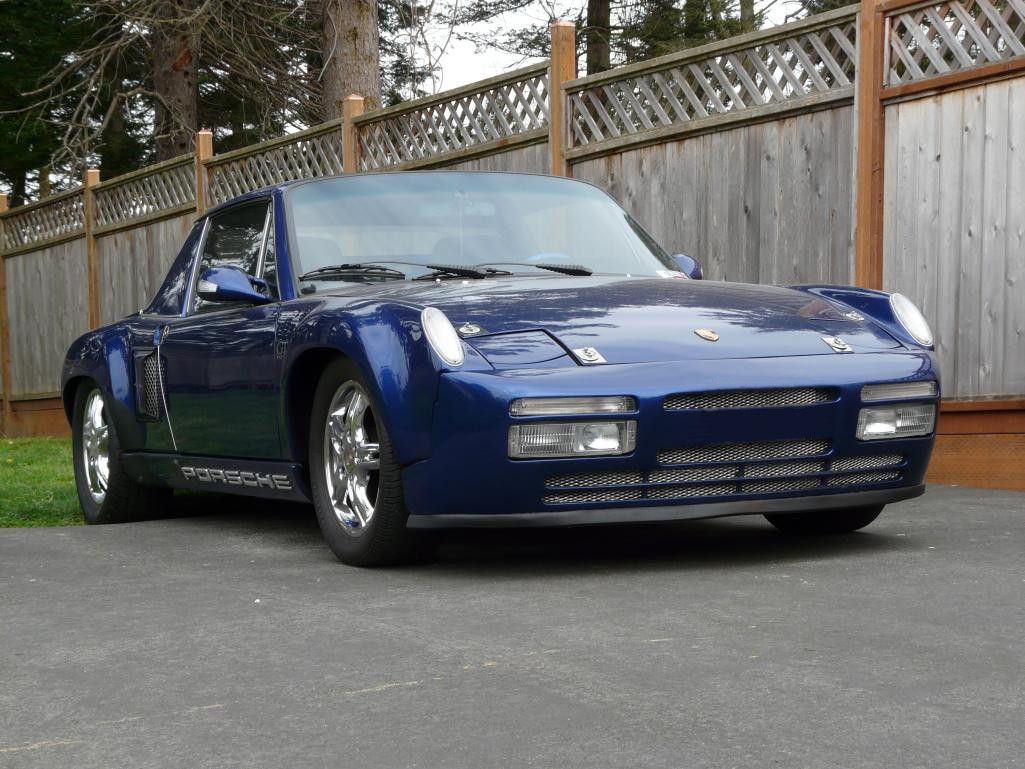

Liquid cooled?
Requires a rad in front.
A very sophisticated look also from the 924/944/968 product lines.
Well done.I even like the color.
Raised brand logo on rocker is a nice custom touch.

edit:Nov 15/14 found this>
http://members.rennlist.com/bluethunder/coverpag.htm
User is offlineProfile CardPM
Go to the top of the page
+Quote Post

16 Pages V « < 5 6 7 8 9 > »
Reply to this topicStart new topic
2 User(s) are reading this topic (2 Guests and 0 Anonymous Users)
0 Members:





- Lo-Fi Version Time is now: 24th December 2024 - 06:22 AM
