PIX, Pix Of Enlightenment Options

[veekry9]

A chalkboard was used to express the idea.

(edit:01/21/16)

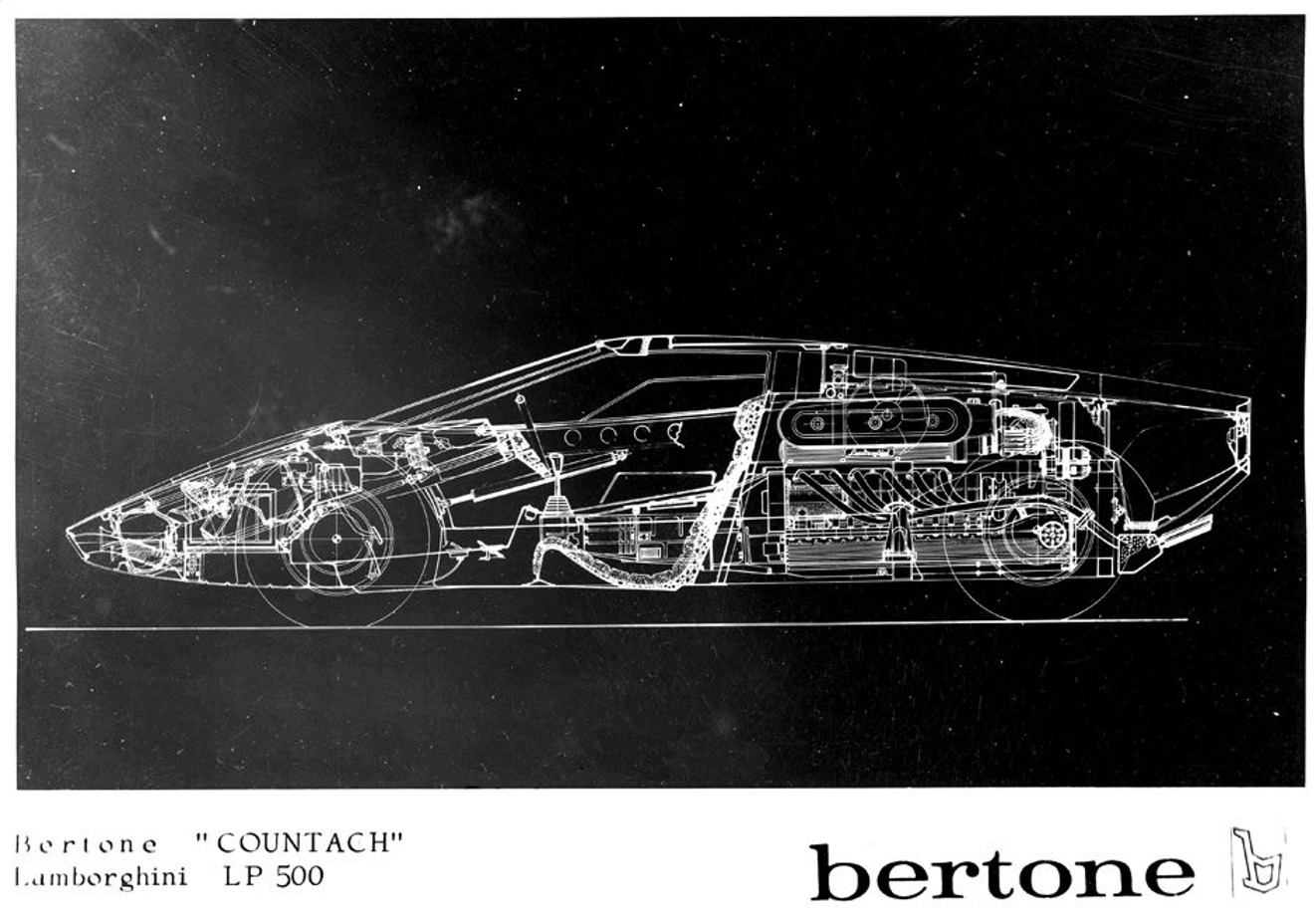

As per drawing,5L-V12 Longitudinal.

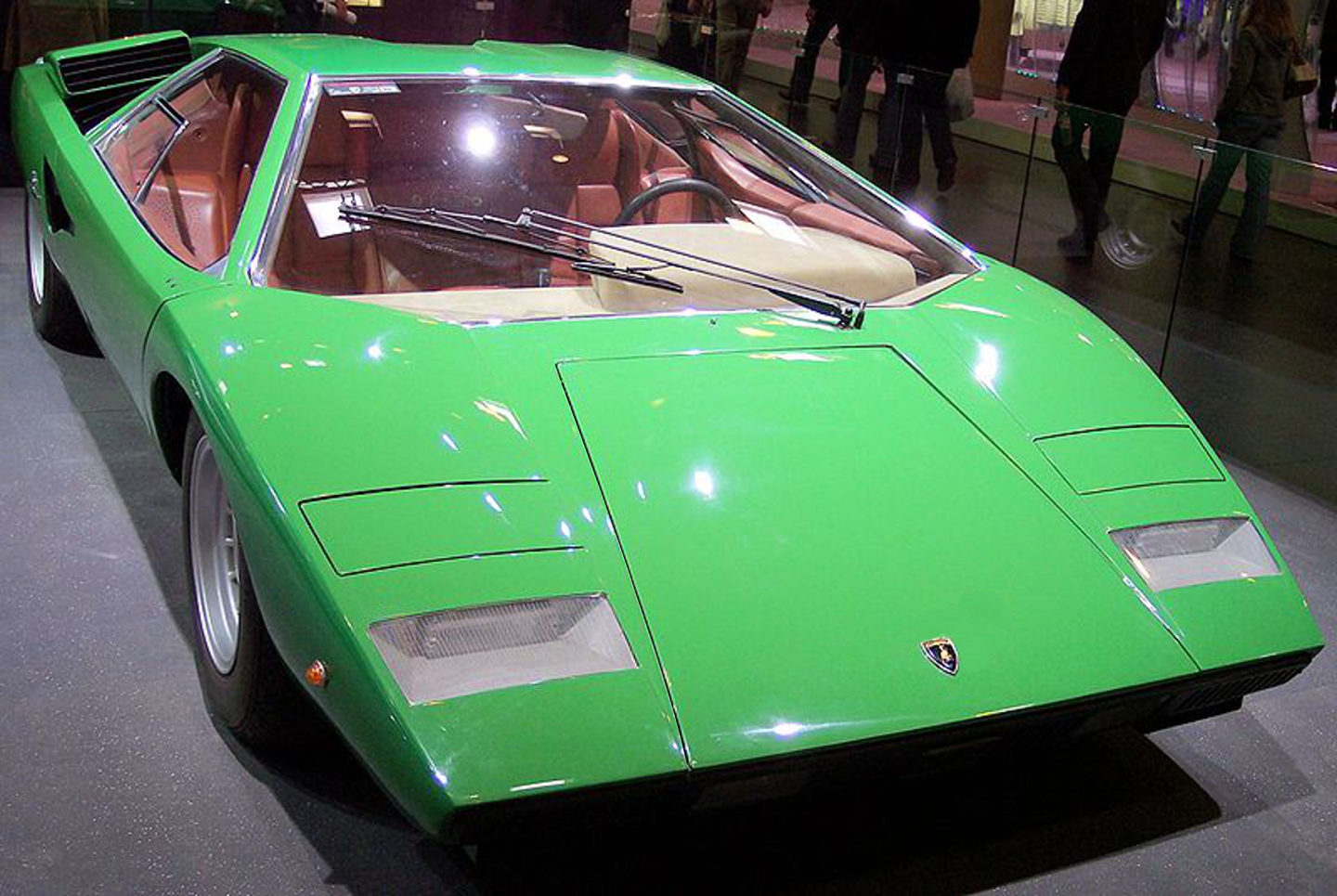

The actual Countach we drooled on at the show in TO,I recalled the fitment of the frunk,so I 'repaired' it in Gimp.I even like the color,new in 69.

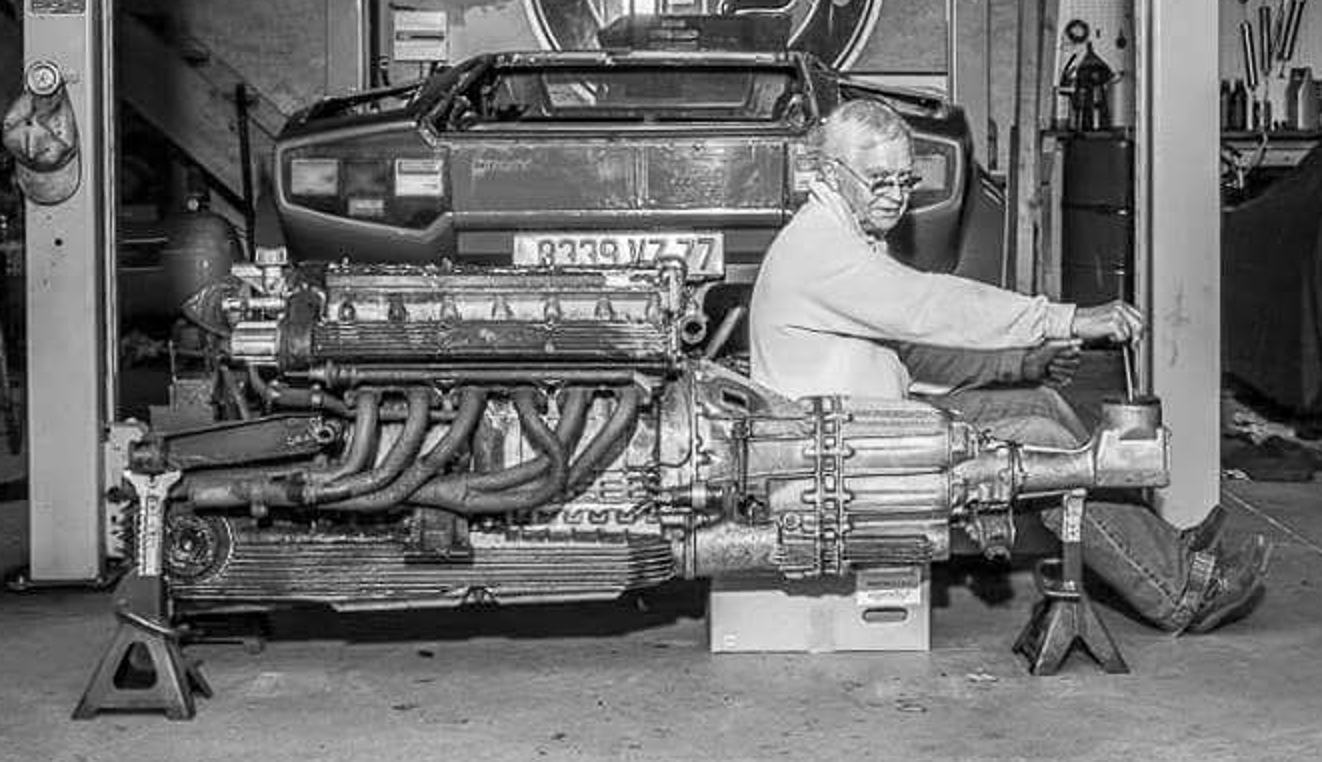

A longitudinal mid. (IMG:style_emoticons/default/biggrin.gif)

[veekry9]

The wing is the thing.
A much larger derriere,the proportions remain similar to original measure.

[veekry9]

A forlorn 924/944 resurrected as a mid,a difficult transition.
Looks neat tho. (IMG:style_emoticons/default/smile.gif)

Checking the ads for a cheep 944,engineless.



(edit:11/24/15)
Outside of the box,a real Porsche.Turbo'd n Chilled (IMG:style_emoticons/default/biggrin.gif) It is however,still front engine!
http://rennlist.com/forums/924-931-944-951...oled-boxer.html
http://gatebil.no/gallery_photo/
http://www.performanceforums.com/forums/sh...nt-to-do/page10

[Dave_Darling]

The wing is the thing.
A much larger derriere,the proportions remain similar to original measure.

The engine lid is at the wrong angle. It also looks rather smaller in scale than the rest of the car.

Unless it's sporting a super-narrow engine tilted up oddly?

--DD

[veekry9]

Ya,I put it there to be visible at the viewpoint of the drawing,so the fan was visible,the injector covers are merely decorative.

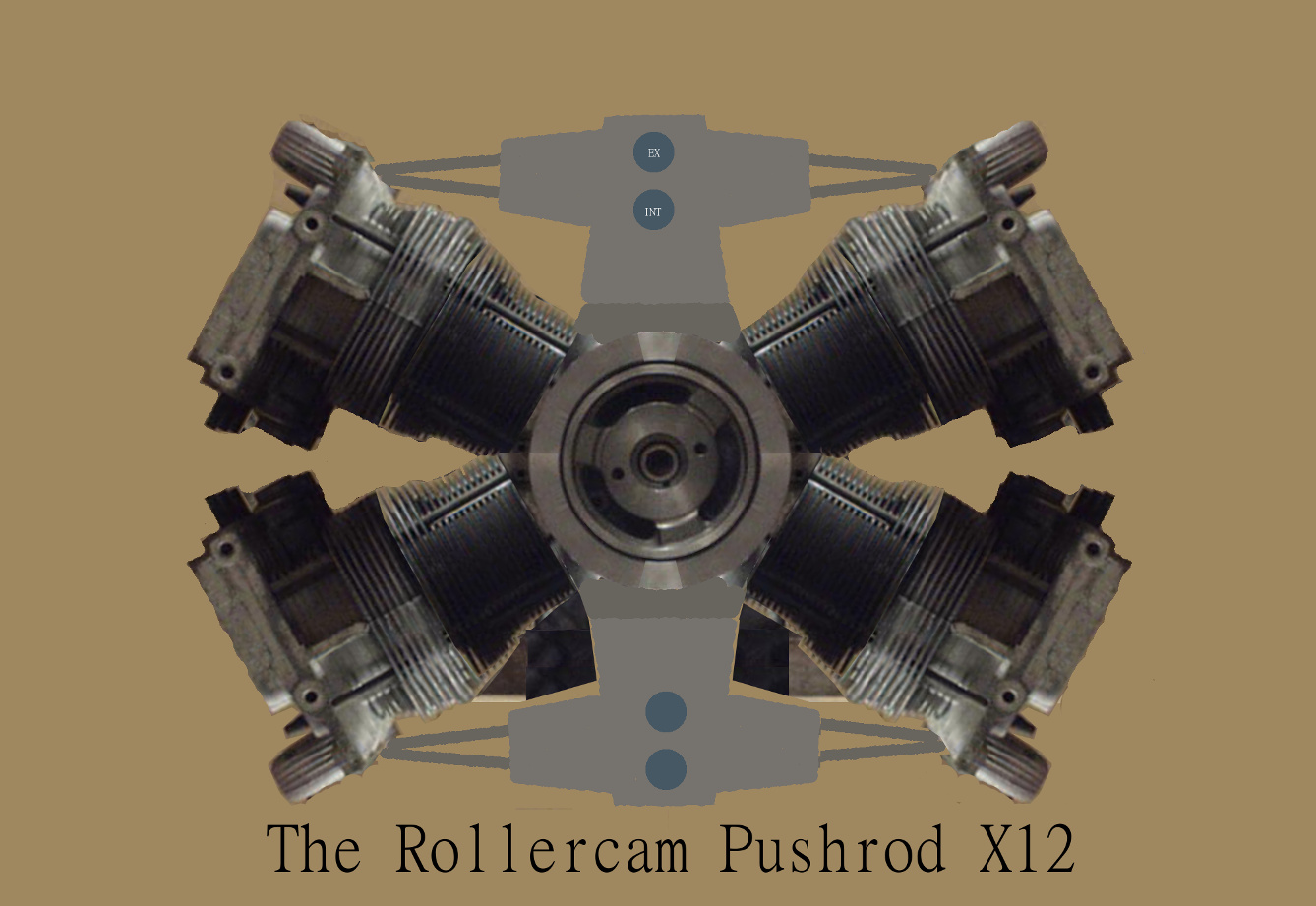

While I was working on an 8,a 12 came up.An x configuration,solves a couple of problems and creates others.Seems workable tho.
(720/6)/2=60*.An unusual layout made more viable by the 15* VR6.(Quote:You can't do ....).
No overnight sensation,this is a long term project with plenty of challenges.Like how do you incorporate a vvt layout with only 4 cams?
/
(edit:05/26/16)

New metallurgy allows significant weight loss,thermal conductivity improved.


A set of cylinders of minimum mass.


(IMG:style_emoticons/default/biggrin.gif)
/

[veekry9]

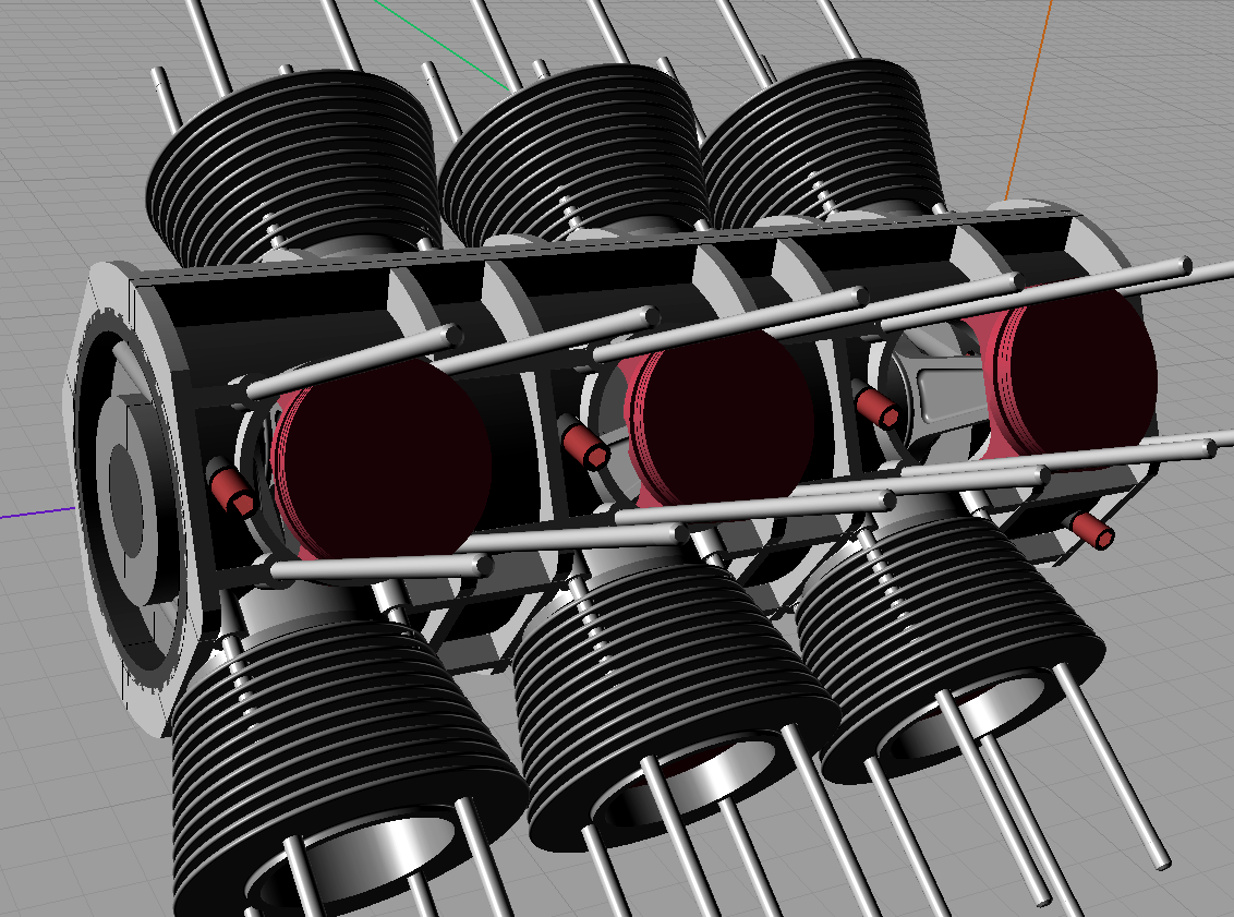

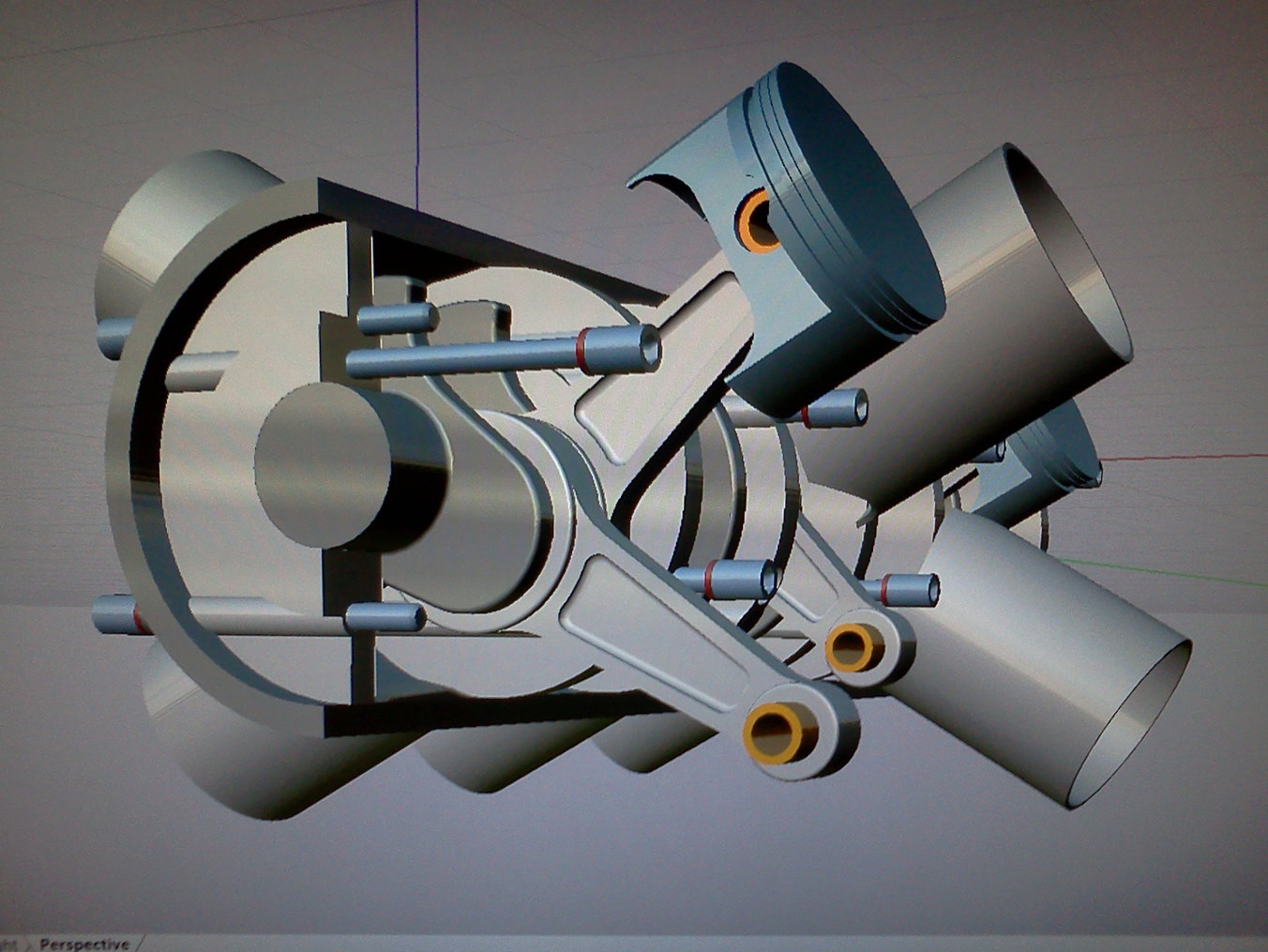

Pretty Pix of the computer model of the X12.

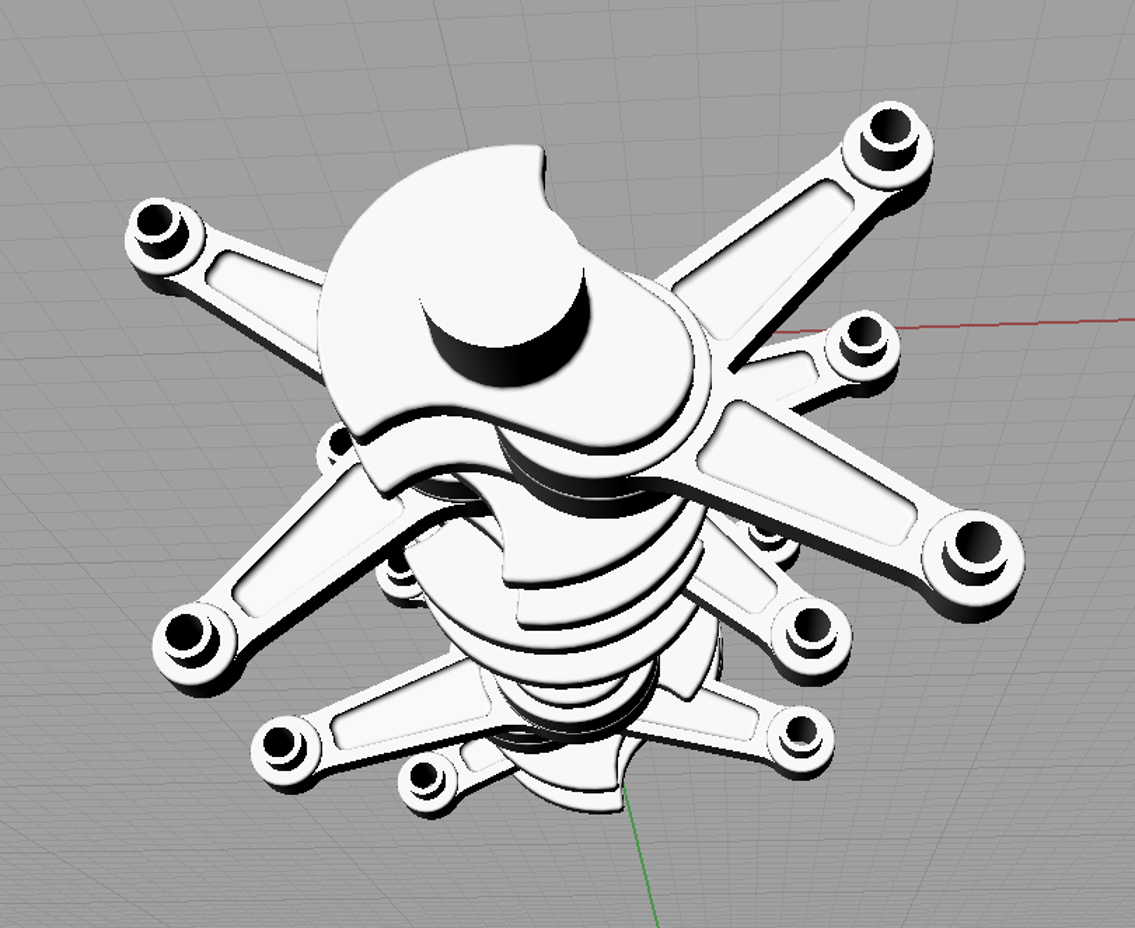

Used sbc dimensions for the rods,etc.This is a huge displacement,4.25 bore x 3 stroke.
4.06" Bore X 2.5" Stroke=427"/7L
What it will sound like.. (IMG:style_emoticons/default/evilgrin.gif)
http://audacityteam.org/download/
 935_12_05.mp3 ( 1.14mb ) Number of downloads: 170

A nice tone for a phone or alarm,wake to the sounds of a 935-12.
the original file:  935.MP3 ( 1.14mb ) Number of downloads: 123

[sixnotfour]

80's build...... (IMG:style_emoticons/default/driving.gif)

[veekry9]

Sure,this is at the root of the Martian9 body.
One of the drawbacks is the aero drag,can't install the heavy door bars and have windows that move.
Certainly a much simpler approach,one that has worked well in the past and looks acceptable now.
My endeavor is the smooth-sided with the massive scoops and intercoolers,maintaining the cg of a mid.
The effect of the weight of the rads up front can be tested by simply filling a pail of water and swinging it about at 140mph.
The other purpose of the large (TR)side scoops is to fill the rear of the targa,reducing induced drag,with the fan.
The major surgery and workload doesn't put me off at all,as some of my work related jobs took 8+ months to complete(turbines).
The doorskins are fair game for my plans,and may be subject to a material change,to make more light.Patient,critical design.
The only criticism I have is the spoiler,which,of course,is not effective at all,reminiscent of ricer additions to compact sedans.
A more radical change to the concept of adding great power,calls for a serious rollcage and the addition of lightweight components.
A watercooled engine requires I include radiators,intercoolers,hoses,pumps and fans.By confining the added mass to the central
regions of the wheelbase,the cg can be maintained,instead of the 'dumbell' additions at each end,with their larger moments of inertia.
https://www.google.ca/search?q=moment+of+in...2rbQgLfgnaAM%3A

/

[veekry9]

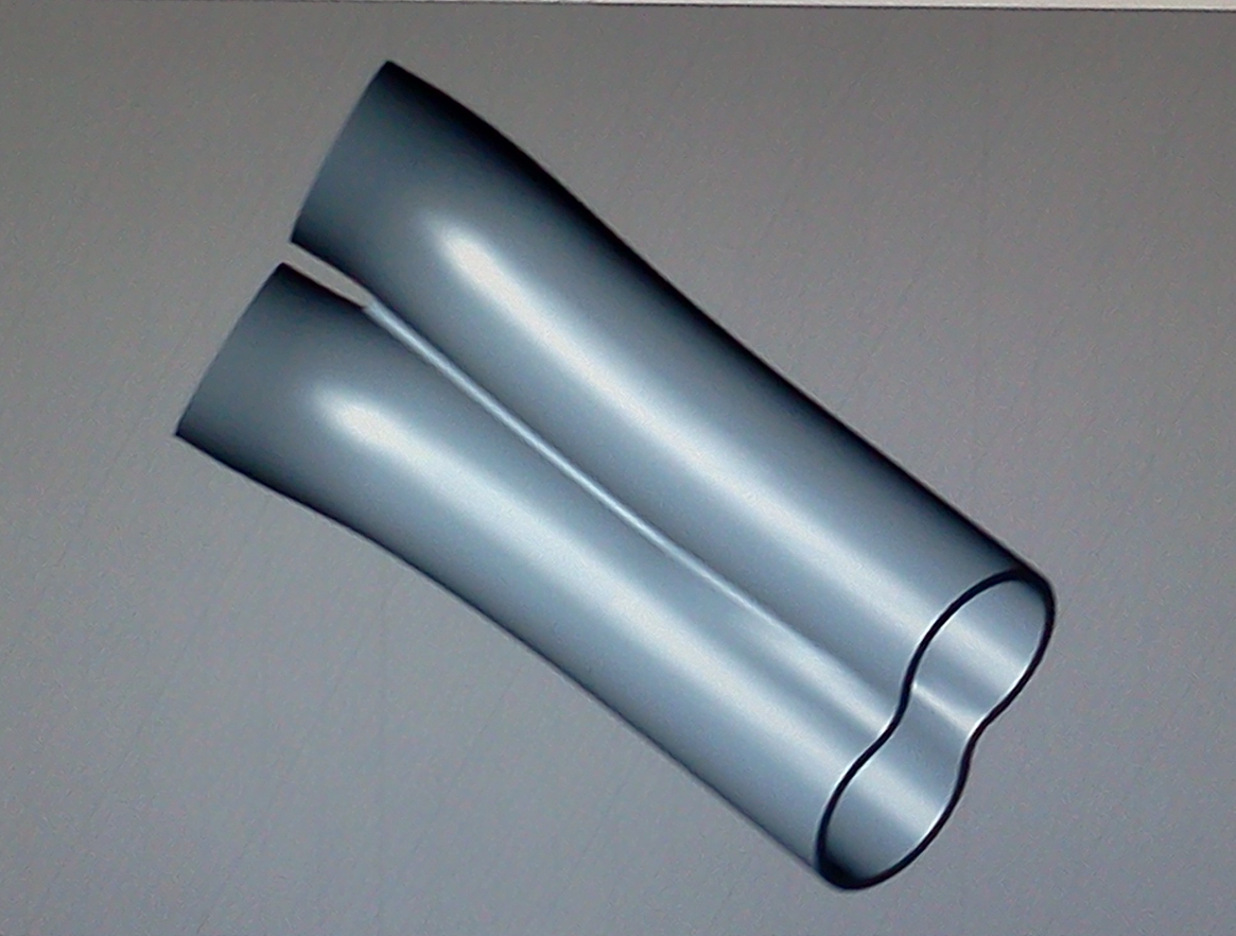

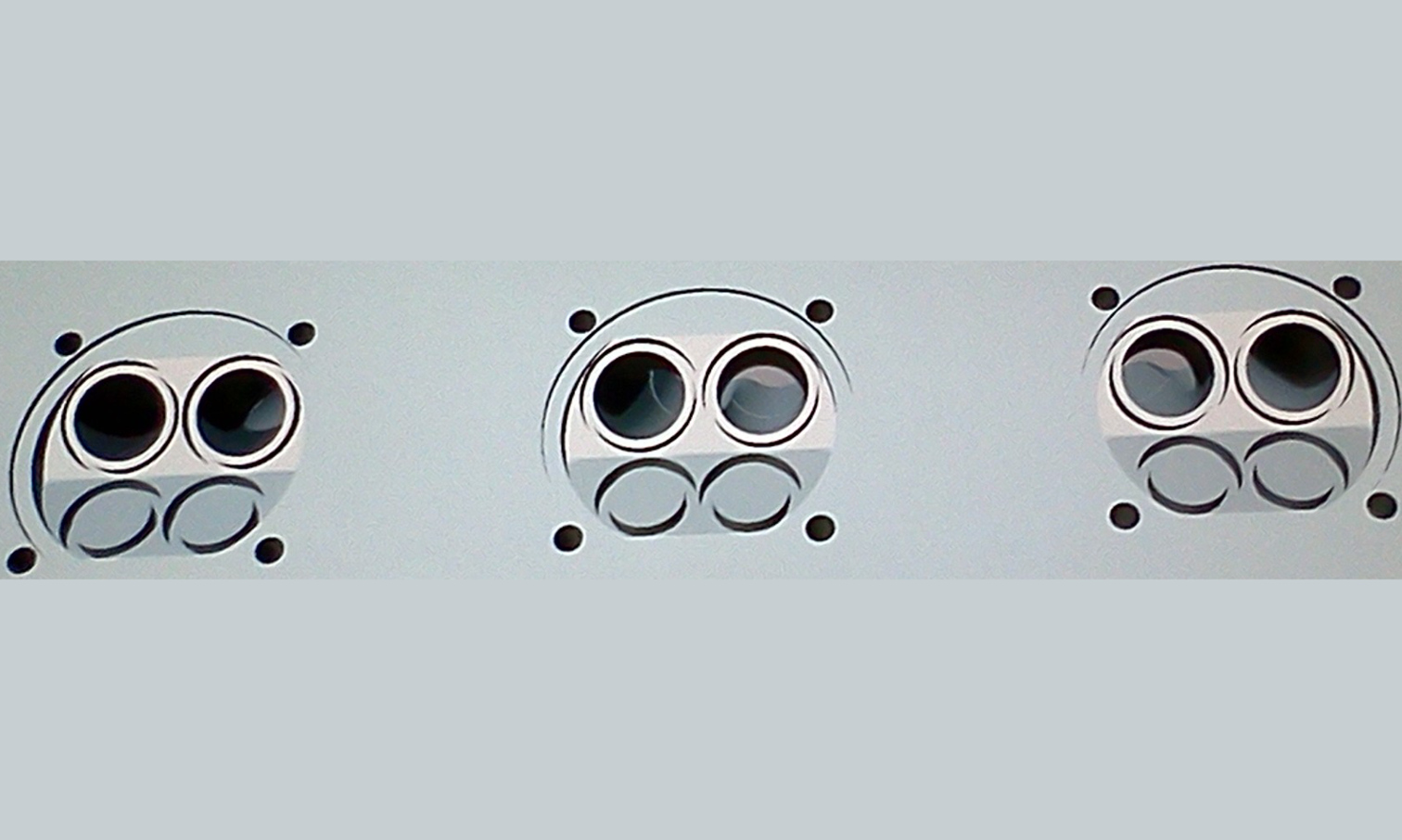

Siamesed Int ports,helical



Chambers,Seat bores



Out through the int holes



More



Port tubes outer skins

[veekry9]

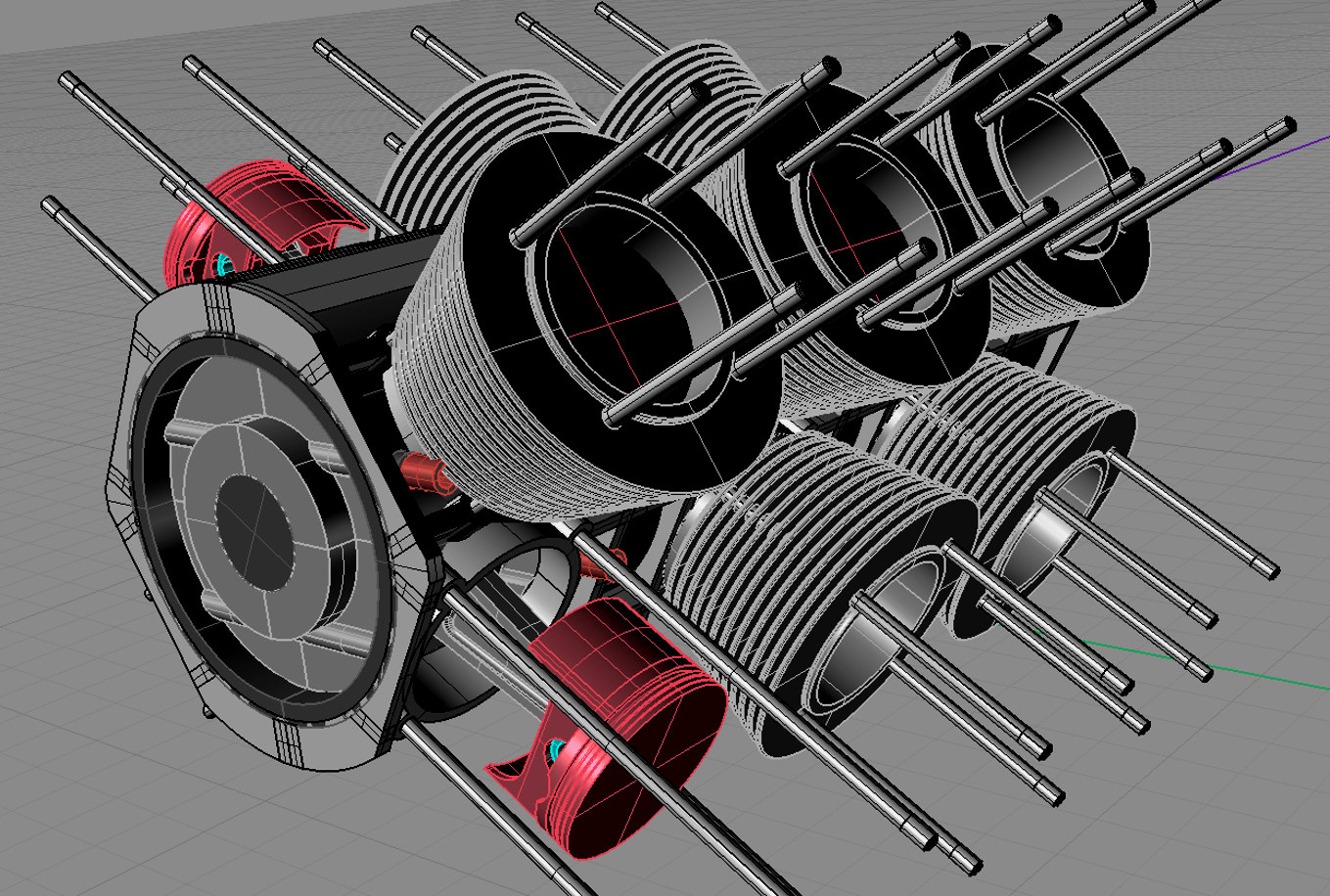

Add some reflections



Appears to be a pair of 60* V6's sharing a common 6 pin crank.
More accurately, a pair of sixes 60* apart,meeting an even fire order.



Right side view,a simple shoebox head,4valve.



Angular view,with case ribs and studs,head studs,Mbearing webs






Some top views,showing the offsets of each bank,shorter than the v or flat arrangments.
The short stroke and large Mbearing dia allows an ample pin overlap.

[mgp4591]

80's build...... (IMG:style_emoticons/default/driving.gif)

At first I didn't know what to think of that body mod, but the more I saw of it over at Genes the more I liked it and if the money was here at the time it might have been mine! We researched the kit and never really found out whether it's a one-off or a kit you can still buy but with a little work it will look sharp! The lines are definitely there and it even suggests lines of the Carrera GT to a degree- have you done any research on it to find out where the parts came from?

[sixnotfour]

its a one off CA. 80's build.. running driving,,,914-6

[veekry9]

Some reading from the references therein.


 LTU_EX_06099_SE.pdf ( 1.82mb ) Number of downloads: 687



http://www.rotaryeng.net/Voyager-Eng.pdf
t4201.pdf
velaccdiag.pdf
LTU-EX-06099-SE.pdf
Mahindra 2 Wheelers - Piston Skirt profile Optimization to eliminate Scuffing and Seizure in a Water and Air Cooled gasoline engine using PISDYN_ForSharing.pdf
117_IJHE_January 2015.pdf
Malpress_afmc_16_07.pdf
538-115.pdf
43662.pdf
20154060.pdf
aerosim_ug.pdf
AirCoolerdHotAir.pdf
A-Theoretical-Model-For-Selection-Of-V-angle-And-Determination-Of-Firing-Order-For-Balancing-Of-V6-engine.pdf
DEA.pdf
definition-F02F.pdf
e3-11-01-03.pdf
energies-08-05866.pdf
Engines.pdf
Garrett_White_Paper_01_Water_Cooling.pdf
httpwww_bg_utp_edu_plartjok32007jo20kones20200720no20320vol201420mitianiec.pdf
IJHE 2013_Kewal.pdf
lecture-7.pdf
LiquidPiston-XMini-Specifications.pdf
l-ring_effect.pdf
ogst08082.pdf
Princeton-CEFRC2.pdf
qip-ice-25-cooling systems.pdf
SAE010903.pdf
Szilard_Engine.pdf
YRJ-1992-IIII.pdf

(IMG:style_emoticons/default/blink.gif)

http://gibtecpistons.com/?page_id=81

Planning a blown engine?


(edit:11/25/15)

 PETRONAS_superbike_engine_case_study.pdf ( 457.77k ) Number of downloads: 302

Worthwhile reading,even now,almost a decade later,just to be on the same page.
http://www.eurospares.com/graphics/engine/...searcheable.pdf
/

[veekry9]

Exhaust Ports,with a large bridge to facilitate cooling.

[mrfourteen]

Early Subarfaroo ran Borgward flat 4s

Flat 12 Subaru museum static display.

Carlo Chitti

[veekry9]

Van engine?
The Pentastar.

http://blog.caranddriver.com/chrysler-reve...-pentastar-v-6/

Available at your local wreckers.




http://www.compositesworld.com/articles/hi...er-expectations
https://www.google.ca/search?q=glass+filled...gA&dpr=1.75

/

[veekry9]

Mostly stock components.VVT. (IMG:style_emoticons/default/dry.gif)
An exercise in ic design,you know,like roll your own. (IMG:style_emoticons/default/biggrin.gif)
An aircooled 12 cylinder to fit inside the 914 envelope,a proposal that the 917 engine cannot meet.
Note the raised cam towers ala Julius Mackerle's Tatra.A vvt setup not available to the designers in '58-69.
https://en.wikipedia.org/wiki/Julius_Mackerle
Lightening up on the reciprocating parts and some elements from this decade makes for a viable -12.
A liquid cooled set of heads makes a 4valve arrangement possible,reducing mass of the valves for a given area.
A convenient feature is the proximity of the exhaust ports for a turboed variant,upping the ante for ultimate power levels of a Nurburgring endurance trackster.
The above pix is a simple Corvair version limited by all of the original factors of that design.


This is a 290 Cummins roller cam follower,cast.

ref:http://www.flycorvair.com/delabruere.html

[veekry9]

Making it all fit,in a nice 904 house,the LeMans windscreen a great fit on the 914.
The windscreen is indeed a 904,and therefore a little pricy,making this six conversion no cheap thrill.
Very light,strong,powerful,quick and fast,all the wishes granted for this 914.
A revised double wishbone front suspension,the rear getting a pair too,(mebee a fabbed upright in light wrought alloy).
The latemodel bumpers have been radically modded to meld with the lengthened nose and tail's bottom,a major change.
A normal door,widened,with windup intact,the frame in cfrp,the glass waterjetted to fit.
Inside,the standard interior will do,the seats customised to shave 60mm off the bottom,the same as the roof's chop.
This is the factory wheelbase,the track widened to carry the larger modern rubber,I chose the ATS 5-Phons of the 928.
The nose and frunklid have been heavily modded to meet the windscreen's valance in a smooth radius,following the cowl.
The nose of the lid is radiused to match the new bumper's recurve.
A good deal of work,not for the faint of heart,a modern suspension with the factory parts reworked.
Two months later,I did some drawing,mapping out the front suspension,setting up the rear for a big change.
I haven't added the massive sidescoop,yet,letting the shape grow on me a little while.
Like,not looking at it,then,looking at it,to see if I still like it.
I do!

[Mueller]

Van engine?
The Pentastar.

http://blog.caranddriver.com/chrysler-reve...-pentastar-v-6/

Available at your local wreckers.

Not too shabby....currently one on eBay, less than 10K miles for only $1600 or best offer...Would look great with some ITBs on it.

You play with Fusion360 yet?

[veekry9]

I've used many/most software,cad and or cam packages over the last four and a half decades.
Currently in love with Rhino,because of the versatile plug-ins available.
https://www.rhino3d.com/sales/north-america/
Every once in a while I'll look and test drive something new or upgraded older packages.
Some are downright funky and counter intuitive,requiring huge training budgets to use with any efficiency.
I think I posted about some of those crash programs the post processors puked out,costing large.
