> PIX, Pix Of Enlightenment
veekry9
post Sep 30 2015, 08:47 AM
Post #201


OldMember
****

Group: Retired Members
Posts: 3,068
Joined: 17-June 13
From: TO
Member No.: 16,025
Region Association: Canada



Attached Image

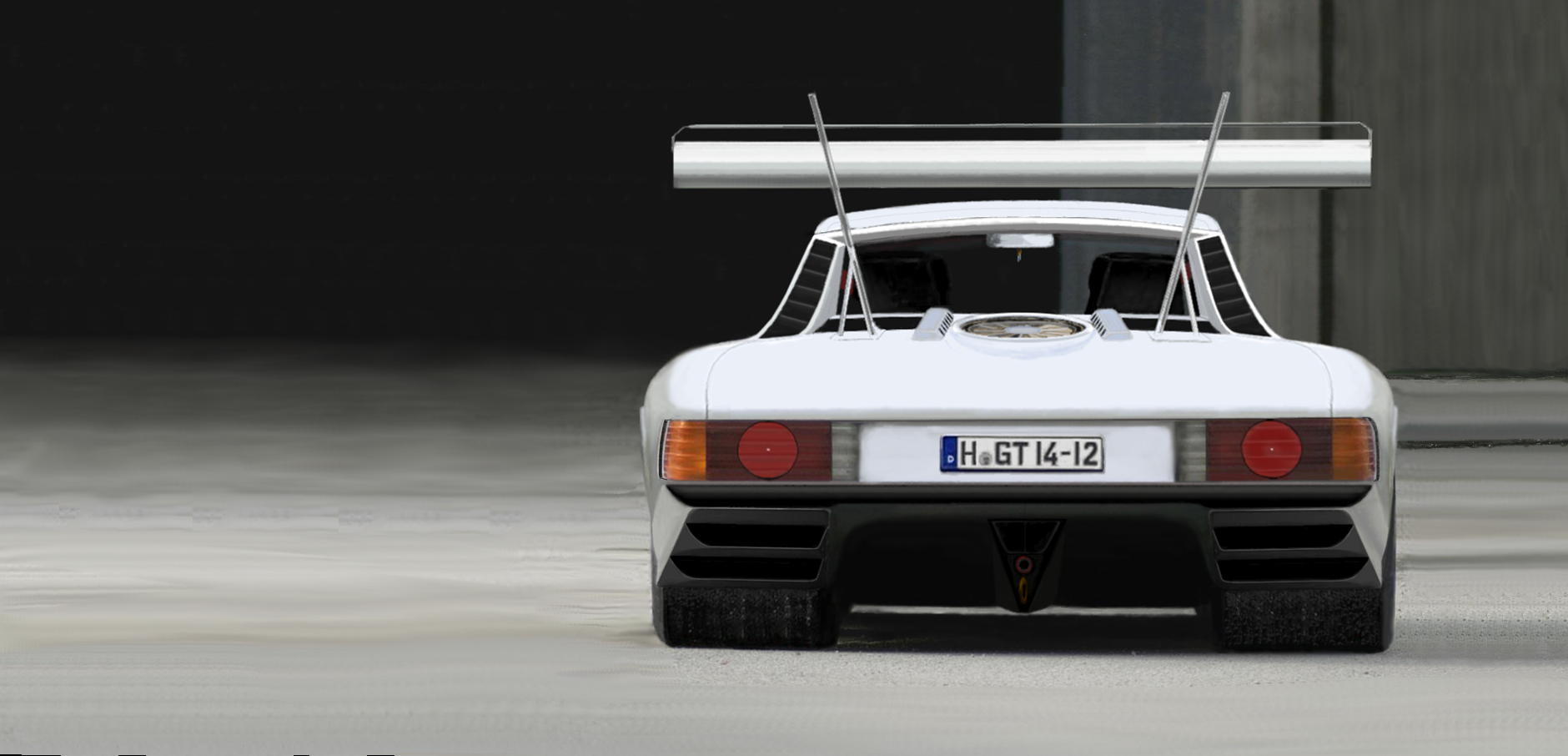

The wing is the thing.
A much larger derriere,the proportions remain similar to original measure.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
veekry9
post Sep 30 2015, 08:50 AM
Post #202


OldMember
****

Group: Retired Members
Posts: 3,068
Joined: 17-June 13
From: TO
Member No.: 16,025
Region Association: Canada



Attached Image

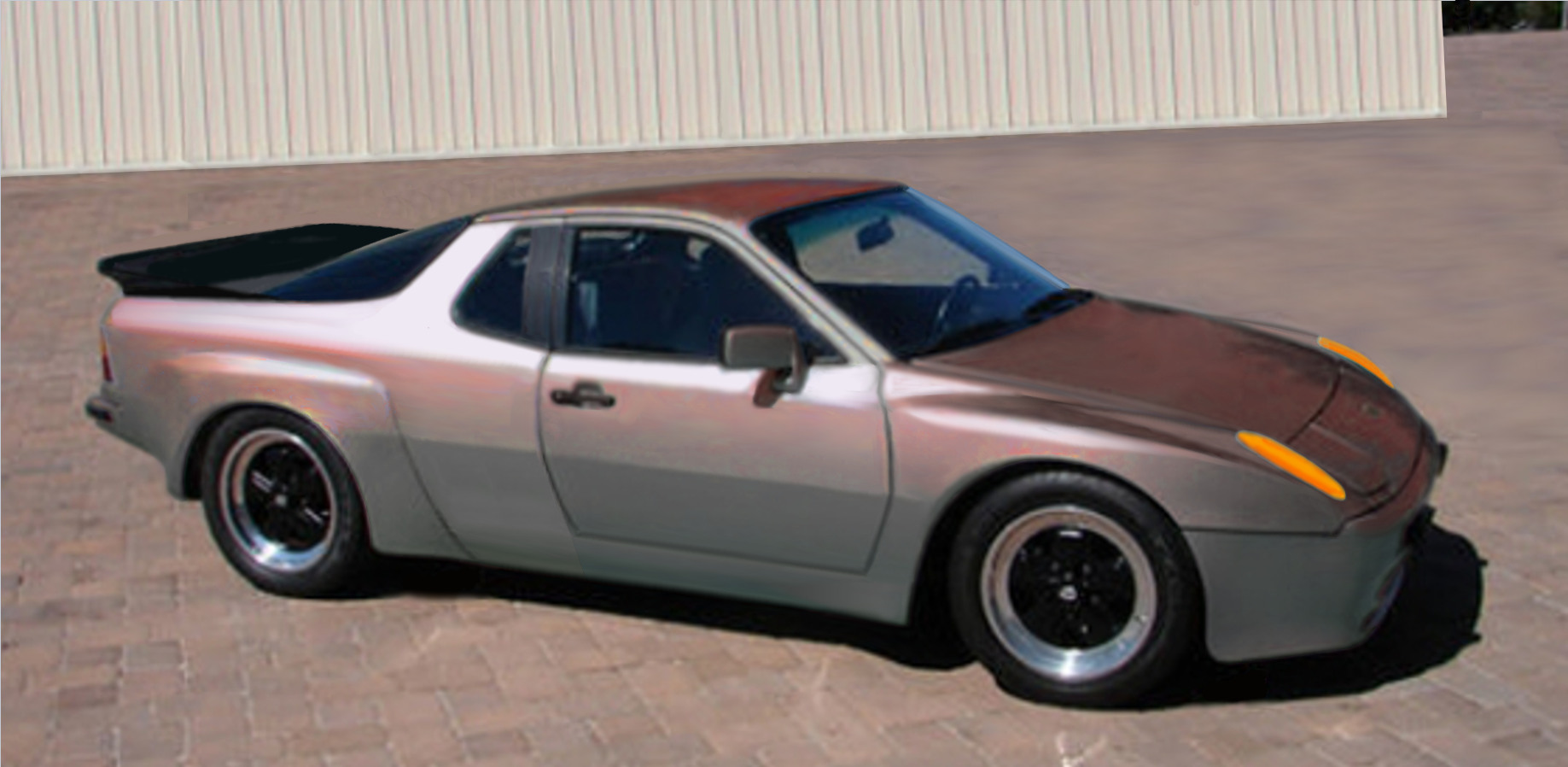

A forlorn 924/944 resurrected as a mid,a difficult transition.
Looks neat tho. (IMG:style_emoticons/default/smile.gif)

Checking the ads for a cheep 944,engineless.

Attached Image

(edit:11/24/15)

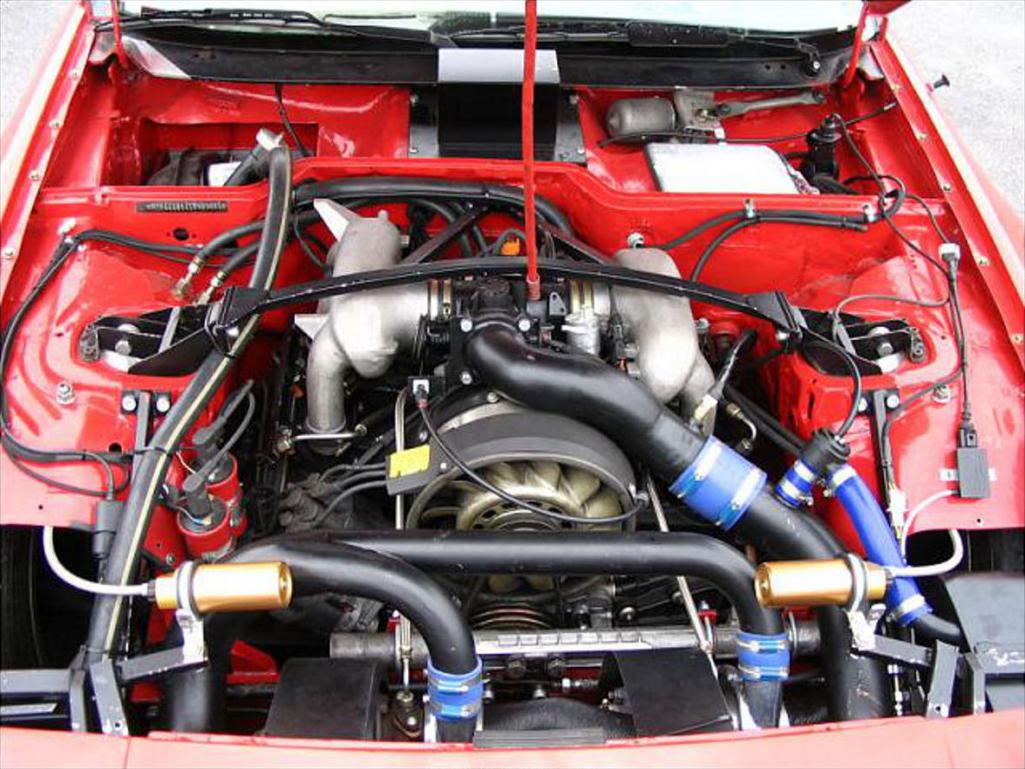

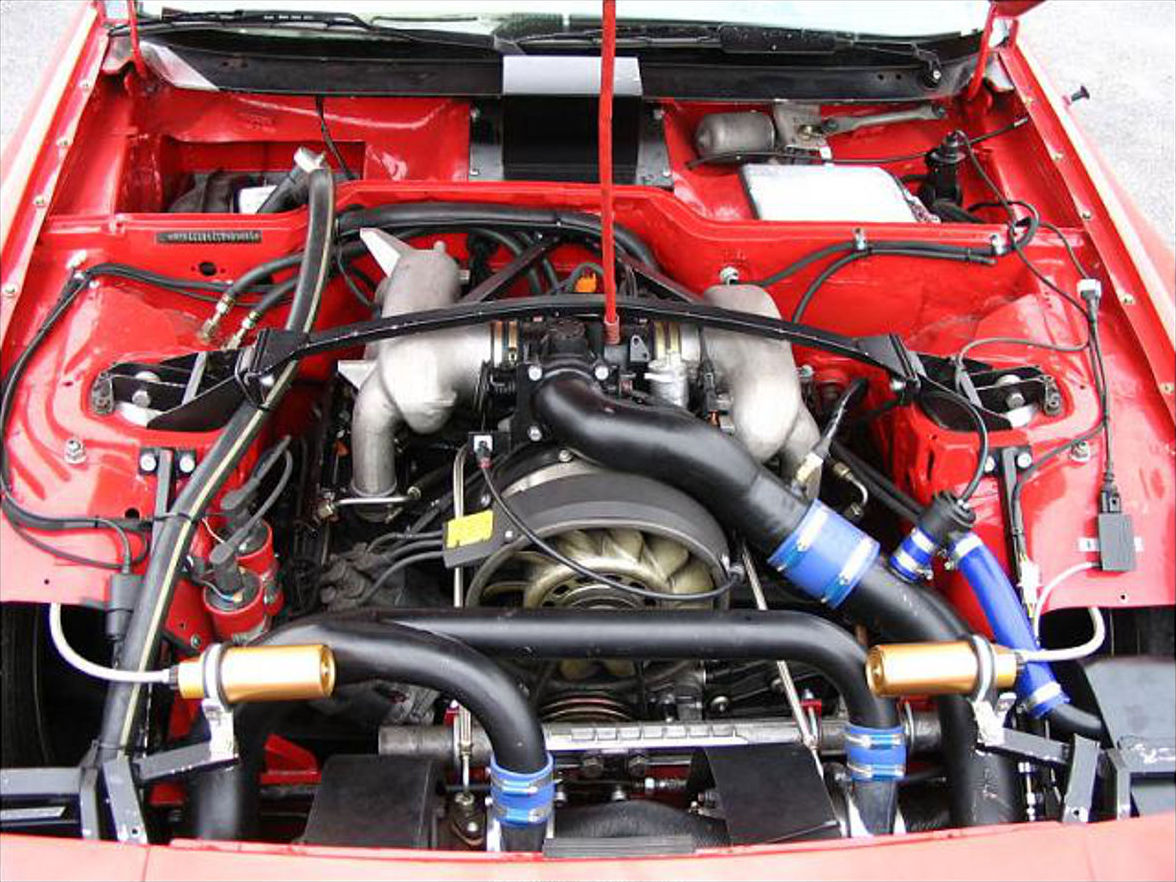

Outside of the box,a real Porsche.Turbo'd n Chilled (IMG:style_emoticons/default/biggrin.gif) It is however,still front engine!
http://rennlist.com/forums/924-931-944-951...oled-boxer.html
http://gatebil.no/gallery_photo/
http://www.performanceforums.com/forums/sh...nt-to-do/page10
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dave_Darling
post Sep 30 2015, 12:38 PM
Post #203


914 Idiot
***************

Group: Members
Posts: 15,063
Joined: 9-January 03
From: Silicon Valley / Kailua-Kona
Member No.: 121
Region Association: Northern California



QUOTE(veekry9 @ Sep 30 2015, 07:47 AM) *

The wing is the thing.
A much larger derriere,the proportions remain similar to original measure.


The engine lid is at the wrong angle. It also looks rather smaller in scale than the rest of the car.

Unless it's sporting a super-narrow engine tilted up oddly?

--DD
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
veekry9
post Oct 1 2015, 04:03 PM
Post #204


OldMember
****

Group: Retired Members
Posts: 3,068
Joined: 17-June 13
From: TO
Member No.: 16,025
Region Association: Canada



Attached Image
Ya,I put it there to be visible at the viewpoint of the drawing,so the fan was visible,the injector covers are merely decorative.
While I was working on an 8,a 12 came up.An x configuration,solves a couple of problems and creates others.Seems workable tho.
(720/6)/2=60*.An unusual layout made more viable by the 15* VR6.(Quote:You can't do ....).
No overnight sensation,this is a long term project with plenty of challenges.Like how do you incorporate a vvt layout with only 4 cams?
/
(edit:05/26/16)
Attached Image

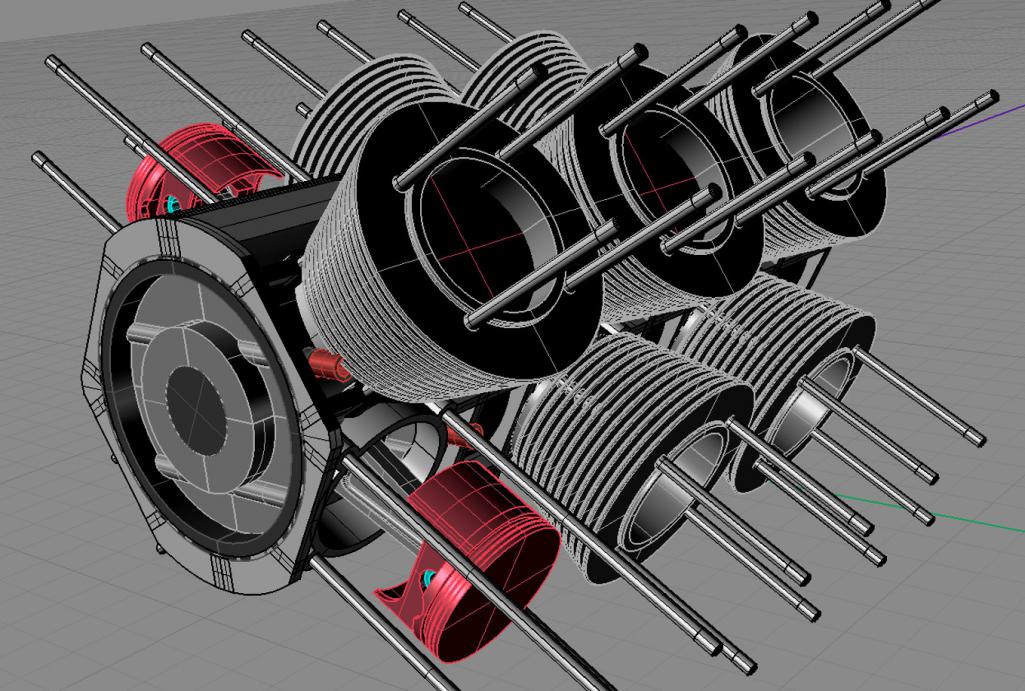

New metallurgy allows significant weight loss,thermal conductivity improved.

Attached Image

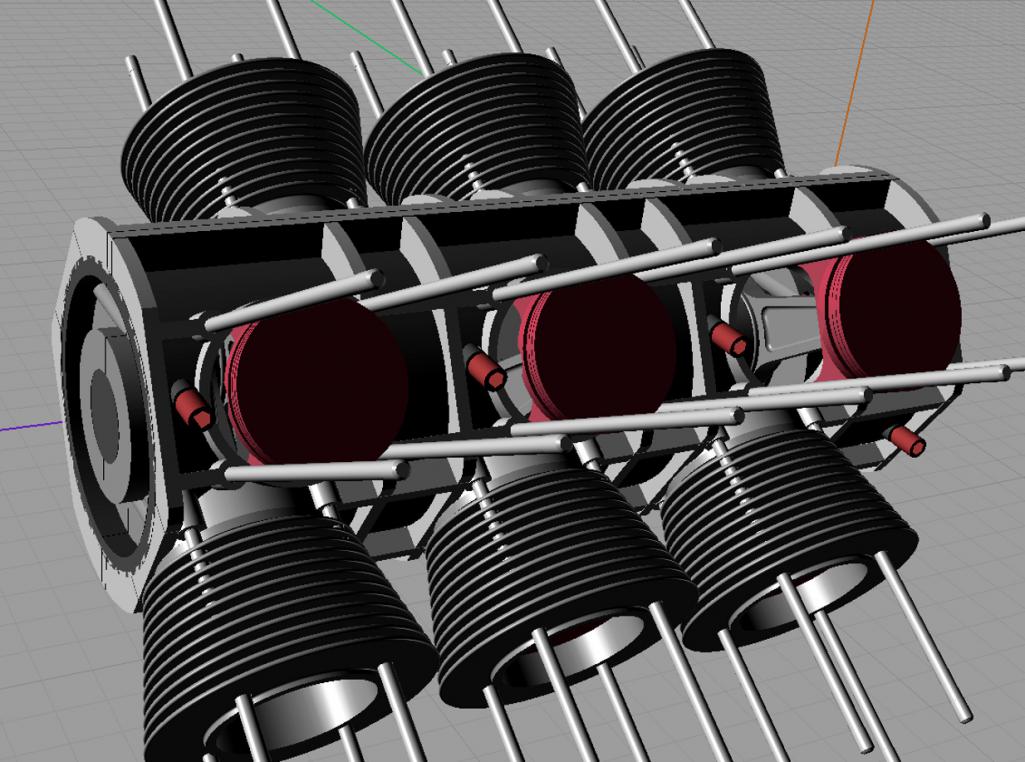

A set of cylinders of minimum mass.

Attached Image
(IMG:style_emoticons/default/biggrin.gif)
/
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
veekry9
post Oct 7 2015, 12:27 PM
Post #205


OldMember
****

Group: Retired Members
Posts: 3,068
Joined: 17-June 13
From: TO
Member No.: 16,025
Region Association: Canada



Attached Image

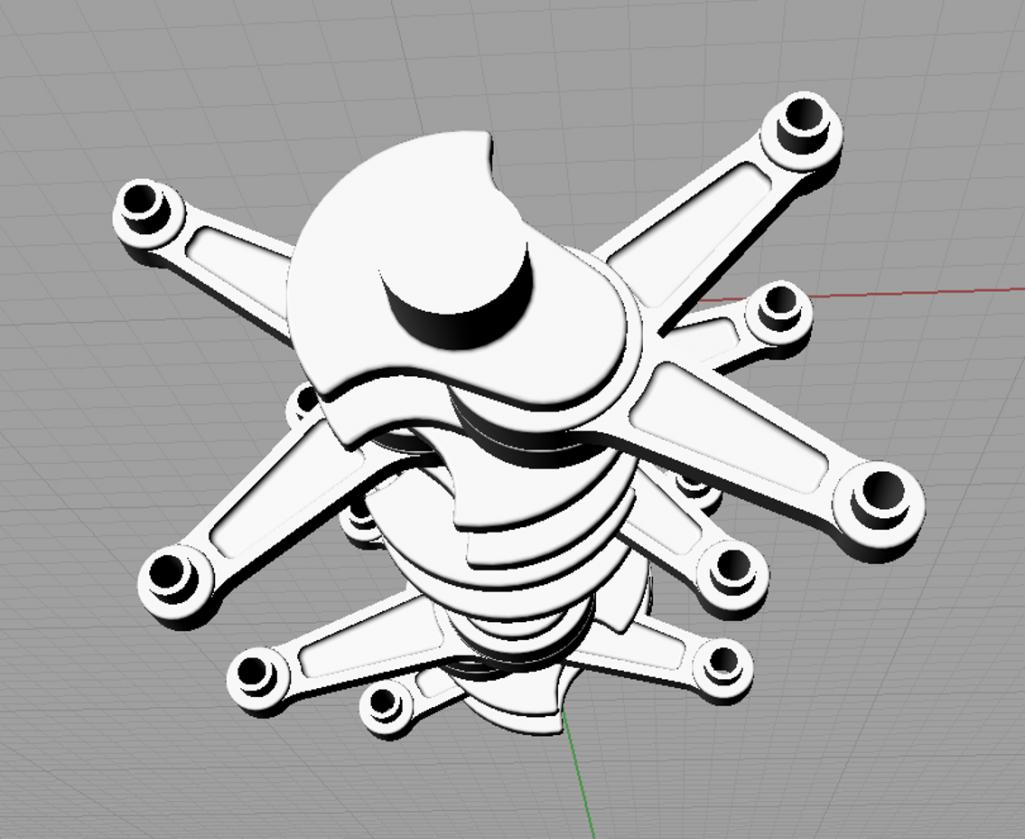

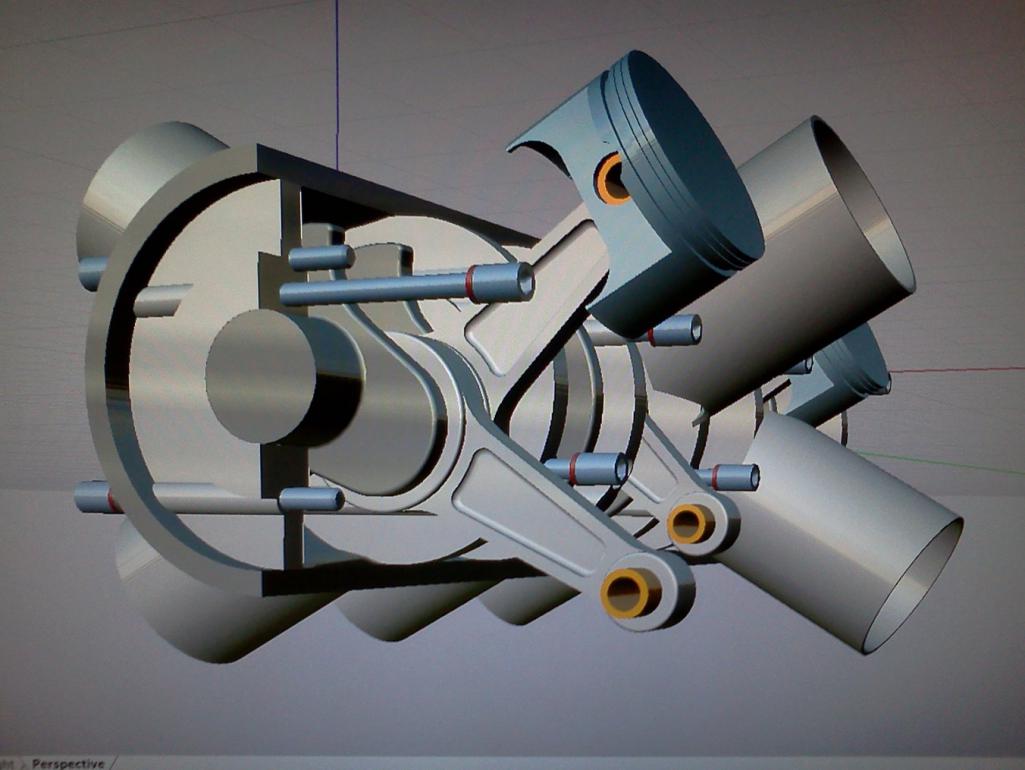

Pretty Pix of the computer model of the X12.

Attached Image

Used sbc dimensions for the rods,etc.This is a huge displacement,4.25 bore x 3 stroke.
4.06" Bore X 2.5" Stroke=427"/7L
What it will sound like.. (IMG:style_emoticons/default/evilgrin.gif)
http://audacityteam.org/download/
Attached File  935_12_05.mp3 ( 1.14mb ) Number of downloads: 169

A nice tone for a phone or alarm,wake to the sounds of a 935-12.
the original file:Attached File  935.MP3 ( 1.14mb ) Number of downloads: 122
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sixnotfour
post Oct 7 2015, 01:49 PM
Post #206


914 Wizard
**********

Group: Members
Posts: 10,677
Joined: 12-September 04
From: Life Elevated..planet UT.
Member No.: 2,744
Region Association: Rocky Mountains

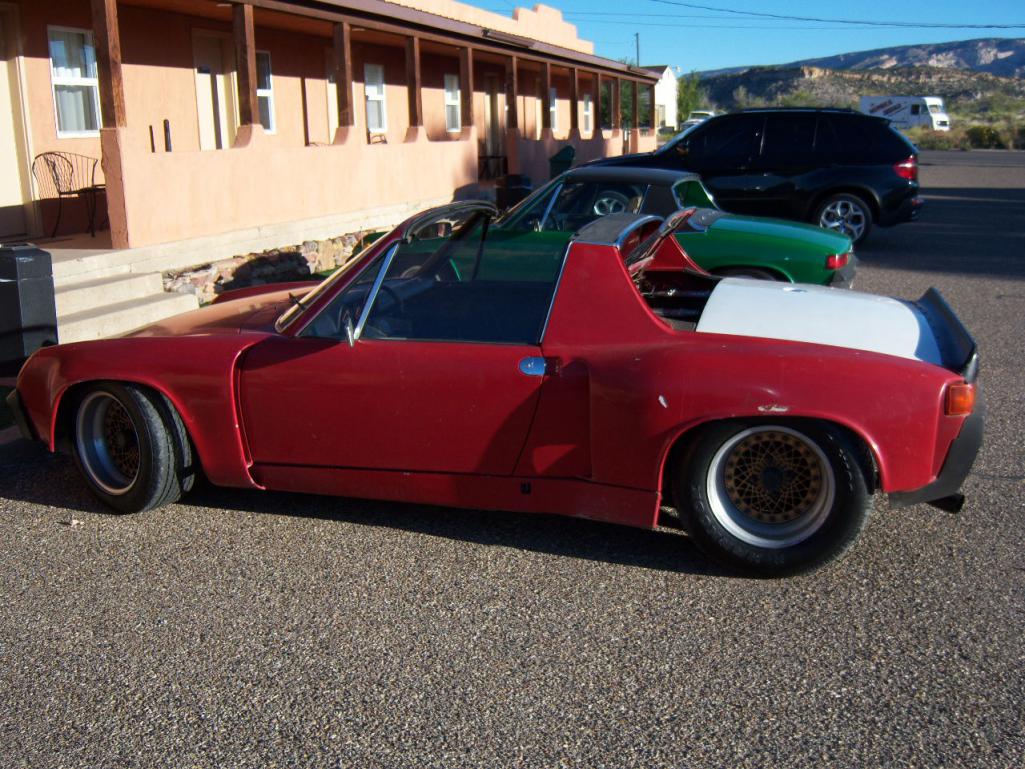

80's build...... (IMG:style_emoticons/default/driving.gif)


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
veekry9
post Oct 7 2015, 02:14 PM
Post #207


OldMember
****

Group: Retired Members
Posts: 3,068
Joined: 17-June 13
From: TO
Member No.: 16,025
Region Association: Canada



Sure,this is at the root of the Martian9 body.
One of the drawbacks is the aero drag,can't install the heavy door bars and have windows that move.
Certainly a much simpler approach,one that has worked well in the past and looks acceptable now.
My endeavor is the smooth-sided with the massive scoops and intercoolers,maintaining the cg of a mid.
The effect of the weight of the rads up front can be tested by simply filling a pail of water and swinging it about at 140mph.
The other purpose of the large (TR)side scoops is to fill the rear of the targa,reducing induced drag,with the fan.
The major surgery and workload doesn't put me off at all,as some of my work related jobs took 8+ months to complete(turbines).
The doorskins are fair game for my plans,and may be subject to a material change,to make more light.Patient,critical design.
The only criticism I have is the spoiler,which,of course,is not effective at all,reminiscent of ricer additions to compact sedans.
A more radical change to the concept of adding great power,calls for a serious rollcage and the addition of lightweight components.
A watercooled engine requires I include radiators,intercoolers,hoses,pumps and fans.By confining the added mass to the central
regions of the wheelbase,the cg can be maintained,instead of the 'dumbell' additions at each end,with their larger moments of inertia.
https://www.google.ca/search?q=moment+of+in...2rbQgLfgnaAM%3A

/
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
veekry9
post Oct 13 2015, 02:36 PM
Post #208


OldMember
****

Group: Retired Members
Posts: 3,068
Joined: 17-June 13
From: TO
Member No.: 16,025
Region Association: Canada



Attached Image

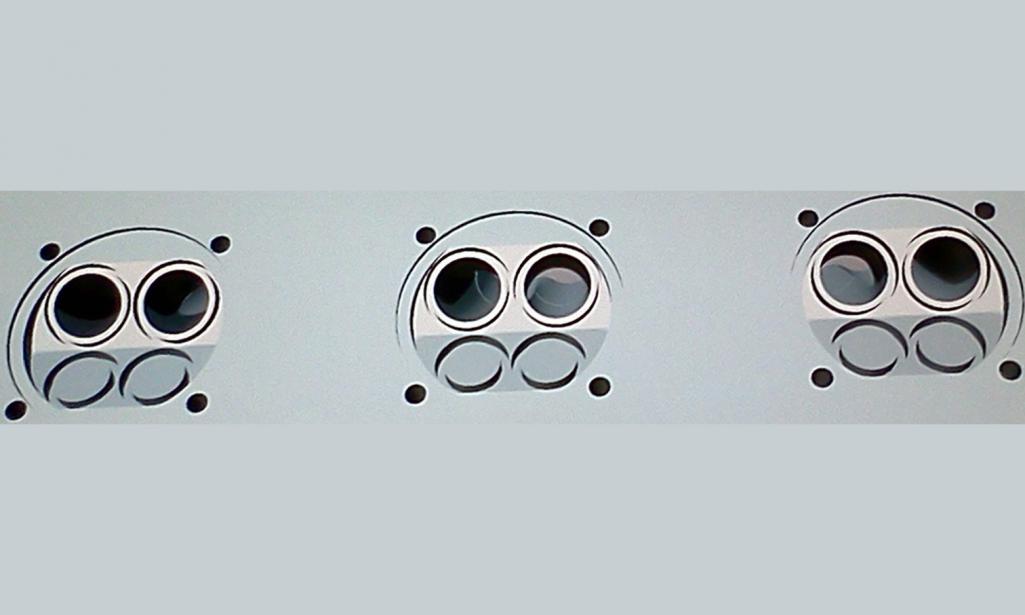

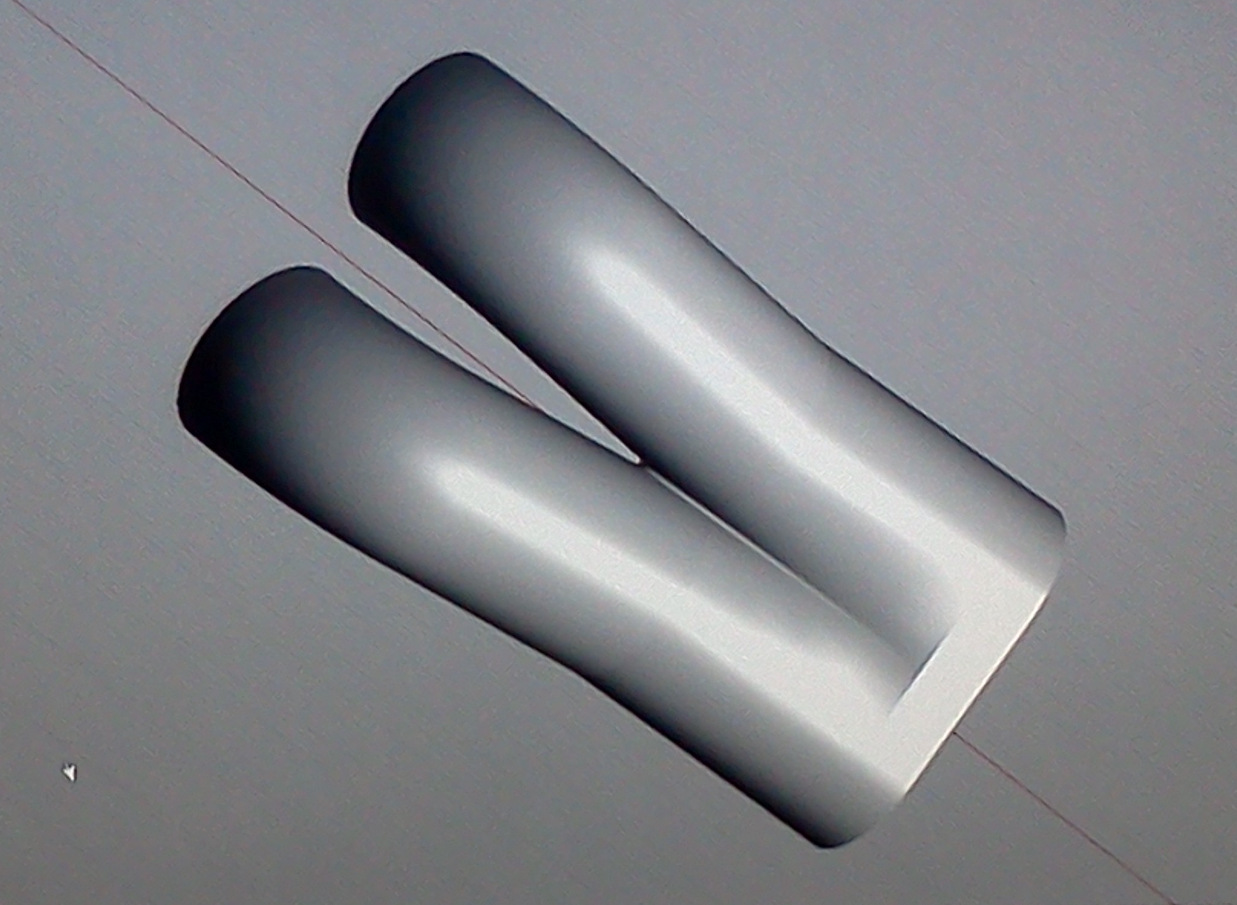

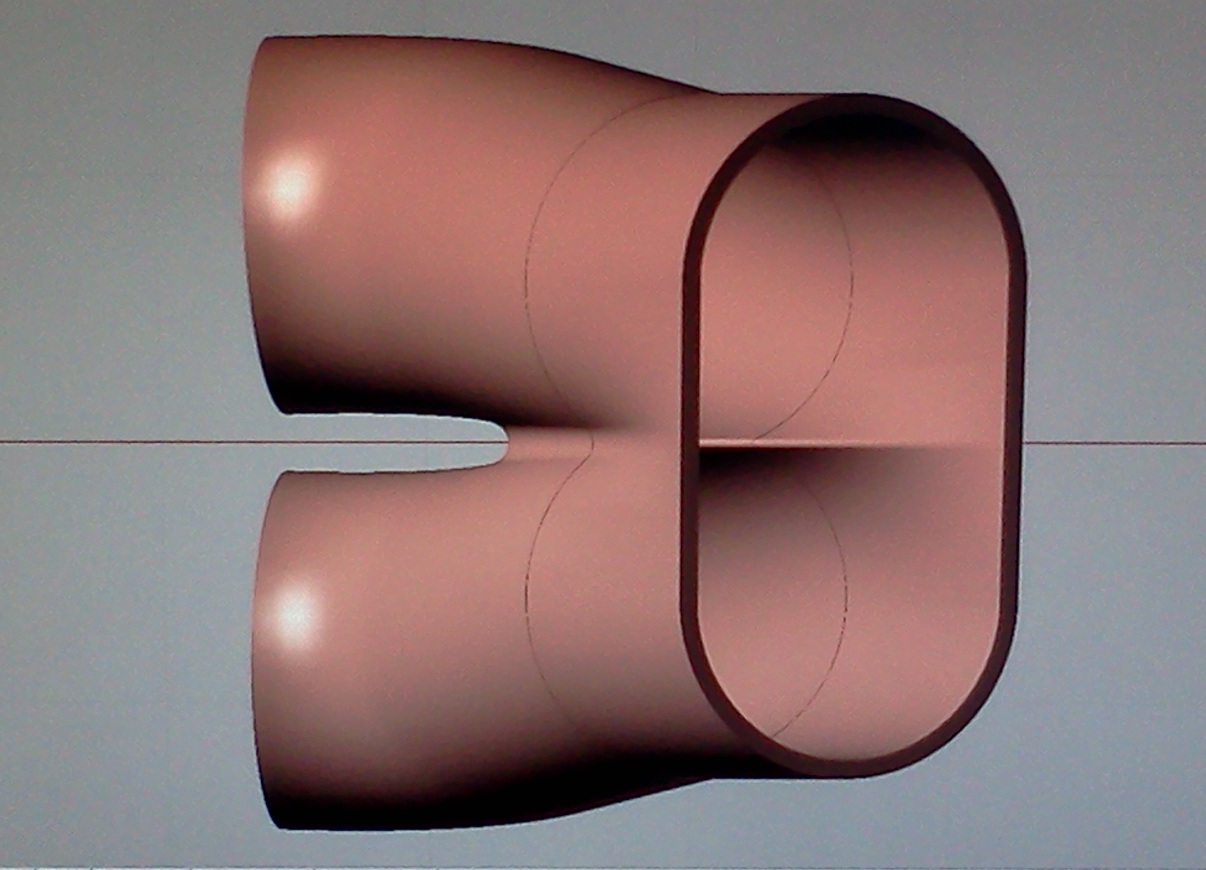

Siamesed Int ports,helical

Attached Image

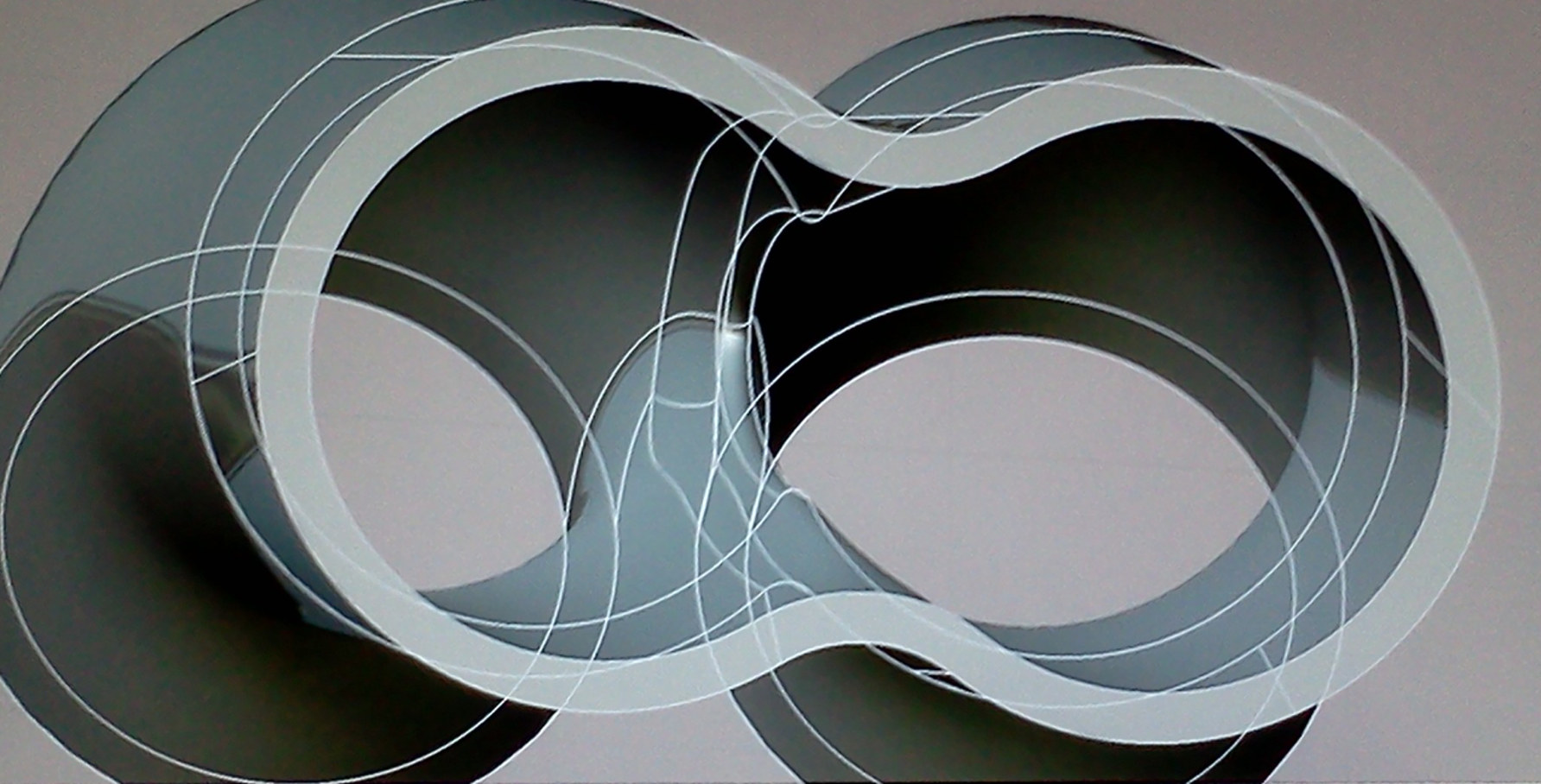

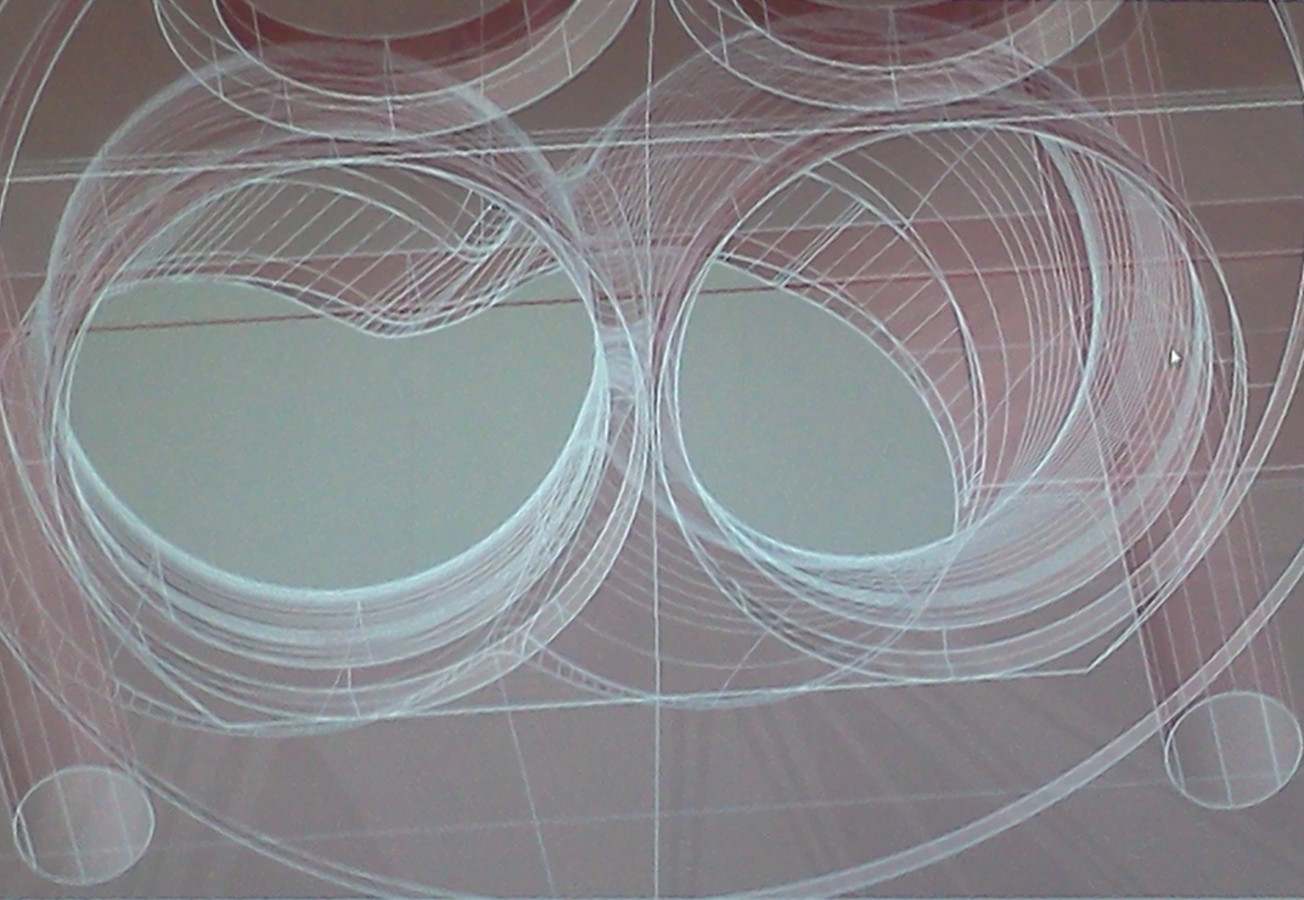

Chambers,Seat bores

Attached Image

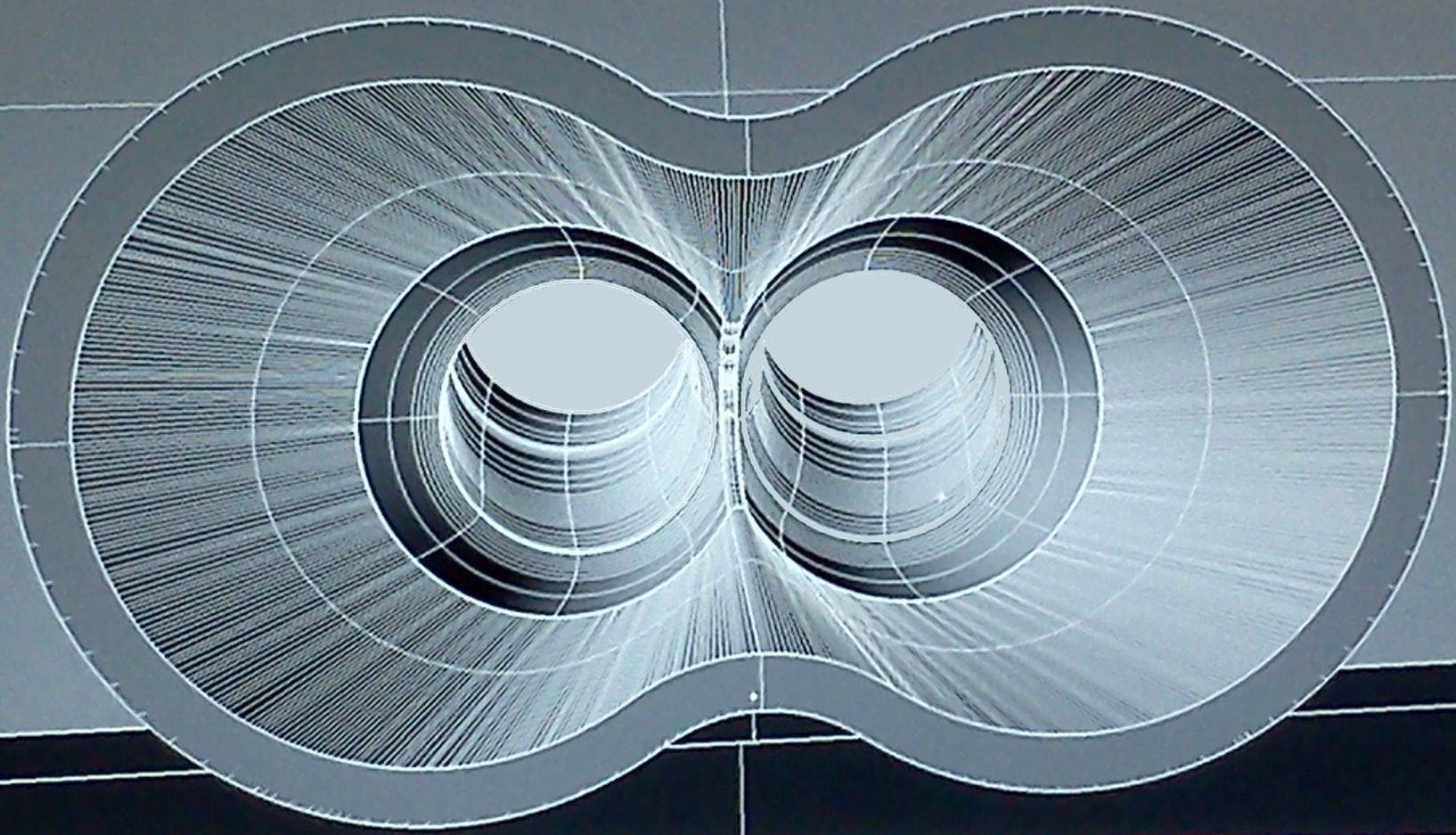

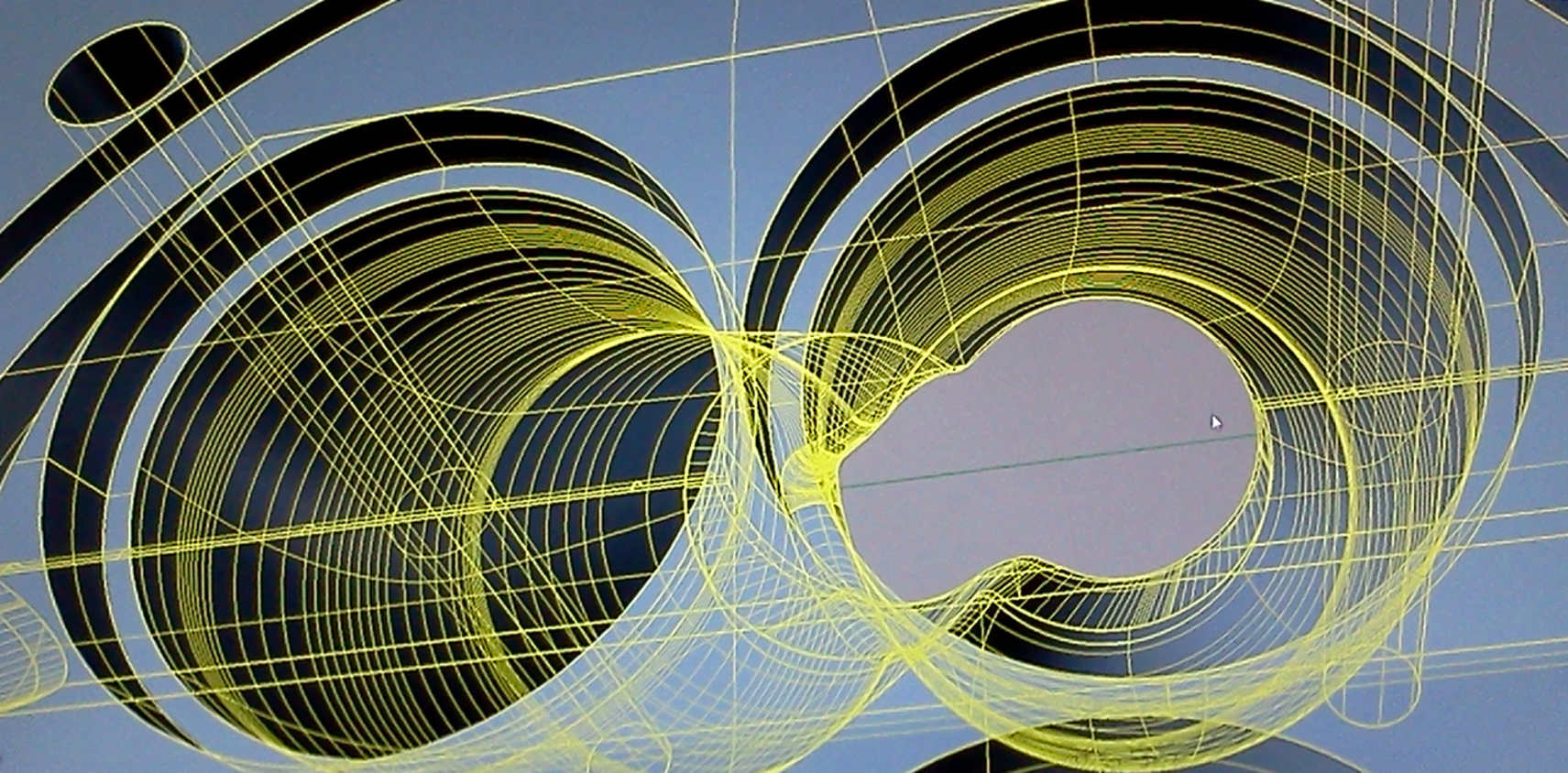

Out through the int holes

Attached Image

More

Attached Image

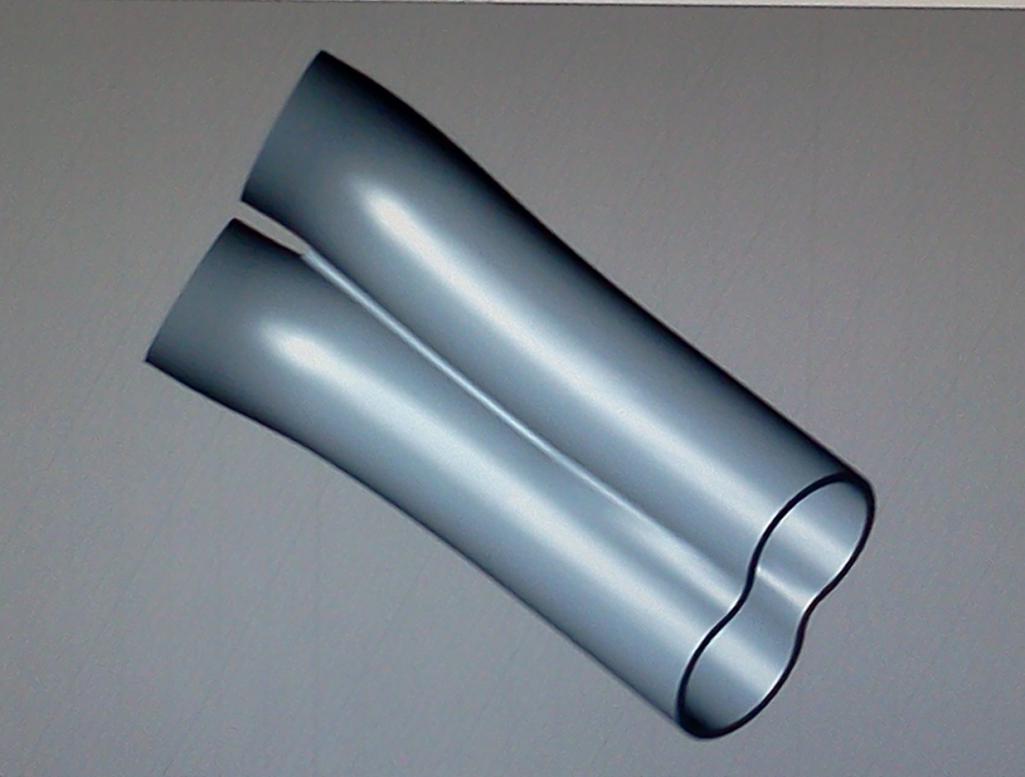

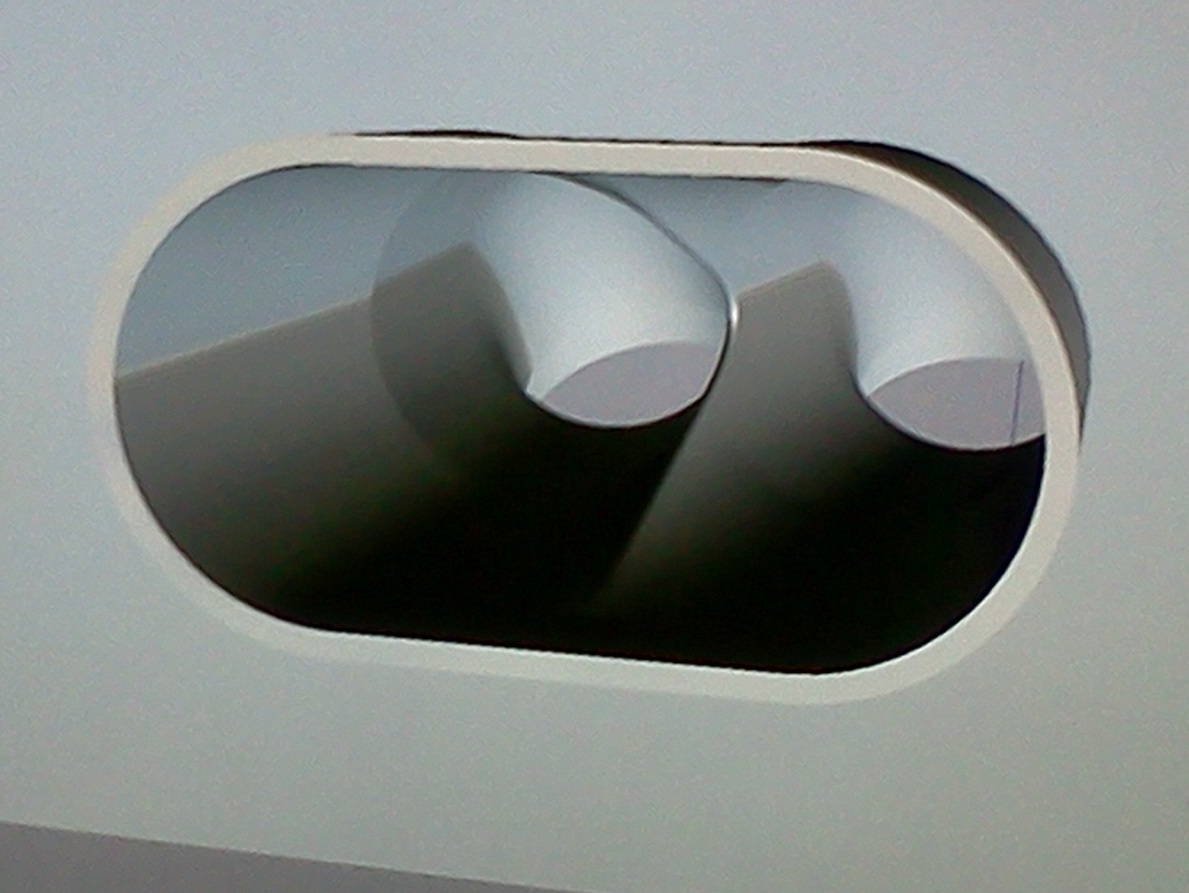

Port tubes outer skins

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
veekry9
post Oct 13 2015, 02:51 PM
Post #209


OldMember
****

Group: Retired Members
Posts: 3,068
Joined: 17-June 13
From: TO
Member No.: 16,025
Region Association: Canada



Attached Image

Add some reflections

Attached Image

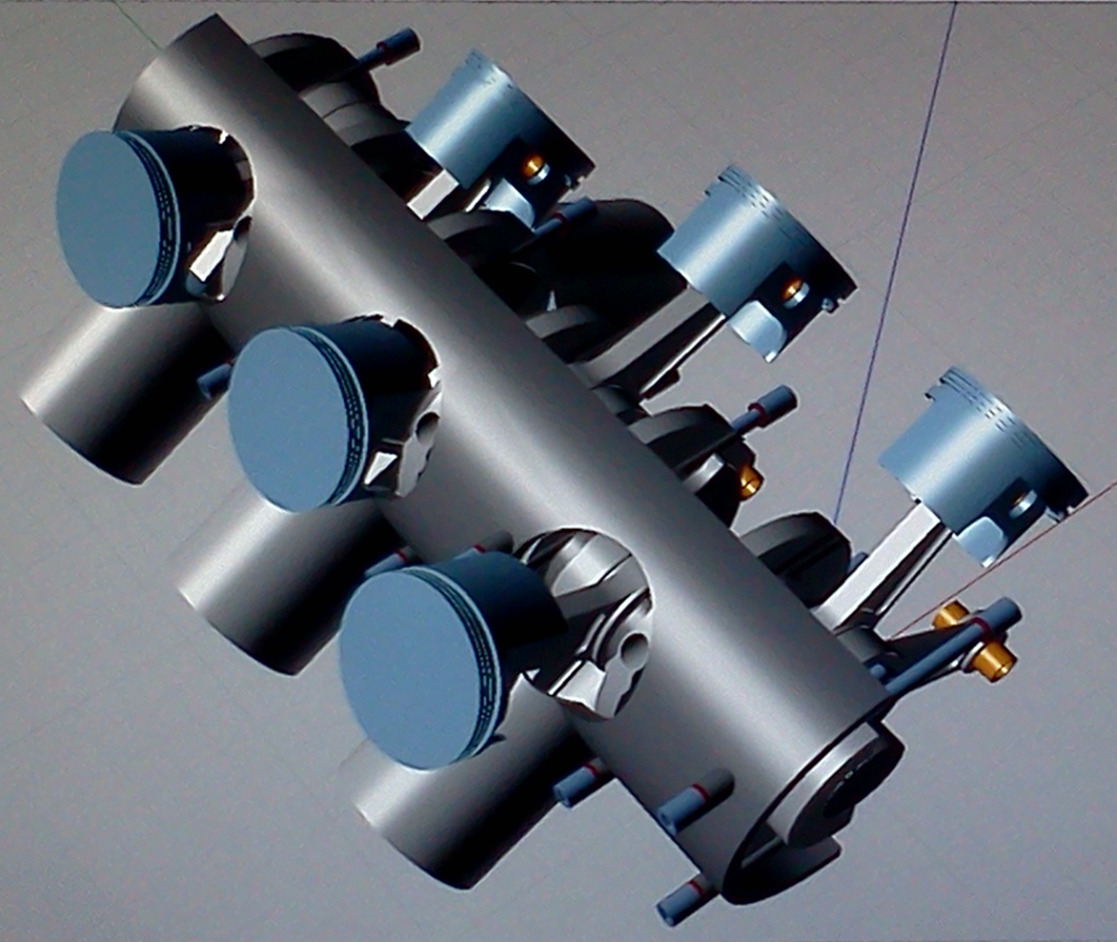

Appears to be a pair of 60* V6's sharing a common 6 pin crank.
More accurately, a pair of sixes 60* apart,meeting an even fire order.

Attached Image

Right side view,a simple shoebox head,4valve.

Attached Image

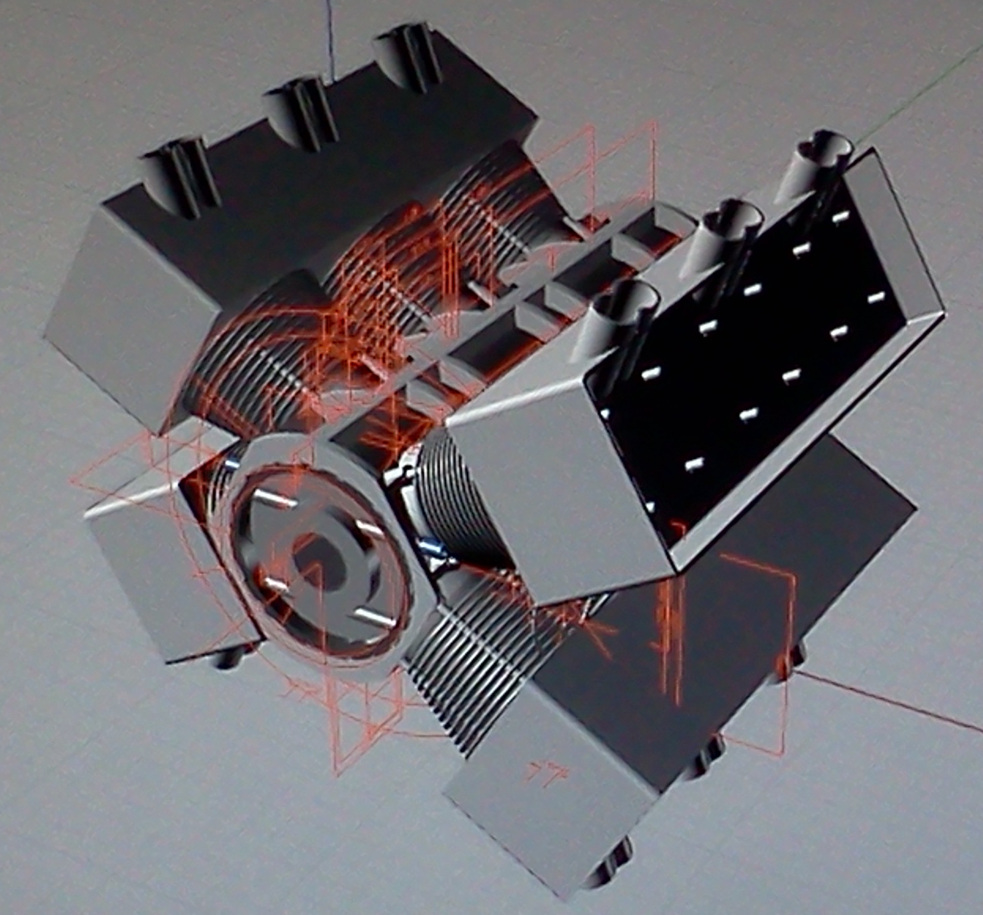

Angular view,with case ribs and studs,head studs,Mbearing webs

Attached Image


Attached Image

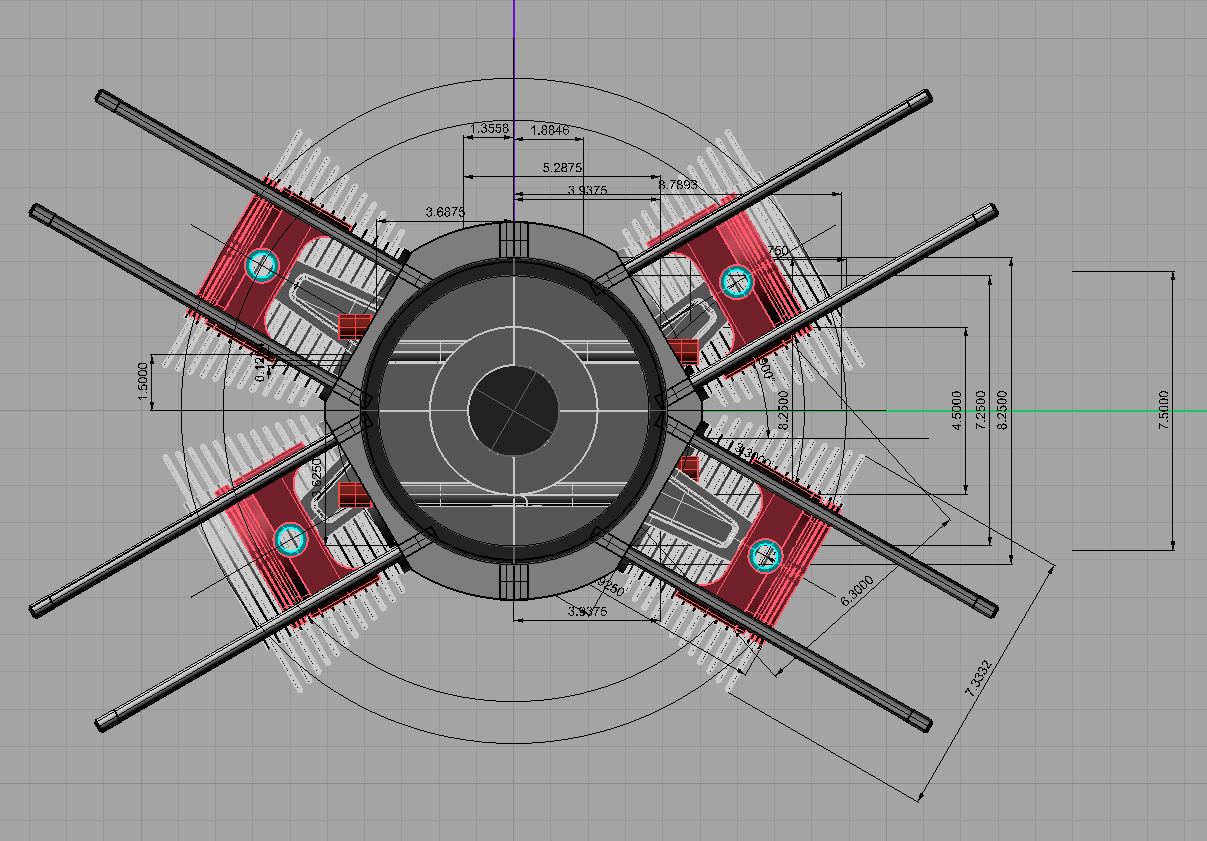

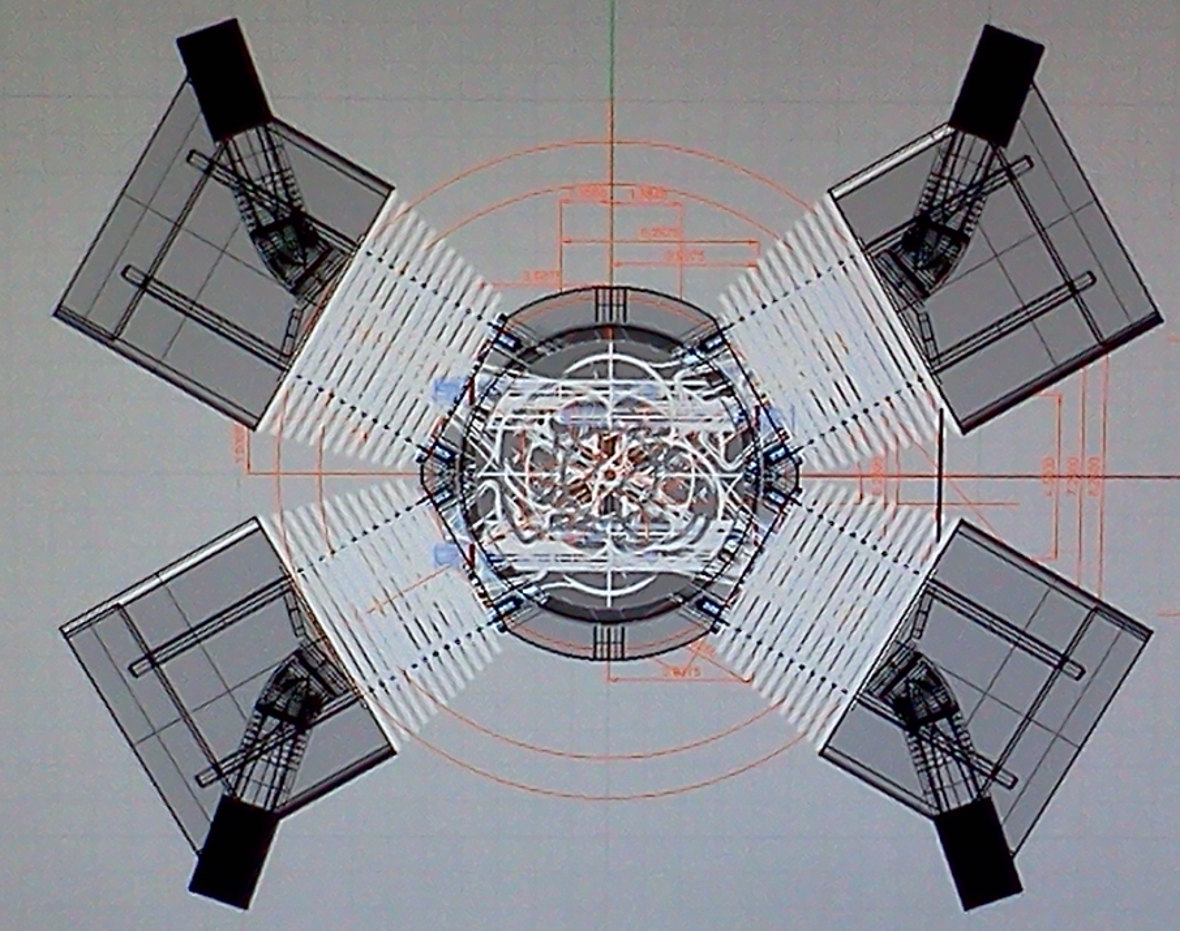

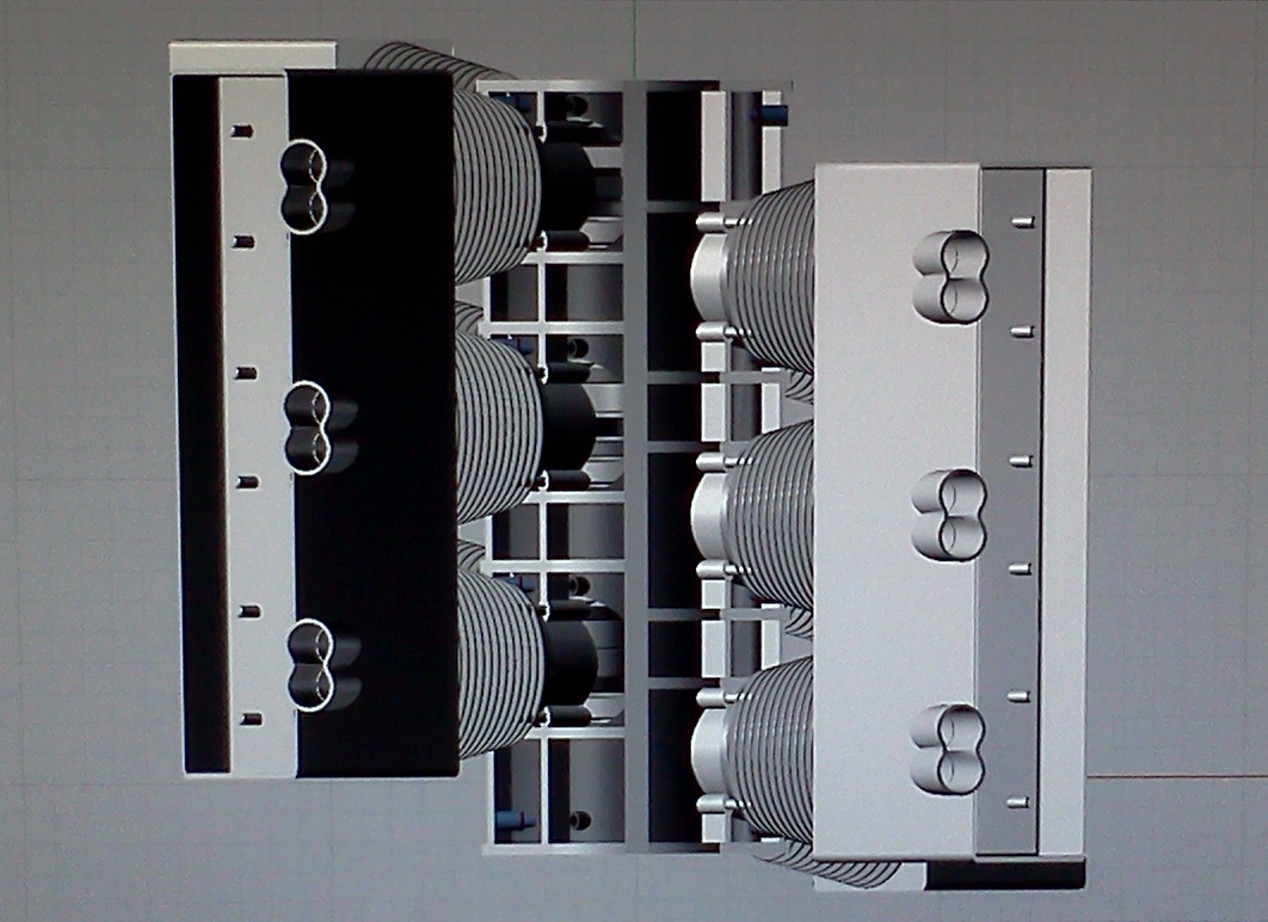

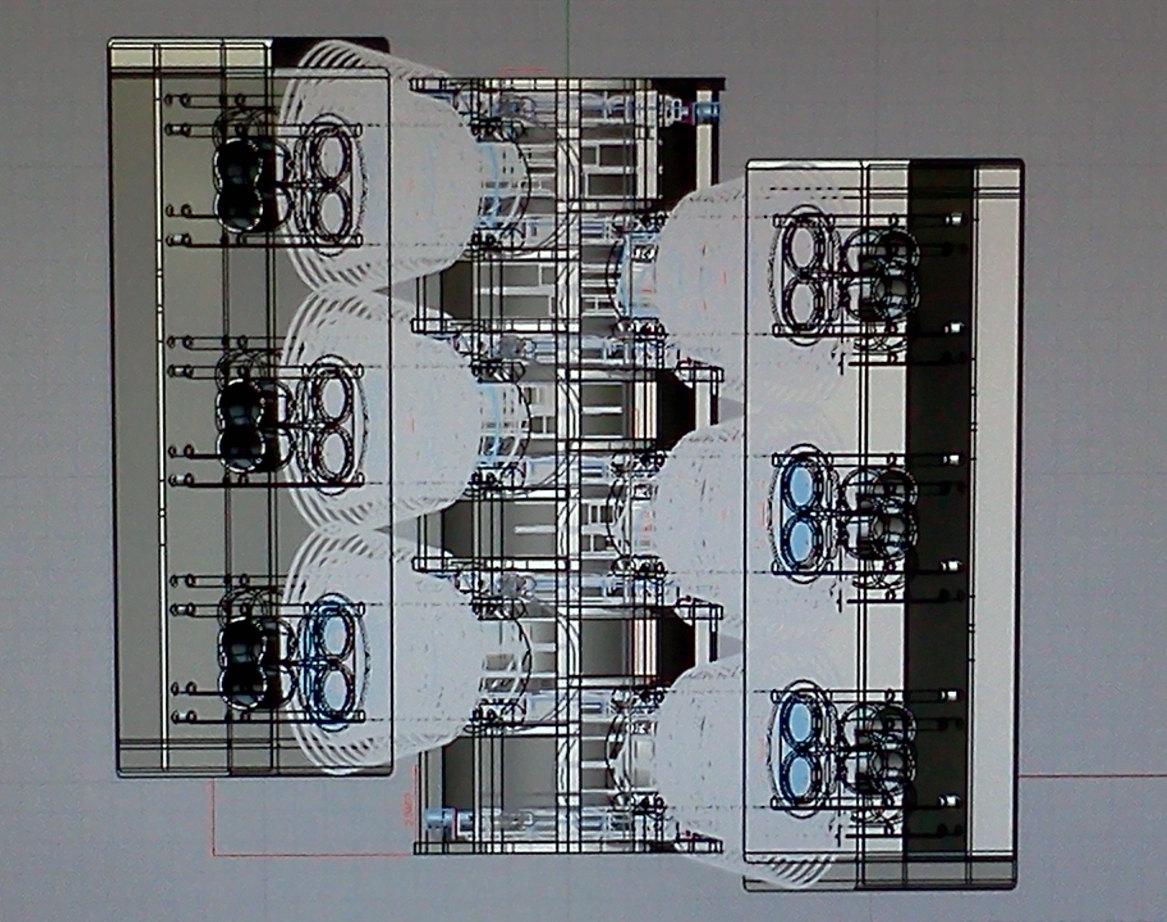

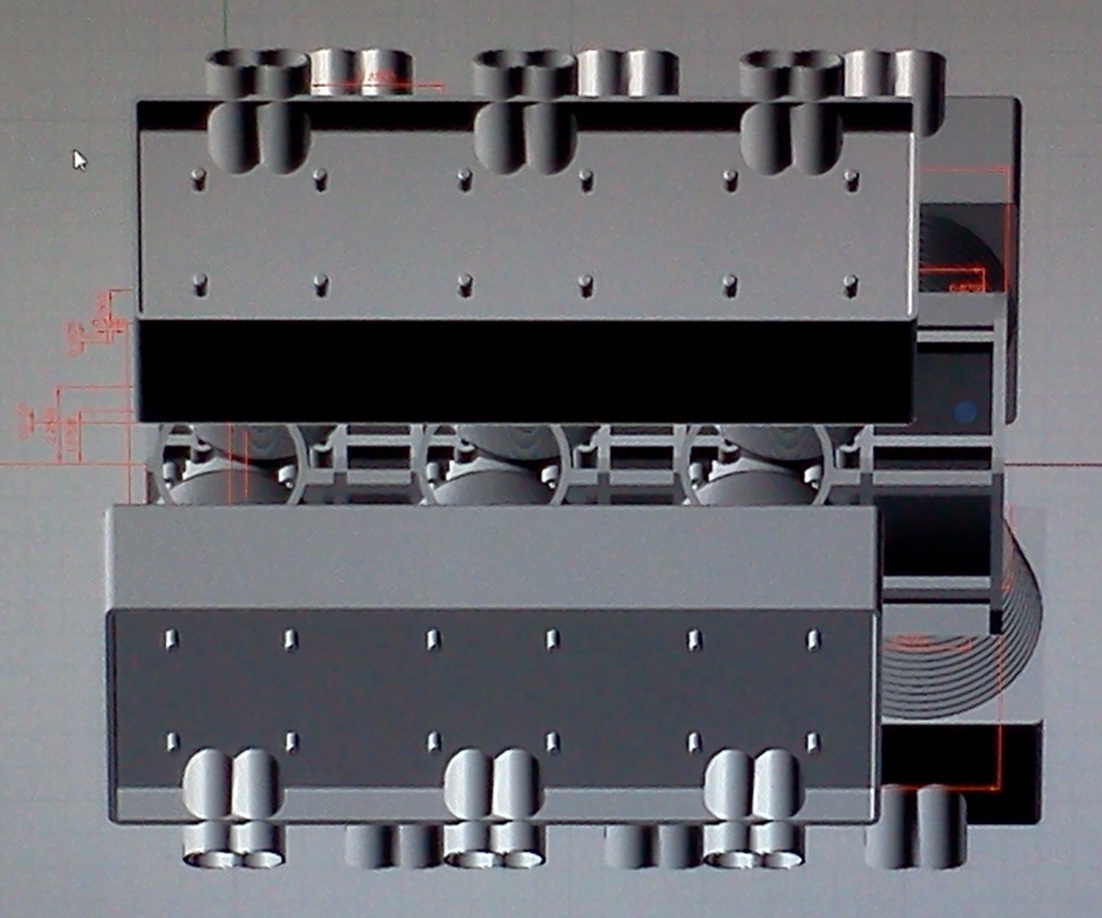

Some top views,showing the offsets of each bank,shorter than the v or flat arrangments.
The short stroke and large Mbearing dia allows an ample pin overlap.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mgp4591
post Oct 14 2015, 02:22 AM
Post #210


914 Guru
*****

Group: Members
Posts: 5,507
Joined: 1-August 12
From: Salt Lake City Ut
Member No.: 14,748
Region Association: Intermountain Region



QUOTE(sixnotfour @ Oct 7 2015, 01:49 PM) *

At first I didn't know what to think of that body mod, but the more I saw of it over at Genes the more I liked it and if the money was here at the time it might have been mine! We researched the kit and never really found out whether it's a one-off or a kit you can still buy but with a little work it will look sharp! The lines are definitely there and it even suggests lines of the Carrera GT to a degree- have you done any research on it to find out where the parts came from?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sixnotfour
post Oct 14 2015, 04:38 AM
Post #211


914 Wizard
**********

Group: Members
Posts: 10,677
Joined: 12-September 04
From: Life Elevated..planet UT.
Member No.: 2,744
Region Association: Rocky Mountains



its a one off CA. 80's build.. running driving,,,914-6
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
veekry9
post Oct 15 2015, 10:28 AM
Post #212


OldMember
****

Group: Retired Members
Posts: 3,068
Joined: 17-June 13
From: TO
Member No.: 16,025
Region Association: Canada



Some reading from the references therein.


Attached File  LTU_EX_06099_SE.pdf ( 1.82mb ) Number of downloads: 685



http://www.rotaryeng.net/Voyager-Eng.pdf
t4201.pdf
velaccdiag.pdf
LTU-EX-06099-SE.pdf
Mahindra 2 Wheelers - Piston Skirt profile Optimization to eliminate Scuffing and Seizure in a Water and Air Cooled gasoline engine using PISDYN_ForSharing.pdf
117_IJHE_January 2015.pdf
Malpress_afmc_16_07.pdf
538-115.pdf
43662.pdf
20154060.pdf
aerosim_ug.pdf
AirCoolerdHotAir.pdf
A-Theoretical-Model-For-Selection-Of-V-angle-And-Determination-Of-Firing-Order-For-Balancing-Of-V6-engine.pdf
DEA.pdf
definition-F02F.pdf
e3-11-01-03.pdf
energies-08-05866.pdf
Engines.pdf
Garrett_White_Paper_01_Water_Cooling.pdf
httpwww_bg_utp_edu_plartjok32007jo20kones20200720no20320vol201420mitianiec.pdf
IJHE 2013_Kewal.pdf
lecture-7.pdf
LiquidPiston-XMini-Specifications.pdf
l-ring_effect.pdf
ogst08082.pdf
Princeton-CEFRC2.pdf
qip-ice-25-cooling systems.pdf
SAE010903.pdf
Szilard_Engine.pdf
YRJ-1992-IIII.pdf

(IMG:style_emoticons/default/blink.gif)

http://gibtecpistons.com/?page_id=81

Planning a blown engine?


(edit:11/25/15)

Attached File  PETRONAS_superbike_engine_case_study.pdf ( 457.77k ) Number of downloads: 301

Worthwhile reading,even now,almost a decade later,just to be on the same page.
http://www.eurospares.com/graphics/engine/...searcheable.pdf
/
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
veekry9
post Oct 22 2015, 03:46 PM
Post #213


OldMember
****

Group: Retired Members
Posts: 3,068
Joined: 17-June 13
From: TO
Member No.: 16,025
Region Association: Canada



Attached Image


Attached Image


Attached Image

Exhaust Ports,with a large bridge to facilitate cooling.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mrfourteen
post Oct 22 2015, 05:19 PM
Post #214


Member
**

Group: Members
Posts: 74
Joined: 1-November 13
From: Oregon out in the Mozarks
Member No.: 16,596
Region Association: Pacific Northwest




Early Subarfaroo ran Borgward flat 4s


QUOTE(veekry9 @ Sep 7 2014, 11:01 AM) *


Flat 12 Subaru museum static display.

Carlo Chitti


User is offlineProfile CardPM
Go to the top of the page
+Quote Post
veekry9
post Oct 22 2015, 05:30 PM
Post #215


OldMember
****

Group: Retired Members
Posts: 3,068
Joined: 17-June 13
From: TO
Member No.: 16,025
Region Association: Canada



Van engine?

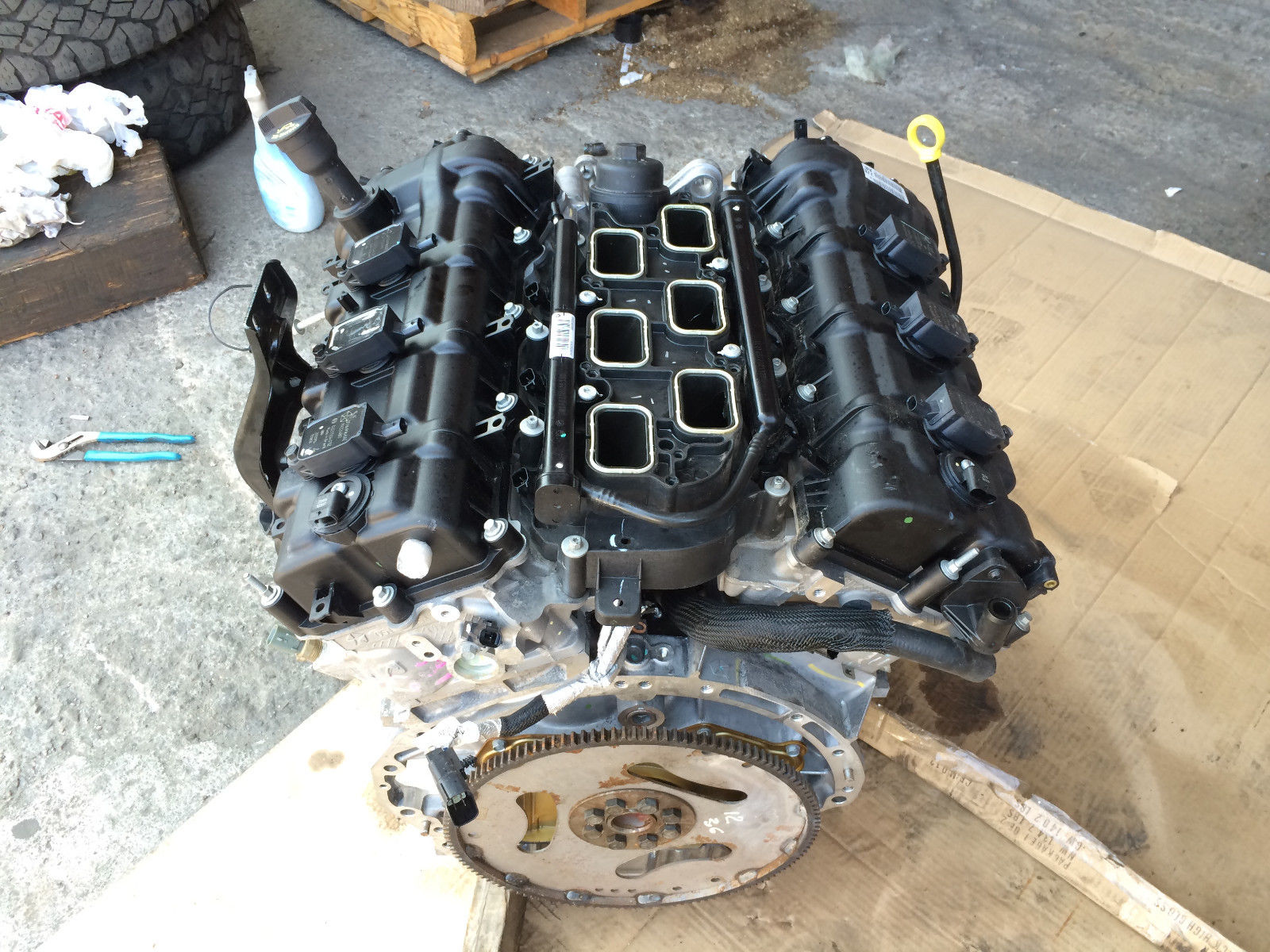

The Pentastar.

http://blog.caranddriver.com/chrysler-reve...-pentastar-v-6/

Available at your local wreckers.

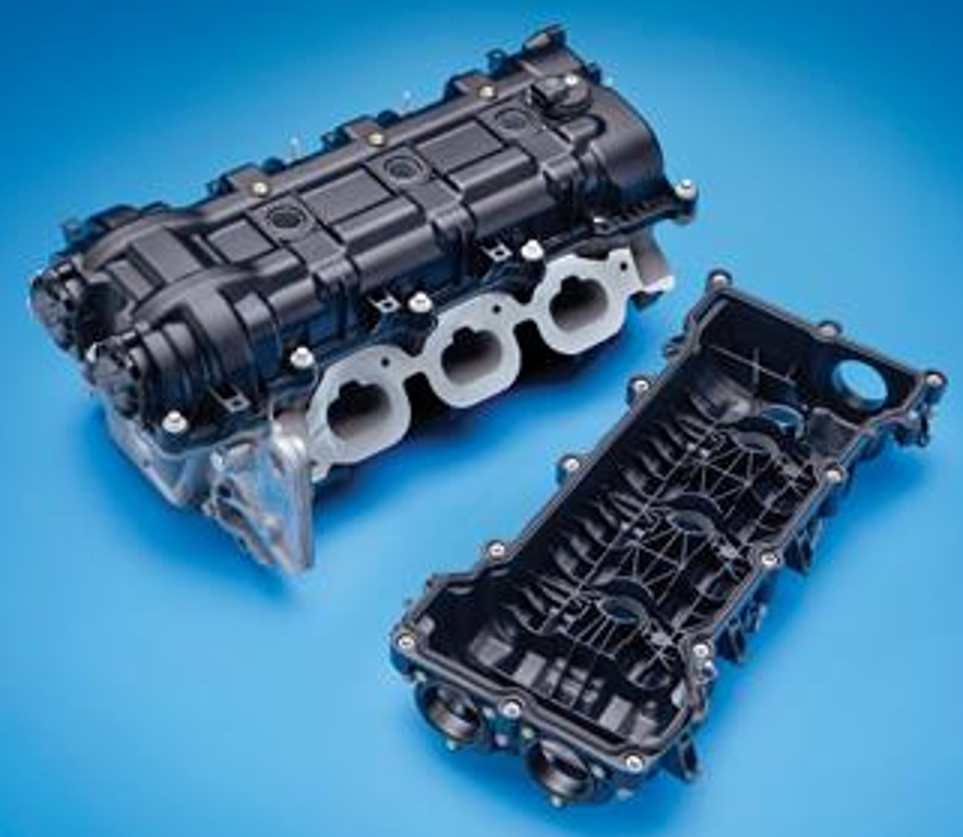

Attached Image

Attached Image
http://www.compositesworld.com/articles/hi...er-expectations
https://www.google.ca/search?q=glass+filled...gA&dpr=1.75

/
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
veekry9
post Nov 2 2015, 03:23 PM
Post #216


OldMember
****

Group: Retired Members
Posts: 3,068
Joined: 17-June 13
From: TO
Member No.: 16,025
Region Association: Canada



Attached Image

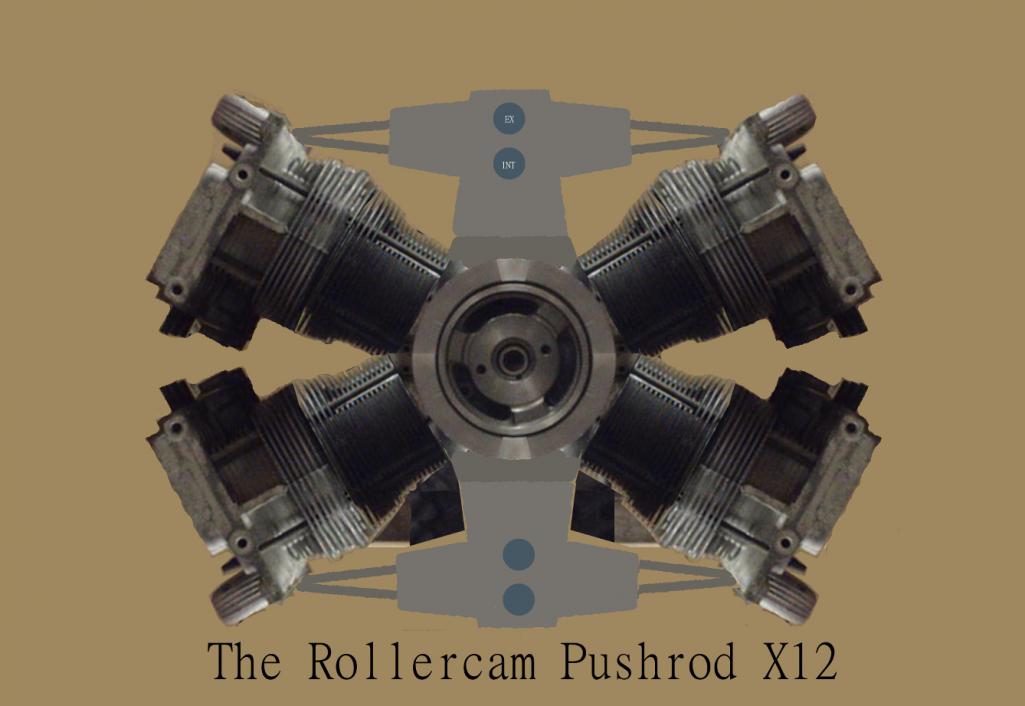

Mostly stock components.VVT. (IMG:style_emoticons/default/dry.gif)
An exercise in ic design,you know,like roll your own. (IMG:style_emoticons/default/biggrin.gif)
An aircooled 12 cylinder to fit inside the 914 envelope,a proposal that the 917 engine cannot meet.
Note the raised cam towers ala Julius Mackerle's Tatra.A vvt setup not available to the designers in '58-69.
https://en.wikipedia.org/wiki/Julius_Mackerle
Lightening up on the reciprocating parts and some elements from this decade makes for a viable -12.
A liquid cooled set of heads makes a 4valve arrangement possible,reducing mass of the valves for a given area.
A convenient feature is the proximity of the exhaust ports for a turboed variant,upping the ante for ultimate power levels of a Nurburgring endurance trackster.
The above pix is a simple Corvair version limited by all of the original factors of that design.

Attached Image

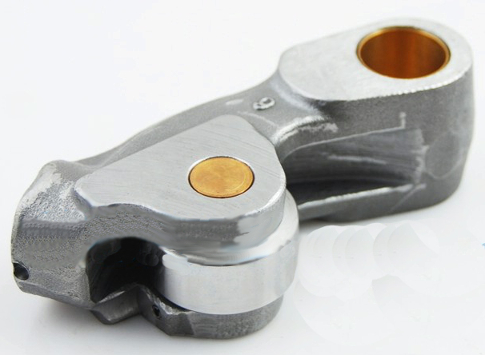

This is a 290 Cummins roller cam follower,cast.

ref:http://www.flycorvair.com/delabruere.html
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
veekry9
post Jan 31 2016, 06:55 PM
Post #217


OldMember
****

Group: Retired Members
Posts: 3,068
Joined: 17-June 13
From: TO
Member No.: 16,025
Region Association: Canada



Attached Image

Making it all fit,in a nice 904 house,the LeMans windscreen a great fit on the 914.
The windscreen is indeed a 904,and therefore a little pricy,making this six conversion no cheap thrill.
Very light,strong,powerful,quick and fast,all the wishes granted for this 914.
A revised double wishbone front suspension,the rear getting a pair too,(mebee a fabbed upright in light wrought alloy).
The latemodel bumpers have been radically modded to meld with the lengthened nose and tail's bottom,a major change.
A normal door,widened,with windup intact,the frame in cfrp,the glass waterjetted to fit.
Inside,the standard interior will do,the seats customised to shave 60mm off the bottom,the same as the roof's chop.
This is the factory wheelbase,the track widened to carry the larger modern rubber,I chose the ATS 5-Phons of the 928.
The nose and frunklid have been heavily modded to meet the windscreen's valance in a smooth radius,following the cowl.
The nose of the lid is radiused to match the new bumper's recurve.
A good deal of work,not for the faint of heart,a modern suspension with the factory parts reworked.
Two months later,I did some drawing,mapping out the front suspension,setting up the rear for a big change.
I haven't added the massive sidescoop,yet,letting the shape grow on me a little while.
Like,not looking at it,then,looking at it,to see if I still like it.
I do!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post Jan 31 2016, 07:11 PM
Post #218


914 Freak!
***************

Group: Members
Posts: 17,150
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None



QUOTE(veekry9 @ Oct 22 2015, 03:30 PM) *





Van engine?
The Pentastar.

http://blog.caranddriver.com/chrysler-reve...-pentastar-v-6/

Available at your local wreckers.

Attached Image



Not too shabby....currently one on eBay, less than 10K miles for only $1600 or best offer...Would look great with some ITBs on it.

You play with Fusion360 yet?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
veekry9
post Jan 31 2016, 07:28 PM
Post #219


OldMember
****

Group: Retired Members
Posts: 3,068
Joined: 17-June 13
From: TO
Member No.: 16,025
Region Association: Canada



I've used many/most software,cad and or cam packages over the last four and a half decades.
Currently in love with Rhino,because of the versatile plug-ins available.
https://www.rhino3d.com/sales/north-america/
Every once in a while I'll look and test drive something new or upgraded older packages.
Some are downright funky and counter intuitive,requiring huge training budgets to use with any efficiency.
I think I posted about some of those crash programs the post processors puked out,costing large.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
veekry9
post Jan 31 2016, 07:36 PM
Post #220


OldMember
****

Group: Retired Members
Posts: 3,068
Joined: 17-June 13
From: TO
Member No.: 16,025
Region Association: Canada



Somewhere someone posted about Honda van engines and I thought the numbers of Chrysler
and now Fiat/Chrysler V6's were worth a gander.
Walking in the yard with a tape and a camera,taking pix of the new ones with the varicams.
The single exhaust ports most suitable for the turbo application,heh,heh. (IMG:style_emoticons/default/happy11.gif)
And like the price is right,dirt cheep for the bangs you could have.

While you're there,pick up a transaxle for it.
Many flavours.
https://www.google.ca/webhp?sourceid=chrome...%20transmission
http://www.getrag.com/en/home/index.html
https://en.wikipedia.org/wiki/Getrag
User is offlineProfile CardPM
Go to the top of the page
+Quote Post

16 Pages V « < 9 10 11 12 13 > »
Reply to this topicStart new topic
23 User(s) are reading this topic (23 Guests and 0 Anonymous Users)
0 Members:





- Lo-Fi Version Time is now: 25th December 2024 - 07:05 AM
