> Just arrived in the garage: 1971 914-4 1.7
defianty
post Aug 5 2018, 01:04 AM
Post #601


Senior Member
***

Group: Members
Posts: 659
Joined: 9-August 06
From: Essex, UK
Member No.: 6,621
Region Association: None
Beautiful work.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
raynekat
post Aug 5 2018, 01:11 AM
Post #602


Advanced Member
****

Group: Members
Posts: 2,162
Joined: 30-December 14
From: Coeur d'Alene, Idaho
Member No.: 18,263
Region Association: Pacific Northwest
Quick spoiler preview of what's to come.

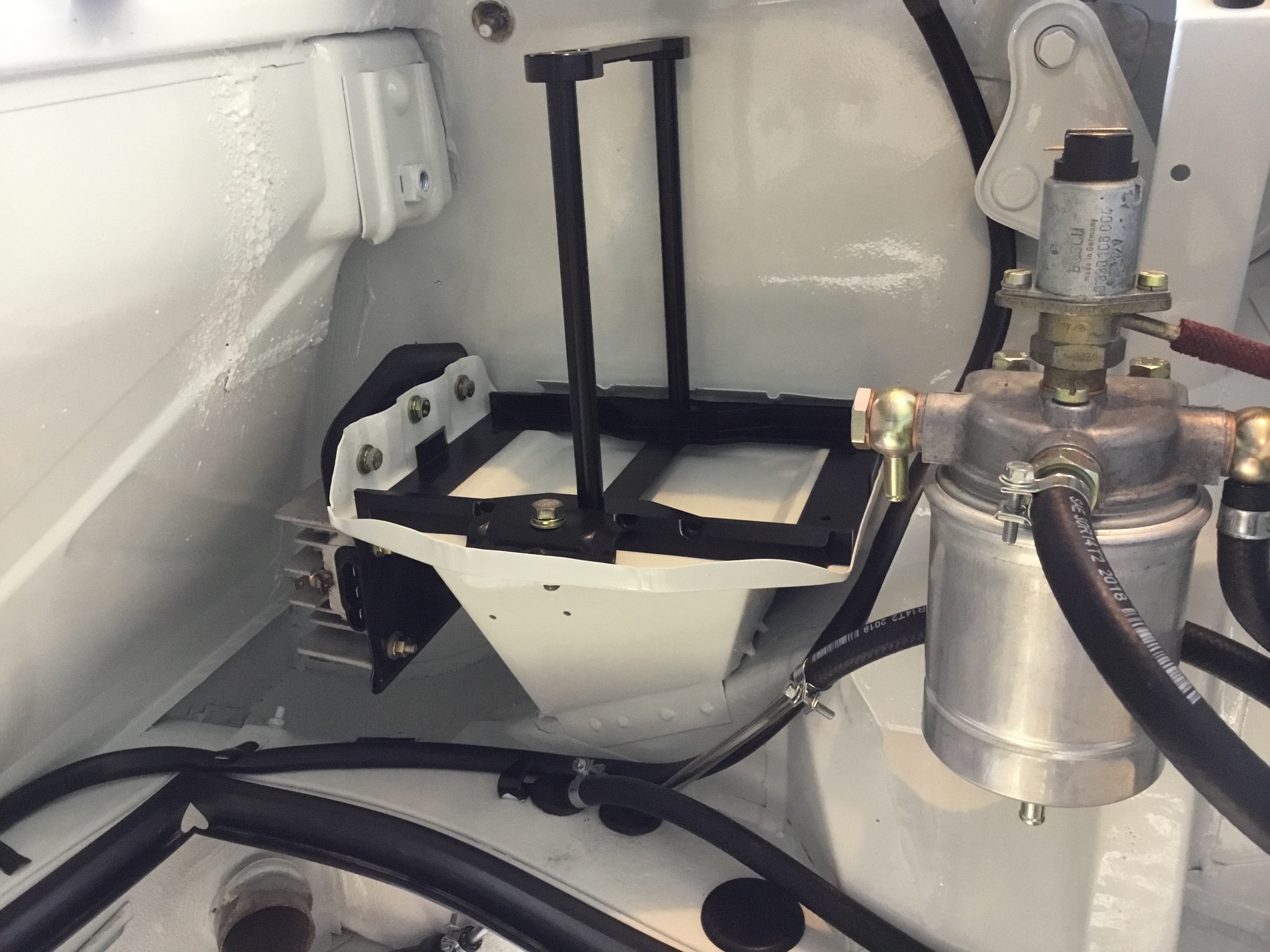

I had a custom battery mount cut down to size by a local water jet cutting company here in town.
Fits the factory battery tray nicely now.
The battery that I'll be installing is quite "trick" and will be installed in the next couple of days.

Additional pics and updates for the engine compartment will be added tomorrow.
Stay tuned....same Bat station, same Bat channel. (IMG:style_emoticons/default/wink.gif) (IMG:style_emoticons/default/bye1.gif)

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Craigers17
post Aug 5 2018, 01:24 AM
Post #603


Senior Member
***

Group: Members
Posts: 804
Joined: 5-August 17
From: Rome, GA
Member No.: 21,317
Region Association: South East States
Damn! ....that's nice work. Super clean!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cairo94507
post Aug 5 2018, 06:59 AM
Post #604


Michael
**********

Group: Members
Posts: 10,095
Joined: 1-November 08
From: Auburn, CA
Member No.: 9,712
Region Association: Northern California
That is a very clean mounting bracket. (IMG:style_emoticons/default/beerchug.gif)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
raynekat
post Aug 5 2018, 05:49 PM
Post #605


Advanced Member
****

Group: Members
Posts: 2,162
Joined: 30-December 14
From: Coeur d'Alene, Idaho
Member No.: 18,263
Region Association: Pacific Northwest

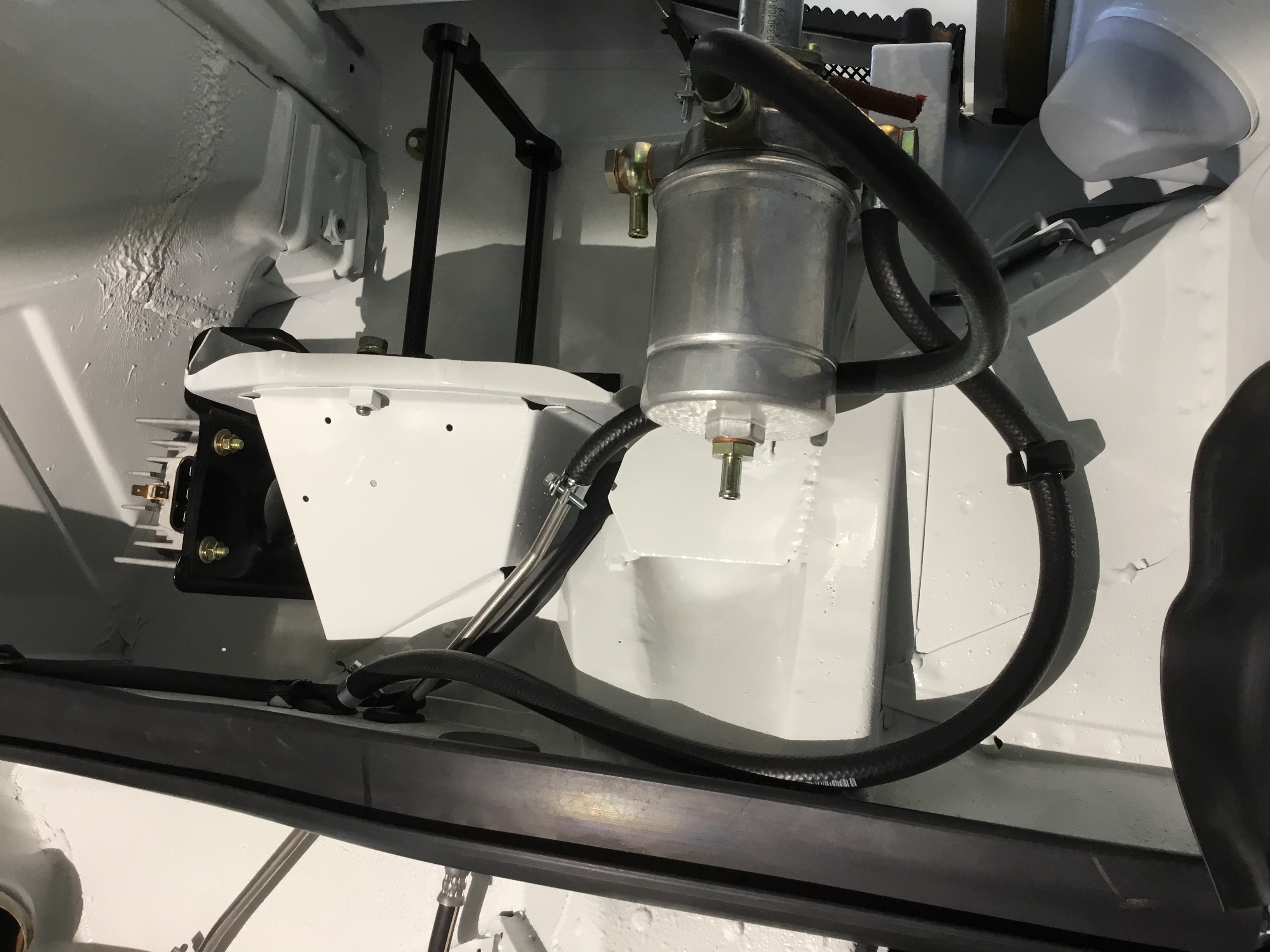

Engine bay/firewall all complete at this point.
Waiting to get scheduled for installation of the drivetrain with Rothsport.

Replica 914-6 engine mount/reinforced on the firewall.
I went with this mount due to the factory routing of the snorkel and the rearward wiring.
Many of the other mounts make the wiring harness do some kind of wild maneuver to get through this area.

Lots of 914Rubber seals, etc.
All new cables run.
Rear brake proportioning valve rebuilt by PMB.

Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
raynekat
post Aug 5 2018, 05:54 PM
Post #606


Advanced Member
****

Group: Members
Posts: 2,162
Joined: 30-December 14
From: Coeur d'Alene, Idaho
Member No.: 18,263
Region Association: Pacific Northwest

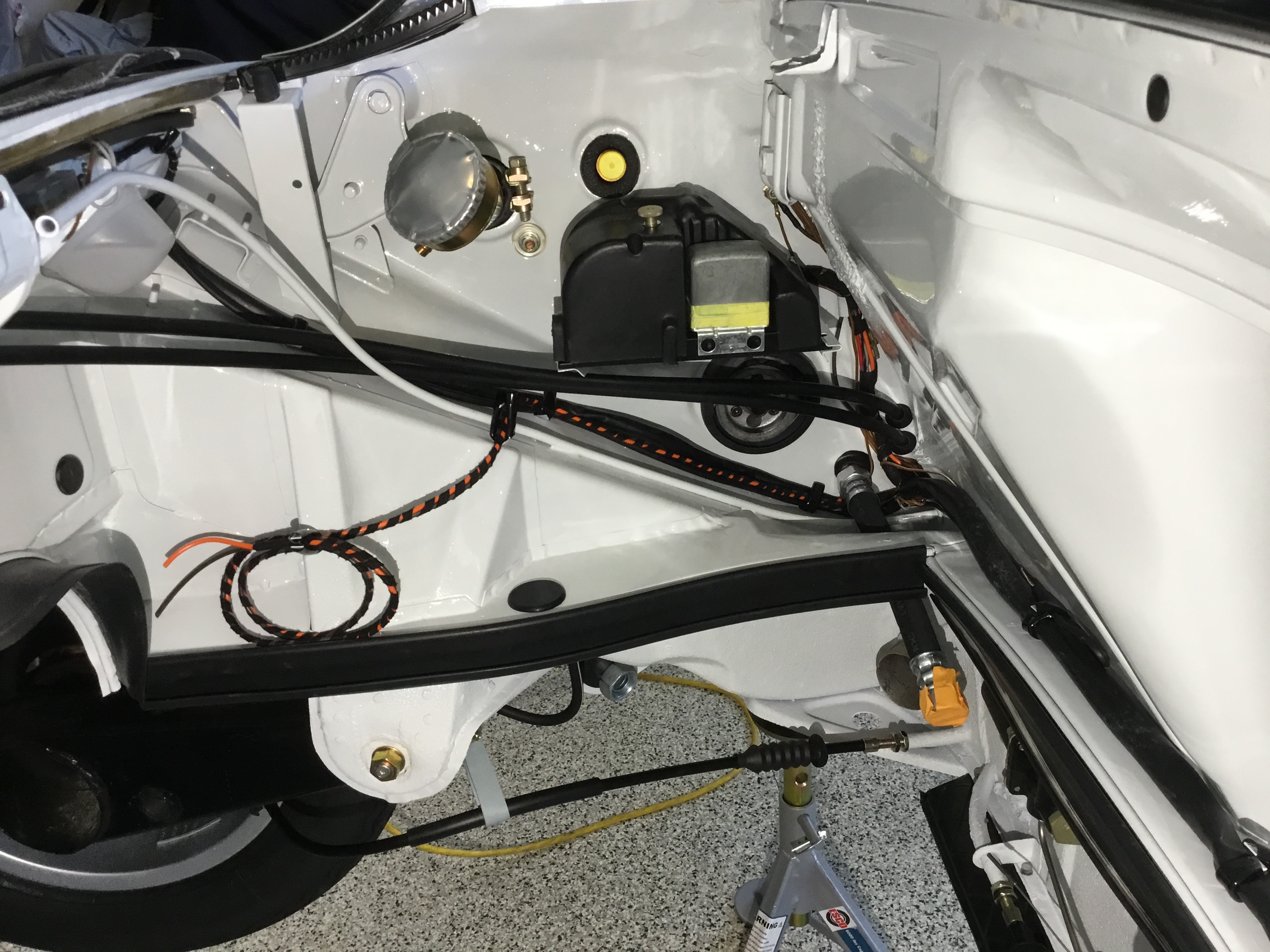

View of the 914-6 oil tank install and 914-6 engine bay relay panel.
Went with a GT style oil filler neck.

The orange and brown wiring will be for the aux oil cooler and fan that will be located beneath the rear trunk somewhere.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
raynekat
post Aug 5 2018, 06:02 PM
Post #607


Advanced Member
****

Group: Members
Posts: 2,162
Joined: 30-December 14
From: Coeur d'Alene, Idaho
Member No.: 18,263
Region Association: Pacific Northwest

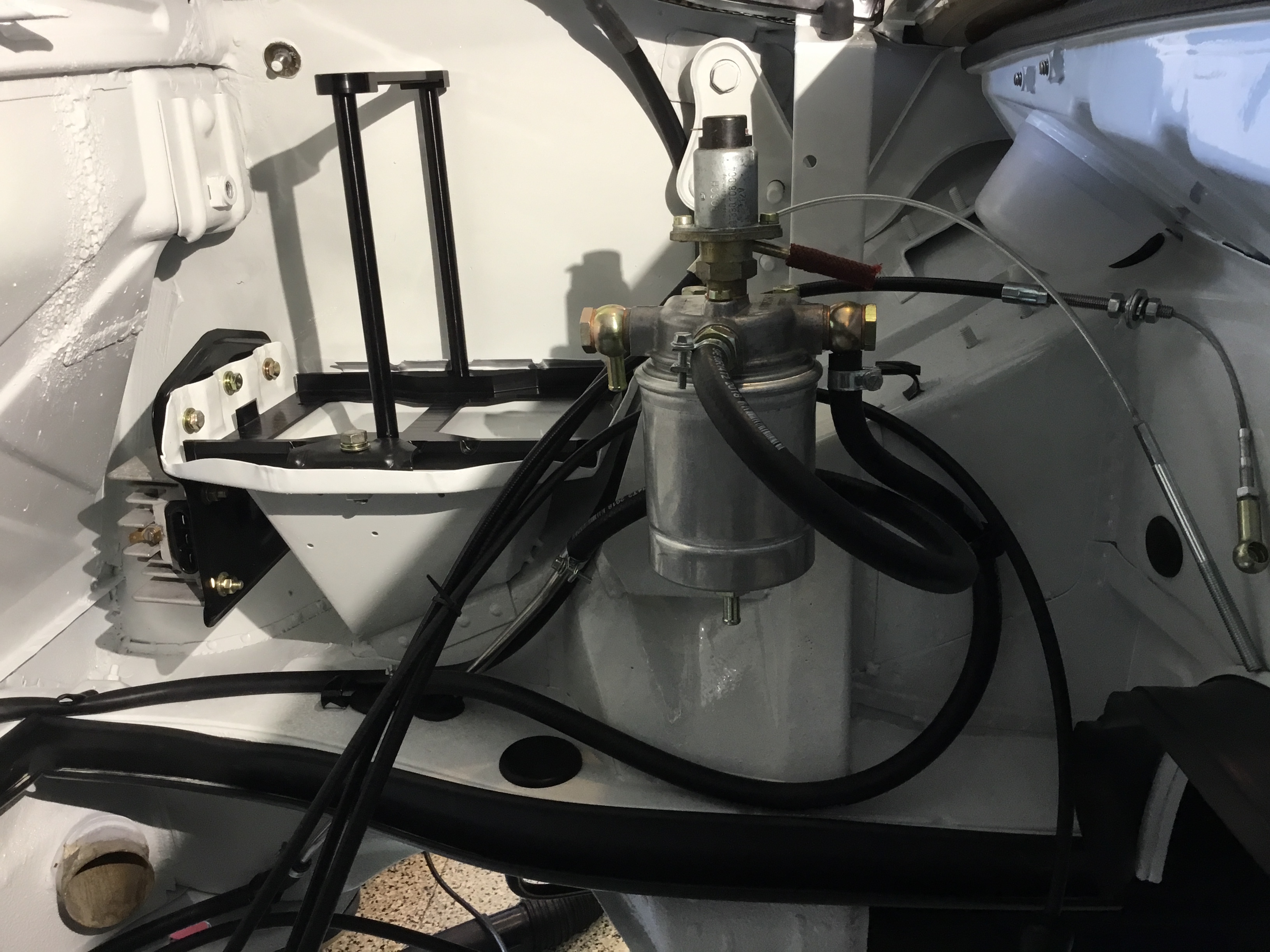

Opposite side of the engine bay showing the battery tray with CDI box bolted to the side (for the MFI engine) and the MFI micro filter that feeds the MFI pump on the engine.
The stock CDI box was sent out to PartsKlassic to get refurbished and upgraded. They use solid state electronics in the box. The rev limiter is built into the electronics. I've also got a high output matching coil from them as well that sits on the engine.

Hung the cables (throttle, speedo and clutch) up there for the time being to get them off the ground.

The custom battery hold down plate fits nicely in the stock battery tray.

Using Gates Barricade FI hose that is rated for 225psi on this build.
Gates makes some for carbs as well, but the pressure rating is much less.
With the installation of Tangerine Racing stainless steel fuel lines down the tunnel, hopefully I won't have any fuel leakage issues.

Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
raynekat
post Aug 5 2018, 06:07 PM
Post #608


Advanced Member
****

Group: Members
Posts: 2,162
Joined: 30-December 14
From: Coeur d'Alene, Idaho
Member No.: 18,263
Region Association: Pacific Northwest

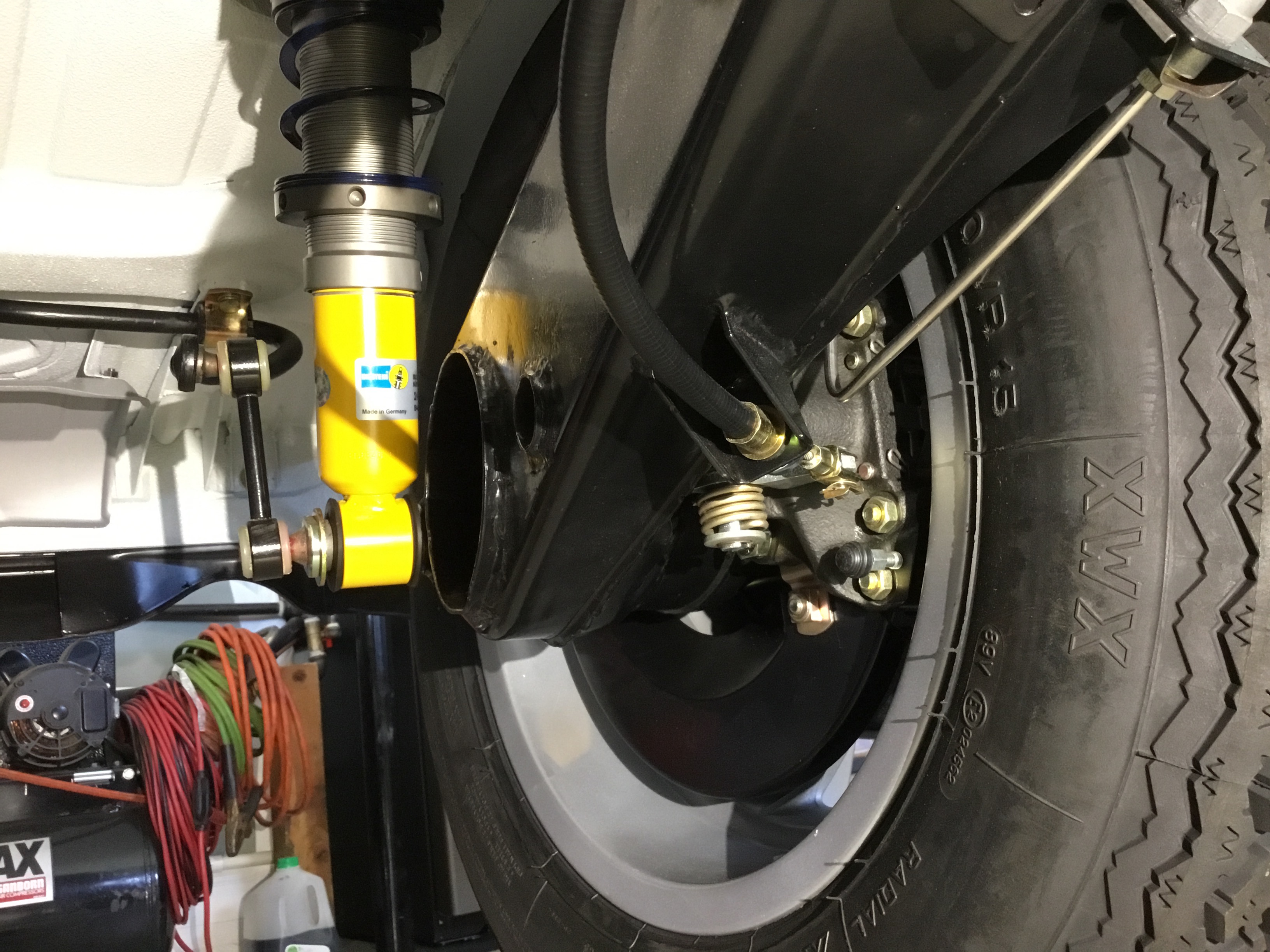

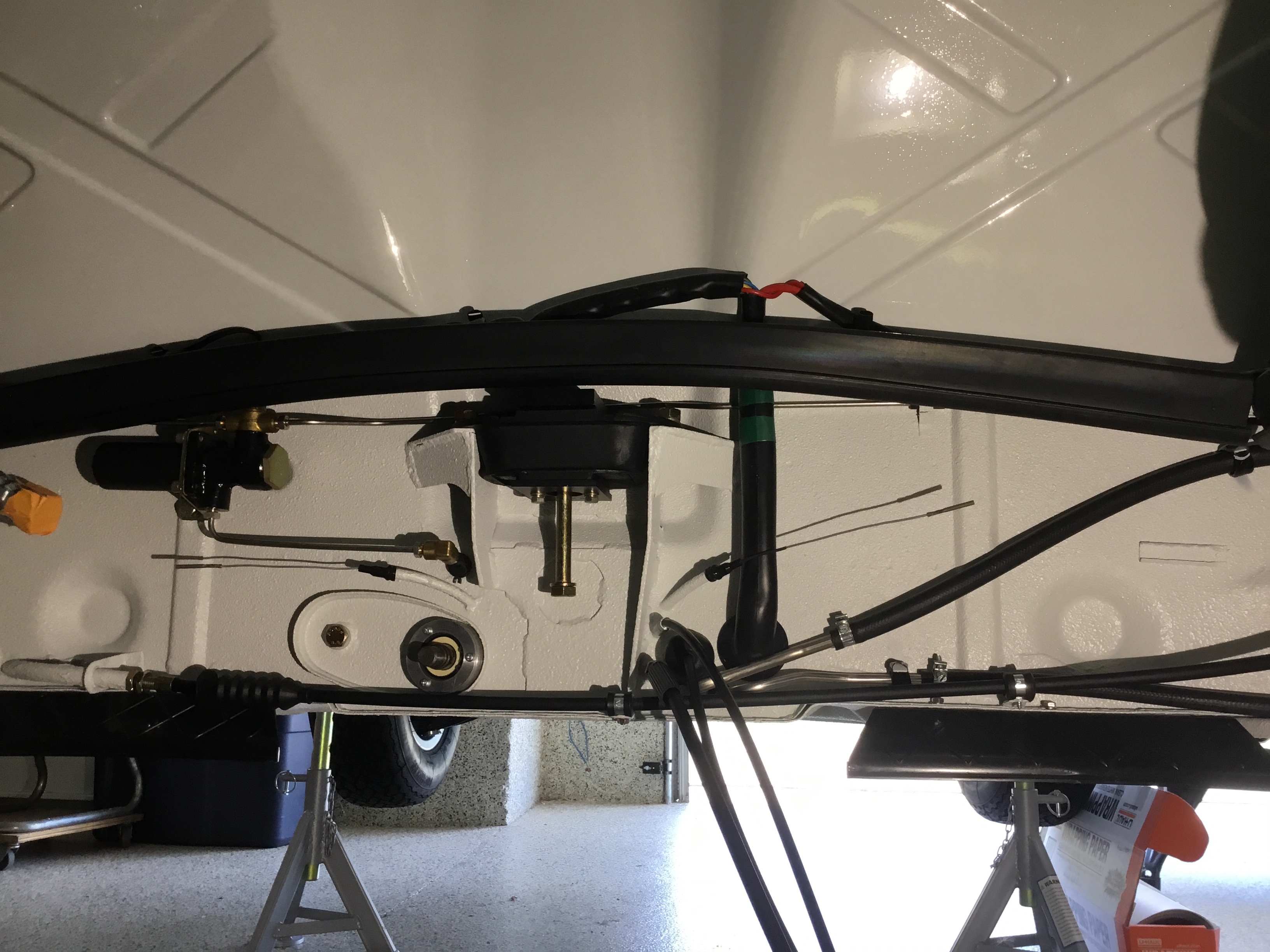

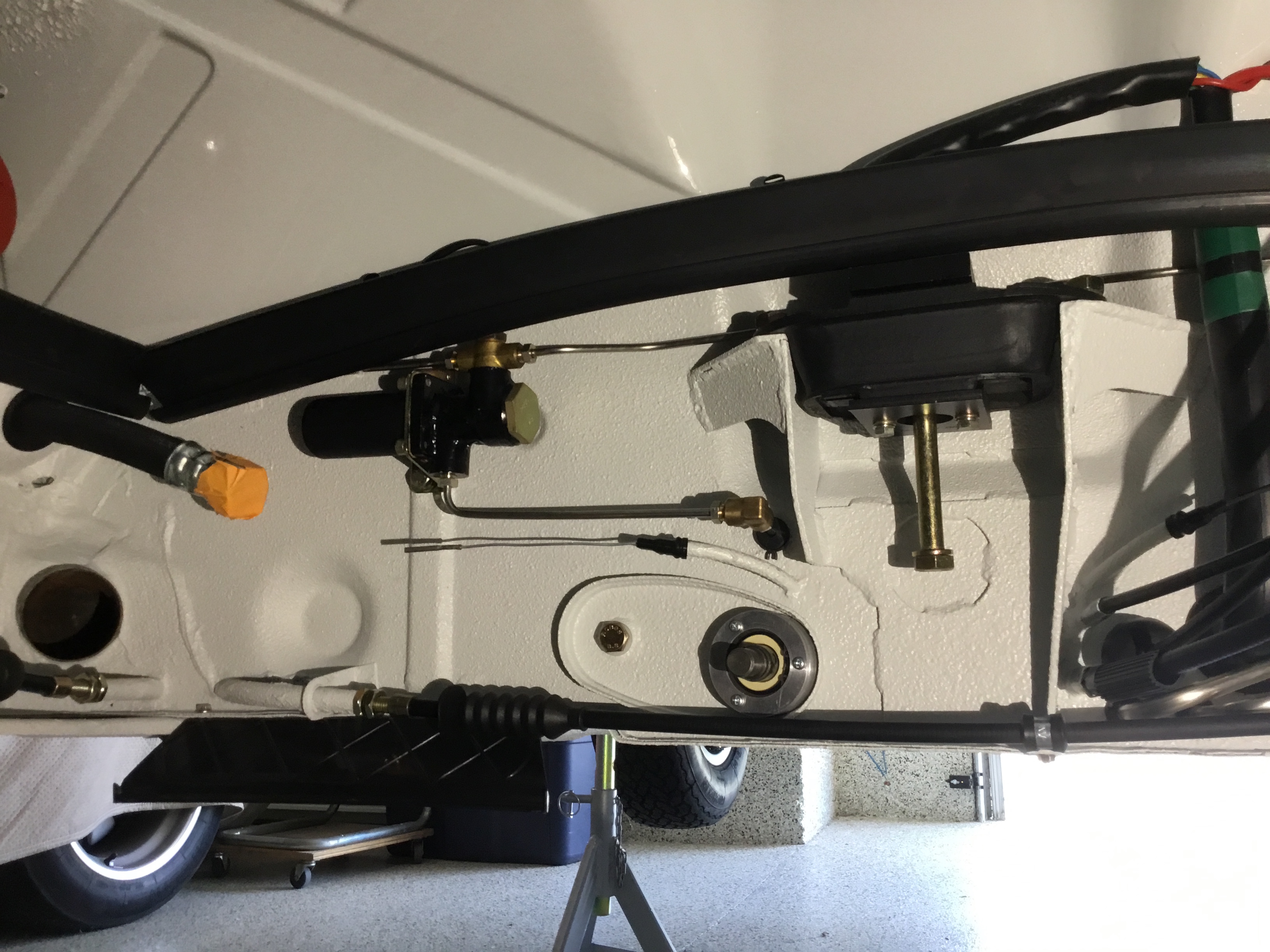

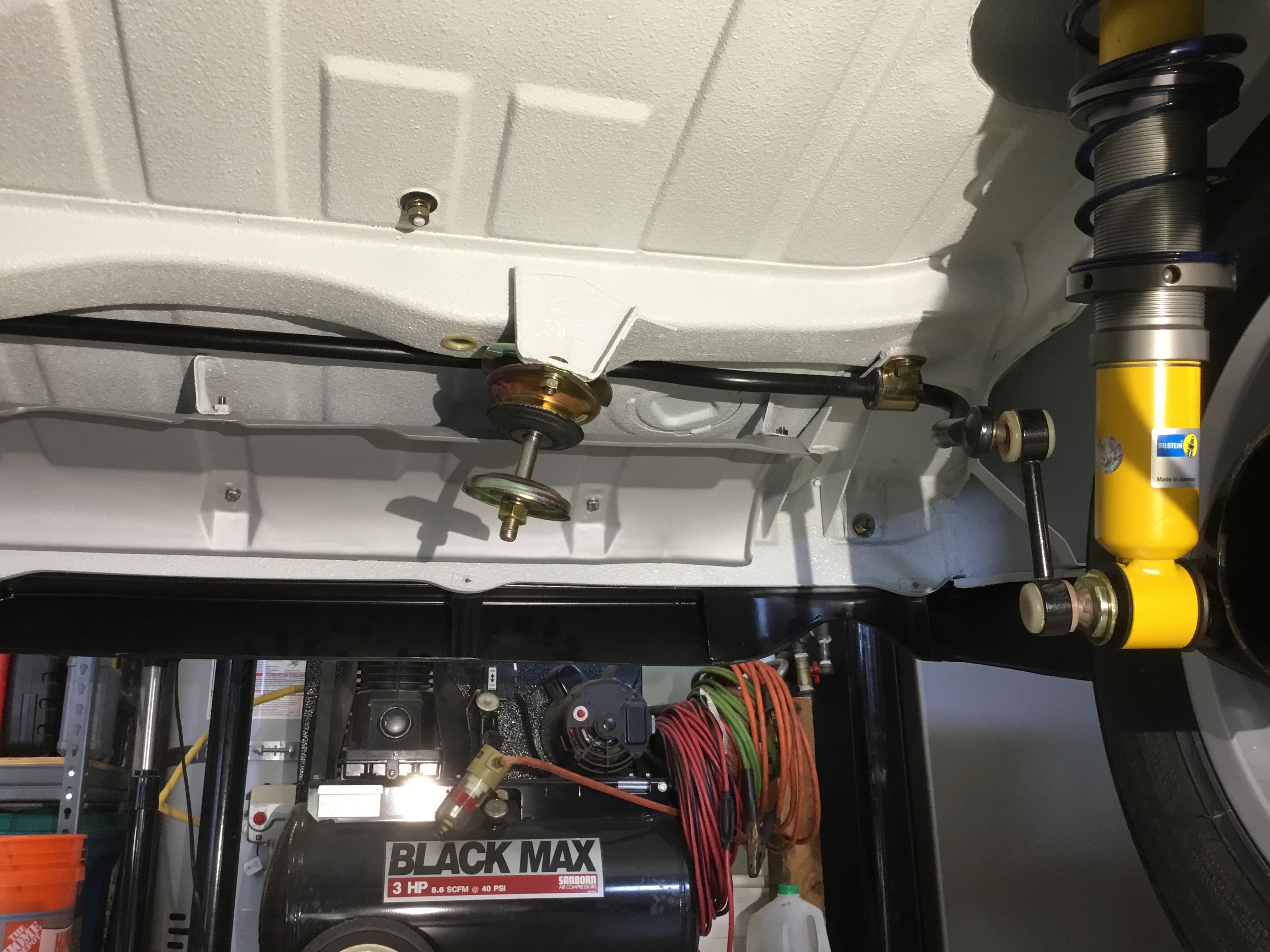

View of the rear suspension and rear brakes from underneath.

914-6 GT style steel calipers with vented discs.
Was able to fit in the brake shields as well.
All new stainless steel hard lines and factory rubber lines.

Bilstein sport shocks with helper springs joining the main springs....all from Elephant Racing.
New rubber bushings up top from 914Rubber.
Factory rear swaybar.

Removable ceramic coated exhaust heat shield that Cary helped out with.

Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
raynekat
post Aug 7 2018, 05:30 PM
Post #609


Advanced Member
****

Group: Members
Posts: 2,162
Joined: 30-December 14
From: Coeur d'Alene, Idaho
Member No.: 18,263
Region Association: Pacific Northwest

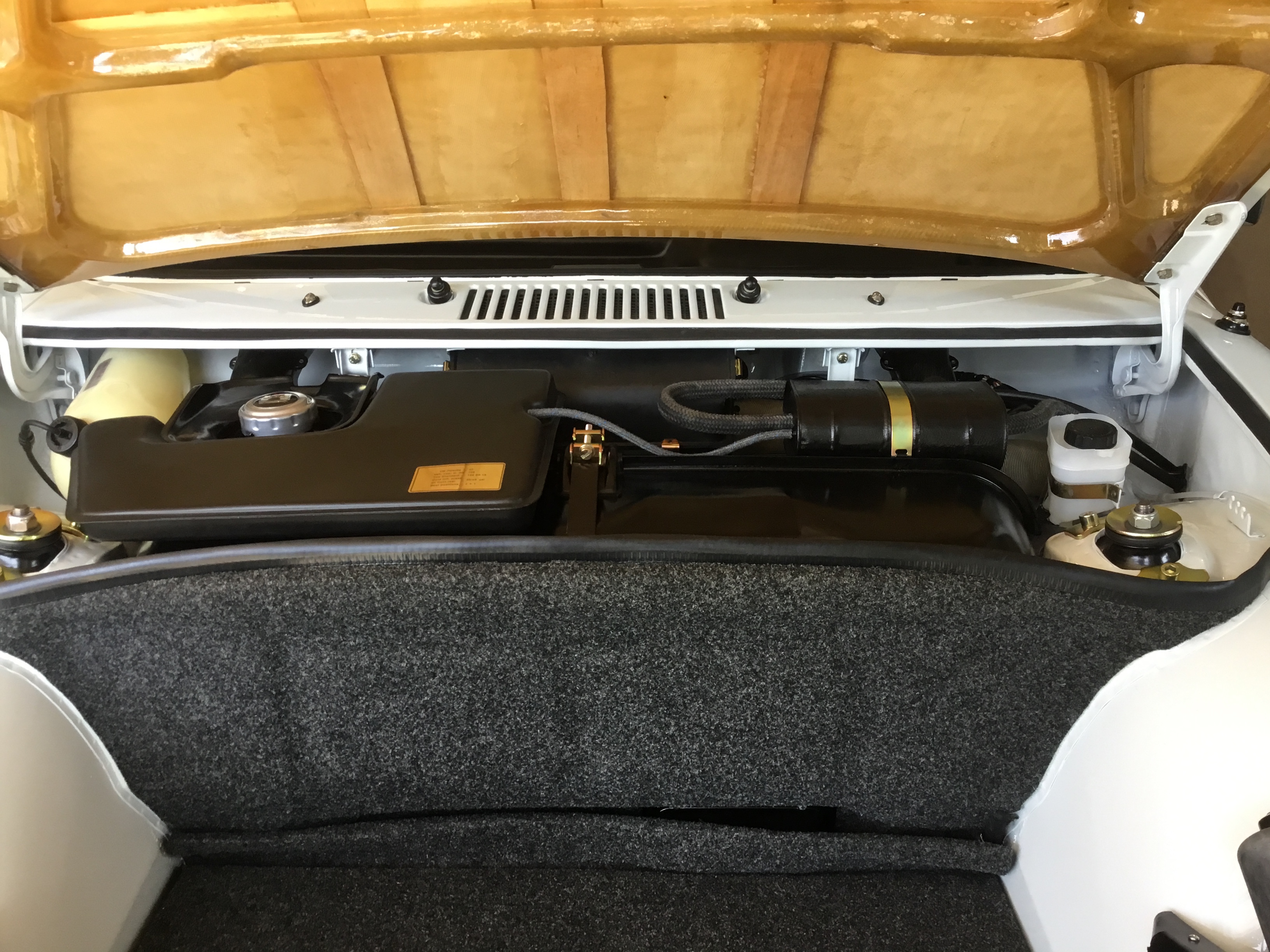

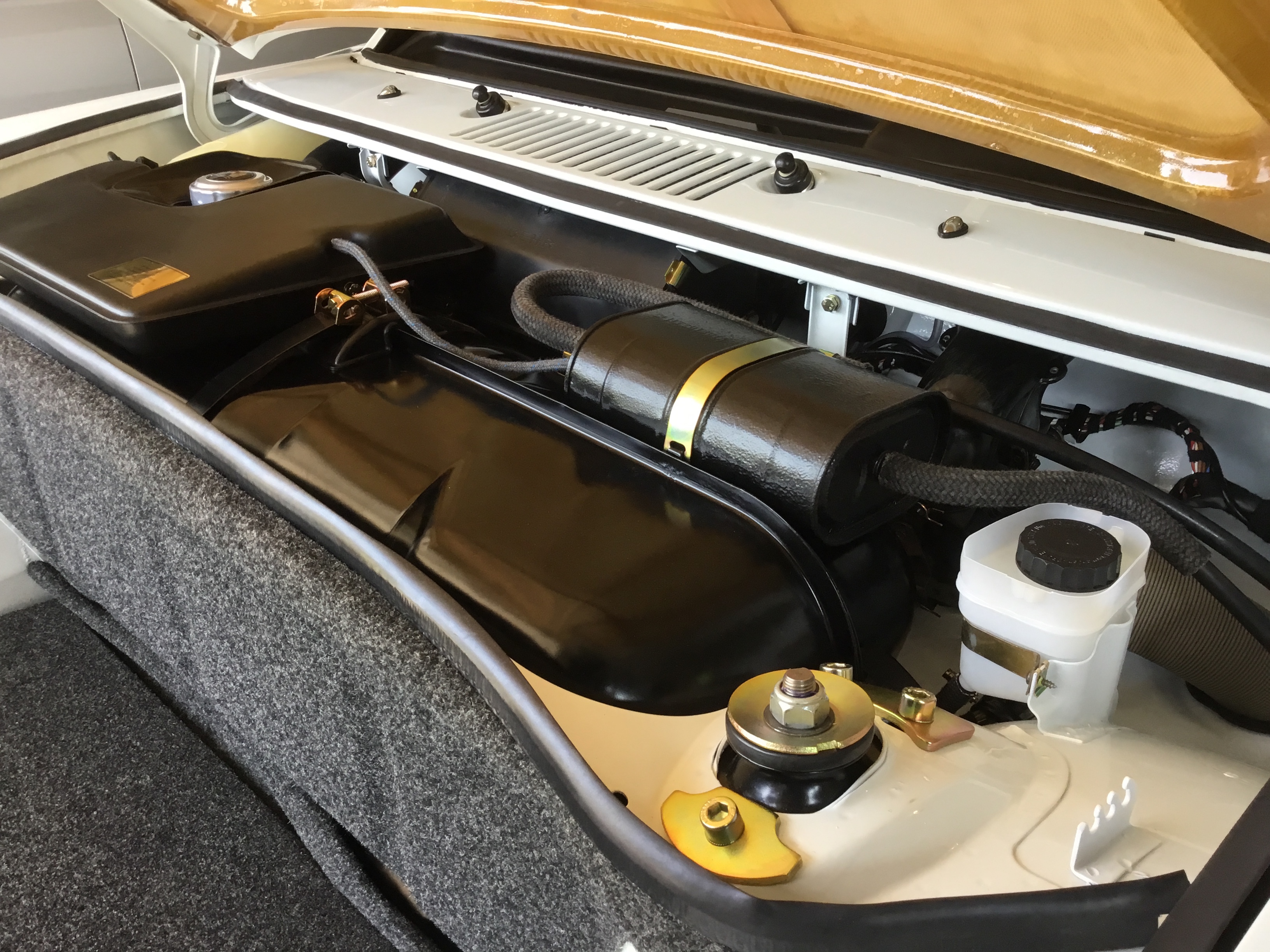

Today was gas tank installation day.

All went fairly smooth.
There are just certain things that must be installed in a certain order.
Once I figured that out, I had it all in place in a couple hours time.

Used Gates Barricade FI hoses rated for 225psi under the tank with high pressure hose clamps.
Had plenty of extra fuel line such that it laid in there pretty nicely without any kinks as far as could tell.

New braided hoses for the vapor recovery system and lots of replated hardware (yellow zinc) or new.
New sticker for the recovery can on top of the tank from Car Bone.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
raynekat
post Aug 7 2018, 05:31 PM
Post #610


Advanced Member
****

Group: Members
Posts: 2,162
Joined: 30-December 14
From: Coeur d'Alene, Idaho
Member No.: 18,263
Region Association: Pacific Northwest
Couple more views.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
raynekat
post Aug 7 2018, 05:33 PM
Post #611


Advanced Member
****

Group: Members
Posts: 2,162
Joined: 30-December 14
From: Coeur d'Alene, Idaho
Member No.: 18,263
Region Association: Pacific Northwest

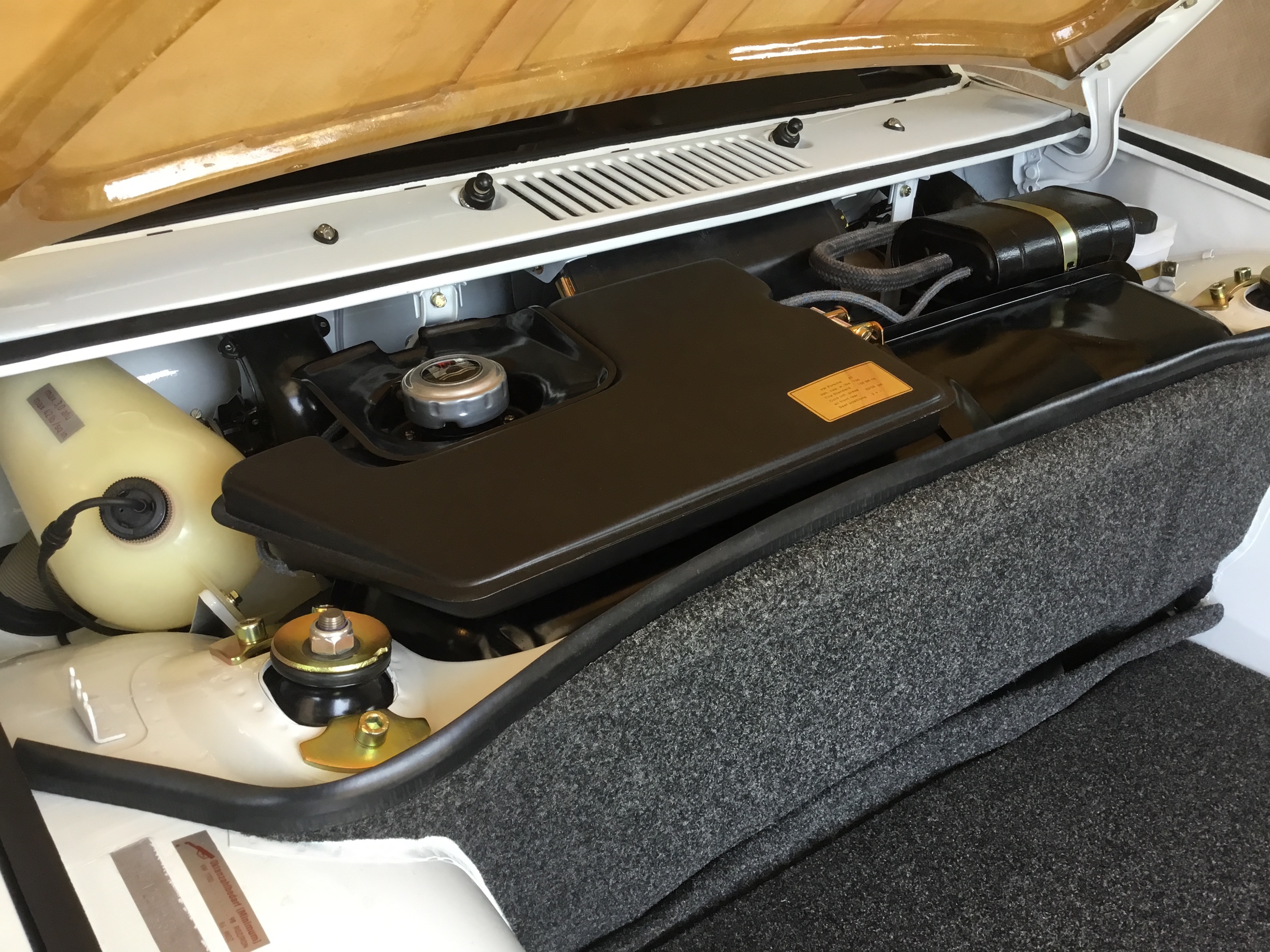

With this, the front trunk is officially completed.
Except for some monkeying around with the headlights to get them aligned, adjusted and aimed correctly.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
raynekat
post Aug 7 2018, 05:38 PM
Post #612


Advanced Member
****

Group: Members
Posts: 2,162
Joined: 30-December 14
From: Coeur d'Alene, Idaho
Member No.: 18,263
Region Association: Pacific Northwest

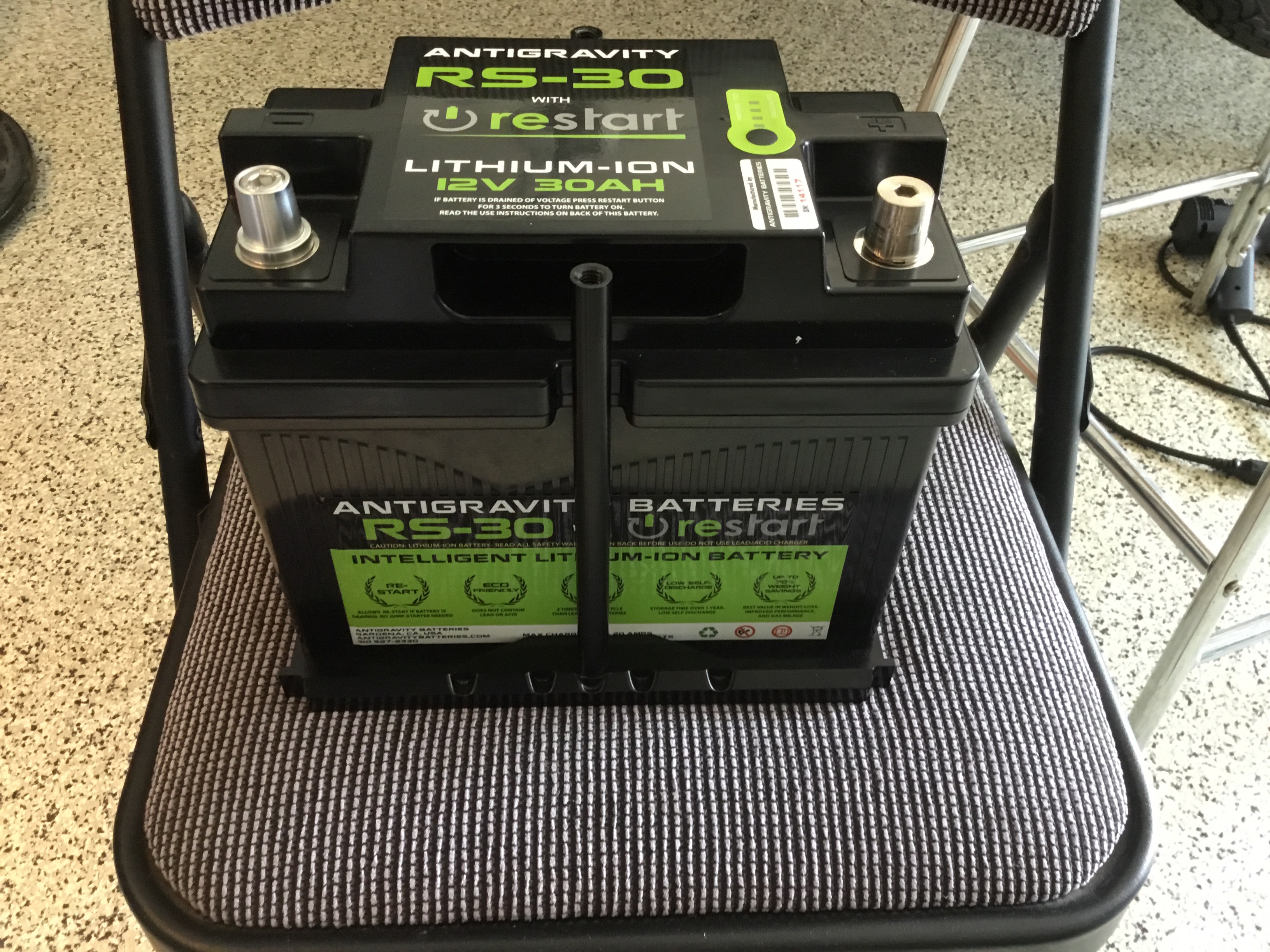

Lastly, the zoomy custom battery showed up today.

Antigravity Batteries' lithium ion example.

1200 cranking amps
weighs 11.5 lbs.

This is what they call a "starter" battery meaning it can't handle a car that has a massive stereo system pulling all kinds of amps.
But it is perfect for an early Porsche that has minimal electrical draw....like mine.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
raynekat
post Aug 7 2018, 05:44 PM
Post #613


Advanced Member
****

Group: Members
Posts: 2,162
Joined: 30-December 14
From: Coeur d'Alene, Idaho
Member No.: 18,263
Region Association: Pacific Northwest

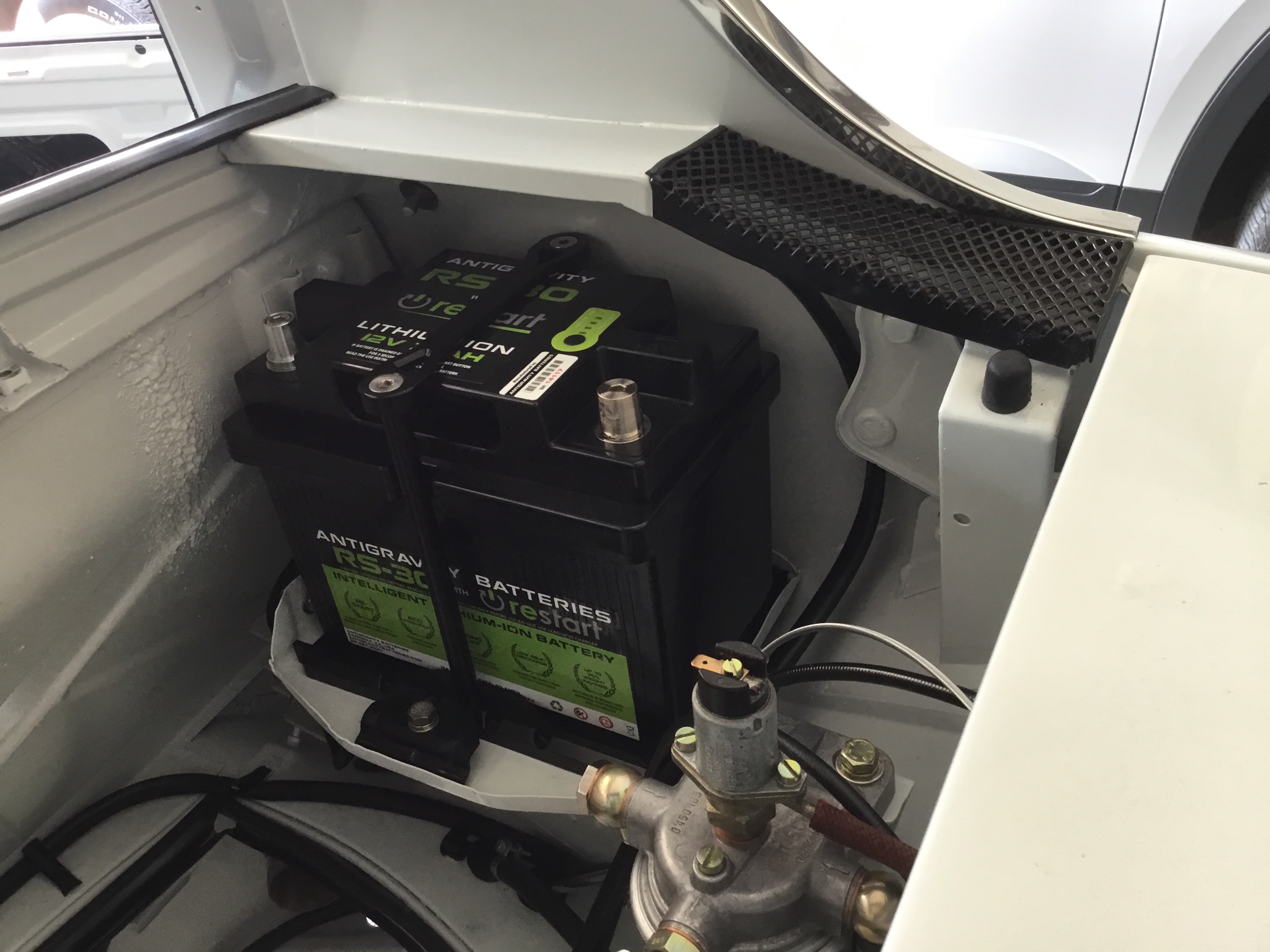

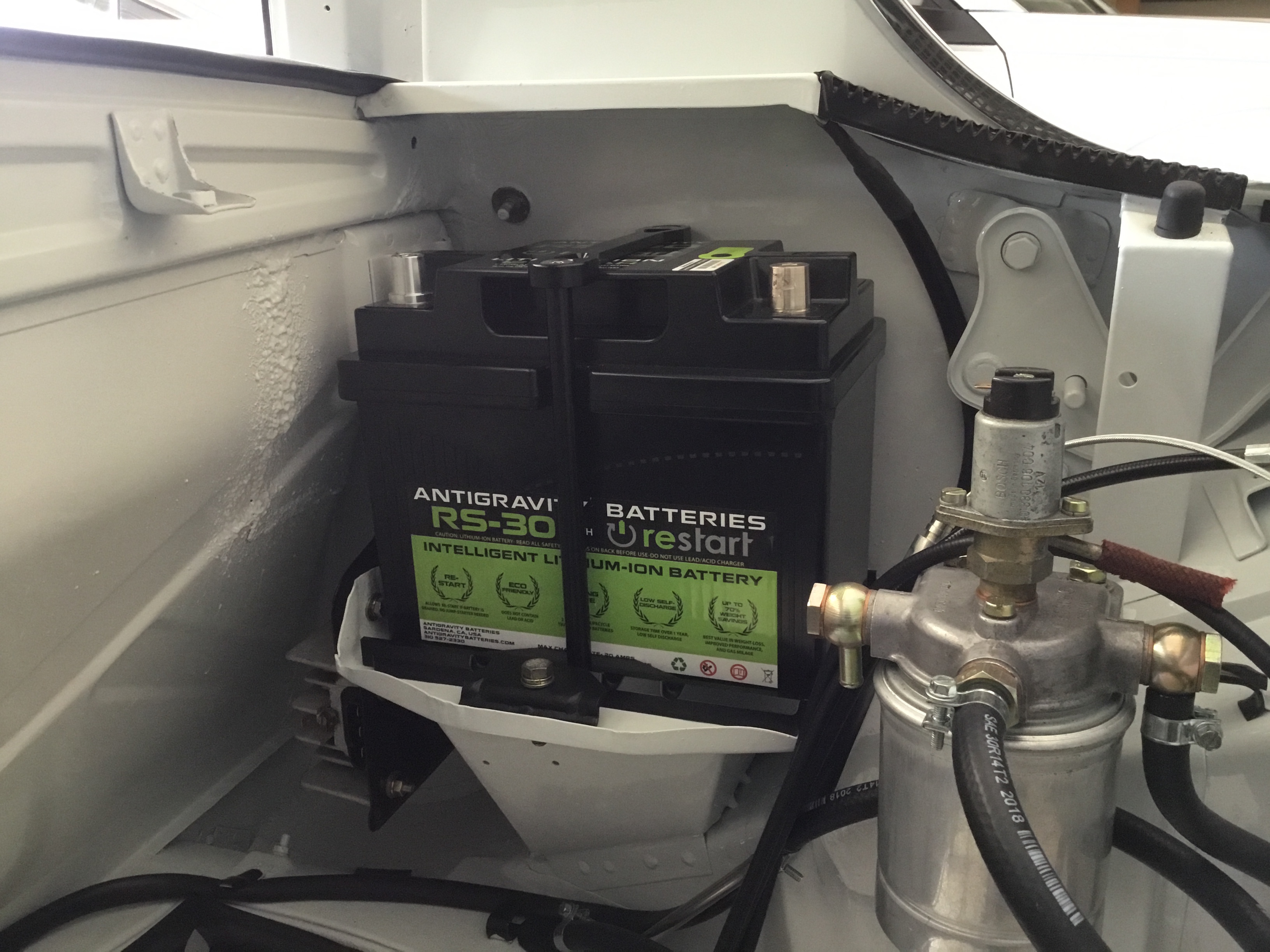

Lithium ion battery in it's finally resting place.

Fits like a glove and looks like it was meant for this car.

Over the coming year, it will be interesting to see how it performs.
If the results are good, I'll be getting another one of these for the 73 911 in the garage.

BTW...the neg terminal is on the left just like it's supposed to be.

It has lots of hi tech electronics built into the battery.
Won't let you pull the battery down too low if you leave your lights on.
Just goes into "sleep mode" leaving you enough power for 3-5 starts with key.
Pretty neat.

BTW part 2. These batteries are not inexpensive, but I thought the technology, lack of fluids inside, longevity (supposed to last twice as long as a normal battery) and especially the weight savings made it worth a try.

Welcome to the future!

Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
raynekat
post Aug 7 2018, 06:23 PM
Post #614


Advanced Member
****

Group: Members
Posts: 2,162
Joined: 30-December 14
From: Coeur d'Alene, Idaho
Member No.: 18,263
Region Association: Pacific Northwest

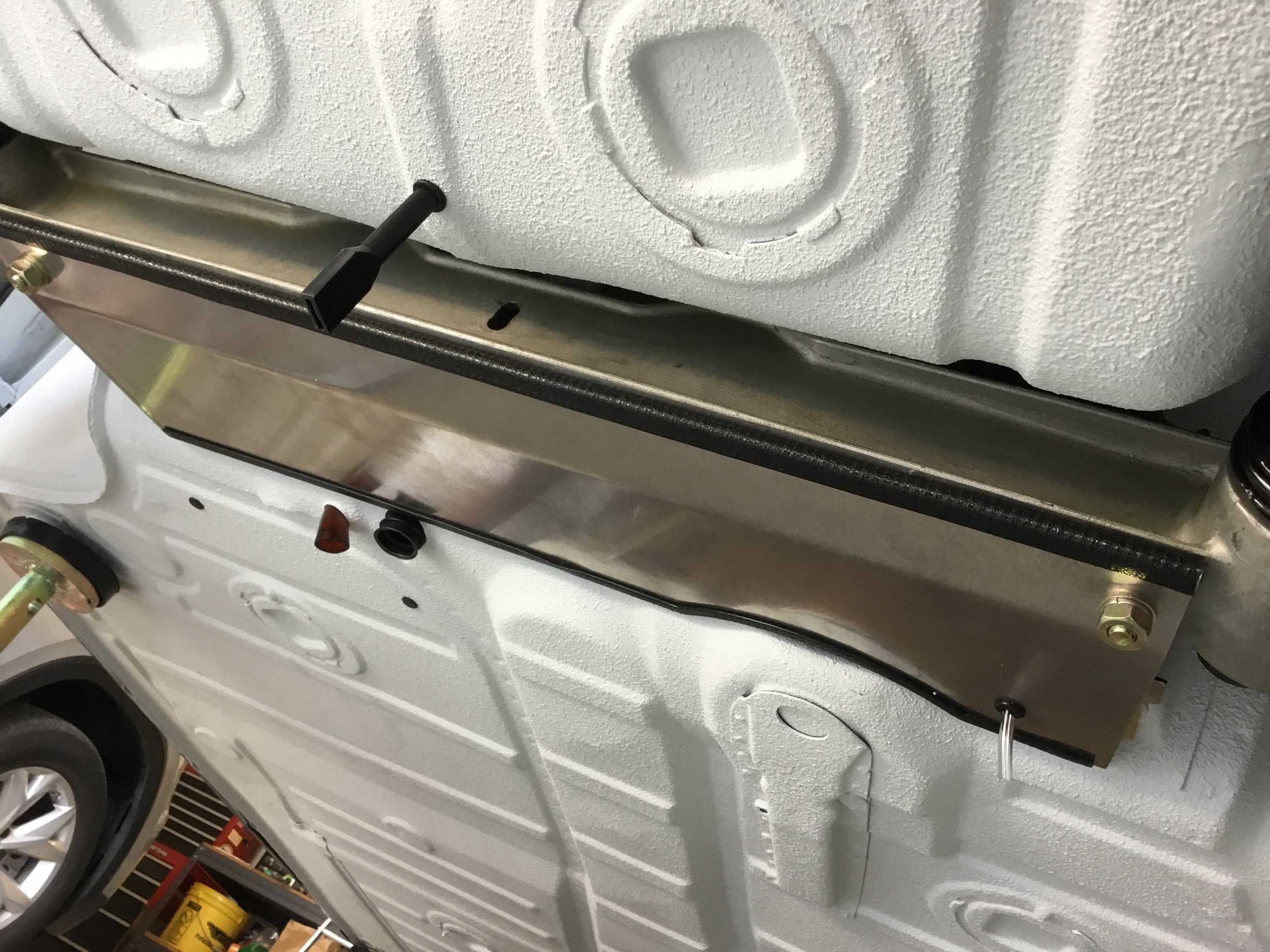

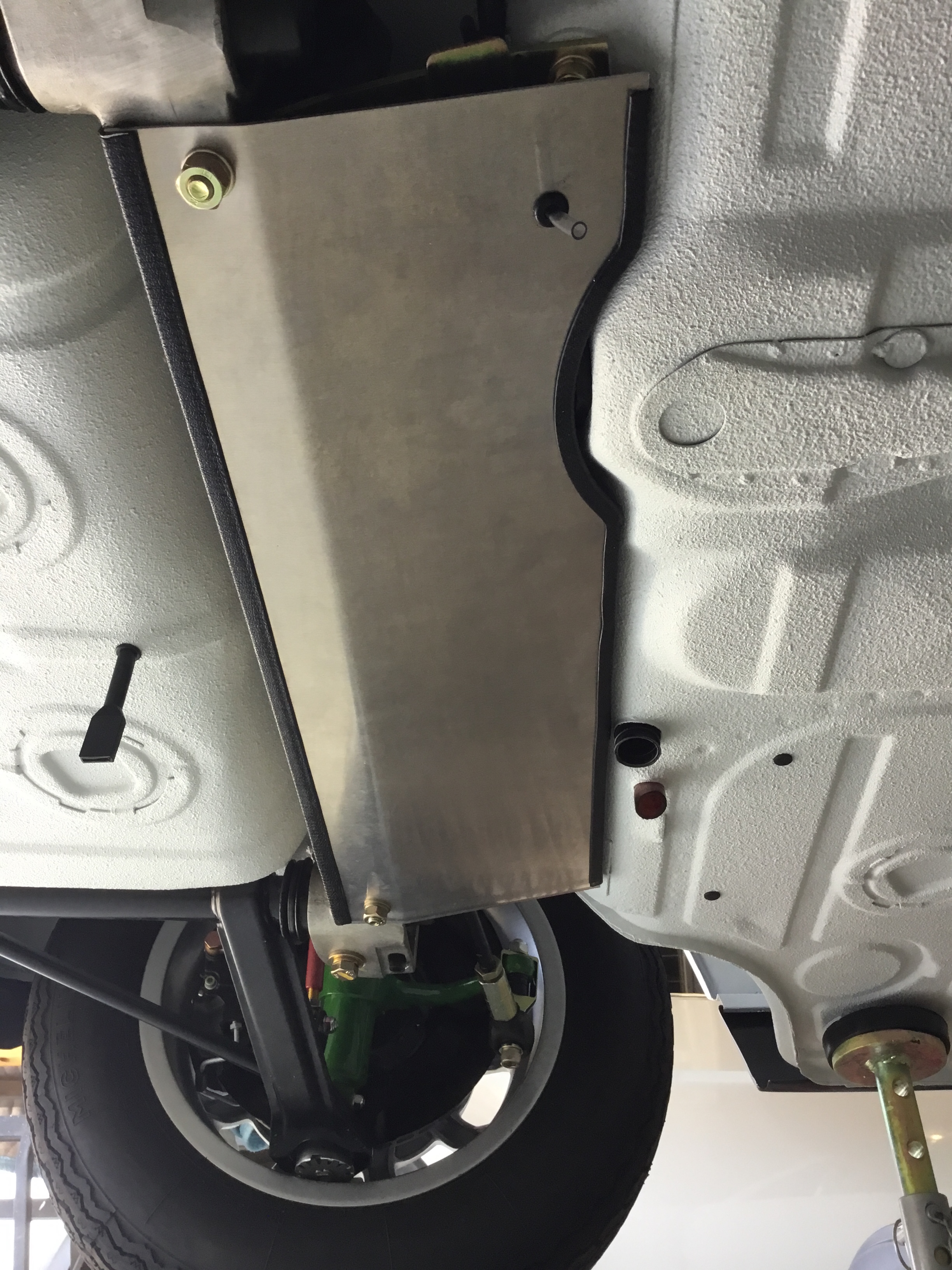

For completion, the normal skid panel didn't fit anymore as I went with an aluminum cross member.

So I put together a simple aluminum skid plate to protect the master brake cylinder, etc.


Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
simonjb
post Aug 7 2018, 10:32 PM
Post #615


KiwiMan
***

Group: Members
Posts: 563
Joined: 18-October 16
From: Stamford, Connecticut
Member No.: 20,505
Region Association: North East States
Very very nice !
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
cary
post Aug 7 2018, 11:59 PM
Post #616


Advanced Member
****

Group: Members
Posts: 3,900
Joined: 26-January 04
From: Sherwood Oregon
Member No.: 1,608
Region Association: Pacific Northwest
(IMG:style_emoticons/default/piratenanner.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post Aug 8 2018, 05:50 AM
Post #617


914-6 GT in waiting
***************

Group: Members
Posts: 19,596
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region
QUOTE(raynekat @ Aug 7 2018, 08:23 PM) *

For completion, the normal skid panel didn't fit anymore as I went with an aluminum cross member.

So I put together a simple aluminum skid plate to protect the master brake cylinder, etc.


Attached Image

Attached Image


Looks like it was always meant to be there. Did you save the pattern?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
milwlandrover
post Aug 8 2018, 06:37 AM
Post #618


Member
**

Group: Members
Posts: 149
Joined: 22-June 12
From: Greendale Wisconsin
Member No.: 14,592
Region Association: Upper MidWest
very nice. Obviously you plan on racing. you should have a barrel of fun.
cheers! From Milwaukee WI
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DRPHIL914
post Aug 8 2018, 07:03 AM
Post #619


Dr. Phil
*****

Group: Members
Posts: 5,810
Joined: 9-December 09
From: Bluffton, SC
Member No.: 11,106
Region Association: South East States
QUOTE(raynekat @ Aug 5 2018, 07:49 PM) *

Engine bay/firewall all complete at this point.
Waiting to get scheduled for installation of the drivetrain with Rothsport.

Replica 914-6 engine mount/reinforced on the firewall.
I went with this mount due to the factory routing of the snorkel and the rearward wiring.
Many of the other mounts make the wiring harness do some kind of wild maneuver to get through this area.

Lots of 914Rubber seals, etc.
All new cables run.
Rear brake proportioning valve rebuilt by PMB.

Attached Image

Attached Image



man that looks so clean!!! I am jealous! I do wish I had cleaned up my engine compartment better .
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Coondog
post Aug 8 2018, 07:15 AM
Post #620


Advanced Member
****

Group: Members
Posts: 2,089
Joined: 24-September 15
From: Apple Valley Calif
Member No.: 19,195
Region Association: Southern California
Amazing work, just spend a hour re-reading this thread. Be proud Sir...... (IMG:style_emoticons/default/first.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
« Next Oldest · 914World Garage · Next Newest »


42 Pages V « < 29 30 31 32 33 > »
Reply to this topicStart new topic
3 User(s) are reading this topic (3 Guests and 0 Anonymous Users)
0 Members:



Display Mode: Standard · Switch to: Linear+ · Switch to: Outline

Track this topic · Email this topic · Print this topic · Subscribe to this forum

- Lo-Fi Version Time is now: 25th November 2024 - 11:56 AM
Invision Power Board v9.1.4 © 2024  IPS, Inc.
All rights reserved 914World.com © since 2002
914World.com is the fastest growing online 914 community!
We have it all, classifieds, events, forums, vendors, parts, autocross, racing, technical articles, events calendar, newsletter, restoration, gallery, archives, history and more for your Porsche 914 ...
