> Muellers Honda V6 914 project, Put 70 miles on this engine swap, now to drop broken motor
76-914
post Aug 20 2020, 09:34 PM
Post #321


Repeat Offender & Resident Subaru Antagonist
**********

Group: Members
Posts: 13,634
Joined: 23-January 09
From: Temecula, CA
Member No.: 9,964
Region Association: Southern California
QUOTE(Andyrew @ Aug 20 2020, 10:20 AM) *

QUOTE(Mueller @ Jul 31 2020, 12:06 PM) *

QUOTE(Andyrew @ Jul 31 2020, 08:57 AM) *

Which manifold is that from? Lookin good (IMG:style_emoticons/default/smile.gif)


Outboard motor (IMG:style_emoticons/default/smash.gif)

I'm really pushing this water cooled conversion using boat parts.




Woah, What witchcraft is used to keep the crank lubricated on the top cyl journals and keep the oil out of the cylinders on the bottom?

There is a write up in Apple News about that very same thing. Might have been in the Popular Mechanics section. Multiple & separate head thermostats on the Marine version as well. The guy in Alaskan waters Has different cooling needs than the guy in the Caribbean. (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
EdwardBlume
post Aug 21 2020, 06:45 AM
Post #322


914 Wizard
**********

Group: Members
Posts: 12,338
Joined: 2-January 03
From: SLO
Member No.: 81
Region Association: Central California
Looking good Mike! Keep up the 914 therapy!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dakotaewing
post Aug 21 2020, 09:31 AM
Post #323


Senior Member
***

Group: Members
Posts: 1,163
Joined: 8-July 03
From: DeSoto, Tx
Member No.: 897
Region Association: Southwest Region
Looking for one of these?

https://www.racetronix.biz/p/y-block-male-1...black/yblk-1616
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Andyrew
post Aug 21 2020, 11:17 AM
Post #324


Spooling.... Please wait
**********

Group: Members
Posts: 13,377
Joined: 20-January 03
From: Riverbank, Ca
Member No.: 172
Region Association: Northern California
QUOTE(76-914 @ Aug 20 2020, 08:34 PM) *

QUOTE(Andyrew @ Aug 20 2020, 10:20 AM) *

QUOTE(Mueller @ Jul 31 2020, 12:06 PM) *

QUOTE(Andyrew @ Jul 31 2020, 08:57 AM) *

Which manifold is that from? Lookin good (IMG:style_emoticons/default/smile.gif)


Outboard motor (IMG:style_emoticons/default/smash.gif)

I'm really pushing this water cooled conversion using boat parts.




Woah, What witchcraft is used to keep the crank lubricated on the top cyl journals and keep the oil out of the cylinders on the bottom?

There is a write up in Apple News about that very same thing. Might have been in the Popular Mechanics section. Multiple & separate head thermostats on the Marine version as well. The guy in Alaskan waters Has different cooling needs than the guy in the Caribbean. (IMG:style_emoticons/default/beerchug.gif)

I'll have to look that up, Very crazy!! Imagine installing an engine like that in a car!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post Sep 14 2020, 09:48 PM
Post #325


914 Freak!
***************

Group: Members
Posts: 17,150
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None
Have not touched the 914 in a few weeks, other projects around the house and such.

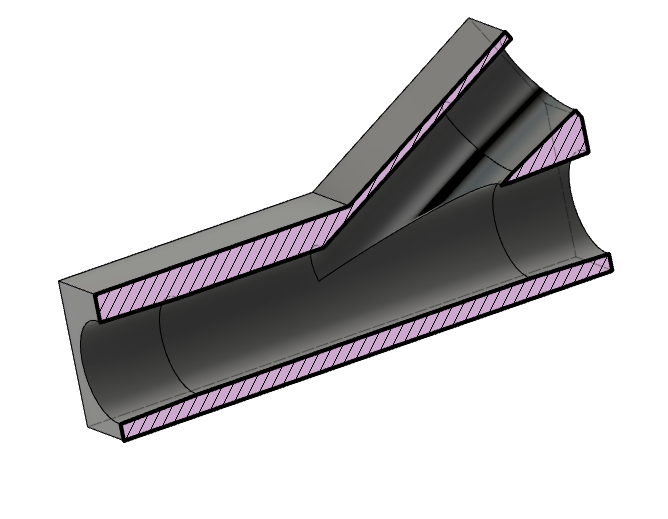

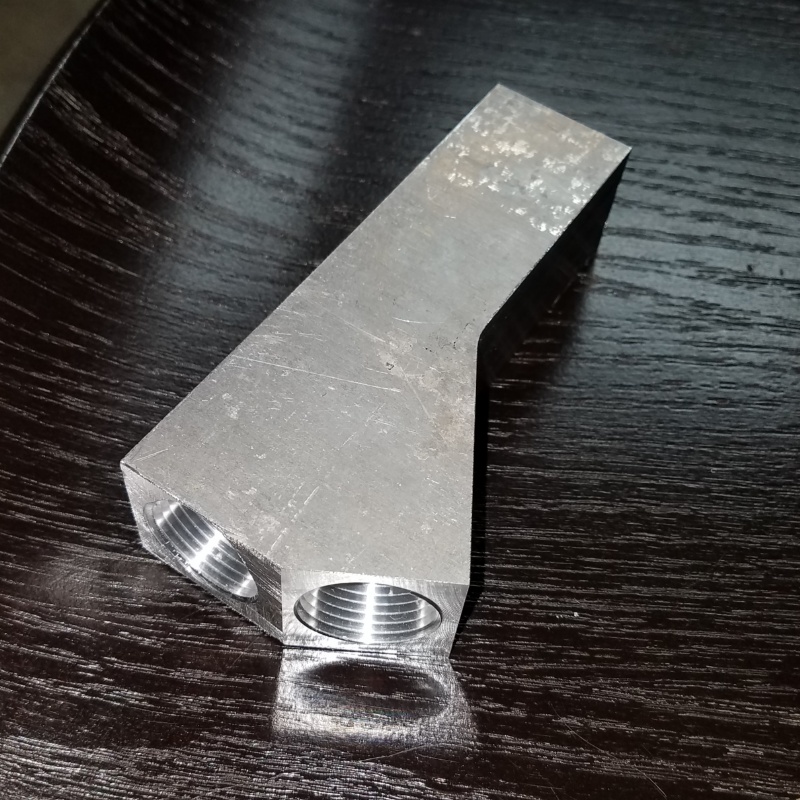

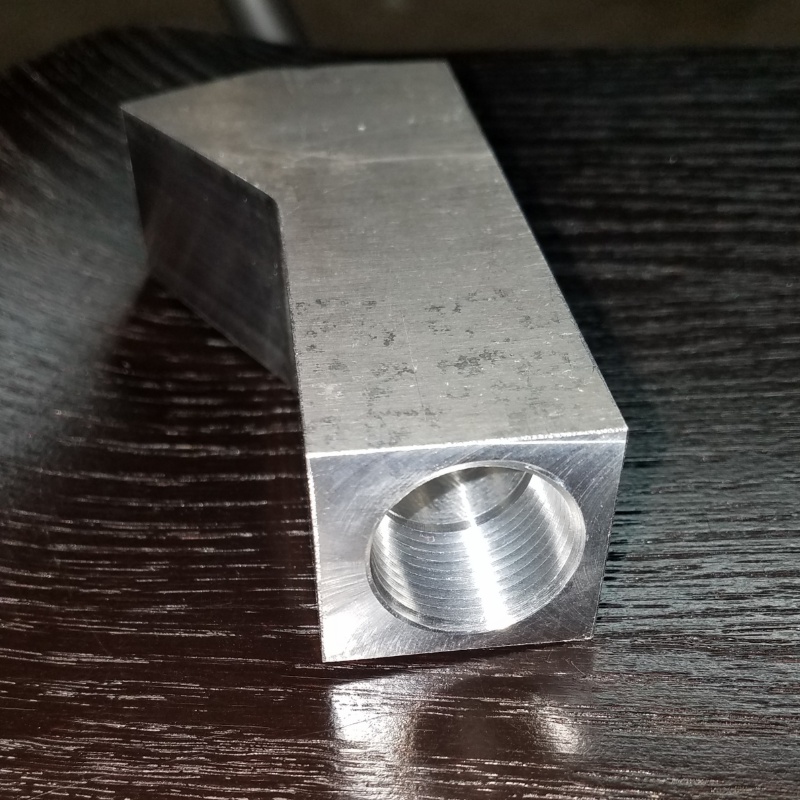

Decided to make my own "wye" fitting today. It also gave me a chance to learn how to threadmill NPT threads. These are 3/4-14 NPT for the fittings to connect the hoses.

It will be 2 inlet and 1 outlet going to the radiator.

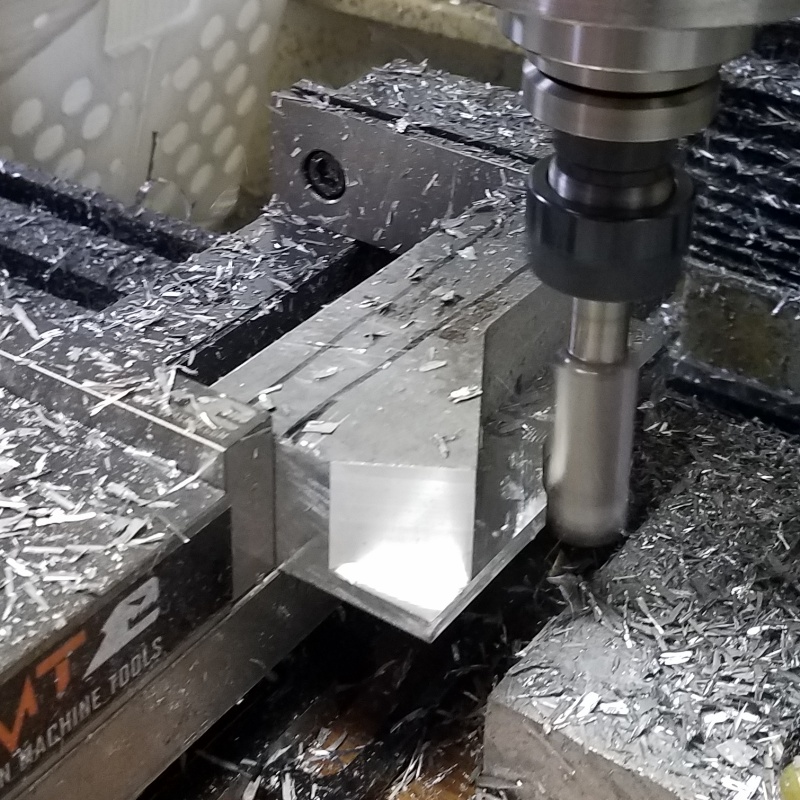

The video is showing my machine cutting the threads. The same cutter can cut multiple thread pitches, internal and external.


https://www.youtube.com/watch?v=azz8zstPheM


Attached Image
Attached Image
Attached Image
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Andyrew
post Sep 15 2020, 08:02 AM
Post #326


Spooling.... Please wait
**********

Group: Members
Posts: 13,377
Joined: 20-January 03
From: Riverbank, Ca
Member No.: 172
Region Association: Northern California
Thats pretty trick how it mills the threads one at a time!

How difficult is that to program and setup?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Sep 15 2020, 09:27 AM
Post #327


914 Guru
*****

Group: Members
Posts: 5,452
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
Mike - Thanks for posting stuff like this. I love your build and your "do whatever it takes" attitude. Your one-of-a-kind parts like this are like sprinkles on the frosting! (IMG:style_emoticons/default/drooley.gif)
Keep up the great work.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
horizontally-opposed
post Sep 15 2020, 09:56 AM
Post #328


Advanced Member
****

Group: Members
Posts: 3,445
Joined: 12-May 04
From: San Francisco
Member No.: 2,058
Region Association: None
That is a pretty cool video—thank you for posting it, and I too dig this thread.

Keep it up, Mike—the car is going to be super cool when you get it running. That engine sounded great in Harry's 914.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post Sep 24 2020, 08:35 PM
Post #329


914 Freak!
***************

Group: Members
Posts: 17,150
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None

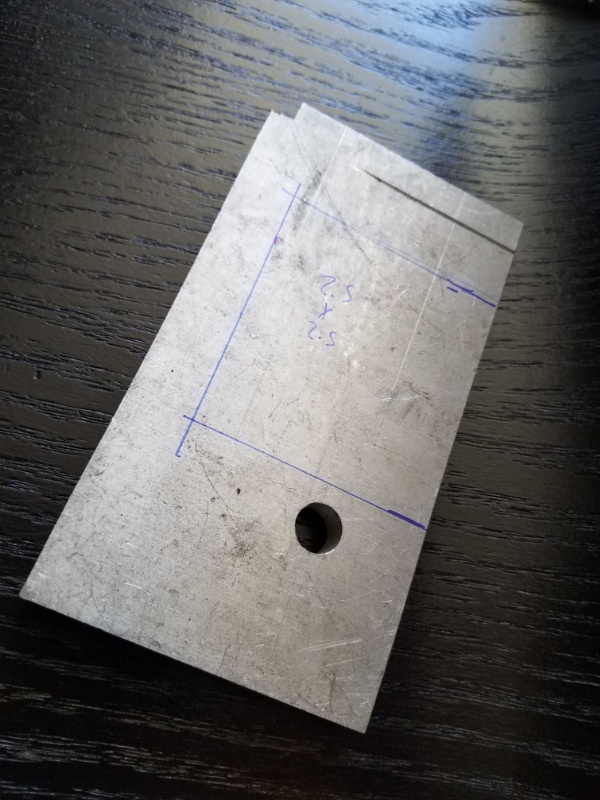

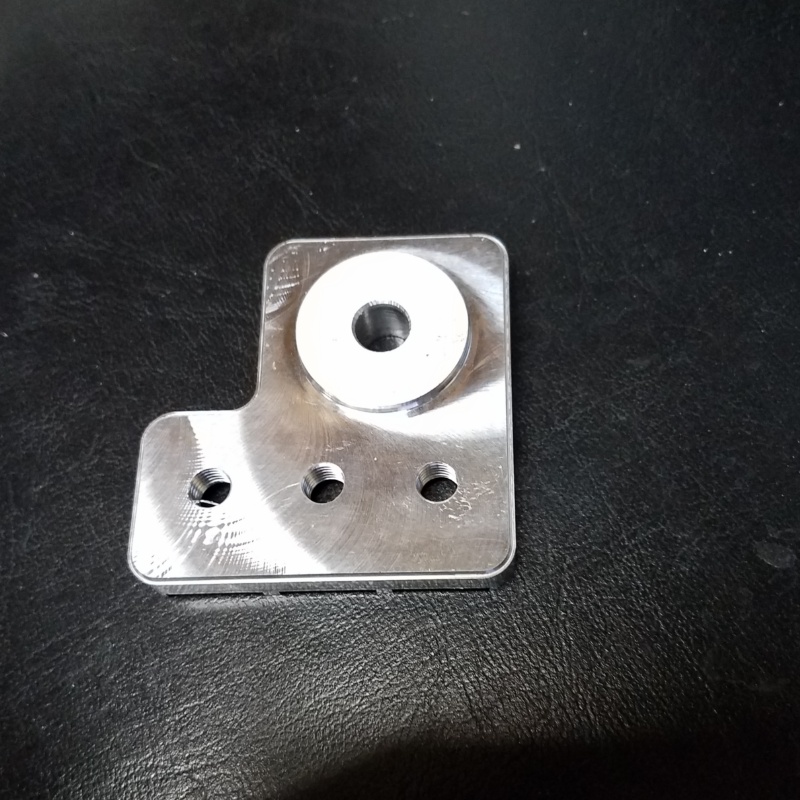

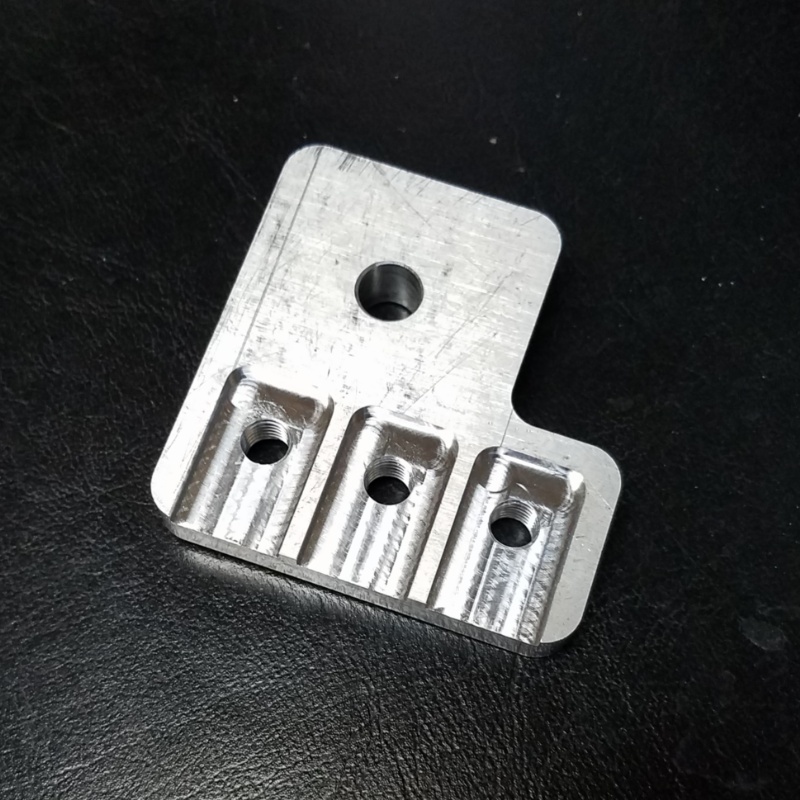

Not the most ideal material, didn't have any copper and I'm tired of spending money on this car so aluminum will do for now.

Need to see if I have some delrin or see if my 3D printer still works to make a cover for it.

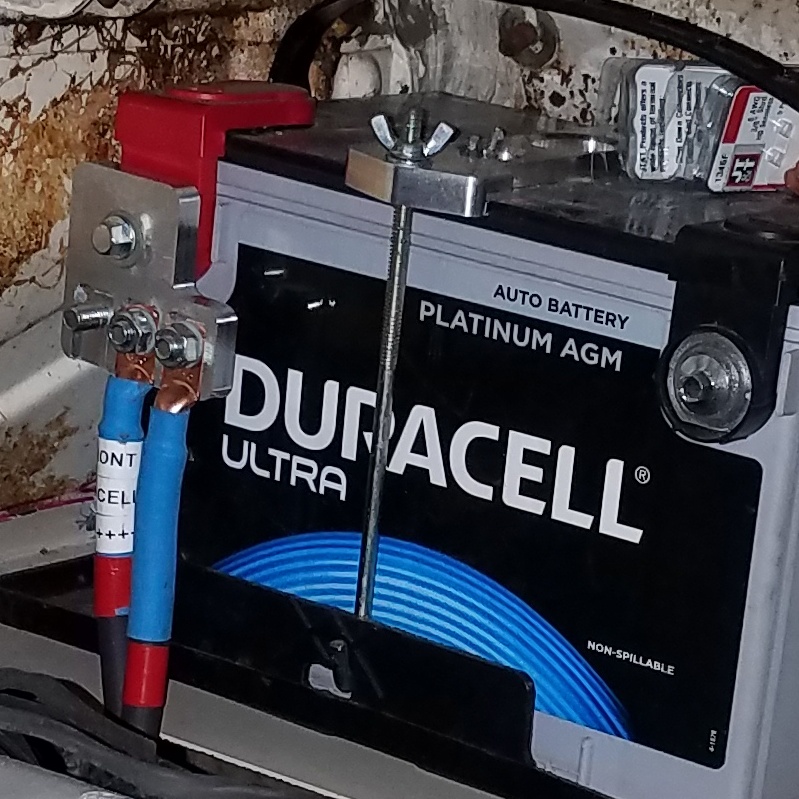

The 3 large 12vdc lines are for the starter (1) and the other 2 go to the Powercells.

Attached Image
Attached Image
Attached Image
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Krieger
post Sep 24 2020, 10:59 PM
Post #330


Advanced Member
****

Group: Members
Posts: 4,765
Joined: 24-May 04
From: Santa Rosa CA
Member No.: 2,104
Region Association: None
Wow! Great design and super clean look.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Coondog
post Sep 24 2020, 11:07 PM
Post #331


Advanced Member
****

Group: Members
Posts: 2,089
Joined: 24-September 15
From: Apple Valley Calif
Member No.: 19,195
Region Association: Southern California
Nothing wrong with aluminum as a conductor....looks great.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
76-914
post Sep 25 2020, 02:57 PM
Post #332


Repeat Offender & Resident Subaru Antagonist
**********

Group: Members
Posts: 13,634
Joined: 23-January 09
From: Temecula, CA
Member No.: 9,964
Region Association: Southern California
QUOTE(Coondog @ Sep 24 2020, 10:07 PM) *

Nothing wrong with aluminum as a conductor....looks great.

Not unless your house was wired with it. Granted it wasn't the material but the installer. You as a fireman probably know this all too well.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post Sep 25 2020, 03:28 PM
Post #333


914 Freak!
***************

Group: Members
Posts: 17,150
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None
QUOTE(76-914 @ Sep 25 2020, 01:57 PM) *

QUOTE(Coondog @ Sep 24 2020, 10:07 PM) *

Nothing wrong with aluminum as a conductor....looks great.

Not unless your house was wired with it. Granted it wasn't the material but the installer. You as a fireman probably know this all too well.


Our home AC is wired using aluminum wire, the circuit breaker kept tripping until I realized the at the box was loose. A few turns till nice and tight and no more problems.


I did look up the charts for bus bar ampacity and figured this thickness should be fine for the 914.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post Oct 16 2020, 01:13 AM
Post #334


914 Freak!
***************

Group: Members
Posts: 17,150
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None

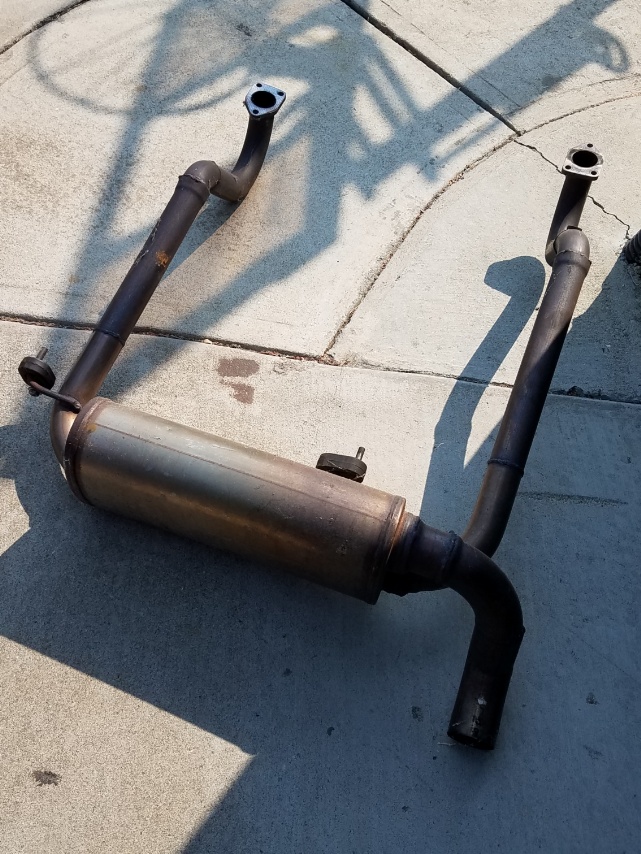

Exhaust is back on, took some trial an error finding the correct gaskets from the headers to the down tubes. Finally found an online catalog for Walker.

Attached Image
Attached Image

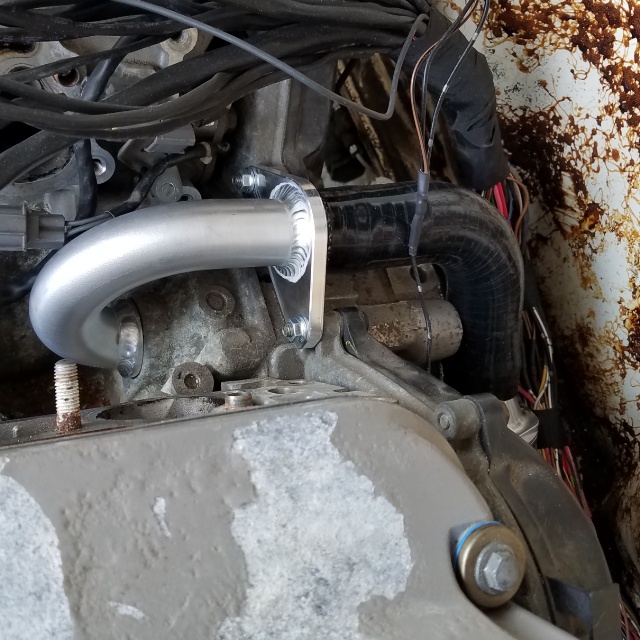

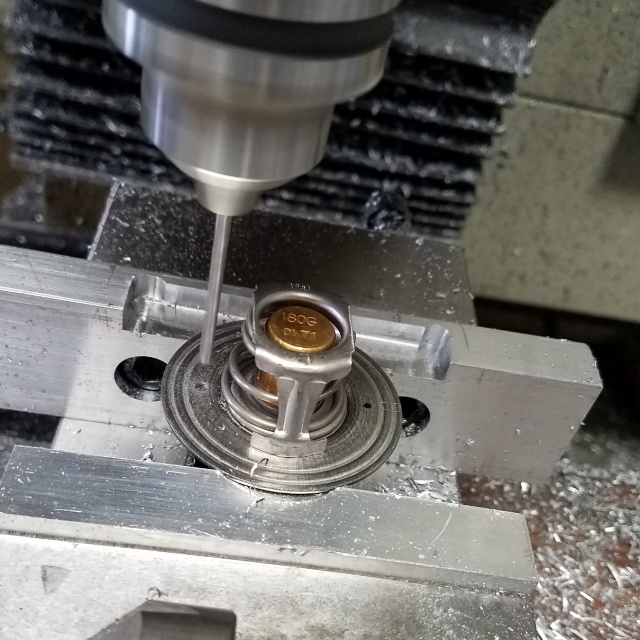

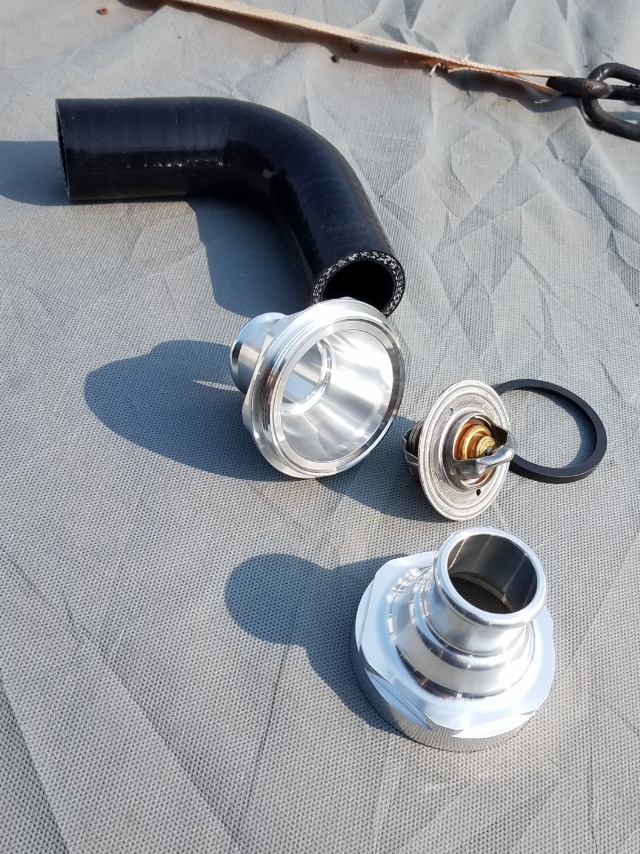

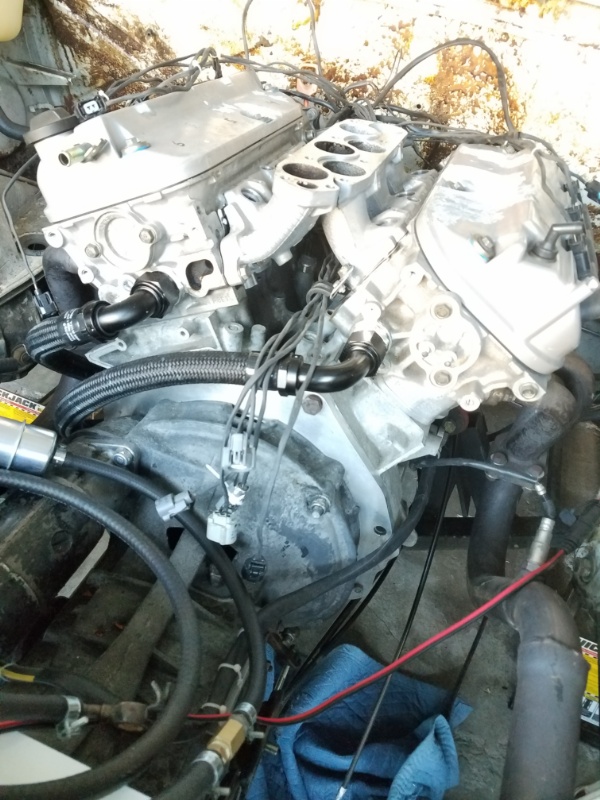

The cooling system is all done, tomorrow I hope to fill it and test it. It was recommended that I drill a few small holes in the thermostat. I am using an inline unit.

Attached Image
Attached Image
Attached Image

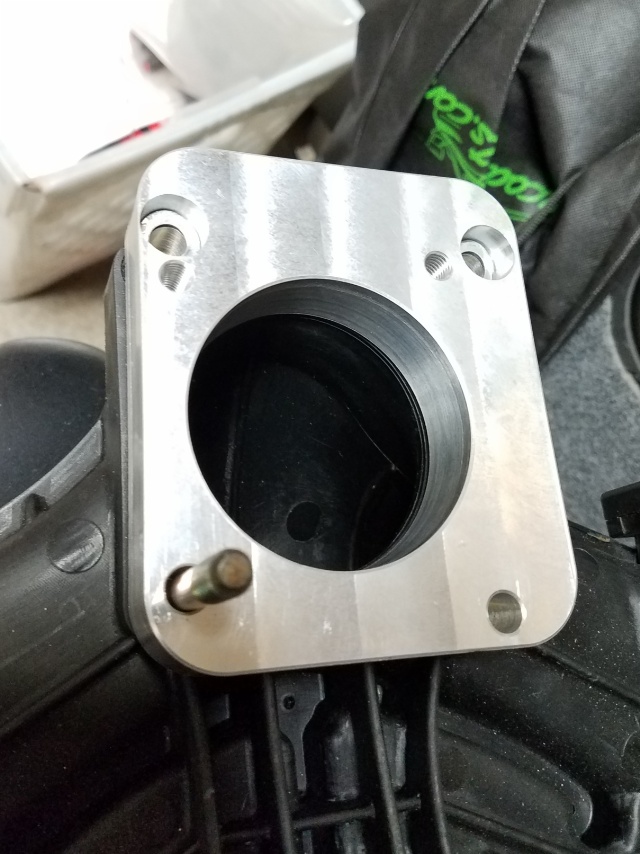

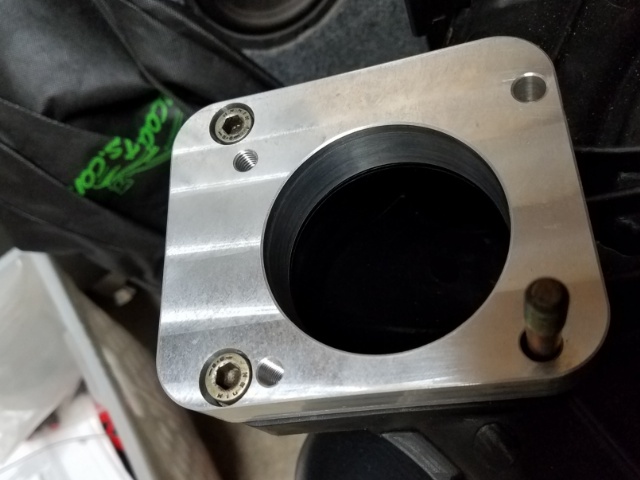

In order to fit my throttle body I needed to counter bore the adapter for 2 of the screws.

Attached Image
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
76-914
post Oct 16 2020, 08:17 AM
Post #335


Repeat Offender & Resident Subaru Antagonist
**********

Group: Members
Posts: 13,634
Joined: 23-January 09
From: Temecula, CA
Member No.: 9,964
Region Association: Southern California
QUOTE(Mueller @ Sep 25 2020, 02:28 PM) *

QUOTE(76-914 @ Sep 25 2020, 01:57 PM) *

QUOTE(Coondog @ Sep 24 2020, 10:07 PM) *

Nothing wrong with aluminum as a conductor....looks great.

Not unless your house was wired with it. Granted it wasn't the material but the installer. You as a fireman probably know this all too well.


Our home AC is wired using aluminum wire, the circuit breaker kept tripping until I realized the at the box was loose. A few turns till nice and tight and no more problems.


I did look up the charts for bus bar ampacity and figured this thickness should be fine for the 914.

Mike, this is the exact situation that caused the fires. Loose connections caused arcing. Arcing caused black sooted buildup which in turn causes high resistance and heat build up to the point of ignition. The preventative fix is a cheap compound that electrical supplies will have. IIRC, it is called No-Lox or something like that. Coat the wire ends at wire nuts or other junctions. It will prevent arcing. We used the stuff when changing out electric water heaters but I haven't seen any aluminum wiring in years so we no longer carry it. (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Oct 17 2020, 02:41 PM
Post #336


Advanced Member
****

Group: Members
Posts: 4,851
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None
Machinist extraordinaire!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Gint
post Oct 17 2020, 06:57 PM
Post #337


Mike Ginter
***************

Group: Admin
Posts: 16,094
Joined: 26-December 02
From: Denver CO.
Member No.: 20
Region Association: Rocky Mountains
(IMG:style_emoticons/default/agree.gif) I've always enjoyed seeing what Mike was turning out of bare stock.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post Oct 17 2020, 07:18 PM
Post #338


Hey nice rack! -Celette
***************

Group: Members
Posts: 20,786
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region
(IMG:style_emoticons/default/welder.gif) (IMG:style_emoticons/default/smash.gif) (IMG:style_emoticons/default/sawzall-smiley.gif) we need a new Meuller emoji
One that is operating a lath
User is online!Profile CardPM
Go to the top of the page
+Quote Post
hcdmueller
post Oct 18 2020, 12:04 PM
Post #339


?????????????
***

Group: Members
Posts: 542
Joined: 4-February 06
From: UK
Member No.: 5,527
Region Association: England
New houses in my area went to stranded AL wire for 220v circuits. The solid copper is too expensive I guess. A corrosion inhibitor is a must in that situation. We noticed the lights dim when the AC kicks on less than a year into our house. Guess what the builder didn't do to the 220v connections. In the end I had to clean up all the connections in the circuits and add the NOALOX. Not sure how a 12v connection would hold up, but seems like cheap insurance.

Great build, I love the Honda v6. Eventually I'll stuff one in a Bay bus.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post Oct 22 2020, 05:33 PM
Post #340


914 Freak!
***************

Group: Members
Posts: 17,150
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None
The PO of my 914 told me the transmission is in need of internal work, I'm going to drive as is for now. (Once I do drive it)

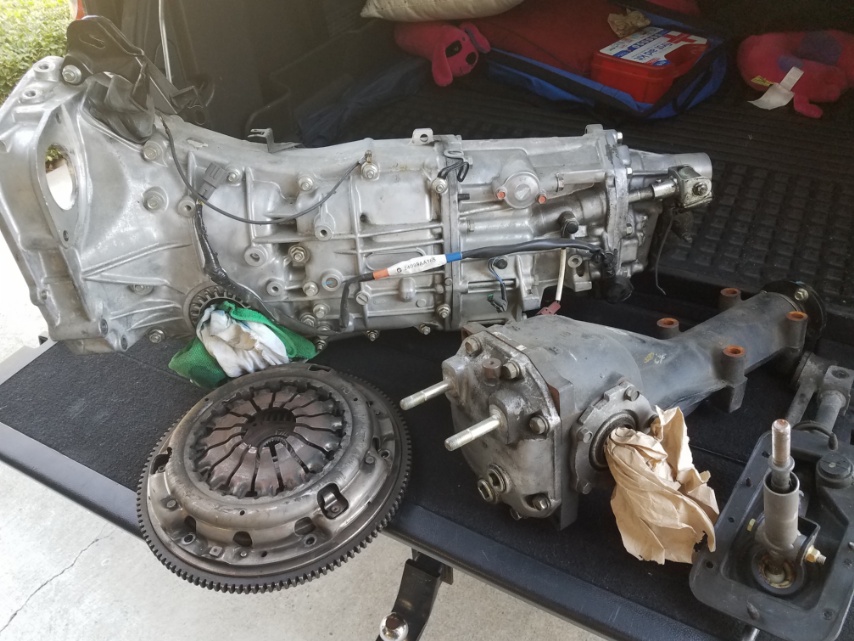

However this 2014 WRX 5 speed with 30K miles just happened to go up for sale not too far from me. I hope I can sell the rear diff to offset the cost.

Attached Image
