> *Project 2.4* • Dion’s endeavor • Six conversion, Rustoration & transformation
Dion
post Dec 4 2018, 06:57 PM
Post #401


RN
****

Group: Members
Posts: 2,839
Joined: 16-September 04
From: Audubon,PA
Member No.: 2,766
Region Association: MidAtlantic Region

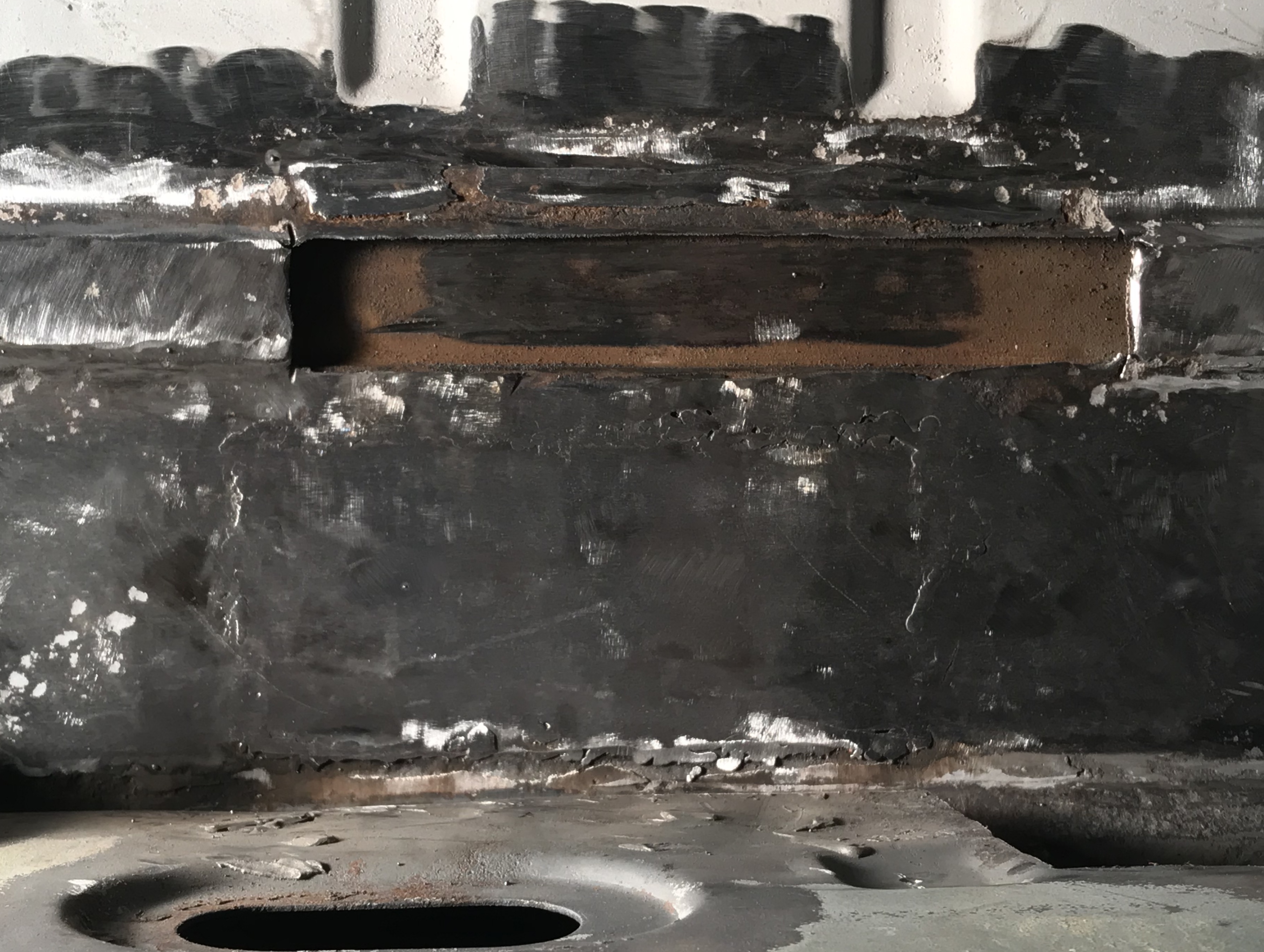

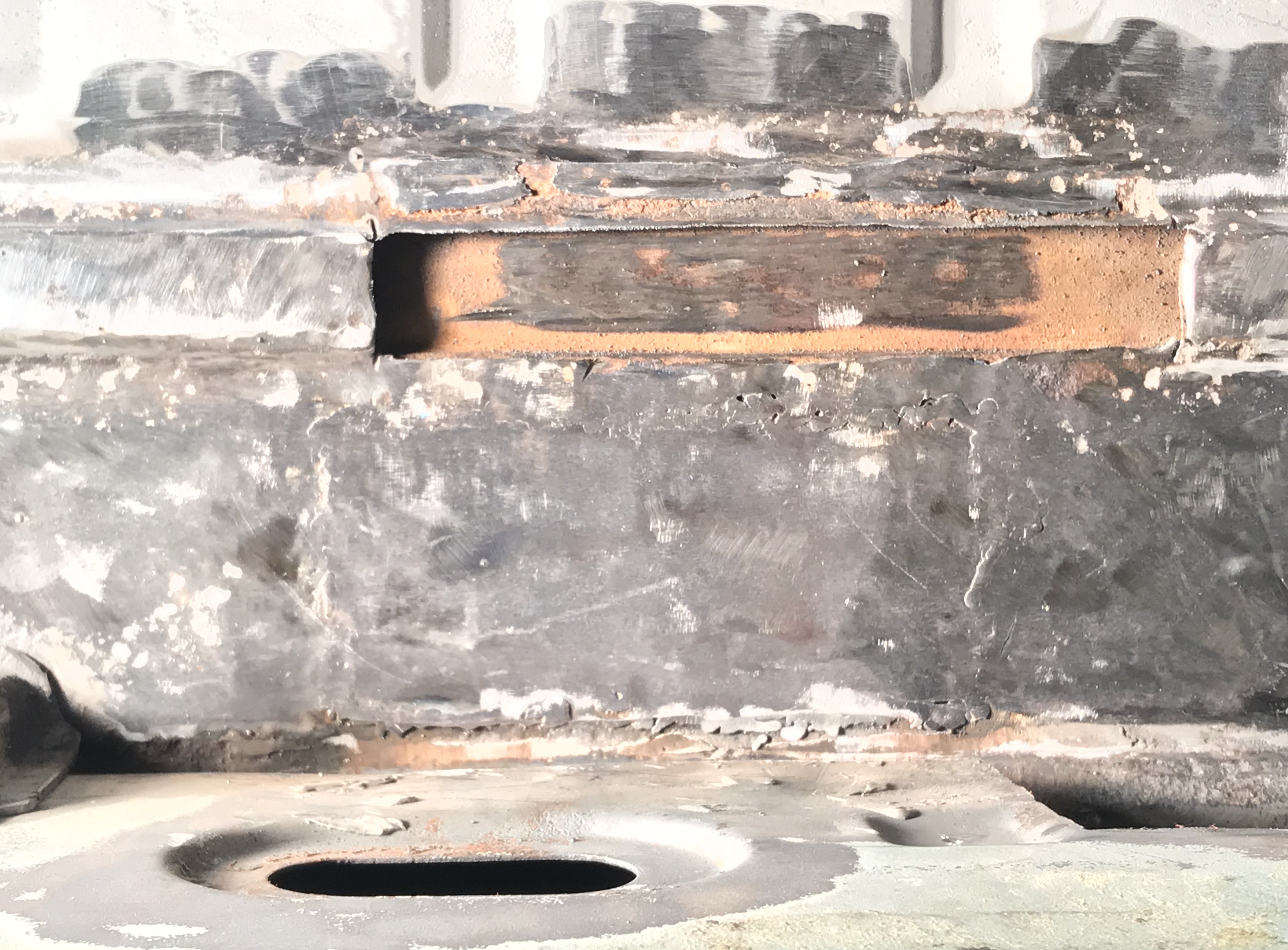

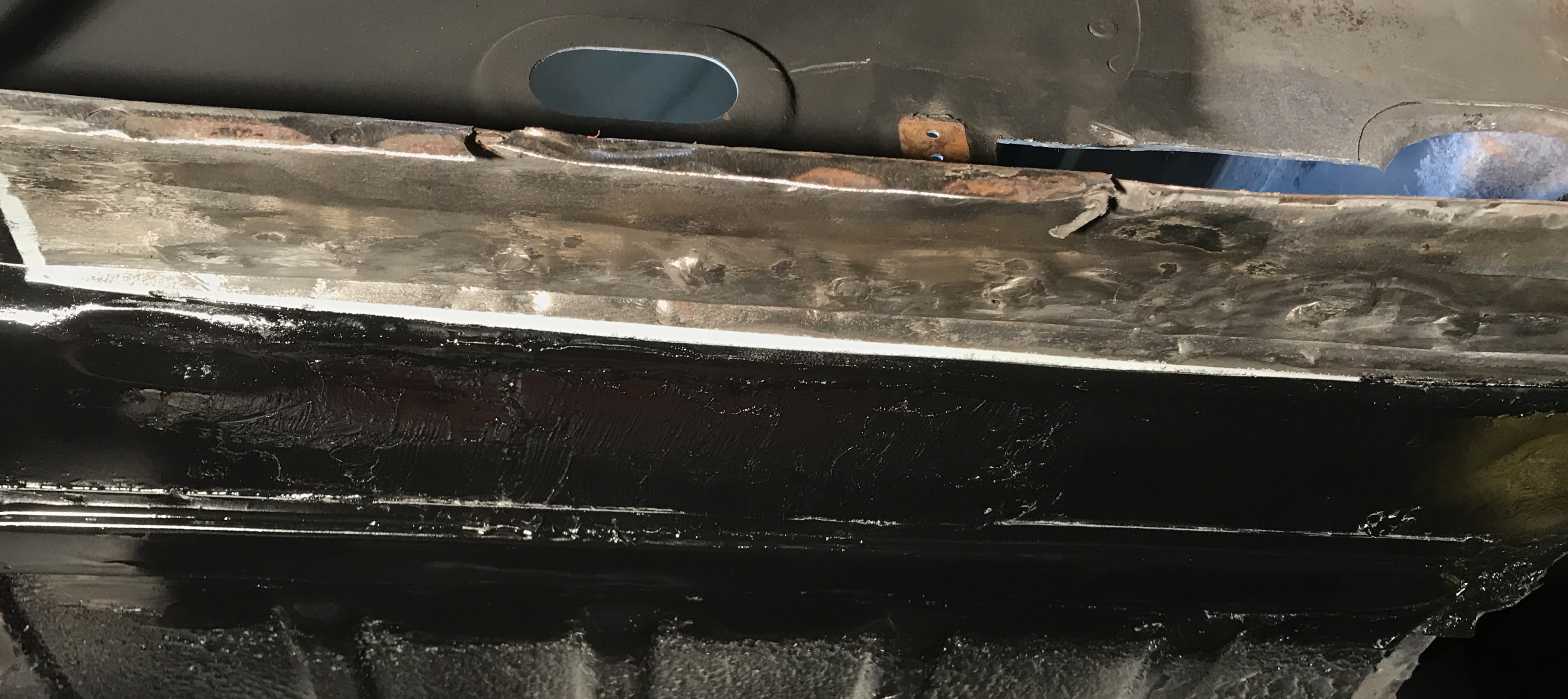

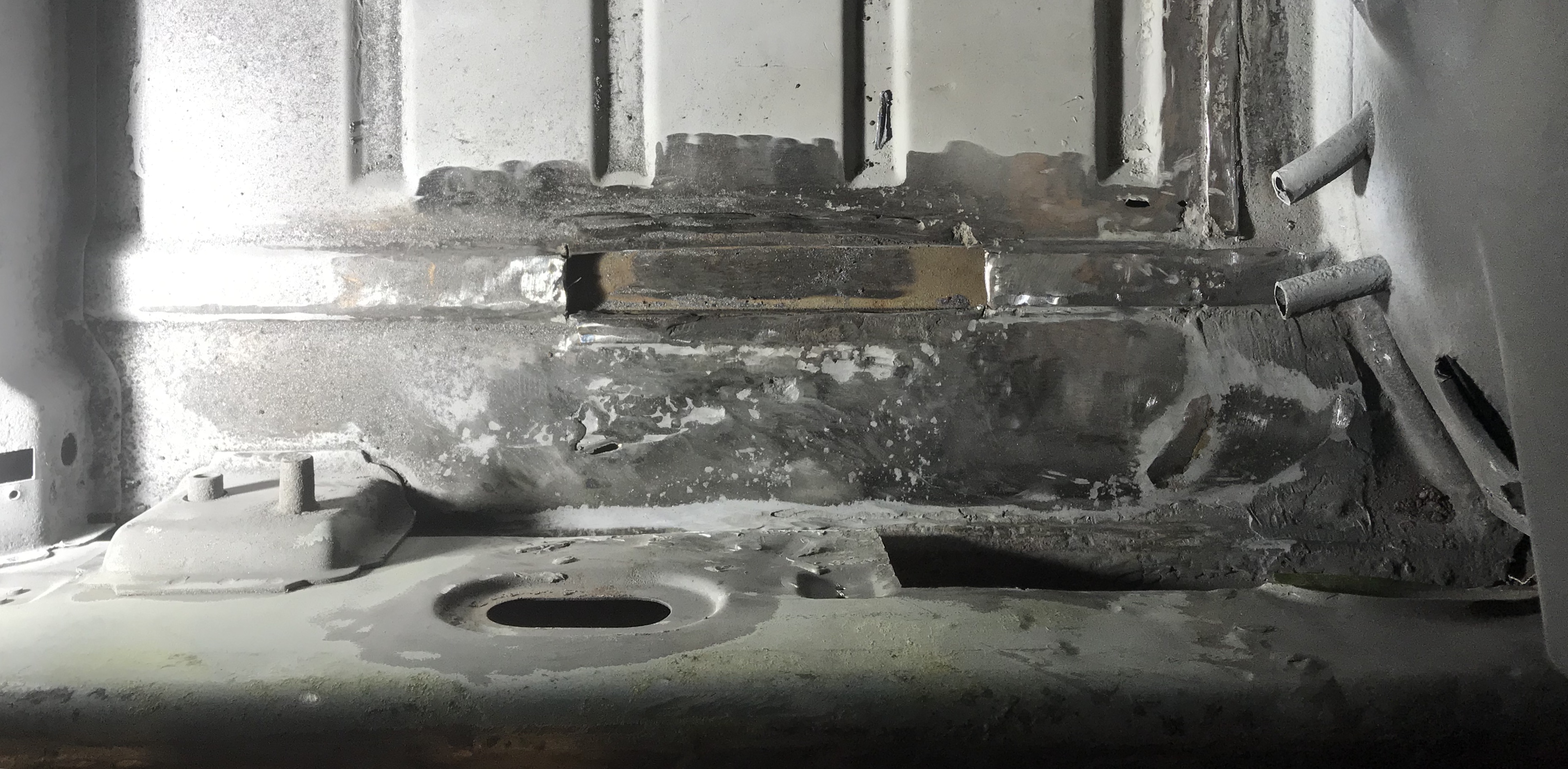

Clean up of surrounding metal.


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dion
post Dec 4 2018, 06:59 PM
Post #402


RN
****

Group: Members
Posts: 2,839
Joined: 16-September 04
From: Audubon,PA
Member No.: 2,766
Region Association: MidAtlantic Region

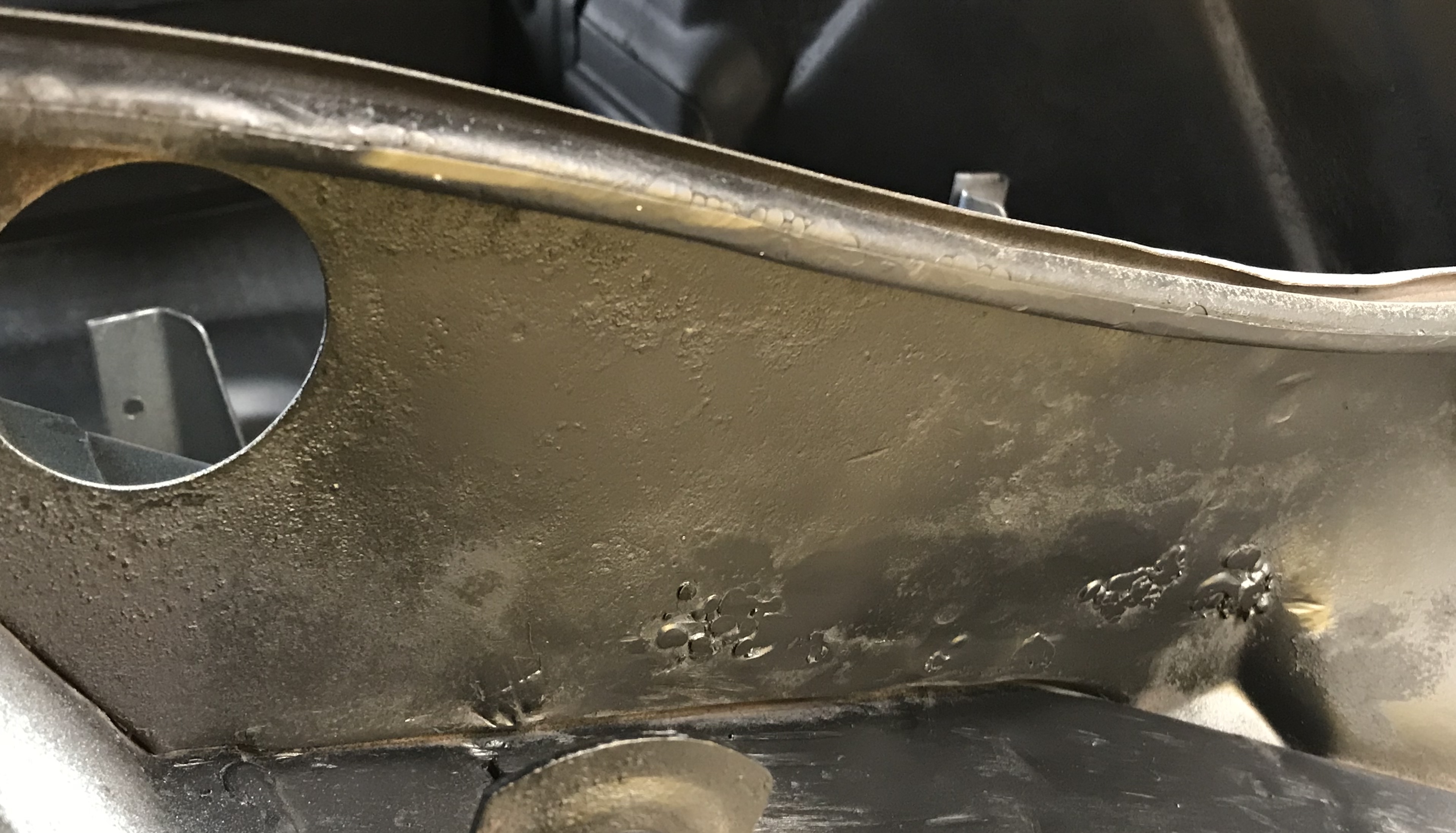

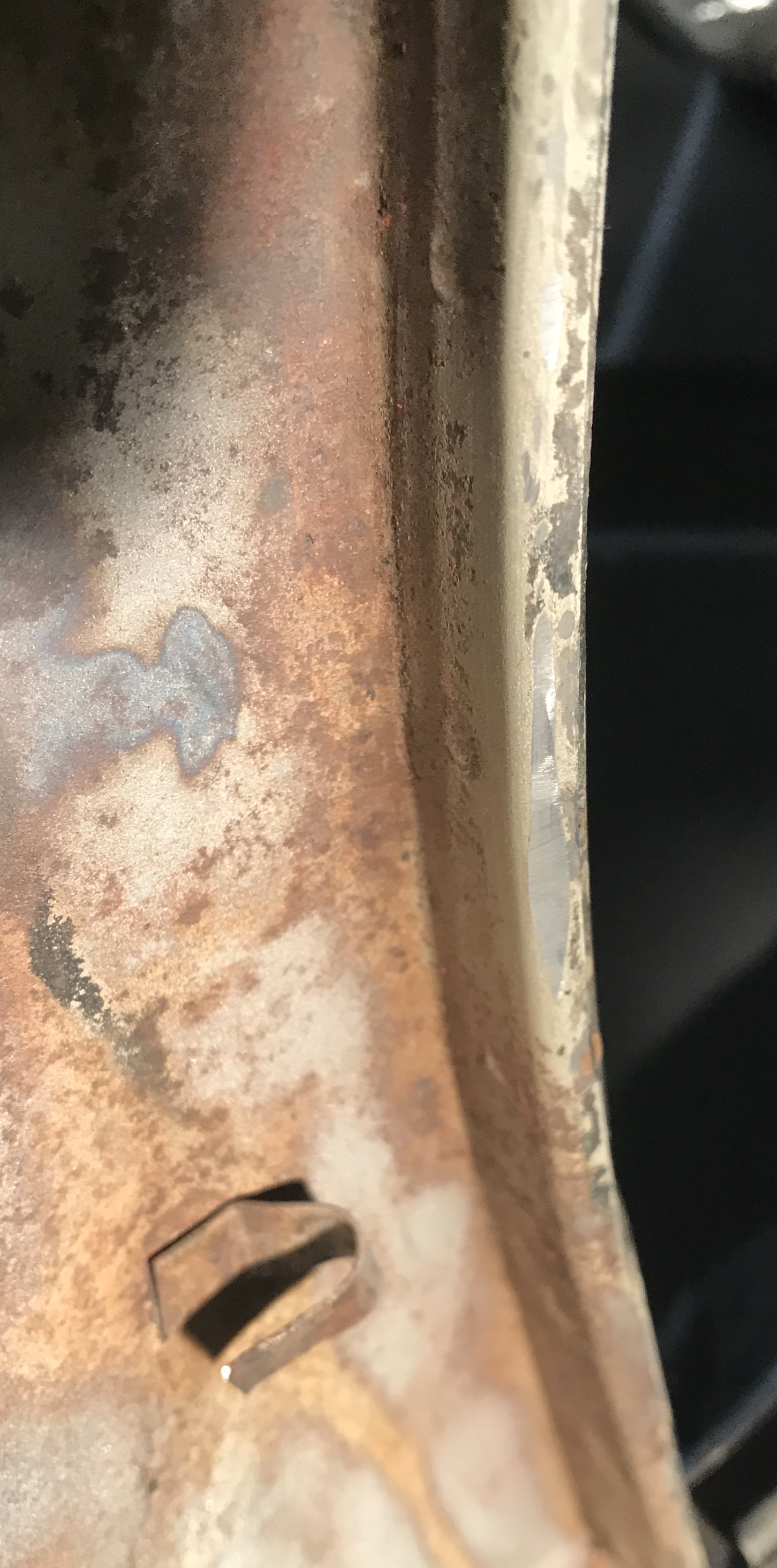

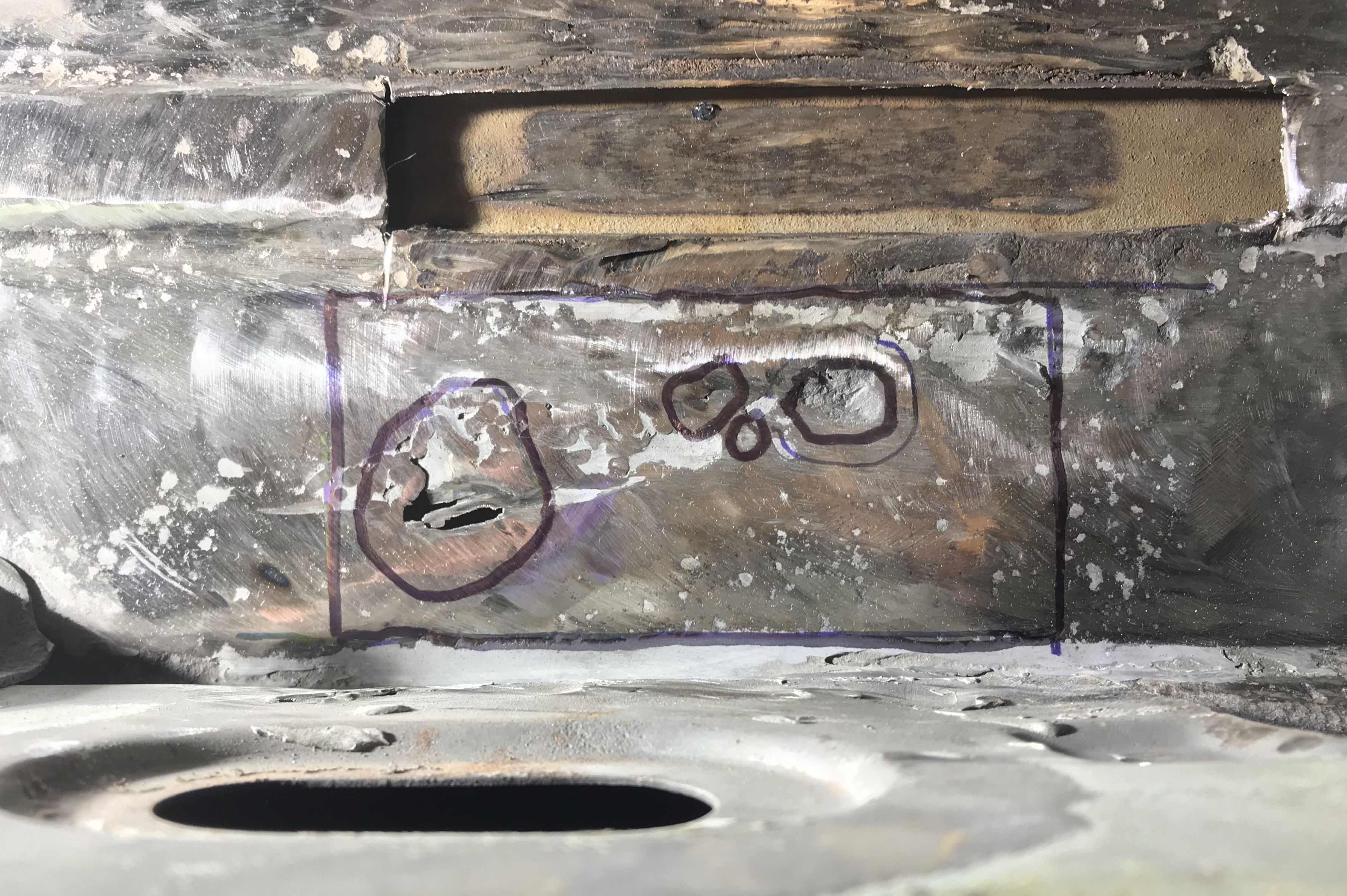

Found the bastards (IMG:style_emoticons/default/ar15.gif)


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dion
post Dec 4 2018, 07:00 PM
Post #403


RN
****

Group: Members
Posts: 2,839
Joined: 16-September 04
From: Audubon,PA
Member No.: 2,766
Region Association: MidAtlantic Region

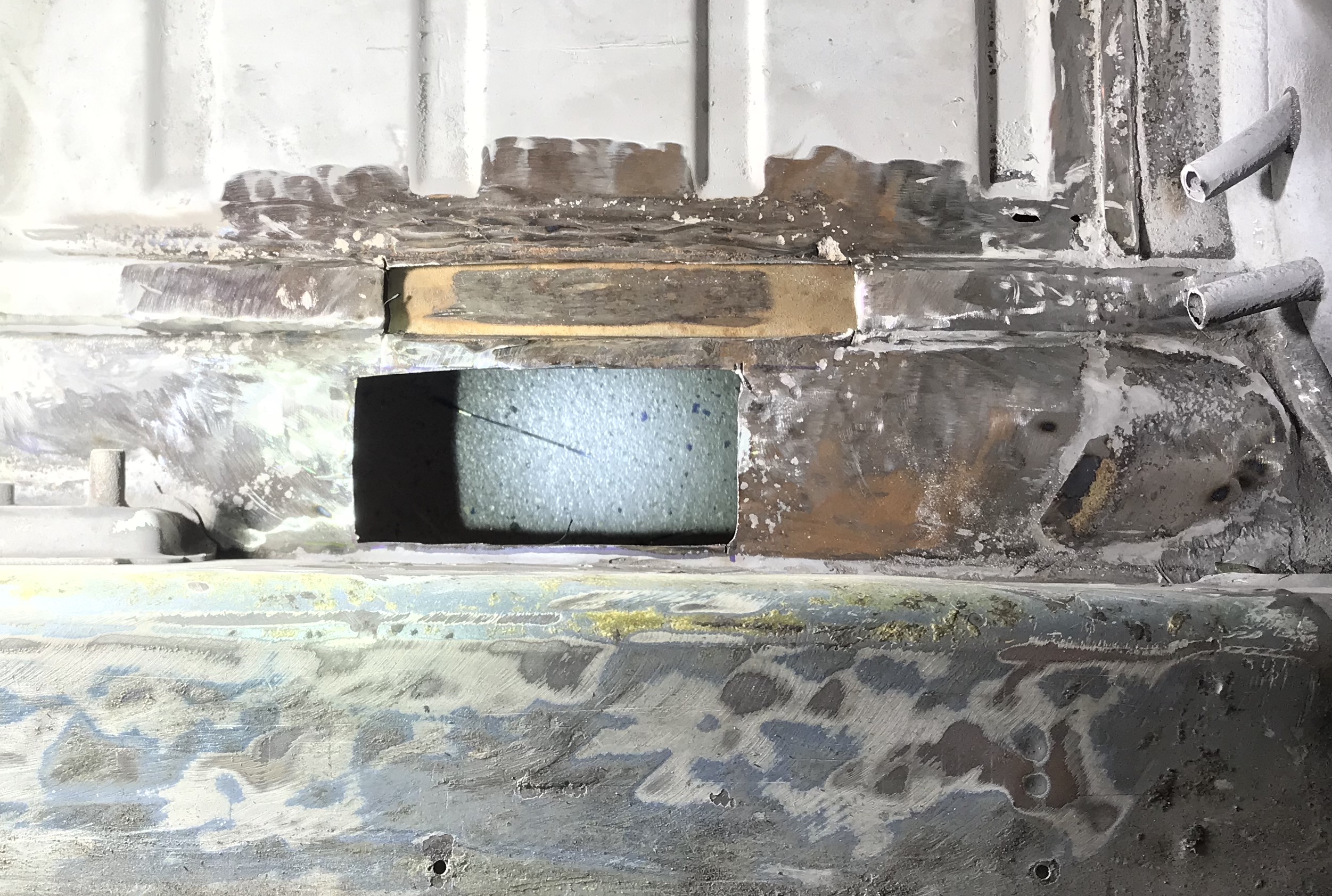

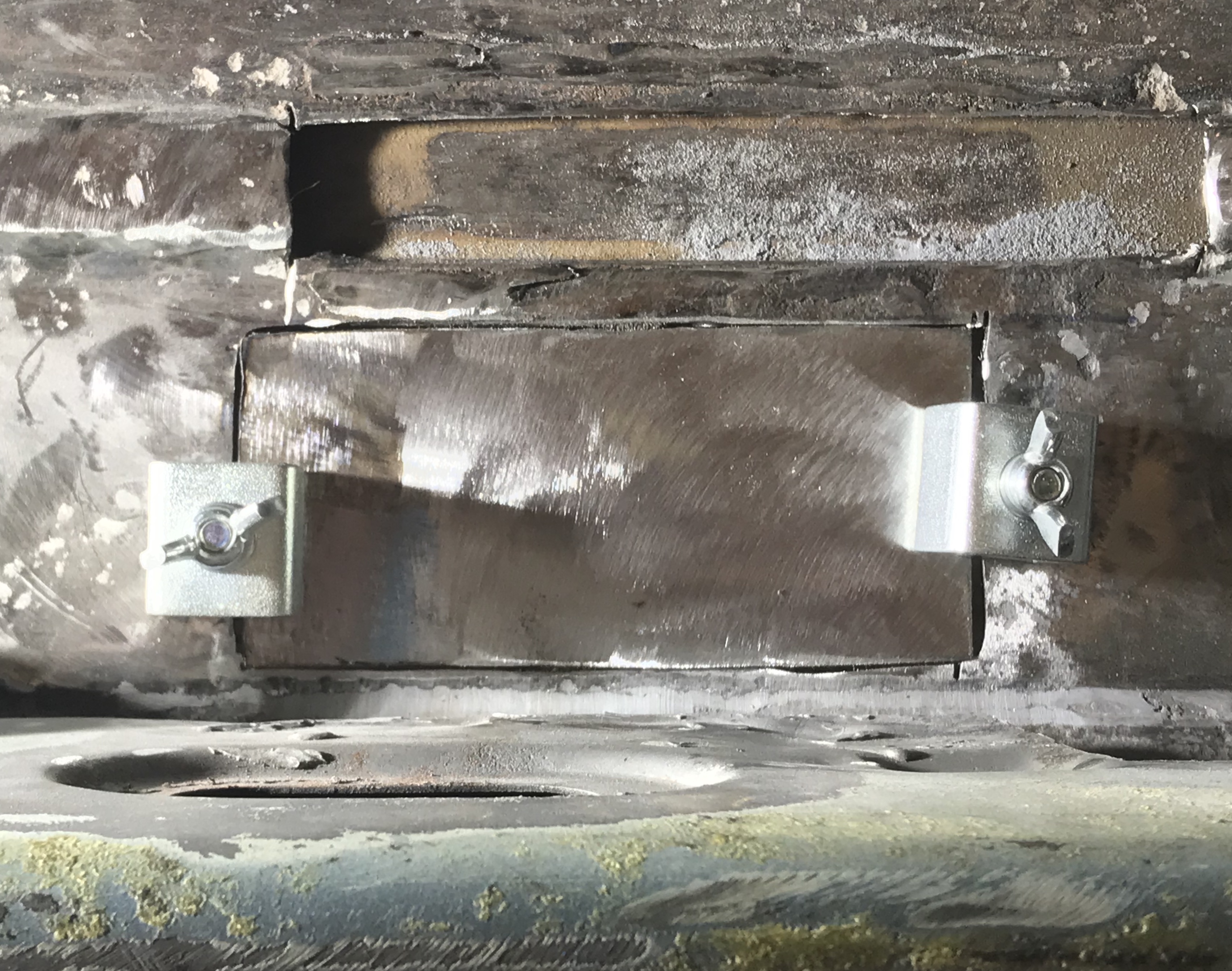

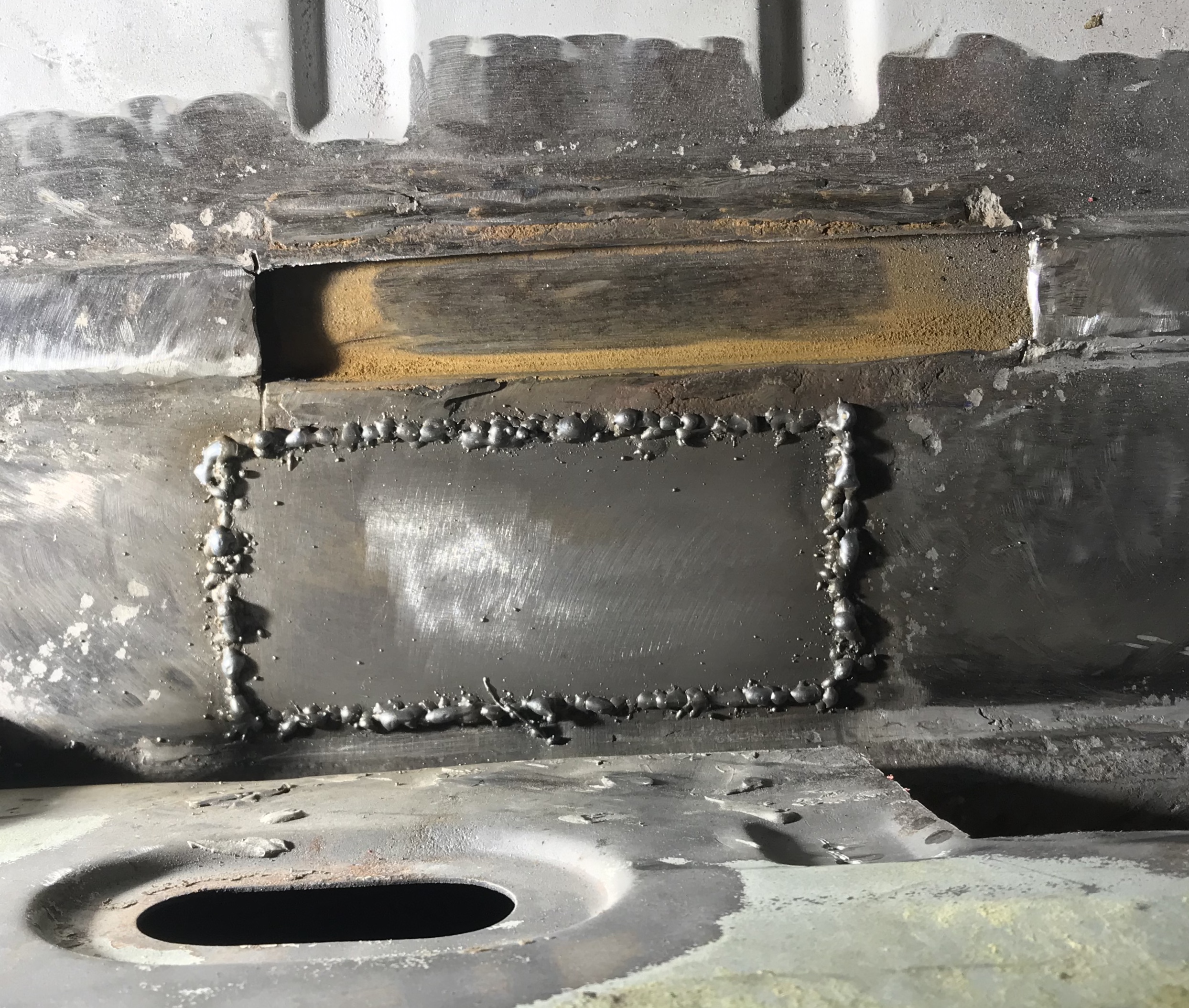

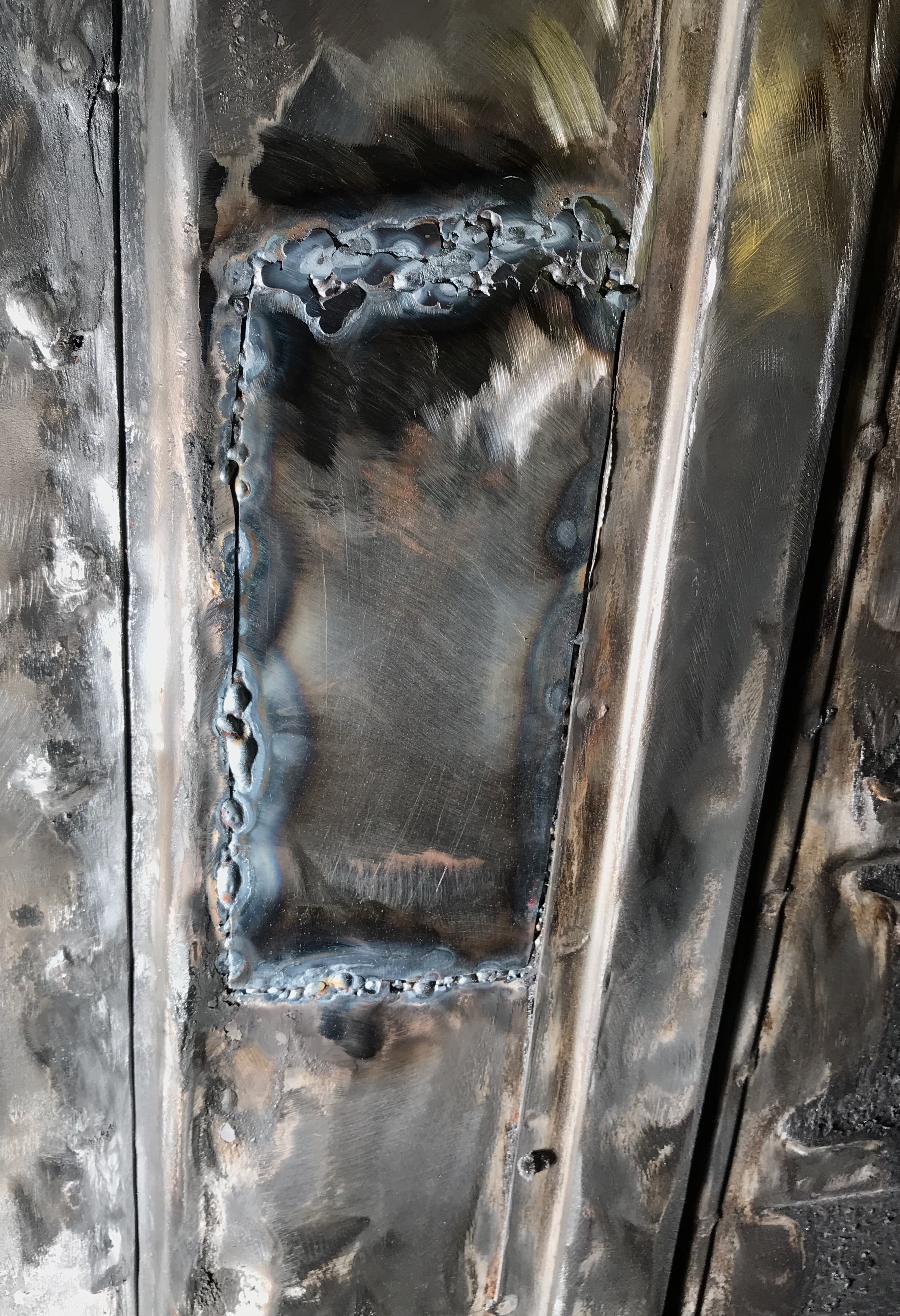

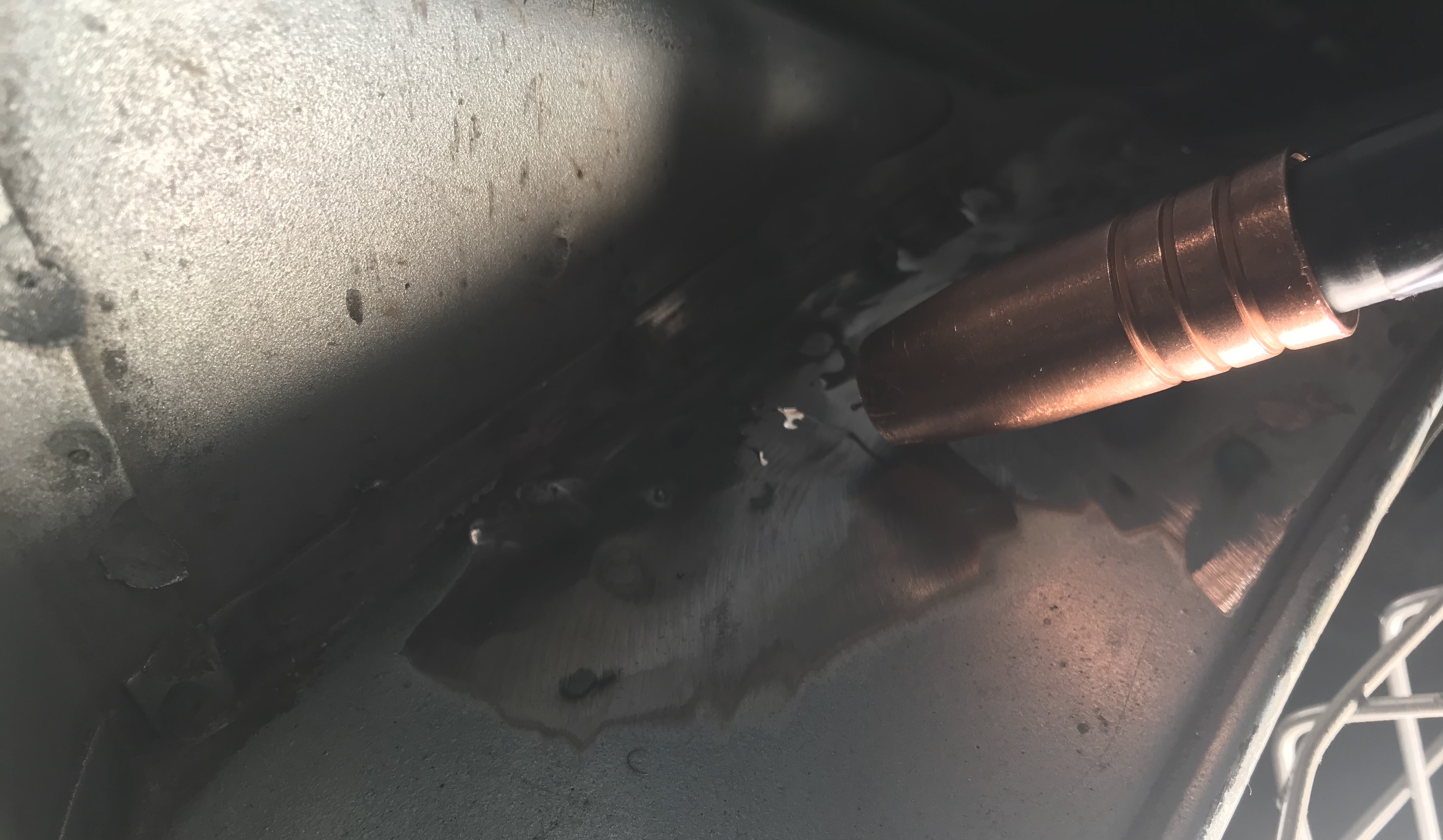

Cut a nice clean patch and (IMG:style_emoticons/default/welder.gif)


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dion
post Dec 4 2018, 07:03 PM
Post #404


RN
****

Group: Members
Posts: 2,839
Joined: 16-September 04
From: Audubon,PA
Member No.: 2,766
Region Association: MidAtlantic Region
Cleaned up, I’ll put the seat hinge/mount back after the lower firewall and longitudinal are in fixed positions.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dion
post Dec 4 2018, 07:03 PM
Post #405


RN
****

Group: Members
Posts: 2,839
Joined: 16-September 04
From: Audubon,PA
Member No.: 2,766
Region Association: MidAtlantic Region
Overall floor pic. I’ll get some primer on this tomorrow.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dion
post Dec 4 2018, 07:07 PM
Post #406


RN
****

Group: Members
Posts: 2,839
Joined: 16-September 04
From: Audubon,PA
Member No.: 2,766
Region Association: MidAtlantic Region

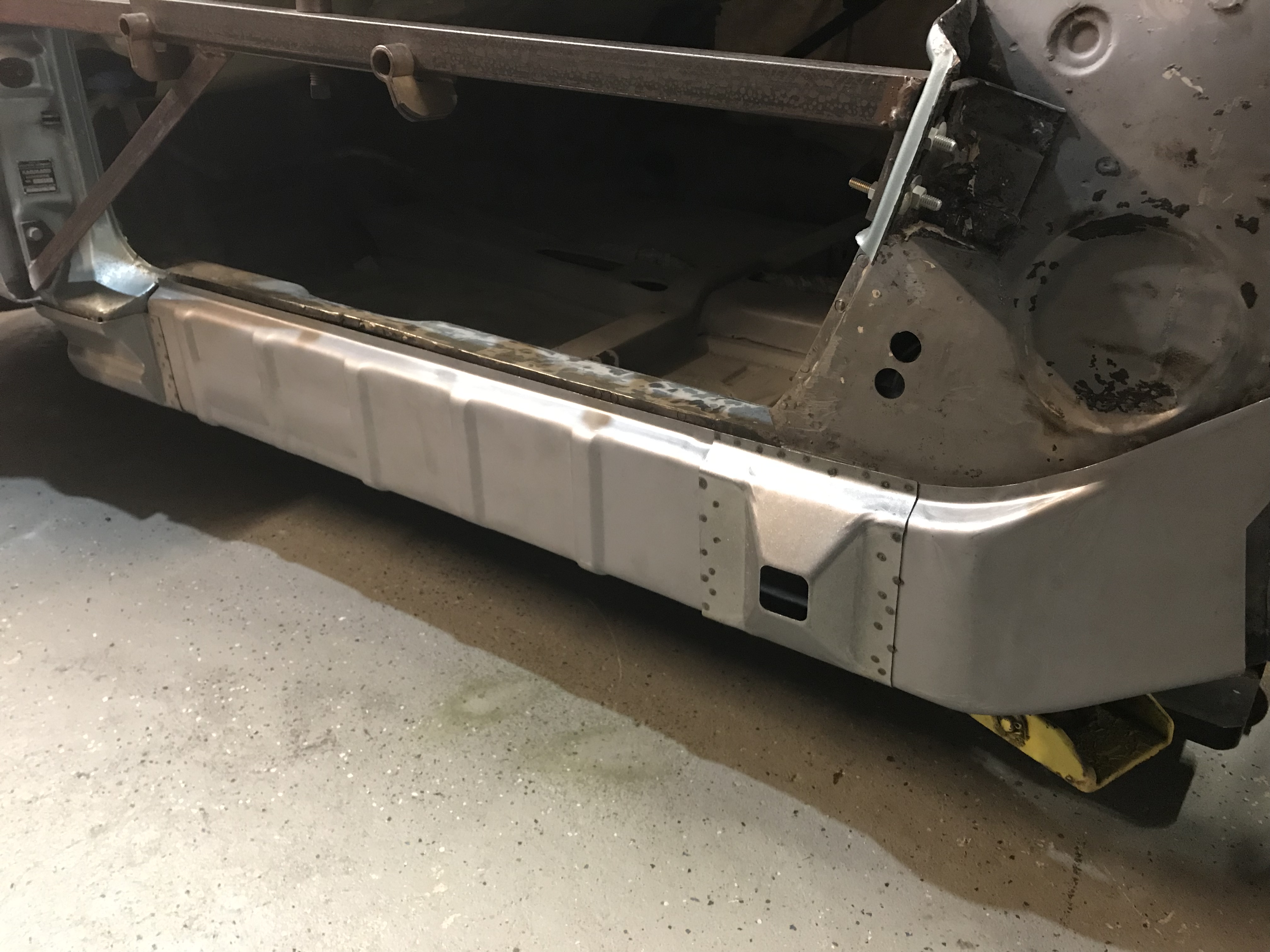

Couldn’t resist a test a test fit of Restoration Designs
Outer long chassis plate. Fits beautifully. Can’t wait till it’s actually welded to the
chassis! (IMG:style_emoticons/default/beerchug.gif) Thanks for lookin in.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ThreeV8s
post Dec 4 2018, 08:15 PM
Post #407


Member
**

Group: Members
Posts: 116
Joined: 11-March 17
From: West Chester, PA
Member No.: 20,915
Region Association: North East States
Great to see the progress! I think it's safe to say that there a lot of us here who find this thread extremely interesting, motivating, and educational.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dion
post Dec 7 2018, 08:11 PM
Post #408


RN
****

Group: Members
Posts: 2,839
Joined: 16-September 04
From: Audubon,PA
Member No.: 2,766
Region Association: MidAtlantic Region

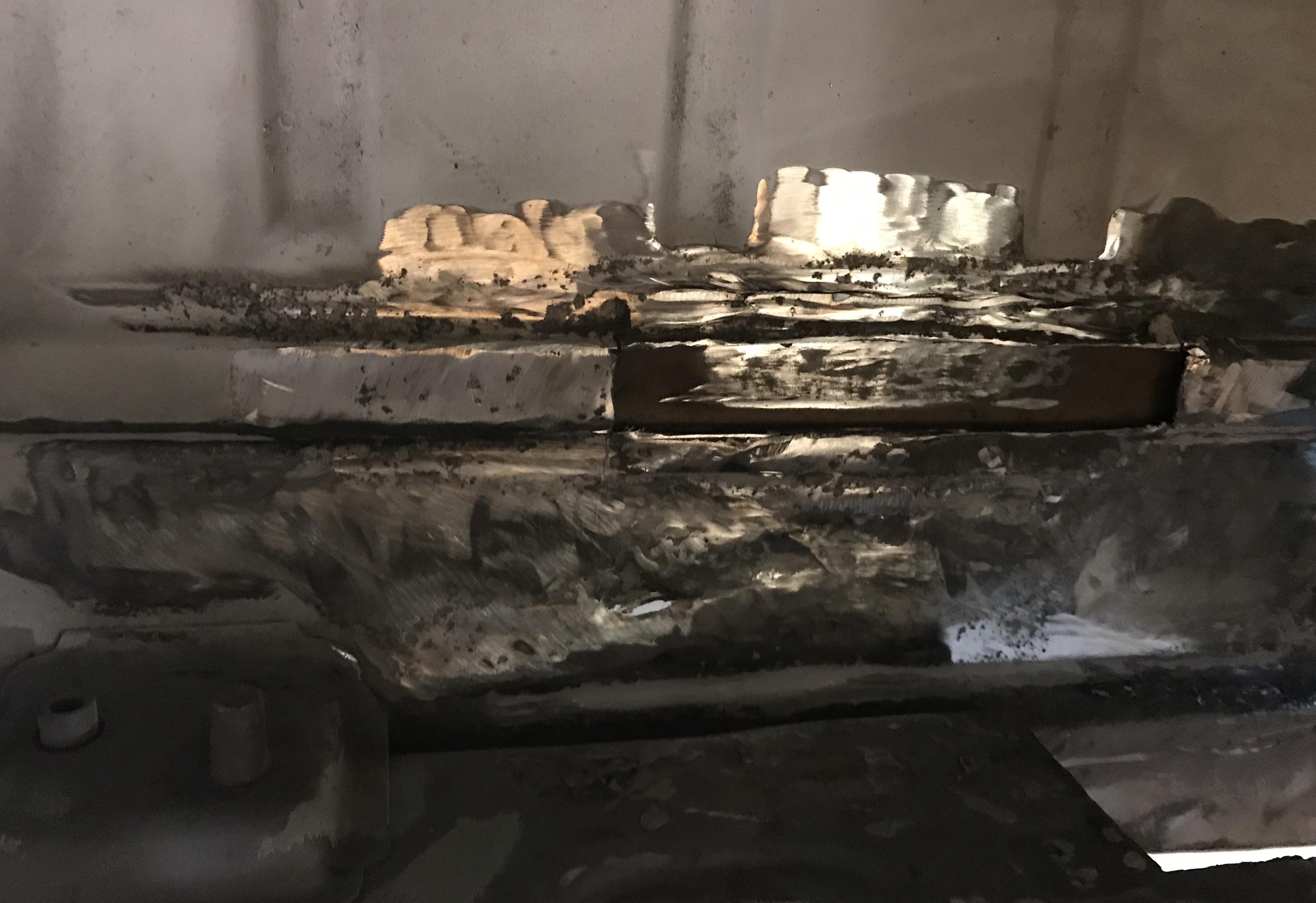

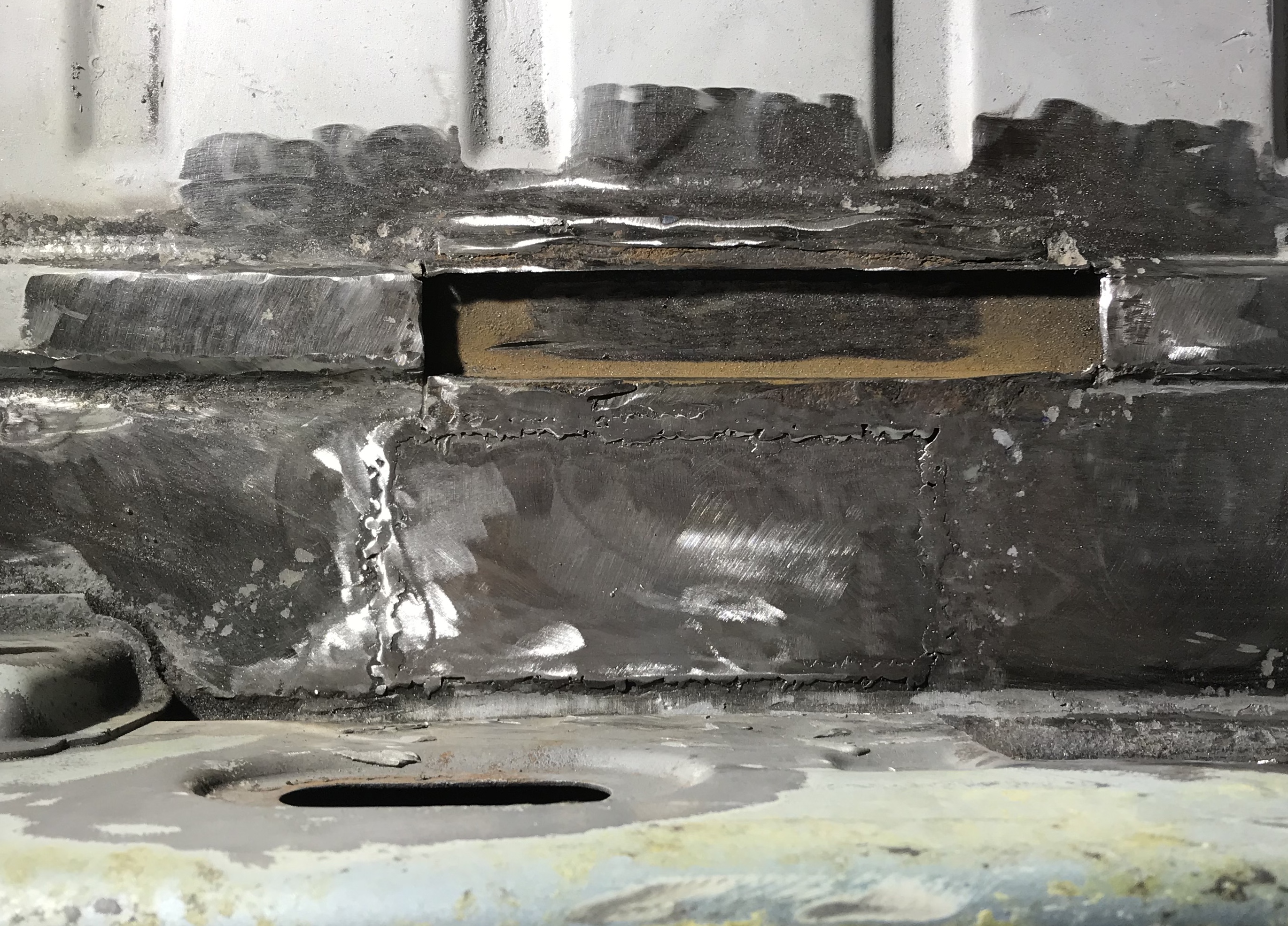

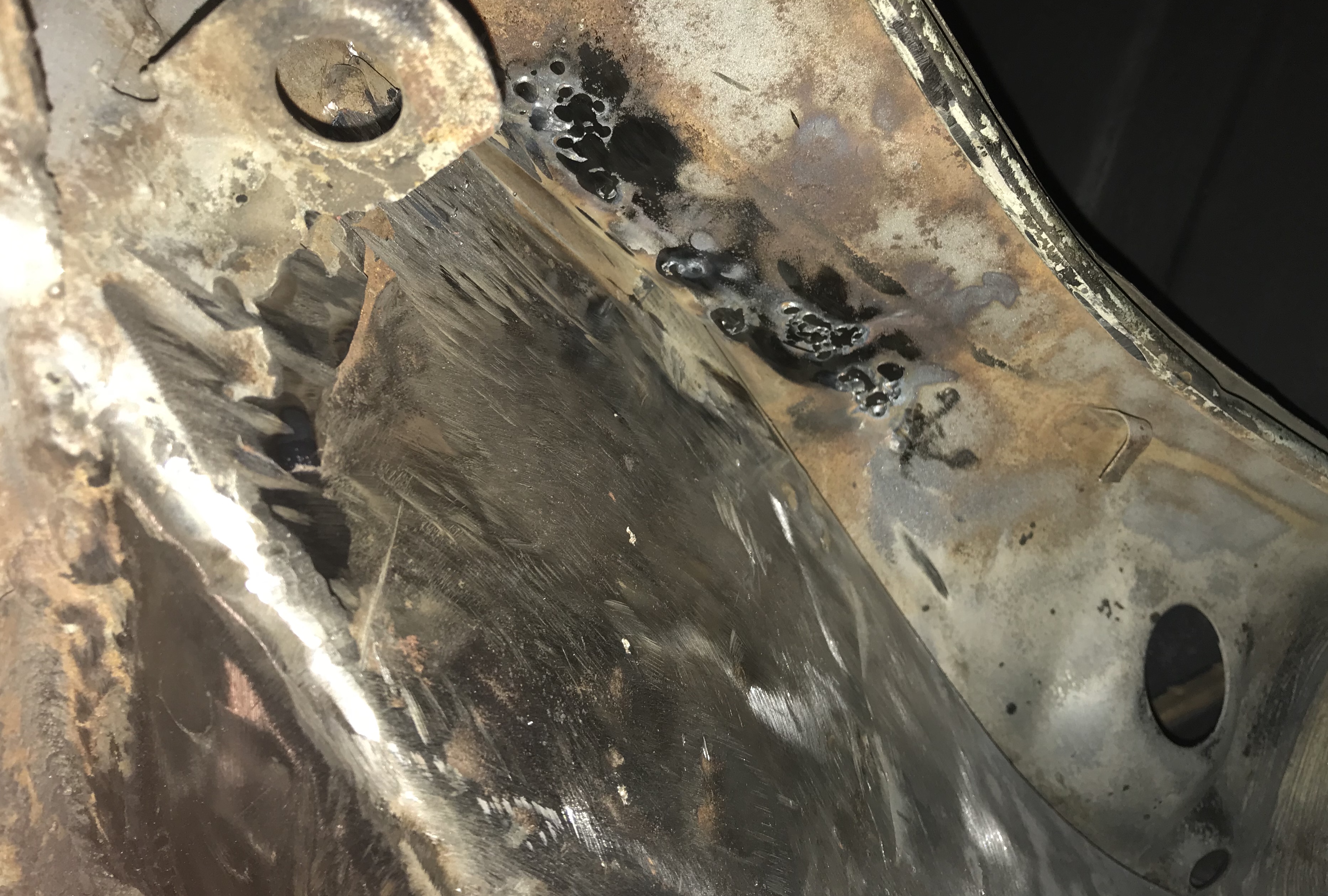

Still wasn’t satisfied with that patch, went back at it.
Cleaned it up again finding more pinholes. I’m more pleased
this round. It’s solid again. I’m finding a balance between the welding and cleaning up with the grinder. I have been taking away too much parent metal, thinning it and creating my pinholes. It’s all up to experience I guess. As I’m sure all you experienced metal workers can attest. And we have a lot of skilled peeps on this forum I’m in awe of. I’ll hit the bottom with primer, paint and undercoating as usual.
Ok here’s the pics:


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dion
post Dec 7 2018, 08:14 PM
Post #409


RN
****

Group: Members
Posts: 2,839
Joined: 16-September 04
From: Audubon,PA
Member No.: 2,766
Region Association: MidAtlantic Region

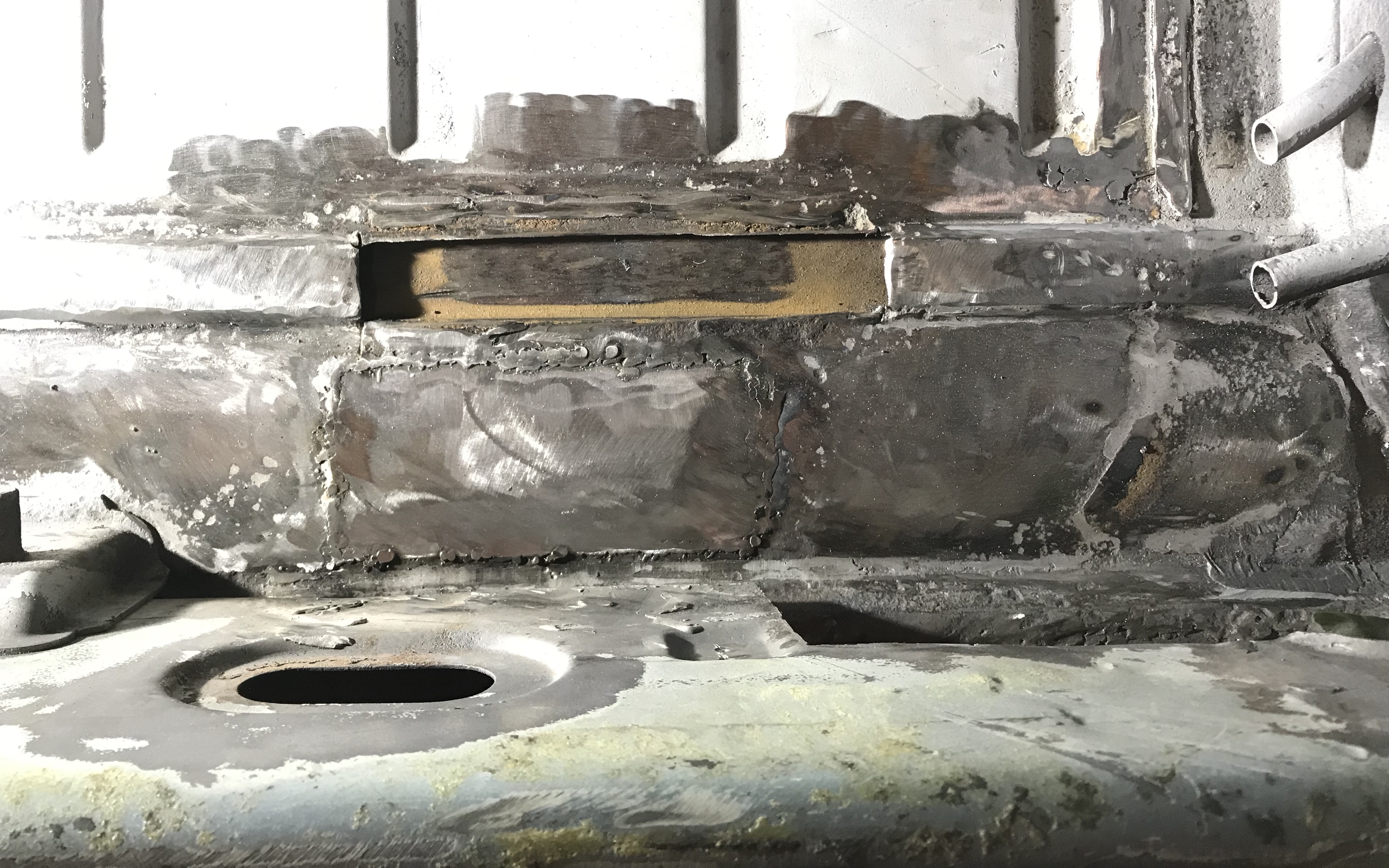

Final


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bbrock
post Dec 7 2018, 08:20 PM
Post #410


914 Guru
*****

Group: Members
Posts: 5,269
Joined: 17-February 17
From: Montana
Member No.: 20,845
Region Association: Rocky Mountains
Lookin' good! (IMG:style_emoticons/default/beerchug.gif) I think the grinding is as tricky as the welding. I tended to have the opposite problem of leaving too much meat on the bone.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dion
post Dec 15 2018, 08:04 PM
Post #411


RN
****

Group: Members
Posts: 2,839
Joined: 16-September 04
From: Audubon,PA
Member No.: 2,766
Region Association: MidAtlantic Region
Your going back in the garage again?!?!


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dion
post Dec 15 2018, 08:07 PM
Post #412


RN
****

Group: Members
Posts: 2,839
Joined: 16-September 04
From: Audubon,PA
Member No.: 2,766
Region Association: MidAtlantic Region

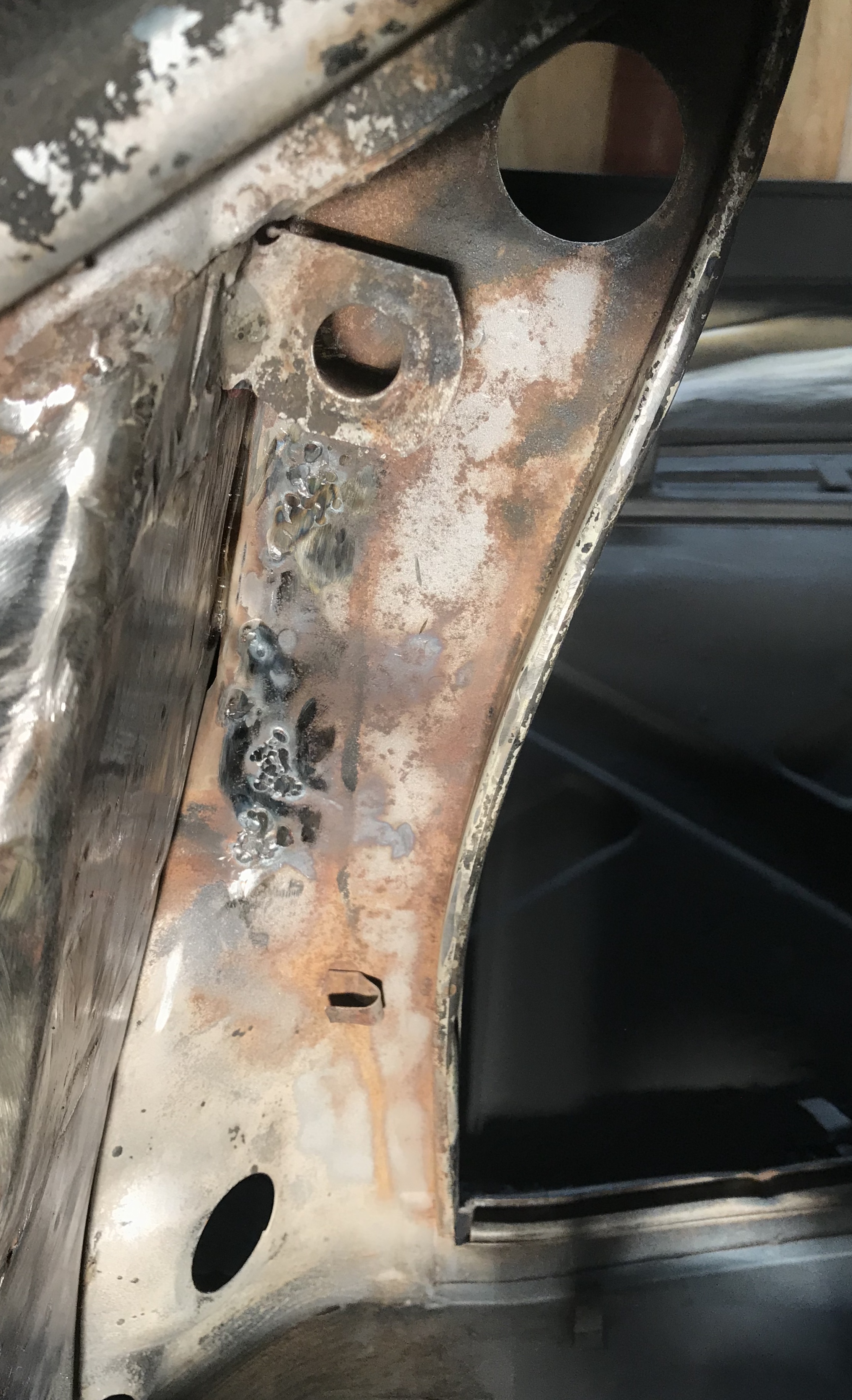

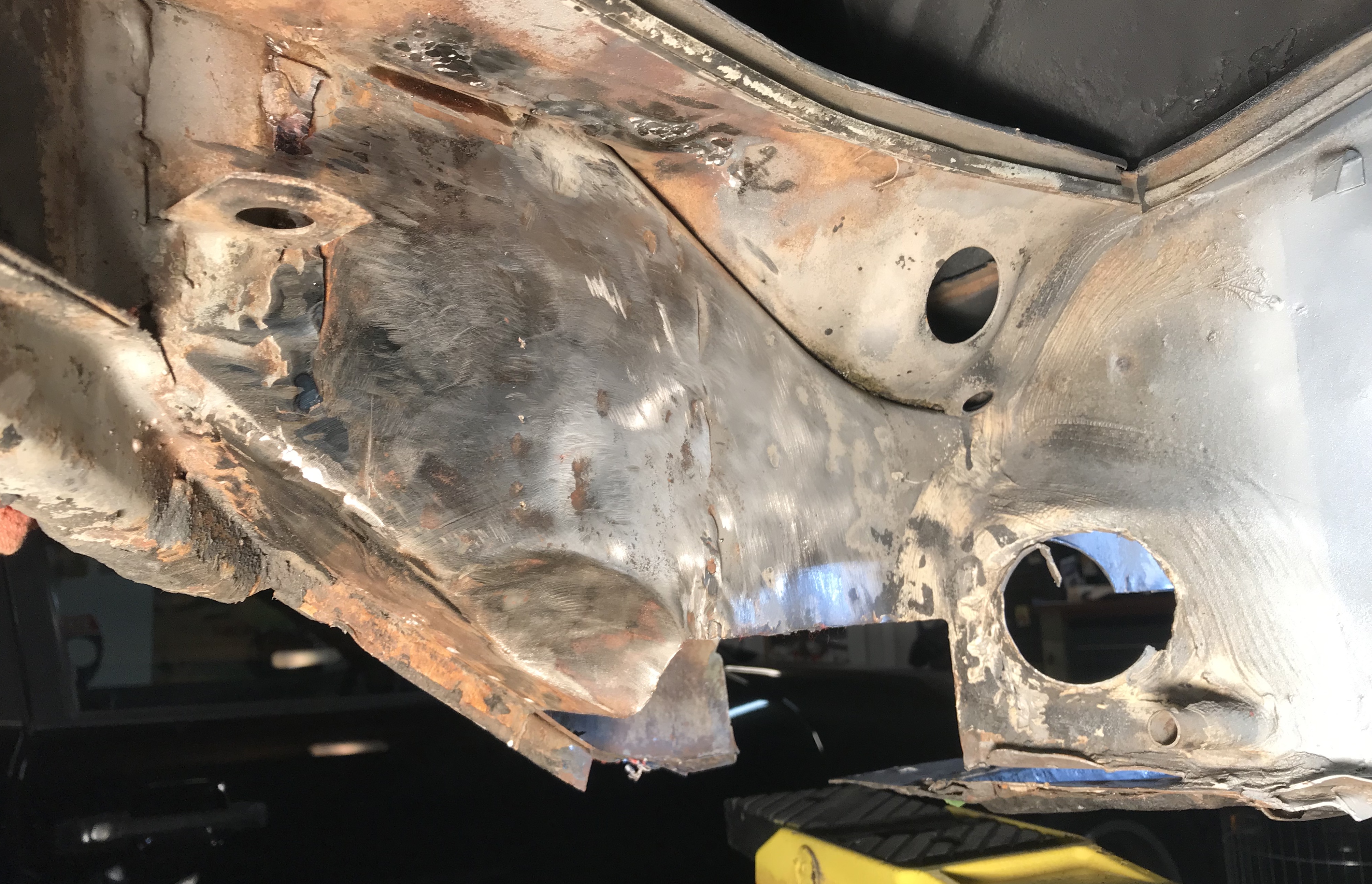

Well yes. Tackled the engine shelf debacle.
Couple of holes welded,hit it with primer till the rest of this left side
is finished.


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dion
post Dec 15 2018, 08:10 PM
Post #413


RN
****

Group: Members
Posts: 2,839
Joined: 16-September 04
From: Audubon,PA
Member No.: 2,766
Region Association: MidAtlantic Region

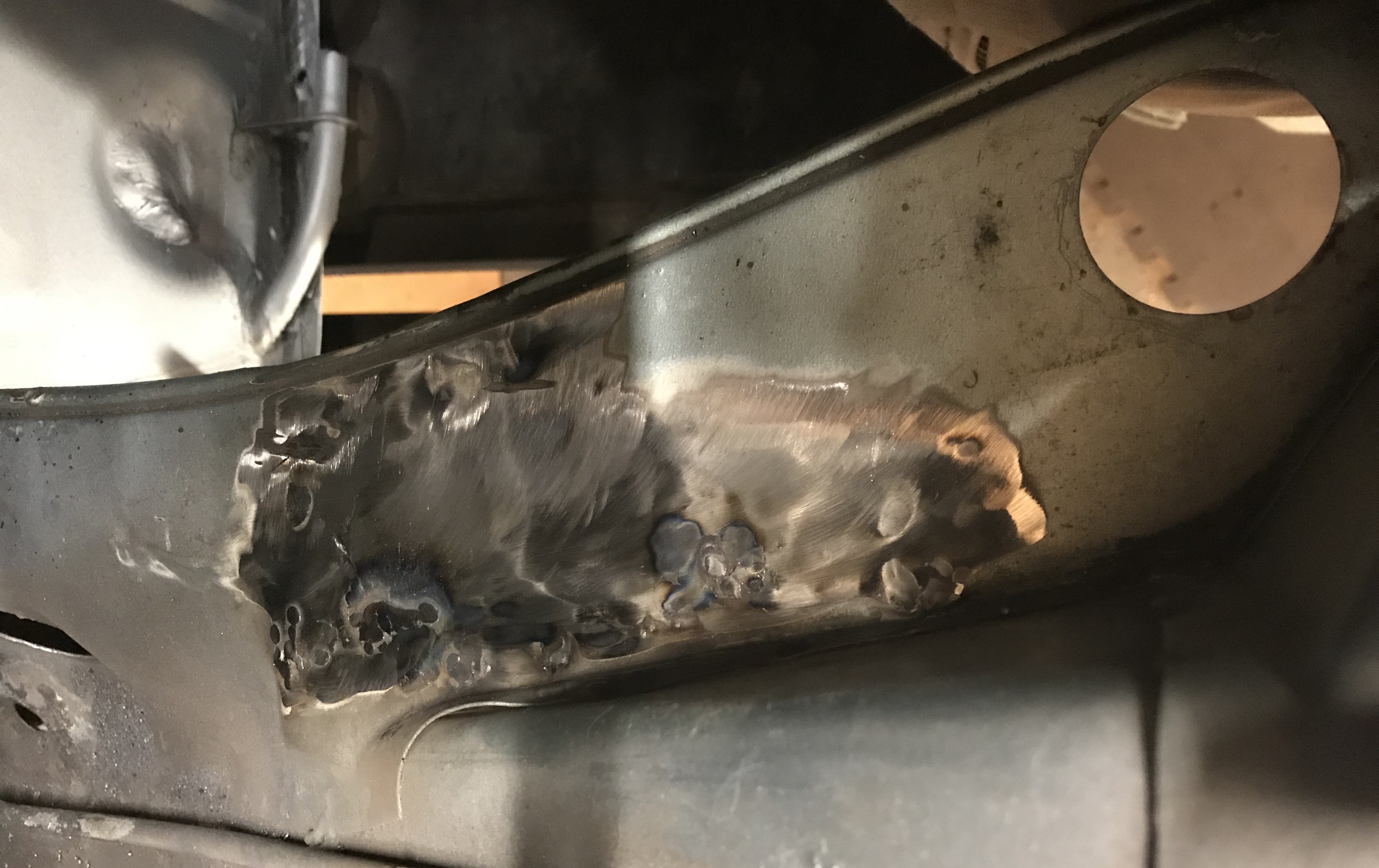

Left engine shelf


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dion
post Dec 15 2018, 08:11 PM
Post #414


RN
****

Group: Members
Posts: 2,839
Joined: 16-September 04
From: Audubon,PA
Member No.: 2,766
Region Association: MidAtlantic Region

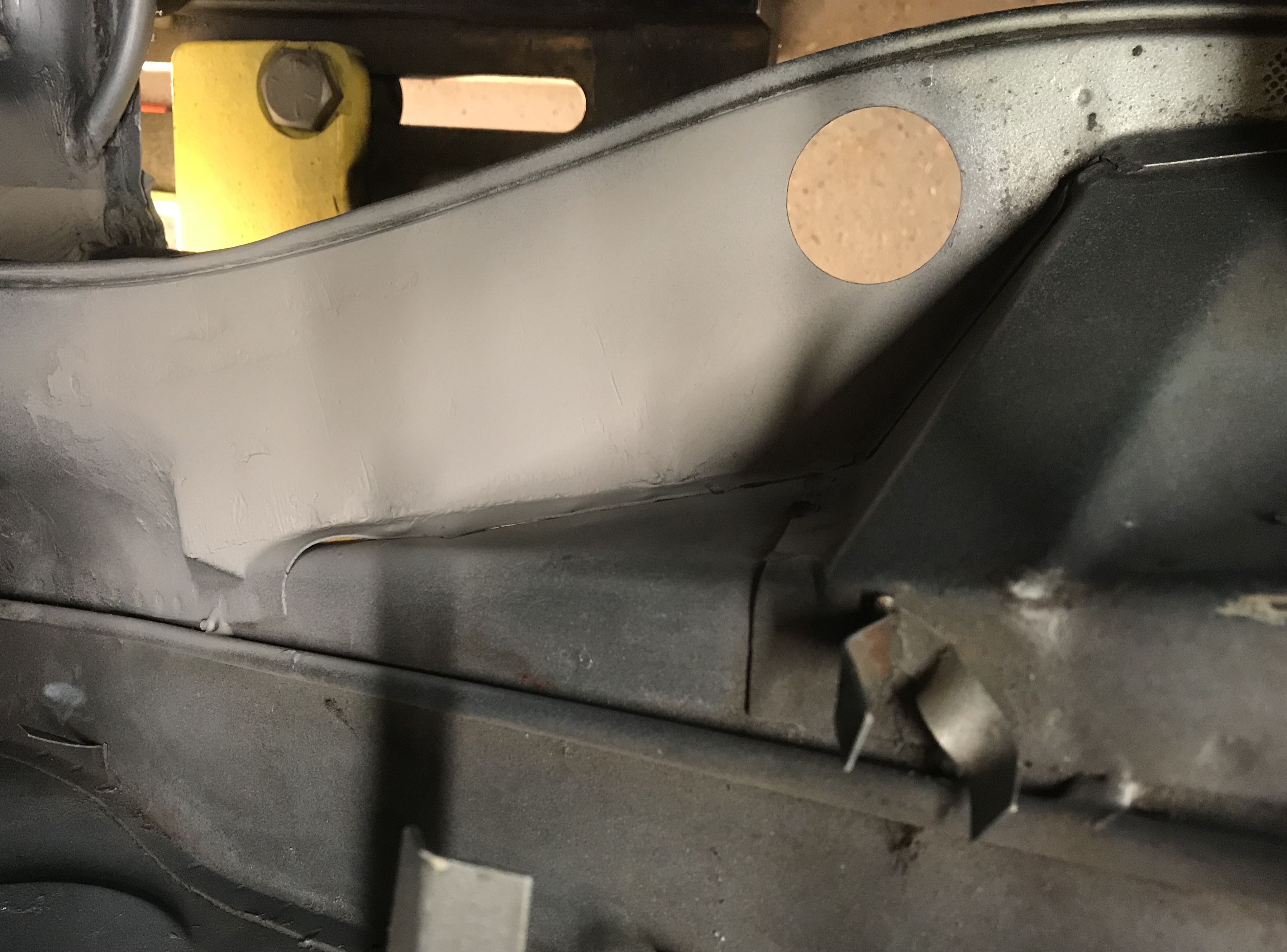

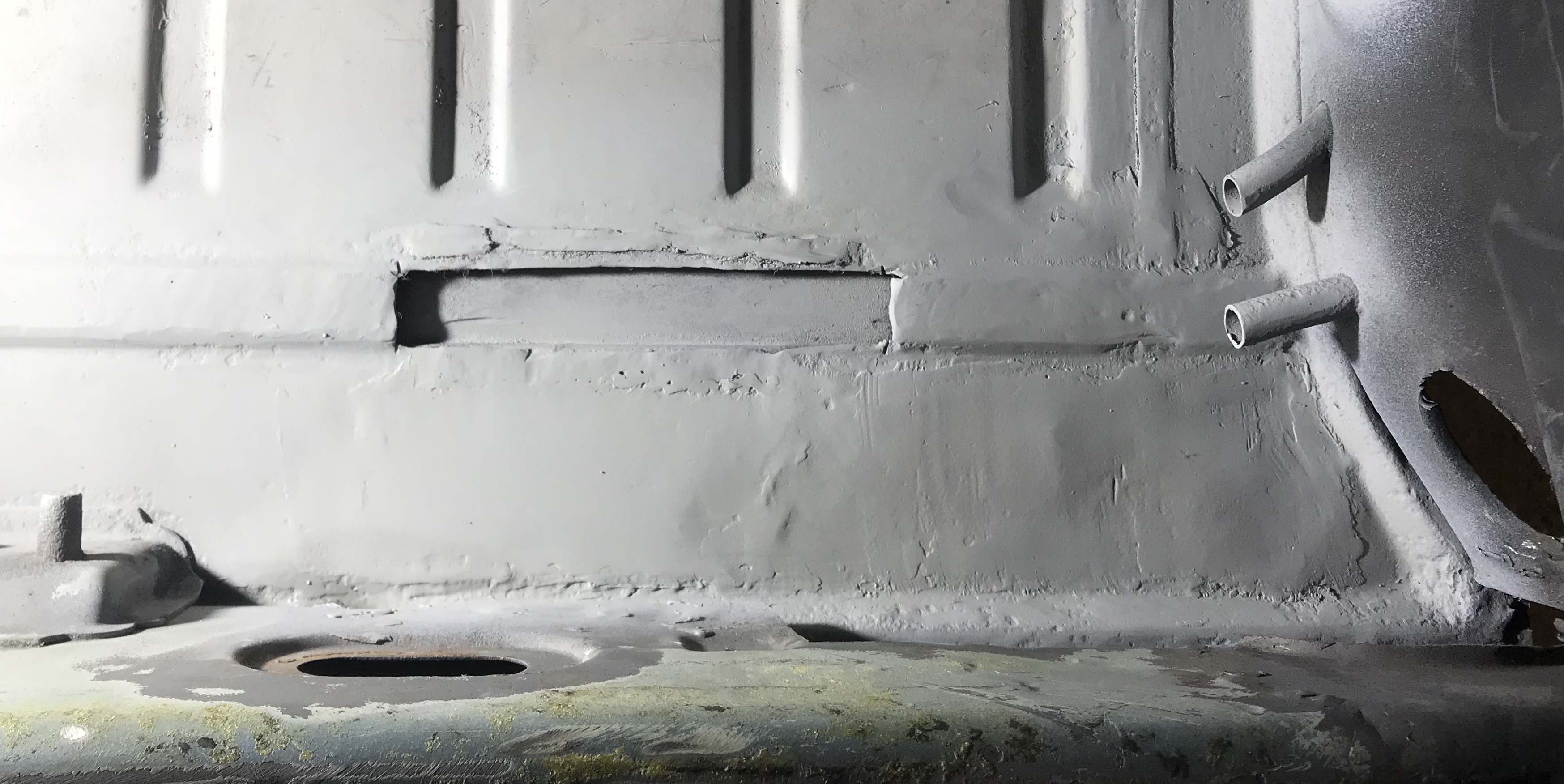

Primer


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dion
post Dec 15 2018, 08:12 PM
Post #415


RN
****

Group: Members
Posts: 2,839
Joined: 16-September 04
From: Audubon,PA
Member No.: 2,766
Region Association: MidAtlantic Region
Primer and paint of left floor patch near seat mount


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dion
post Dec 15 2018, 08:14 PM
Post #416


RN
****

Group: Members
Posts: 2,839
Joined: 16-September 04
From: Audubon,PA
Member No.: 2,766
Region Association: MidAtlantic Region

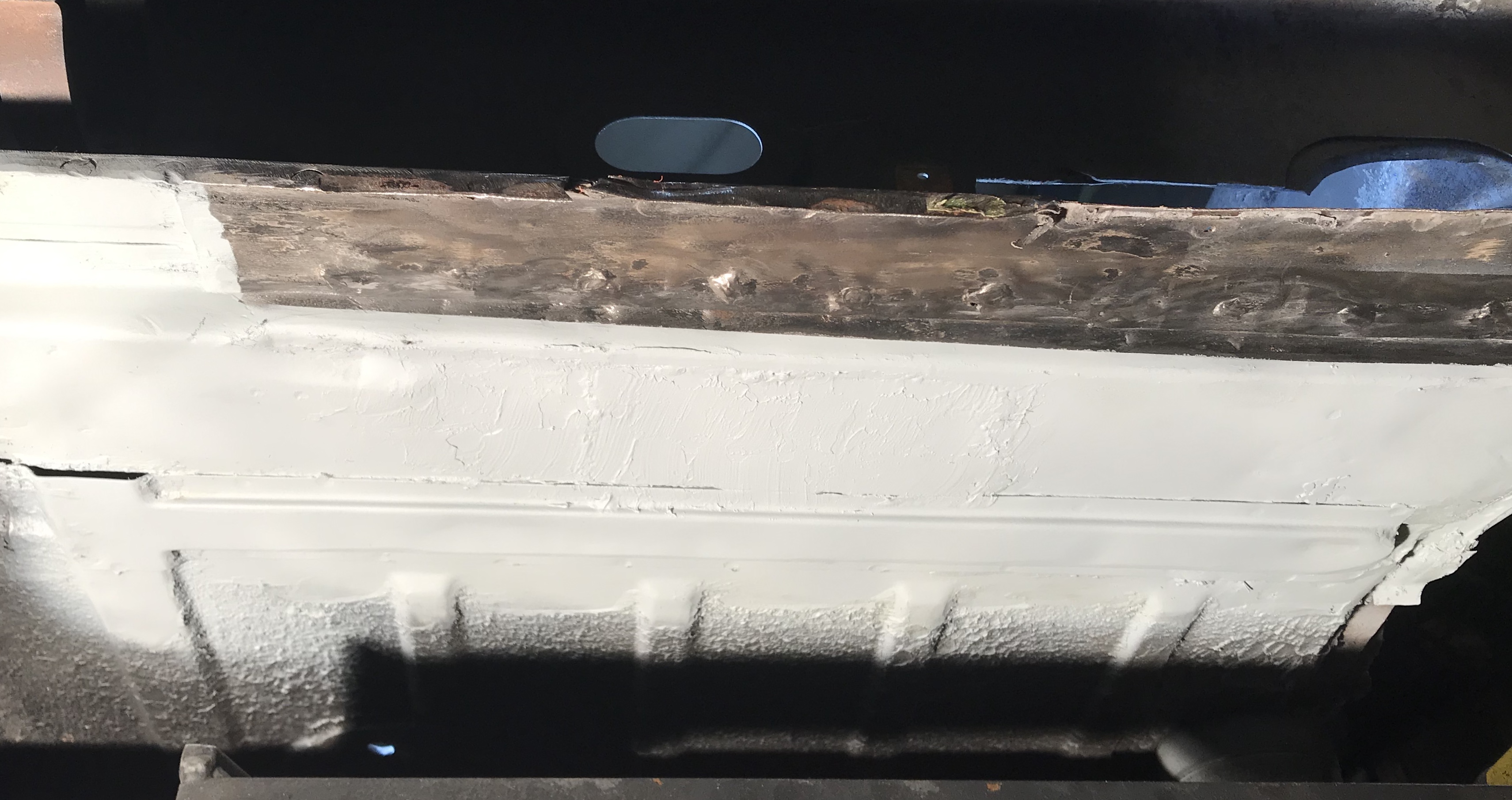

Exterior of floor area in question. Primer & Paint. I’ll undercoat it when all is wrapped up
on the chassis repairs.


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dion
post Dec 15 2018, 08:17 PM
Post #417


RN
****

Group: Members
Posts: 2,839
Joined: 16-September 04
From: Audubon,PA
Member No.: 2,766
Region Association: MidAtlantic Region
Getting some fresh air.... while paints dry.
View of neighbors and some Christmas lites.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dion
post Dec 15 2018, 08:21 PM
Post #418


RN
****

Group: Members
Posts: 2,839
Joined: 16-September 04
From: Audubon,PA
Member No.: 2,766
Region Association: MidAtlantic Region
Some surface rust lurking under the engine shelf.
I honestly don’t think it was hit with paint under here or very minimalistic amounts.
Looks just primer on engine rubber seal channel area.
Just sprayed some rust converter for now on the underside
of shelf. All this will be sanded again when the suspension console goes in.


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dion
post Dec 15 2018, 08:22 PM
Post #419


RN
****

Group: Members
Posts: 2,839
Joined: 16-September 04
From: Audubon,PA
Member No.: 2,766
Region Association: MidAtlantic Region
Rust converter spray coating


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dion
post Dec 15 2018, 08:23 PM
Post #420


RN
****

Group: Members
Posts: 2,839
Joined: 16-September 04
From: Audubon,PA
Member No.: 2,766
Region Association: MidAtlantic Region
Definitely needs a freshening...


Attached thumbnail(s)
