> *Project 2.4* • Dion’s endeavor • Six conversion, Rustoration & transformation
tygaboy
post Aug 5 2021, 06:02 PM
Post #861


914 Guru
*****

Group: Members
Posts: 5,547
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
MAN, that looks good in there! Big congrats on a major milestone.
(IMG:style_emoticons/default/drooley.gif) (IMG:style_emoticons/default/wub.gif) (IMG:style_emoticons/default/pray.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
BeatNavy
post Aug 5 2021, 07:41 PM
Post #862


Certified Professional Scapegoat
****

Group: Members
Posts: 2,951
Joined: 26-February 14
From: Easton, MD
Member No.: 17,042
Region Association: MidAtlantic Region
QUOTE(tygaboy @ Aug 5 2021, 08:02 PM) *

MAN, that looks good in there! Big congrats on a major milestone.
(IMG:style_emoticons/default/drooley.gif) (IMG:style_emoticons/default/wub.gif) (IMG:style_emoticons/default/pray.gif)

(IMG:style_emoticons/default/agree.gif) Way to go Dion!! (IMG:style_emoticons/default/smilie_pokal.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bbrock
post Aug 5 2021, 09:19 PM
Post #863


914 Guru
*****

Group: Members
Posts: 5,269
Joined: 17-February 17
From: Montana
Member No.: 20,845
Region Association: Rocky Mountains
That there is quite a milestone and one beautiful engine! (IMG:style_emoticons/default/monkeydance.gif) (IMG:style_emoticons/default/aktion035.gif) (IMG:style_emoticons/default/smilie_pokal.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cairo94507
post Aug 6 2021, 07:08 AM
Post #864


Michael
**********

Group: Members
Posts: 10,295
Joined: 1-November 08
From: Auburn, CA
Member No.: 9,712
Region Association: Northern California
Sweet! (IMG:style_emoticons/default/beerchug.gif)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
rgalla9146
post Aug 6 2021, 07:23 AM
Post #865


Advanced Member
****

Group: Members
Posts: 4,735
Joined: 23-November 05
From: Paramus NJ
Member No.: 5,176
Region Association: None

Beautiful job Dion !
It's all coming together now.
Have fun installing that left side tin.
Reaching down into the engine compartment to start that last bolt in the rear is
especially enjoyable. (IMG:style_emoticons/default/biggrin.gif)
You'll be motoring soon
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
raynekat
post Aug 6 2021, 11:49 PM
Post #866


Advanced Member
****

Group: Members
Posts: 2,169
Joined: 30-December 14
From: Coeur d'Alene, Idaho
Member No.: 18,263
Region Association: Pacific Northwest
Yes, very nice there....very nice!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Tdskip
post Aug 7 2021, 06:38 AM
Post #867


Advanced Member
****

Group: Members
Posts: 3,729
Joined: 1-December 17
From: soCal
Member No.: 21,666
Region Association: None
Great updates, thank you
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dion
post Aug 11 2021, 08:00 AM
Post #868


RN
****

Group: Members
Posts: 2,839
Joined: 16-September 04
From: Audubon,PA
Member No.: 2,766
Region Association: MidAtlantic Region
Thank you fellas, your comments on this thread and support goes a long way. I really appreciate the help and encouragement.

I’m now working on some electrical fiddly bits.

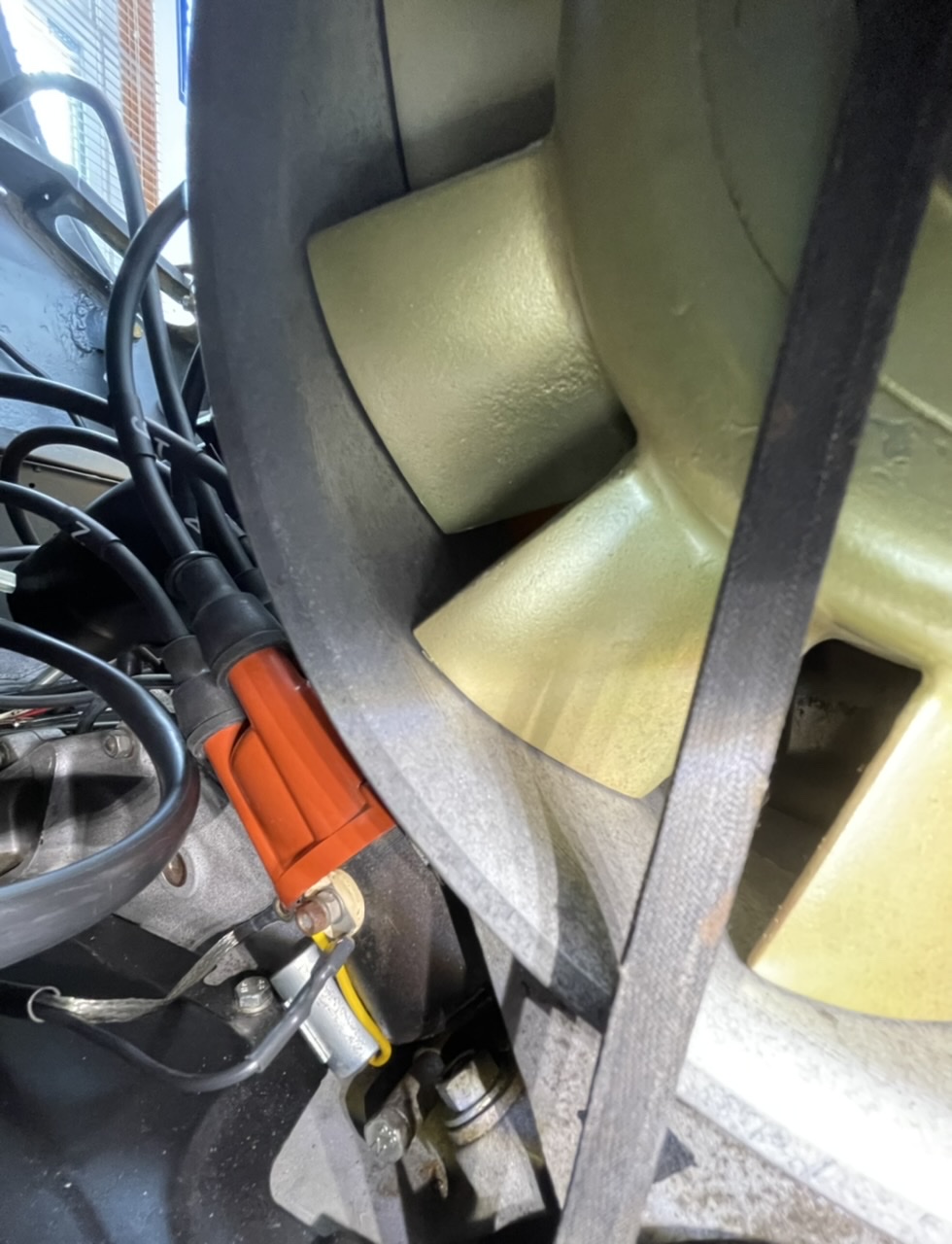

This car has the CDI box, the old cast iron distributor and black transformer ( coil ) .
I’m looking for verification and some help.
First off I’m not putting a battery anywhere near this car till I know the layout of wiring is correct. I’ve gone over many threads and the Haynes book for references.
Needless to say there is some conflicting information.
Some of my original harness was modified by a previous mechanic (old D-jet issues) but for the most part seems to be “as” the original .

So here’s the lay of the land:

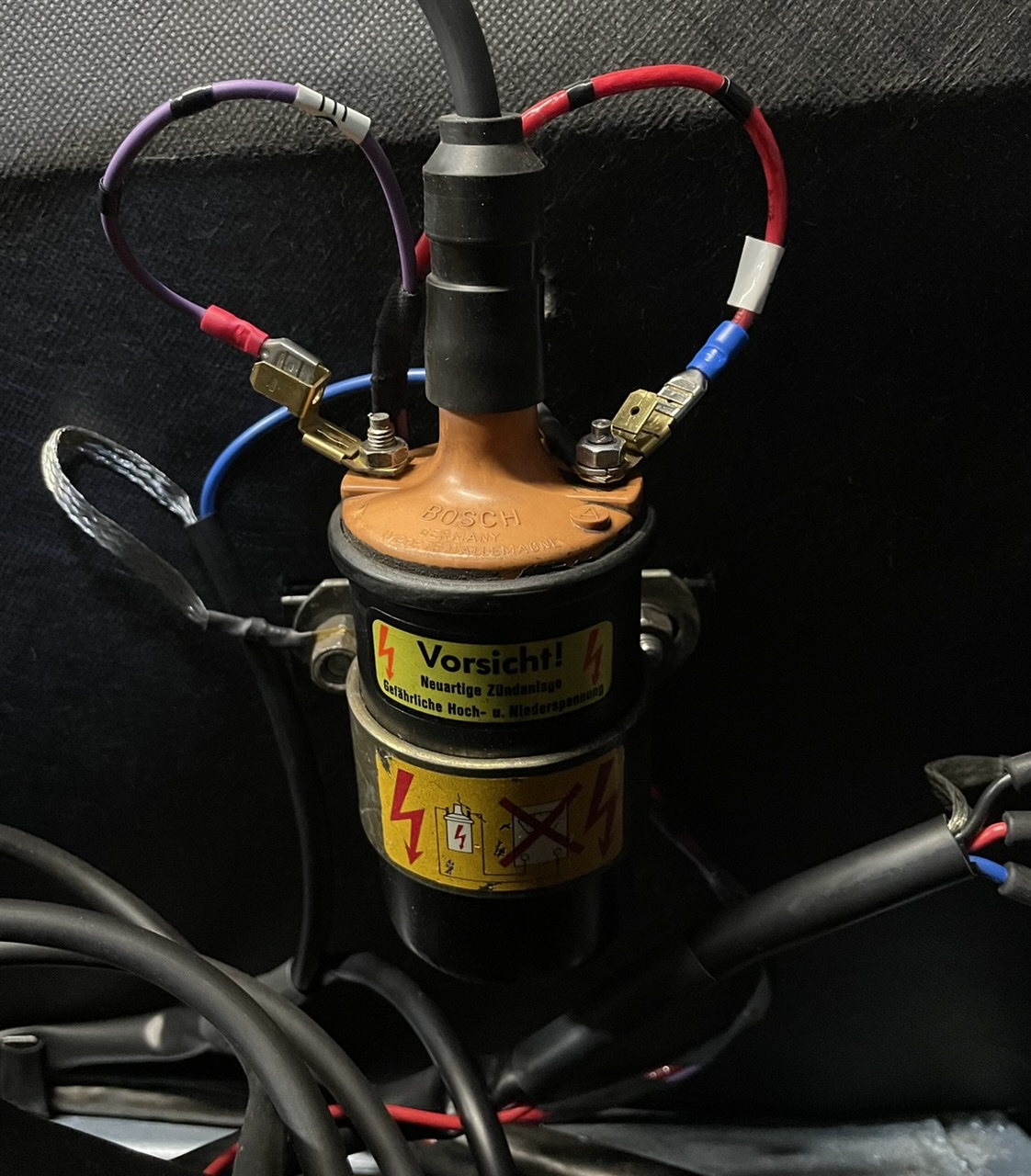

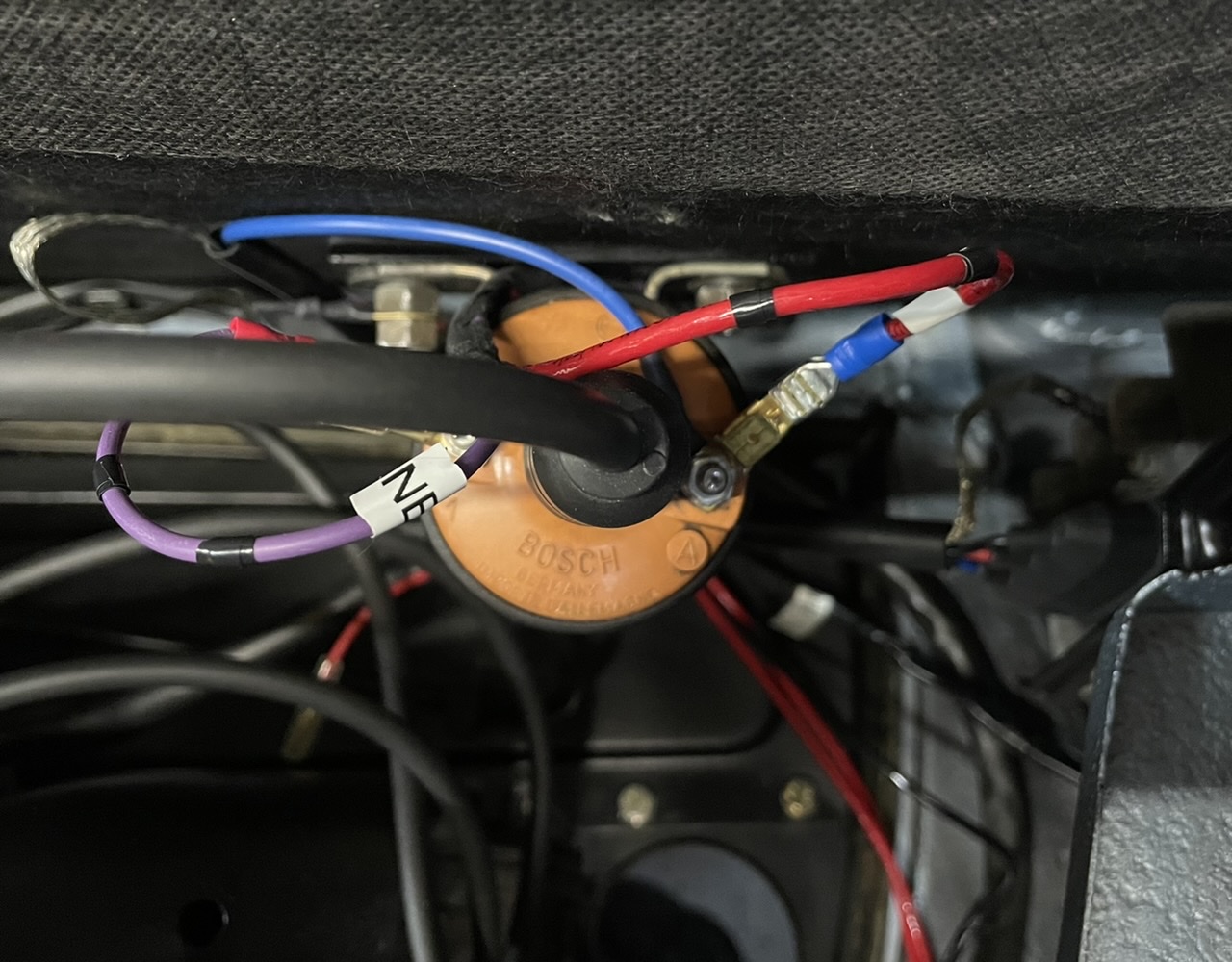

RELAY PLATE: purple/black wire to pin #1 on transformer.
red/black wire to pin # 15 “A” on transformer.
yellow wire to starter.

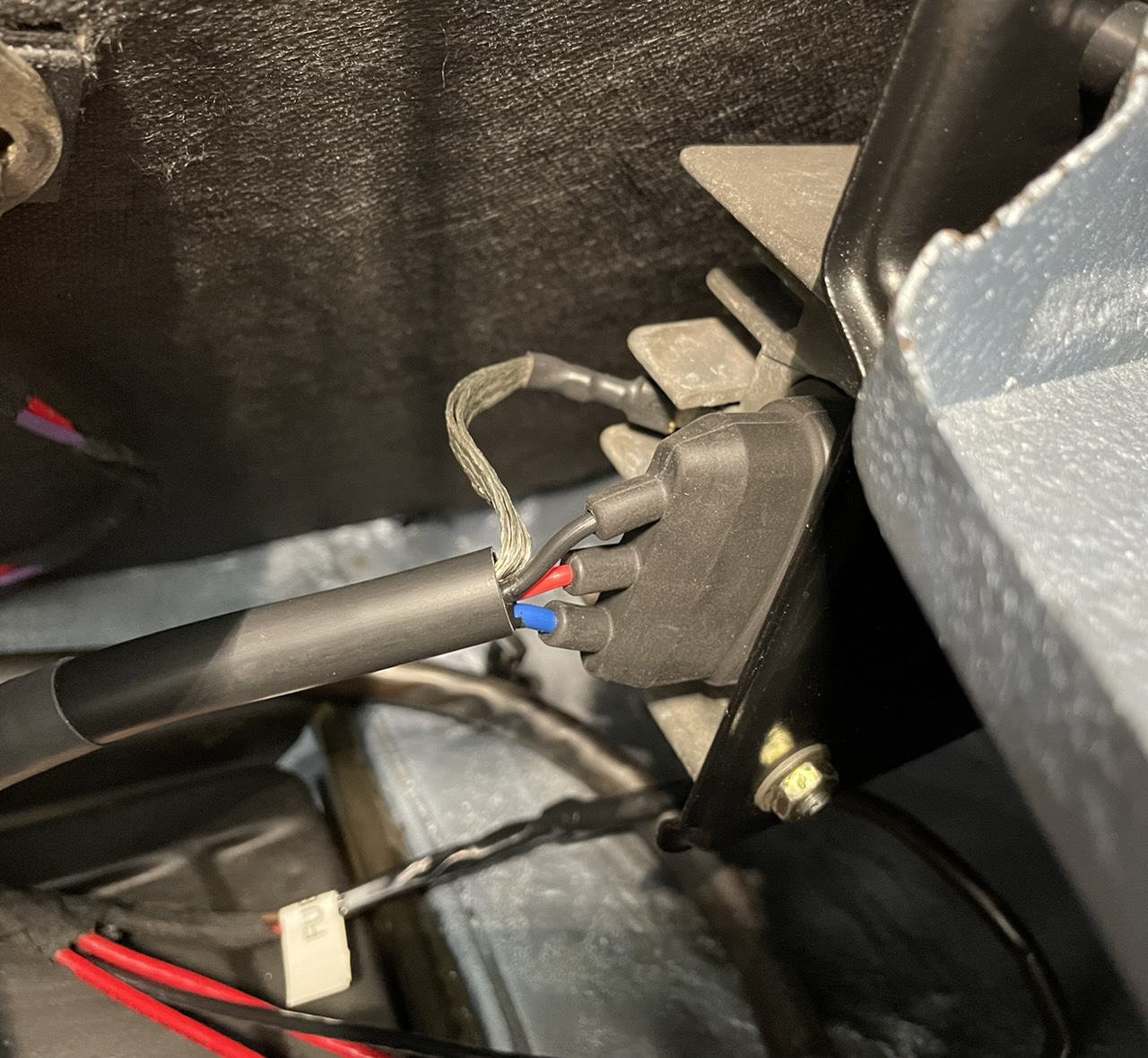

CDI BOX ( I have a reproduction PartsKlassic harness)
Terminal A blue wire to pin#15 “A” on transformer
Terminal B red wire to ?
Terminal C black wire to distributor (points tab)

Alternator plug into factory location on relay plate.
All braided grounds connected.
This all seems correct. My QUESTION is where should the red wire of terminal B go to?
Some diagrams show it to switched power at relay plate & some show it going to battery. What is safe and appropriate? Thanks in advance!


Attached thumbnail(s)
Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Aug 11 2021, 09:32 AM
Post #869


914 Guru
*****

Group: Members
Posts: 7,544
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
Oh man sorry that one I do not know off the top of my head.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Root_Werks
post Aug 11 2021, 09:45 AM
Post #870


Village Idiot
*****

Group: Members
Posts: 8,649
Joined: 25-May 04
From: About 5NM from Canada
Member No.: 2,105
Region Association: Pacific Northwest
B should be the battery or ign switch. Lemme google it...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Root_Werks
post Aug 11 2021, 09:47 AM
Post #871


Village Idiot
*****

Group: Members
Posts: 8,649
Joined: 25-May 04
From: About 5NM from Canada
Member No.: 2,105
Region Association: Pacific Northwest
Yup, not the best picture, but shows all the terminals.

Assuming you have a 3 pin CD box.



Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dion
post Aug 11 2021, 11:19 AM
Post #872


RN
****

Group: Members
Posts: 2,839
Joined: 16-September 04
From: Audubon,PA
Member No.: 2,766
Region Association: MidAtlantic Region
@Root_Werks , yes I have that diagram as well. My confusion is that anther thread showed it needs to be on a switched power supply.
So is it ok that the CDI gets battery juice constantly, will that harm it? The harness I have I guess was made to go to the 911 plate on the rear fender (Kettering set up?)
Yes it is a 3 pin CDI.

If I did run to relay plate for “switched” power. What is a good spot?
The last resort one adjacent to the 12 pin connector?

Thanks guys.


Attached thumbnail(s)
Attached Image

Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Root_Werks
post Aug 12 2021, 08:47 AM
Post #873


Village Idiot
*****

Group: Members
Posts: 8,649
Joined: 25-May 04
From: About 5NM from Canada
Member No.: 2,105
Region Association: Pacific Northwest
I would think switched, you don't want the CD box to have power all the time. Been a few years so hopefully someone with more recent experience will chime in.

I think what I used to do was use the wire from terminal 15 to the coil for CD box terminal B. Then just ran a new wire from A to 15 coil.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dion
post Aug 12 2021, 09:13 AM
Post #874


RN
****

Group: Members
Posts: 2,839
Joined: 16-September 04
From: Audubon,PA
Member No.: 2,766
Region Association: MidAtlantic Region
@Root_Werks thank you my instincts are agreeing with you. That’s my concern.
Having battery voltage going to the box constantly just doesn’t seem right. Of course I might be mistaken. Going with your suggestion.
Thank you.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dion
post Aug 23 2021, 04:58 PM
Post #875


RN
****

Group: Members
Posts: 2,839
Joined: 16-September 04
From: Audubon,PA
Member No.: 2,766
Region Association: MidAtlantic Region

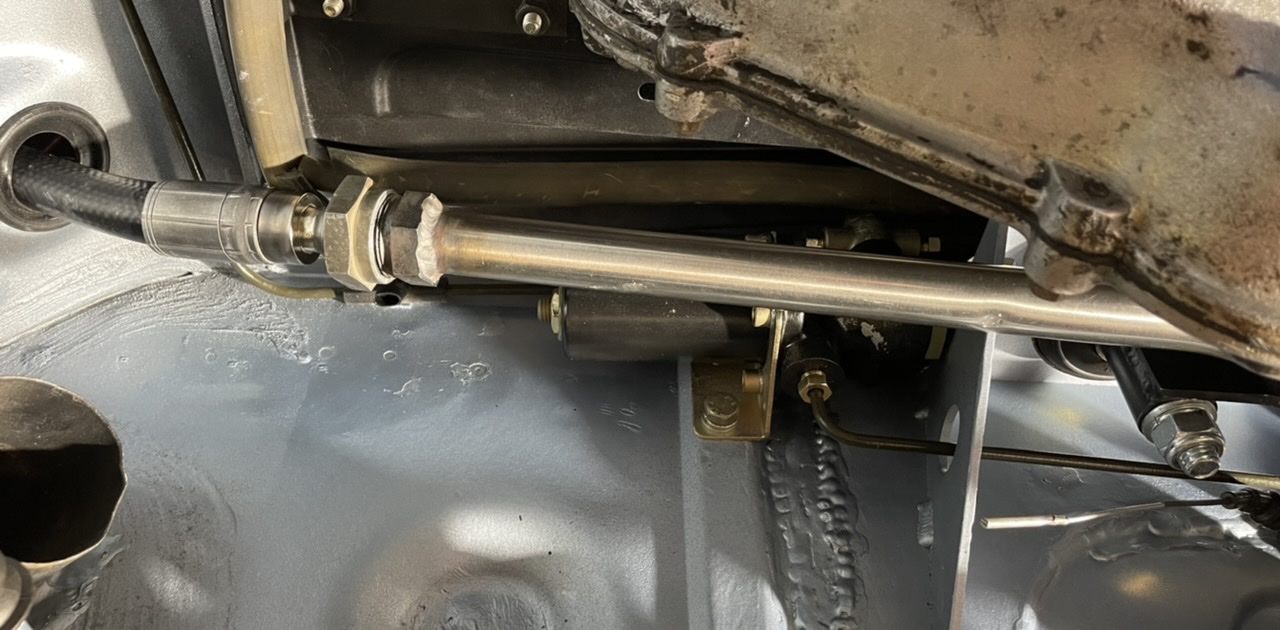

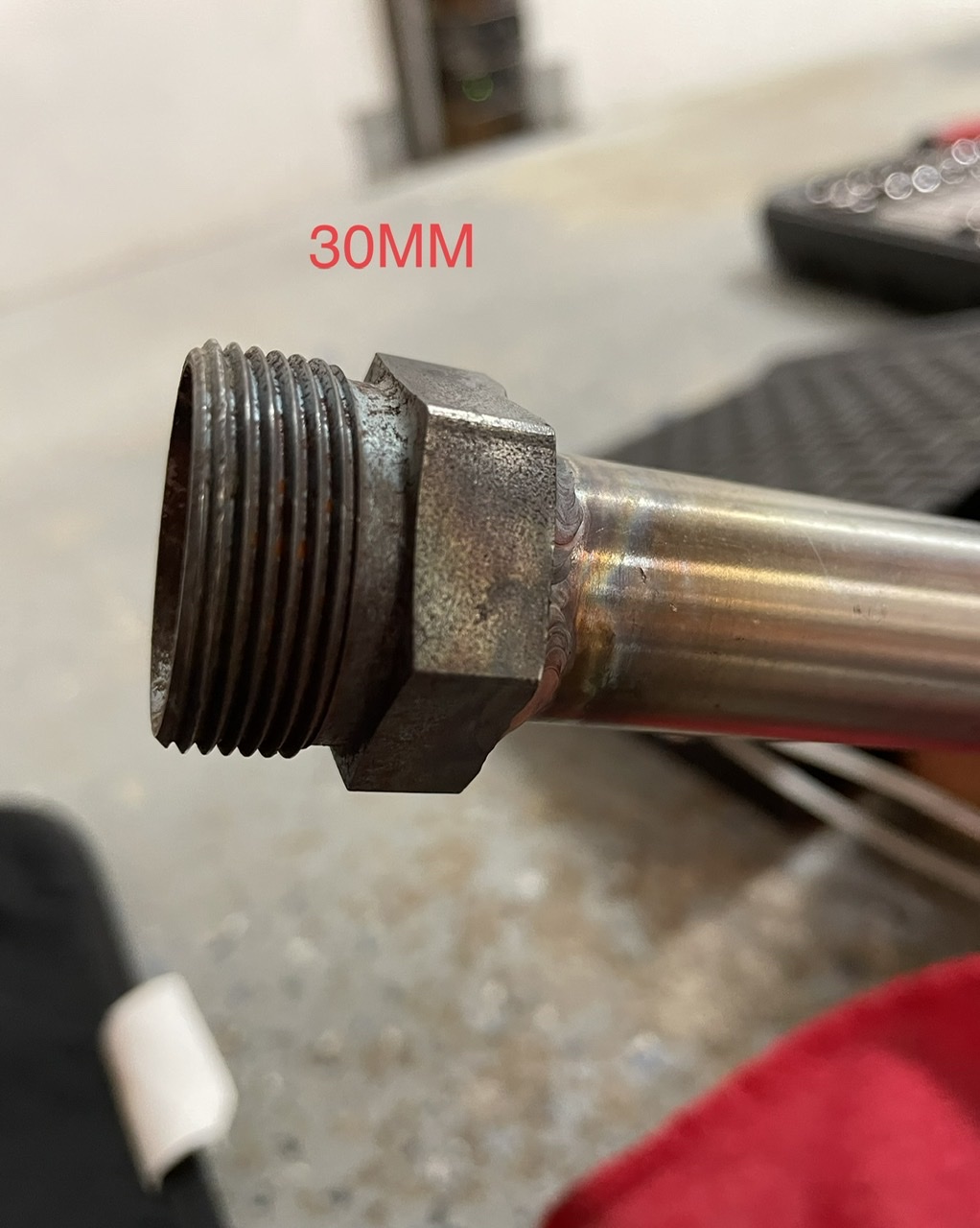

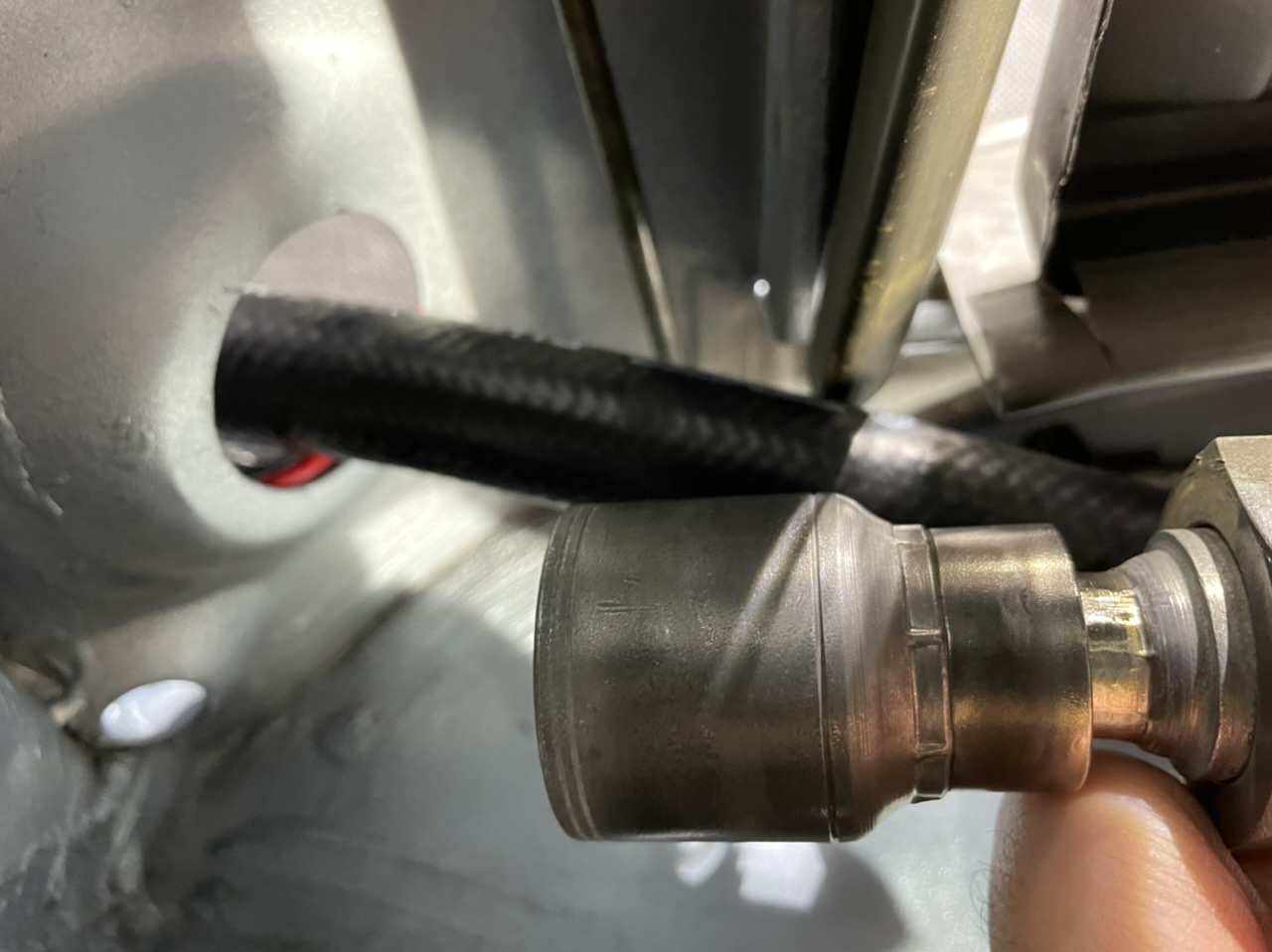

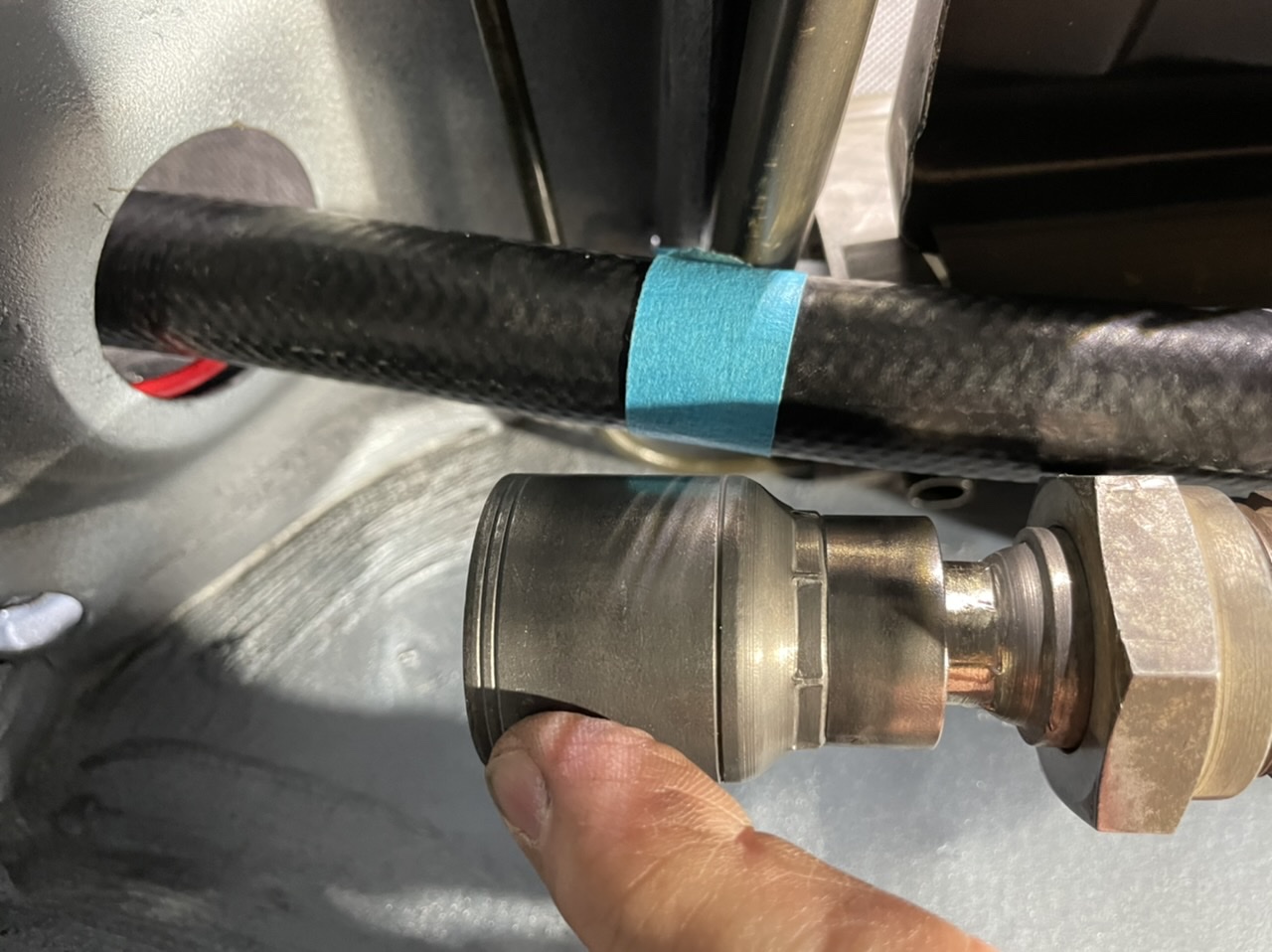

Some continuing work. Mounted the scavenge line from Ben @mb911 . Had to make a change to the soft line though. My original one had a 26mm end on it and a 30Mmm was needed to mate with the hard line. A quick trip to a local hydraulic facility and they were able to make a new line with proper fittings for me.


Attached thumbnail(s)
Attached Image Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dion
post Aug 23 2021, 05:04 PM
Post #876


RN
****

Group: Members
Posts: 2,839
Joined: 16-September 04
From: Audubon,PA
Member No.: 2,766
Region Association: MidAtlantic Region

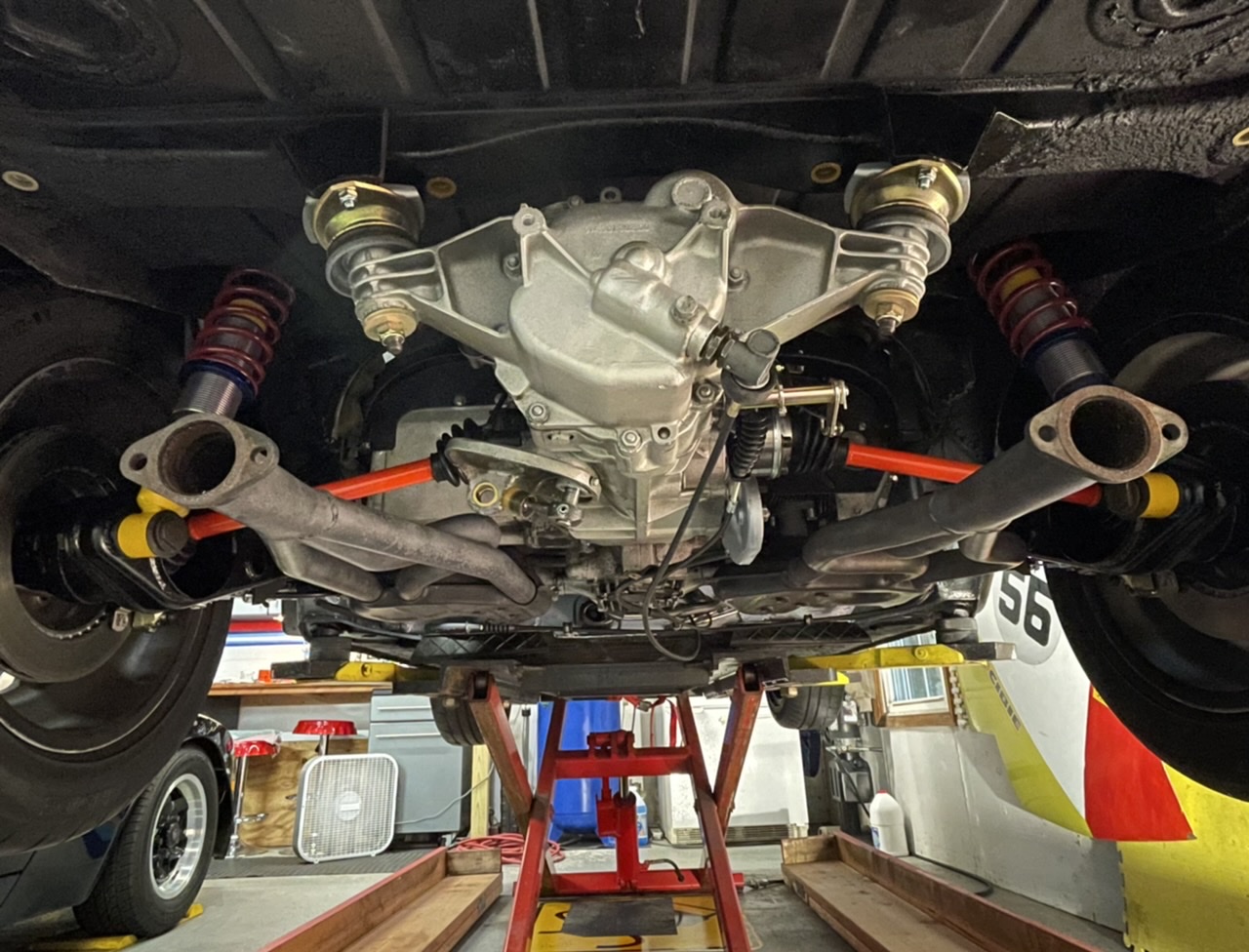

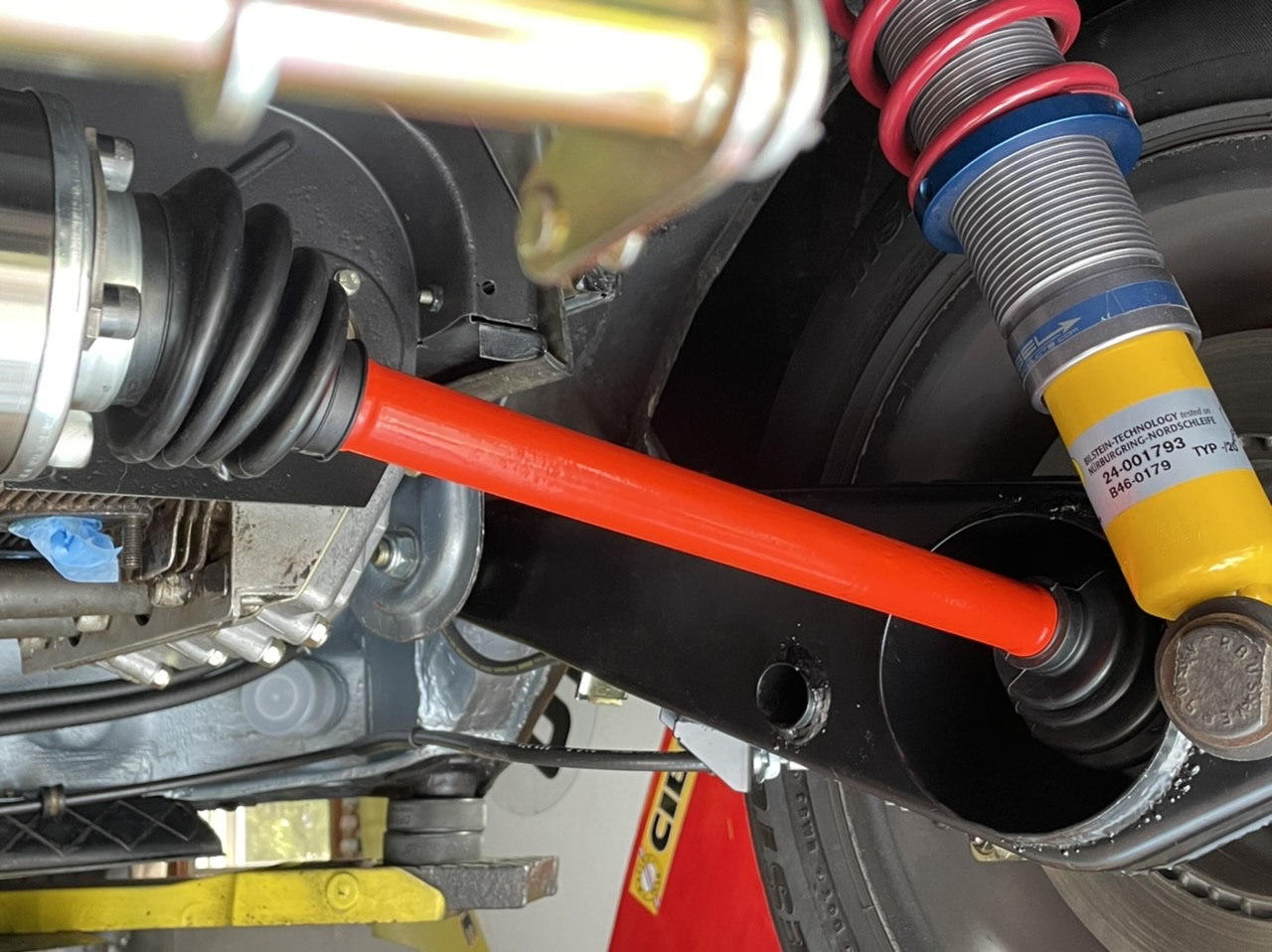

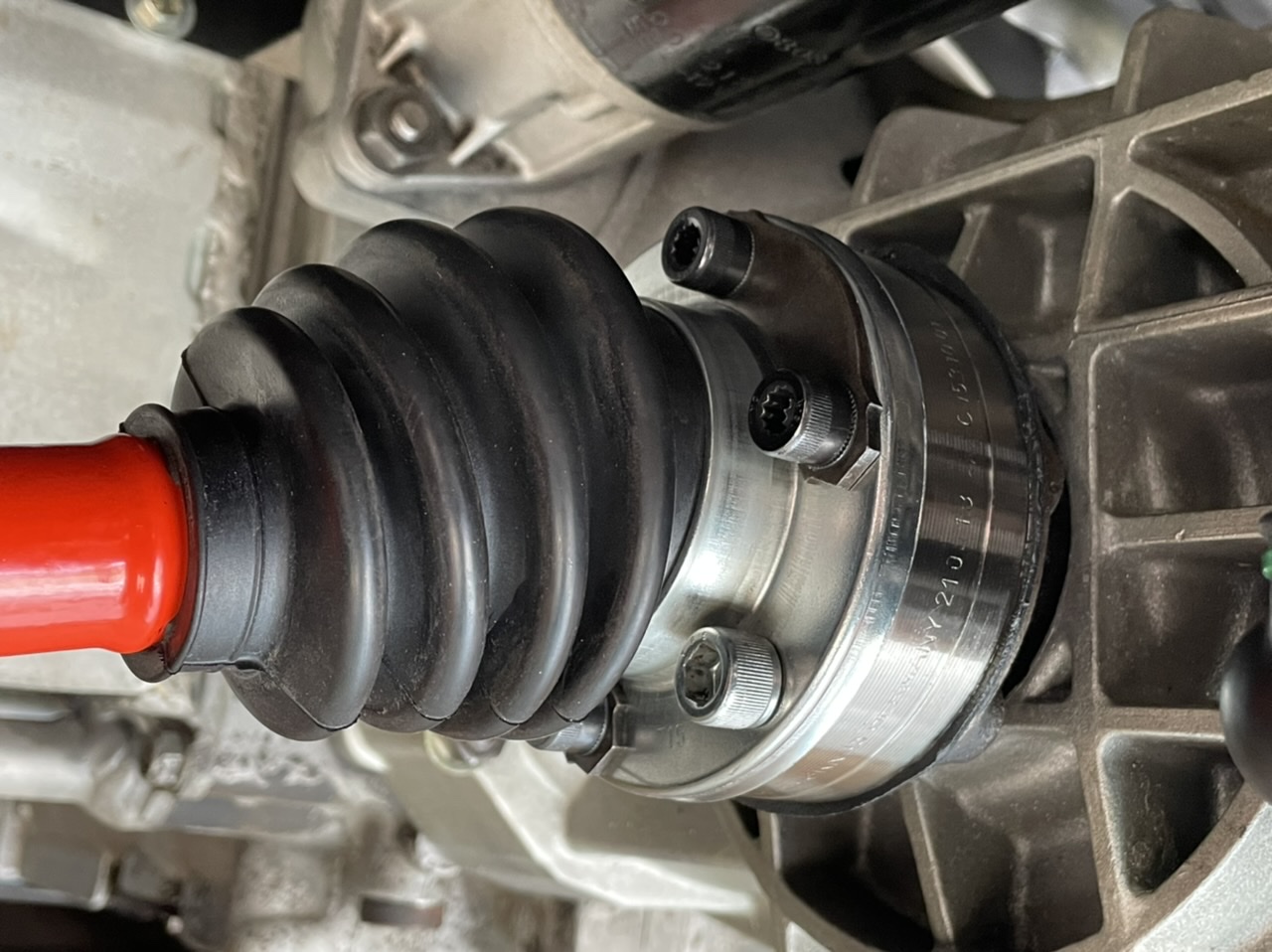

Installed the half-shafts that Chris at Tangerine Racing was making. Nice new Lobro CV
Fresh Schnorr washers and correct torque values.


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dion
post Aug 23 2021, 05:10 PM
Post #877


RN
****

Group: Members
Posts: 2,839
Joined: 16-September 04
From: Audubon,PA
Member No.: 2,766
Region Association: MidAtlantic Region

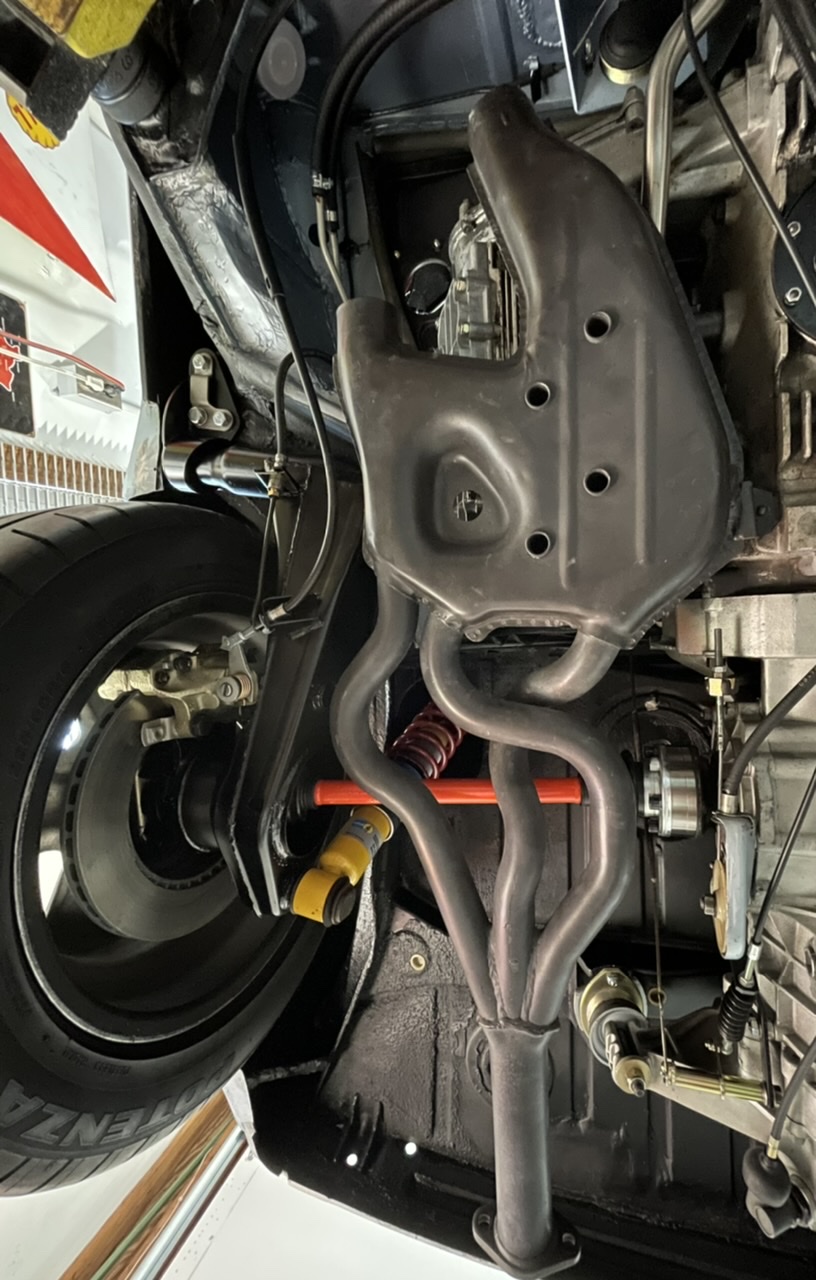

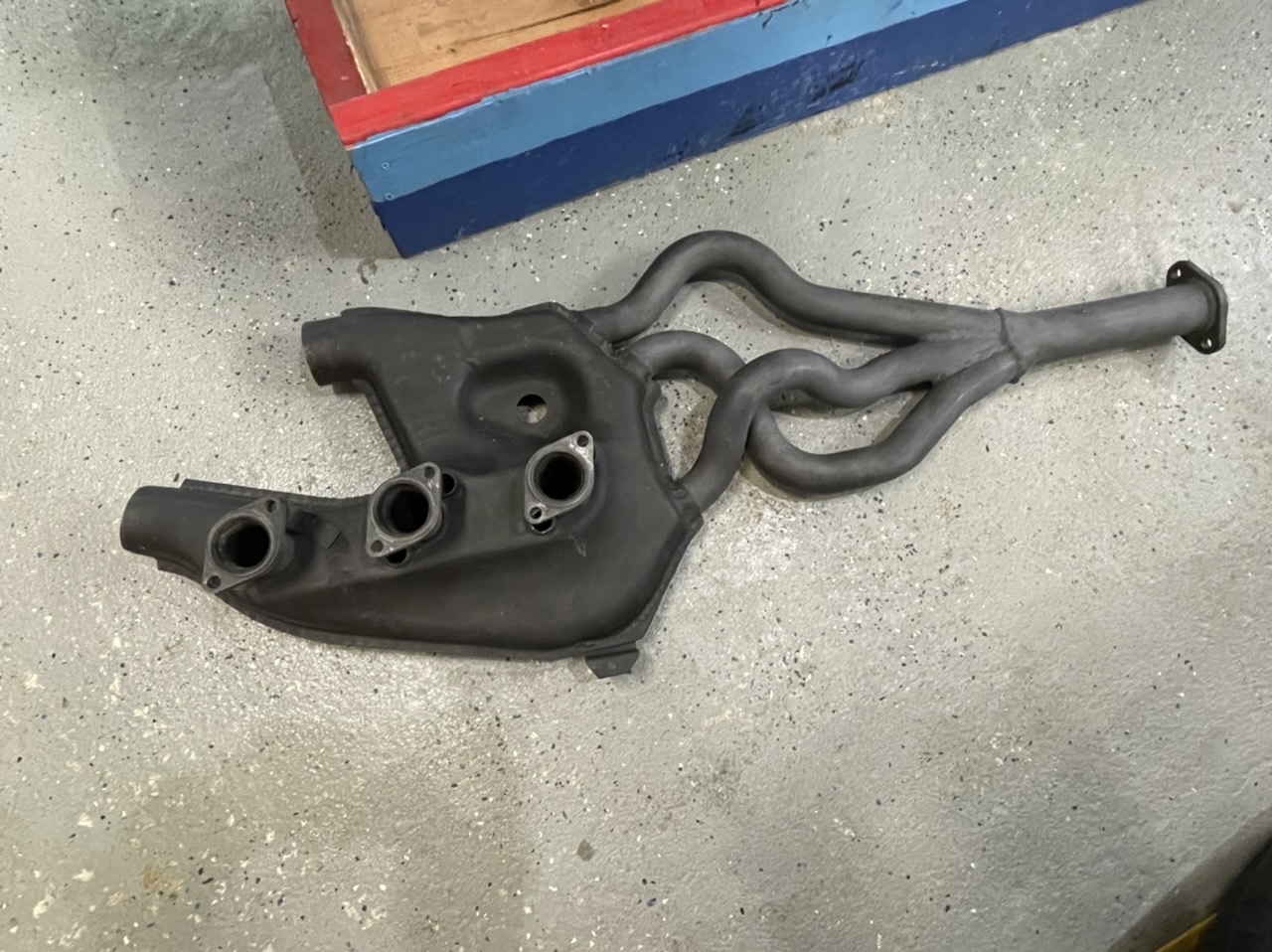

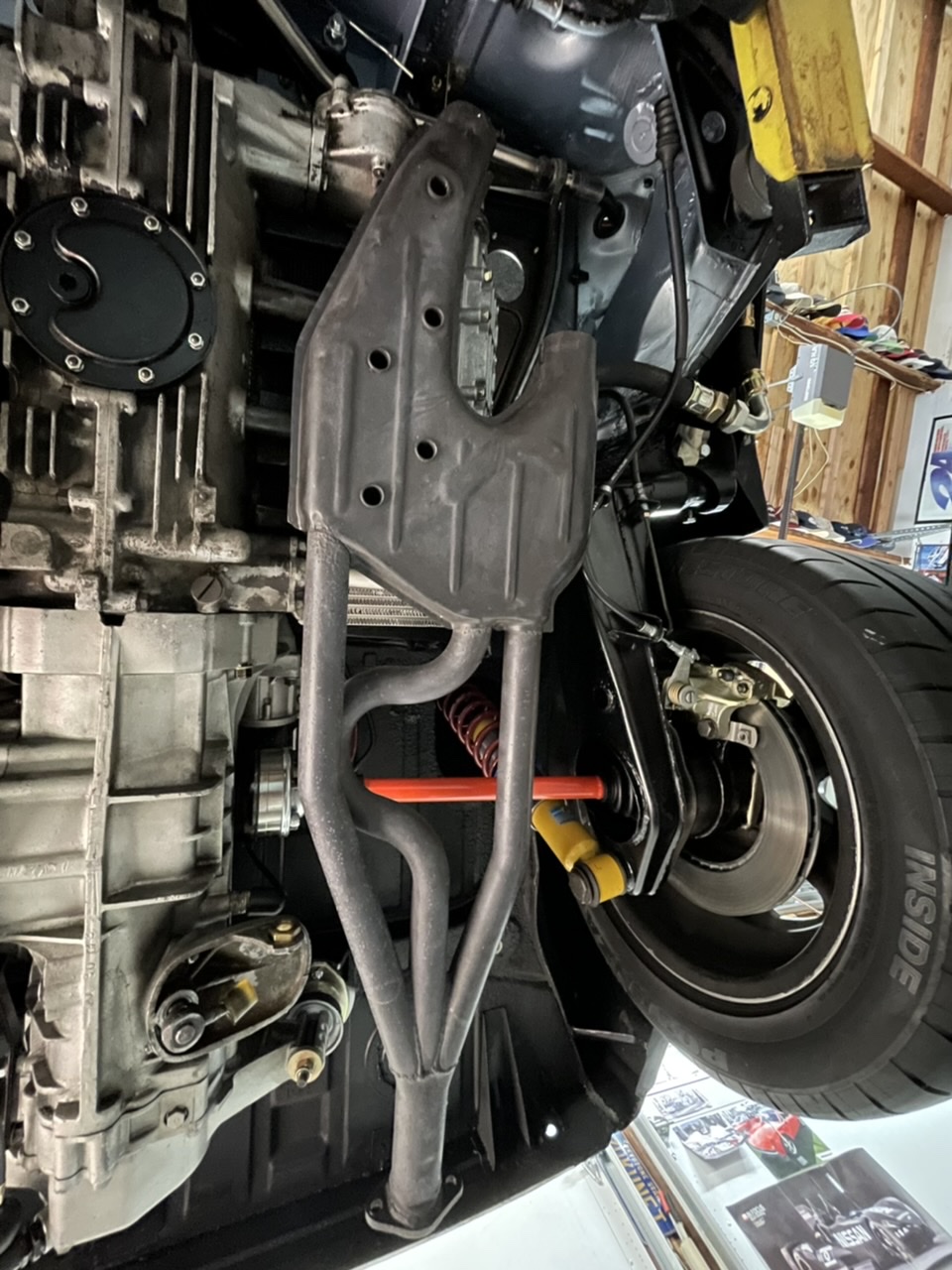

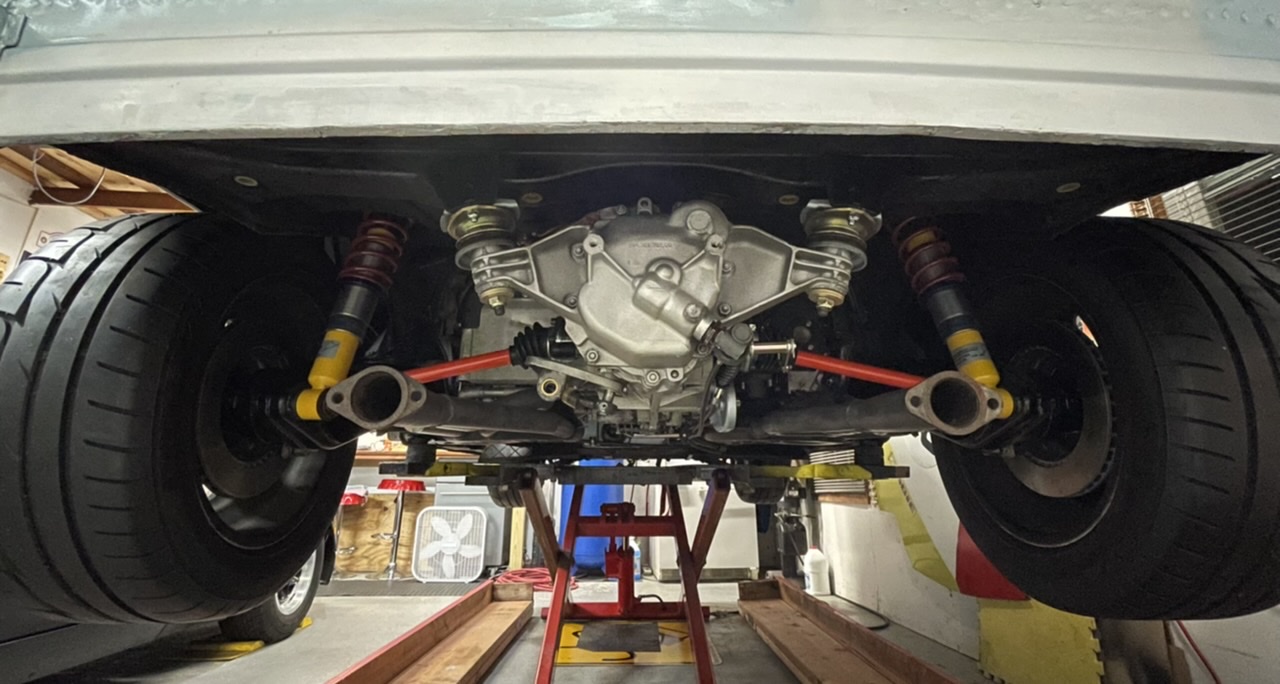

Then came the factory heat exchangers. Man if you aren’t lined up perfectly they don’t cooperate. Tolerances was exacting. Once on the studs they moved freely. Challenge was keeping the damn gaskets on. Should have dabbed some grease on them as I learned later on from a friend. All the cables were hooked up and aligned proper. Need to do heater hoses. More to come.


Attached thumbnail(s)
Attached Image Attached Image Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rgalla9146
post Aug 23 2021, 05:11 PM
Post #878


Advanced Member
****

Group: Members
Posts: 4,735
Joined: 23-November 05
From: Paramus NJ
Member No.: 5,176
Region Association: None

Lookin' good Dion
Don't forget a support bracket for that hard line around the front of the engine.
The bracket extends up from the tube and attaches to the front tin.
Your picture shows the hole in the tin that the bracket attaches to.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dion
post Aug 23 2021, 05:17 PM
Post #879


RN
****

Group: Members
Posts: 2,839
Joined: 16-September 04
From: Audubon,PA
Member No.: 2,766
Region Association: MidAtlantic Region
QUOTE(rgalla9146 @ Aug 23 2021, 03:11 PM) *

Lookin' good Dion
Don't forget a support bracket for that hard line around the front of the engine.
The bracket extends up from the tube and attaches to the front tin.
Your picture shows the hole in the tin that the bracket attaches to.


Thanks Rory! Great eye for details! I’ll have to look for the correct one. I have a zip-tie contraption there currently taking the static weight. (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rgalla9146
post Aug 23 2021, 05:38 PM
Post #880


Advanced Member
****

Group: Members
Posts: 4,735
Joined: 23-November 05
From: Paramus NJ
Member No.: 5,176
Region Association: None
Doh!!! walked the dogs in between and forgot everything.
I have a bad case of rear tire envy. Man ! those are big !
It all looks so good. Excellent.
User is offlineProfile CardPM
