> Fuchs education
Cal
post Dec 16 2017, 09:58 AM
Post #1


Senior Member
***

Group: Members
Posts: 614
Joined: 19-November 14
From: Philadelphia
Member No.: 18,138
Region Association: North East States

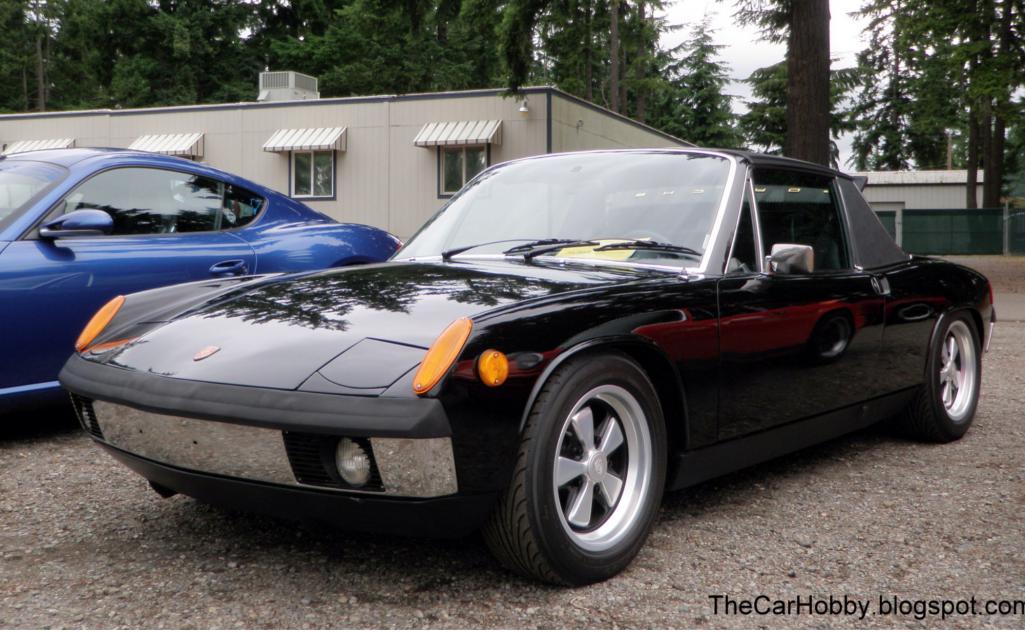

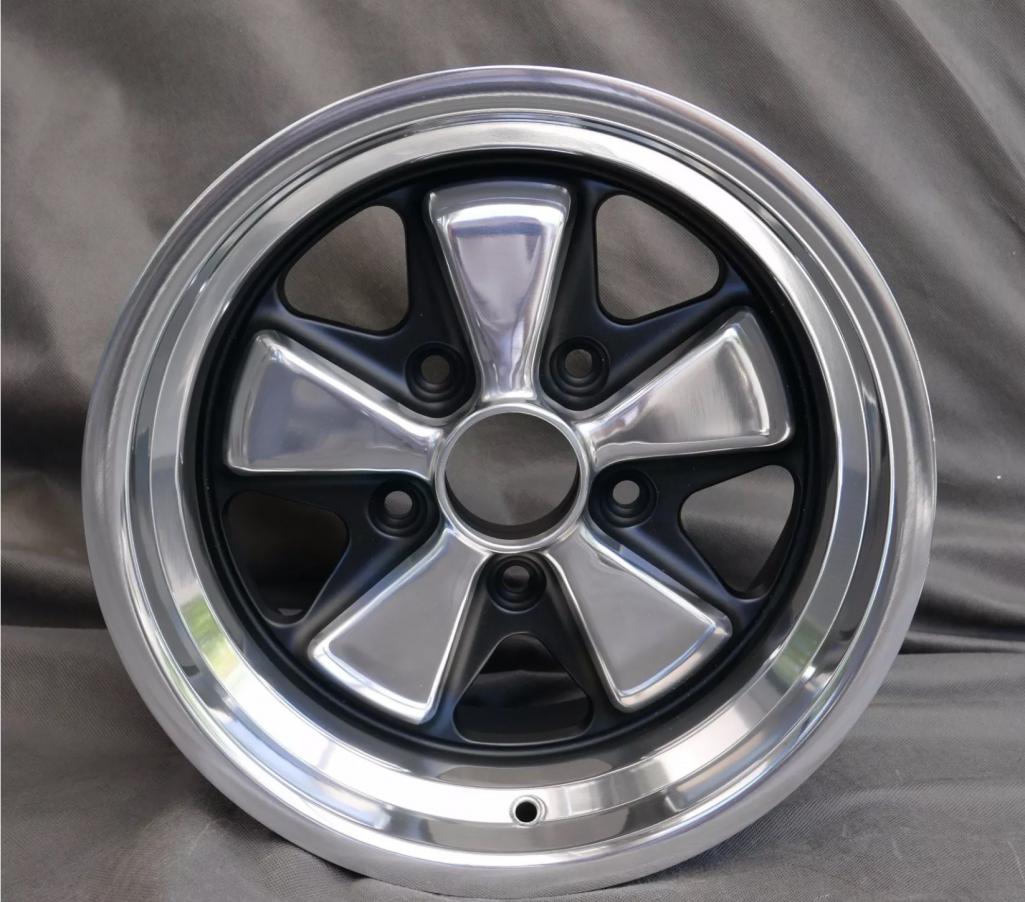

I'm considering doing a 5-lug conversation to my '74 2.0L using Eric Shea's kit from PMB. I'd prefer this option because I can easily convert it back to the 4-lug if needed. There are a number of replica Fuchs available from Maxilite that look pretty good....15x6 (deep 6), 15x7R and the standard 15x7. The offsets on each of these wheels is different ET36, ET47 & ET23.3.....are there advantages/disadvantages with each? What would be the safest tire width that could be run on each of these wheels without modifying the bodywork on the car.....would 195/65/15 be a safe bet? The photo below would be the ideal look that I'm looking for....15x7 with the RS or RSR finish. I'm open for suggestions / opinions.


Attached thumbnail(s)
Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cairo94507
post Dec 16 2017, 10:00 AM
Post #2


Michael
*****

Group: Members
Posts: 9,650
Joined: 1-November 08
From: Auburn, CA
Member No.: 9,712
Region Association: Northern California



On a narrow bodied car, I would go with the deep six. I really like the RSR finish too.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
GeorgeRud
post Dec 16 2017, 10:07 AM
Post #3


Advanced Member
****

Group: Members
Posts: 3,725
Joined: 27-July 05
From: Chicagoland
Member No.: 4,482
Region Association: Upper MidWest



195/65-15 fit nicely and have a proper vintage look. 205s can sometimes fit. Eric’s conversion kit will certainly be the easiest way to get all the proper parts for the conversion. 6” wide Fuchs (or replicas) fit very easily, though folks have fit 7” wide wheels if they have the proper ET (backspacing) to prevent the tires from rubbing the fenders. There is some variability on the fender clearance from car to car (and even from side to side on the same car), so going a bit conservative is safer. You can always use some spacers if you decide to increase the track if desired.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mark Henry
post Dec 16 2017, 10:09 AM
Post #4


that's what I do!
***************

Group: Members
Posts: 20,065
Joined: 27-December 02
From: Port Hope, Ontario
Member No.: 26
Region Association: Canada



I have a narrow body, flat 020 Fuchs 15x6, with 205/60-15 tires they fit perfect with no fender rolling.
15x7 and/or any bigger tire you can bet you will have to roll/pull the rear fenders.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sb914
post Dec 16 2017, 11:44 AM
Post #5


Surf Guru
****

Group: Members
Posts: 4,292
Joined: 25-November 12
From: Brookings,Oregon
Member No.: 15,191
Region Association: Southern California



Check the classifieds There's someone selling a pmb five lug conversion right now
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JOEPROPER
post Dec 16 2017, 12:16 PM
Post #6


The answer is "no" unless you ask...
***

Group: Members
Posts: 1,184
Joined: 21-November 15
From: White Plains New York
Member No.: 19,387
Region Association: North East States



Which is the RS and which is the RSR? (IMG:style_emoticons/default/huh.gif) (IMG:style_emoticons/default/wacko.gif) (IMG:style_emoticons/default/confused24.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
porschetub
post Dec 16 2017, 12:50 PM
Post #7


Advanced Member
****

Group: Members
Posts: 4,695
Joined: 25-July 15
From: New Zealand
Member No.: 18,995
Region Association: None

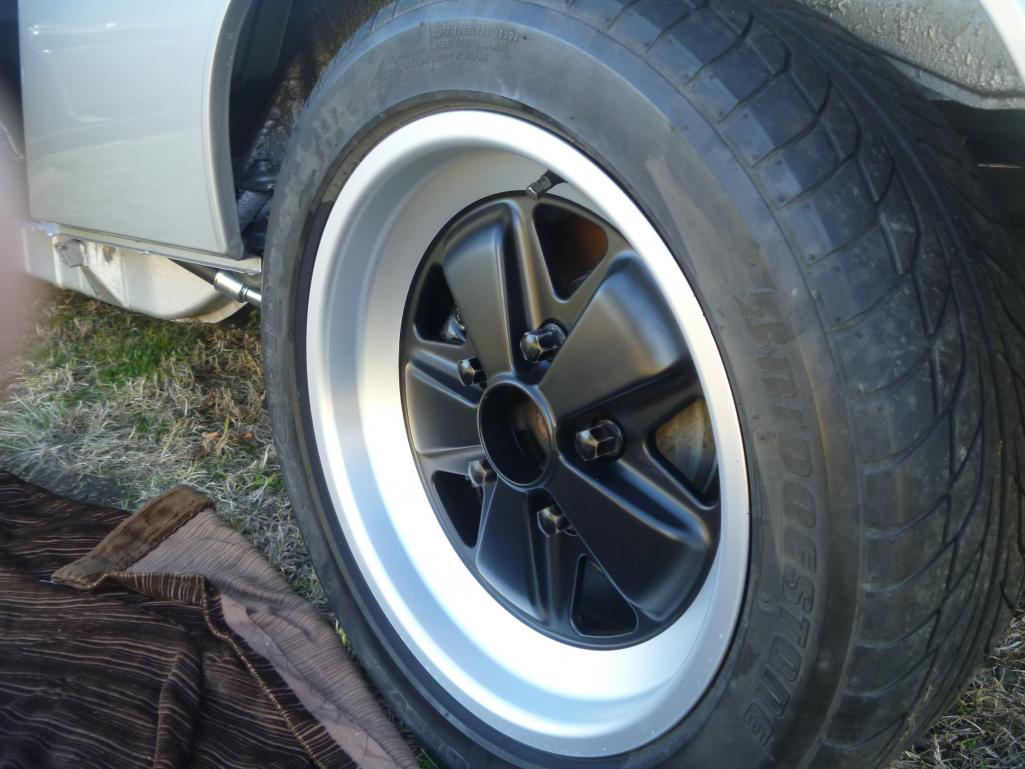

I would like to go back to 15x6 from my 16x7 because I really like the look more,I bought Maxilites and found them to be good quality I paid less than 1K for the set (4) ,they are a slightly different casting than the genuine Fuchs but its hard to notice.
Attached Image
One pleasant surprise was the weight of the Maxilite wheel...not a lot heavier than the Fuchs.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mark Henry
post Dec 16 2017, 02:49 PM
Post #8


that's what I do!
***************

Group: Members
Posts: 20,065
Joined: 27-December 02
From: Port Hope, Ontario
Member No.: 26
Region Association: Canada



QUOTE(porschetub @ Dec 16 2017, 01:50 PM) *

....they are a slightly different casting than the genuine Fuchs but its hard to notice.



Real fuchs are forged, not cast, same goes for the 4 bolt fuchs. Why they are so light but strong.
Likely you know that but just an FYI for newbies.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
burton73
post Dec 16 2017, 03:06 PM
Post #9


burton73
****

Group: Members
Posts: 3,461
Joined: 2-January 07
From: Los Angeles
Member No.: 7,414
Region Association: Southern California



I had some 7-inch x 15 Fuchs copies back in 1978. They where some real crap. Super heavy and had texture on the areas near the paddles and lug area. (Any thing they could not machine smooth.) Un-sprung weight is a killer in the handing and you really can feel it when you drive. Boom. We have lots of potholes here in Los Angeles and it has taken out lots of people’s tires and who knows what it does to the wheels.

At that time that is what was sold as copy wheels. The ones today are so much better and some look great. But if you have the money, go real. In the end you will be happy and if you ever want to sell them it is not like you will have a problem.

Now some copy’s say they meet some race standards but I do not know anything of race standards so some may chime on here on those standards. (Boom, Boom)

Bob B
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SKL1
post Dec 16 2017, 03:31 PM
Post #10


Senior Member
***

Group: Members
Posts: 1,596
Joined: 19-February 11
From: north Scottsdale
Member No.: 12,732
Region Association: Upper MidWest



Both my 914's are narrow body. Have 6X16 Fuchs F&R onboth (from front of older SC, etc.) More tire choices and real Fuchs. Close, but fit fine.
Had Harvey Weidman refinish the wheels- highly recommended.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SKL1
post Dec 16 2017, 03:34 PM
Post #11


Senior Member
***

Group: Members
Posts: 1,596
Joined: 19-February 11
From: north Scottsdale
Member No.: 12,732
Region Association: Upper MidWest



6X16 Fuchs.Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post Dec 16 2017, 04:21 PM
Post #12


914-6 GT in waiting
***************

Group: Members
Posts: 19,142
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region



QUOTE(Mark Henry @ Dec 16 2017, 11:09 AM) *

I have a narrow body, flat 020 Fuchs 15x6, with 205/60-15 tires they fit perfect with no fender rolling.
15x7 and/or any bigger tire you can bet you will have to roll/pull the rear fenders.

(IMG:style_emoticons/default/agree.gif)
Also agree to real Fuchs vs copies.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Larmo63
post Dec 16 2017, 06:06 PM
Post #13


Advanced Member
****

Group: Members
Posts: 4,264
Joined: 3-March 14
From: San Clemente, Ca
Member No.: 17,068
Region Association: Southern California



(IMG:style_emoticons/default/agree.gif)

Attached Image

These are real deep sixes in RSR finish running 205/60 x 15 Yokohamas. Real Fuchs wheels are super light, very strong, and getting expensive. I prefer the look of 15s on our cars, but that is just personal preference. They look great IMHO, but some of the replicas on the market today are hard to distinguish from the real thing.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post Dec 16 2017, 07:48 PM
Post #14


914-6 GT in waiting
***************

Group: Members
Posts: 19,142
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region



If you want to prove to yourself that 7’s won’t fit, you’re welcomed to borrow one from me to try on your car. I wouldn’t do it though because your paint is pristine so even a little “gotcha” would suck. 6x15 - 205x60x15 fills up the wheel well and is actually a lot of tire for a stock 4. Get a high performance tire. Most of us drive our cars so little that the tires will age out long before they wear out.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Larmo63
post Dec 16 2017, 07:50 PM
Post #15


Advanced Member
****

Group: Members
Posts: 4,264
Joined: 3-March 14
From: San Clemente, Ca
Member No.: 17,068
Region Association: Southern California



(IMG:style_emoticons/default/agree.gif)

E X A C T L Y
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sixnotfour
post Dec 16 2017, 08:04 PM
Post #16


914 Wizard
**********

Group: Members
Posts: 10,392
Joined: 12-September 04
From: Life Elevated..planet UT.
Member No.: 2,744
Region Association: Rocky Mountains



7R offsett will
User is online!Profile CardPM
Go to the top of the page
+Quote Post
bdstone914
post Dec 16 2017, 10:06 PM
Post #17


bdstone914
****

Group: Members
Posts: 4,496
Joined: 8-November 03
From: Riverside CA
Member No.: 1,319



I sold a set of five 6 x 16 real Fuchs to a customer who now wants to sell them. $1200 for the set of five. As I recall all were in pretty nice shape but one needed a repaint.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
HansJan
post Dec 17 2017, 12:32 AM
Post #18


Member
**

Group: Members
Posts: 391
Joined: 5-April 16
From: Sugar Land TX
Member No.: 19,860
Region Association: Southwest Region

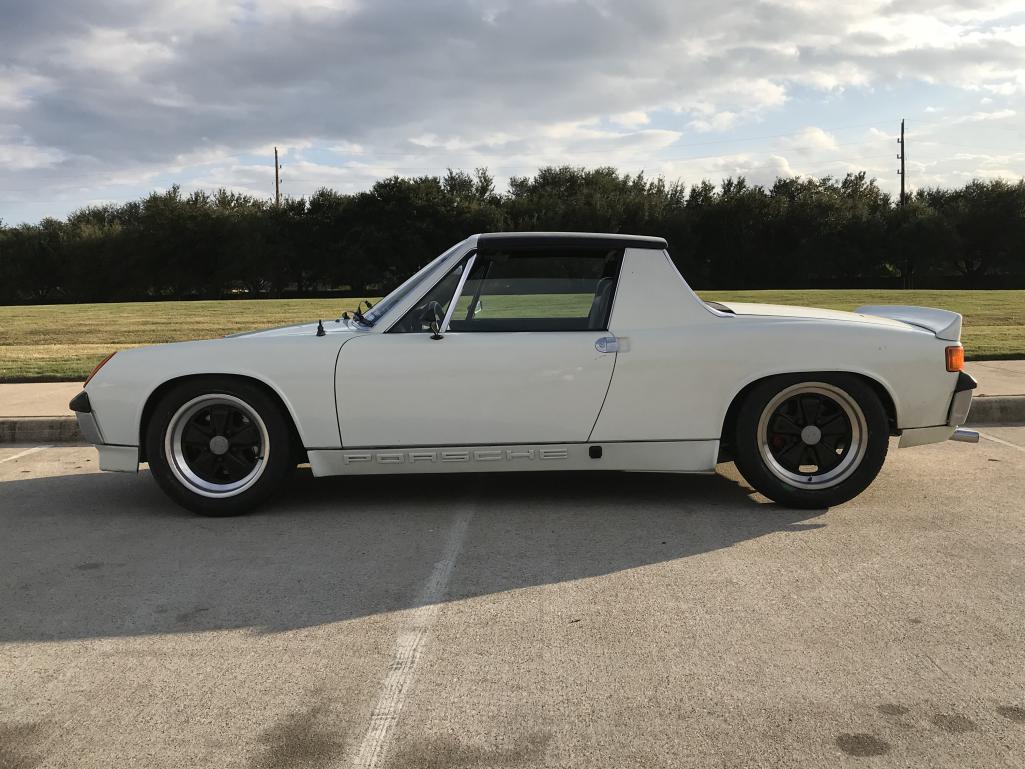

After screwing around with bigger tires I ended up with 205-55-R16 on 7” Fuchs all around. Totally fills up the wheel-well.
It’s all personal preference, and what ever you decide to do it can be reversed easily.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Unobtanium-inc
post Dec 17 2017, 10:11 AM
Post #19


Advanced Member
****

Group: Members
Posts: 2,192
Joined: 29-November 06
From: New York
Member No.: 7,276
Region Association: None

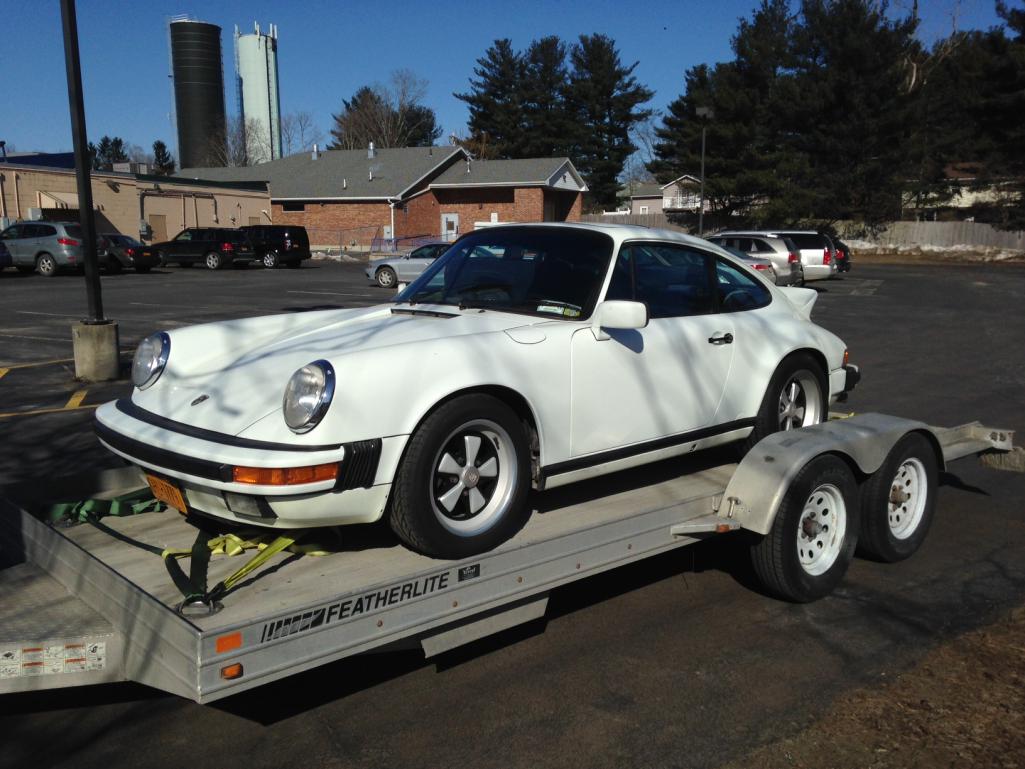

My brother might be selling the Al Reed style ones off his Carrera, I'll check on the size.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post Dec 17 2017, 10:50 AM
Post #20


914-6 GT in waiting
***************

Group: Members
Posts: 19,142
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region



QUOTE(Unobtanium-inc @ Dec 17 2017, 11:11 AM) *

My brother might be selling the Al Reed style ones off his Carrera, I'll check on the size.

They look like 7's & 8's.
User is online!Profile CardPM
Go to the top of the page
