> Ivory 1970 914/6 Build, Shake down before delivery
UROpartsman
post May 15 2020, 02:23 PM
Post #321


Member
**

Group: Members
Posts: 292
Joined: 22-October 15
From: Simi Valley, CA
Member No.: 19,288
Region Association: None
QUOTE(Targa70 @ May 14 2020, 06:43 AM) *

@uropartsman I can't tell you how pleased Glenn and I have been with the URO parts we have been using for this build. It has all fit very well and is close to stock in appearance. I know you probably have multiple suppliers with varied levels of quality and fit, but thus far we have not been disappointed.

Thank you for your feedback Targa70, we're thrilled to be a part of your amazing restoration!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
gms
post May 16 2020, 01:22 PM
Post #322


Advanced Member
****

Group: Members
Posts: 2,706
Joined: 12-March 04
From: Chicagoland
Member No.: 1,785
Region Association: Upper MidWest

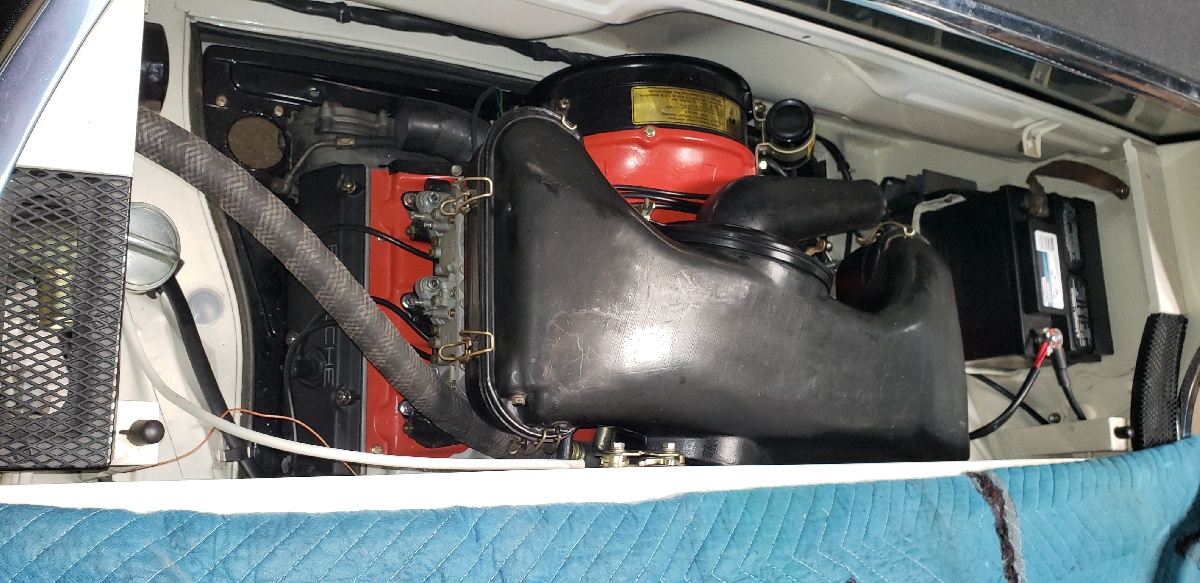

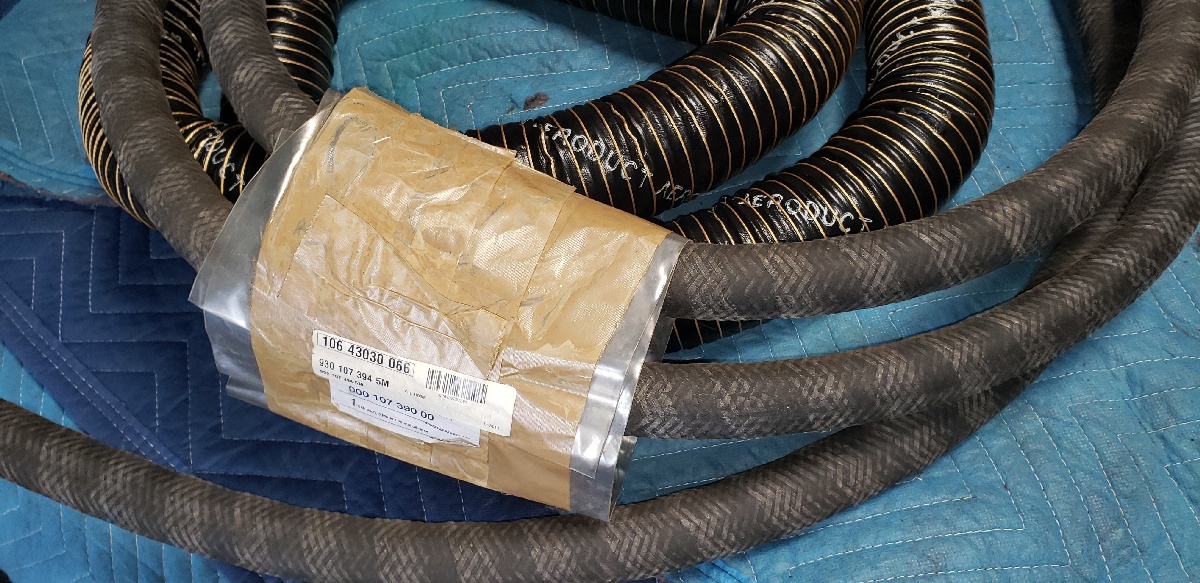

oil hose and air duct

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
gms
post May 16 2020, 01:23 PM
Post #323


Advanced Member
****

Group: Members
Posts: 2,706
Joined: 12-March 04
From: Chicagoland
Member No.: 1,785
Region Association: Upper MidWest

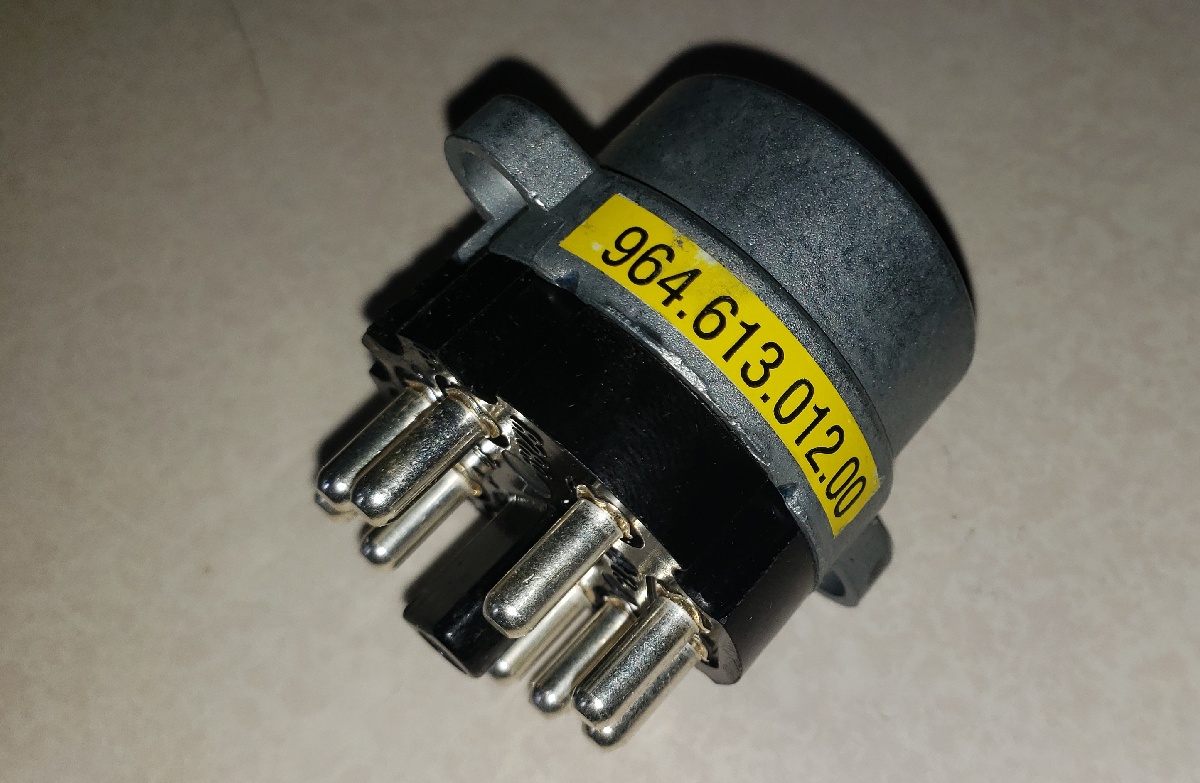

New ignition switch has arrived

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
gms
post May 16 2020, 01:40 PM
Post #324


Advanced Member
****

Group: Members
Posts: 2,706
Joined: 12-March 04
From: Chicagoland
Member No.: 1,785
Region Association: Upper MidWest

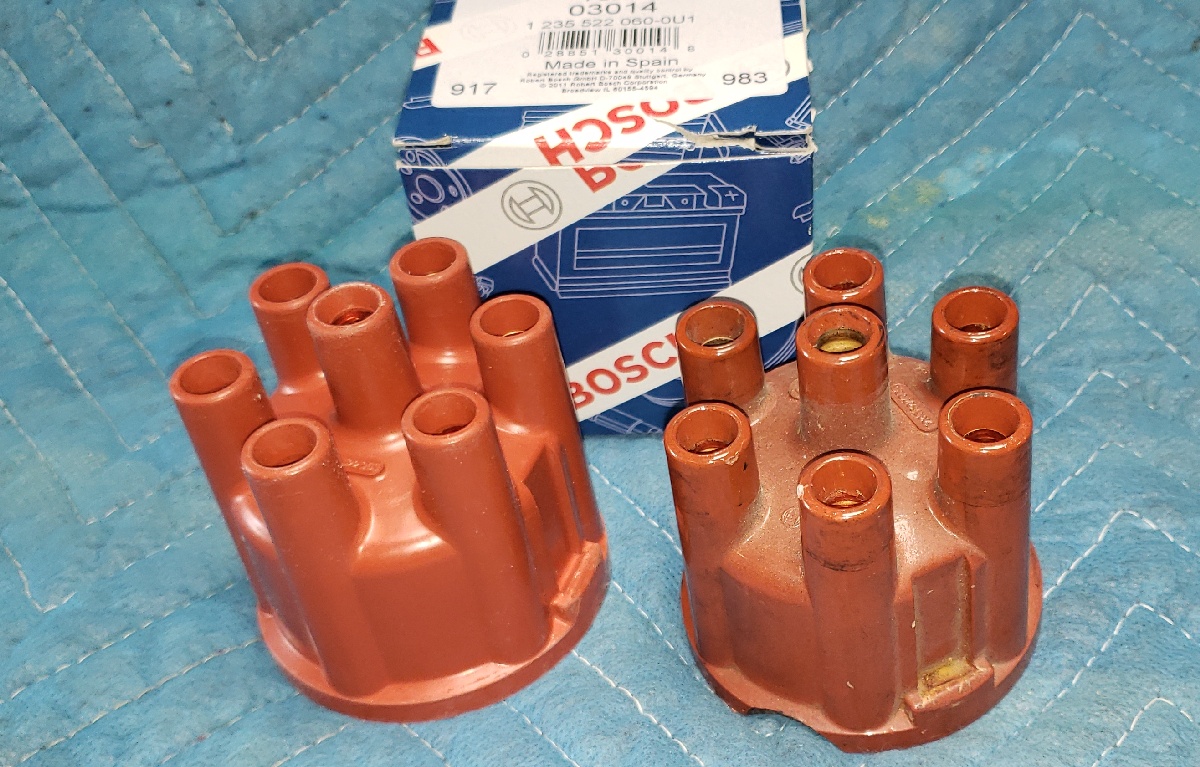

.Attached Image



Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
gms
post May 16 2020, 01:41 PM
Post #325


Advanced Member
****

Group: Members
Posts: 2,706
Joined: 12-March 04
From: Chicagoland
Member No.: 1,785
Region Association: Upper MidWest

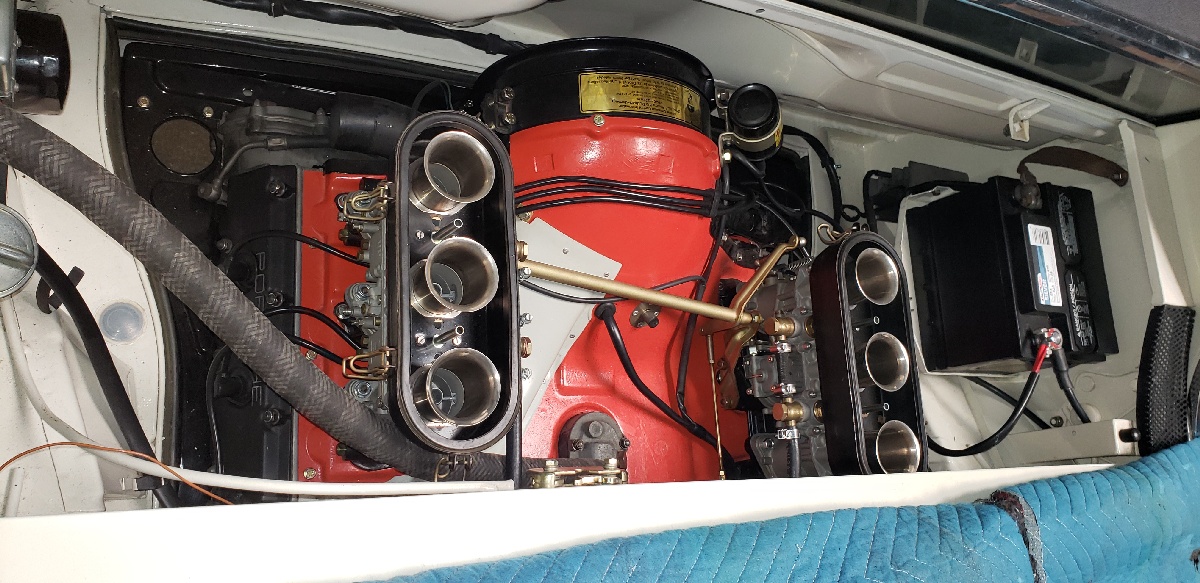

.Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
gms
post May 16 2020, 01:42 PM
Post #326


Advanced Member
****

Group: Members
Posts: 2,706
Joined: 12-March 04
From: Chicagoland
Member No.: 1,785
Region Association: Upper MidWest
Electricity is coursing thru her wires

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
gms
post May 16 2020, 02:03 PM
Post #327


Advanced Member
****

Group: Members
Posts: 2,706
Joined: 12-March 04
From: Chicagoland
Member No.: 1,785
Region Association: Upper MidWest
I received an email with questions:
Wanted to know the color light ivory what brand of paint was that ? there’s so many brands.
Although I did not paint the car I know they used PPG (some prefer Glasurit paint)
OEM code 131,L80E - HELLELFENBIEN

also the under body and fender wells I see the texture on it what type did you use on that under coating then painted over it with the ivory ?
The texture is achieved using Wurth Body Schutz
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Tman914
post May 17 2020, 02:38 PM
Post #328


Member
**

Group: Members
Posts: 136
Joined: 9-December 04
From: "Livermore, Ca"
Member No.: 3,247
Region Association: Central California
Hello nice build btw I just have a few questions on the paint light ivory what style paint / brand there’s so many brands out there now
Also the under coating texture paint


Thanks for your time
Tman914
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Tman914
post May 18 2020, 11:02 AM
Post #329


Member
**

Group: Members
Posts: 136
Joined: 9-December 04
From: "Livermore, Ca"
Member No.: 3,247
Region Association: Central California
Ok thanks for the response
Tman914
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
RoadGlue
post May 18 2020, 12:36 PM
Post #330


Sonoma County Gear Head
****

Group: Admin
Posts: 2,033
Joined: 8-January 03
From: Santa Rosa, CA
Member No.: 108
Region Association: Northern California
(IMG:style_emoticons/default/pray.gif)

Amazing build Glenn!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Bartlett 914
post May 18 2020, 02:28 PM
Post #331


Advanced Member
****

Group: Members
Posts: 2,216
Joined: 30-August 05
From: South Elgin IL
Member No.: 4,707
Region Association: Upper MidWest
QUOTE(RoadGlue @ May 18 2020, 01:36 PM) *

(IMG:style_emoticons/default/pray.gif)

Amazing build Glenn!

You! All you have to do is turn on the lights and start it up.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
gms
post May 19 2020, 06:37 AM
Post #332


Advanced Member
****

Group: Members
Posts: 2,706
Joined: 12-March 04
From: Chicagoland
Member No.: 1,785
Region Association: Upper MidWest
QUOTE(RoadGlue @ May 18 2020, 01:36 PM) *

(IMG:style_emoticons/default/pray.gif)

Amazing build Glenn!

Thanks Randy
(IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
gms
post May 19 2020, 06:47 AM
Post #333


Advanced Member
****

Group: Members
Posts: 2,706
Joined: 12-March 04
From: Chicagoland
Member No.: 1,785
Region Association: Upper MidWest
Last week I encountered a very strange malfunction while assembling the final switching and wiring. The “start” mode of the ignition switch would turn on the headlights and when in “run” mode the headlight switch engaged the starter…yes you read that correctly! I said the STARTER!

My first assumption was a faulty ignition switch because I did not think the wiring harness would be at fault, I was wrong. After installing the new ignition switch the symptoms remained.

Sunday I found that the ignition switch connection that was supposed to go to the relay board was in fact connected to the headlight switch somehow.

Yesterday I enlisted the help of Mark Kinnaman @Bartlett 914 After a couple hours we were able to find the wire that connected to the relay board, it was erroneously connected to the turn signal switch. While running thru the fuse panel a couple other wires were found to be incorrectly connected.

I will put together a report and hopefully Kroon can prevent this from happening on future harness builds.

Thanks Mark!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
gms
post May 19 2020, 06:49 AM
Post #334


Advanced Member
****

Group: Members
Posts: 2,706
Joined: 12-March 04
From: Chicagoland
Member No.: 1,785
Region Association: Upper MidWest

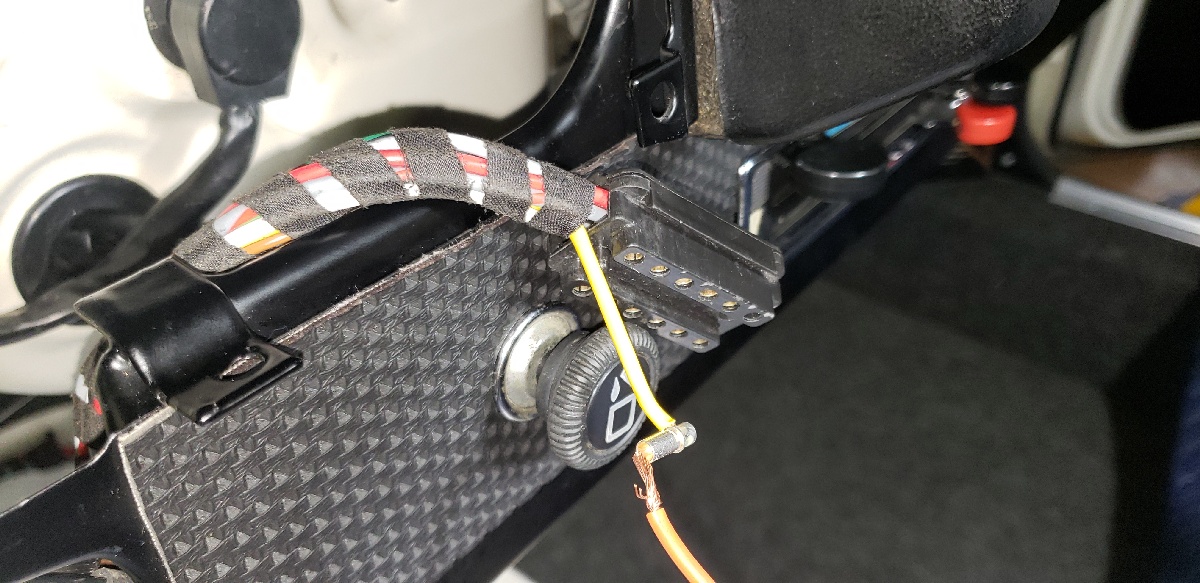

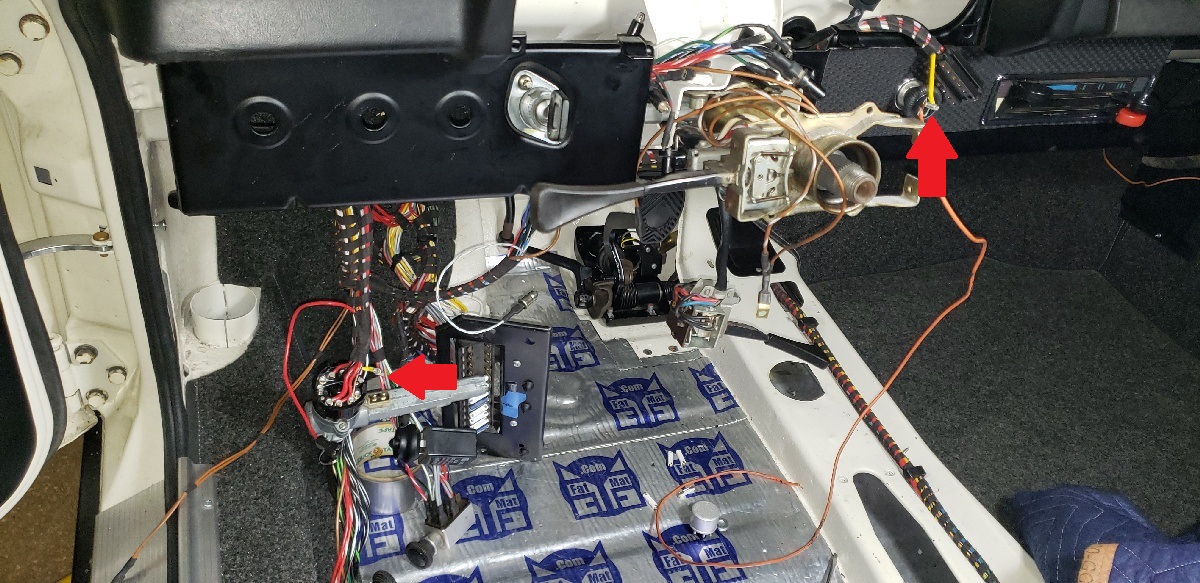

Just need to swap these 2 wire ends
(IMG:style_emoticons/default/confused24.gif)

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Luke M
post May 19 2020, 07:38 AM
Post #335


Senior Member
***

Group: Members
Posts: 1,394
Joined: 8-February 05
From: WNY
Member No.: 3,574
Region Association: North East States
Hi Glenn,

I'm glad you figured out the issue. When was your harness made?
I hope that my new Kroon harness doesn't have this issue.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
gms
post May 19 2020, 07:42 AM
Post #336


Advanced Member
****

Group: Members
Posts: 2,706
Joined: 12-March 04
From: Chicagoland
Member No.: 1,785
Region Association: Upper MidWest
QUOTE(Luke M @ May 19 2020, 08:38 AM) *

Hi Glenn,

I'm glad you figured out the issue. When was your harness made?
I hope that my new Kroon harness doesn't have this issue.

@Luke M I can walk you thru a check of your harness
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Luke M
post May 19 2020, 08:10 AM
Post #337


Senior Member
***

Group: Members
Posts: 1,394
Joined: 8-February 05
From: WNY
Member No.: 3,574
Region Association: North East States
QUOTE(gms @ May 19 2020, 06:42 AM) *

QUOTE(Luke M @ May 19 2020, 08:38 AM) *

Hi Glenn,

I'm glad you figured out the issue. When was your harness made?
I hope that my new Kroon harness doesn't have this issue.

@Luke M I can walk you thru a check of your harness


Sounds good. I'll send you a pm.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
gms
post May 19 2020, 08:37 AM
Post #338


Advanced Member
****

Group: Members
Posts: 2,706
Joined: 12-March 04
From: Chicagoland
Member No.: 1,785
Region Association: Upper MidWest

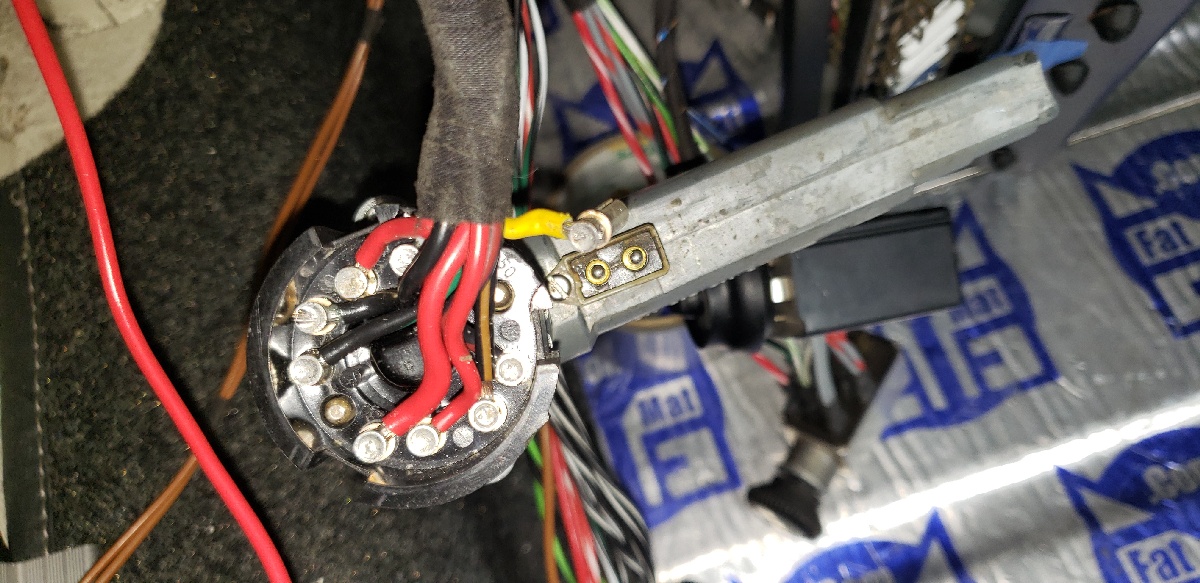

Ignition Switch #50
Attached Image

Turn Signal 12 pin connector
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Bartlett 914
post May 19 2020, 09:17 AM
Post #339


Advanced Member
****

Group: Members
Posts: 2,216
Joined: 30-August 05
From: South Elgin IL
Member No.: 4,707
Region Association: Upper MidWest
I would add that when you turned on the lights. The starter would engage. Real fun!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
gms
post May 21 2020, 01:16 PM
Post #340


Advanced Member
****

Group: Members
Posts: 2,706
Joined: 12-March 04
From: Chicagoland
Member No.: 1,785
Region Association: Upper MidWest

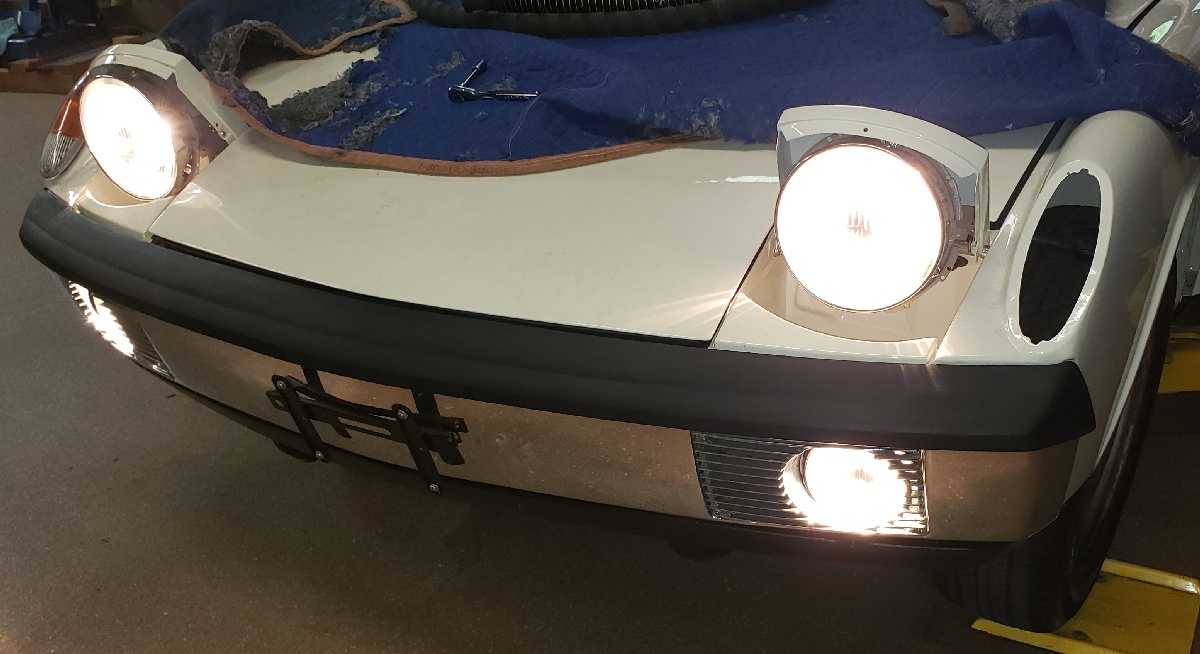

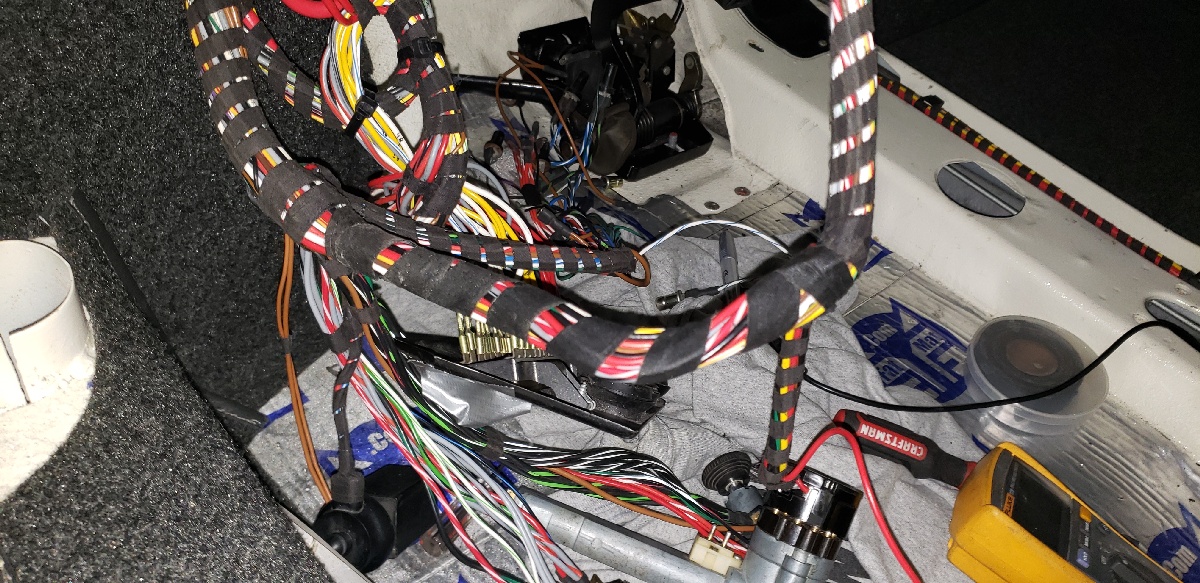

@Bartlett 914 and I got after the wiring fix last night, headlights work and starter only work when ignition switch is in "START" position. Tracking down the horn issue and then wiring in fog light switch because they setup to run only when high beams are on.

Attached Image
